GHARiENi MLK Physio User manual

Instruction Manual
Treatment Table MLK Physio

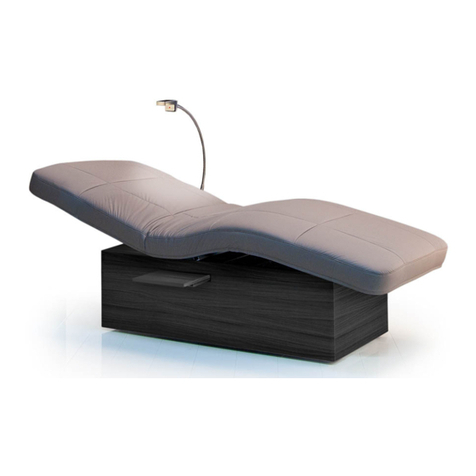

Fig. similar: colour and equipment may vary depending on model.
Gharieni Group GmbH
Am Schürmannshütt 24
D - 47441 Moers
➢Phone:
+49 (0)2841/88300-0
➢Fax:
+49 (0)2841/88300-999
➢Customer service hotline:
+49 (0)2841/88300-40
➢E-mail:
[e-mail]
➢Web:
www.gharieni.com
Empty field for entering the SERIAL NUMBER.

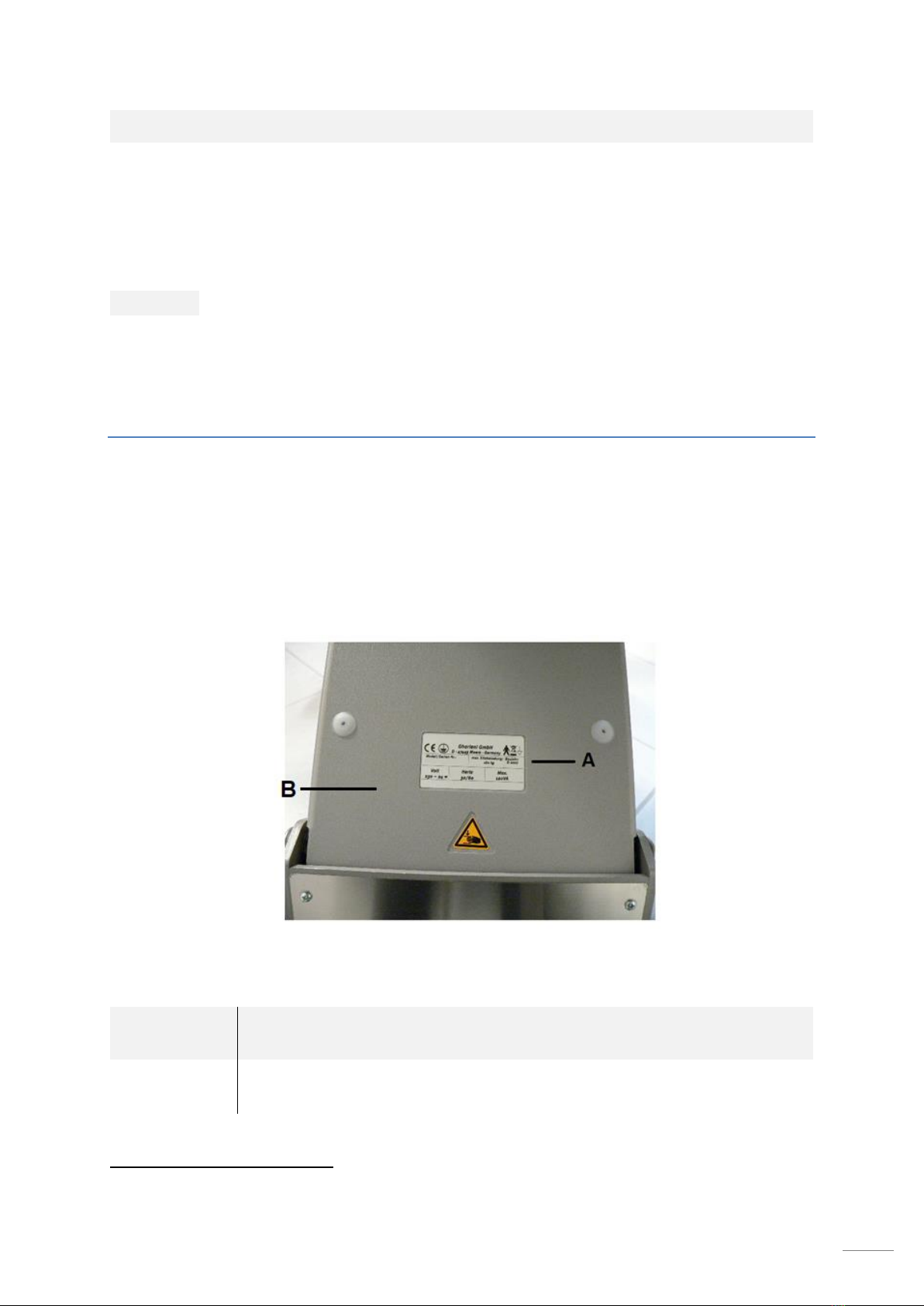

The serial number of the MLK Physio is on the
rating plate (s. chapter 7. RATING PLATE).

2
PREFACE
Dear Customer,
we would like to thank you for purchasing this quality-product as well as for your
confidence. Read the complete IM before you use the MLK Physio for the first
time. Reading the complete IM is essential for its proper and confident use and will
help you to operate the MLK Physio to your entire satisfaction. Our MLK Physio is
very robust and has a long operating life if it is operated properly.
Read the instructions very carefully and operate the MLK Physio in its
intended use as described only to protect you and your customers from
danger. Keep the IM handy and near of the MLK Physio.
MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING
THE MLK PHYSIO AND MAKE SURE THAT IT HAS BEEN READ AND
UNDERSTOOD PRIOR TO USING THE TREATMENT TABLE.
WARNING! Failure to follow these instructions endangers the
operator`s health and life and / or can damage the MLK Physio.
Index
1. Safety information..............................................................................................................4
1.1 Abbreviations ................................................................................................................5
1.2 Signal words...................................................................................................................5
1.3 Safety instructions ........................................................................................................5
2. Intended use......................................................................................................................10
3. Scope of delivery ..............................................................................................................10
4. Preliminary remarks .........................................................................................................10
5. Delivery and unpacking...................................................................................................11
5.1 Unpacking....................................................................................................................11
6. Transport, space requirement and assembly ...............................................................11
6.1 Transport......................................................................................................................11
6.2 Space requirement ......................................................................................................12
6.3 Assembly ......................................................................................................................12
7. Rating plate........................................................................................................................13

3
8. Upholstery..........................................................................................................................14
9. Operation...........................................................................................................................14
9.1 Characteristics .............................................................................................................15
9.2 Numbers of actuators................................................................................................15
9.3 Before initial use .........................................................................................................16
9.4 View ..............................................................................................................................16
10. Pneumatic adjustments .................................................................................................17
10.1 Gas pressure springs ................................................................................................17
10.2 Adjustment of the headrest ....................................................................................18

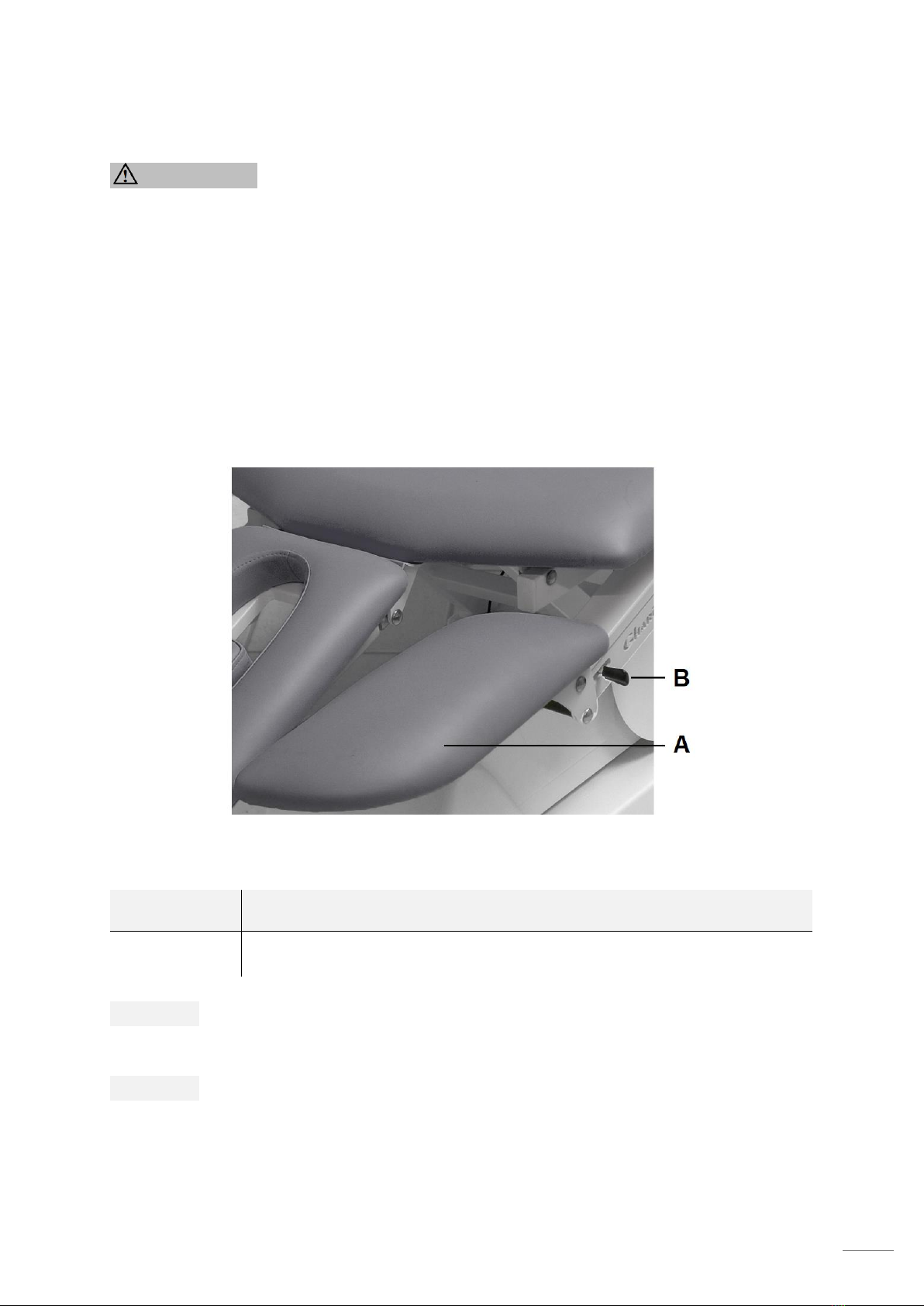

10.3 Adjustment of the armrests....................................................................................19
11. Electrical adjustments....................................................................................................20
11.1 Manual control panel (MCP)..................................................................................20
11.2 Adjustment of the work height..............................................................................21
11.3 Adjustment of the two-part lying surface............................................................22
12. Foot control panel (optional equipment) ..................................................................23
13. Heating system Smart Thermo 3 (optional equipment) .........................................24
13.1 Operation...................................................................................................................25
14. Cleaning and maintenance............................................................................................30
14.1 Cleaning and care of the surface of the upholstery ...........................................31
14.2 Cleaning of the housing and of the fittings.........................................................31
15. Malfunctions (possible causes and troubleshooting)...............................................31
15.1 Repair..........................................................................................................................32
16. Optionally available accessories...................................................................................33
16.1 Castor set ...................................................................................................................33
16.2 Oro® Synthetic Leather Cleaner...........................................................................33
16.3 Neck rest "Dentalax"...............................................................................................34
16.4 Protective covers ......................................................................................................34
17. Conditions of transport, storage and operation .......................................................35
17.1 Transport ...................................................................................................................35
17.2 Ambient conditions for storing and transport....................................................35
17.3 Ambient conditions for operation ........................................................................35

4
18. Technical data .................................................................................................................36
19. Waste management ........................................................................................................37
20. Guarantee provisions.....................................................................................................38
20.1 Guarantee period......................................................................................................38
20.2 Guarantee exclusion.................................................................................................38
21. EC-Declaration Of Conformity ..................................................................................39
22. Status of edition..............................................................................................................40
Do not dispose of the MLK Physio together with your domestic
waste. The treatment table must be disposed of at a collecting centre
for recyclable electric and electronic appliances. Do not remove the
symbol from the MLK Physio.
1. Safety information
When using electrical products / appliances, especially when children are present,
basic safety precautions should always be followed, including the following:
READ THE COMPLETE SAFETY INFORMATION AND SAFETY
INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE MLK
PHYSIO THE FIRST TIME.
➢All information included in those pages serve for the protection of the
operator. If you ignore the safety information and safety instructions, you
will endanger your health and life and as the health and life of your clients.
➢MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE
USING THE GHARIENI TREATMENT TABLE MLK PHYSIO AND
MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR
TO USING THE TREATMENT TABLE.
➢This instruction manual is an integral part of the product and must be carefully
kept in a safe place in order to consult it throughout the equipment service life.
Copies of this instruction manual are available upon request.
➢The Gharieni Group GmbH shall not be held responsible for any damages, direct
or indirect, caused to people, animals or objects resulting from negligence or non-
compliance with the instructions contained herein.
➢Before you dispose of a treatment table or any old appliance, render it
inoperative. Unplug the treatment table / appliance and cut off the entire power
cord. Dispose of the power cord and the plug immediately.

5
Store this manual in a safe place so you can use it whenever it is needed.
Strictly observe the instructions to avoid damage to persons and
property.
1.1 Abbreviations
MLK Physio
➢GHARIENI TREATMENT TABLE MLK Physio
MCP
➢MANUAL CONTROL PANEL

➢Operating advice
1.2 Signal words
DANGER! indicates a hazardous
situation which, if ignored, will result in
death or serious injury.
WARNING! indicates a hazardous
situation which, if ignored, could result
in death or serious injury.
CAUTION! indicates a hazardous
situation which, if not avoided, may
result in minor or moderate injury.
NOTICE! indicates possible damage to
the treatment table / appliance.
1.3 Safety instructions
DANGER
To reduce the risk of electrocution:
1. Non-compliance of the orders of this instruction manual will endanger
the life and health of the operator and / or can result in damages to
the MLK Physio.
2. All electrical work to connect the MLK Physio to the mains must be
carried out by a qualified professional. Do not modify the energy
supply. The connection must be carried out in accordance with the
current local and legal regulations. RISK OF ELECTRIC SHOCK!
3. The technical data of your energy supplier must meet the data on
the model plate of the MLK Physio.
4. Do not modify the plug provided with the MLK Physio, if it will not fit
the outlet, have a proper outlet installed by a qualified electrician (not
covered by the guarantee).

6
5. Do not connect the MLK Physio to the mains if the treatment table
itself or the power cable or the plug are visibly damaged. RISK OF
ELECTRIC SHOCK!
6. The power supply cable shall not be placed below the MLK Physio,
except it is expressly permitted by the manufacturer. RISK OF
ELECTRIC SHOCK!
7. The power cord must not be placed near the movable parts of the
MLK Physio during connection or repositioning as it can be damaged
while operating the actuators. RISK OF ELECTRIC SHOCK!
8. Never roll
1
the MLK Physio over the power cord; otherwise you can
damage the power cord permanently.
9. Never try to repair the MLK Physio yourself. If the MLK Physio does
not operate properly, please contact the manufacturer or the shop
you purchased the treatment table at. Original spare parts should be
used only.
10.When the power cable and / or the plug are damaged, it must be
replaced by the manufacturer or an authorized aftersales service or
a qualified professional only. Never try to repair or replace the power
cable and / or the plug yourself. RISK OF ELECTRIC SHOCK!
11.Always unplug the MLK Physio if it is not used for a longer period of
time.
12.Always disconnect the MLK Physio from the mains before cleaning
and / or maintenance. RIKS OF ELECTRIC SHOCK!
13.Never pull the power supply cable to unplug the MLK Physio. Always
use the power plug itself to unplug the treatment table. RISK OF
ELECTRIC SHOCK!
14.Never touch power plugs, power switches or other electrical
components with wet or damp hands. RISK OF ELECTRIC SHOCK!
15.Do not place or store the MLK Physio close to a bath, a shower or a
washbasin. There is danger that the MLK Physio may come into
contact with splashed water. RISK OF ELECTRIC SHOCK!
WARNING!
To reduce the risk of burns, electrocution, fire or injury to persons:
1. Use a properly-grounded socket with proper voltage (230 V AC) only.
2. The electric components must not come in contact with water.
RISK OF ELECTRIC SHOCK!
3. Check all cables regularly and contact our Customer Service
Department when any cable is in improper condition. RISK OF
ELECTRIC SHOCK!
1
Castors = optional accessories

7
4. The MLK Physio must not stand on the power cord. Ensure that the
cord is not damaged when moving the treatment table. Do not step
on the cord. Do not stretch the cord.
5. Always ensure that the power cord is not bent or squeezed during
installation.
6. Do not use any extension cords, multiple sockets or adapters. RISK
OF FIRE!
7. Do not open the housings of the electric control panels! RISK OF
ELECTRIC SHOCK!
8. Liquids must not get into the electric control panels! RISK OF
ELECTRIC SHOCK!
9. Do not use water or any other liquids while carrying out any
application. Do not spill water or any other liquids over, on or into the
MLK Physio. Should you spill any water, immediately pull the mains
plug and dry the MLK Physio thoroughly. RISK OF ELECTRIC
SHOCK!
10.Never immerse any parts of the MLK Physio in water.When cleaning
the MLK Physio, make sure that no water penetrates the MLK Physio
or its housing. RISK OF ELECTRIC SHOCK!
11.The cables of the models incl. the heating system Smart Thermo 3
2
are between the upholstery and the underframe (depending on
model). Removing of the upholstery must be carried out by
authorized professionals only!
12.Persons suffering from acute pain, venous disorders, low blood
pressure, inflammatory processes and other pathologies which
make heat-treatments or the positioning of the patient
inappropriate must consult the doctor before treatment.
13.Persons who are treated on the MLK Physio must not be under
the influence of intoxicating substances (e.g. alcohol, drugs or
medicine).
14.Operate or store the MLK Physio in a dry environment only.
15.Close supervision is necessary when the MLK Physio is used by, on,
or near children or invalids.
16.Use the MLK Physio only for its intended use as described in this
manual. Do not use attachments / accessories not recommended by
the manufacturer.
17.Never operate the MLK Physio if it has a damaged cord or plug, if it
is not working properly, if it has been damaged or if it has become
wet. Return the MLK Physio to an authorized aftersales service for
examination and repair.
18.Remove possible dust accumulation at the power plug, at the safety
power socket and at all plug connectors regularly. RISK OF FIRE!
2
Optional equipment

8
19.Keep the cord away from heated surfaces.
20.Never drop or insert any object into any opening.
21.Do not use the MLK Physio outdoors.
22.Do not allow any unauthorized person to operate the MLK Physio!
23.Use the MLK Physio only on a level surface.
24.Do not place any objects or liquids on the MLK Physio. The
treatment table as well as the material can be damaged thereby.
RISK OF ELECTRIC SHOCK! RISK OF DAMAGE!
25.Any repairs and maintenance work must be carried out by qualified
professionals authorized by the Gharieni Group GmbH only! RISK
OF ELECTRIC SHOCK! RISK OF FIRE!
26.Do not use a steam cleaner for cleaning. RISK OF ELECTRIC
SHOCK!
27.Never rest or stand on any part of the lying surface or of the
supporting structure of the MLK Physio. Do not exert strong physical
forces on these components; otherwise you can damage the
supporting structure permanently. RISK OF TIPPING! RISK OF
BREAKAGE! RISK OF INJURY!
28.The SPLINE - FUNCTION does not protect from injuries. It is essential
that no parts of the body or items are between the parts of the MLK
Physio while adjusting the lying position. RISK OF CRUSHING! RISK
OF INJURY!
29.Persons, animals, objects or body parts of persons and animals
must not be positioned between the base and the upper structure.
RISK OF CRUSHING!
30.Persons, animals, objects or body parts of persons and animals
must not be positioned under the parallelogram (s. fig. below). RISK
OF CRUSHING!
31.Always ensure that no parts of the body or items are between the
parts of the MLK Physio while adjusting the lying position. RISK OF
CRUSHING!
32.Do not use the supporting structure as a foot rest. RISK OF
CRUSHING!

9
33.If the MLK Physio is equipped with castors
3
, always ensure that the
brakes of the castors are tightened properly. If the castors are not
tightened properly, there is a RISK OF ROLLING AWAY!
34.Do not move the MLK Physio on its castors
4
if any person or load is
on the MLK Physio; otherwise you damage the construction /
substructure or the castors of the MLK Physio. RISK OF INJURY!
RISK OF DAMAGE!
35.The MLK Physio must never be used (neither with nor without
castors
5
) for the carrying or transporting of persons or heavy loads.
RISK OF INJURY! RISK OF DAMAGE!
36.While unpacking, the packaging materials (polythene bags,
polystyrene pieces, etc.) should be kept away from children and pets.
RISK OF INJURY! CHOKING HAZARD!
37.Always keep children and pets away from the MLK Physio.
38.Children mustnot play with the MLK Physio or its single components.
39.The MLK Physio is not intended to be operated by persons with
reduced physical, sensory and mental capabilities or lack of
experience or knowledge, unless they are supervised or instructed
concerning the use of the treatment table and do understand the
danger resulting thereof.
NOTICE!
1. For safety reasons, the MLK Physio moves only while pressing a key
of the manual control panel. When you stop pressing, all moving-
operation will stop immediately.
2. Never rest, stand or kneel on any part of the lying surface of the MLK
Physio. Do not exert strong physical forces on the lying surface;
otherwise you can damage the upholstery permanently. RISK OF
DAMAGE!
3. Do not lean, stand or sit on the armrests or headrest; otherwise you
can damage the armrests or headrest permanently! RISK OF
DAMAGE!
4. The maximum loading capacity of the armrests is 25 kg.
5. The rating plate must not be removed or made illegible.
Noncompliance will expire the guarantee!
SAVE THESE INSTRUCTIONS.
3
Optional accessories
4
Optional accessories
5
Optional accessories

10
2. Intended use
Read the instructions very carefully and only operate the treatment table in its
intended use as described to protect you and your customers from danger:
❖The Gharieni treatment table MLK Physio is not a medical device relevant to the
medical products law (German: MPG).
❖The MLK Physio is a treatment table which is suitable for all body treatments
(massages, etc.) and especially for physiotherapeutic purposes. No other use is
permitted: it will affect your guarantee rights.
❖The MLK Physio is intended for indoor use only.
The manufacturer and distributor are not responsible for any damage or
injury in the event of failure to comply with these instructions.
3. Scope of delivery
➢1 TREATMENT TABLE MLK Physio in desired design and equipment incl. rating
plate.
➢1 MANUAL CONTROL PANEL (MCP)
➢1 INSTRUCTION MANUAL
If you have purchased optional accessories for your treatment table, these are also
included in the scope of delivery.
4. Preliminary remarks
❖The Gharieni treatment table MLK Physio is subject to the highest safety and
quality standards.
❖Before initial operation, please check that all components are present and that
they are not visible damaged.
❖The dedicated safety socket must be grounded properly and must meet the proper
voltage.


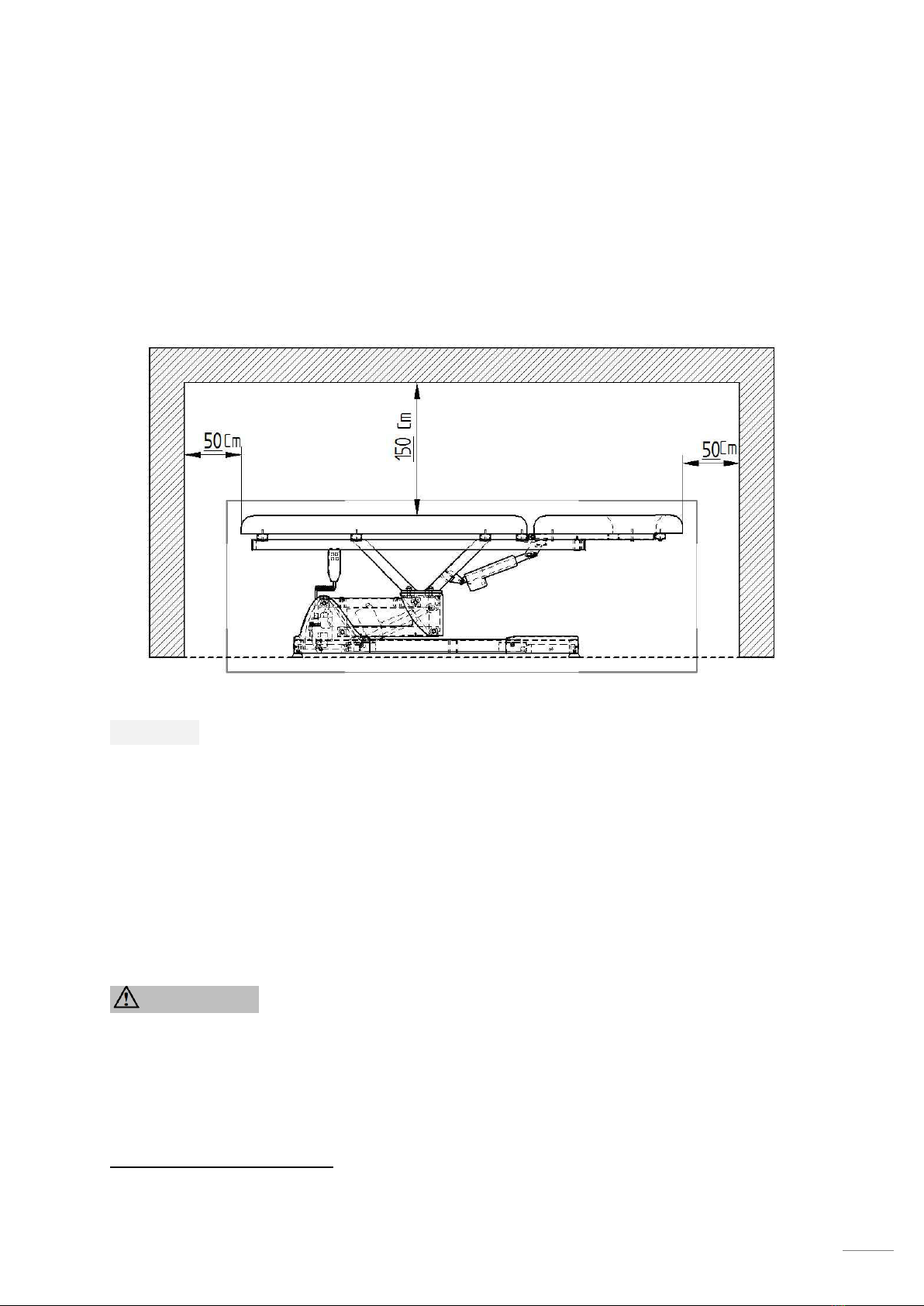

Ensure that there is sufficient free space for the MLK Physio
relevant to its total length.
