GHARiENi SPL med 4 User manual

Instruction Manual
Treatment Table SPL med 4 / SPL med 5
SPL med 4
SPL med 5

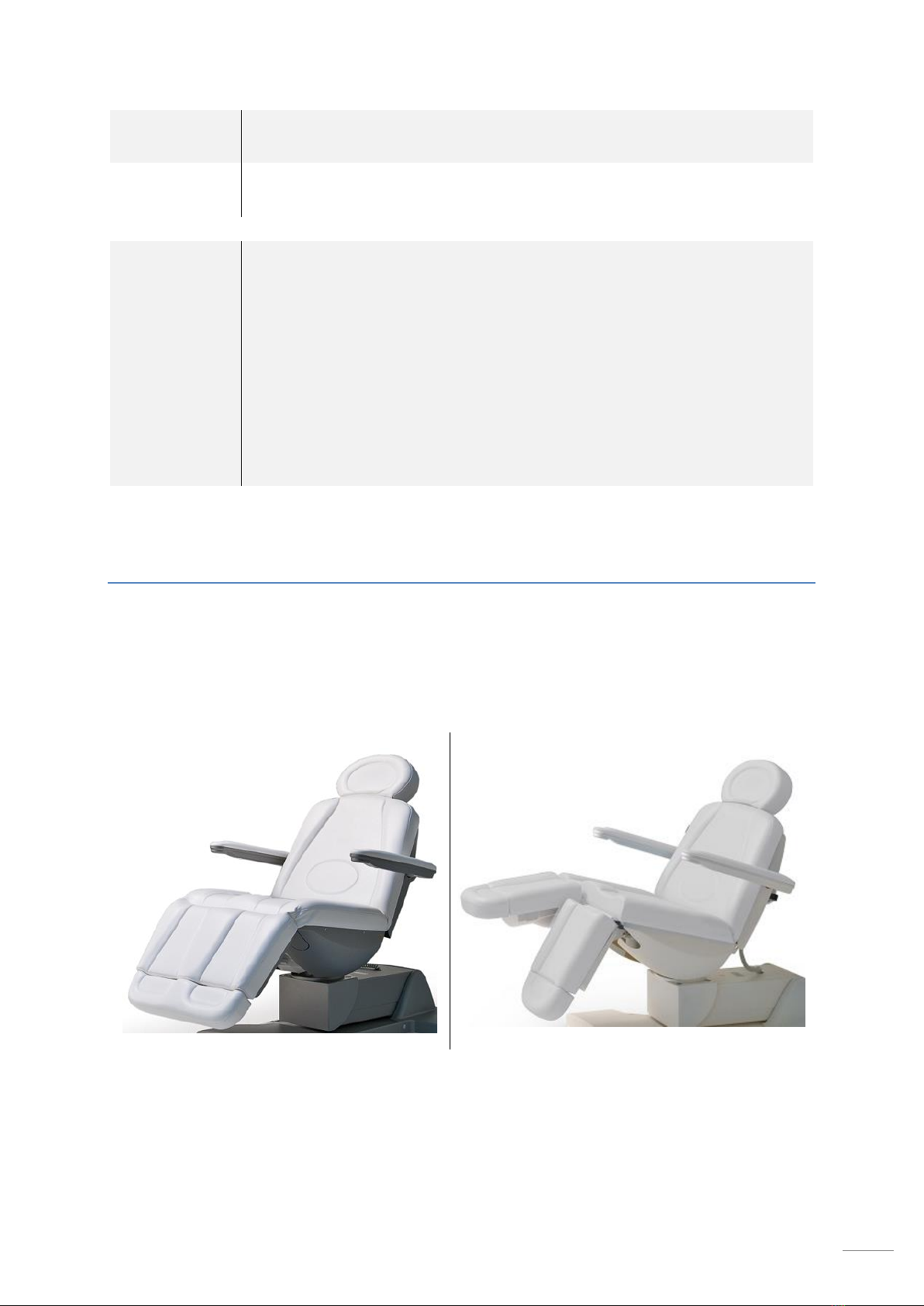

Fig. similar: colour and equipment may vary depending on model.
Gharieni Group GmbH
Am Schürmannshütt 24
D - 47441 Moers
➢Phone:
+49 (0)2841/88300-0
➢Fax:
+49 (0)2841/88300-999
➢Customer service hotline:
+49 (0)2841/88300-40
➢E-mail:
[e-mail]
➢Web:
www.gharieni.com
Empty field for entering the SERIAL NUMBER.
The serial number of the SPL med 4 / 5 is on the
rating plate (s. chapter 7. RATING PLATE).

2
ABBREVIATIONS:
SPL med 4 and SPL med 5:
→in the instruction manual also referred to generally as
SPL med.
PREFACE
Dear Customer,
we would like to thank you for purchasing this quality-product as well as for your
confidence. Read the complete IM before you use the SPL med for the first
time. Reading the complete IM is essential for its proper and confident use and will
help you to operate the SPL med to your entire satisfaction. Our SPL med is very
robust and has a long operating life if it is operated properly.
Read the instructions very carefully and operate the SPL med in its intended
use as described only to protect you and your customers from danger. Keep
the IM handy and near of the SPL med.
MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING
THE SPL MED AND MAKE SURE THAT IT HAS BEEN READ AND
UNDERSTOOD PRIOR TO USING THE TREATMENT TABLE.
WARNING! Failure to follow these instructions endangers the
operator`s health and life and / or can damage the SPL med.
Index
1. Safety information..............................................................................................................5
1.1 Abbreviations ................................................................................................................5
1.2 Signal words...................................................................................................................6
1.3 Safety instructions ........................................................................................................6
2. Intended use......................................................................................................................10
3. Scope of delivery ..............................................................................................................11
4. Preliminary remarks .........................................................................................................11
5. Delivery and unpacking...................................................................................................11
5.1 Delivery ........................................................................................................................11
5.2 Unpacking....................................................................................................................12
6. Transport, space requirement and assembly ...............................................................12

3
6.1 Transport......................................................................................................................12
6.2 Space requirement ......................................................................................................12
6.3 Assembly ......................................................................................................................13
7. Rating plate........................................................................................................................13
8. Upholstery..........................................................................................................................14
9. Operation...........................................................................................................................15
9.1 Characteristics .............................................................................................................15
9.2 Model versions / Numbers of actuators................................................................15
9.2.1 SPL med 4.............................................................................................................16
9.2.2 SPL med 5.............................................................................................................16
9.3 Before initial use .........................................................................................................16
9.4 View (example: SPL med 4) .....................................................................................17
9.4.1 Headrest.................................................................................................................18
9.4.2 Armrests ................................................................................................................19
9.4.3 Leg sections ..........................................................................................................19
10. Adjustments of the SPL med.......................................................................................20
10.1 Manual control panel (MCP)..................................................................................20
10.1.1 Manual control panel of the SPL med 4 .......................................................22
10.1.2 Manual control panel of the SPL med 5 .......................................................24
10.1.3 Locking function: key lock button of the MCP of the SPL med 4..........26
10.1.4 Locking function: key lock button of the MCP of the SPL med 5..........26
10.1.5 Memory functions of the MCP of the SPL med 4......................................27
10.1.6 Memory functions of the MCP of the SPL med 5......................................28
10.2 Adjustment of the work height..............................................................................29
10.3 Adjustment of the backrest ....................................................................................29
10.4 Adjustment of the seat inclination ........................................................................30
10.5 Adjustment of the leg section / leg sections.......................................................30
10.5.1 Leg section of the SPL med 4.........................................................................30
10.5.2 Leg sections of the SPL med 5 .......................................................................31
10.5.3 Footrest(s)...........................................................................................................31
11. Rotunda (optional equipment).....................................................................................32

4
12. Initialisation of the software ........................................................................................32
13. Cleaning and maintenance............................................................................................34
13.1 Cleaning and care of the surface of the upholstery ...........................................35
13.2 Cleaning of the housing and of the fittings.........................................................35
14. Malfunctions (possible causes and troubleshooting)...............................................35
14.1 Repair..........................................................................................................................36
15. Optionally available accessories...................................................................................37
15.1 Castor set ...................................................................................................................37
15.2 Oro® Synthetic Leather Cleaner...........................................................................37
15.3 XL widening..............................................................................................................38
15.4 Multifunctional mounting for removable headrests ..........................................38
15.4.1 Crescent headrest...............................................................................................38
15.4.2 U-shaped headrest.............................................................................................39
15.5 Neck rest "Dentalax"...............................................................................................39
15.6 Protective covers for treatment tables..................................................................40
16. Conditions of transport, storage and operation .......................................................41
16.1 Transport ...................................................................................................................41
16.2 Ambient conditions for storing and transport....................................................41
16.3 Ambient conditions for operation ........................................................................41
17. Technical data .................................................................................................................42
18. Waste management ........................................................................................................43
19. Guarantee provisions.....................................................................................................44
19.1 Guarantee period......................................................................................................44
19.2 Guarantee exclusion.................................................................................................44
20. EC-Declaration Of Conformity ..................................................................................45
21. Status of edition..............................................................................................................46
Do not dispose of the SPL med together with your domestic waste.
The treatment table must be disposed of at a collecting centre for
recyclable electric and electronic appliances. Do not remove the
symbol from the SPL med.

5
1. Safety information
When using electrical products / appliances, especially when children are present,
basic safety precautions should always be followed, including the following:
READ THE COMPLETE SAFETY INFORMATION AND SAFETY
INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE
SPL MED THE FIRST TIME.
➢All information included in those pages serve for the protection of the
operator. If you ignore the safety information and safety instructions, you
will endanger your health and life and as the health and life of your clients.
➢MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE
USING THE GHARIENI TREATMENT TABLE SPL MED AND MAKE
SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO
USING THE TREATMENT TABLE.
➢This instruction manual is an integral part of the product and must be carefully
kept in a safe place in order to consult it throughout the equipment service life.
Copies of this instruction manual are available upon request.
➢The Gharieni Group GmbH shall not be held responsible for any damages, direct
or indirect, caused to people, animals or objects resulting from negligence or non-
compliance with the instructions contained herein.
➢Before you dispose of a treatment table or any old appliance, render it
inoperative. Unplug the treatment table / appliance and cut off the entire power
cord. Dispose of the power cord and the plug immediately.
Store this manual in a safe place so you can use it whenever it is needed.
Strictly observe the instructions to avoid damage to persons and
property.
1.1 Abbreviations
SPL med 4 / SPL med 5
➢In the instruction manual also referred to generally
as SPL med.
MANUAL CONTROL PANEL
➢MCP

➢Operating advice

6
1.2 Signal words
DANGER! indicates a hazardous
situation which, if ignored, will result in
death or serious injury.
WARNING! indicates a hazardous
situation which, if ignored, could result
in death or serious injury.
CAUTION! indicates a hazardous
situation which, if not avoided, may
result in minor or moderate injury.
NOTICE! indicates possible damage to
the treatment table / appliance.
1.3 Safety instructions
DANGER
To reduce the risk of electrocution:
1. Non-compliance of the orders of this instruction manual will endanger
the life and health of the operator and / or can result in damages to
the SPL med.
2. All electrical work to connect the SPL med to the mains must be
carried out by a qualified professional. Do not modify the energy
supply. The connection must be carried out in accordance with the
current local and legal regulations. RISK OF ELECTRIC SHOCK!
3. The technical data of your energy supplier must meet the data on
the model plate of the SPL med.
4. Do not modify the plug provided with the SPL med, if it will not fit the
outlet, have a proper outlet installed by a qualified electrician (not
covered by the guarantee).
5. Do not connect the SPL med to the mains if the treatment table itself
or the power cable or the plug are visibly damaged. RISK OF
ELECTRIC SHOCK!
6. The power supply cable shall not be placed below the SPL med,
except it is expressly permitted by the manufacturer. RISK OF
ELECTRIC SHOCK!
7. The power cord must not be placed near the movable parts of the
SPL med during connection or repositioning as it can be damaged
while operating the actuators. RISK OF ELECTRIC SHOCK!
8. Never roll
1
the SPL med over the power cord; otherwise you can
damage the power cord permanently.
9. Never try to repair the SPL med yourself. If the SPL med does not
operate properly, please contact the manufacturer or the shop you
1
Castors = optional accessories

7
purchased the treatment table at. Original spare parts should be used
only.
10.When the power cable and / or the plug are damaged, it must be
replaced by the manufacturer or an authorized aftersales service or
a qualified professional only. Never try to repair or replace the power
cable and / or the plug yourself. RISK OF ELECTRIC SHOCK!
11.Always unplug the SPL med if it is not used for a longer period of
time.
12.Always disconnect the SPL med from the mains before cleaning and
/ or maintenance. RIKS OF ELECTRIC SHOCK!
13.Never pull the power supply cable to unplug the SPL med. Always
use the power plug itself to unplug the treatment table. RISK OF
ELECTRIC SHOCK!
14.Never touch power plugs, power switches or other electrical
components with wet or damp hands. RISK OF ELECTRIC SHOCK!
15.Do not place or store the SPL med close to a bath, a shower or a
washbasin. There is danger that the SPL med maycome into contact
with splashed water. RISK OF ELECTRIC SHOCK!
WARNING!
To reduce the risk of burns, electrocution, fire or injury to persons:
1. Use a properly-grounded socket with proper voltage (230 V AC) only.
2. The electric components must not come in contact with water.
RISK OF ELECTRIC SHOCK!
3. Check all cables regularly and contact our Customer Service
Department when any cable is in improper condition. RISK OF
ELECTRIC SHOCK!
4. The SPL med must not stand on the power cord. Ensure that the cord
is not damaged when moving the treatment table. Do not step on the
cord. Do not stretch the cord.
5. Always ensure that the power cord is not bent or squeezed during
installation.
6. Do not use any extension cords, multiple sockets or adapters. RISK
OF FIRE!
7. Do not open the housings of the electric control panels! RISK OF
ELECTRIC SHOCK!
8. Liquids must not get into the electric control panels! RISK OF
ELECTRIC SHOCK!
9. Do not use water or any other liquids while carrying out any
application. Do not spill water or any other liquids over, on or into the
SPL med. Should you spill any water, immediately pull the mains
plug and dry the SPL med thoroughly. RISK OF ELECTRIC SHOCK!

8
10.Never immerse any parts of the SPL med in water. When cleaning
the SPL med, make sure that no water penetrates the SPL med or
its housing. RISK OF ELECTRIC SHOCK!
11.Persons suffering from acute pain, venous disorders, low blood
pressure, inflammatory processes and other pathologies which
make the positioning of the patient inappropriate must consult
the doctor before treatment.
12.Persons who are treated on the SPL med must not be under the
influence of intoxicating substances (e.g. alcohol, drugs or
medicine).
13.Operate or store the SPL med in a dry environment only.
14.Close supervision is necessary when the SPL med is used by, on,
or near children or invalids.
15.Use the SPL med only for its intended use as described in this
manual. Do not use attachments / accessories not recommended by
the manufacturer.
16.Never operate the SPL med if it has a damaged cord or plug, if it is
not working properly, if it has been damaged or if it has become wet.
Return the SPL med to an authorized aftersales service for
examination and repair.
17.Remove possible dust accumulation at the power plug, at the safety
power socket and at all plug connectors regularly. RISK OF FIRE!
18.Keep the cord away from heated surfaces.
19.Never drop or insert any object into any opening.
20.Do not use the SPL med outdoors.
21.Do not allow any unauthorized person to operate the SPL med!
22.Use the SPL med only on a level surface.
23.Do not place any objects or liquids on the SPL med. The treatment
table as well as the material can be damaged thereby. RISK OF
ELECTRIC SHOCK! RISK OF DAMAGE!
24.Any repairs and maintenance work must be carried out by qualified
professionals authorized by the Gharieni Group GmbH only! RISK
OF ELECTRIC SHOCK! RISK OF FIRE!
25.Do not use a steam cleaner for cleaning. RISK OF ELECTRIC
SHOCK!
26.Never rest or stand on any part of the lying / seating surface or of
the supporting structure of the SPL med. Do not exert strong physical
forces on these components; otherwise you can damage the
supporting structure permanently. RISK OF TIPPING! RISK OF
BREAKAGE! RISK OF INJURY!
27.The SPLINE - FUNCTION does not protect from injuries. It is essential
that no parts of the body or items are between the parts of the
SPL med while adjusting the lying position. RISK OF CRUSHING!
RISK OF INJURY!

9
28.Persons, animals, objects or body parts of persons and animals
must not be positioned between the base and the upper structure.
RISK OF CRUSHING!
29.Persons, animals, objects or body parts of persons and animals
must not be positioned under the parallelogram (s. fig. below). RISK
OF CRUSHING!
30.Always ensure that no parts of the body or items are between the
parts of the SPL med while adjusting the lying position. RISK OF
CRUSHING!
31.Do not use the supporting structure as a foot rest. RISK OF
CRUSHING!
32.If the SPL med is equipped with castors
2
, always ensure that the
brakes of the castors are tightened properly. If the castors are not
tightened properly, there is a RISK OF ROLLING AWAY!
33.Do not move the SPL med on its castors
3
if any person or load is on
the SPL med; otherwise you damage the construction / substructure
or the castors of the SPL med. RISK OF INJURY! RISK OF
DAMAGE!
34.The SPL med must never be used (neither with nor without castors
4
)
for the carrying or transporting of persons or heavy loads. RISK OF
INJURY! RISK OF DAMAGE!
35.While unpacking, the packaging materials (polythene bags,
polystyrene pieces, etc.) should be kept away from children and pets.
RISK OF INJURY! CHOKING HAZARD!
36.Always keep children and pets away from the SPL med.
37.Children must not play with the SPL med or its single components.
38.The SPL med is not intended to be operated by persons with
reduced physical, sensory and mental capabilities or lack of
experience or knowledge, unless they are supervised or instructed
concerning the use of the treatment table and do understand the
danger resulting thereof.
2
Optional accessories
3
Optional accessories
4
Optional accessories

10
NOTICE!
1. For safety reasons, the SPL med moves only while pressing a key
of the manual control panel. When you stop pressing, all moving-
operation will stop immediately.
2. Never rest, stand or kneel on any part of the lying / seating surface
of the SPL med. Do not exert strong physical forces on the
lying / seating surface; otherwise you can damage the upholstery
permanently. RISK OF DAMAGE!
3. Do not lean, stand or sit on the armrests or headrest; otherwise you
can damage the armrests or headrest permanently! RISK OF
DAMAGE!
4. The maximum loading capacity of the armrests is 25 kg.
5. To prevent unauthorized use of the SPL med, always activate the
locking function of the manual control panel (MCP) when leaving the
treatment room.
6. The rating plate must not be removed or made illegible.
Noncompliance will expire the guarantee!
SAVE THESE INSTRUCTIONS.
2. Intended use
Read the instructions very carefully and only operate the treatment table in its
intended use as described to protect you and your customers from danger.
❖The Gharieni SPL med is a medical device relevant to the medical products law
(German: MPG). It is suitable for medical use and thus complies with the
requirements of EN 60601-1.
❖The SPL med is a treatment table: it is suitable for medical use as well as for facial
treatments, hair removal, pedicure, podiatry and body treatments, etc. No other
use is permitted: it will affect your guarantee rights.
❖The SPL med is intended for indoor use only.
The manufacturer and distributor are not responsible for any damage or
injury in the event of failure to comply with these instructions.

11
3. Scope of delivery
➢1 TREATMENT TABLE SPL med 4 or SPL med 5 in desired design and equipment
incl. rating plate.
➢1 MANUAL CONTROL PANEL (MCP)
➢1 INSTRUCTION MANUAL
If you have purchased optional accessories for your treatment table, these are also
included in the scope of delivery.
4. Preliminary remarks
❖The Gharieni treatment table SPL med is subject to the highest safety and quality
standards.
❖Before initial operation, please check that all components are present and that
they are not visible damaged.
❖The dedicated safety socket must be grounded properly and must meet the proper
voltage.
5. Delivery and unpacking
5.1 Delivery
❖Before installation, ensure that there is sufficient free space for the SPL med
relevant to its total length.
❖In some countries, the SPL med is delivered in a cardboard (depending on
delivery). The leg section is folded by 900(see figure below).

12
5.2 Unpacking
WARNING! While unpacking, the packaging materials (polythene
bags, polystyrene pieces, etc.) should be kept away from children and
pets. CHOKING HAZARD! RISK OF INJURY!
PLEASE OBSERVE THE FOLLOWING INSTRUCTIONS WHEN THE SPL MED IS
DELIVERED IN A CARDBOARD:
➢Open the top of the packaging carefully. Do not use any sharp-edged items which
can damage the upholstery.
➢Do not lift the SPL med but remove the top packaging first. Then you can lift
and remove the outer packaging.
➢The headrest is in the same cardboard. The headrest has to be installed (see
chapter 9.4.1 HEADREST).
➢Carry the SPL med using its base / supporting structure only. Remove the
transport protection (2 safety straps / if equipped) before initial operation.
6. Transport, space requirement and assembly
6.1 Transport
❖Carry the SPL med by its base / supporting structure during transport only.
❖Never carry the SPL med by its lying / sitting surface or its armrests during
transport; otherwise you can damage the SPL med seriously.
A transport of the SPL med can be severely affected to some extent due to
unfavourable environment conditions. Such unfavourable environmental
conditions are e.g. narrow doors, narrow corners behind doors, narrow corridors,
narrow staircases, spiral staircases etc. The weight of the SPL med is at least 83
kg (without options). Please note that the manoeuvrability of the SPL med is thus
limited.
6.2 Space requirement
❖Before installation, ensure that there is sufficient free space for the SPL med
relevant to its total length.
➢Min. free space required for the SPL med: Length = min. 203.00 cm * Width =
min. 80.00 cm

13
NOTICE! When you have placed the SPL med in a suitable position
providing sufficient free space, remove the carrying supports
5
if necessary
and store them at a safe place for future use.
6.3 Assembly
❖The SPL med is easy to install and can be adapted to all human body
measurements. You can adjust the desired positions electrically in a very short
period of time and then focus entirely on your customer.
ADJUSTABLE FEET INCL.ADJUSTING SCREWS
❖Use the adjustable feet for proper levelling of the SPL med. The appliance must
stand in a stable and level position to ensure proper operation. The 4 adjustable
feet must stand firmly on the ground so that the SPL med does not wobble.
Adjust the adjustable feet accordingly using the adjusting screws.
NOTICE! If the floor is not level, you must ensure proper stability using
the adjusting screw
6
.
7. Rating plate
❖The rating plate is usually (subject to alterations) on the casing of the
parallelogram
7
(mechanism for the height adjustment) of the SPL med (s. fig.
below / see also fig. in chapter 9.4 VIEW).
❖Do not make the rating plate illegible! Do not remove the rating plate!
Noncompliance will expire the guarantee!
Fig. similar: fig. serves as an example only.
5
Depending on model
6
Depending on model
7
Depending on model

14

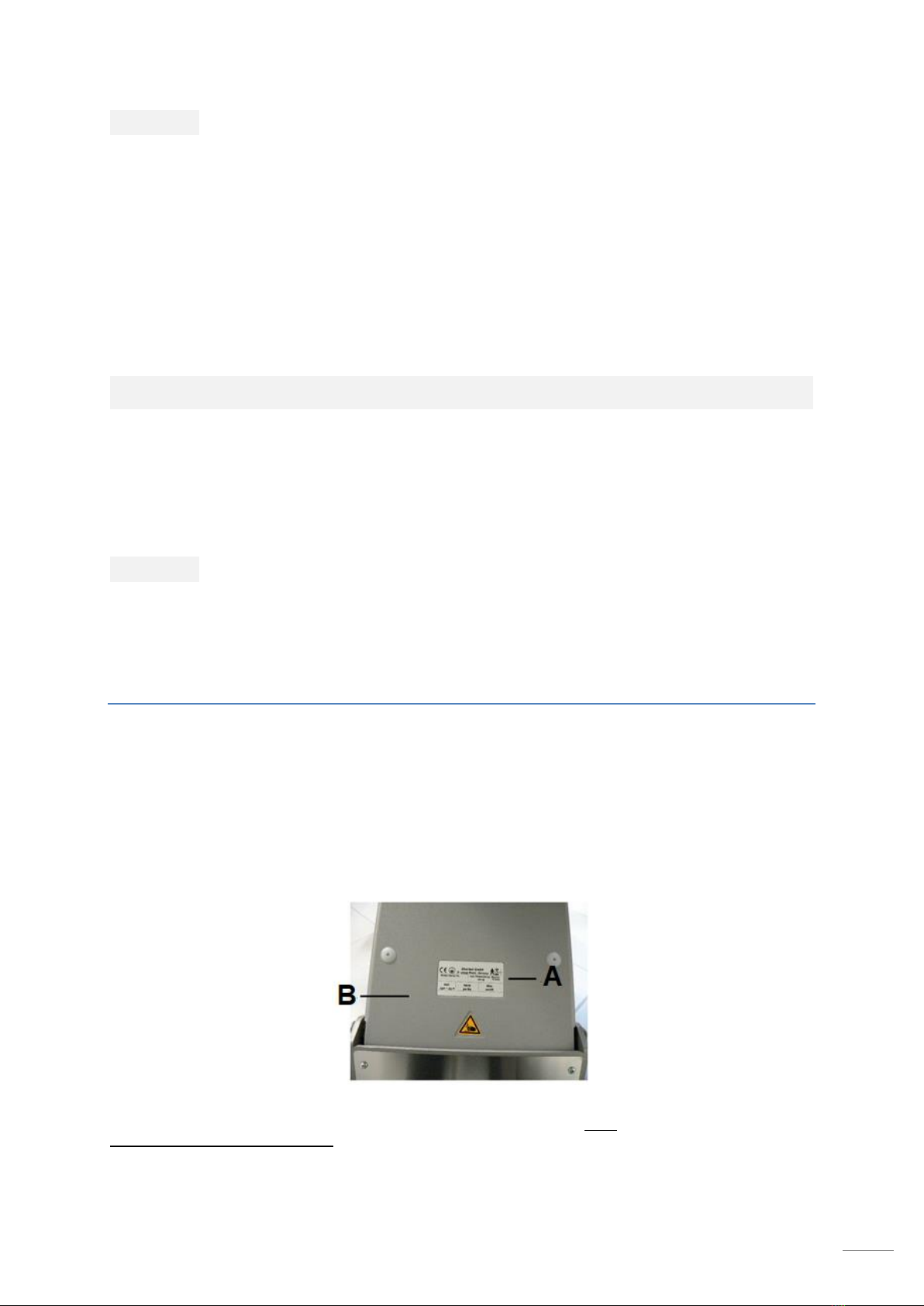

A
RATING PLATE
B
CASING OF THE PARALLELOGRAM (mechanism for the height
adjustment)

If you wish to contact the Gharieni customer service
regarding your treatment table, we recommend taking a
photo of the rating plate previously (e.g. using a mobile
phone or a digital camera). This makes it easier for you to
identify the information of the rating plate (e.g. the serial
number of the treatment table) in order to provide the
required information to the customer service.
On the cover page of this instruction manual is an empty field
in which you can enter the serial number of your treatment
table. So you have the serial number always at hand.
8. Upholstery
❖The SPL med is equipped with a comfortable and high-quality upholstery.
❖The inner material of the upholstery is made of high-quality foam material.
❖The surface is made of ARTIFICIAL LEATHER and available in many colours of one
of our two colour collections.

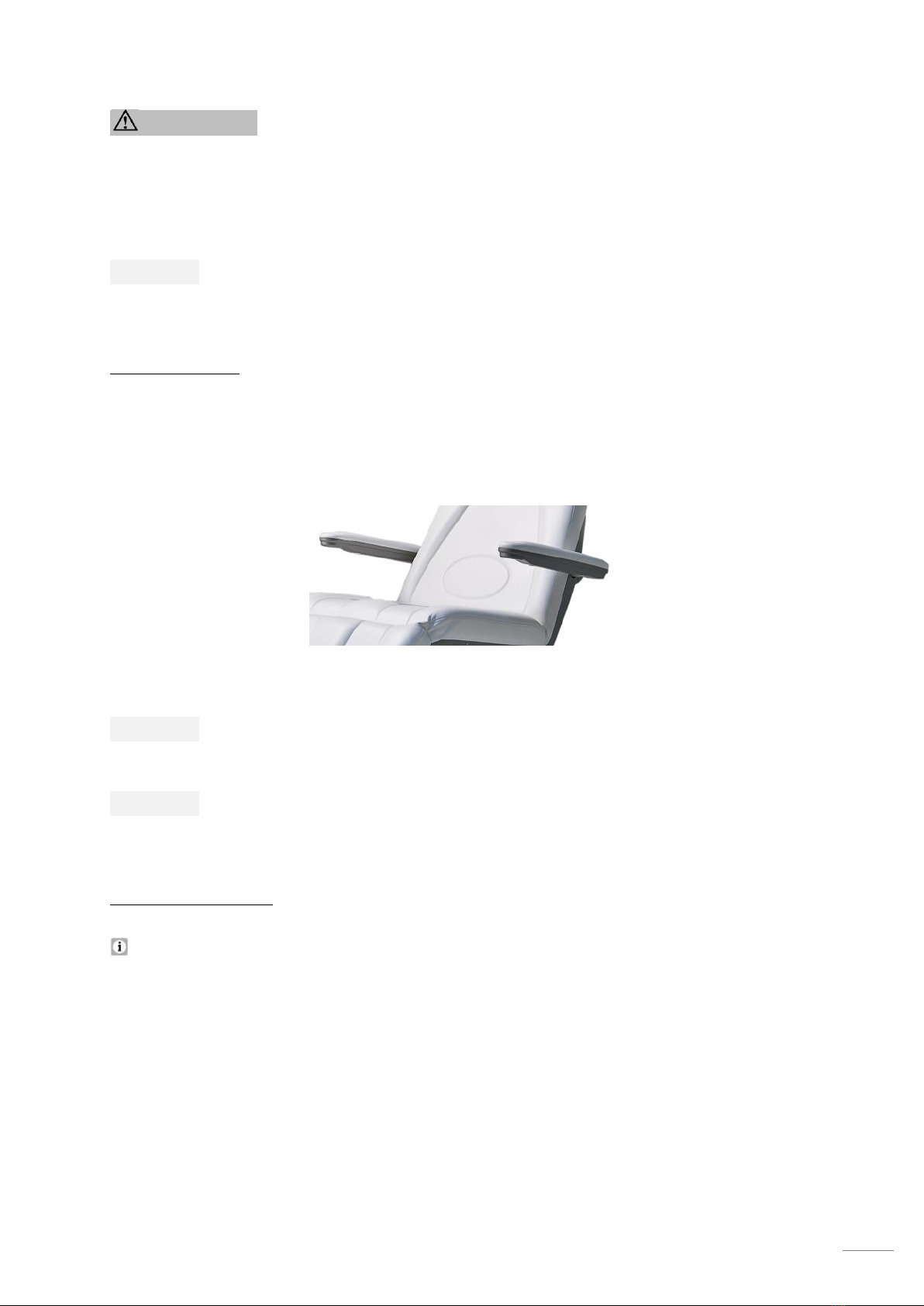

Fig. similar: colour and equipment may vary depending on model.

15
9. Operation
WARNING! Do not sit on the headrest and armrests.
WARNING! Do not carry out any physical force to the components
named before (instructions are not depending on the adjustment of the
lying / seating surface). Failure to do so can cause permanent damage to
the construction of the SPL med. RISK OF TIPPING! RISK OF
DISINTEGRATION! RISK OF INJURY!
9.1 Characteristics
❖The Gharieni SPL med is a treatment table which is either equipped with four or
five actuators, according to the desired model version; s. chapter 9.2 MODEL
VERSIONS /NUMBERS OF ACTUATORS. When operating these actuators, you can
easily adjust the desired positions electrically using the manual control panel.
❖The work height, the backrest, the seat inclination and the leg section(s) of the
SPL med can be adjusted electrically in all model versions; s. chapter 10.
ADJUSTMENTS OF THE SPL MED.
❖The headrest is manually-extendable.
❖The footrest is manually-extendable.
❖The maximum lifting capacity of the SPL med is 200.00 kg.
❖The maximum loading capacity of the lying / seating surface of the SPL med is
250.00 kg.
❖The maximum loading capacity of the armrests is 25.00 kg.
❖The high-quality comfort upholstery of the SPL med is equipped with a surface
made of artificial leather.
❖The entry height of the SPL med incl. rotunda (optional equipment) is approx.
+ 2 cm compared to a model version without rotunda.
9.2 Model versions / Numbers of actuators
❖The treatment tables of the Gharieni SPL med series can be equipped with four
or five actuators optionally, according to the desired model version. When
operating these actuators, you can easily adjust the desired positions electrically
using the manual control panel.
❖Work height, backrest, seat inclination and leg section(s) of the SPL med can be
adjusted electrically for all model versions.
➢See also chapter 10. ADJUSTMENTS OF THE SPL MED et seq.

16
9.2.1 SPL med 4
THE SPL MED 4IS EQUIPPED WITH FOUR ACTUATORS:
Actuator 1
Electrical adjustment of the WORK HEIGHT.
Actuator 2
Electrical adjustment of the BACKREST.
Actuator 3
Electrical adjustment of the SEAT INCLINATION.
Actuator 4
Electrical adjustment of the LEG SECTION
➢ All sections of the SPL med 4 can be adjusted electrically.
➢ The manual control panel of the SPL med 4is equipped with eight memory
positions as well as a locking function; see also chapter 10.1 MANUAL CONTROL
PANEL (MCP) et seq.
9.2.2 SPL med 5
THE SPL MED 5IS EQUIPPED WITH FIVE ACTUATORS:
Actuator 1
Electrical adjustment of the WORK HEIGHT.
Actuator 2
Electrical adjustment of the BACKREST.
Actuator 3
Electrical adjustment of the SEAT INCLINATION.
Actuator 4 / Actuator 5
Electrical adjustment of the two separate LEG
SECTIONS
➢ All sections of the SPL med 5 can be adjusted electrically.
➢ The manual control panel of the SPL med 5is equipped with eight memory
positions as well as a locking function; see also chapter 10.1 MANUAL CONTROL
PANEL (MCP) et seq.
9.3 Before initial use
➢Before initial operation, please check that all components are present (s. chapter
3. SCOPE OF DELIVERY) and that they are not visibly damaged.
➢The dedicated safety socket must be grounded properly and must meet the proper
voltage (230 V AC).

17
9.4 View (example: SPL med 4)
Fig. similar / fig. shows the SPL med 4: colour, upholstery and design may vary depending on
model.
1
BASE (supporting structure)
2
Mechanism for the electrical HEIGHT ADJUSTMENT:
➢ see also chapter 10.2 ADJUSTMENT OF THE WORK HEIGHT.
3
Mechanism of the electrical adjustment of the SEAT INCLINATION:
➢ see also chapter 10.4 ADJUSTMENT OF THE SEAT INCLINATION.
4
Foldable ARMRESTS:
➢ see also chapter 9.4.2 ARMRESTS.
5
Electrically-adjustable BACKREST:
➢ see also chapter 10.3 ADJUSTMENT OF THE BACKREST.
6
Manually-extendable HEADREST:
➢see also chapter 9.4.1 HEADREST.
7
SEATING SURFACE:
➢the seat inclination can be adjusted electrically.
➢see also chapter 10.4 ADJUSTMENT OF THE SEAT INCLINATION.

18
8
Electrically-adjustable LEG SECTION (SPL med 4):
➢ see also chapter 9.4.3 LEG SECTIONS.
➢ see also chapter 10.5.1 LEG SECTION OF THE SPL MED 4.
The SPL med 5 is equipped with two separate electrically-
adjustable leg sections:
➢see also chapter 10.5.2 LEG SECTIONS OF THE SPL MED 5.
9
Manually extendable FOOTREST:
➢see also chapter 9.4.3 LEG SECTIONS.
➢see also chapter 10.5.3 FOOTREST(s).
The SPL med 5 is equipped with two separate footrests:
➢see also chapter 10.5.3 FOOTREST(s).
10
ADJUSTABLE FEET incl. adjusting screws (4 in total):
➢see also chapter 6.3 ASSEMBLY.
9.4.1 Headrest
❖You find the headrest (6/ s. fig in chapter 9.4 VIEW) in the packaging of the
SPL med.
❖Insert the chrome pins of the headrest into the supports on the top of the backrest
until they lock.
❖You can adjust the height of the headrest using the dedicated locking levels
relevant to the height of the customer.
❖You can remove the headrest completely by extracting it upwards.
Fig. similar: colour may vary depending on model.

To provide an opening for the nose (in massage position), pull out the
headrest by approx. 10 cm.
Our popular NECK REST “DENTALAX”is optional available for our treatment
tables. The NECK REST “DENTALAX”supports the cervical spine effectively and
will increase the comfort of lying significantly (see also chapter 15. OPTIONALLY
AVAILABLE ACCESSORIES.

19
WARNING! Do not carry out any physical force to the headrest
(instructions are not depending on the adjustment of the lying / seating
surface). Failure to do so can cause permanent damage to the
construction of the SPL med. RISK OF TIPPING! RISK OF
DISINTEGRATION! RISK OF INJURY!
NOTICE! Do not lean, stand or sit on the headrest; otherwise you can
damage the headrest permanently! RISK OF DAMAGE!
9.4.2 Armrests
❖The armrests (4/ s. fig in chapter 9.4 VIEW) are always in parallel position to the
seat.
❖The armrests can be folded back for easy lateral access to the seat.
Fig. similar: colour may vary depending on model.
NOTICE! Do not lean, stand, kneel or sit on the armrests; otherwise you
can damage the armrests permanently! RISK OF DAMAGE!
NOTICE! The maximum loading capacity of the armrests is 25 kg. RISK
OF DAMAGE!
9.4.3 Leg sections
See also chapter 10.5 ADJUSTMENT OF THE LEG SECTION /LEG SECTIONS.
❖The two-part leg section of the SPL med 4 consists of an electrically-adjustable
leg section and a manually-extendable footrest; s. fig in chapter 9.4 VIEW.
❖The four-part leg section of the SPL med 5 consists of two separate and
electrically-adjustable leg sections and two separate and manually-extendable
footrests.
❖Usually, the SPL med is entered from the side. Fold back the armrests for easy
access.

20
❖As the leg section can be adjusted by 900(s. fig. below), it is also possible to enter
the SPL med from the front. This mode is advantageous, when access from the
side is not ensured.
❖You can pull out the lower part of the leg section (footrest) to increase its length.
Furthermore, you can remove the lower part, so you can work on the heel area
(pedicure). This setting is also suitable when you want to carry out massages
without using additional tools (lowered foot position).
10. Adjustments of the SPL med
❖The electrical adjustments of the SPL med 4 and SPL med 5 are carried out
using the relevant manual control panel (MCP).
The actuators of the SPL med are equipped with the SPLINE - FUNCTION. The
SPLINE - FUNCTION causes the actuators to run the lifting movement only, the
lowering movement is performed by dead weight.
WARNING! The SPLINE - FUNCTION does not protect from injuries. It is
essential that no parts of the body or items are below or between the parts
of the SPL med while adjusting the lying position. RISK OF CRUSHING!

For safety reasons, the SPL med moves only while pressing a
button of the MCP. When you stop pressing, all moving-operation
will stop immediately.
10.1 Manual control panel (MCP)
❖The manual control panel (MCP) is a wired control operating with low voltage
(24 V). The electrically-controllable functions are controlled via the MCP.
❖You can control each of the 4 or 5 actuators (depending on model) individually
by simply pressing the relevant button(s) (level 1, standard mode, black lettering).
❖Furthermore, you can save and set max. 8 memory positions (level 2, shift mode,
grey lettering).
❖The manual control panel has 12 buttons; the upper 8 buttons (SPL med 4) or
the upper 10 buttons (SPL med 5) of the relevant MCP are defined for both
levels: i.e. for level 1 functions as well as level 2 functions.
How to save specific lying positions is described in section MEMORY FUNCTIONS
OF THE MCP (s. chapter 10.1.5: SPL med 4 or chapter 10.1.6: SPL med 5).
