GHM-Martens UT125 Series User manual

Operating manual
Universal transmitter
UT125
Save for later reference.
www.ghm-messtechnik.de
Companies / brands of GHM
English

GHM Messtechnik GmbH
Martens
Kiebit hörn 18 ● 22885 Barsbüttel ● Germany
Phone [phone] ● Fax -288
www.ghm-messtechnik.de ● [email protected]
2
Table of contents page
1. Intended use (areas of application) ..................................................................... 3
1.1 Safety signs and symbols ........................................................................ 3
1.2 Safety instructions .................................................................................... 4
1.3 Product liability and warranty ................................................................... 4
1.4 Standards and directives .......................................................................... 4
2. Product description ............................................................................................. 5
2.1. Scope of delivery ...................................................................................... 5
2.2. Functional principle .................................................................................. 6
2.3. Connection diagram ................................................................................. 6
2.4. PowerRail ................................................................................................. 7
2.5. Type plate ................................................................................................ 8
3. Assembly and installation ................................................................................... 9
3.1. Mechanical assembly ............................................................................... 9
3.2. Electrical installation ................................................................................. 9
4. Controls and functional description ................................................................... 10
5. Commissioning, maintenance and service ........................................................ 11
5.1 Commissioning ....................................................................................... 11
5.2 Maintenance ........................................................................................... 11
5.3 Service ................................................................................................... 11
6. Technical data ................................................................................................... 12
6.1 Mechanical design / dimensions ............................................................ 13
7. Order code ........................................................................................................ 14
8. Device transport and storage ............................................................................ 14
9. Returns ............................................................................................................. 15
10. Disposal ......................................................................................................... 15
11 Imprint ............................................................................................................... 15
12. Certificate of Conformity ................................................................................ 16

GHM Messtechnik GmbH
Martens
Kiebit hörn 18 ● 22885 Barsbüttel ● Germany
Phone [phone] ● Fax -288
www.ghm-messtechnik.de ● [email protected]
3

Danger
1. Intended use (areas of application)
Refer to the chapter 'Product description' for detailed specifications for
the area of application.
The operational safety of the device is only assured when used as
intended in accordance with the specifications in the operating manual.
Intervention beyond the actions described in the operating manual may only be
carried out by personnel authorised by the manufacturer for safety and warranty
reasons. Conversions or modifications made on one's own authority are expressly
prohibited.
Application-specific dangers can emanate from this device when used improperly or
not as intended.
Application-specific dangers can emanate from this device when used
improperly or not as intended.
The device is not intended for use in explosion-prone areas and
safety-related system parts in accordance with SIL.
General safety instructions, use
This operating manual must be kept in a location such that qualified personnel can
refer to it at all times.
Any processes described in this operating manual may only be carried out by
trained, qualified personnel who are authorised by the owner and wearing
protective clothing. All rights reserved.
1.1 Safety signs and symbols
Warning notices are identified in this document as described under Table 1:
Warning! This symbol warns of imminent danger which can result
in death, severe bodily injury, or severe property damage in case
of non-observance.

Attention! This symbol warns of potential dangers or harmful
situations which can cause damage to the device or to the
environment in case of non-observance.
Note! This symbol indicates processes which can have a direct
influence on operation or can trigger an unforeseen reaction in
case of non-observance.

GHM Messtechnik GmbH
Martens
Kiebit hörn 18 ● 22885 Barsbüttel ● Germany
Phone [phone] ● Fax -288
www.ghm-messtechnik.de ● [email protected]
4
1.2 Safety instructions
Read the product description before commissioning the device. Ensure that there
are no limitations for use of the product for the relevant applications.
The owner is responsible for ensuring the fault-free operation of
the device.
The owner is obligated to ensure compliance and to
observe the required work and safety measures of the current
applicable regulations for the entire duration of use.
1.3 Product liability and warranty
Exclusion of liability:
The contents of the operating manual have been checked to ensure conformity with
the described device. However, deviations cannot be entirely ruled out. Therefore,
we cannot assume any guarantee for complete conformity. The specifications in
this document are checked regularly and any necessary corrections are
incorporated into subsequent versions. This document is subject to technical
changes. In addition, all claims are based on the valid 'Standard Terms for the
Supply of Products and Services of the Electrical Industry'.
GHM Messtechnik GmbH cannot inspect or repair any devices without
the required form having been filled in completely (refer to the chapter
'Returns').
1.4 Standards and directives
Low-voltage Directive 2014/35/EU
Testing standard 60664-1: 2007
EMC Directive 2014/30/EU
Testing standard EN 61326-1: 2013
RoHS Directive 2011/65/EU
Testing standard EN50581: 2012
(Issue years for testing standards belong to german versions)
DANGER


GHM Messtechnik GmbH
Martens
Kiebit hörn 18 ● 22885 Barsbüttel ● Germany
Phone [phone] ● Fax -288
www.ghm-messtechnik.de ● [email protected]
5
2. Product description
The UT125 series of universal transmitters are designed for the affordable
transformation of standard signals, temperatures and potentiometer into a current
signal of 4..20 mA. The universal configurability of the measuring inputs reduces
the stock requirement for various applications.
The measuring inputs and analog output are not galvanically isolated.
The housing width of only 12.5 mm enables space-saving installation in the
switch cabinet.
2.1. Scope of delivery
• UT125
• this operating manual
• further documents, if applicable
Inputs:
Voltage,
Current,
Pt100,
Thermocouple,
Potentiometer
Supply voltage
Analog
output

GHM Messtechnik GmbH
Martens
Kiebit hörn 18 ● 22885 Barsbüttel ● Germany
Phone [phone] ● Fax -288
www.ghm-messtechnik.de ● [email protected]
6
2.2. Functional principle
An analog output with 4..20 mA is actuated depending on the selected measuring
range.
The temperature measuring ranges are linearised.
The device configuration takes place via DIP switch.
The power supply can be provided via an internal wide range power supply
(20..125 V DC / 20..253V AC) or via a DC voltage power supply with 24 V DC.
With the DC voltage power supply, the power supply can be done via the plug-in
device terminals or via a carrier rail bus (PowerRail) on the device, depending on
the device type.

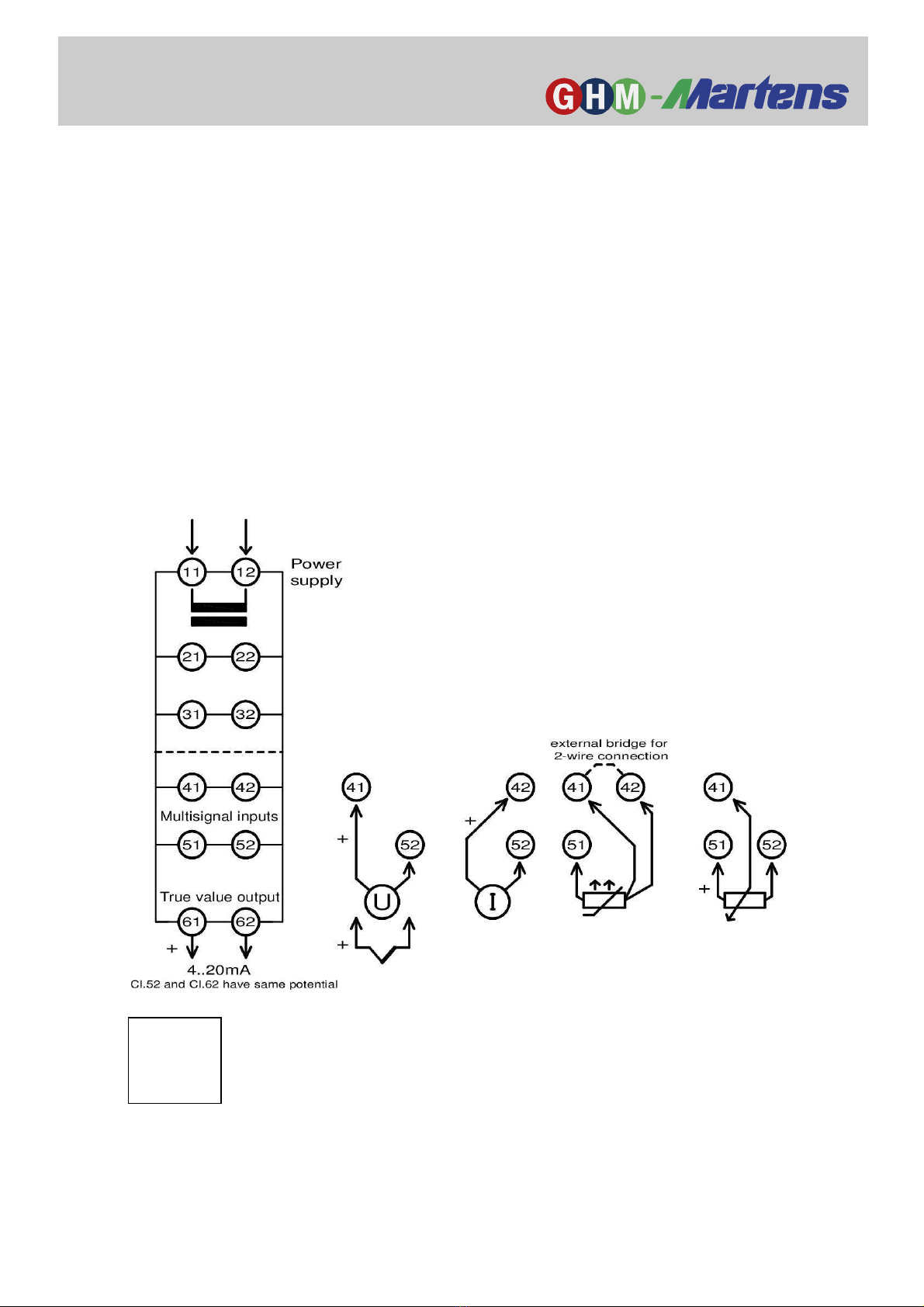

2.3. Connection diagram
Input signals should be connected via separate 2 or 3 core cables.
Grounded leads may cause problems with the not galvanical isolated
analog true value output.


GHM Messtechnik GmbH
Martens
Kiebit hörn 18 ● 22885 Barsbüttel ● Germany
Phone [phone] ● Fax -288
www.ghm-messtechnik.de ● [email protected]
7
2.4. PowerRail
The supply of multiple devices can be concentrated in the mounting carrier rail
(TS35) of a bus system.
An equivalent version is available for the entire LP series of GHM carrier rail
devices in 12.5mm wide housing.
Before mounting the device to be supplied, a series-compatible bus adapter must
be connected on the carrier rail.
For this purpose, an adapter piece is required for each device. The supply of the
bus then takes place via a plug-in terminal strip.
In the device version UT125LP provided for this purpose, the supply terminals 11
and 12 on the upper side of the device are omitted.

GHM Messtechnik GmbH
Martens
Kiebit hörn 18 ● 22885 Barsbüttel ● Germany
Phone [phone] ● Fax -288
www.ghm-messtechnik.de ● [email protected]
8
2.5. Type plate
The type plate includes the most important identification data
● Type and article name
● Technical data
● Serial number / bar code
Fig. 3: Type plate

GHM Messtechnik GmbH
Martens
Kiebit hörn 18 ● 22885 Barsbüttel ● Germany
Phone [phone] ● Fax -288
www.ghm-messtechnik.de ● [email protected]
9
3. Assembly and installation
3.1. Mechanical assembly
Carrier rail mounting TS35, DIN EN 60715
The mounting of multiple devices without spaces is only permitted on hori ontally
mounted carrier rails.
3.2. Electrical installation
The device may only be installed by an electrician. The national and
international regulations for connection of electrical systems in the
respective user country apply.
Power supply in accordance with DIN EN 60664-1, SELV, PELV.
Observe the connection diagram for installation of the inputs and outputs.
The supply voltage is connected to pins 11 and 12 of the plug-in terminal strip.
Terminals 41, 42, 51 and 52 are provided for sensor connection.
Terminals 61 and 62 are provided for analog output.
DANGER
Fig. 4

GHM Messtechnik GmbH
Martens
Kiebit hörn 18 ● 22885 Barsbüttel ● Germany
Phone [phone] ● Fax -288
www.ghm-messtechnik.de ● [email protected]
10
4. Controls and functional description
Selection of the measuring range takes place with DIP switches 1-4:
current / voltage, potentiometer, Pt100, thermocouple
The black fields symboli e the position of
the DIP switches
(When voltage and current are injected simultaneously the result is an addition of the input related signals)
The respective limit values can be adjusted with wheels A1 and A2.
The illuminated scales serve as an operating indicator.
When a limit value relay is not active, the adjustment wheel scale illuminates green.
When a limit value relay is active, the adjustment wheel scale illuminates red.
