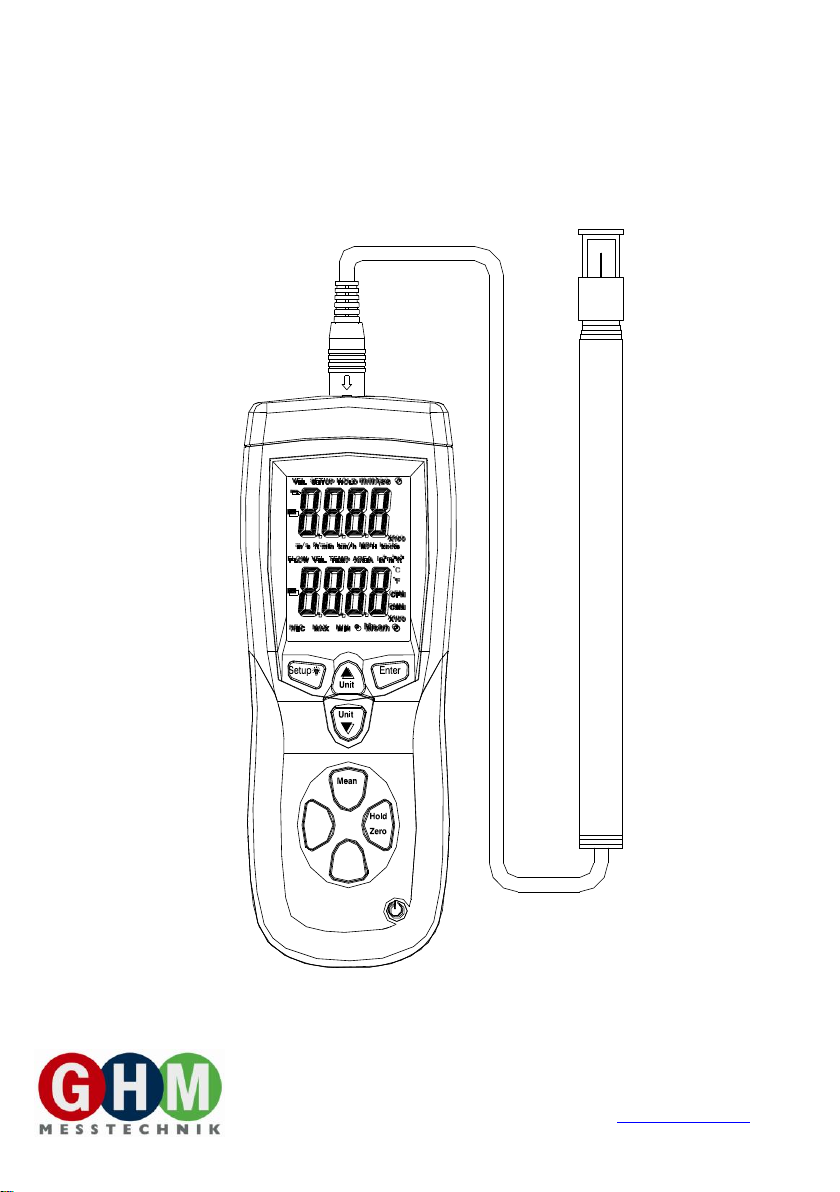

TA 888 N
Hot Wire Anemometer
Max
Min
Flow
Temp

Page 2 of 18

Page 3 of 18
Your purchase of this HOT WIRE ANEMOMETER makes a step forward for
you into the field of precision measurement.
Although this ANEMOMETER is a complex and delicate instrument, its
durable structure will allow many years of use if proper operating techniques
are developed. Please read the following instructions carefully and always
keep this manual within easy reach..
Features
1. Thermal anemometer, available for very low air velocity measurement.
2. Slim probe, ideal for grilles & diffusers.
3. Combination of hot wire and standard thermistor, deliver rapid and
precise measurements even at low air velocity.
4. Records Maximum and Minimum readings with recall.
5. Microprocessor circuit assures maximum possible accuracy, provides
special functions and features.
6. Super large LCD with dual function meter’s display, read the air velocity
& temp. at the same time.
7. Records Maximum and Minimum readings with recall.
8. Data Hold.
9. Power supply by 9V battery.
10. The portable anemometer provides fast, accurate readings, with digital
readability and the convenience of a remote probe separately.
11. Multi-functions for air flow measurement: m/s, km/h, ft/min, MPH, Knots.
12. Build in temperature measurement.
13. Thermistor sensor for Temp. measurement, fast response time.
14. Used the durable, long-lasting components, including a strong, light
weight ABS-plastic housing case.
15. Deluxe hard carry case.
16. Applications: Environmental testing, Air conveyors, Flow hoods, Clean
rooms, Air velocity, Air balancing, Fans/motors/blowers, Furnace
velocity, Refrigerated case, Paint spray booths.

Page 4 of 18
Specifications
General Specifications
Display
46.7mm × 60 mm larger LCD display.
Dual function meter’s display.
measurement
m/s ( meters per second )
km/h (kilometers per hour )
ft/min (feet per minute)
MPH (miles per hour)
knots ( nautical miles per hour )
Temp. ---°C , °F
Data hold.
Memory
Maximum and Minimum with recall
Sampling
Approx.0.8 sec
Operating Temperature
0 °C to 50 °C (32℉to 122℉)
Operating Humidity
Less than 80% RH
Power Supply
9V battery
Power Current
Approx. DC 60~90mA
weight
280g
Dimension
210mm×75mm×50mm
Accessories included
Hot wire sensor 9V battery

Page 5 of 18
Electrical Specifications
Air Velocity
Measurement
Range
Resolution
m/s
0.1~15.0m/s
0.01m/s
km/h
0.3~54.0km/h
0.1km/h
ft/min
20~2955/min
1ft/min
MPH
0.2~ 34.8 MPH
0.1MPH
knots
0.2~29.1knots
0.1knots
Notes:
m/s －meters per second, km/h －kilometers per hour,
ft/min －feet per minute, MPH －miles per hour,
knots－nautical miles per hour
Temperature
Measuring Range
0 °C to 50 ℃(32℉to 122℉)
Resolution
0.1°C/0.1℉
Accuracy
1°C/1.8℉

Page 6 of 18

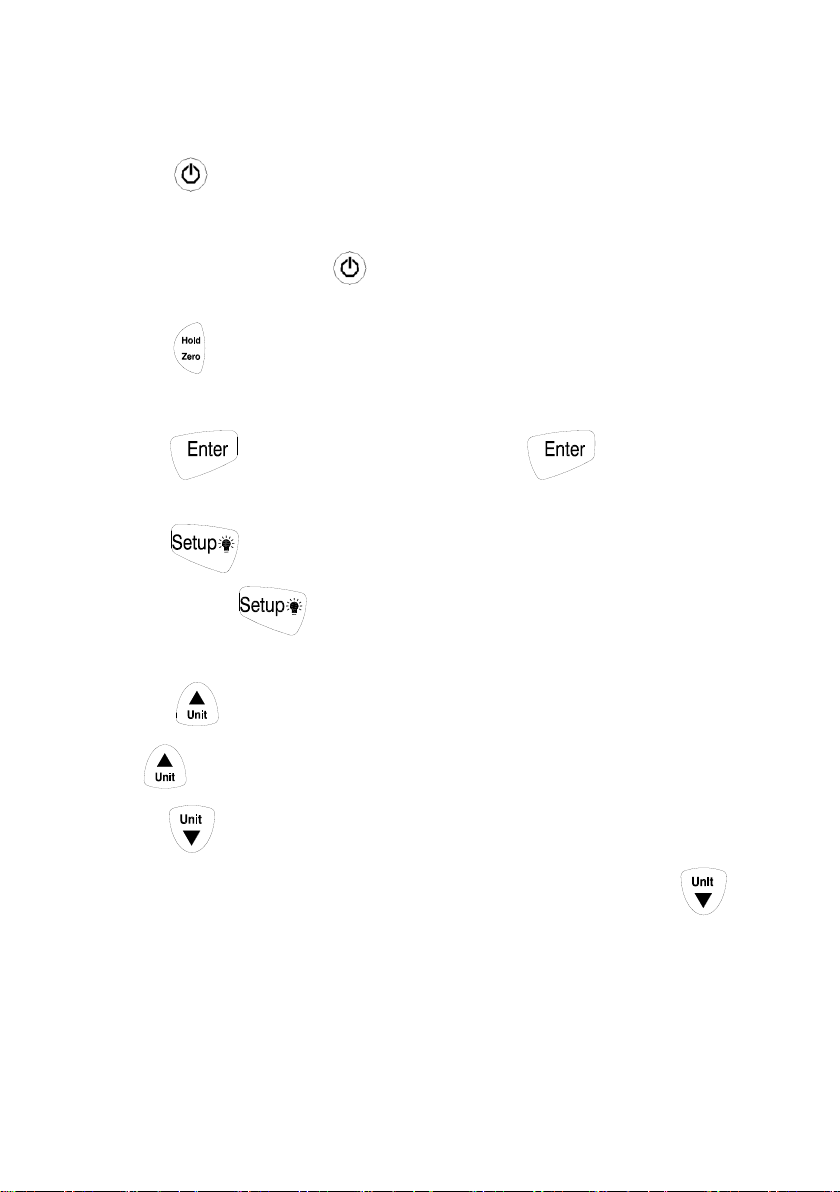

Button
1, Press .The thermal sensor is heated up (5s). Measurement view is
opened: The current reading is displayed, or “――――”lights up if no
reading is available. Press again, turn off the instrument.
2, Press to freeze or unfreeze the displayed readings or air velocity
Zero Adjust.
3, Press to enter a Setup option. Press again to store
the displayed setting in memory.
4, Press to turn on the backlight. Press it again to turn off the
backlight. Press button for 3 seconds to start or exit Setup. (See
"Changing Setup Options.")
5, Press to scroll to the Setup option you want to change.
Press to increase the displayed setting.
6, Press to start recording and press again to stop recording .if enter a
Setup option .scroll to the Setup option you want to change. Press to
decrease the displayed setting.

Page 7 of 18
7, performing a multi-point mean calculation or performing a mean
calculation in time.
8, Press
Max
Min
to step through the maximum and minimum readings. To exit
the MAN/MIX mode, press the
Max
Min
button for 2 seconds to return to
normal operation.
9, To change between displaying the temperature, flow velocity, and
calculated volumetric flow rate: Press
Flow
Temp
.

Page 8 of 18
Display Elements
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
18
17
16

Page 9 of 18
1. Low Power.
2. Primary Display: air velocity, recording data or time.
3. Air velocity units.
4. Secondly display data.
5. Secondly display: air flow, temperature, or air velocity data.
6. Record MAX, MIN display.
7. Sign of multi-point mean calculation.
8. Mean calculation
9. Sign of mean calculation in time.
10. The multiple of Secondly display data.
11. Flow units.
12. Temperature units.
13. Flow area units.
14. The multiple of Primary display data.
15. The Sign of Auto Power Off.
16. The sign of time.
17. Freezing the data.
18. Entering or Exiting Setup.

Page 10 of 18
Changing Setup Options
Use Setup to change area unit, flow area, sleep mode settings. The
thermometer stores the settings in its memory.

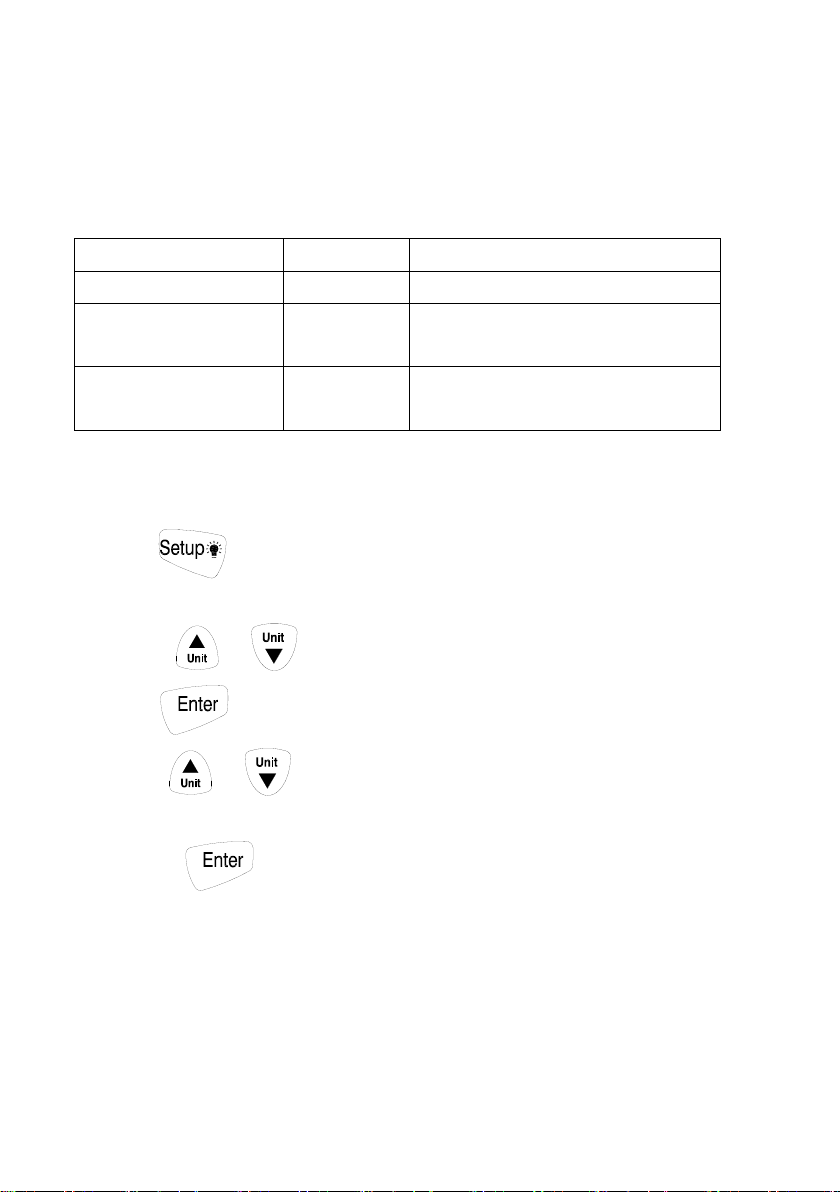

Setup Options
Entering or Exiting Setup
When the thermometer is in Setup mode, the display shows SETUP.
Press button for 3 seconds start or exit Setup.
Changing a Setup Option
1. Press or to scroll to the setup option you want to change.
2. Press to indicate that you want to change this setting.
3. Press or until the setting you want to use appears on the
display.
2. Press to store the new setting in memory.
Notes: Setup is disabled in MIN MAX, Mean mode.
Option
Menu item
Settings
Chose area unit
Unit
set area unit
Change the flow
area
area
set area of measuring air flow
Auto Power Off
mode
SLP
auto off or on

Page 11 of 18

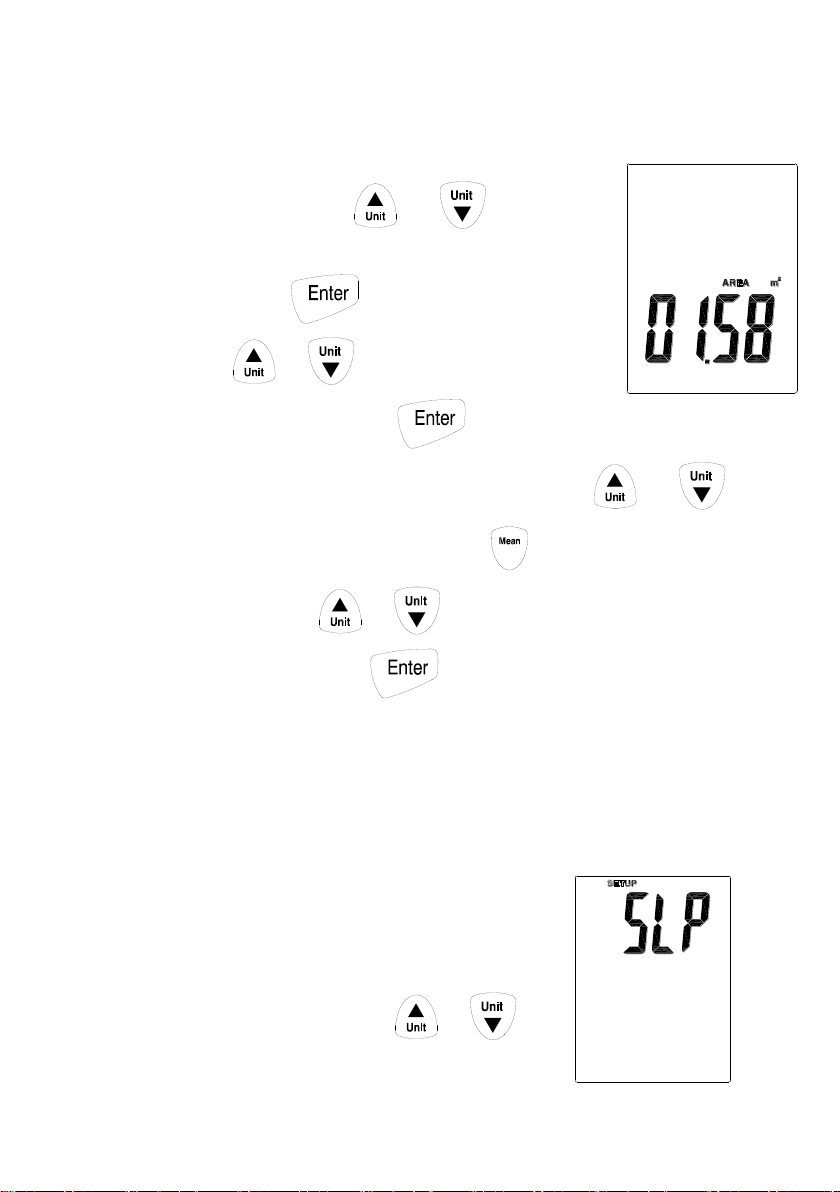

Area unit Setting
1. When the thermometer is in Setup mode, press
or to scroll to the area unit setup option
(refer Fig.2).
2. Press button., The string “AREA” and
area unit shows in the screen.
3. Press or to scroll to unit that you
want to change((refer Fig.3).
).
4. Press to store the new area in
memory.
Fig 1
Fig.2

Page 12 of 18
Area Setting
Changing the number digits of area and Change the
number value of area. Press or to scroll to
the area value setup option when the thermometer is in
the setup mode. Press button, the area number
flashes. Press or to scroll to digit that you
want to change (refer Fig.3). Press t, the screen
indicate that area number with a flashing digit. Press or to
change the flashing digit from 0 to 9. Press to change the station of
flashing digit and press or to change the number, the adjust
order is from right to left. Press to store the new area in memory.
Auto Power Off Mode
The thermometer enters sleep mode (default).
That is to say, the meter will automatically shut off
after 20 minutes if no button press occurs for 20
minutes. When the thermometer is in Setup mode,
the display shows SETUP. Press or to
Fig.3

Page 13 of 18
scroll to the “ SLP ” page . Press to indicate “On” or “OFF”.
Press or until the setting you want to use appears on the
display. Press to store the new setting in memory. On (sleep
mode on)or 0FF (sleep mode off).
Measuring Procedure
1. Connect the “Probe’s Plug” to the “Probe Input Socket”.
2. Power on the meter by push the “Power On/Off Button”.
3. Select the desire air velocity units and temperature units.
4. Zero setting:
a. On the “Sensing Head”, slide the sensor cover to the up position to
let the air velocity sensor isolated from the environment.
b. Push the “Zero Button” to let reading value of air velocity shows
zero value.

Page 14 of 18
5. Slide the sensor cover to the down position, let the air velocity sensor
to contact the air, refer Fig.2. Extent the telescope probe to the convenient
length, refer Fig.4.
Probe Handle
“Sensor cover”slide to the up position
Air velocity sensor

Page 15 of 18
6. Direction of the sensor head:
There is mark on the top of the “Sensor Head”, When make the
measurement, then this mark should against the measured wind, refer
Fig. 4, Fig5.When sensor head face against the measurement air, then
sensor head face against the measurement air, then the upper display
will show the air velocity value. The lower display will show the
temperature value.
Flow
Air velocity sensor
Fig.4
Fig.5
Sensor head (top view)
Probe Handle
Direction mark should face
the measured wind.

Page 16 of 18

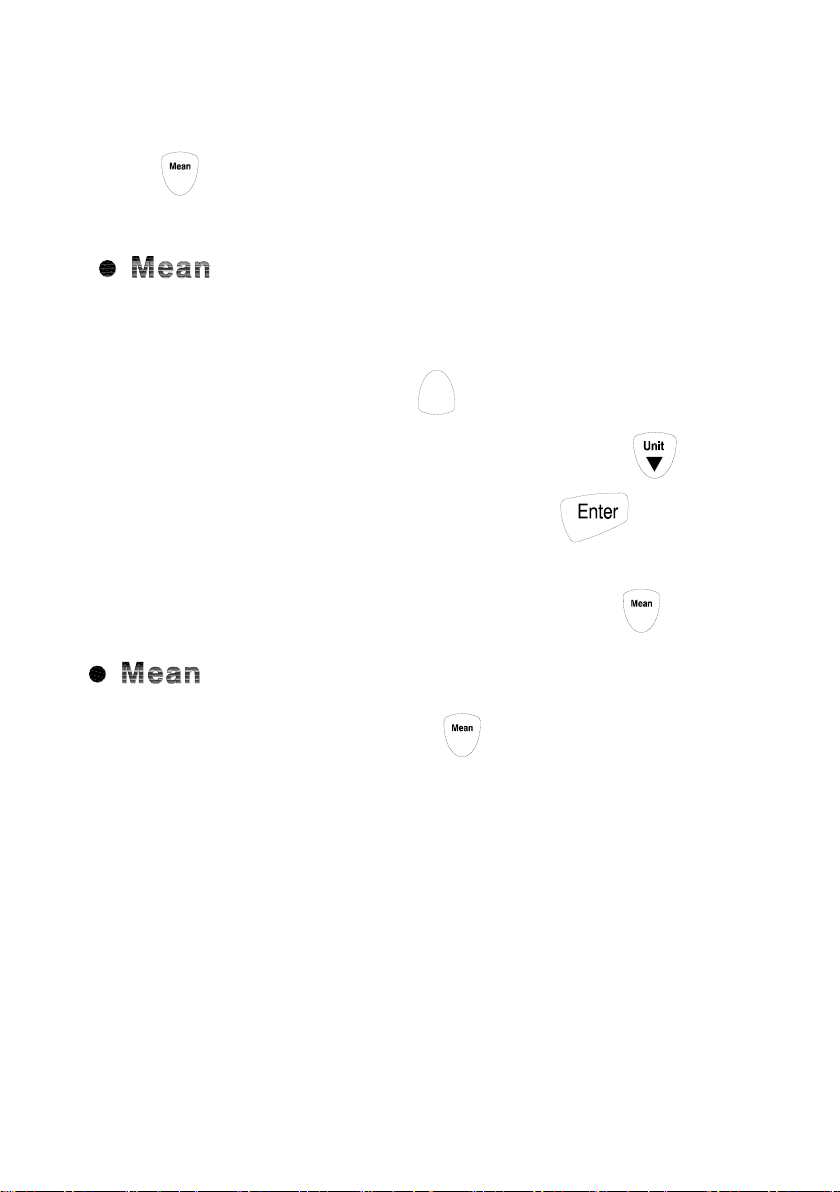

Performing a multi-point mean calculation
1. Press .
is lit. The number of readings recorded is displayed in the
upper line, while the current reading is displayed in the lower line.
2. To change between displaying the temperature, flow velocity and
calculated volumetric flow rate: Press
Flow
Temp
.
3. If we want to change the units of the current reading, press .
4. To include readings (in the desired quantity): Press (several
times).
5. To end measurement and calculate the mean value:Press .
flashes. The calculated spot mean value is displayed.
4 To return to measurement view: Press .

Page 17 of 18
Performing a mean calculation in time
1. Press for 2 seconds.
is lit. The elapsed measuring time (mm:ss) is displayed in
the upper line, while the current reading is displayed in the lower line.
2. To change between displaying the temperature, flow velocity and
calculated volumetric flow rate: Press
Flow
Temp
.
3. If we want to change the units of the current reading, press .
4. To interrupt/continue measurement: Press each time.
5. To end measurement and calculate the mean value: Press .
Mean flashes. The calculated mean value in time is displayed.
7. To return to measurement view: Press .
Holding the Displayed Readings
1. Press to freeze the readings on the display .The display shows
HOLD.
2. To change between displaying the temperature, flow velocity and
calculated volumetric flow rate: Press
Flow
Temp
.
3. Press again to turn off the HOLD function.

Page 18 of 18
Viewing the MIN, MAX Readings
1. Press
Max
Min
to step through the maximum (MAX), minimum (MIN), or the
average (AVG) readings. The elapsed time since entering MAX/ MIN mode,
or the time at which the minimum or maximum occurred appears on the
display.
2. Press
Max
Min
button for 2 seconds to exit MAX/MIN mode.
Replacing the Batteries
1. Turn off the thermometer if necessary.
2. Loosen the screw and remove the battery door.
3. Replace 9V batteries.
4. Replace the battery door and tighten the screw.
