1 | About this documentation G 1111 / G 1114
4 / 22 B-H88.0.1X.DK2-1.2
1 About this documentation
1.1 Foreword
_
Read this document carefully and familiarise yourself with the operation of the product
before you use it.
Keep this document ready to hand and in the immediate vicinity of the product so that
it is available to the personnel/user for reference at all times in case of doubt.
The user must have carefully read and understood the operating manual before begin-
ning any work.
1.2 Legal notices
The liability and warranty of the manufacturer for damages and consequential damag-
es are voided with misuse, disregarding this document, disregarding safety notices,
assignment of inadequately qualified technical personnel and arbitrary modifications of
the product.
This document is entrusted to the recipient for personal use only. Any impermissible
transfer, duplication, translation into other languages or excerpts from this operating
manual are prohibited.
The manufacturer assumes no liability for print errors.
1.3 Further information
_
Software version of the product:
–V1.1 or later
For the exact product name, refer to the type plate on the rear side of the product.
_
NOTE
For information about the software version, press and hold the ON button to switch on
for longer than 5 seconds. The series is shown in the main display and the software
version of the product is shown in the secondary display.

G 1111 / G 1114 Safety | 2
B-H88.0.1X.DK2-1.2 5 / 22
2 Safety
2.1 Explanation of safety symbols
_
DANGER
This symbol warns of imminent danger, which can result in death, severe bodily injury,
or severe property damage in case of non-observance.
_
CAUTION
This symbol warns of potential dangers or harmful situations, which can cause damage
to the device or to the environment in case of non-observance.
_
NOTE
This symbol indicates processes, which can have a direct influence on operation or
can trigger an unforeseen reaction in case of non-observance.
2.2 Foreseeable misuse
_
The fault-free function and operational safety of the product can only be guaranteed if
applicable safety precautions and the device-specific safety instructions for this docu-
ment are observed.
If these notices are disregarded, personal injury or death, as well as property damage
can occur.
DANGER
Incorrect area of application!
In order to prevent erratic behaviour of the product, personal injury and property
damage, the product must be used exclusively as described in the chapter Description
in the operating manual.
–The product is not suitable for use in explosion-prone areas!
–The product must not be used for diagnostic or other medical purposes on pa-
tients!
–For measurements requiring devices that are subject to authorisation or special
approvals, this product is not a substitute for such products and can only be used
as an aid in preparatory or comparison measurements!
–Do not use in safety / emergency stop devices!
–Not for unattended operation on other pressure vessels/systems, especially if
leaks, etc. hazards can arise.

2 | Safety G 1111 / G 1114
6 / 22 B-H88.0.1X.DK2-1.2
_
2.3 Safety instructions
_
NOTE
This product does not belong in children's hands!
2.4 Intended use
_
_
_
The device measures the absolute pressure in the air, clean water or in non-
corrosive/non-ionising gases. A direct measurement of the environmental pressure can
take place or the measurement pressure is taken with a suitable hose connected to the
port. Relative measurements can also be conducted with the integrated special func-
tion NVLL.
Applications include:
G 1111
G 1114
Barometric measurements (e.g. weather)
Barometric measurements (e.g. weather)
Vacuum measurements (down to 0.0 hPa
abs., negative pressure via hose or even
with complete device evacuation)
Vacuum measurements (down to 0 hPa
abs., negative pressure via hose or even
with complete device evacuation)
Pneumatic measurements (up to 14000
hPa abs. or 14 bar abs.)
The pressure connection is made at the supplied interchangeable pressure connection
ports with suitable hoses - 4 different connection options are available as standard,
many other connection options can be used easily and reliable with G 1/8 adapters.
The device must only be used under the conditions and for the purposes for which it
was designed.
It must be handled with care and used according to the technical data (do not throw,
strike, etc.). Suitable measures must be used to protect the pressure connections and
be protected from dirt.
_
NOTE
Complete evacuation see Vacuum measurements [page 13].

G 1111 / G 1114 Safety | 2
B-H88.0.1X.DK2-1.2 7 / 22
2.5 Qualified personnel
For commissioning, operation and maintenance, the relevant personnel must have
adequate knowledge of the measuring process and the significance of the measure-
ments. The instructions in this document must be understood, observed and followed.
In order to avoid any risks arising from interpretation of the measurements in the
concrete application, the user must have additional expertise. The user is solely liable
for damages/danger resulting from misinterpretation due to inadequate expertise.

3 | The product at a glance G 1111 / G 1114
8 / 22 B-H88.0.1X.DK2-1.2
3 The product at a glance

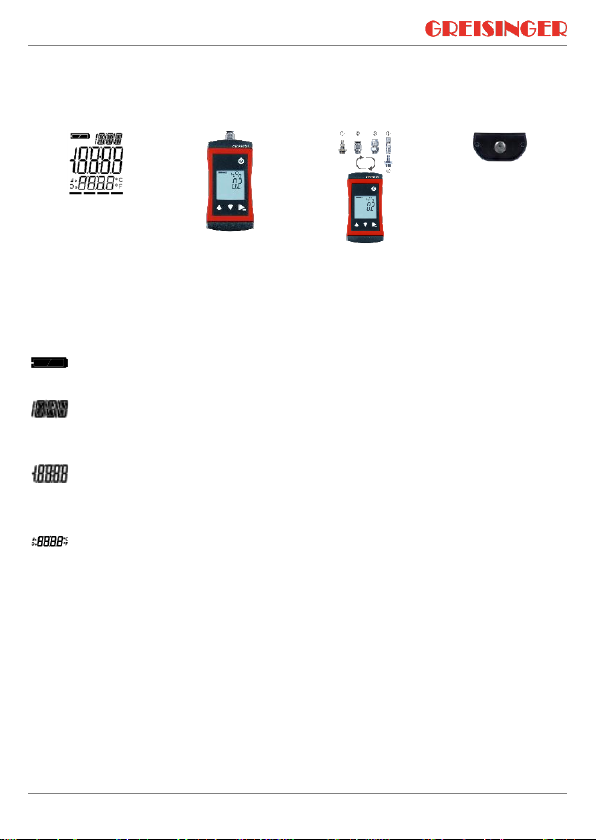

3.1 The G 1100 barometer series
LCD Display
Front view
Connection variants
Top view
3.2 Display elements
_
Display
_
Battery indicator
Evaluation of the battery status
_
Unit display
Display of the units or Min/Max/Hold information
text
_
Main display
Measurement of the current pressure or value for
min/max/hold
_
Auxiliary display
Measurement of the current pressure in
Min/Max/Hold mode
_
3.3 Connections
Universal connection
Interchangeable pressure connection via G1/8"
thread.

G 1111 / G 1114 The product at a glance | 3
B-H88.0.1X.DK2-1.2 9 / 22
3.4 Operating elements
_
On / Off button
Press briefly
Switch on the device
Activate / deactivate lighting
Long press
Switch off the device
Reject changes in a menu
_
Up / Down button
Press briefly
Display of the min/max value
Change value of the selected parameter
Long press
Reset the min/max value of the current measure-
ment
Both simultaneously
Rotate display, overhead display
_
Function button
Press briefly
Freeze measurement (Hold)
Call up next parameter
Long press, 2s
Start menu “configuration”, (ONF appears in the
display
Long press, 4s
Depending on the selected special function: Activa-
tion of the Tare function NVLL or rapid measurement
with mean value AVR
Operating status device is in measured value display
device is in the configuration menu

4 | Operation G 1111 / G 1114
10 / 22 B-H88.0.1X.DK2-1.2
4 Operation
4.1 Opening the configuration menu
1. Press the Function key for 2 seconds to open the Configuration menu.
2. (ONF appears in the display. Release the Function key.
_
Parameter
Values
Meaning
__UN,T
Display unit
HPa
mBaR
BaR
(only available at G 1114)
PSI
mmKG
__FVN<
Activate able special functions
NVLL
Tara function available
AVR 0:02
AVR 0:05
AVR 0:10
Rapid measurement with mean value over 2 s, 5 s
or 10 s
__RATE
Measuring rate
SLO
Slow measurement speed
FAST
Fast measurement speed

G 1111 / G 1114 Operation | 4
B-H88.0.1X.DK2-1.2 11 / 22
Parameter
Values
Meaning
__SEA.L
SeaLevel-correction
NO
Inactive, display measured air pressure directly
YES
Active, display air pressure compensated to sea
level
__ALT,
High above sea level
-500 .. 9000
Height above sea level in m for correction
POFF
Shut-off time
OFF
No automatic shut-off
0:15, 0:30, 1:00,
4:00, 12:00
Automatic shut-off after a selected time in
hours:minutes, during which no buttons have been
pressed
L,TE
Backlight
OFF
Backlight deactivated
0:15, 0:30, 1:00,
2:00, 4:00
Automatic shut-off of the backlight after a selected
time in minutes:seconds, during which no buttons
have been pressed
ON
No automatic shut off of the backlight
IN,T
Factory settings
NO
Use current configuration
YES
Reset device to factory settings.
After confirming with the function-button, the display
shows: IN,T DONE

4 | Operation G 1111 / G 1114
12 / 22 B-H88.0.1X.DK2-1.2
4.2 Open the adjustment menu
The sensor adjustment can be adjusted with the zero point correction and the gradient
correction. If an adjustment is made, you change the pre-adjusted factory settings.
This is signalled with the display text PR.OF or PR.SL when switching on.
1. Switch the device off.
2. Hold the down button and press the On/Off button to switch on the device and
open the Adjustment menu.
3. The display shows the first parameter. Release the down button.
Parameter
Values
Meaning
_PR.OF
Zero point correction
0
No zero point correction
-500 … 500
Zero point correction [in selected display unit]
(e.g. at G 1114: ± 500 hPa)
PR.SL
Gradient correction
0.00
No gradient correction of the temperature
-5.00 … 5.00
Gradient correction in %
Formula:
Zero point correction: Displayed value = measured value - PR.OF
Gradient correction: Display = (measured value - PR.OF) * (1 + PR.SL / 100)

G 1111 / G 1114 Measurement Basics | 5
B-H88.0.1X.DK2-1.2 13 / 22
_
5 Measurement Basics
5.1 Vacuum measurements
The device is especially suitable to measure rough vacuum via the pressure port very
fast. But if the complete device is evacuated the following has to be considered:
CAUTION
Damage possible by fast complete evacuation!
Due to the water tight construction a complete evacuation of the device may degrade
water protection. The keypad/display screen may break loose. If the device should still
be used for this application, the following options are available:
–Remove the o-ring of the battery compartment! The Instrument then is no more
water protected! Changing battery.
–Specialized variants G 1111-VAC!
5.2 Special functions
_
With the special functions that can be selected via the Configuration menu, the device
can be optimised for special measuring tasks. After it is switched on, the device starts
up in standard measuring mode, the relevant special function is started by pressing
and holding the Function key for 4 s.
5.2.1 NVLL Tare function
The special function FVNC NVLL has been selected in the configuration menu.
The display can be zeroed by pressing the Function key for 4 s. If the tare function is
activated, NVLL blinks in the lower display. The tare function can be reset by pressing
the Function key again for 4 s.
NOTE
The tare function is independent of the zero point correction accessible via the adjust-
ment menu.

5 | Measurement Basics G 1111 / G 1114
14 / 22 B-H88.0.1X.DK2-1.2
5.2.2 AVR0:02 / AVR0:05 / AVR0: 10
Fast measurement with mean value over 2 s / 5 s / 10 s
Mean value mode for measurement of heavily fluctuating pressures.
In the Configuration mode, a special function AVR0:02, AVR0:05 or AVR0: 10 has been
selected.
By pressing and holding the Function key for 4 s the measurement with mean value can
be activated.
The different mean value times of 2, 5 or 10 seconds can be selected depending on
the requirement.
_
The first parameter is shown in the auxiliary display.
_
By pressing and holding the Function key for 2 s the special function can be deactivat-
ed. END FVNC appears in the display.
_
If the tare function is active when calling up the special function AVR, it can be reset by
pressing the function key for 4 seconds. In order to reactivate tare, the special function
must be changed in the configuration menu.

G 1111 / G 1114 Measurement Basics | 5
B-H88.0.1X.DK2-1.2 15 / 22
5.3 Pressure Connection
NOTE
Suitable hoses must be used for vacuum measurements, silicon is suitable as a hose
material due to the low rigidity!
_
CAUTION
Air pressure at port variant UT!
With higher pressures greater than 1 bar, the hoses must be secured to prevent
unintended loosening. Suitable GDZ hose clamps are used for this purpose.
–6x1 mm PVC (GDZ-01) up to 5 bar rel., vacuum-suitable!
–6x1 mm PE (GDZ-02) up to 10 bar rel., vacuum-suitable!
–6x1 mm PUR (GDZ-03) up to 9 bar rel., vacuum-suitable!
5.3.1 Replacement of pressure hoses
The pressure connections are screwed into the product with a standard G 1/8 inch
thread with end seal. All common pressure connections with this design can be con-
nected.
NOTE
Use a suitable tool for tightening and observe the maximum torque of 2 Nm!

5 | Measurement Basics G 1111 / G 1114
16 / 22 B-H88.0.1X.DK2-1.2
Supplied connection:
Typ
Description
.. - UT
Universal hose connection for 6 x 1 mm (4 mm in-
side) and 8 x 1 mm (6 mm inside) hoses.
The universal hose connection is suitable for plastic and
silicon hoses with an outer diameter of 6 mm, for which
purpose the hoses are simply connected to the upper
part. Rubber/silicon hoses with a larger diameter (e.g. 8
mm) can also be connected. They are fit on the lower
part for this purpose.
.. - QC6
Quick-Connect for Ø 6 mm hoses.
The practical quick-change connection is only suitable for
plastic hoses with 6 mm outer diameter. The hose end
must be clean and undamaged for connection. It is fit by
simply pushing it in until the mechanical stop is reached.
It is disconnected by simultaneously pressing the ring on
the upper end of the connection and pulling the hose.
.. - ST6
Screw connection for 6 x 1 mm (Ø 4 mm inside)
plastic hoses.
The secure screw connection is only suitable for plastic
hoses with 6 mm outer diameter (Ø 4 mm inside). The
hose end must be clean and undamaged for connection.
The union nut must be loosened before connection. Then
the hose is pushed onto the hose nipple up to the me-
chanical stop. The union nut is hand-tightened to secure
the connection. Disconnection takes place by loosening
the union nut and pulling on the hose.
.. - MCM
MCM mini-quick-coupler plug connector.
Compatible quick-couplers with nominal width 2.7 mm
can be used:

G 1111 / G 1114 Operation and maintenance | 6
B-H88.0.1X.DK2-1.2 17 / 22
6 Operation and maintenance
6.1 Operating and maintenance notices
_
NOTE
Pressure connections must be protected from soiling.
6.2 Battery
6.2.1 Battery indicator
_
If the empty frame in the battery display blinks, the batteries are depleted and must be
replaced. However, the device will still operate for a certain length of time.
If the BAT display text appears in the main display, the battery voltage is no longer
adequate for operation of the device. The battery is fully depleted.
6.2.2 Changing battery
_
DANGER
Danger of explosion!
Using damaged or unsuitable batteries can generate heat, which can cause the batter-
ies to crack and possibly explode!
–Only use high-quality and suitable alkaline batteries!
CAUTION
Damage!
If the batteries have different charge levels, leaks and thus damage to the device can
occur.
–Only use high-quality and suitable alkaline batteries!
–Do not use different types of batteries!
–Remove depleted batteries immediately and dispose of them at a suitable collec-
tion point.
_
NOTE
Unnecessary unscrewing endangers the protection against moisture and should
therefore be avoided.

7 | Disposal G 1111 / G 1114
18 / 22 B-H88.0.1X.DK2-1.2
NOTE
Read the following handling instructions before replacing batteries and follow them
step by step.
If disregarded, the device could be damaged or the protection from moisture could be
diminished.
1. Unscrews the Phillips screws (A)and remove the cover.
2. Carefully replace the two Mignon AA batteries (B). En-
sure that the polarity is correct! It must be possible to in-
sert the batteries in the correct position without using
force.
3. The O-ring (C) must be undamaged, clean and posi-
tioned at the intended depth.
4. Fit the cover (D) on evenly. The O-ring must remain at
the intended depth!
5. Tighten the Phillips screws (A).
7 Disposal
Separation by material and recycling of device components and packaging must take
place at the time of disposal. The valid regional statutory regulations and directives
applicable at the time must be observed.
_
NOTE
The device must not be disposed of with household waste. Return it to us,
freight prepaid. We will then arrange for the proper and environmentally-
friendly disposal.
Private end users in Germany have the possibility of dropping off the device at the
municipal collection centre. Batteries must be removed beforehand!
Please dispose of empty batteries at the collection points intended for this purpose.

G 1111 / G 1114 Error and system messages | 8
B-H88.0.1X.DK2-1.2 19 / 22
8 Error and system messages
Display
Meaning
Possible causes
Remedy
----
Calculation not
possible
Measurement data
acquisition is run-
ning
Waiting for data collection
No display,
unclear char-
acters or no
response
when buttons
are pressed
Battery depleted
System error
Product is defective
Battery depleted
Error in the product
Product is defective
Replace battery
Send in for repair
BAT
Battery depleted
Battery depleted
Replace battery
ERR.1
Measuring range
exceeded
Measurement too
high
Product is defective
Stay within allowable
measurement range
Send in for repair
ERR.2
Measuring range is
undercut
Measurement too
low
Product is defective
Stay within allowable
measurement range
Send in for repair
ERR.3
Display range has
been exceeded
Incorrect display unit
Value not displaya-
ble
Correct setting
ERR.4
Display range has
been undercut
Incorrect display unit
Value not displaya-
ble
Correct setting
SYS ERR
System error
Error in the product
Switch product on/off
Replace batteries
Send in for repair

9 | Technical data G 1111 / G 1114
20 / 22 B-H88.0.1X.DK2-1.2
9 Technical data
_
_
_
_
G 1111
Measuring range
0,0 .. 1700,0 hPa (mbar) abs.
0,00 .. 25,00 PSI abs.
0,0 .. 1300 mmHg (Torr) abs.
Overload
Max. ± 3000 hPa abs.
Accuracy
Typ.: ± 2 hPa (at T: 5 .. 30 °C)
Max.: ± 1,25 % FSS
G 1114
Measuring range
0 .. 14000 hPa (mbar) abs.
0,00 .. 199,99 PSI abs.
0 .. 10500 mmHg (Torr) abs.
Overload
Max. ± 20000 hPa abs.
Accuracy
Typ.: ± 0,02 % FSS ± 0,1 % of m.v. (@ 25 °C)
Max.: ± 0,1 % FSS ± 0,5 % of m.v.
Measuring medium
air, clean water or non-corrosive/non-ionising gases
Pressure connection
1 hose connection, interchangeable with G1/8 universal ports
Measuring cycle
FAST: approx. 25 measurements per second
SLO: approx. 2.5 measurements per second
Display
3-line segment LCD, additional symbols, illuminated (white,
duration adjustable)
Standard function
Min/Max/Hold
Activatable special
functions
NVLL: Tare function
AVR: Averaging over 2 s / 5 s / 10 s
Adjustment
Zero point and gradient adjustment
