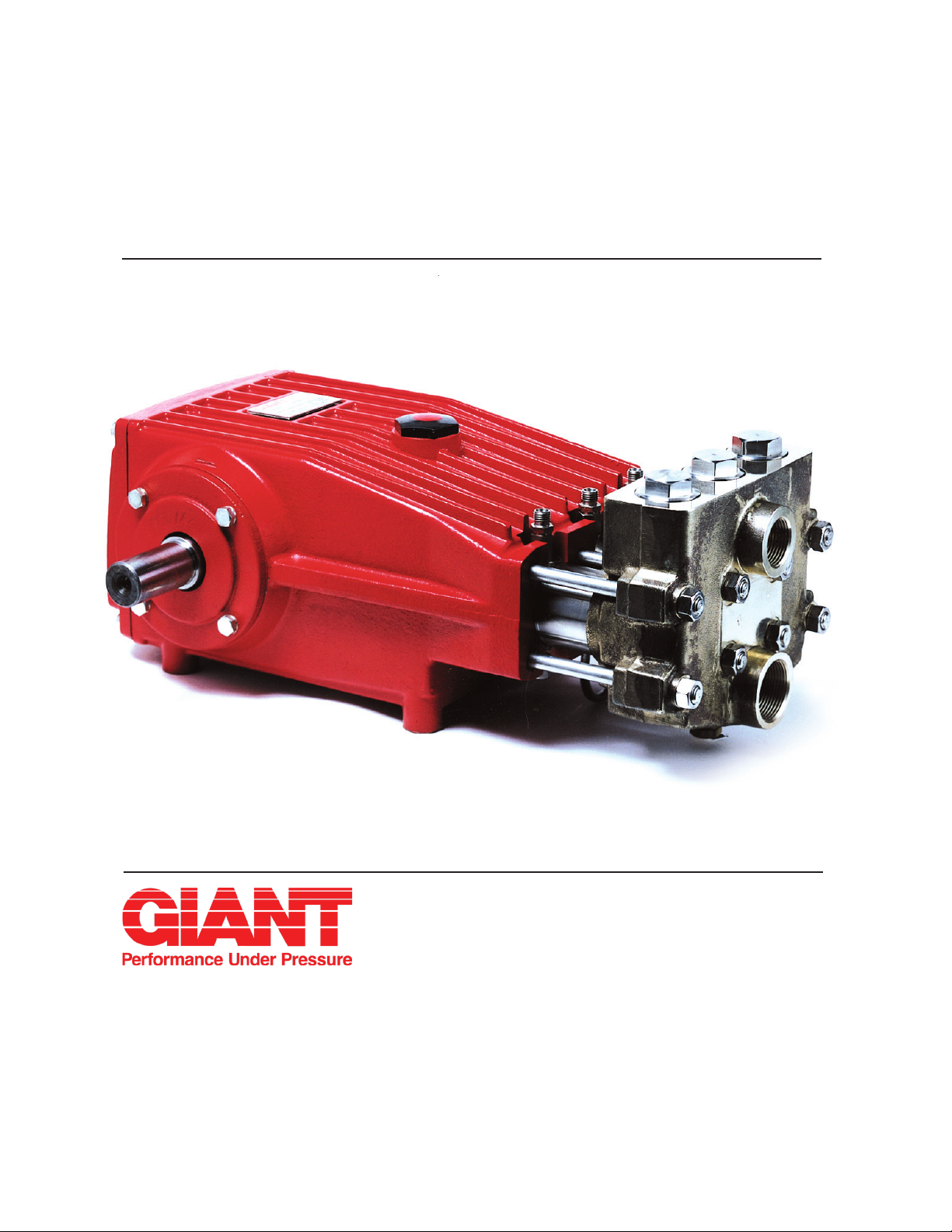

Giant Triplex Ceramic Plunger Pump LP350 User manual

Contents:
Installation Instructions: page 2
Pump Specications: pages 3-5
Exploded View: page 6
Parts List/Kits/Torque Specs: page 7
Trouble Shooting Chart: page 8
Spare Parts List: page 8

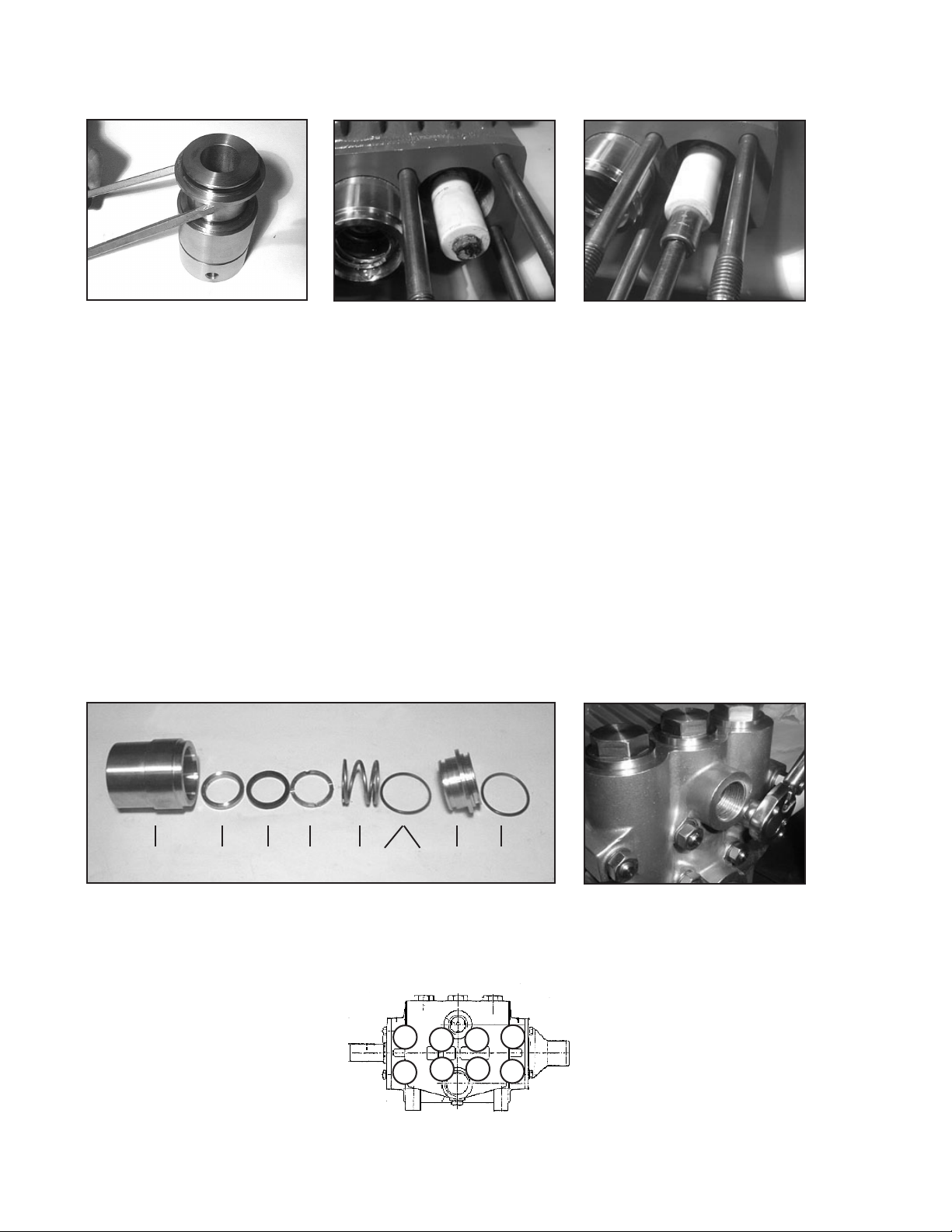

Repair Instructions: page 9-11
Pump Mounting Selection
Guide: page 11

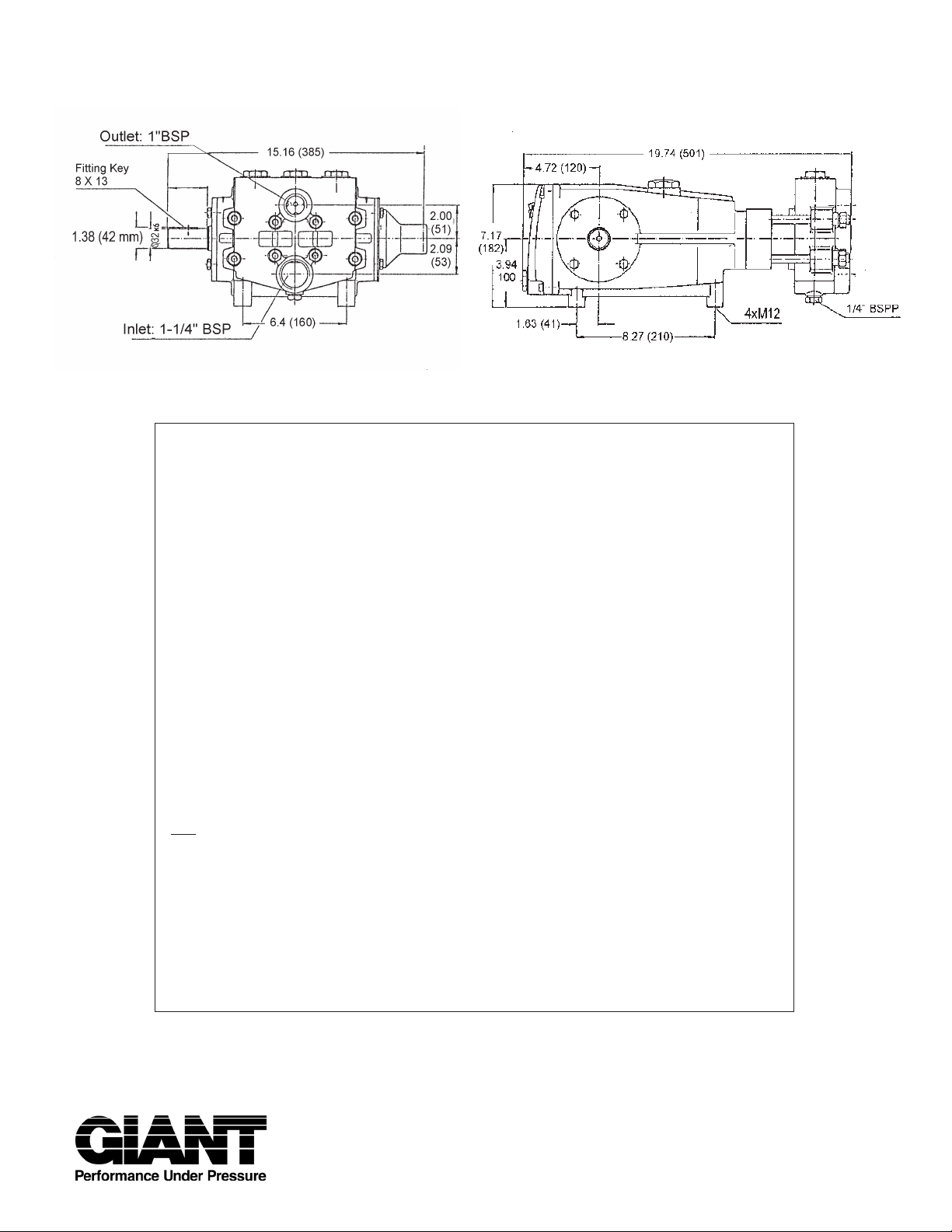

Dimensions: back page
Warranty Information: back page
Models
LP350, LP400, LP450
Triplex Ceramic
Plunger Pump
Operating Instructions/
Repair and Service
Manual
Updated 02/20

2
INSTALLATION INSTRUCTIONS
When the pump is in operation, the open shaft
end must be covered up by a shaft protector
(21). For direct drive operations, the driven
shaft side and coupling must have a guard
over the connected area.
Pressure in discharge line and in pump must
be at zero before any maintenance to the
pump takes place. Close the uid supply to
the inlet port(s). Disconnect fuses to ensure
that the driving motor does not accidentally
get switched on. Make sure that all parts on
the pressure side of the unit are vented and
relled, with pressure at zero, before starting
the pump.
In order to prevent air, or air/water mixture
being absorbed and to prevent cavitation
occurring, the pump-npshr, positive suction
head and water temperature must be kept
under control.
Required NPSH refers to water: Specic
weight 0.0624 lb/ft3 (1kg/dm3), viscosity 1°E at
maximum permissible revolutions.
Cavitation and/or compression of gases
lead to uncontrollable pressure kicks which
can ruin pump and unit parts and also
be dangerous to the operator or anyone
standing nearby.
Giant pumps are suitable for pumping clean
water and other non-aggressive or abrasive
media with a specic weight similar to water.
Before pumping other liquids - especially
inammable, explosive and toxic media
- the pump manufacturer must under all
circumstances be consulted with regard
to the resistance of the pump material.
It is the responsibility of the equipment
manufacturer and/or operator to ensure that
all pertinent safety regulations are adhered
to.
Operation and Maintenance
Check oil level prior to starting and ensure
trouble free water supply.
IMPORTANT! If there is a danger of frost,
the water in the pump and in the pump ttings
(particularly the unloader valve) must be
emptied. The second discharge port can
also be used and the pump run “dry” for 1-2
minutes for this purpose.
Oil: Use only 95 uid ounces (3.0 L) of SAE
90 Industrial gear lube oil. (Giant’s p/n 01154)
Initial change after 50 operating hours and
then every 500 operating hours, or after 6
months in any case.
Caution! When operating in damp places
or with high temperature uctuations,
condensate (frothy oil) might occur in the
gear box. In this situation, change the oil
immediately. Keep NPSH under control.
Maximum input pressure is 145 PSI (10
bar), the maximun suction head is -4.35 PSI
(-0.3 bar). Make sure that suction pulsation
is su󰀩ciently dampened. Water column
resonance must be avoided.
Safety Rules
Pump operation without safety valve as well
as any excess in temperature or speed limits
automatically voids the warranty. The safety
valve must be regulated in accordance with
the guidelines for liquid spraying units so that
the admissible operating pressure can not be
exceeded by more than 10%.
NOTE: Contact Giant Industries for Service School Information. Phone: [phone]

3
Specications
Model LP350
U.S. Metric
Flow .......................................................... 22.6 GPM .............................. 85.5 L/min
Discharge Pressure .................................. 2300 PSI ............................... 160 bar
Power Consumption ................................. 37.4 BHP ............................... 27.9 kW
Crankshaft Speed .................................................................................... 1000 RPM
Inlet Pressure ............................................ -4.35 to 145 PSI .................... -0.3 to 10 bar
Plunger Diameter ...................................... 1.18” ...................................... 30mm
Stroke ....................................................... 1.65” ...................................... 42mm
Crankcase Oil Capacity ............................ 95 .oz. ................................. 3.0 L
Temperature of Pumped Fluids ................. 140 oF @1000 RPM .............. 60 oC @1000 RPM
.................................................................. 160 oF Up to 500 RPM ......... 70 oC Up to 500 RPM
Inlet Port .................................................................................................. 1-1/4” BSP
Discharge Port ......................................................................................... 1” BSP
Shaft Mounting ......................................................................................... Either side
Shaft Rotation ........................................... .....................................Top of pulley towards manifold
Weight (approximate) ............................... 110 lbs. .................................. 50 kg
Crankshaft Diameter ................................................................................ 35mm
NPSHR ..................................................... 29.2 Ft. of Head .................... 8.9 mWs
PULLEY INFORMATION
Pulley selection and pump speed are based on
a 1725 RPM motor and “B” section belts. When
selecting desired GPM, allow for a ±5% tolerance
on pumps output due to variations in pulleys, belts
and motors among manufacturers.
1. Select GPM required, then select appropriate
motor and pump pulley from the same line.
2. The desired pressure is achieved by select-
ing the correct nozzle size that corresponds with
the pump GPM.
HORSEPOWER INFORMATION
Horsepower ratings shown are the power
requirements for the pump. Gas engine power
outputs must be approximately twice the pump
power requirements shown above.
We recommend that a 1.1 service factor be speci-
ed when selecting an electric motor as the power
source. To compute specic pump horsepower
requirements, use the following formula:
HP = (GPM x PSI) / 1440
LP350 PULLEY SELECTION AND HORSEPOWER
REQUIREMENTS
PUMP
PULLEY
MOTOR
PULLEY
RPM GPM 500 PSI 1000 PSI 2000 PSI 2300 PSI
12.75" 3.95" 500 11.3 3.9 7.8 15.7 18.0
12.75" 4.95" 640 14.5 5.0 10.0 20.1 23.1
12.75" 5.75" 750 16.9 5.9 11.8 23.5 27.1
12.75" 6.15" 805 18.2 6.3 12.6 25.3 29.0
12.75" 6.55" 865 19.5 6.8 13.6 27.1 31.2
12.75" 6.95" 940 21.2 7.4 14.7 29.5 33.9
12.75" 7.50" 1000 22.6 7.8 15.7 31.4 36.1

4
Specications
Model LP400
U.S. Metric
Flow ........................................................15.1 GPM ...........................57 L/min
Discharge Pressure ................................3600 PSI ............................250 bar
Power Consumption ...............................39 BHP ...............................29.1 kW
Crankshaft Speed ...............................................................................Up to 1000 RPM
Inlet Pressure ..........................................-4.34 to 145 PSI .................-0.3 to 10 bar
Plunger Diameter ....................................0.94” ...................................24mm
Stroke .....................................................1.65” ...................................42mm
Crankcase Oil Capacity ..........................95 .oz. ...............................3.0 L
Temperature of Pumped Fluids ...............140 oF @1000 RPM ...........60 oC @1000 RPM
................................................................160 oF Up to 500 RPM .......70 oC Up to 500 RPM
Inlet Port .............................................................................................1-1/4” BSP
Discharge Port ....................................................................................1” BSP
Shaft Mounting ....................................................................................Either side
Shaft Rotation ...........................................................................Top of pulley towards manifold
Weight (approximate) .............................110 lbs. ...............................50 kg
Crankshaft Diameter ...........................................................................35mm
NPSHR ...................................................25.9 Ft. of Head .................7.9 mWs
PULLEY INFORMATION
Pulley selection and pump speed are based on
a 1725 RPM motor and “B” section belts. When
selecting desired GPM, allow for a ±5% tolerance
on pumps output due to variations in pulleys, belts
and motors among manufacturers.
1. Select GPM required, then select appropriate
motor and pump pulley from the same line.
2. The desired pressure is achieved by select-
ing the correct nozzle size that corresponds with
the pump GPM.
HORSEPOWER INFORMATION
Horsepower ratings shown are the power
requirements for the pump. Gas engine power
outputs must be approximately twice the pump
power requirements shown above.
We recommend that a 1.1 service factor be speci-
ed when selecting an electric motor as the power
source. To compute specic pump horsepower
requirements, use the following formula:
HP = (GPM x PSI) / 1440
LP400 PULLEY SELECTION AND HORSEPOWER
REQUIREMENTS
PUMP
PULLEY
MOTOR
PULLEY RPM GPM 2000 PSI 2500 PSI 3000 PSI 3600 PSI
12.75” 3.95” 500 7.6 10.5 13.1 15.7 18.9
12.75” 4.95” 640 9.7 13.4 16.7 20.1 24.1
12.75” 5.75” 750 11.3 15.6 19.5 23.4 28.1
12.75” 6.15” 805 12.2 16.8 21.0 25.2 30.3
12.75” 6.55” 865 13.1 18.1 22.6 27.1 32.5
12.75” 6.95” 940 14.2 19.6 24.5 29.4 35.3
12.75” 7.50” 1000 15.1 20.8 26.0 31.2 37.5

5
Specications
Model LP450
U.S. Metric
Flow ...................................................... 19.7 GPM .......................... 74.5 L/min
Discharge Pressure .............................. 2600 PSI ........................... 180 bar
Power Consumption ............................. 36.7 BHP ........................... 27.4 kW
Crankshaft Speed ............................................................................ Up to 1000 RPM
Inlet Pressure ........................................ -4.35 to 145 PSI ................ -0.3 to 10 bar
Plunger Diameter .................................. 1.1” ................................... 28mm
Stroke ................................................... 1.65” .................................. 42mm
Crankcase Oil Capacity ........................ 95 .oz. ............................. 3.0 L
Temperature of Pumped Fluids ............. 140 oF @1000 RPM ......... 60 oC @1000 RPM
.............................................................. 160 oF Up to 500 RPM ...... 70 oC Up to 500 RPM
Inlet Port .......................................................................................... 1-1/4” BSP
Discharge Port ................................................................................. 1” BSP
Shaft Mounting ................................................................................. Either side
Shaft Rotation ....................................... ....................................Top of pulley towards manifold
Weight (approximate) ........................... 110 lbs. .............................. 50 kg
Crankshaft Diameter ........................................................................ 35mm
NPSHR ................................................. 28.2 Ft. of Head ................ 8.6 mWs
PULLEY INFORMATION
Pulley selection and pump speed are based on
a 1725 RPM motor and “B” section belts. When
selecting desired GPM, allow for a ±5% tolerance
on pumps output due to variations in pulleys, belts
and motors among manufacturers.
1. Select GPM required, then select appropriate
motor and pump pulley from the same line.
2. The desired pressure is achieved by select-
ing the correct nozzle size that corresponds with
the pump GPM.
HORSEPOWER INFORMATION
Horsepower ratings shown are the power
requirements for the pump. Gas engine power
outputs must be approximately twice the pump
power requirements shown above.
We recommend that a 1.1 service factor be speci-
ed when selecting an electric motor as the power
source. To compute specic pump horsepower
requirements, use the following formula:
HP = (GPM x PSI) / 1440
LP450 PULLEY SELECTION AND HORSEPOWER
REQUIREMENTS
PUMP
PULLEY
MOTOR
PULLEY
RPM GPM
1000 PSI
1500 PSI 2000 PSI 2600 PSI
12.75" 3.95" 500 9.8 6.8 10.3 13.7 17.8
12.75" 4.95" 640 12.6 8.7 13.1 17.5 22.7
12.75" 5.75" 750 14.8 10.3 15.4 20.5 26.7
12.75" 6.15" 805 15.8 11.0 16.5 22.0 28.6
12.75" 6.55" 865 17.0 11.8 17.7 23.6 30.7
12.75" 6.95" 940 18.5 12.8 19.3 25.7 33.4
12.75" 7.50" 1000 19.7 13.7 20.5 27.3 35.5

6
LP350, LP400, LP450 - EXPLODED VIEW

7
ITEM # PART # DESCRIPTION QTY
1 07759 Crankcase 1
2 13000 Oil Filler Plug Assembly 1
3 05940 Cover Plate 1
3A 07223-0100 Spring Ring 2
3B 05051 Hexagon Screw 2
4 06085 Crankcase Cover 1
5 07104 O-Ring, Crankcase Cover 1
6 05943 Oil Sightglass with Gasket 1
8 06086 Oil Dipstick 1
9 01009 O-Ring, Dipstick 1
10 01010 Cylinder Screw 4
11 01011-0400 Spring Ring 5
12 07109 Plug 1
13 06015 O-Ring 1
14 07111 Bearing Cover 2
15 07112 Radial Shaft Seal 2
16 07113 O-Ring 2
17 07114 Hexagon Screw 8
20 07116 Taper Roller Bearing 2
20A 07117 Fitting Disc 1-3
20B 13001 Fitting Dis
(May not be present) 1-3
21 05376 Shaft Protector 1
21A 05377 Shaft Guard Holder 1
22 13242 Crankshaft 1
23 13243 Fitting Key 1
24 13340 Connecting Rod Assembly 3
24A 13277 Inner Hexagon Screw 6
24B 13278 Spring Washer 6
25 13244 Crosshead / Plunger Assembly 3
28 13232 Crosshead Pin 3
29A 07256 Centering Sleeve 3
29B 13046 Plunger Pipe (LP400) 3
29B 13005 Plunger Pipe (LP450) 3
29B 07261 Plunger Pipe (LP350) 3
29C 13007 Tensioning Screw 3
29D 07258 Copper Ring 3
30 07779 O-Ring 3
31 07133 Oil Seal 3
35 13392 Seal Sleeve (LP400) 3
35 06650 Seal Sleeve (LP350, LP450) 3
37 13393 Seal Case (LP400) 3
ITEM # PART # DESCRIPTION QTY
37 06651 Seal Case (LP350/LP450) 3
38 07140 O-Ring (LP400) 3
38 07700 O-Ring (LP350/LP450) 6
38A 12055 O-Ring (LP400) 3
39 07271 Pressure Ring (LP350) 3
39 13366 Pressure Ring (LP400) 3
39 13013 Pressure Ring (LP450) 3
40 13016 V-Sleeve (LP350) 6
40 06083 V-Sleeve (LP400) 6
40 13015 V-Sleeve (LP450) 6
41 07273 Support Ring (LP350) 3
41 13367 Support Ring (LP400) 3
41 06652 Support Ring (LP450) 3
42 07338 Pressure Spring (LP400) 3
42 14084 Pressure Spring (LP350/LP450) 3
43 13018 Valve Casing 1
44A 07150 O-Ring 9
44B 06266 Support Ring 3
45 06078 Compression Spring 3
46 07060 Valve Assembly 6
46A 07064 Valve Seat 6
46B 07063 Valve Plate 6
46C 07750-0100 Valve Spring 6
46D 07066 Spacer Pipe 6
48 06077 Plug 3
49 07754 Stud bolt 8
49A 07158 Hexagon Nut 8
49B 07159 Disc 8
50 07423 Plug, 1/4” BSP 1
50A 07161 Copper Ring 1
52 13020 Disc for Crankshaft 1
53 06607 Hexagon Screw 1
04165 Crankcase Assembly
(1-29A/30/31/49/49A-B/52/53)
04276 Plunger Replacement Kit, LP350
(29B-D/35-42)
04274 Plunger Replacement Kit, LP400
(29B-D/35-42)
04275 Plunger Replacement Kit, LP450
(29B-D/35-42)
03189 Manifold Assembly
(43-48/50/50A)
LP350, LP400 & LP450 PARTS LIST
LP350, LP400 & LP450 REPAIR KITS
LP350 Packing Kit #09546
Item Part # Description Qty
38 07700 O-Ring 6
40 13016 V-Sleeve 6
LP400 Packing Kit #09548
Item Part # Description Qty
38 07140 O-Ring 3
38A 12055 O-Ring 3
40 06083 V-sleeve 6
LP450 Packing Kit #09549
Item Part # Description Qty
38 07700 O-Ring 6
40 13015 V-Sleeve 6
Valve Kit #09196
Item Part # Description Qty
44A 07150 O-Ring 6
44B 06266 Support Ring 3
46A 07064 Valve Seat 3
46B 07063 Valve Plate 3
46C 07750-0100 Valve Spring 3
Oil Seal Kit #09577
Item Part # Description Qty
31 07133 Oil Seal 3

8
PUMP SYSTEM MALFUNCTION
Preventative Maintenance Check List & Recommended Spare Parts List
Check Daily Weekly 50 hrs
Every
500 hrs
Every
1500 hrs
Every
3000 hrs
Oil Level/Quality X
Oil Leaks X
Water Leaks X
Belts, Pulley X
Plumbing X
Recommended Spare Parts
Oil Change p/n 01154 X X
Seal Spare Parts (1 kit/pump)
(see page 7 for kit list)
X
Oil Seal Kit (1 kit/pump)
(see page 7 for kit list)
X
Valve Spare Parts (1 kit/pump)
(see page 7 for kit list)
X
MALFUNCTION CAUSE REMEDY
The Pressure and/ Worn packing seals Replace packing seals
or the Delivery Broken valve spring Replace spring
Drops Belt slippage Tighten or Replace belt
Worn or Damaged nozzle Replace nozzle
Fouled discharge valve Clean valve assembly
Fouled inlet strainer Clean strainer
Worn or Damaged hose Repair/Replace hose
Worn or Plugged relief valve on pump Clean, Reset, and Replace worn parts
Cavitation Check suction lines on inlet of
pump for restrictions
Unloader Check for proper operation
Water in crankcase High humidity Reduce oil change interval
Worn seals Replace seals
Noisy Operation Worn bearings Replace bearings, Rell crankcase
oil with recommended lubricant
Cavitation Check inlet lines for restrictions
and/or proper sizing
Rough/Pulsating Worn packing Replace packing
Operation with Inlet restriction Check system for stoppage, air
Pressure Drop leaks, correctly sized inlet
plumbing to pump
Accumulator pressure Recharge/Replace accumulator
Unloader Check for proper operation
Cavitation Check inlet lines for restrictions
and/or proper size
Pressure Drop at Gun Restricted discharge plumbing Re-size discharge plumbing to
ow rate of pump
Excessive Worn plungers Replace plungers
Leakage Worn packing/seals Adjust or Replace packing seals
Excessive vacuum Reduce suction vacuum
Cracked plungers Replace plungers
Inlet pressure too high Reduce inlet pressure
High Crankcase Wrong Grade of oil Giant oil is recommended
Temperature Improper amount of oil in crankcase Adjust oil level to proper amount

9
REPAIR INSTRUCTION - LP350, LP400, LP450
TO CHECK VALVES
4) Inspect valve seats (46A) and valve plates (46B) for
damage and replace if needed. Check valve casing (43)
surfaces for damage. Replace O-Rings (44A) and reinstall
valve assemblies (46) into valve casing. (Lubricate O-
Rings before installation.)
5) Replace tension plugs
(48) and tighten them
securely to 107 ft-lbs (145
Nm).
46D 46C 46B 46A 44A
1) With a 30mm wrench
remove the three (3)
tension plugs (48) along
with the tension springs
(45) from the top of the
valve casing (43).
2) Remove discharge and
inlet valve assemblies
(46) by pulling them
upwards out of the valve
casing (43). It may be
necessary to use a slide
hammer tool.
3) With the valve assembly
(46) pointed down, place
a dowel rod through the
top of spacer pipe (46D).
Hold assembly in hand
and tap end of dowel
sharply with mallet until
assembly breaks free.
6) Remove the eight (8)
manifold nuts and wash-
ers (49A,B) using a
19mm wrench and pull
o󰀨 valve casing (43).
7) If needed, tap valve cas-
ing with a rubber mallet
to remove it.
8) Using two at screw driv-
ers, pry seal sleeve (35)
out of crankcase guides.
SEAL AND PLUNGER REPLACEMENT

10
9) Remove seal case (37)
from seal sleeve (35).
10) Check plunger surface
(25 and 29B) and seals
(40) for wear and pitting.
If none is found, proceed
to step twelve.
11) If plunger (29B) is worn, re-
move tension screw (29C)
with a 17mm wrench.
Clean tension screw with
wire brush to remove
any old locktite. Discard
copper gasket (29D) and
replace with new. Clean
the front surface of plung-
er/ crosshead assembly
(25). Install new plunger
(29B) onto plunger/ cross-
head assembly. Put some
locktite on both surfaces
of copper gasket and
tension screw threads.
Secure plunger in place
with tension screw and
gasket and tighten to 26
ft.-lbs. (35 Nm).
REPAIR INSTRUCTION - LP350, LP400, LP450
12) Remove v-sleeves (40) and support ring (41) for seal case
(37) and replace with new elastomers. Lubricate parts
before reinstalling into seal sleeve. Replace seal sleeve/
seal case assembly (35/37) into the valve casing (43).
35 39 40 (2) 41 42 38 38A 37 38
(LP400 only)
13) Place entire manifold as-
sembly sleeve assembly
over the studs (49) and
push rmly until seated
against the crankcase
(1).
14) Replace nuts and wash-
ers (49A, B) and tighten
to 59 ft.-lbs. (80Nm) in
the pattern as shown to
the right.
6427
8135

11
DISASSEMBLY OF CRANKCASE
1) Remove valve casing (43) and plunger pipe (29B), drain oil.
2) Screw o󰀨 gear cover (4) and bearing cover (14).
3) Remove connecting rod screws (24) and push the front of connecting rod forward as far as pos-
sible. Remove back halves of connecting rods, note which position from which they came from.
4) Turning the crankshaft slightly, carefully hit on side of crankshaft (22) with a rubber mallet until
crankshaft is loose.
CAUTION: Do not bend the connecting rod shafts. Check cranshaft and connecting rod sur-
faces, shaft seals and taper roller bearings.
REASSEMBLY
5) Using a soft tool, press in the outer bearing ring until the outer edge lines up with the outer edge of
the bearing hole (1).
6) Remove the bearing cover (14) together with the shaft seal (15) and O-Ring (16). Fit crankshaft
through bearing hole on the opposite side.
7) Press in outer bearing (20) inwards with the bearing cover (14). Make sure that the crankshaft is in
a vertical position and turn it slowly so that the taper rollers of the bearings touch the edge of outer
bearing ring.
8) Adjust axial bearing clearance to at least .004” and maximum at .006” by placing tting discs (20A
and/or 20B) under the bearing cover (14).
CAUTION: After assembly has been completed, the crankshaft should turn easily and with
very little clearance.
9) Bolt connecting rod halves together making sure they are replaced in the same position from which
they came. Tighten connecting rod screws (24A) to 21 ft.-lbs. (28 Nm).
REPAIR INSTRUCTIONS - LP350, LP400, LP450
Pos. Item # Description Lubrication Info Torque Amount
1 07759 Crankcase Molycote Cu-Paste
605943 Oil Sight Glass Loctite 572 29 ft.-lbs. (40 Nm)
10 01010 Cylinder Screw 221 in.-lbs. (25 Nm)
12 07109 Plug 29 ft.-lbs. (40 Nm)
17 07114 Hexagon Screw 221 in.-lbs. (25 Nm)
24 13340 Connecting Rod Assembly 21 ft.-lbs. (28 Nm)
29C 13007 Tension Screw Loctite 243 26 ft.-lbs. (35 Nm)
31 07133 Oil Seal Loctite 403
48 06077 Plug 107 ft.-lbs. (145 Nm)
49 07754 Stud Bolt Loctite 270
49A 07158 Hexagon Nut 59 ft.-lbs. (80 Nm)
LP350, LP400, LP450 TORQUE SPECIFICATIONS

GIANT INDUSTRIES, INC. 900 N. Westwood Ave., Toledo, Ohio 43607
Phone: [phone] FAX [phone], www.giantpumps.com
 Copyright 2020 Giant Industries, Inc.
LP350, LP400 & LP450 DIMENSIONS (inches)
02/20 LP350_400_450.indd
GIANT INDUSTRIES LIMITED WARRANTY
Giant Industries, Inc. pumps and accessories are warranted by the manufacturer to be free from defects in
workmanship and material as follows:
1. For portable pressure washers and self-service car wash applications, the discharge manifolds
will never fail, period. If they ever fail, we will replace them free of charge. Our other pump parts,
used in portable pressure washers and in car wash applications, are warranted for ve years
from the date of shipment for all pumps used in NON- SALINE, clean water applications.
2. One (1) year from the date of shipment for all other Giant industrial and consumer pumps.
3. Six (6) months from the date of shipment for all rebuilt pumps.
4. Ninety (90) days from the date of shipment for all Giant accessories.
This warranty is limited to repair or replacement of pumps and accessories of which the manufacturer’s evalu-
ation shows were defective at the time of shipment by the manufacturer. The following items are NOT covered
or will void the warranty:
1. Defects caused by negligence or fault of the buyer or third party.
2. Normal wear and tear to standard wear parts.
3. Use of repair parts other than those manufactured or authorized by Giant.
4. Improper use of the product as a component part.
5. Changes or modications made by the customer or third party.
6. The operation of pumps and or accessories exceeding the specications set forth in the Opera-
tions Manuals provided by Giant Industries, Inc.
Liability under this warranty is on all non-wear parts and limited to the replacement or repair of those products
returned freight prepaid to Giant Industries which are deemed to be defective due to workmanship or failure of
material. A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required
prior to the return to Giant Industries of all products under warranty consideration. Call (419)-531-4600 or fax
(419)-531-6836 to obtain an R.G.A. number.
Repair or replacement of defective products as provided is the sole and exclusive remedy provided hereunder
and the MANUFACTURER SHALL NOT BE LIABLE FOR FURTHER LOSS, DAMAGES, OR EXPENSES,
INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES DIRECTLY OR INDIRECTLY ARISING FROM
THE SALE OR USE OF THIS PRODUCT.
THE LIMITED WARRANTY SET FORTH HEREIN IS IN LIEU OF ALL OTHER WARRANTIES OR REP-
RESENTATION, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTIES OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND ALL SUCH WARRANTIES
ARE HEREBY DISCLAIMED AND EXCLUDED BY THE MANUFACTURER.
