Manual 07500590 Model 3000-12
Page 1 Operation Manual
Model 3000-12
32 SPDT Switch Module
90400570
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 2 Operation Manual
All technical data and specifications in this publication are subject to change without prior notice and do
not represent a commitment on the part of Giga-tronics, Incorporated.
© 2011 Giga-tronics Incorporated. All rights reserved. Printed in the U.S.A.
CONTACT INFORMATION
Giga-tronics, Incorporated
4650 Norris Canyon Road
San Ramon, California 94583
Telephone: [phone] (only within the United States)
925.328.4650
Fax: [phone]
On the Internet: www.gigatronics.com
Warranty
Giga-tronics Series 3000 Switching Modules are warranted against
defective materials and workmanship for three yearsfrom date of shipment,
or as detailed in the warranty section of this manual. Giga-tronics will, at its
option, repair or replace products that are proven defective during the
warranty period. This warranty DOES NOT cover damage resulting from
improper use, nor workmanship other than Giga-tronics service. There is no
implied warranty of fitness for a particular purpose, nor is Giga-tronics liable
for any consequential damages. Specification and price change privileges are
reserved by Giga-tronics.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 3 Operation Manual
Regulatory compliance information
This product complies with the essential requirements of the following applicable European
Directives, and carries the CE mark accordingly.
89/336/EEC and 73/23/EEC
EMC Directive and Low Voltage Directive
EN61010-1 (1993)
Electrical Safety
EN61326-1 (1997)
EMC –Emissions and Immunity
Manufacturer’s Name:
Manufacturer’s Address
Giga-tronics, Incorporated
4650 Norris Canyon Road
San Ramon, California 94583
U.S.A.
Type of Equipment:
Model Series Number
Switching Module
3000-12
Declaration of Conformity on file. Contact Giga-tronics at the following;
Giga-tronics, Incorporated
4650 Norris Canyon Road
San Ramon, California 94583
Telephone: [phone] (only within the United States)
925.328.4650
Fax: [phone]
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 4 Operation Manual
Record of Changes to This Manual
Use the table below to maintain a permanent record of changes to this document. Corrected
replacement pages are issued as Technical Publication Change Instructions (TPCI). When you
are issued a TPCI, do the following:
1. Insert the TPCI at the front of the manual binder.
2. Remove the pages from the manual binder that are noted in the TPCI.
3. Replace the page(s) removed in the previous step with the corrected page(s).
4. Record the changes in the table below.
TPCI
Number
TPCI Issue
Date
Date Entered
Comments
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 5 Operation Manual
Revision History
Revision
Description of Change
Chg Order #
Approved By
A
Initial Release
B
C
Reformatted 2/12
RCW
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 6 Operation Manual
Contents
Contents........................................................................................................................................................ 6
Chapter 1 Introduction ................................................................................................................................. 7
1.1 Safety and Manual Conventions......................................................................................................... 7
1.1.1 Product Reference....................................................................................................................... 7
1.1.2 Personal Safety Alert................................................................................................................... 7
1.1.3 Equipment Safety Alert ...............................................................................................................7
1.1.4 Notes ........................................................................................................................................... 7
1.1.5 Electrical Safety Precautions ....................................................................................................... 7
Chapter 3 Functional Description ................................................................................................................. 8
3.1 Introduction........................................................................................................................................ 8
3.2 General Description............................................................................................................................ 8
Chapter 4 Block Diagram .............................................................................................................................. 9
Chapter 5 Controls and Indicators ..............................................................................................................10
5.1 VXI LOGICAL ADDRESS ......................................................................................................................10
5.2 LEDs...................................................................................................................................................10
5.2.1 “BUS” LED..................................................................................................................................10
Chapter 6 Internal Settings ......................................................................................................................... 10
6.1 FUSE.................................................................................................................................................. 10
6.2 VXIbus INTERRUPT LEVEL SELECTION.................................................................................................10
Chapter 7 Specifications .............................................................................................................................11
Chapter 8 Register Map ..............................................................................................................................12
8.1 Programming ....................................................................................................................................12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 7 Operation Manual
Chapter 1 Introduction
1.1 Safety and Manual Conventions
This manual contains conventions regarding safety and equipment usage as described below.
1.1.1 Product Reference
Throughout this manual, the term “Common Core Switching Platform, Series 8800” refers to all models
of within the series, unless otherwise specified.
1.1.2 Personal Safety Alert
WARNING: Indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
1.1.3 Equipment Safety Alert
CAUTION: Indicates a situation which can damage or adversely affect the product or
associated equipment.
1.1.4 Notes
Notes are denoted and used as follows:
NOTE: Highlights or amplifies an essential operating or maintenance procedure, practice,
condition or statement.
1.1.5 Electrical Safety Precautions
Any servicing instructions are for use by service-trained personnel only. To avoid personal injury, do not
perform any service unless you are qualified to do so.
For continued protections against fire hazard, replace the AC line fuse only with a fuse of the same
current rating and type. Do not use repaired fuses or short circuited fuse holders.
WARNING
!
CAUTION
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 8 Operation Manual
Chapter 3 Functional Description
3.1 Introduction
This User Guide provides a basic description of the Model 3000-12, thirty two DPDT relays module. Also
included are installation and input connection procedures, programming information, service and
maintenance information.
3.2 General Description
This module contains 32 DPDT Relays (Double Pole Double Throw Relays). The basic module 3000-12 is
specially designed to support ATE testing and it supports shielded measurements. Each channel is
shielded to an isolated ground plane. This ground is brought out to the front panel connector. This
allows connections of shielded wires to the relays. The 3000-12 is a register based VXI module. The
register map is carefully laid out for easy software control. The interface and mechanical constructions
meet the specification of the VXIbus System Specification, Rev: 1.2 and 1.3.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 9 Operation Manual

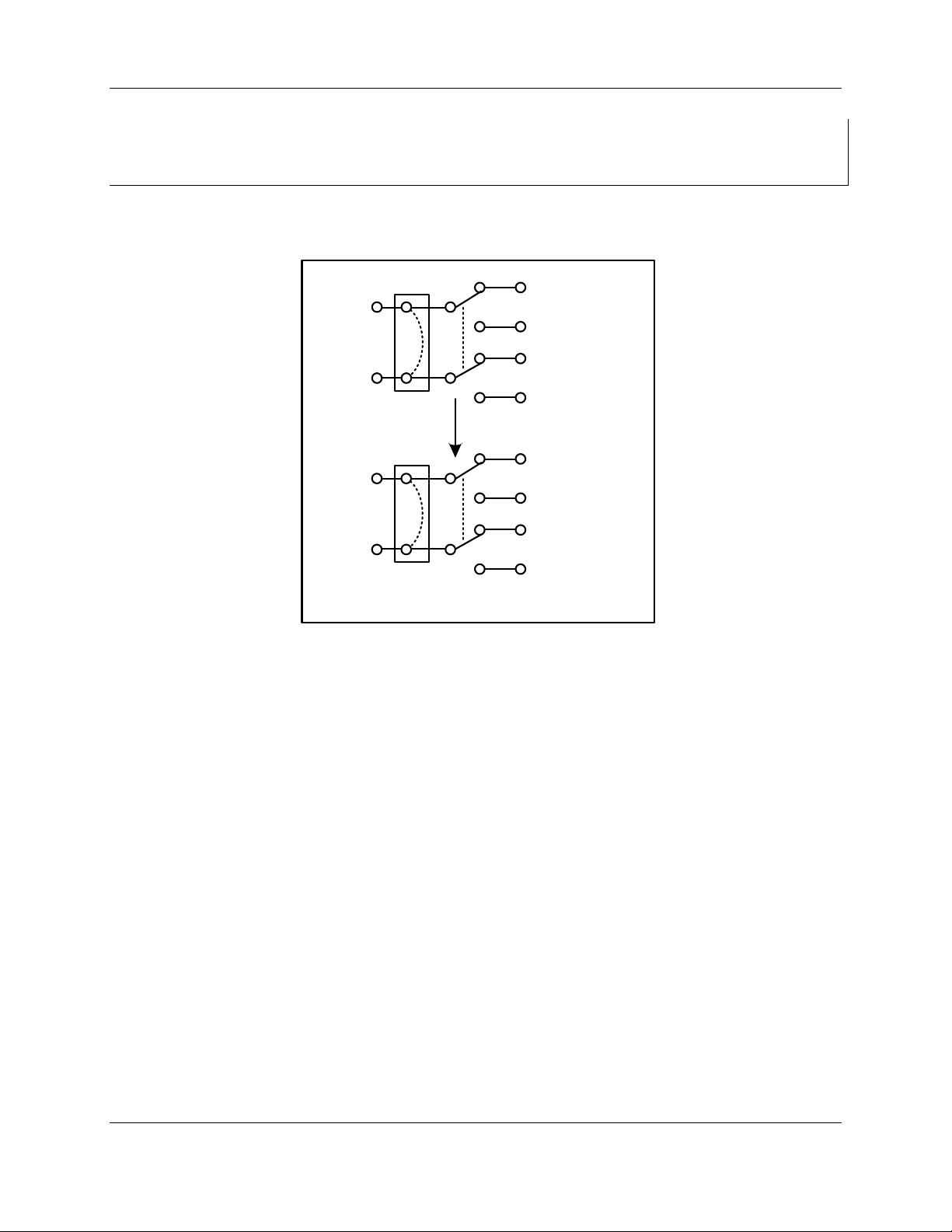

Chapter 4 Block Diagram
CH 1A
CH 1B
CH 1A - NC
CH 1A - NO
CH 1B - NC
CH 1B - NO
CH 32A
CH 32B
CH 32A - NC
CH 32A - NO
CH 32B - NC
CH 32B - NO
Analog Ground Plane
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 10 Operation Manual
Chapter 5 Controls and Indicators
The following controls and indicators are provided to select and display the functions of the ASCOR
3000-8 Module’s operating environment.
5.1 VXI LOGICAL ADDRESS
See the Logical Address Switch setting in the Installation and Maintenance section
located in Section 2 .
5.2 LEDs
The following LEDs are visible at the Module’s front panel to indicate the
status of the module’s operation:
5.2.1 “BUS” LED
This green color LED is normally off and will flash on when the 3000-12
module is addressed by the system.
Chapter 6 Internal Settings
The following items are inside the module and can be reached by removing the side
cover.
6.1 FUSE
The ASCOR VXI 3000-12 uses a 10 Amp fuse in the +5 Volt line and is located on
the Mother Board (MB) assembly.
6.2 VXIbus INTERRUPT LEVEL SELECTION
The VXIbus interrupt level is set with three bits in the “3Eh” register.
See the section on “A16 ADDRESS SPACE REGISTER DESCRIPTION”.
The interrupt level is factory set to “no interrupt”.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 11 Operation Manual
Chapter 7 Specifications
Electrical Specification
Number of relays 32
Max Voltage: 120 VAC, 150 VDC
Max Current: 2 amp
Bandwidth: >30MHz (into 50 ohms to Analog Ground)
Max Power 60 watts
Path resistance: </=200 milliohm
Connector: ITT Cannon 2DD100S Qty. 2
Environmental Specification
Temperature:
Operating: 0 to 55 degrees C
Storage: 40 to 75 degrees C
Humidity:
Operating 10 to 90% non-condensing
Storage: 0 to 95% non-condensing
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 12 Operation Manual
Chapter 8 Register Map
8.1 Programming
The Model 3000-12 is a VXI register based module. The switch paths are controlled via VXIMAX™ which
is the 16/32 bit data controller. The Model 3000-12 can be programmed in 16 bit or 32 bit wide data.
Through your VXI controller, write the data to the appropriate register as shown on the register map for
the relay or relays in the register that is being closed. When the data bit is true, the relay chosen will be
closed. The state of the relays in a register can be determined by reading the desired register. The data
read back represents the value at the coil of the relay. This allows verification that the program register
has correctly controlled the relay coil.
The following register maps are shown in the configurations: 16 bit mode and 32 bit mode. In each
section, 16 bit and 32 bit, the register map is organized to show the relay designation in each register. It
is followed by the register’s functionality and the path connections to the front panel.
Register Description
REGISTER: 8000h
MODE: 16/32 bit
FUNCTION: Relays K1-16
BIT
CONNECTION-A
CONNECTION-B
RELAY
0
NC: J1-3, NO: J1-1, C: J1-2
NC: J1-29, NO: J1-27, C: J1-28
K15
1
NC: J1-54, NO: J1-52, C: J1-53
NC: J1-79, NO: J1-77, C: J1-78
K16
2
NC: J1-6, NO: J1-4, C: J1-5
NC: J1-32, NO: J1-30, C: J1-31
K13
3
NC: J1-57, NO: J1-55, C: J1-56
NC: J1-82, NO: J1-80, C: J1-81
K14
4
NC: J1-9, NO: J1-7, C: J1-8
NC: J1-35, NO: J1-33, C: J1-34
K11
5
NC: J1-60, NO: J1-58, C: J1-59
NC: J1-85, NO: J1-83, C: J1-84
K12
6
NC: J1-12, NO: J1-10, C: J1-11
NC: J1-38, NO: J1-36, C: J1-37
K9
7
NC: J1-63, NO: J1-61, C: J1-62
NC: J1-88, NO: J1-86, C: J1-87
K10
8
NC: J1-15, NO: J1-13, C: J1-14
NC: J1-41, NO: J1-39, C: J1-40
K7
9
NC: J1-66, NO: J1-64, C: J1-65
NC: J1-91, NO: J1-89, C: J1-90
K8
10
NC: J1-18, NO: J1-16, C: J1-17
NC: J1-44, NO: J1-42, C: J1-43
K5
11
NC: J1-69, NO: J1-67, C: J1-68
NC: J1-94, NO: J1-92, C: J1-93
K6
12
NC: J1-21, NO: J1-19, C: J1-20
NC: J1-47, NO: J1-45, C: J1-46
K3
13
NC: J1-72, NO: J1-70, C: J1-71
NC: J1-97, NO: J1-95, C: J1-96
K4
14
NC: J1-24, NO: J1-22, C: J1-23
NC: J1-50, NO: J1-48, C: J1-49
K1
15
NC: J1-75, NO: J1-73, C: J1-74
NC: J1-100, NO: J1-98, C: J1-99
K2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 13 Operation Manual
Register Description
REGISTER: 8000h
MODE: 16/32 bit
FUNCTION: Relays K1-16
BIT
CONNECTION-A
CONNECTION-B
RELAY
0
NC: J1-3, NO: J1-1, C: J1-2
NC: J1-29, NO: J1-27, C: J1-28
K15
1
NC: J1-54, NO: J1-52, C: J1-53
NC: J1-79, NO: J1-77, C: J1-78
K16
2
NC: J1-6, NO: J1-4, C: J1-5
NC: J1-32, NO: J1-30, C: J1-31
K13
3
NC: J1-57, NO: J1-55, C: J1-56
NC: J1-82, NO: J1-80, C: J1-81
K14
4
NC: J1-9, NO: J1-7, C: J1-8
NC: J1-35, NO: J1-33, C: J1-34
K11
5
NC: J1-60, NO: J1-58, C: J1-59
NC: J1-85, NO: J1-83, C: J1-84
K12
6
NC: J1-12, NO: J1-10, C: J1-11
NC: J1-38, NO: J1-36, C: J1-37
K9
7
NC: J1-63, NO: J1-61, C: J1-62
NC: J1-88, NO: J1-86, C: J1-87
K10
8
NC: J1-15, NO: J1-13, C: J1-14
NC: J1-41, NO: J1-39, C: J1-40
K7
9
NC: J1-66, NO: J1-64, C: J1-65
NC: J1-91, NO: J1-89, C: J1-90
K8
10
NC: J1-18, NO: J1-16, C: J1-17
NC: J1-44, NO: J1-42, C: J1-43
K5
11
NC: J1-69, NO: J1-67, C: J1-68
NC: J1-94, NO: J1-92, C: J1-93
K6
12
NC: J1-21, NO: J1-19, C: J1-20
NC: J1-47, NO: J1-45, C: J1-46
K3
13
NC: J1-72, NO: J1-70, C: J1-71
NC: J1-97, NO: J1-95, C: J1-96
K4
14
NC: J1-24, NO: J1-22, C: J1-23
NC: J1-50, NO: J1-48, C: J1-49
K1
15
NC: J1-75, NO: J1-73, C: J1-74
NC: J1-100, NO: J1-98, C: J1-99
K2
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Manual 07500590 Model 3000-12
Page 14 Operation Manual
For example:
To close relay K15 is to set the register to:
Register 8000h
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
Register Map, 16 Bit
DESCRIPTION: 32 DPDT RRELAYSX, MOTHER BOARD
PCB NUMBER: 85003240
ADDRESS
OFFSET:
8000h
MSB LSB
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
K2
K1
K4
K3
K6
K5
K8
K7
K10
K9
K12
K11
K14
K13
K16
K15
ADDRESS
OFFSET:
8002h
MSB LSB
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
K18
K17
K20
K19
K22
K21
K24
K23
K26
K25
K28
K27
K30
K29
K32
K31
Register Map, 32 Bit
DESCRIPTION: 32 DPDT RELAYSX, MOTHER BOARD
PCB NUMBER: 85003240
ADDRESS OFFSET: 8000h
LSB
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
K2
K1
K4
K3
K6
K5
K8
K7
K10
K9
K12
K11
K14
K13
K16
K15
MSB
32
32
30
29
28
27
26
25
24
23
22
20
19
18
17
16
K18
K17
K20
K19
K22
K21
K24
K23
K26
K25
K28
K27
K30
K29
K32
K31
Note: Caltron Systems, K32 not installed. J2 pins 73-75 and J2 pins 97-99 are used to bring out test
points for +24V,+12V, and +5V through a 1K ohm resistors.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group is your source for quality
new and certied-used/pre-owned equipment
• FAST SHIPPING AND
DELIVERY
• TENS OF THOUSANDS OF
IN-STOCK ITEMS
• EQUIPMENT DEMOS
• HUNDREDS OF
MANUFACTURERS
SUPPORTED
• LEASING/MONTHLY
RENTALS
• ITAR CERTIFIED
SECURE ASSET SOLUTIONS
SERVICE CENTER REPAIRS
Experienced engineers and technicians on staff
at our full-service, in-house repair center
WE BUY USED EQUIPMENT
Sell your excess, underutilized, and idle used equipment
We also offer credit for buy-backs and trade-ins
www.artisantg.com/WeBuyEquipment
REMOTE INSPECTION
Remotely inspect equipment before purchasing with
our interactive website at www.instraview.com
LOOKING FOR MORE INFORMATION?
Visit us on the web at www.artisantg.com for more
information on price quotations, drivers, technical
specications, manuals, and documentation
Contact us: (888) 88-SOURCE | [e-mail] | www.artisantg.com
SM
View
Instra
