G1317D│
1
Your Phone
This section introduces you to the hardware of the device.

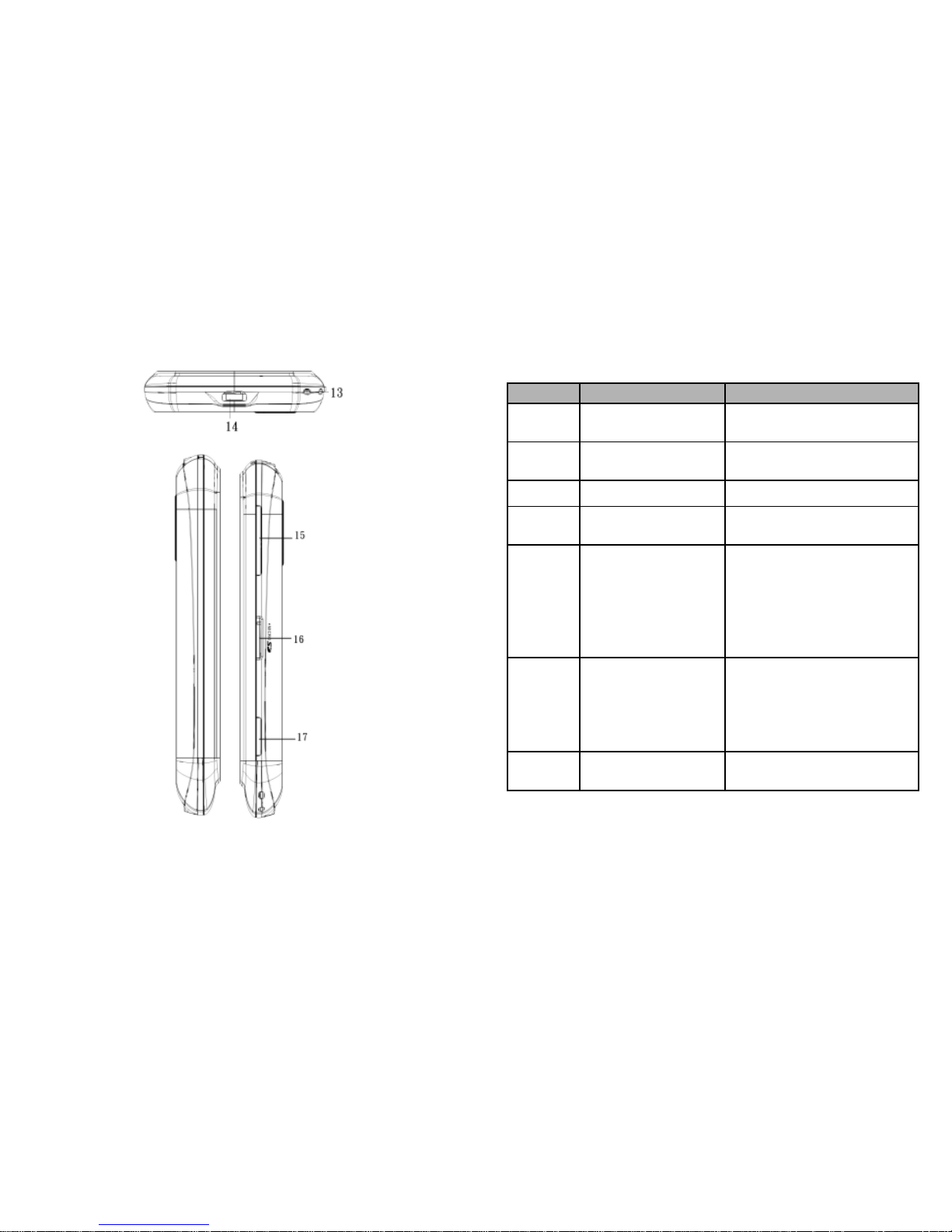

No.
Items
Functions
2
Power
• Press and hold for several
seconds to turn the phone
on or off.
• To save battery, quick press
to temporarily turn the
screen on or off.
3
Earpiece
The source of music and
voice.
4
Touch screen
Display screen.
5
LED
•Power status notification.
•Other notification.( New text
message / Missed call).
6
P-sensor
The screen will automatically
shut down when taking the
device close to face on call.
7
Light sensor
Adjust the screen brightness
according to the environment
of lightness.
8
Home
• Go back to Home Screen.
• Press and hold to bring up
recent activities.
9
Menu
Press to view menu options.
No.
Items
Functions
1
Earphone jack
Use a headset for
hands-free conversation or
listening to music.

G1317D│
2
No.
Items
Functions
10
Search
Connect to the website or
Find feature in the phone.
11
Return
Return to the previous
page.
12
MIC
Sound Receiver.
13
Strap hole
It is for hanging cell
phone strap.
14
Micro USB port
• Connect USB cable to
PC as a modem / USB
mass storage.
• Connect USB cable and
the AC adapter to charge
the battery.
15
Volume
Press upwards or
downwards to increase or
decrease the volume.
Slide down the key fully to
enter vibrate mode.
16
Micro SD Slot
You can insert your Micro
SD card here.

G1317D│
3
No.
Items
Functions
17
Camera key
In Camera/Camcorder
mode, press to take a photo or
video.
18
Speaker
The source of music and
voice.
19
Flash LED
Help photo shooting.
20
3Megapixels
Camera
The camera on the back of the
device supports 3-mega-pixel
photo and high-quality video.
21
Back cover
You need to open the cover to
install or uninstall the battery
and SIM card.
NOTE: The battery can also be charged while
connecting to a computer.
Installing or uninstalling the SIM Card,
Battery, and Memory Card

G1317D│
4

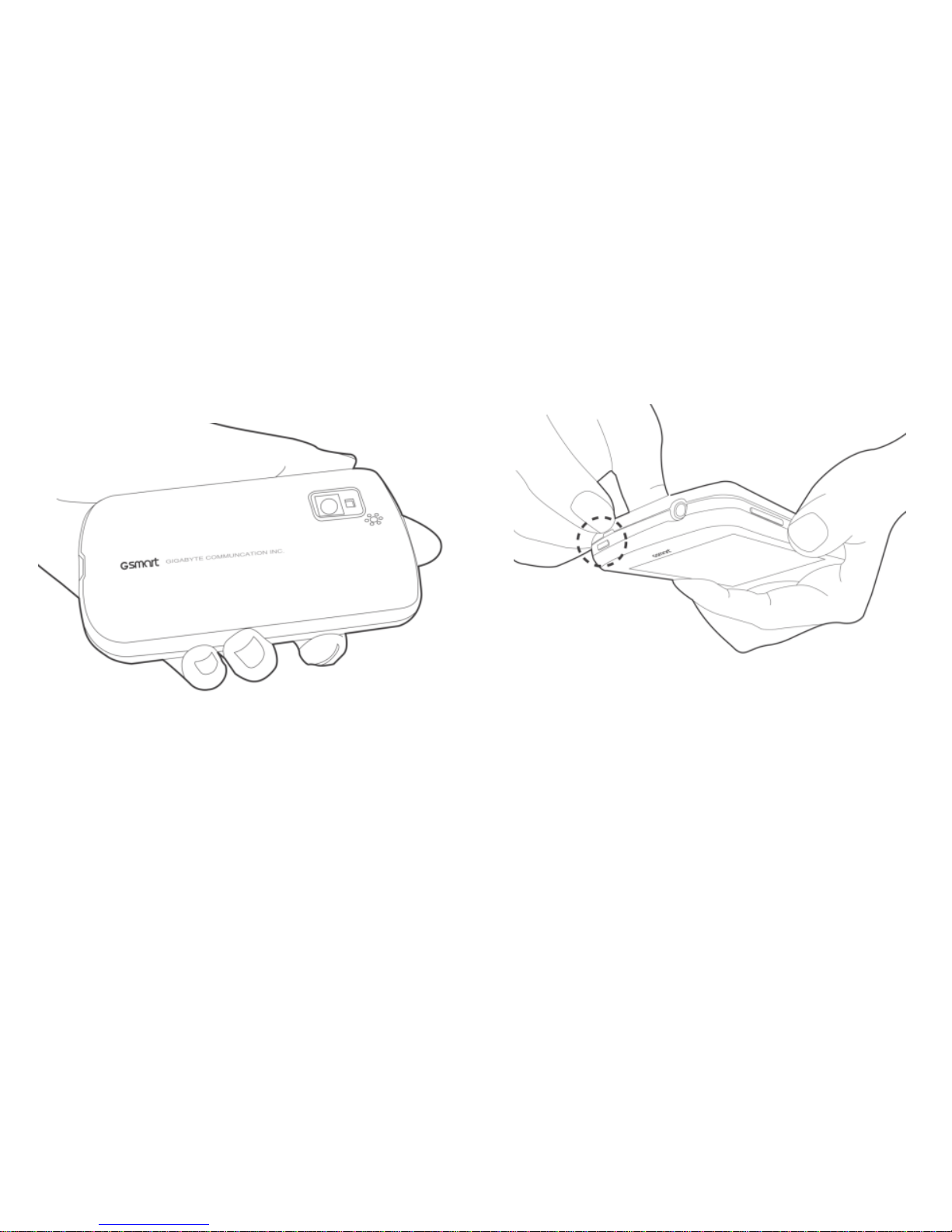

To remove the back cover
1. Please turn over your phone with the back
cover facing up.
2. Please move your fingertip into the slot

G1317D│
5
3. Stay your palm close to the back cover. Then pull the
back cover with your fingertip to remove it.
SIM card
The SIM card contains your phone number, memory
storage, and network service details.
To install the SIM card
Insert the SIM card. Make sure the gold contacts are
facing down and the cut-off corner is facing towards the
battery slot. There are two slots for two SIM cards. Upper
slot is for SIM2, SIM1 slot is on the underside.
To remove the SIM card
1. Remove battery.
2. Use your finger to slide the SIM card from the
card slot.
Battery
Your phone comes with a rechargeable LI-Polymer
battery. Battery life varies depending on the network,
used applications, and the type of connections attached
to your phone.

G1317D│
6
To install the battery
Insert the battery. Make sure the contacts of the
battery are aligned with the connectors on the
battery slot.
To remove the battery
Use your fingertip to lift the battery, and then, remove it.
NOTE: To ensure battery performance and avoid the
risk of fire:
• Use only original batteries designated for the
phone.
• Do not store the battery in temperatures below -10ºC
or higher than 45ºC

G1317D│
7
To replace the back cover
Secure the hooks on the back cover with designated
holes on the phone and close the back cover.
1. Please insert the hook on the bottom of the back cover
into the slot of the phone.
2.With your right and left thumbs, press the middle of the
back cover.

G1317D│
8
3. Then, press the top of the back cover until click in
place.
Memory card
You will need a microSD card to store photos, music,
videos, and other data.
To install the memory card
1. Insert the memory card with the gold contacts
facing down.
2. Push the memory card until it clicks into place.
To remove the memory card
Push the memory card down to eject it from the slot.
Charging the Battery
When you take your phone out from the box for the first
time, the battery is only partially charge, to fully charge
the battery before use.
1. Plug the battery charger.

G1317D│
9
2. Plug the AC adapter to an outlet to start
charging.
NOTE:
• The battery can also be charged when you
connect your phone to the computer.
• To ensure safety, do not remove the battery
from the phone while the AC adapter is
connected or while it is being charged.
Using Headset
For hands-free conversation or listening to music, plug a
headset to headset jack.
NOTE:
• When using a headset, your ability to hear outside
sounds may be limited. Do not use headset if it will
endanger you.
• Do not set the volume to its maximum with a
headset as it may damage your hearing.
•The following instructions are only provided with
GSmart original headset:
Types
Descriptions
Press the button
on the headset
•When you receive an incoming call
press the button to answering a call.
If you are having a call conversation,
press the button to hold, and press
again to un-hold a call.
•In music/video mode, press the
button to play, and press again to
stop or resume music/ video.

G1317D│
10
Press and hold
the button on the
headset
•If you are having a call
conversation, press and hold the
button to end the call.
•When you are listening to music
press and hold the button back to
Playlist.
•When you use other functions,
press and hold the button can
launch the music player.
•When you receive an incoming
call, press and hold the button to
end the call.
Turning the Phone On or Off
After installing the SIM card and charging the battery, you
are now ready to turn on your phone.
To turn on your phone
Press and hold the power button until the phone vibrates.
To turn off your phone
1. Press and hold the power button for several
seconds.
2. A pop-up window appears, and then, tap Power
off.
3. Select OK to confirm.
To set your phone to Sleep mode
To set your phone to the sleep mode, press the power
button briefly. It will turn the display off. To turn the
display on, press the power button briefly again.
Notification LED:
Types
Descriptions
Solid red light
Battery is charging.
Solid green light
Battery is full.
Flashing red light
Battery is low.
Flashing green
light
Notification.( New text message /
Missed call/ New email).
USB Manager
There will be 4 modes of USB Connection after your
device connecting with PC:
1. Data storage: Storage mode.
Insert the memory card, tap Data storage, your PC will
pop-up a message to ask if you want to use data
storage and file manager.
2. PC Sync: Android Manager mode。
Tap PC Sync, your device will connect and access
Android Manager Agent. Your PC will need to open

G1317D│
11
Android Manager to sync up with the device.
3. Data Card : Data card mode。
Tap Data Card, you can use your phone as a modem,
Share your data connection with other devices.
4. Charger: Charging mode。
Tap Charger to start charging.。
Install USB Driver
1. Connect your device with PC by the USB cable, and
then, your PC will pop-up a message. Select “Open
folder to view files.”
2. Tap the "Setup.exe" in the USB Driver Installer folder
in your PC.
3. Pop up the installing windows of GSmart Driver. Wait
for a few seconds for the process, then tap “Done” to
have the process completed.
Android Manager
You may use Android Manager to Synchronize data in
this device with your PC. Download Android Manager
from GSmart’s official website. Support for Windows XP,
Windows Vista, Windows 7 and follow the instructions on
your screen.
Set up:
1. Connect your device to your PC with the USB cable.
2. After you connect this device to your PC with a USB
cable, USB Connect shown in the pop-up window, tap
the PC Sync mode.
3. Android Manager Agent will synchronize your phone
automatically.
4. Android Manager start connection with PC。
Android Manager connection status:
Connection between PC and the handset has
been established.
Connection between PC and the handset is being
established.
Connection between PC and the handset is
disconnected.
Getting Started:
Contacts : Allows you to back up contacts, as well as
organize your contacts .
Messages : Allows you to edit and send SMS messages.
Photos: Allows you to easily import photos from PC or

G1317D│
12
the device and organize them in different albums for
management.
Videos: Allows you to add and play video files.
Music: Allows you to add, delete, edit and play music
files.
Application: Allows you to manage downloaded
applications.
Files: Allows you to organize and manage files in both
PC and the device.
Sync: Allows you to synchronize the following items
between PC and the device. According Contacts ,
Calendar, Camera, Camcorder and Folders.
The Home Screen
On Home screen, you can quickly access common
features and view notifications of missed calls, received
messages, battery, and connection status. You can slide
the home screen from the left side to the right side or from
the right side to the left side to switch it.
Tap to launch Application Drawer. Tap and hold it
to review the five home screens at the same time.
Status Bar Icons
The Status bar icons indicate different types of
information. Tap the status bar and scroll down to view
notifications or view system information.
Types
Icons
Descriptions
Volume
Volume is off.
Vibration is on.
Wired headset
connected.
Wired microphone
headset
connected.
Speaker is on.
Battery
Battery is full.
Battery is low.
Battery is very low.
Battery is charging.

G1317D│
13
Phone
SIM 1 no network
signal.
SIM 2 no network
signal.
SIM 1maximum
signal strength.
Fewer bars
indicate lower
signal strength.
SIM 2 maximum
signal strength.
Fewer bars
indicate lower
signal strength.
Airplane mode.
Call is in progress.
SIM 1 call on hold.
SIM 2 call on hold.
Network
Wi-Fi is connected.
Wi-Fi Network
available.
Bluetooth is on.
SIM 1 GPRS is in
progress.
SIM 2 GPRS is in
progress.
SIM 1 EDGE is in
progress.
SIM 2 EDGE is in
progress.
SIM 1 3G is in
progress.
SIM 1 HSDPA is in
progress.
Portable hotspot.
USB tethering
activated.
GPS is on.
Phone is
connected to PC
via USB connector.
Notification
New text message.

G1317D│
14
New e-mail.
Alarm.
Event notification.
Missed call.
USB debugging
connected.
PC SYNC mode.
General
notification.
FM radio app is
use.
Song is playing.
USB Manager.
App downloading.
Specifications
System Information
Platform
Android 2.2
Processor
Qualcomm MSM7225-1
at 528 MHz
Memory
ROM 512 MB
RAM 256 MB
Size
Dimensions
(L x W x T)
113.5(L) x 60(W) x
13.3(H) mm
Weight
116g
Power
Battery
Rechargeable
Li-Poly pack 1260 mAh
Power Adapter AC
input
100-240V, 50 / 60Hz,
0.3A max.
DC output
5V、1A
Standby time
Up to 115 hours.
(It may vary depending
on the availability of
local networks and
individual usage.)

G1317D│
15
Talk time
Up to 6. 5 hours
(It may vary depending
on the availability of
local networks and
individual usage.)
Radio Band & Standard
GSM/GPRS/EDGE
850 / 900 / 1800 /1900
MHz
WCDMA/HSDPA
900 / 2100 MHz
Connectivity
GPS
GPS / AGPS
Wi-Fi
IEEE 802.11 b/g
Bluetooth
Bluetooth 2.1 + EDR
USB
Micro USB 2.0
Audio Jack
3.5 mm stereo audio
jack
Digital Camera
Digital Camera
3.0 Megapixel Color
Camera, Video
Recording
External Memory
Memory Card
MicroSD
Temperature
Operating
-15°C to 55°C
NOTE: Specifications are subject to change without
the prior notice. They may vary in some regions also.
NOTE: Cautions of Usage:
1. Only ONE SIM card exist at one time when making
phone call or internet browsing.
2. Network supporting:
(a). SIM 1: 3G (WCDMA)
(b). SIM 2: 2G (GSM)
If this document is modified, please download the latest
version on GSmart’s official website. You can download
the user manual on GSmart’s official website also.
GIGA-BYTE COMMUNICATIONS INC.
B2, No.207, Sec.3, Pai-Hsin Road,
Hsin-Tien Dist., New Taipei City 231, Taiwan
[phone]
www.gigabytecm.com
