Gigabyte GSmart G1345 User manual

G1345│ 1
Your Phone
This section introduces you to the hardware of the device.
No.
Items Functions
1
Earphone jack
Use a headset for hands-free
conversation or listening to
music.
2
Power
• Press and hold for several
seconds to turn the phone
on or off.
• To set your phone to the
sleep mode, press the
power button briefly. Press
again to turn on the display.
3
Earpiece The source of music and
voice.
4
Touch screen
Display screen.
5
LED
• Power status notification.
• Other notification. (New
message / Missed call).
6
P-sensor
The screen will turn off
automatically when taking th
e
device close to face on call.
7
Light sensor
Adjust the brightness of the
screen according to the
environment.

G1345│ 2
No.
Items Functions
8
Home
• Go back to Home Screen.
• Press and hold to bring up
recent activities.
9
Menu Press to view the options of
the menu.
10
Search Connect to the website or find
features in the phone.
11
Return Return to the previous page.
12
MIC Sound Receiver.
13
Micro USB port
• Connect USB cable to PC,
share your phone's mobile
network with PC
/ USB mass
storage.
• Connect USB cable and
the AC adapter to charge
the battery.

G1345│ 3
No.
Items
Functions

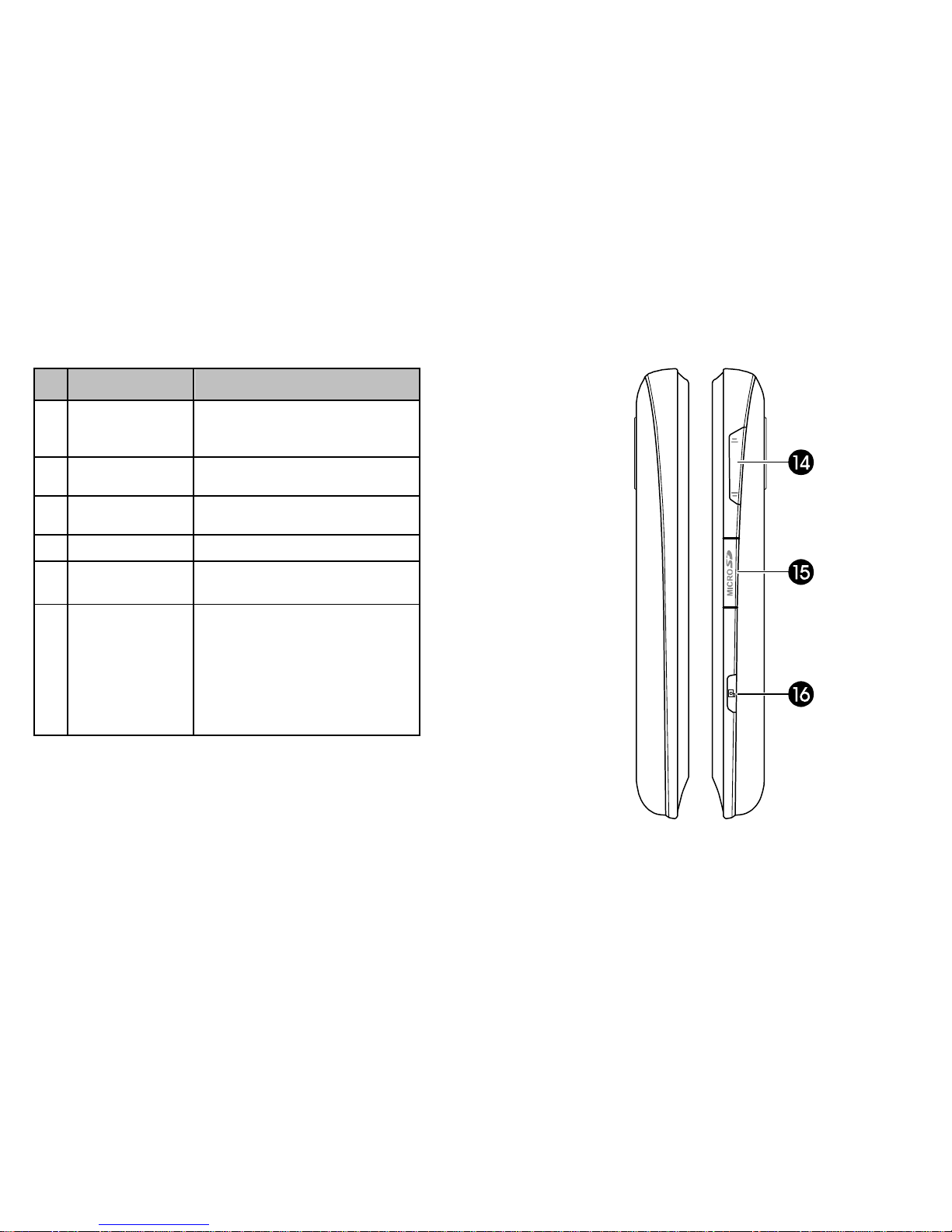

14
Volume
Press upwards or downwards
to increase or decrease the
volume. Slide down the key
fully to enter vibrate mode.
15
Micro SD Slot
You can insert your Micro
SD card.
16
Camera key
• Tap to activate the camera.
• In Camera/Camcorder
mode, press to take a
photo or video.
1
7
Speaker
The source of music and voice.
1
8
Flash LED
Help photo shooting.
19
5Megapixels
Camera
The camera on the back of the
device supports 5-mega-pixel
photo and high-quality video.

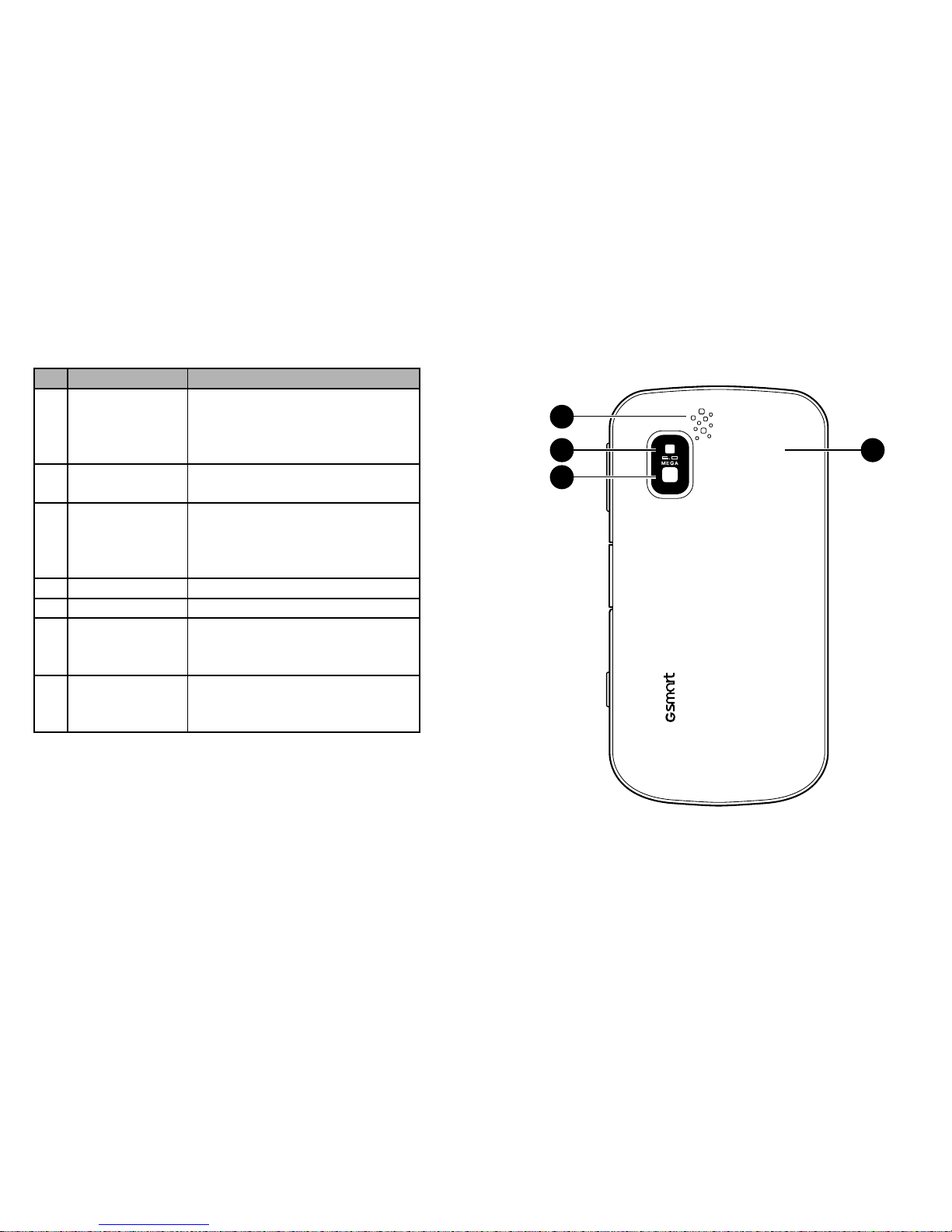

20
Back cover
You need to open the cover to
install or uninstall the battery
and the SIM card.
NOTE: The battery can also be charged while
connecting to a computer.
17
18 20
19

G1345│ 4
Installing or uninstalling the SIM Card,
Battery, and Memory Card

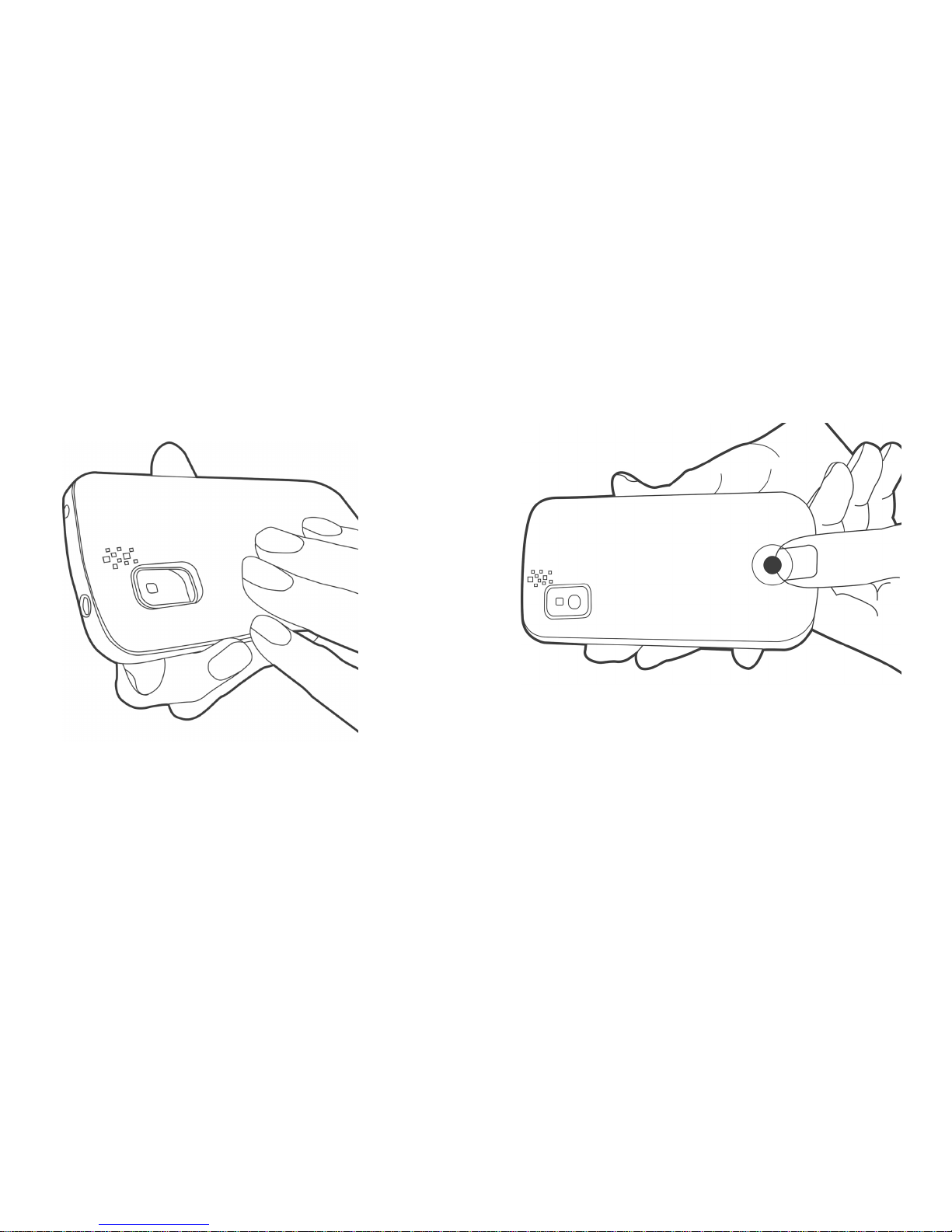

To remove the back cover
1. Please turn over your phone with the back
cover facing up.
2. Please move your fingertip into the slot .

G1345│ 5
3. Then pull the back cover with your fingertip to remove
it.
SIM card
The SIM card contains your phone number, memory
storage, and the details of the network service.
To install the SIM card
Insert the SIM card. Make sure the gold contacts are
facing down and the cut-off corner is facing towards the
battery slot. There are two slots for two SIM cards. Upper
slot is for SIM2, and SIM1 slot is on the underside.

G1345│ 6
To remove the SIM card
1. Remove battery.
2. Use your finger to slide the SIM card from the
card slot.
Battery
Your phone comes with a rechargeable battery. Battery
life varies depending on the network, used applications,
and the type of connections attached to your phone.

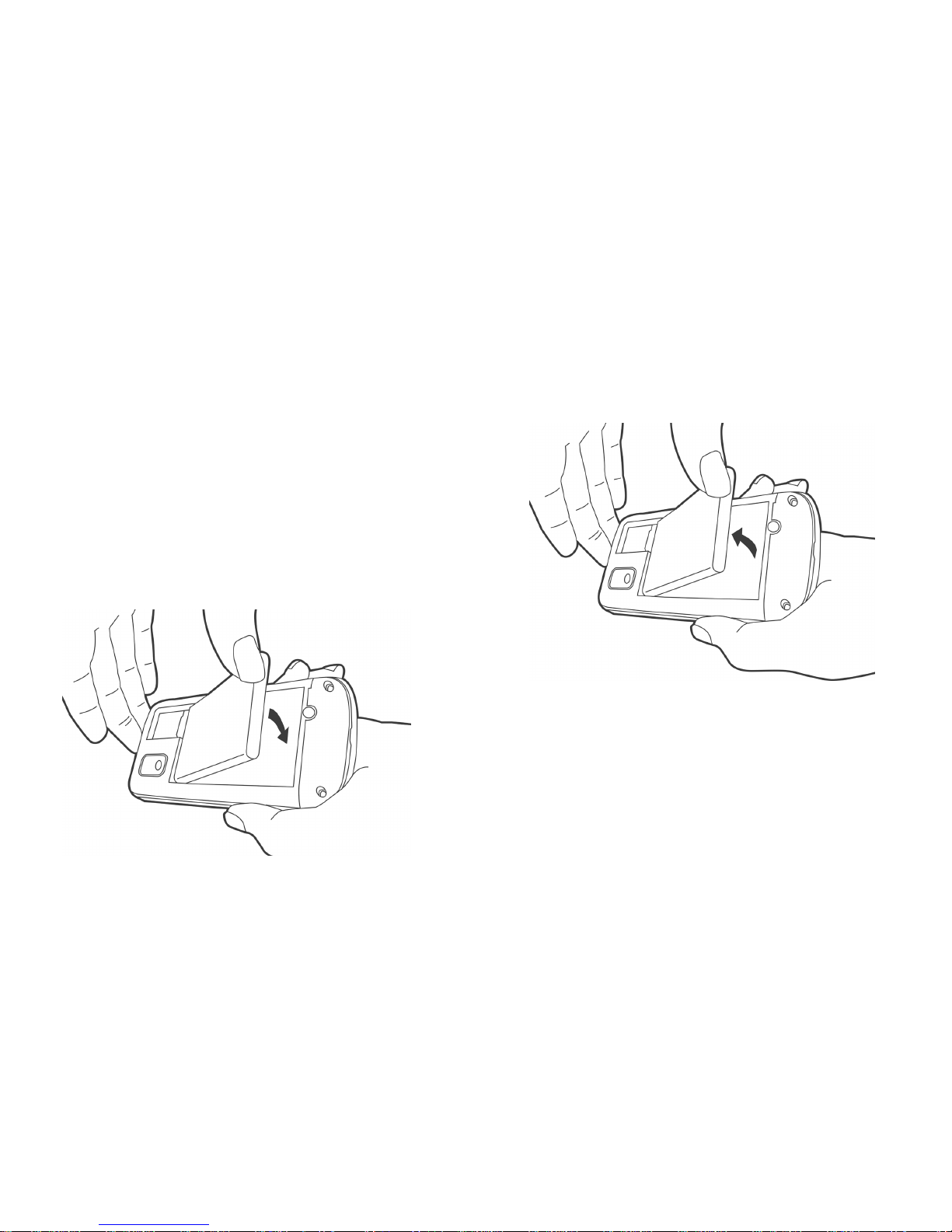

To install the battery
Insert the battery. Make sure the contacts of the
battery are aligned with the connectors on the
battery slot.
To remove the battery
Use your fingertip to lift the battery, and then, remove it.
NOTE: To ensure battery performance and avoid the
risk of fire:
• Use only the original battery designated for the
phone.
• Do not store the battery in temperatures
below -10ºC or higher than 45ºC

G1345│ 7
To replace the back cover
1. Please insert the hook on the top of the
back cover into the slot of the phone.
2. Then, press the bottom of the back cover until click into
place.

G1345│ 8
Memory card
You will need a microSD card to store photos, music,
videos, and other data.
To install the memory card
1. Insert the memory card with the gold contacts
facing down.
2. Push the memory card until it clicks into place.
To remove the memory card
1. For safe removal, tap Application Drawer >
Settings >Storage > Unmount SD card.
2. Push the memory card down to eject it from the
slot.

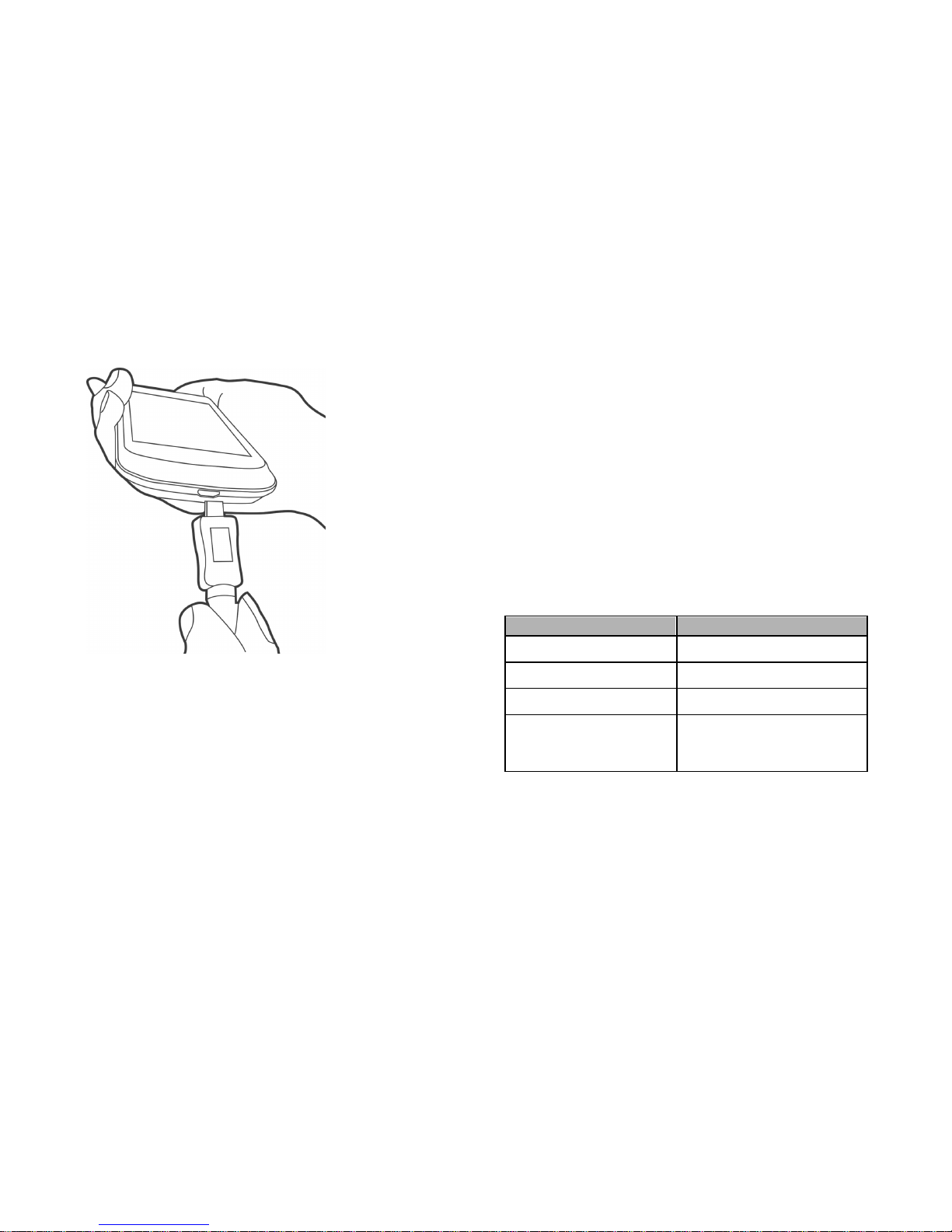

Charging the Battery
When you take your phone out from the box for the first
time, the battery is only partially charge. Please charge
the battery fully before use.
1. Connect the USB cable to the AC adapter, and
then, connect to the device via the USB cable.
2. Plug the AC adapter to an outlet to start
charging.
NOTE:
• The battery can also be charged when you
connect your phone to the computer.
• To ensure safety, do not remove the battery
from the phone while the AC adapter is
connected or while it is being charged.

G1345│ 9
Turning the Phone On or Off
After installing the SIM card and charging the battery, you
are now ready to turn on your phone.
To turn on your phone
Press and hold the power button until the phone vibrates.
To turn off your phone
1. Press and hold the power button for several
seconds.
2. A pop-up window appears, and then, tap Power
off.
3. Select OK to confirm.
To set your phone to the sleep mode
To set your phone to the sleep mode, press the power
button briefly. It will turn the display off. To turn the
display on, press the power button briefly again.
Notification LED
Types
Descriptions
Solid red light Battery is charging.
Solid green light Battery is full.
Flashing red light Battery is low.
Flashing green light
Notification ( New
message / Missed call
/ New email)

G1345│ 10
Using Headset
For hands-free conversation or listening to music, plug a
headset to the headset jack.
NOTE:
• When using a headset, your ability to hear outsides
sounds may be limited. Do not use the headset if it
will endanger you.
• Do not set the volume to its maximum with a
headset as it may damage your hearing.
• The following instructions are only provided with
the original headset of the original manufacturer:
Types
Descriptions
Press the button
on the headset
• When you receive an
incoming call, press the
button to answer the call. If
you are having a call
conversation, press the
button to mute, and press
again to un-mute.
• In music / video mode,
press the button to play, and
press again to stop or
resume music / video.
• When you are listening to
music, press twice quickly
to next music.
Press and hold
the button on the
headset
• If you are having a call
conversation, press and
hold the button to end the
call.
• When you receive an
incoming call, press and
hold the button to end the
call.
• When you are listening to
music, press and hold the
button back to Playlist.
• When you use other
functions, press and hold
the button to launch the
music player.
The Home Screen
On Home screen, you can quickly access common
features and view notifications of missed calls, received
messages, battery, and the status of the connection.

G1345│ 11

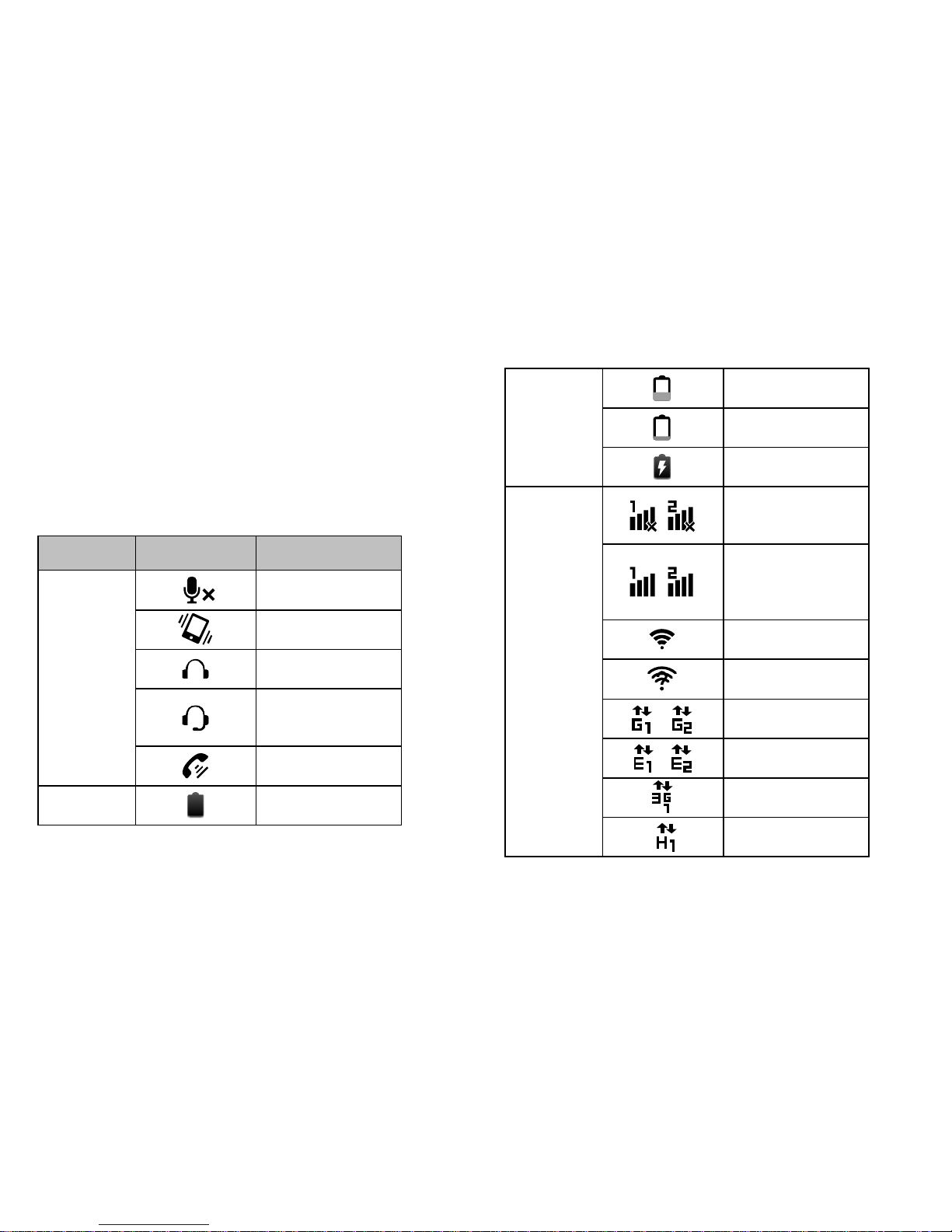

Status Bar Icons
The icons of the status bar indicate different types of
information. Tap the status bar and scroll down to view
notifications or view system information.
Network status icons will turn green while you login your
Google Account to apply Google service.
When you connect via Wi-Fi connection but not through
login Google account to get Internet connection, then the
Network signal bar will become white.
Types Icons Descriptions
Volume
Volume is off when
you are on call.
Vibration is on.
Wired headset
connected.
Wired microphone
headset
connected.
Speaker is on.
Battery
Battery is full.
Battery is low.
Battery is very low.
Battery is charging.
Network
and
Connection
No network signal
/
No SIM card
inserted.
Maximum signal
strength. Fewer
bars indicate lower
signal strength.
Wi-Fi is connected.
Wi-Fi Network is
activated.
GPRS is in
progress.
EDGE is in
progress.
3G is in progress.
HSDPA is in
progress.

G1345│ 12
Airplane mode.
Call is in progress.
Your call is on
hold.
Portable Wi-Fi
hotspot is
activated.
USB tethering is
activated.
Both USB tethering
and Portable
hotspot are
activated.
GPS is on.
Bluetooth is on.
The device is
connected to PC
via the USB cable.
New text message.
Notification
New e-mail.
Alarm.
Event notification.
Missed call.
USB debugging is
connected.
Data is Syncing.
General
notification.
FM radio is on.
Playing a song.
Downloading an
application.

G1345│ 13
Android Manager
You can use Android Manager on your PC to synchronize
data in your device. Please download Android Manager
from GSmart’s official website and install it in your PC.
NOTE: Only Windows XP, Windows Vista, and
Windows 7 (32/64 bit) support the function.
Synchronization Procedure
1. Connect your device to your PC with the USB cable.
2. After you connect your device to your PC with a USB
cable, USB Manager will pop up. Tap PC Sync on your
phone.
3. Android Manager will synchronize with your phone
automatically.
4. Android Manager’s connection status:
: Connection between PC and your
device has been established.
: Connection between PC and your
device is being established.
: Connection between PC and your
device is disconnected.
Use Android Manager on your PC
Contacts: Allows you to back up contacts, as well as
organize your contacts.
Messages: Allows you to edit and send messages.
Photos: Allows you to import photos from PC or the
device and to organize them in different albums.
Videos: Allows you to add and to play videos.
Music: Allows you to add, to delete, to edit and to play
music.
Application: Allows you to manage the downloaded
applications.
Files: Allows you to organize and to manage files in both
of your PC and your device.
Sync: Allows you to synchronize the following items:
Contacts, Calendar, Camera, Camcorder, and Folders.
Conflict resolutions include Skip this item, Computer
overwrite handset, and Handset overwrite computer.
Finally, tap to synchronize the selected items
between your PC and your device.
USB Manager
There are 4 modes of USB Manager after your device
connecting to PC with the USB cable:
1. Data Storage: Insert the memory card, and then, tap

G1345│ 14
Data Storage on your phone. Your PC will pop-up a
message to ask if you want to use data storage. It can
help you save the files.
2. PC Sync: Tap PC Sync on your phone, your
device will connect and access Android
Manager. Android Manager on your PC will
synchronize with your device.
3. Internet Sharing: Share your phone's mobile network
with PC.
4. Charge Only: Tap Charge Only on your phone to
start charging.
Install USB Driver
1. Connect your device with PC by the USB cable, and
then, your PC will pop-up a message. Select “Open
folder to view files.”
2. Tap the "Setup.exe" in the USB Driver Installer folder
in your PC.
3. Pop up the installing windows of GSmart Driver. Wait
for a few seconds for the process, then tap “Done” to
have the process completed.
NOTE: Only Windows XP Service Pack 3 and higher
versions support the installation.
Specifications
System Information
Platform Android 2.3
Processor Qualcomm
7227-1 at 800 MHz
Memory ROM 512 MB
RAM 512MB
Display
Size 3.5”
Resolutions 320 x 480 HVGA
Size
Dimensions
(L x W x H) 120 x 62.5 x 13.9 mm
Weight 123.3 grams with
battery
Power
Battery
Rechargeable Li-ion pack 1500 mAh
Power Adapter AC
input
100-240V, 50 / 60Hz,
0.3A max.
DC output 5V, 1A

G1345│ 15
Standby time
Up to 115 hours (It may
vary depending on the
availability of local
networks and the
individual usage.)
Talk time
Up to 4.5 hours (It may
vary depending on the
availability of local
networks and the
individual usage.)
Radio Band & Standard
GSM/GPRS/EDGE 850 / 900 / 1800 /1900
MHz
WCDMA/HSDPA 900 / 2100 MHz
Connectivity
GPS GPS/AGPS
Wi-Fi IEEE 802.11 b/g
Bluetooth Bluetooth 2.1 + EDR
USB Micro USB
Audio Jack 3.5 mm stereo audio
jack
Digital Camera
Digital Camera
5.0 Megapixel Color
Camera with AF and
Video Recording
External Memory
Memory Card MicroSD supports up to
32GB
Temperature
Operating -15°C to 55°C
SIM Card Slot
Dual SIM card slot.
NOTE: Specifications are subject to change without
the prior notice. They may vary in some regions also.
NOTE: Network supporting:
(a). SIM 1: 3G/2G(WCDMA/GSM)
(b). SIM 2: 2G (GSM)
If this document is modified, please download the latest
version on GSmart’s official website. You can download
the user manual on GSmart’s official website also.
GIGA-BYTE COMMUNICATIONS INC.
B2, No.207, Sec.3, Pai-Hsin Road,
Hsin-Tien Dist., New Taipei City 231, Taiwan
[phone]
www.gigabytecm.com
