Important Safety Information
We recommend that you read this section carefully before using the HA91. These
safety and usage instructions will ensure that you enjoy many years safe use of the
HA91. Keep this manual for future reference.
Warning Symbols on the HA91 Case
Be sure to read the power rating label on the bottom of the HA91 before operation.
Caution:
Before connecting power to the HA91, make sure the power source is within
the range of AC 100~240V, 50~60 Hz.
Do not attempt to service the HA91 yourself. If the unit gets wet or you think it
is damaged, have the unit serviced. Do not open the unit case for any reason.
RATING
LABEL

II
General Safety Information
• Do not place heavy objects such as books or bags on the unit.
• Avoid placing objects with strong magnets built in too close to
the unit. If you suspect stereo speakers may interfere with the
unit, try moving the speakers away from the unit.
• Avoid using the system in direct sunlight, or near a heating
device.
• To prevent the unit from overheating, do not cover the air
ventilation openings on the top, sides, or the rear.
• Do not open the unit case. Do not attempt to service the HA91
yourself. For servicing, contact qualified service personnel.
• Do not place the unit on an unstable surface, cart, or stand.
• Avoid exposing the HA91 to moisture or excessive humidity.
• Follow all warnings and cautions in this manual and on the unit case.

III
Power Safety
• Only use the supplied power cord.
• Do not place anything on the power cord. Place the power cord where it will not be in
the way of foot traffic.
• Remove the batteries from the remote control when storing or not in use for a
prolonged period.
• Before connecting power to the HA91, make sure the power source is within the range
of AC 100~240V, 50~60 Hz.
HDD Partition:
It is strongly recommend not to partitioning the hard disk.
Manual Styles
The following styles are used in this manual to alert you to important information.
Note Style
Provides additional information on the topic at hand.
Provides information that should not be overlooked.
Alerts you to situations that may damage the unit or cause personal
injury.
Provides helpful information on the topic at hand.

IV
CONTENTS
Chapter One Getting Started
1.1 Packing Checklist .................................................................................. 1
1.2 Views of HA91 ........................................................................................ 2
1.3 Remote Control Functions ................................................................... 9
1.4 Keyboard Functions .............................................................................. 11
1.5 Remote Control and Keyboard Operating Range ........................... 13
Chapter Two Making Connections
2.1 Connecting Input Devices ...................................................................14
2.2 Connecting a Monitor ...........................................................................15
2.3 Connecting Speaker or an Amplifier ...................................................16
2.4 Setting up a 5.1 Audio Environment ....................................................17
2.5 Connecting a TV Antenna ....................................................................18
2.6 Connecting to a LAN ............................................................................19
2.7 Connecting the Power Cable ..............................................................20
Appendix A Specification ...........................................................................21
CONTENTS

1
1.1 Packing Checklist
Carefully unpack the HA91 and check that besides this User Manual the following items
are included:
Contact your dealer immediately if any items are missing, appear damaged, or if the
unit does not work.
CHAPTER ONE
HA91 Power cord & Adapter
Remote control Recovery CD
RF keyboard
Two AA for RF
keyboard &
two AA for remote
controller (MCE)
Cable
TV quick connector
For NTSC model only

2
CHAPTER ONE
1.2 Features at a Glance
►Front View
Item Description
1. Power Push the Power Button to turn the HA91 on.
2. IEEE 1394 (4-pin) Connect IEEE1394-enabled devices.
3. USB 2.0 Connect USB-enabled devices.
4. S-Video In Connector for S-Video in.
5. Composite Video In Connector for Video in.
6. Composite Audio In (L) Connector for Audio in (Left Channel).
7. Composite Audio In (R) Connector for Audio in (Right Channel).
8. VFD VFD (Vacuum Fluorescent Display).
9. DVD Super Multi DVD-Multi Recoder.
10. Card Reader 6-in-1 card reader.
11. DVD Eject Push to enject a disc from the DVD drive.
1 2 4 5 6 7 8 9 103 11

3
CHAPTER ONE
►Rear View
Item Description
1. Power Connect the power cord DC Jack here.
2. MIC-In Connect a microphone here.
3. LINE-Out Connect to speakers or an amplifier.
4. LINE-In Stereo audio input port.
5. SPDIF Digital audio output connector.
6. RGB Out Connected to flat screen.
7. USB (x2) Connect USB-enabled devices here.
8. IEEE1394 (6-pin) Connect IEEE1394-enabled devices here.
9. LAN Connect to an RJ-45 connector (Ethernet cable).
10. DVI Port Connect to digital monitor.
11. S-Video Port Connect to a television or display device with S-Video input.
12. CATV Cable-TV input.
13. Video/ Audio in Connector for Video/Audio in.
1 2 5 7
12 13
43 6 8910 11

4
CHAPTER ONE
►VFD (Vacuum Fluorescent Display) Messages
The LED display on the front of the HA91 displays status information. As well as disc
information, the following messages display in the LED display:
Item Description
1 Displays the volume level.
2 Displays the volume level.
3 Displays the current mode.
4 Display time information, media play time, and mode status.
3 4
1 2
Not used.

5
►Normal Windows Mode (Media Center Applications are not run) / Sleep Mode
Status:
1. The system is turn on in normal Windows mode. Media Center applications are not
run.
2. System is sleeping.
Description:

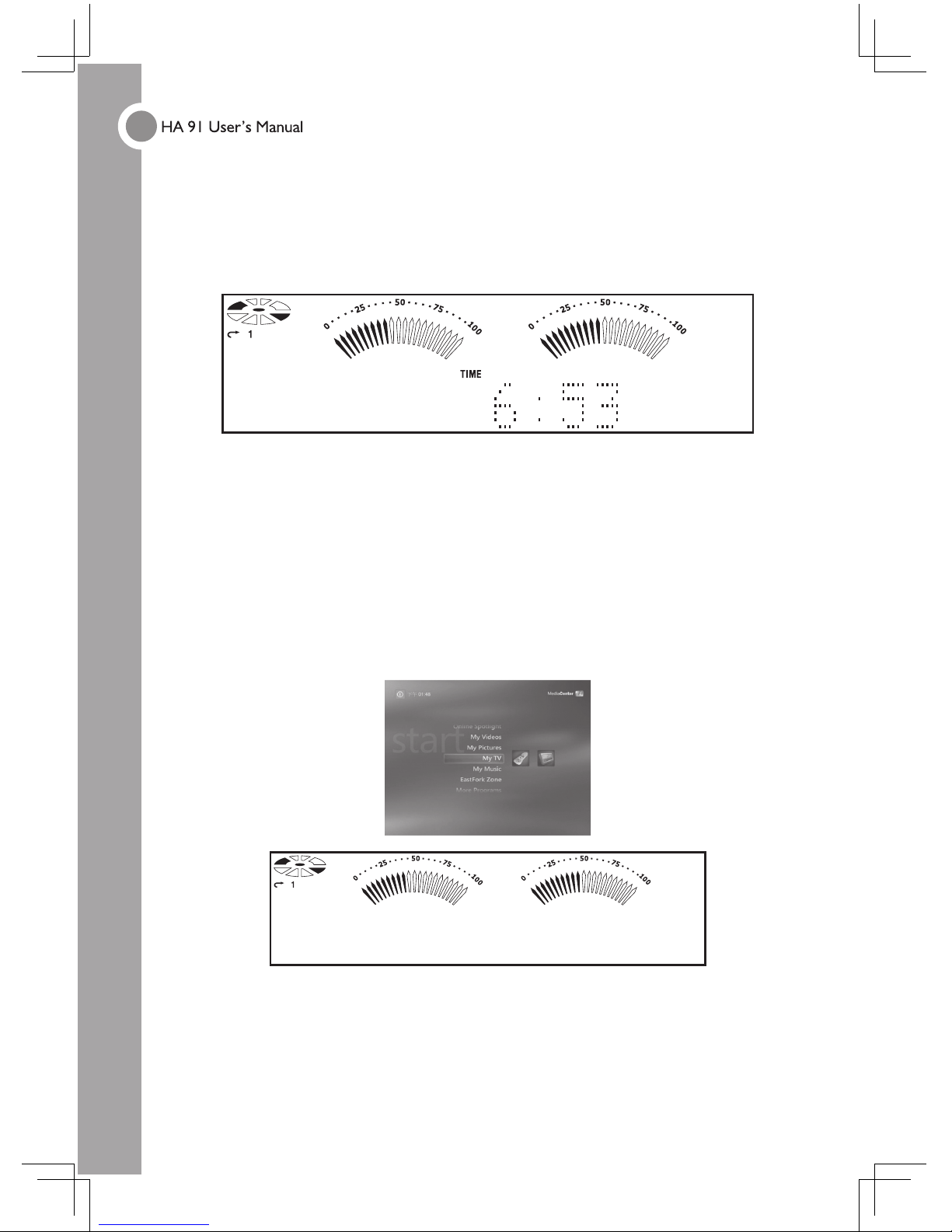

1. Time is shown. The clock control by VFD MCU.
2. Volumes of audio in left and right are shown.
3. Run Disk is stop.
►Start to run Media Center Applications / On Meida Center Home Frame
Status:
1. Press “Start” button to run Media Center applications and the system is in Media
Center Home frame.
2. User can use ▲ and ▼ to choose the wanted multi-media in MCE.
Description:
1. No display information shown.
2. Run Disk is stop.
CHAPTER ONE

6
►My Video Mode
Status:
When “My Videos” is selected, the screen is on video frame and stop mode.
Description:
1. “VIDEO” is shown
2. Run Disk is stop till the media is played.
►My Picture Mode
Status:
On “My Pictures” frame and stop mode.
Description:
1. “PICTURE” is shown.
2. Run Disk is stop.
* Run Disk can be rotating when the previous selected media is keep playing.
CHAPTER ONE

7
►My Music Mode
Status:
On “My Music” frame and stop mode.
Description:
1. “MUSIC” is shown.
2. Run Disk is stop till the media is played.
►TV Mode
Status: On “My TV” frame and stop mode.
Description:
1. “TV” is shown.
2. Run Disk is stop till the media is played.
Status: On TV frame and go to live TV.
Description:
1. It will show the channel number once press the button of “CH_PG”.
2. Run Disk is running.
CHAPTER ONE

8

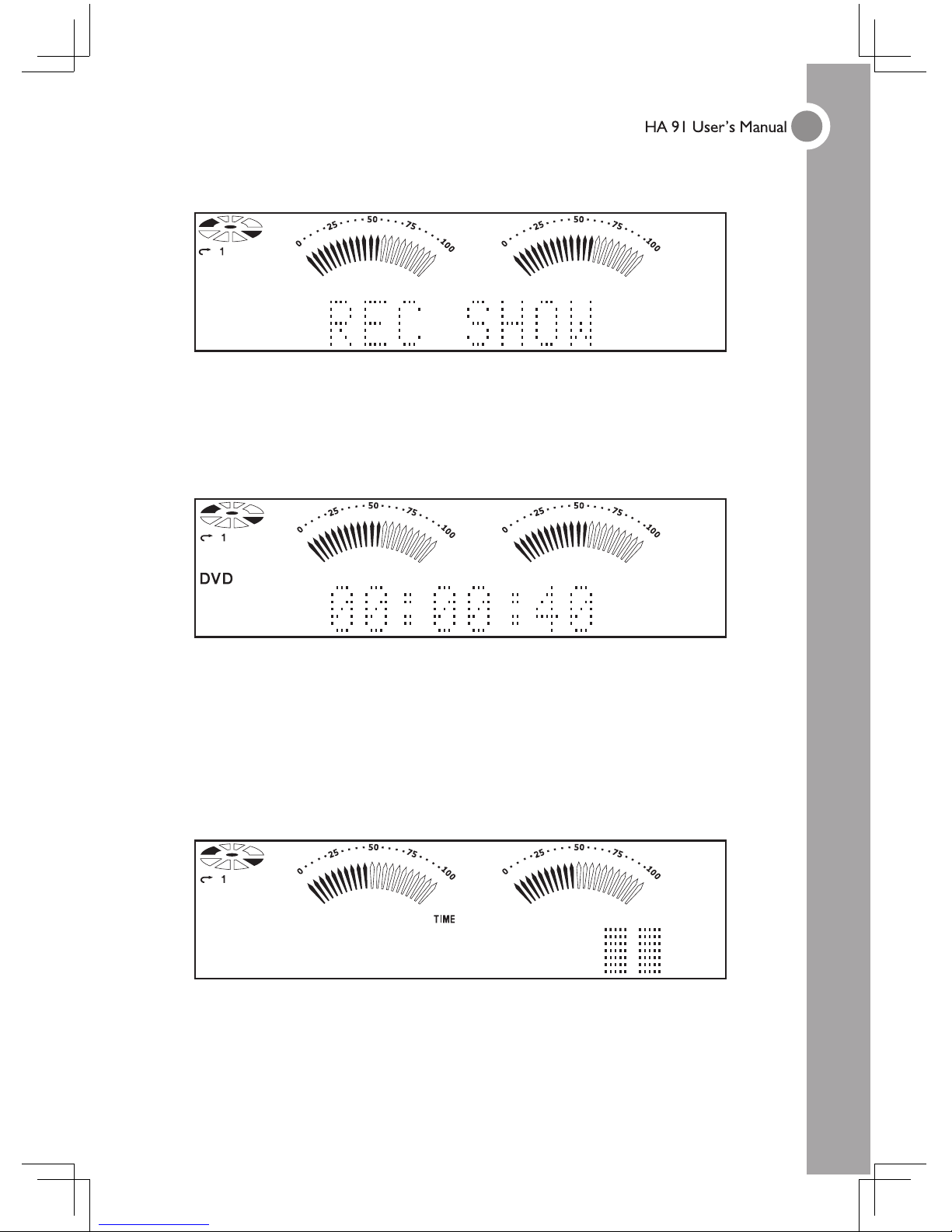

Status: On TV frame and go to record TV.
Description:
1. “REC SHOW” is shown.
►Music / DVD / Video / Play Mode
Status: On music, DVD, video frame and play mode
Description:
1. When playing the music, it will show the track time on Music frame or Home frame.
2. Run Disk is running.
3. If you go to “My Pictures” on picture frame, then “PICTURE” is shown on the
display.
►CD Burning Progress
Status: CD burning progress….
Description:
1. When the dot-block is full, means the CD burring progress is complete.
2. This example shown is 100% in the last 2 dot-block.
CHAPTER ONE

9
1.3 Remote Control Functions

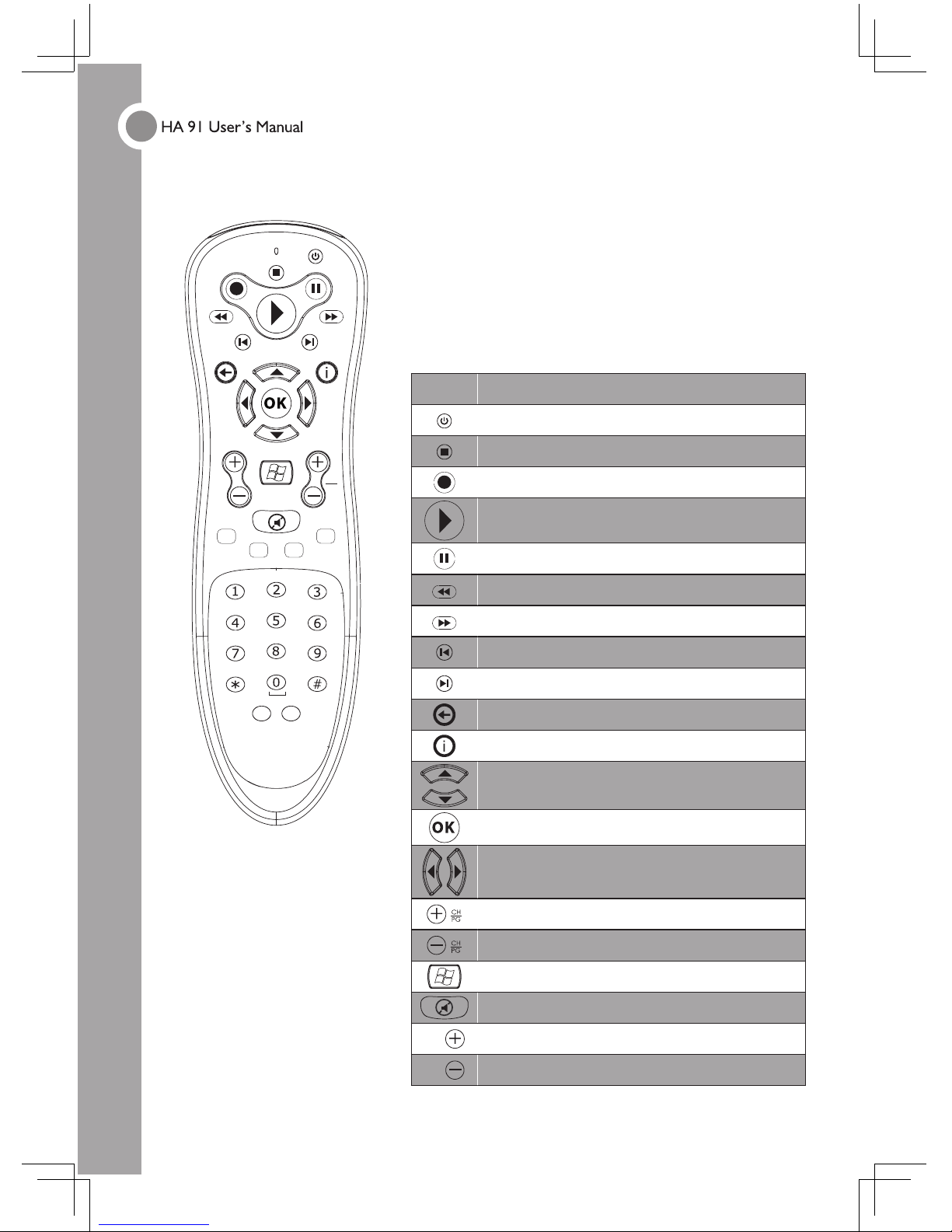

Item Function
Power on/off
Stop
Recording Button
Play
Pause
Fast Rewind
Fast Forward
Previous Track
Next Track
Back
More Information
Direction Keys: Up/ Down
Enter Key: OK
Direction Keys: Left/ Right
Next Channel (TV)
Previous Channel (TV)
“START” Menu
Mute
VOL Volume Up
VOL Volume Down
CHAPTER ONE
ENTERCLEAR
GUIDE LIVE TV
DVD
MENU
RECORDED
TV
MUTE
VOL CH
PG
START
BACK MORE
SKIPREPLAY
FWDREW
R
E
C
O
R
D
S
T
O
P
P
A
U
S
E

10
►Inserting the Remote Control Batteries
The battery compartment is on the underside of the remote control. Remove the
batteries when not using the HA91 for a longer period.
1. Only use AA batteries.
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the HA91 for prolonged periods.
CHAPTER ONE

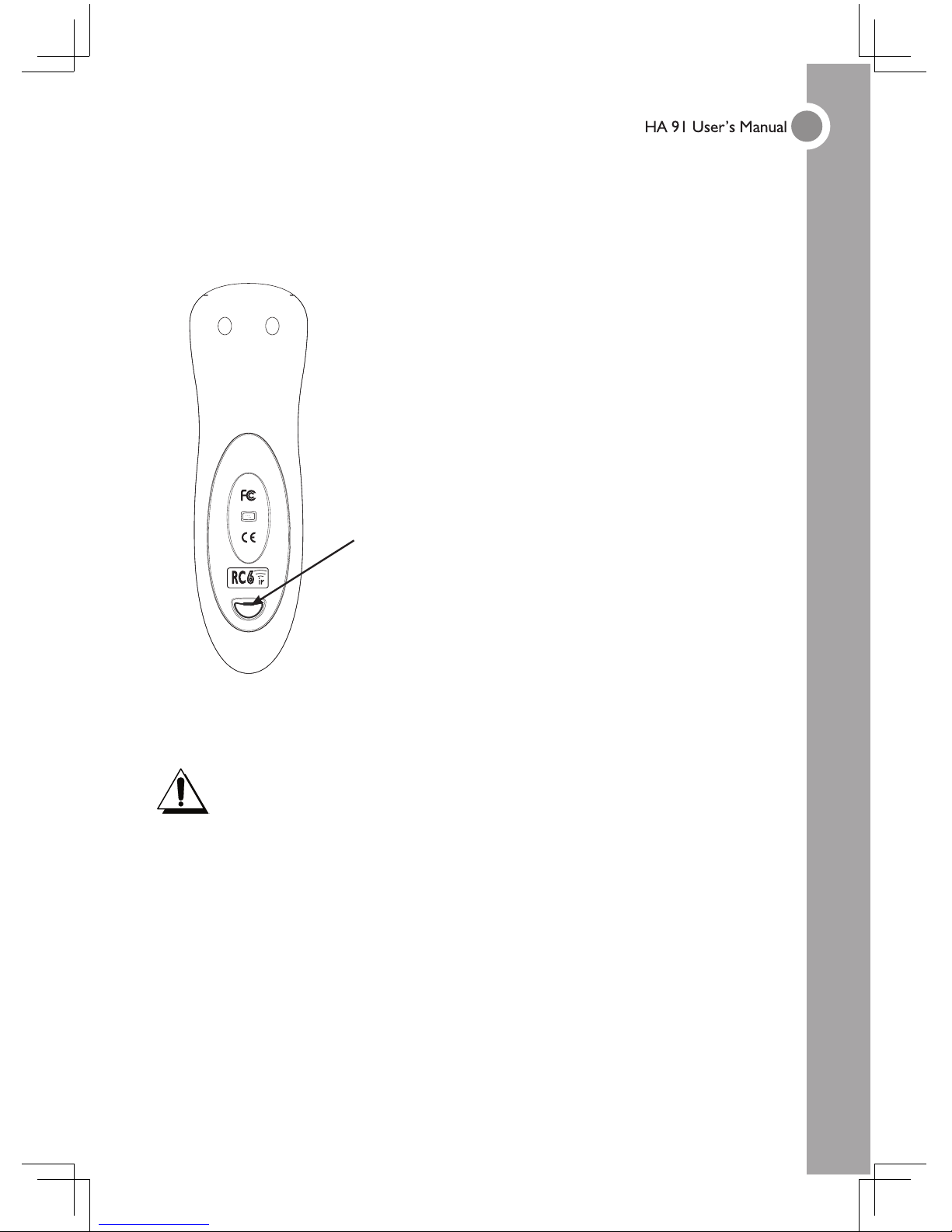

1. Pull the latch upward and open the battery
compartment cover.
2. Insert 2 AA batteries taking note of the correct polarity
(+/-).
3. Close the cover.

11
1.4 Keyboard Function
►Using the trackball and buttons
The trackball and buttons have the same functions as a PC mouse. Roll the trackball
to move the cursor on the screen, use the left and right buttons as you do a standard
mouse.

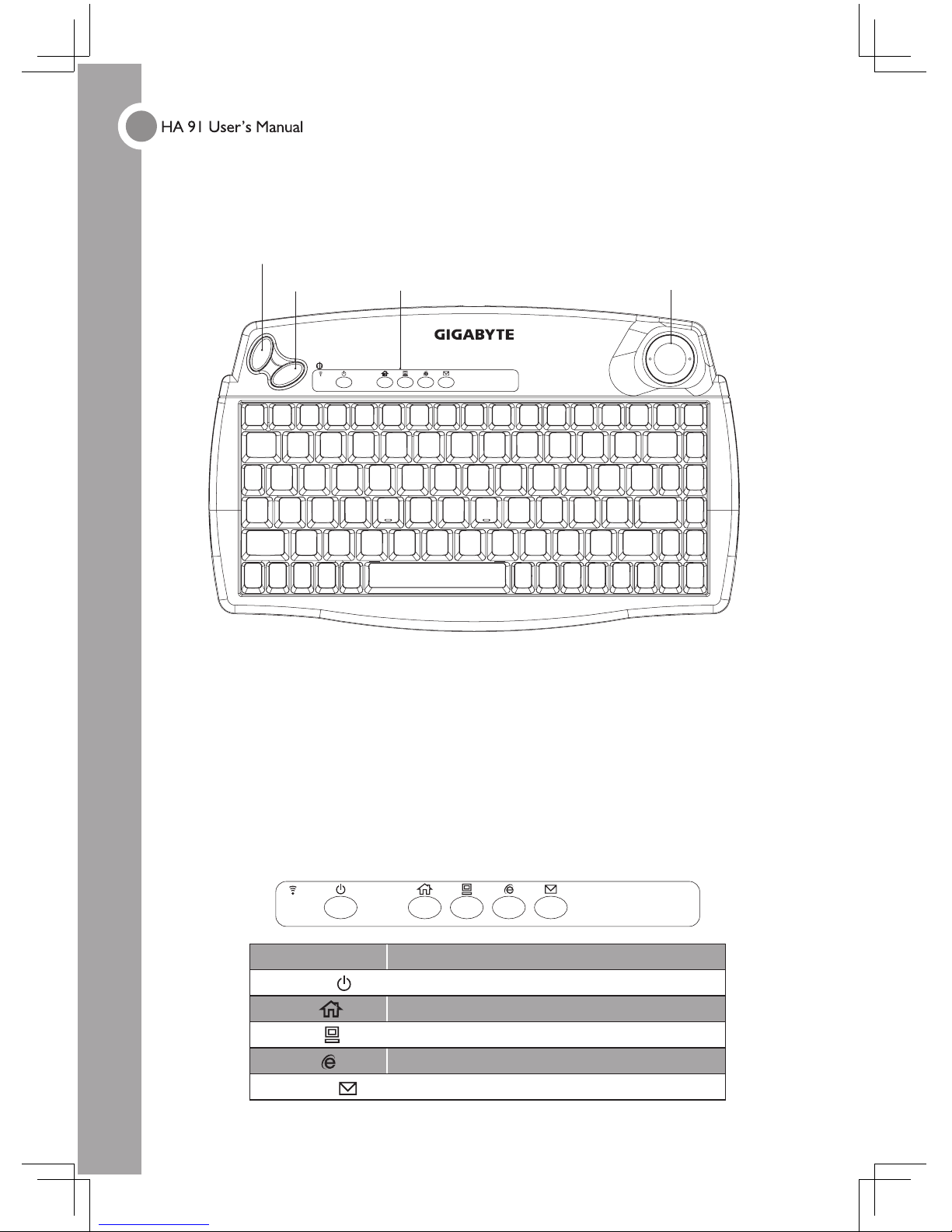

►Shortcut Buttons
In addition to the normal keys found on standard keyboards, the HA91 keyboard
features a number of shortcut buttons, whose functions are outlined below.
Button Function
Power Power button.
AV MCE/PCM start up.
PC Back to PC screen.
IE Internet.
E-MAIL Shortcut button to your e-mail manager.
Left Button
Right Button Shortcut Buttons Trackball
CHAPTER ONE

12
►Inserting the Keyboard Batteries
The battery compartment is on the underside of the keyboard. Remove the batteries
when not using the HA91 for a longer period.
1. Lift as shown to remove the cover.
2. Insert two AA batteries taking note of the
correct polarity (+/-).
3. Replace the cover.
1. Only use AA batteries.
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the HA91 for prolonged periods.
CHAPTER ONE

13
►Set Up for Linkage
1. Remove the cover and check if the batteries have been installed. (You can follow
instructions on P.12 Inserting the Keyboard Batteries).
2. Press connect button on the front panel. After pressing the button, its indicator will
light (slowly) and waiting for the match signal from RF Keyboard.
3. Then press this learning button on RF Keyboard to let receiver recognize signal. As
soon as the linkage is completed, the indicator turns to quick flash.
1.5 Remote Control and Keyboard Operating
Range
The remote control uses infrared transmission to control the HA91. It is not necessary
to point the remote directly at the HA91. Provided you are facing the HA91, the remote
will function well within a radius of about 3 meters (10 feet) and 30 degrees above or
below the HA91 level. If the HA91 does not respond to the remote control, move a little
closer or replace the batteries.
CHAPTER ONE
Press this button
LED is bricking slowly
Press this button

14
CHAPTER TWO
2.1 Connecting Input Devices
Many of the connectors on the HA91 support the connection of more than one kind of
device. For example, USB printers, keyboards, or scanners can be connected to any of
the USB ports.
USB
Compliant device
1394
Compliant device
Memory Cards
MIC-In
Audio-Out
Monitor
SPDIF
LAN
LCD TV
USB
Compliant device
1394
Compliant
device
TV

15
CHAPTER TWO
2.2 Connecting a Monitor/ Flat Display
Check the connectors on your monitor; many monitors have both a VGA (analog)
connector and a DVD-I (digital) connector. If the monitor has both connectors, use the
DVI-I connection as digital provides a better quality signal.

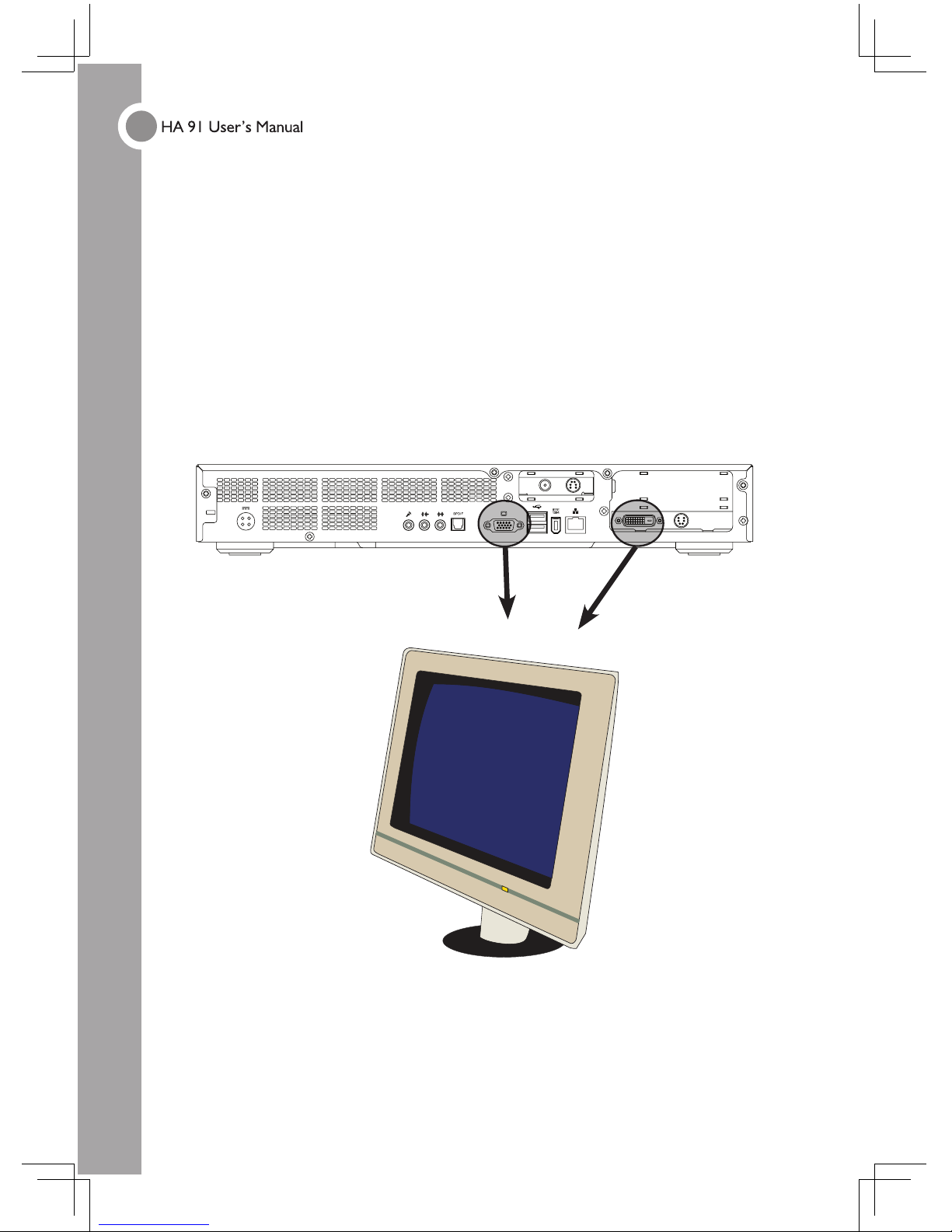

The following directions refer to connecting a VGA:
1. Connect the cable to the VGA connector on the HA91. Tighten the securing screws.
2. Connect the other end of the cable to corresponding connector on the monitor and
tighten the securing screws.
