Gigabyte GV-R465OC-1GI User manual

GV-R467ZL-1GI/
GV-R467D3-512I/
GV-R465OC-1GI/
ATI RadeonTM HD 4670/4650 GraphicsAccelerator
User's Manual
Rev. 103
12MM-R4600S-103R
Copyright
©2009GIGABYTETECHNOLOGYCO.,LTD
CopyrightbyGIGA-BYTETECHNOLOGYCO.,LTD.("GBT").Nopartofthismanualmay bereproducedortransmitted
inany formwithout theexpressed, writtenpermission ofGBT.
Trademarks
Third-partybrandsandnamesarethepropertiesoftheirrespectiveowners.
Notice
Pleasedo notremove any labels on this graphics card. Doing so may void the warranty of this card.
Duetorapidchangeintechnology,someofthespecificationsmightbeoutofdatebeforepublicationofthisthismanual.
Theauthorassumesnoresponsibilityforanyerrorsoromissionsthatmayappearinthisdocumentnordoestheauthor
makeacommitmenttoupdatetheinformationcontainedherein.
Macrovision corporation product notice:
ThisproductincorporatescopyrightprotectiontechnologythatisprotectedbyU.S.patentsandotherintellectualproperty
rights.UseofthiscopyrightprotectiontechnologymustbeauthorizedbyMacrovision,andisintendedforhomeandother
limitedviewingusesonlyunlessotherwiseauthorizedbyMacrovision.Reverseengineeringordisassemblyisprohibited.

Sept. 30, 2008
VGA Card
GV-R467D3-512I/R465OC-1GI
VGA Card
GV-R467D3-512I GV-R465OC-1GI
Sept. 30, 2008

Feb. 13, 2009
VGA Card
GV-R467ZL-1GI
VGA Card
GV-R467ZL-1GI
Feb. 13, 2009

- 4 -
Table of Contents
1.Introduction ................................................................................................................ 5
1.1.Features ......................................................................................................................... 5
1.2.MinimumSystemRequirements .................................................................................... 5
2.HardwareInstallation.................................................................................................. 6
2.1.BoardLayout ................................................................................................................. 6
2.2.HardwareInstallation......................................................................................................9
3.SoftwareInstallation...................................................................................................11
3.1.DriverandUtilityInstallation..........................................................................................11
3.1.1. Driver Installation ..........................................................................................................11
3.1.2. GIGABYTE Gamer HUD Lite on Driver Disk ........................................................... 13
3.2.TaskbarIcon.................................................................................................................. 15
3.3.DisplayPropertiesPages ............................................................................................. 17
4.TroubleshootingTips................................................................................................ 32
5.Appendix ................................................................................................................. 33
5.1.ResolutionsandColorDepthTables ............................................................................. 33
5.2.RegulatoryStatements ................................................................................................. 34

- 5 - Introduction
1. Introduction
1.1. Features
Powered by ATI RadeonTMHD 4670 Graphics Processing Unit (GPU)(For GV-R467ZL-1GI/
GV-R467D3-512I only)
Powered by ATI RadeonTM HD 4650 Graphics ProcessingUnit (GPU)(For GV-R465OC-1GI)
Supports PCI Express 2.0
Integratedwith1GBDDR3memory (ForGV-R467ZL-1GI only)
Integratedwith1GBGDDR2memory(ForGV-R465OC-1GIonly)
Integratedwith512MBDDR3memory (ForGV-R467D3-512Ionly)
SupportsDirectX10.1
SupportsCrossFireXTM
Supports1Dual-LinkDVI-Iconnector
Supports1D-Subconnector
Supports1HDMIconnector
1.2. Minimum System Requirements
Hardware
- Intel®Pentium®4/CoreTM 2 or AMD AthlonTM /PhenomTM
- 1 GB or more of system memory for best performance
- Optical drive for software installation (CD-ROM or DVD-ROM drive)
- A power supply that provides at least 400-watt is required. The power supply should be
with a known brand and certified to conform to safety regulations. (For the list of certified
power supplies, go to http://ati.amd.com/certifiedpsu.)
OperatingSystem
- Windows®Vista
- Windows®XP with Service Pack 2 (SP2)
- Windows®XP Professional x64 Edition
CrossFireXTM Configuration
If you are planning on using this graphics card as part of a CrossFireX system, the following
is required:
- A CrossFireX certified motherboard with two PCI Express x16 slots and correct chipset driver
- Two GV-R467ZL-1GI/GV-R467D3-512I/GV-R465OC-1GI
- A power supply that provides at least 450-watt is required. The power supply should be
with a known brand and certified to conform to safety regulations. (For the list of certified
power supplies, go to http://ati.amd.com/certifiedpsu.)
- Two CrossFire bridge interconnect cables

- 6 -GV-R4600 Series Graphics Accelerator
2. Hardware Installation
2.1. Board Layout
D-Sub Moni-
tor Connec-
tor (15-pin)
DVI-I
Connector
AnalogLCDMonitor AnalogMonitor
or DVI-I to D-Sub
Adapter
Digital LCD Monitor
DVI Output
D-Sub
Output
HDMI TV
Analog LCD Monitor Analog CRT Monitor
or D-Sub Output
HDMI TV HDMI
Connector
CrossFire Connector
D-Sub Monitor Connector
(15-pin)
HDMI Connector
DVI-I Connector
1. GV-R467D3-512I/GV-R465OC-1GI

- 7 - Hardware Installation
D-Sub Moni-
tor Connec-
tor (15-pin)
DVI-I
Connector
AnalogLCDMonitor AnalogMonitor
or DVI-I to D-Sub
Adapter
Digital LCD Monitor
DVI Output
D-Sub
Output
HDMI TV
Analog LCD Monitor Analog CRT Monitor
or D-Sub Output
HDMI TV HDMI
Connector
2.GV-R467ZL-1GI
DVI-I Connector
D-Sub Monitor Connector
(15-pin)
HDMI Connector

- 8 -GV-R4600 Series Graphics Accelerator
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protectthemagainstdamagefromstaticelectricity,youshouldfollowsome
precautions whenever you work on your computer.
1. Turnoff your computer and unplug power supply.
2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonot
haveone,touchbothofyourhandstoasafelygroundedobjectortoametalobject,
suchasthepowersupplycase.
3. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththe
componentswheneverthecomponentsareseparatedfromthesystem.
Thecardcontainssensitiveelectriccomponents,whichcanbeeasilydamagedbystatic
electricity,sothecardshouldbeleftinitsoriginalpackinguntilitisinstalled.
Unpackingandinstallationshouldbedoneonagroundedanti-staticmat.Theoperator
shouldbewearingananti-staticwristband,groundedatthesamepointastheanti-static
mat.
Inspectthecardcartonforobviousdamage.Shippingandhandlingmaycausedamage
toyour card.Be surethere areno shipping and handling damages on the card before
proceeding.
DO NOTAPPLY POWER TO YOUR SYSTEM IF THE GRAPHICS CARD IS
DAMAGED.
In order to ensure that your graphics card can work correctly, please use
official GIGABYTE BIOS only. Using non-official GIGABYTE BIOS might
cause problem(s) on the graphics card.
The entire Radeon HD 4670/4650 series support HDMI output which can handle both audio
and video signals. However, audio output from the onboard audio controller or the external
sound card will be disabled when HDMI output is activated.
If no need for HDMI output function, set the onboard audio controller or the external sound
card to be the default Sound Playback device to obtain audio output from your system. For
more details, refer to page 16.

- 9 - Hardware Installation
2.2. Hardware Installation
Now that you have prepared your computer, you are ready to install your graphics card.
Step 1.
Locate the PCI Express x16 slot. If necessary, remove the
metal cover from this slot; then align your graphics card with
the PCI Express x16 slot, and press it in firmly until the card is
fully seated.
Step 2.
Replace the screw to fasten the card in place, and replace the
computer cover.
Makesurethatthegoldedgeconnectorofthegraphicscardissecurely
inserted.
Step 3.
Plug the display cable into your card; then turn on the computer
and monitor. To connect a D-Sub monitor to your graphics card,
use the D-Sub connector. To connect a flat panel display to your
graphics card, use the DVI-I connector. To connect an HDMI
monitor to your graphics card, use the HDMI connector.
You are now ready to proceed with the installation of the graphics card driver. Please refer to next
chapter for detailed instructions.
Connecta flat panel display
ConnectaD-Submonitor
ConnectanHDMImonitor
To Flat Panel Display
ToD-SubMonitorToHDMIMonitor

- 10 -GV-R4600 Series Graphics Accelerator
How to enable the ATI CrossFireXTM technology?
Step 1:
Install two CrossFireX graphics cards of the same chipset on a CrossFireX-supported motherboard and
connect the graphics cards via two CrossFire bridge interconnect cables (Figure 1). Then users can
enable the CrossFireX technology through the graphics card driver.
Two CrossFire bridge
interconnect cables. TwoCrossFiregraphics cardsofthe sametype.
(Example: GV-RX195P256D-RH)
Figure 1
Step 2:
After installing graphics card driver in operating system, when an ATI CrossFireX configuration is
detected for the first time by the ATI Catalyst display driver, ATI CrossFireX support is automatically
enabled, and the best possible GPU combination is selected based on the hardware configuration.
IfATI CrossFireX is not enabled, access the ATI Catalyst Control Center (please refer to Page 14). From
theATI Catalyst Control Center, enter the CrossFireX menu and assure to select the Enable CrossFireXTM
check box (Figure 2).
Figure 2

- 11 - Software Installation
3. Software Installation
Notice the following guidelines before installing the drivers:
1. First make sure your system has installed DirectX 9 or later version.
2. Make sure your system has installed the appropriate motherboard drivers (for the motherboard
drivers, please contact the motherboard manufacturer.)

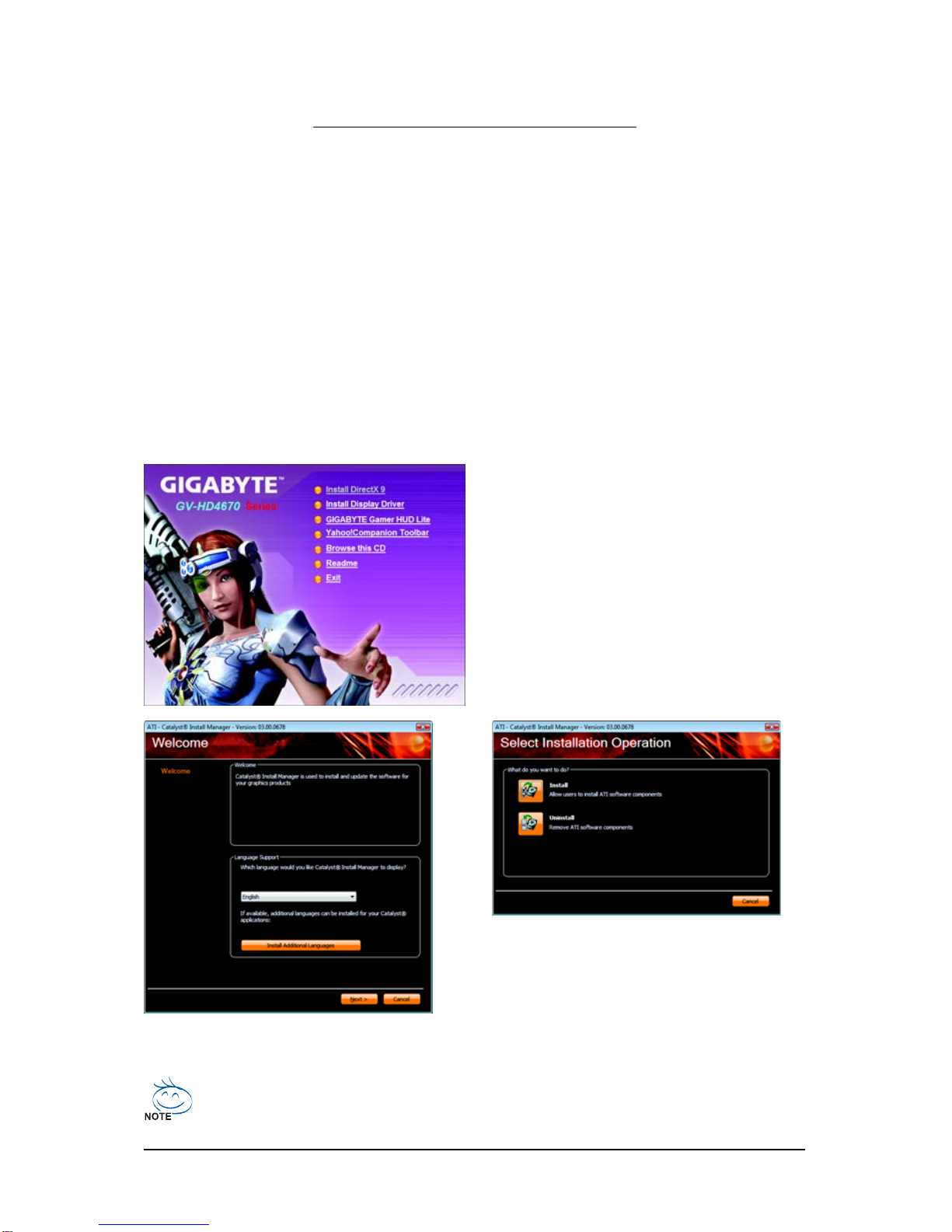

3.1. Driver and Utility Installation
3.1.1. Driver Installation
After installing the operating system, insert the driver disk into your optical drive. The driver Autorun
screen is automatically displayed which looks like that shown in the screen shot below. (If the driver
Autorun screen does not appear automatically, go to My Computer, double-click the optical drive and
execute the setup.exe program.)
For software MPEG support in Windows XP, you must install DirectX first. Users who run
Windows XP with Service Pack 2 or above do not need to install DirectX separately.
Step 1:
Click the Install Display Driver item.
Step 2:
Select the displayed language and then click Next.
Step 3:
Click the Install button.

- 12 -GV-R4600 Series Graphics Accelerator

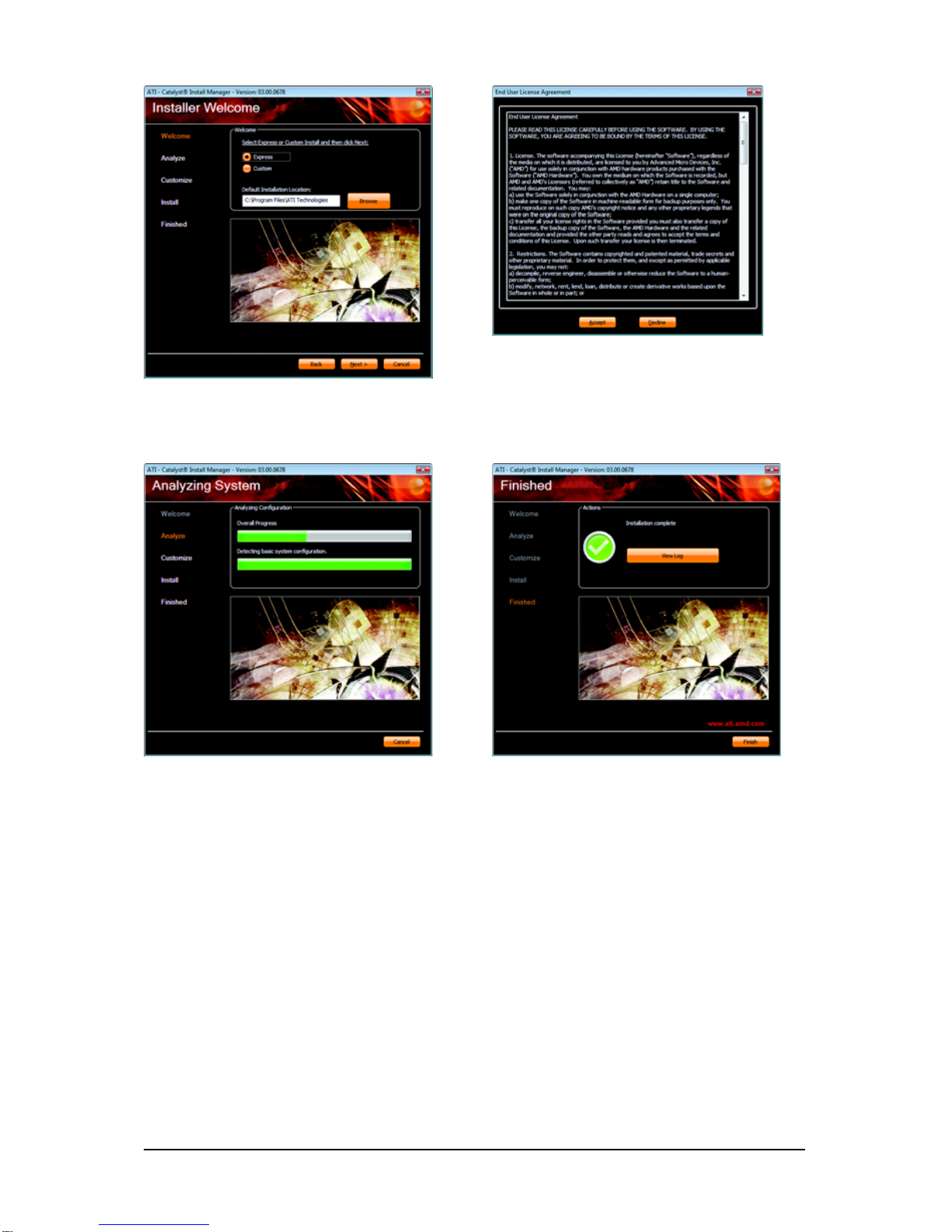

Setp 4:
Click the Express or Custom icon and then
click Next.
Step 5:
Click the Accept button.
The system is installing the components. Step 6:
Click the Finish button to restart the computer.
Then the driver installation is completed.

- 13 - Software Installation

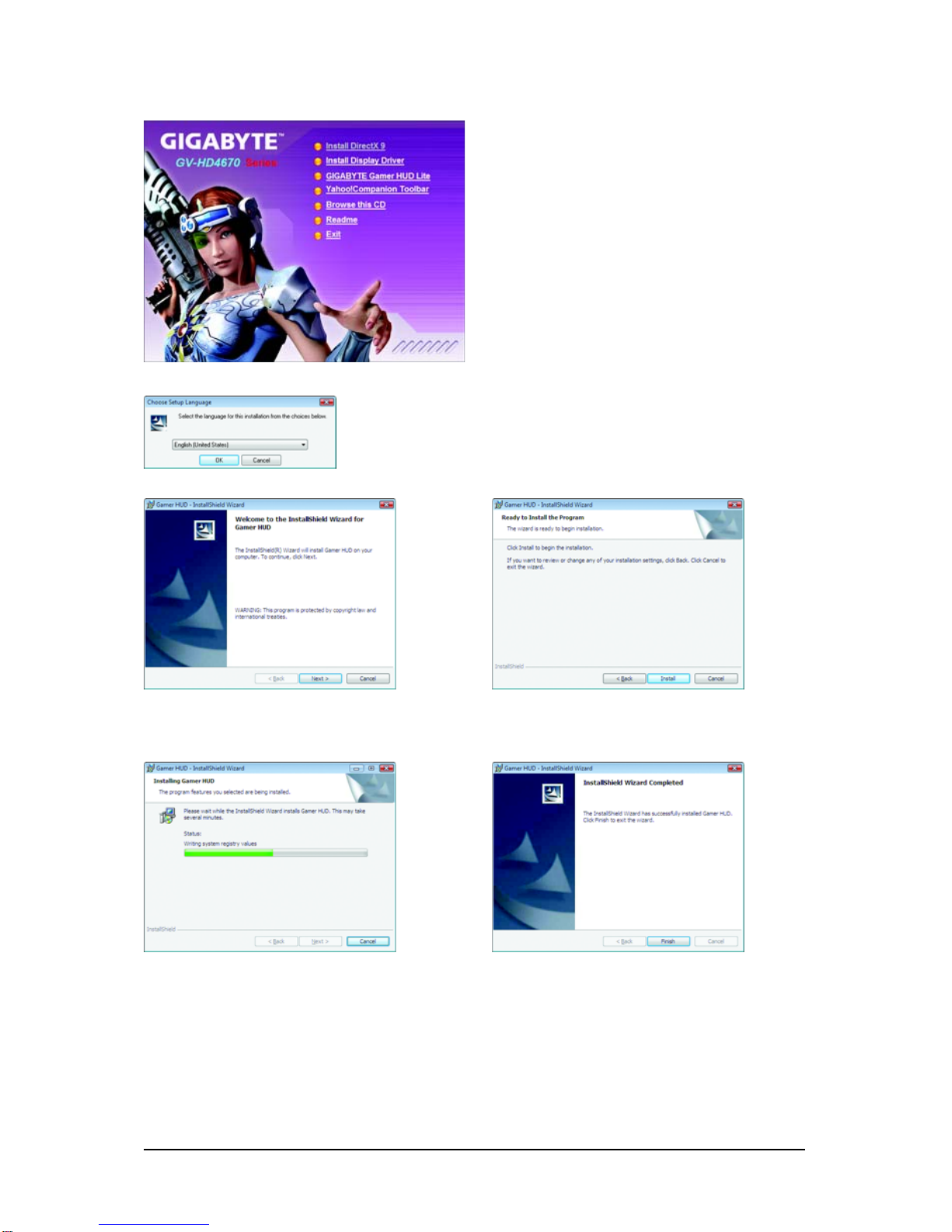

3.1.2. GIGABYTE Gamer HUD Lite on Driver Disk
Step 1:
Click the GIGABYTE Gamer HUD Lite item.
Step 3:
Click the Next button.
Step 5:
Click the Finish button. Then the installation of
the GIGABYTE Gamer HUD Lite is completed.
Step 4:
Click the Install button.
The system is installing the components.
Step 2:
Choose the language for the installation and click the OK button.

- 14 -GV-R4600 Series Graphics Accelerator
GIGABYTEGamerHUDLite
The GIGABYTE Gamer HUD Lite allows you to adjust the the working frequency of the GPU and video
memory.
Clockadjustment(Note) Enablesmanualadjustment
ofthefrequency
Displaysthe
currentoperating
frequency Hardware
Monitor
Helppage
(Note) This item is configurable only if 2D/3D Auto-Optimized is set to Disable.
Incorrectly doing overclock/overvoltage may result in damage to your system and reduce
the useful life of the system components.
Automatically
optimizesthe
frequency
Button Function
Default (Note) Allows you to load the default settings
Apply(Note) Allows you to save the values you adjust
Enable Lets the utility optimize the GPU/memory frequency settings
Disable Allows you to manually configure the GPU/Memory frequency settings
Hardware Monitor Displays the GPU usage and temperature, the GPU usage/thermal curve,
and your graphics card information
? Opens Help page

- 15 - Software Installation

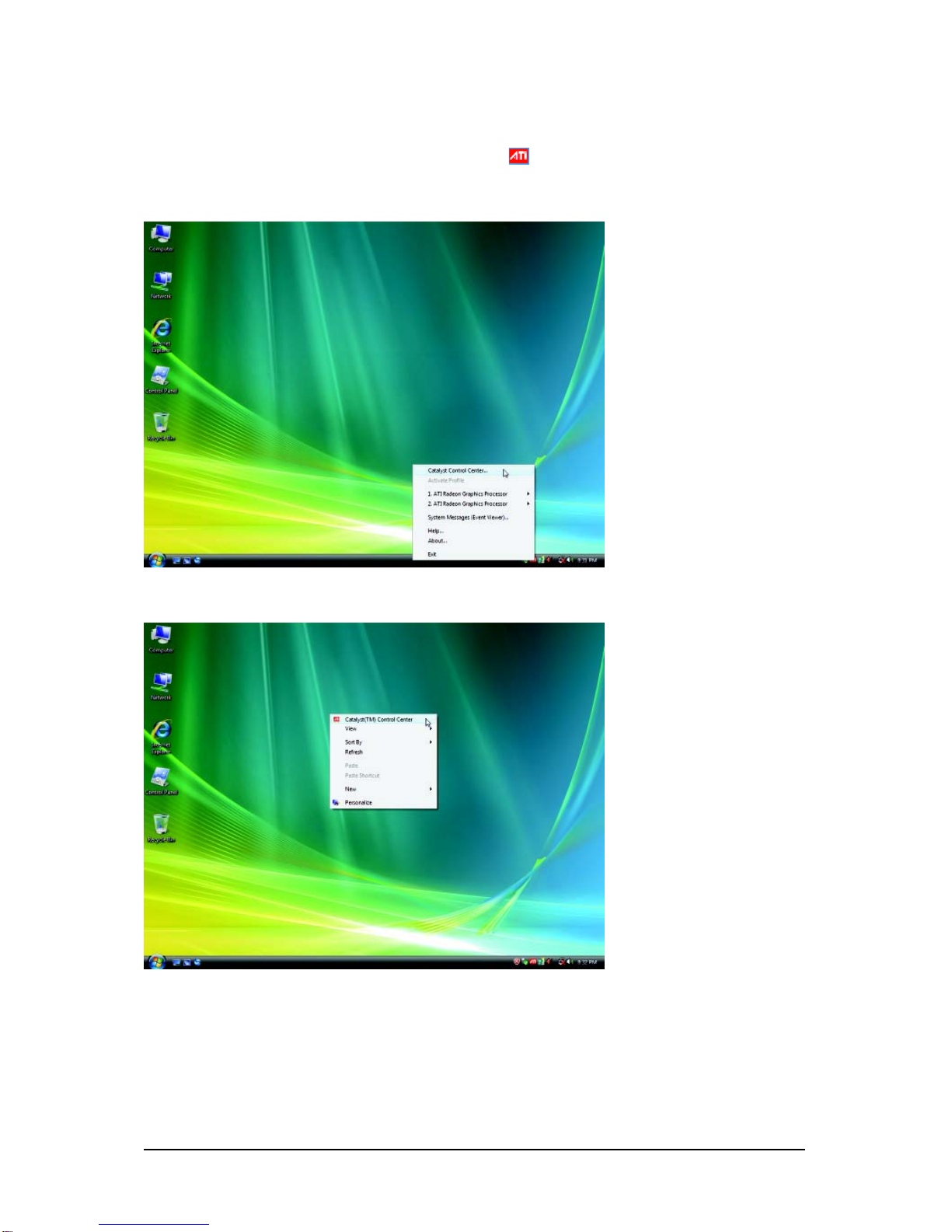

3.2.Taskbar Icon
After installation of the display driver, you will find anATI icon in the notification area. Right-click the
icon to enter the ATI Catalyst Control Center. The ATI Catalyst Control Center is used to configure
all your graphics card settings.
Right-click the ATI icon to enter the ATI Catalyst Control Center.
Or you can right-click on the desktop and select Catalyst(TM) Control Center.

- 16 -GV-R4600 Series Graphics Accelerator
Configuring Audio Output
Configure the default audio output device based upon your needs.
Step 1:
Go to Start > Control Panel > Hardware and Sound > Manage audio devices.
Using the picture to the left as the example, to set HDMI audio to be
the default Sound Playback device, select Digital Output Device
(HDMI). Otherwise, select Digital Output Device (SPDIF), which
is the onboard audio controller.
Step 2:
In the Manage audio devices dialog box, click the Playback tab.
Figure 1 Figure 2
Figure 3

- 17 - Software Installation

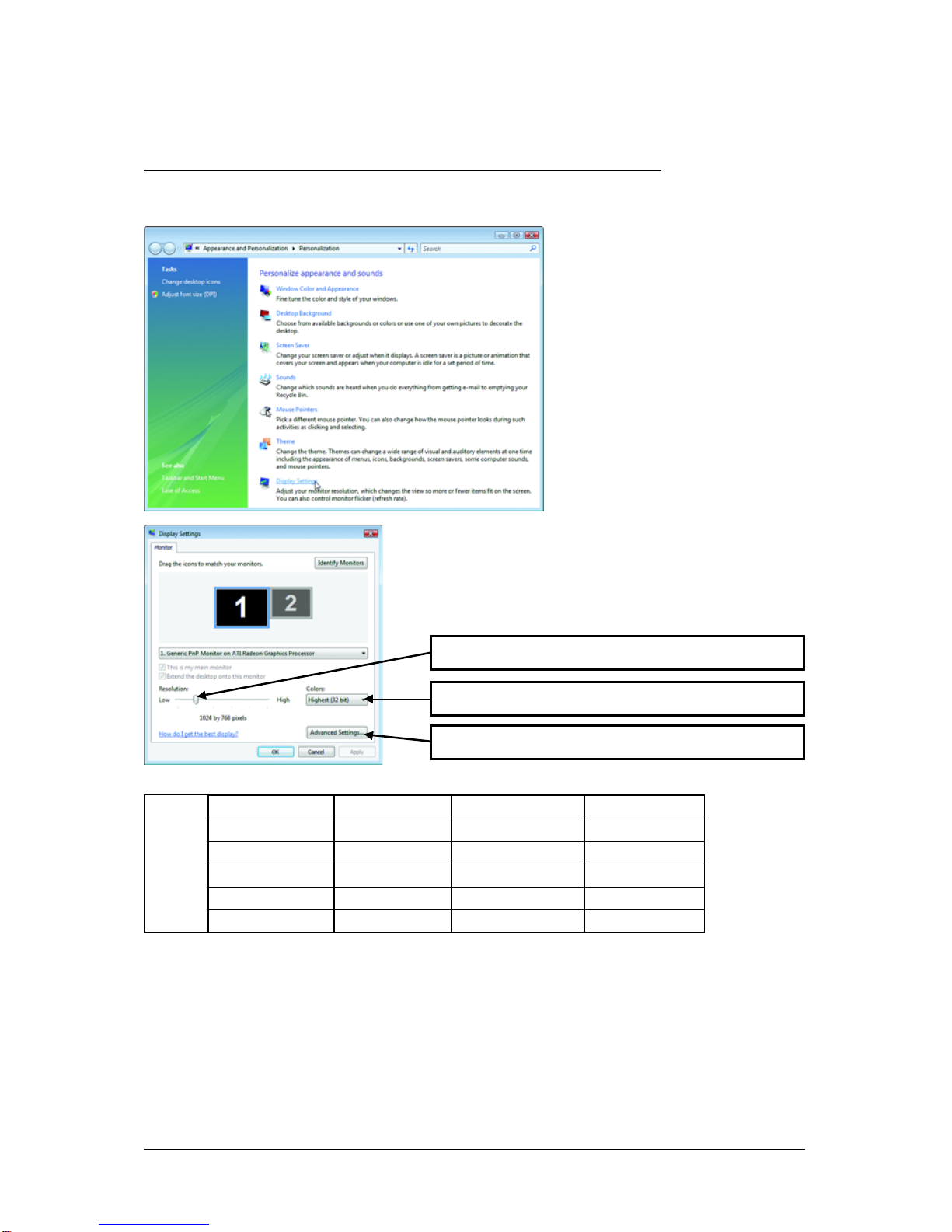

Display
Matrix
You can move the slider to change the resolution.
You can click the item to change the color quality.
Click the Advanced button for advanced settings.
3.3.Display Properties Pages
Display Settings (Resolutions and Color Quality for Windows)
To access Display Settings page, right-click on desktop and select Personalize, then the Personalization
windows will show up. Select Display Settings to adjust the screen resolution and color quality settings.
(Note 1) By a DVI-to-D-Sub adapter.
(Note 2) By a D-Sub-to-DVI adapter.
Model GV-R467ZL-1GI GV-R467D3-512I GV-R465OC-1GI
CRT+DVI Yes Yes Yes
CRT+CRT(Note 1) Yes Yes Yes
DVI +DVI (Note 2) Yes Yes Yes
HDMI+DVI Yes Yes Yes
HDMI+CRT Yes Yes Yes

- 18 -GV-R4600 Series Graphics Accelerator
ATI Catalyst®Control Center Basic View :
The Basic View is the default view when ATI Catalyst Control Center is launched for the first time. This
interface provides access to the basic settings and advanced features of your ATI graphics products.
You can switch between Basic View and Advanced View at any time.
To access more settings in Basic View, click Basic,
and then click Next.
Easy Setup Wizards:
Choose a wizard from the central list and click Go for step-by-step assistance.


Avivo Video Converter
This wizard assists you to convert videos from one file format to another.
Step 1:
Select Avivo Video Converter, then click Go.Step 2: Select the video file to be converted.
Step 3:
In the Output Folder area, select the destination folder where the new file will be located. Click Next.

- 19 - Software Installation
Step 4:
In the Output Video Format list, select a file
format for the new file. If you wish to change the
name of the new file, enter the new name in the
Output File area. Finally, click Next to start
file conversion.
The video file has been successfully converted.


Setup my display configuration
This wizard allows you to configure display
setting for desktop viewing.


HydraVision Configuration Settings
This wizard will take you to set up the
HydraVision Configuration based on your own
preference.

- 20 -GV-R4600 Series Graphics Accelerator
Quick Settings:
The Quick Settings page provides access to three main settings.


3D Quality
3D Performance and Quality Settings allows your
3D games and applications to get faster perfor-
mance and better quality with a more balanced
setting.


Video Playback
Use this option to optimize video playback in
different room environment or to select how
video playback appears on the second display.


Display Setup
This option allows you to configure your desktop,
including changing desktop resolution and desk-
top mode, setting up extended desktop (requires
more than one display), and rotating desktop
image to match new display orientation.
Information Center:
The Information Center page in Basic and Advanced View provides hardware and software information
about the installed graphics card.


Graphics Software
Provides software information including driver
version, CATALYST version, Direct 3D version
and so on.


GraphicsHardware
Provides hardware information including graph-
ics chipset, BIOS version, memory size, core
clock and so on.
