Gigabyte GV-R645SL-1GI User manual

GV-R645SL-1GI/
GV-R645SC-1GI/
GV-R645OC-1GI/
GV-R645D3-512I
AMD RadeonTM HD6450 Graphics Accelerator
User's Manual
Rev. 103
12MM-R645S-103ER
Copyright
© 2011 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. (“GBT”). No part of this manual may be reproduced or trans-
mitted in any form without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the properties of their respective owners.
Notice
Please do not remove any labels on this graphics card. Doing so may void the warranty of this card.
Due to rapid change in technology, some of the specications might be out of date before publication of this this
manual.The author assumes no responsibility for any errors or omissions that may appear in this document nor does
the author make a commitment to update the information contained herein.
Rovi Product Notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual
property rights.Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering
or disassembly is prohibited.

VGA Card
GV-R645OC-1GI
Apr.08,2011
Apr. 08, 2011
VGA Card
GV-R645OC-1GI

VGA Card
GV-R645D3-512I
Apr.08,2011
Apr. 08, 2011
VGA Card
GV-R645D3-512I

VGA Card
GV-R645SC-1GI
May.25,2011
May. 25, 2011
VGA Card
GV-R645SC-1GI

VGA Card
GV-R645SL-1GI
July.28,2011
July. 28, 2011
VGA Card
GV-R645SL-1GI

- 6 -
Table of Contents
1. Introduction..................................................................................................................7
1.1. Features......................................................................................................................... 7
1.2. Minimum System Requirements .................................................................................... 7
2. Hardware Installation...................................................................................................8
2.1. Board Layout.................................................................................................................. 8
2.2. Hardware Installation ................................................................................................... 13
3. Software Installation ..................................................................................................14
3.1. Driver and Utility Installation ........................................................................................ 14
3.1.1. Driver Installation............................................................................................................14
3.2. Taskbar Icon ............................................................................................................ 16
3.3. Display Properties Pages ........................................................................................ 18
4. Troubleshooting Tips .................................................................................................32
5. Appendix....................................................................................................................33
5.1. Resolutions and Color Depth Tables (In Windows XP)................................................ 33
5.2. Regulatory Statements ................................................................................................ 34

- 7 - Introduction
1. Introduction
1.1. Features
• Powered by AMD RadeonTM HD 6450 Graphics Processing Unit (GPU)
• Supports PCI Express 2.1
• Integrated with 1 GB DDR3 memory
(For GV-R645SC-1GI / GV-R645OC-1GI / GV-R645SL-1GI)
• Integrated with 512 MB DDR3 memory (For GV-R645D3-512I only)
• Supports DirectX® 11
• Supports CrossFireXTM
• Supports 1 Dual-Link DVI-D connector
• Supports 1 D-Sub connector
• Supports 1 HDMI connector
1.2. Minimum System Requirements
•Hardware
- Intel®Pentium®4/CoreTM 2 or AMD AthlonTM /PhenomTM
- 1 GB or more of system memory for best performance
- Optical drive for software installation (CD-ROM or DVD-ROM drive)
- A power supply that provides at least 400-watt is required. The power supply should be
with a known brand and certied to conform to safety regulations. (For the list of certied
power supplies, go to http://ati.amd.com/certiedpsu.)
•Operating System
- Windows®7
- Windows®Vista
- Windows®XP with Service Pack 2 (SP2)
- Windows®XP Professional x64 Edition

- 8 -GV-R6450 Series Graphics Accelerator
2. Hardware Installation
2.1. Board Layout
HDMI Connector
D-Sub Monitor Connector
(15-pin)
D-Sub Monitor
Connector
(15-pin)
DVI-D Connector
HDMI
Connector
DVI-D
Connector 1
DVI Output
D-Sub
Output
HDMI TV
Digital LCD Monitor
1. GV-R645OC-1GI
Analog LCD Monitor Analog Monitor
or

- 9 - Hardware Installation
HDMI Connector
D-Sub Monitor Connector
(15-pin)
D-Sub Monitor
Connector
(15-pin)
DVI-D Connector
HDMI
Connector
DVI-D
Connector 1
DVI Output
D-Sub
Output
HDMI TV
Digital LCD Monitor
2. GV-R645D3-512I
Analog LCD Monitor Analog Monitor
or

- 10 -GV-R6450 Series Graphics Accelerator
HDMI Connector
D-Sub Monitor Connector
(15-pin)
D-Sub Monitor
Connector
(15-pin)
DVI-D Connector
HDMI
Connector
DVI-D
Connector 1
DVI Output
D-Sub
Output
HDMI TV
Digital LCD Monitor
3.GV-R645SC-1GI
Analog LCD Monitor Analog Monitor
or

- 11 - Hardware Installation
HDMI Connector
D-Sub Monitor Connector
(15-pin)
D-Sub Monitor
Connector
(15-pin)
DVI-D Connector
HDMI
Connector
DVI-D
Connector 1
DVI Output
D-Sub
Output
HDMI TV
Digital LCD Monitor
4.GV-R645SL-1GI
Analog LCD Monitor Analog Monitor
or

- 12 -GV-R6450 Series Graphics Accelerator
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow
some precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not
have one, touch both of your hands to a safely grounded object or to a metal
object,such as the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with
the components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by
static electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The op-
erator should be wearing an anti-static wristband, grounded at the same point as the
anti-static mat.
Inspect the card carton for obvious damage. Shipping and handling may cause dam-
age to your card. Be sure there are no shipping and handling damages on the card
before proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF THE GRAPHICS CARD IS
DAMAGED.
In order to ensure that your graphics card can work correctly, please use
 ofcialGIGABYTEBIOSonly.Usingnon-ofcialGIGABYTEBIOSmight
cause problem(s) on the graphics card.
The entire Radeon HD 6450 series support HDMI output which can handle both audio and
video signals. However, audio output from the onboard audio controller or the external sound
card will be disabled when HDMI output is activated.
If no need for HDMI output function, set the onboard audio controller or the external sound card
to be the default Sound Playback device to obtain audio output from your system. For more
details, refer to page 17.

- 13 - Hardware Installation
2.2. Hardware Installation
Now that you have prepared your computer, you are ready to install your graphics card.
Step 3.
Plug the display cable into your card; then turn on the computer
and monitor. To connect a D-Sub monitor to your graphics card,
use the D-Sub connector. To connect a at panel display to your
graphics card, use the DVI-D connector. To connect an HDMI
monitor to your graphics card, use the HDMI connector.
Connect an HDMI monitor
Connect a D-Sub monitor
To Flat Panel DisplayTo HDMI Monitor
Step 1.

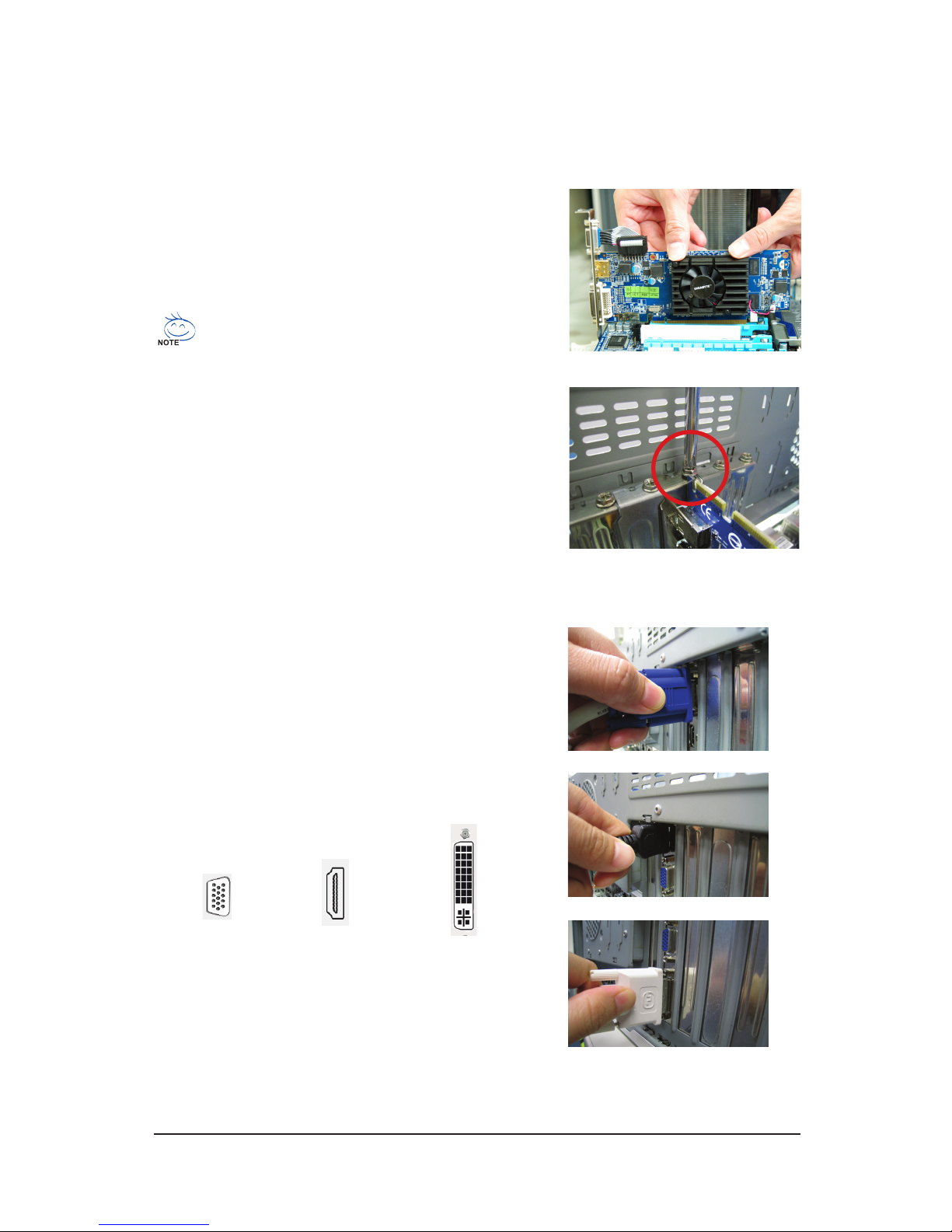

Locate the PCI Express x16 slot. If necessary, remove the metal
cover from this slot; then align your graphics card with the PCI
Express x16 slot, and press it in firmly until the card is fully
seated.
Step 2.
Replace the screw to fasten the card in place, and replace the
computer cover.
Make sure that the gold edge connector of the graphics card is
securely inserted.
Connect a at panel display
To D-Sub Monitor
You are now ready to proceed with the installation of the graphics card driver. Please refer to next chapter for
detailed instructions.

- 14 -GV-R6450 Series Graphics Accelerator
3. Software Installation
Notice the following guidelines before installing the drivers:
1. First make sure your system has installed DirectX 9 or later version.
2. Make sure your system has installed the appropriate motherboard drivers (for the motherboard
drivers, please contact the motherboard manufacturer.)
3.1. Driver and Utility Installation
3.1.1. Driver Installation
After installing the operating system, insert the driver disk into your optical drive. The driver Autorun screen
is automatically displayed which looks like that shown in the screen shot below. (If the driver Autorun screen
does not appear automatically, go to My Computer, double-click the optical drive and execute the setup.exe
program.)
For software MPEG support in Windows XP, you must install DirectX rst. Users who run Windows
XP with Service Pack 2 or above do not need to install DirectX separately.

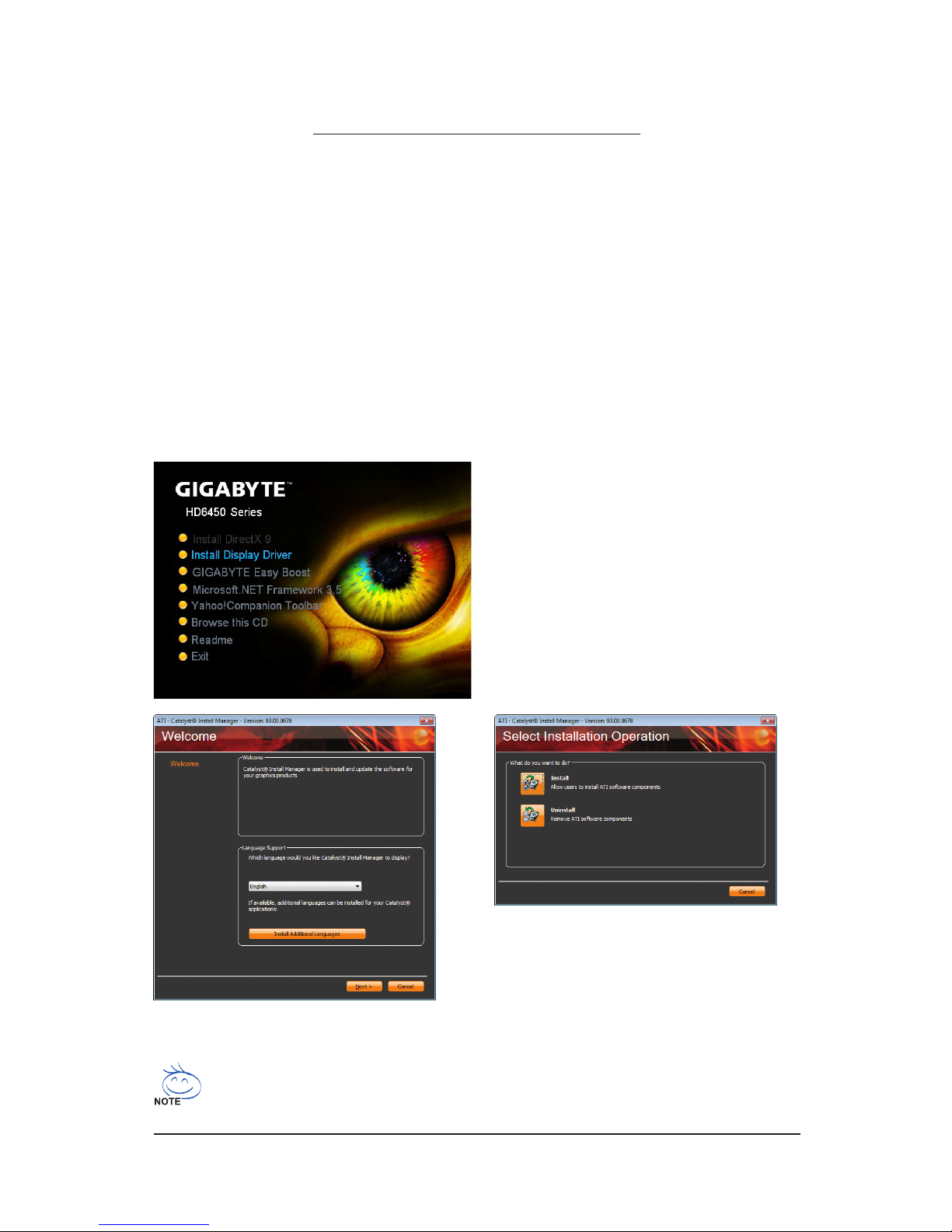

Step 1:
Click the Install Display Driver item.
Step 2:
Select the displayed language and then click Next.
Step 3:
Click the Install button.

- 15 - Software Installation

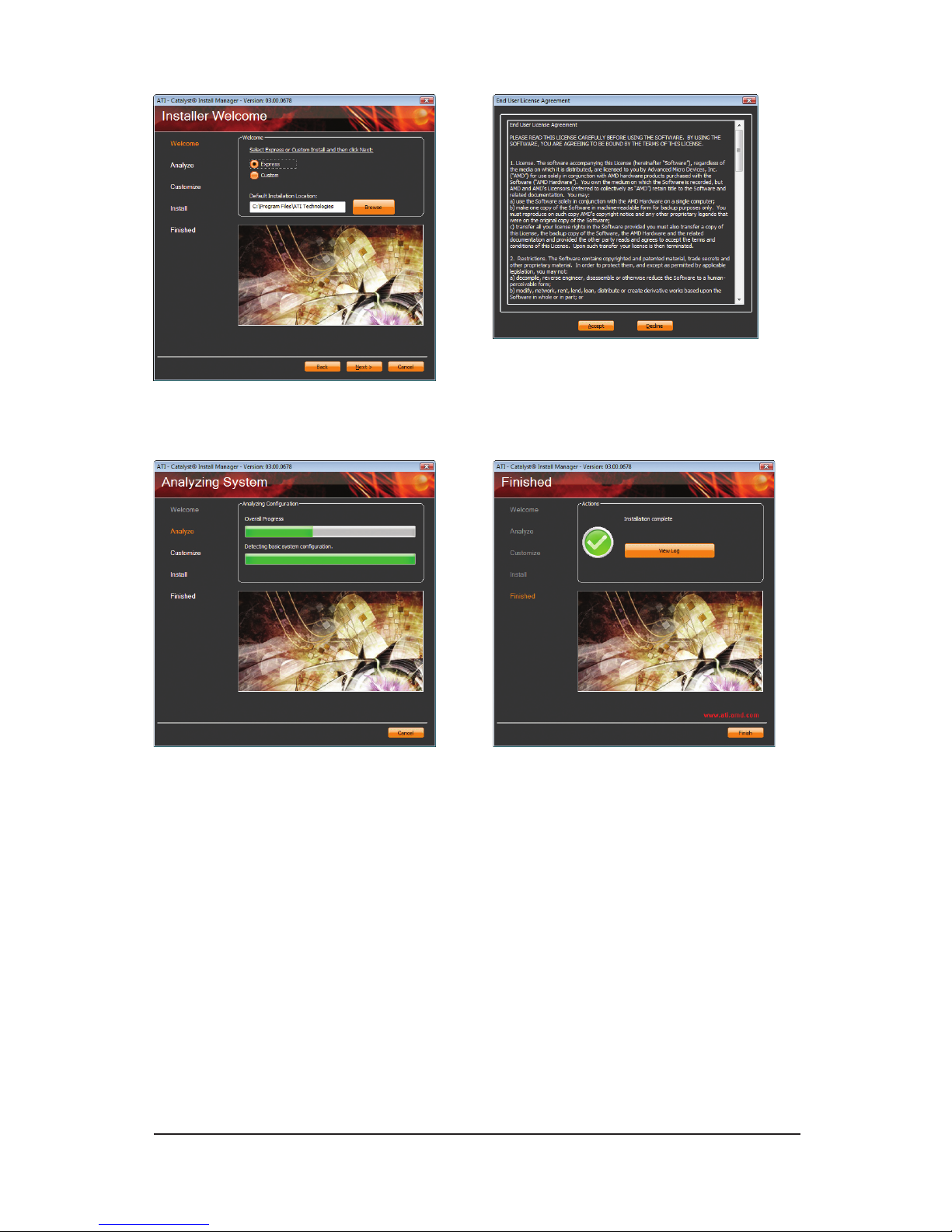

Setp 4:
Click the Express or Custom icon and then
click Next.
Step 5:
Click the Accept button.
The system is installing the components. Step 6:
Click the Finish button to restart the computer.
Then the driver installation is completed.

- 16 -GV-R6450 Series Graphics Accelerator
3.2. Taskbar Icon
After installation of the display driver, you will nd an ATI icon in the notication area. Right-click the icon
to enter the ATI Catalyst Control Center. The ATI Catalyst Control Center is used to congure all your
graphics card settings.
Right-click the ATI icon to enter the ATI Catalyst Control Center.
Or you can right-click on the desktop and select Catalyst(TM) Control Center.

- 17 - Software Installation
ConguringAudioOutput
Congure the default audio output device based upon your needs.
Step 1:
Go to Start > Control Panel > Hardware and Sound > Manage audio devices.
Using the picture to the left as the example, to set HDMI audio to be the
default Sound Playback device, select Digital Output Device (HDMI).
Otherwise, select Digital Output Device (SPDIF), which is the onboard
audio controller.
Step 2:
In the Manage audio devices dialog box, click the Playback tab.
Figure 1 Figure 2
Figure 3

- 18 -GV-R6450 Series Graphics Accelerator

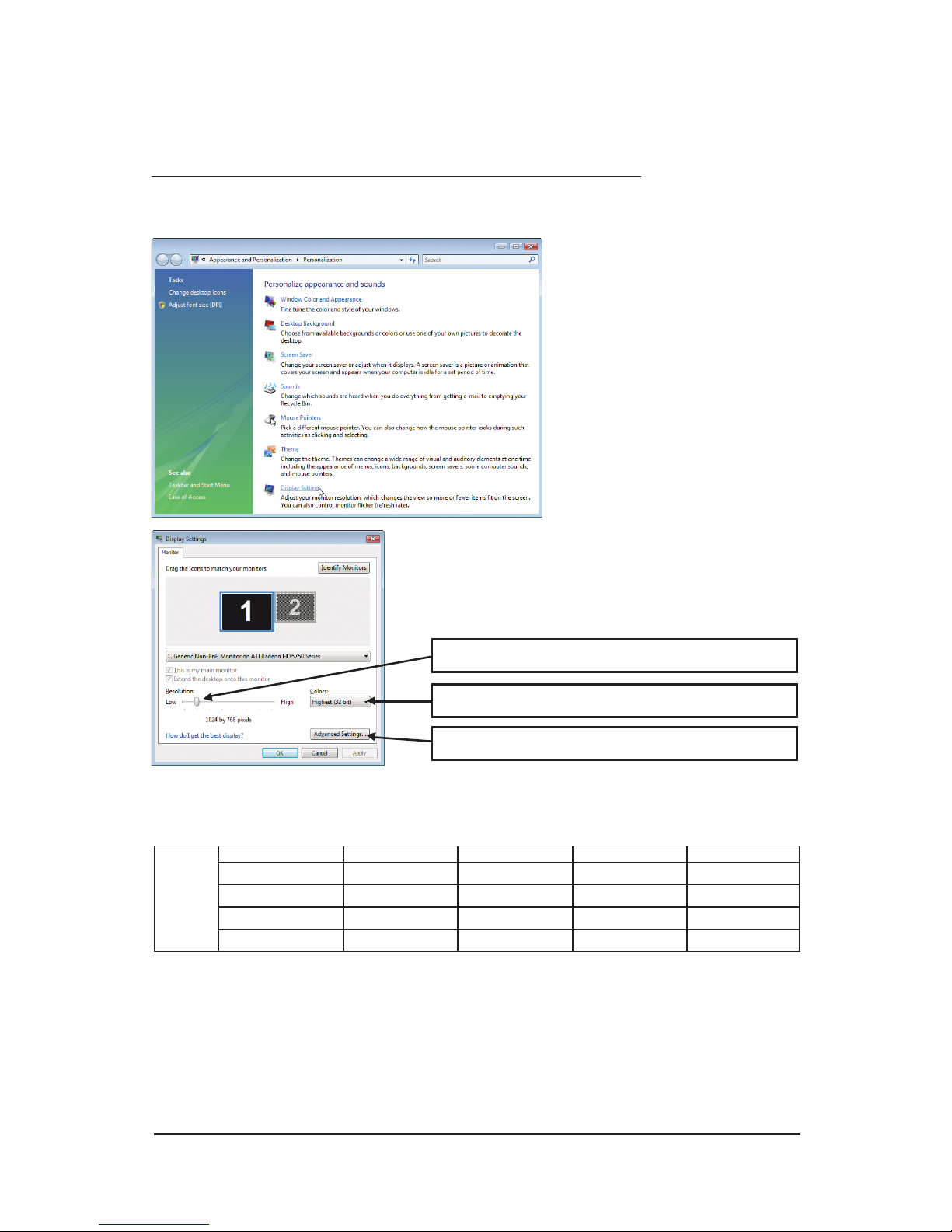

You can move the slider to change the resolution.
You can click the item to change the color quality.
Click the Advanced button for advanced settings.
3.3. Display Properties Pages
Display Settings (Resolutions and Color Quality for Windows)
To access Display Settings page, right-click on desktop and select Personalize, then the Personalization
windows will show up. Select Display Settings to adjust the screen resolution and color quality settings.
Display
Matrix
Model GV-R645SC-1GI GV-R645OC-1GI GV-R645D3-512I GV-R645SL-1GI
CRT+DVI-D
DVI-D+DVI-D (Note1)
HDMI+DVI-D
HDMI+CRT
(Note 1) By a HDMI to DVI adapter.(optional)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

- 19 - Software Installation
ATI Catalyst®Control Center Basic View :
The Basic View is the default view when ATI Catalyst Control Center is launched for the rst time. This in-
terface provides access to the basic settings and advanced features of your ATI graphics products. You can
switch between Basic View and Advanced View at any time.
To access more settings in Basic View, click Basic, and
then click Next.
Easy Setup Wizards:
Choose a wizard from the central list and click Go for step-by-step assistance.

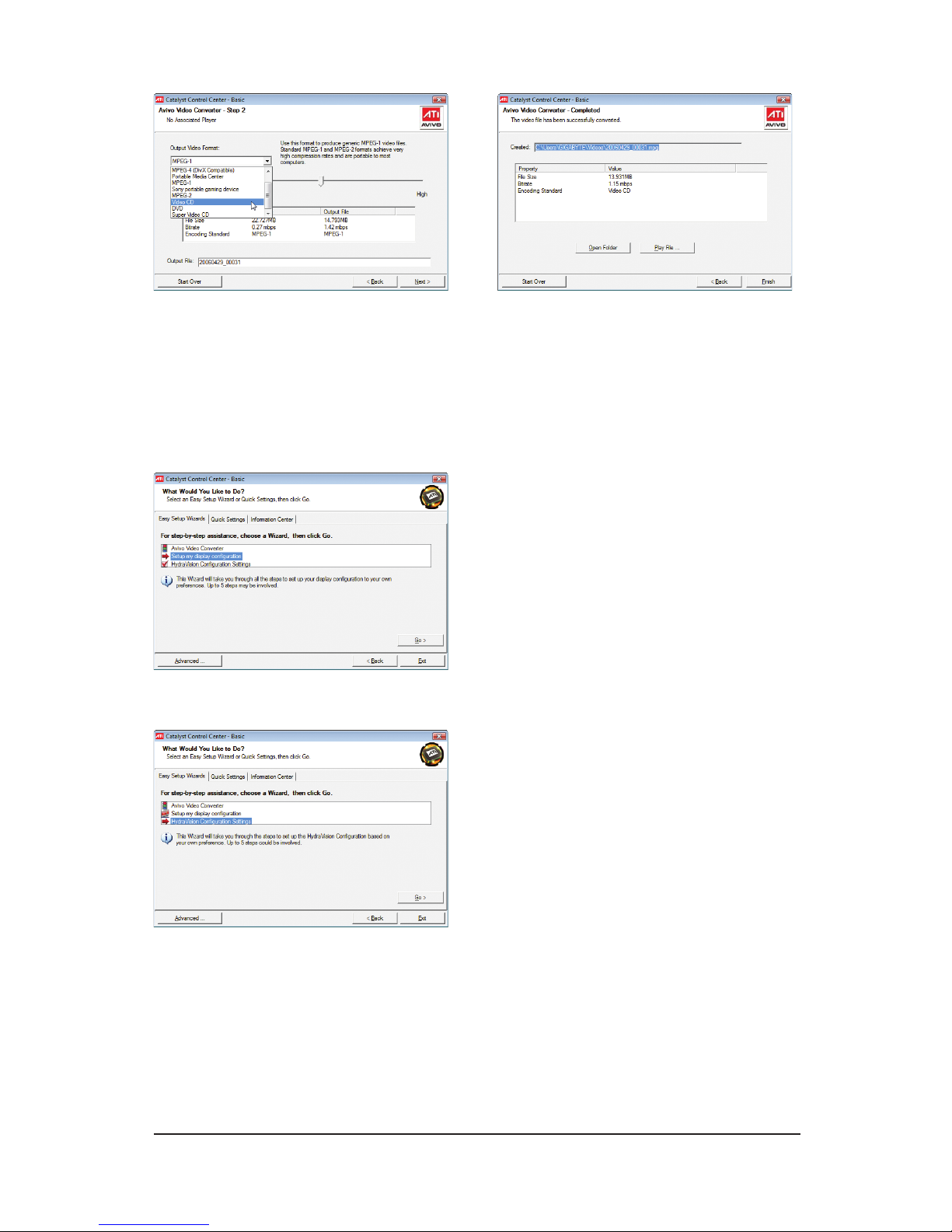

Avivo Video Converter
This wizard assists you to convert videos from one le format to another.
Step 1:
Select Avivo Video Converter, then click Go.
Step 2:
Select the video le to be converted.
Step 3:
In the Output Folder area, select the destination folder where the new le will be located. Click Next.

- 20 -GV-R6450 Series Graphics Accelerator
Step 4:
In the Output Video Format list, select a file
format for the new le. If you wish to change the
name of the new le, enter the new name in the
Output File area. Finally, click Next to start le
conversion.
The video le has been successfully converted.
 Setupmydisplayconguration
This wizard allows you to congure display setting
for desktop viewing.
HydraVisionCongurationSettings
This wizard will take you to set up the HydraVision
Conguration based on your own preference.
