Gigabyte Gv-nx65128d User manual

Oct. 18, 2005

VGA Card

GV-NX65128D

VGA Card

Oct. 18, 2005

GV-NX65128D

Jan. 27, 2006

VGA Card

GV-NX65128DE

VGA Card

Jan. 27, 2006

GV-NX65128DE

without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the property of their respective owners.

Notice

Please do not remove any labels on VGA card, this may void the warranty of this VGA card.

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a

commitment to update the information contained herein.

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

GV-NX65128D /

GV-NX65128DE

GeForce™6500 Graphics Accelerator

User's Manual

Rev. 102

12MD-NX651D-102R

GV-NX65128D(DE) Graphics Accelerator - 2 -

English

Table of Contents

1. Introduction ......................................................................................... 3

1.1. Features ..................................................................................................... 3

1.2. Minimum System Requirement ..................................................................... 3

2. Hardware Installation ........................................................................... 4

2.1. Board layout ............................................................................................... 4

2.2. Hardware Installation ................................................................................... 6

3. Software Installation ............................................................................ 8

3.1. Windows®XP Driver and Utilities Installation ................................................. 8

3.1.1. Operating System Requirement ................................................................................... 8

3.1.2. DirectX Installation .......................................................................................................... 9

3.1.3. Driver Installation .......................................................................................................... 10

3.1.4. Utilities on Driver CD ................................................................................................... 12

3.1.5. Taskbar Icon ................................................................................................................. 14

3.1.6. Display Properties Pages ............................................................................................ 17

3.1.7. nView Properties Pages .............................................................................................. 21

3.2. Windows®2000 Driver Installation ............................................................. 26

4. Troubleshooting Tips ........................................................................ 27

5. Appendix .......................................................................................... 28

5.1. How to Reflash the BIOS ........................................................................... 28

5.1.1. Reflash BIOS in MS-DOS Mode ................................................................................. 28

5.1.2. Reflash BIOS in Windows Mode ................................................................................ 28

5.2. Resolutions and Color Depth Table (In Windows®XP) ............................... 29

Introduction- 3 -

English

1. Introduction

1.1. Features

•The graphics card supports NVIDIA TurboCache technology, which enhances

graphics card performance by allowing the graphics processing unit (GPU) to

dynamically share the available system memory. The total effective VGA memory

differs depending on system memory. See the following tables for details:

•Powered by NVIDIA®GeForce™6500 with TurboCache Technology Graphics

Processing Unit (GPU)

•Supports the newest PCI Express x 16

•Supports DirectX 9.0c

•Supports AV / S-Video and HDTV output

•Supports D-Sub and DVI-I connector

1.2. Minimum System Requirement

•IBM®or 100% PC compatible with Pentium®III 650MHz or AMD Athlon 650MHz

class processor or higher

•One PCI Express x 16 slot

•Operating Systems Win®2000 / Win®XP

•256MB system memory

•50MB of available disk space for full installation

•CD-ROM or DVD-ROM drive

•A PCI Express compliant motherboard and power supply

System memory 256 MB 512 MB or above

VGA onboard memory 128 MB 128 MB

Shared system memory 0 MB 128 MB

Total effective VGAmemory 128 MB 256 MB

GV-NX65128D(DE) Graphics Accelerator - 4 -

English

2. Hardware Installation

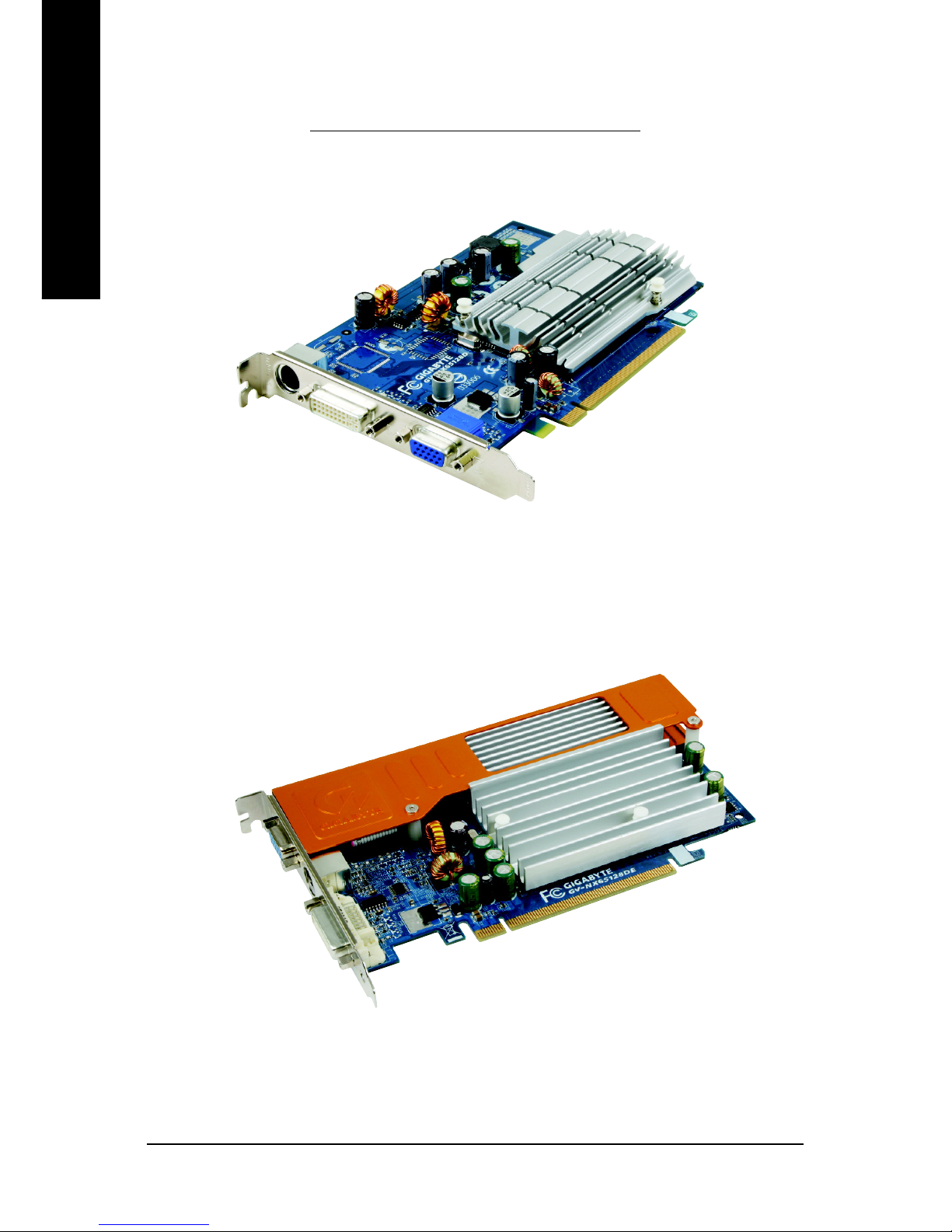

2.1. Board Layout

1) GV-NX65128D

TV-out

VGA Monitor

Connector

(15-pin)

DVI-I Connector

2) GV-NX65128DE

TV-out

VGA Monitor Connector

(15-pin)

DVI-I Connector

Hardware Installation- 5 -

English

Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them

against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Turn off your computer and unplug power supply.

2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both

of your hands to a safely grounded object or to a metal object, such as the power supply case.

3. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by static electricity,

so the card should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat. The operator should be

wearing an anti-static wristband, grounded at the same point as the anti-static mat.

Inspect the card carton for obvious damage. Shipping and handling may cause damage to your

card. Be sure there are no shipping and handling damages on the card before proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON THE

CARD.

In order to ensure your graphics card working correctly, please use official Gigabyte BIOS

only. Use none official Gigabyte BIOS might cause problem on the graphics card.

TV-out

VGA Monitor

Connector

(15pin)

DVI-I Connector

Analog LCD Monitor Analog Monitor

VGA Output

Digital LCD Monitor

DVI Output

Analog LCD Monitor

DVI-I to D-Sub

Adapter

NTSC / PAL TV

Projector

S-Video Output

HDTV

Pb/AV Output

VGA Output

The pictures below are example for GV-NX65128D.

GV-NX65128D(DE) Graphics Accelerator - 6 -

English

2.2. Hardware Installation

Installing Your graphics card.

Now that you have prepared your computer, you are ready to install your graphics accelerator

card.

To remove the existing graphics card:

1. Power off the computer and monitor, then

disconnect the display cable from the back

of your computer.

2. Remove the computer cover. If necessary,

consult your computer's manual for help in

removing the cover.

3. Remove any existing graphics card from

your computer.

Or, if your computer has any on-board

graphics capability, you may need to disable

it on the motherboard. For more information,

please see you computer documentation.

Hardware Installation- 7 -

English

To install your new graphics card:

1. Locate the PCI Express x 16 slot. If

necessary, remove the metal cover from this

slot; then align your graphics card with the

PCI Express x 16 slot, and press it in firmly

until the card is fully seated.

2. Replace the screw to fasten the card in place,

and replace the computer cover.

3. Plug the display cable into your card; then

turn on the computer and monitor. If your

graphics card came with a DVI-I connector,

you can connect a flat panel display to the

appropriate connector, as shown below...

You are now ready to proceed with the installation of the graphics card driver. Please

refer to next chapter for detailed instructions.

To VGA Monitor

To TV / VCR

To Flat Panel Display

GV-NX65128D(DE) Graphics Accelerator - 8 -

English

3. Software Installation

In this manual, we assume that your CD-ROM Drive letter to be Drive D:

The installation of Windows®2000 / Windows®XP drivers is very simple. When you insert the

driver CD into your CD-ROM drive, you can see the AUTORUN window (if it does not show

up, run "D:\setup.exe"). Then you can follow the guides to setup your graphics card driver.

(Please follow the subsection 3.1.3 "Driver installation" to install the driver for your graphics

accelerator.)

3.1. Windows®XP Driver and Utilities Installation

3.1.1. Operating System Requirement

•When loading the graphics card drivers for the system, please make sure your system

has installed DirectX 9.0c or later version.

•If you install the graphics card drivers for the motherboard, which consist of SIS or VIA

chipsets, please install the appropriate driver program for that motherboard. Or please

contact your motherboard nearest dealer for motherboard driver.

Software Installation- 9 -

English

3.1.2. DirectX Installation

Install Microsoft DirectX to enable 3D hardware acceleration support for Windows®2000 or

Windows®XP to achieve better 3D performence.

0Note: For software MPEG support in Windows®2000 or Windows®XP, you must install

DirectX first. Users who run Windows XP with Service Pack 2 or above do not need to

install DirectX separately.

Step 1. When autorun window show up, click the

Install DirectX 9 item.

Step 2. Choose I accept the agreement

and click the Next button.

Step 3. Click the Next button.

Step 4. Click Finish to restart computer.

Then the DirectX 9 installation is completed.

Installing the components.

GV-NX65128D(DE) Graphics Accelerator - 10 -

English

Step 3: Found new hardware wizard: Finish

Click the "Finish" button to finish the installation.

3.1.3. Driver Installation

A. New hardware found

After the graphics card is inserted into your computer at the first time, the windows will

automatically detect a new hardware in the system and pop out a "New Hardware Found"

message. The following is the step-by-step installation guide.

Step 1: Found new hardware wizard: Video controller (VGA Compatible)

Step 2: Found new hardware wizard: Searching and installing

The wizard will search for the driver and install it automatically.

Click the Next button to install the driver. (There is

a driver CD disk that came with your graphics

accelerator, please insert it now.)

Or click the Cancel button to install the driver from

AUTORUN window.

Software Installation- 11 -

English

B. Driver installation (Autorun Window)

Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.

If it does not show up, please run "D:\setup.exe".

Step 1. When autorun window show up,

click Install Display Driver item.

Step 2. Click the Next button.

Step 3. Click the Finish button to restart computer.

Then the driver installation is completed.

Windows installings the components.

GV-NX65128D(DE) Graphics Accelerator - 12 -

English

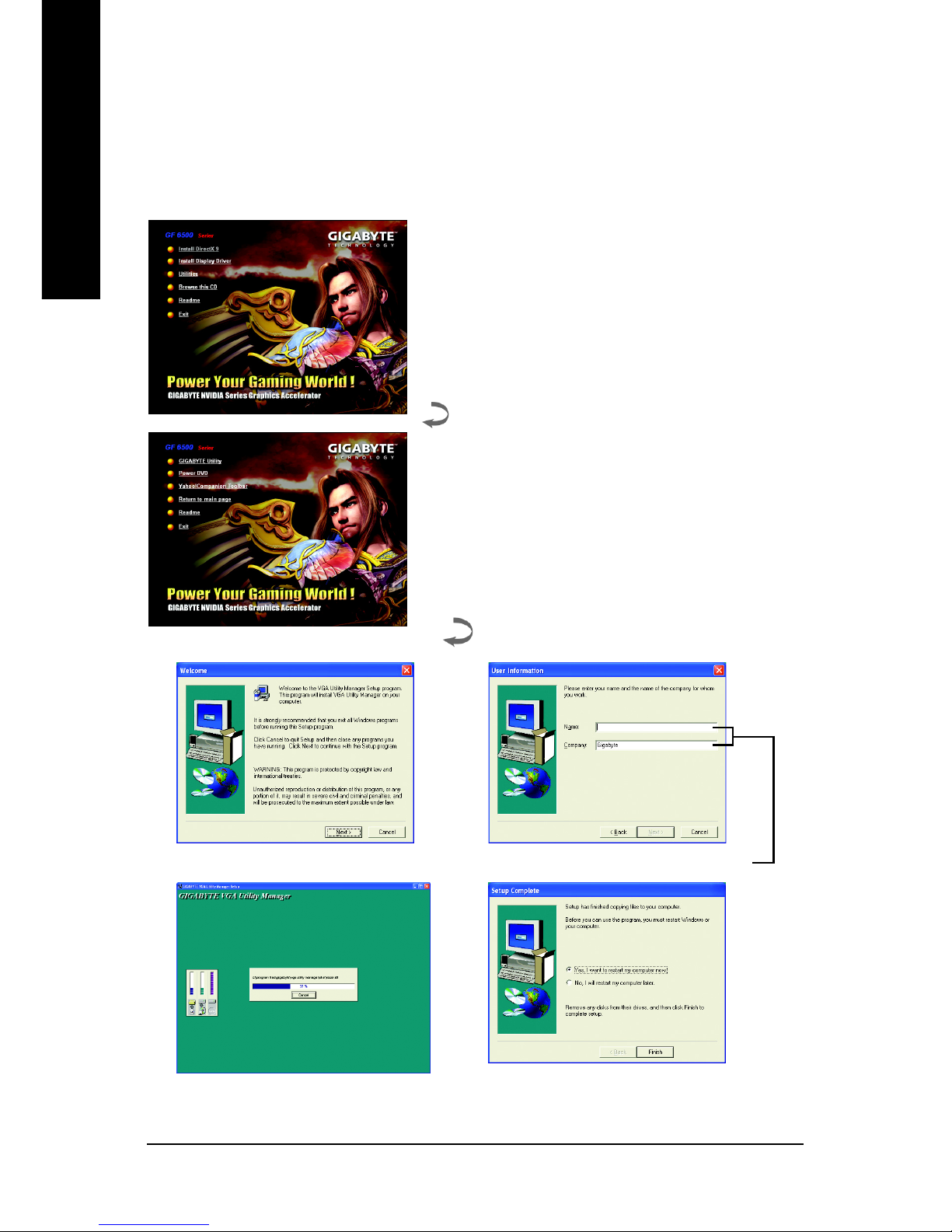

3.1.4. Utilities on Driver CD

Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.

If it does not show up, please run "D:\setup.exe".

•Install GIGABYTE utilities:

Step 1. When autorun window show up, please click

the Utilities item.

Then click the GIGABYTE Utility item.

Step 3. Enter your name and company.

Step 4. Click the Finish button to restart computer.

Then the utilities installation is completed.

Step 2. Click the Next button.

Software Installation- 13 -

English

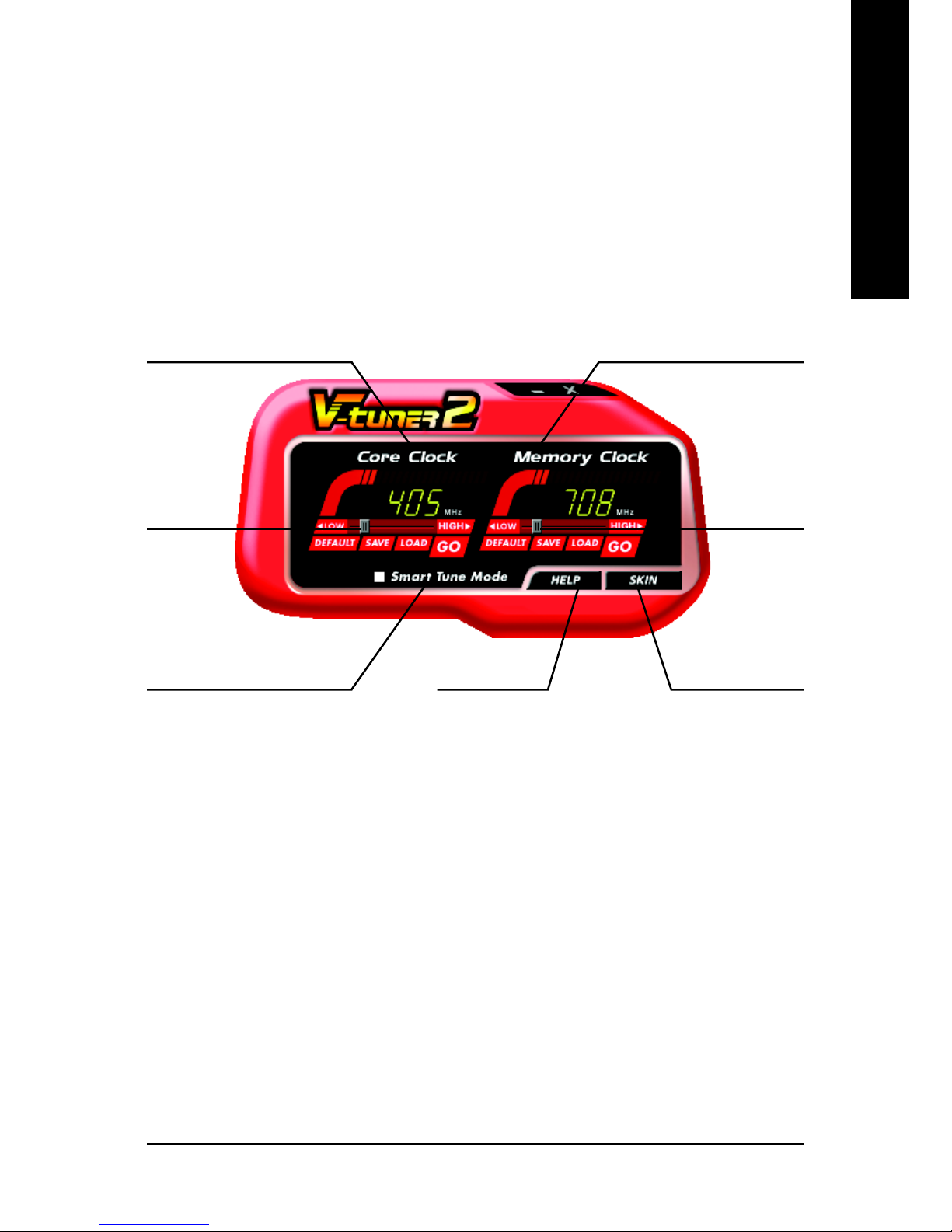

V-Tuner 2

V-Tuner 2 lets you adjust the working frequency of the graphic engine and video memory

(Core Clock and Memory Clock).

The tunning CLK will only be applied when

running 3D mode.

Adjust core

speed

Displays core clock status Displays memory clock status

Adjust memory

speed

Select choice of skinOpens Help page

GV-NX65128D(DE) Graphics Accelerator - 14 -

English

3.1.5. Taskbar Icon

After installation of the display drivers, you will find a GIGABYTE icon on the taskbar's

status area. Right-clicking this icon opens the GIGABYTE control panel, showing a menu

composed of shortcut of the graphics card's enhanced and other functions.

You may click the Display Properties item, and then click Settings. Click Advanced after

clicking Settings. Click the appropriate tab to change your display settings.

Right click the icon.

You can link to GIGABYTE website for updated information about the

graphics accelerator, latest drivers, and other information.

Click the VGA Information

item into the "VGA Info" and

"Color Adjust" tabs.

Software Installation- 15 -

English

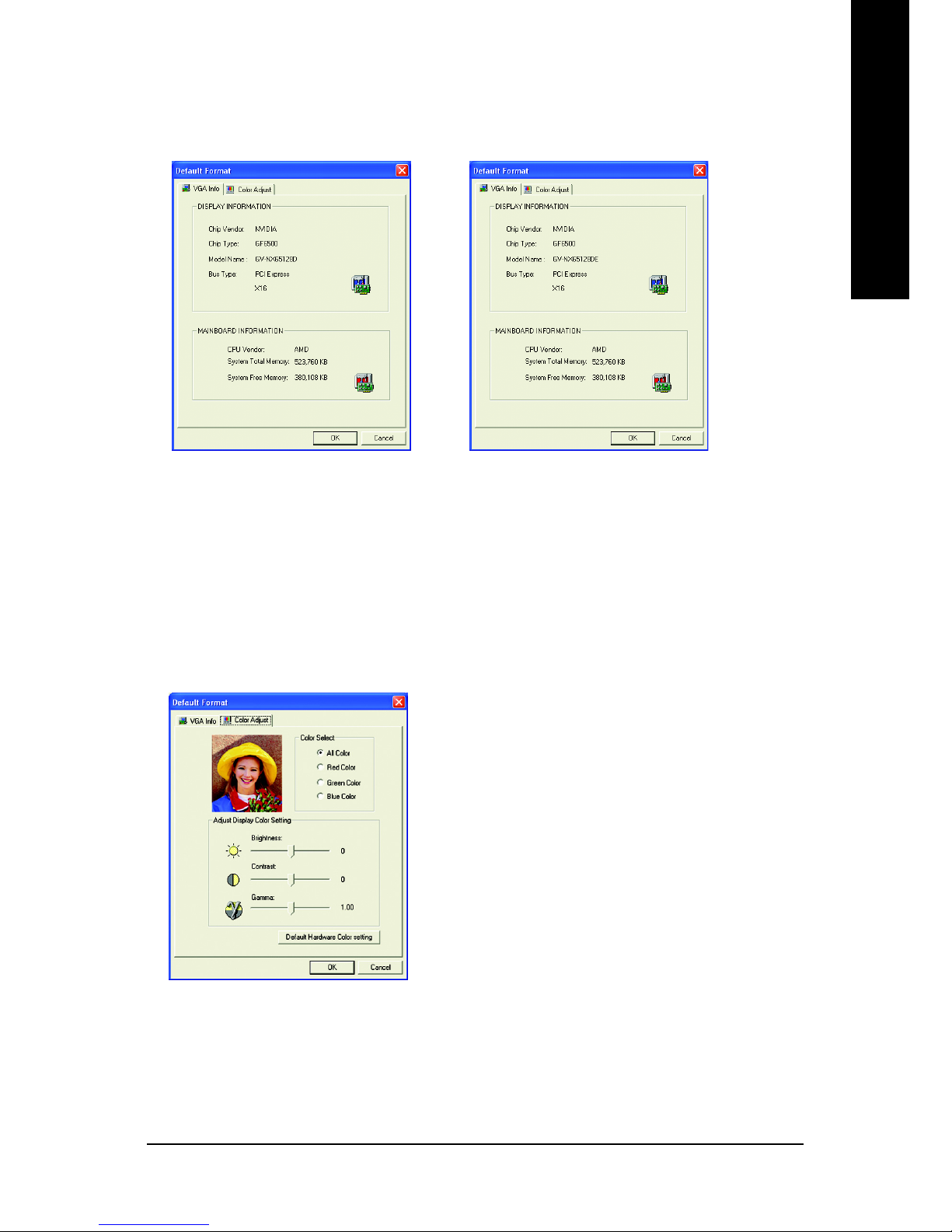

VGA Information

VGA Info lists the relevant information about your card.

Color Adjust

Color Adjust allows you to make color adjustments, such as brightness, contrast and

gamma values for each or all of RGB colors.

GV-NX65128D(DE) Graphics Accelerator - 16 -

English

You can adjust the properties of

the graphics accelerator from

here.

Right click the icon.

After installation of the display drivers, you will find a NVIDIA icon on the taskbar's status

area. Click this icon to open the control panel.

This manual suits for next models

Table of contents

Gigabyte GV-NX65128D User manual

Popular Video Card manuals by other brands
