GILES FSH-3.5 Installation and operating instructions

Giles Enterprises, Inc.
ISO 9001 egistered Company • Committed to Quality
2750 Gunter Park Drive West • Montgomery, AL 36109 USA
Phone: [phone] • Fax: [phone] • Website: www.gfsequipment.com
Service H tline (T ll Free): 800.554.4537 (USA & Canada Only)
Form No. 65497 ( elease date: 04/09) ( evision Date: 08/10, ev. B)
FSH-3.5 & FSH-4
Operations & Service Manual
Model: FSH-3.5 & FSH-4

LIMITED WARRANTY
• Subject to t e terms and conditions of t is Limited Warranty as erein stated, all Giles Enterprises,
Inc., Foodservice Equipment and parts purc ased new from an aut orized Giles Enterprises, Inc.,
representative are warranted as to defects in material or workmans ip for a period of 12 mont s
from t e date of installation, provided, owever, t at wit regard to labor costs in connection wit
t is warranty, see below. All installations must be made by a qualified installing agency in accor-
dance wit all applicable codes and/or regulations in t e jurisdiction in w ic installed. Limited war-
ranty coverage is extended to t e original owner only and is void if t e unit is resold.
• During t e Limited Warranty period, Giles Enterprises, Inc. will replace or recondition, at its factory,
any part or parts of t is unit w ic Giles Enterprises, Inc. inspectors judge defective, provided t e
unit as been subjected to normal usage, properly installed, operated and serviced. T is Limited
Warranty does not cover cosmetic damage, and damage due to acts of God, accident, misuse, alter-
ation, negligence, abuse of t e Giles Foodservice Equipment or t e use of unort odox repair met -
ods. All parts replaced under t is Limited Warranty carry only t e unexpired term of t is Limited
Warranty. Limited Warranty service may be furnis ed only by an aut orized Giles Enterprises, Inc.,
representative.
• If Limited Warranty service is requested, Giles Enterprises, Inc., will send factory-aut orized serv-
ice representatives to repair, recondition, replace or inspect units of its manufacture wit suc labor
being rendered wit out cost to owner for ninety (90) days from t e date of installation. Ot erwise,
service, including labor and transportation c arges or ot er expenses, in connection wit t e
removal or installation of any part or parts supplied under t is Limited Warranty, are specified on t e
original sales contract between t e purc aser and t e aut orized Giles Enterprises, Inc., represen-
tative.
• Giles Enterprises, Inc. reserves t e rig t to c ange or improve its equipment and parts in any way
wit out obligation to alter suc equipment or parts previously manufactured.
• Giles Enterprises, Inc. makes no furt er warranties, express or implied including implied warranties
of merc antability or fitness for a particular purpose, and as no ot er obligation or liability not
specifically stated erein.
• Repair or replacement as provided under t is limited warranty is t e exclusive remedy. Giles
Enterprises, Inc., s all not be liable for any incidental or consequential damages for breac of any
express or implied warranty on t is product, except to t e extent pro ibited by applicable law. Any
implied warranty of merc antability or fitness for a particular purpose on t is product is limited in
duration to t e duration of t is limited warranty.
• Used Giles Enterprises, Inc., Foodservice Equipment or parts or Giles Enterprises, Inc., Foodservice
Equipment or parts not purc ased from an aut orized Giles Enterprises, Inc., representative, carry
no warranties, express or implied.

iii
Model: FSH-3.5 &FSH-4Table Of Contents
Safety ........................................................v
afetyOverview....................................................................v
pecific afetyPrecautions...........................................................vi
1. Introduction..............................................1
1-1. Construction..............................................................1
1-2. tandardFeatures..........................................................1
1-3. OptionalFeatures..........................................................1
1-4. pecifications.............................................................2
1-4.1. OverallDimensions.........................................................2
1-4.3. RegulatoryListings.........................................................4
1-4.4. HoodWeights.............................................................4
2. Insta ation...............................................5
2-01. Unpacking................................................................5
2-02. Location .................................................................6
2-03.1. CeilingMountHoodMountingDetail...........................................6
2-03.2. Hood kirtInstallation ......................................................7
2-03.3. Free tandingMountingDetail................................................8
2-04. Cooking Appliance limitations and clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2-04.1. Fryerlimitations ...........................................................9
2-04.2. Fryerclearances...........................................................9
2-04.3. Ovenlimitations ..........................................................10
2-04.4. Ovenclearances..........................................................10
2-04.5. Griddlelimitations.........................................................11
2-04.6. Griddleclearances ........................................................11
2-04.7. Rangelimitations .........................................................12
2-04.8. Rangeclearances.........................................................12
2-05. HoodElectricalRequirements ...............................................13
2-05.1. ElectricalConnections .....................................................13
2-05.2 RoutingPowerWires ......................................................14
2-05.3 HoodandApplianceInterlockDiagram.........................................15
2-06. Fire uppression ystemInstallation..........................................15
2-06.1. Fire uppression ystemRouting ............................................15
2-06.2. Fire uppressionFusibleLinks...............................................16
2-06.3. ApplianceNozzles.........................................................16
2-06.4. FireExtinguisherNozzleLocations............................................17
2-06.5. GeneralMaintenance......................................................17
3. Overview...............................................19
3-01. ControlPanel ............................................................20
3-02. FilterChamberandExhaust.................................................22
3-03. Accessories(Included).....................................................24

iv
Model: FSH-3.5 &FSH-4 Table Of Contents
5. Hood C eaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5-1. MonthlyInterlockCheck....................................................39
5-2. QuarterlyHoodCleaning ...................................................39
5-3. emi-AnnualFire uppression ystem ........................................40
5-4. AnnualFire uppression ystem.............................................40
5-5. 12YearFire uppression ystem.............................................40
5-6. Maintenanceand erviceLog ...............................................41
6. Troubeshooting .........................................43
6-1. TroubleshootingProcedures.................................................43
PartsList ...............................................45
7–1. Parts Ordering and ervice Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
7-2. ComponentDrawer .......................................................47
7-3. FrontView-DoorsandPanelremoved.........................................49
7-4. BaffleFiltersand witches..................................................51
7-5. Doors and Front Panel (Ceiling Mounted). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
7-6. DoorsandFrontPanel(Free- tanding).........................................55
4. Operation & Fi ter Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4-01. HoodOperation ..........................................................27
4-02. FiltersandFilterMaintenance ...............................................27
4-02.01. VentlessHoodFilterTable ..................................................27
4-02.02. BaffleFilterRemoval.......................................................28
4-02.03. BaffleFilterInstallation.....................................................29
4-02.04. BaffleFilterMissing.......................................................29
4-02.05. BaffleFilterCleaning.......................................................30
4-02.06. Pre-FilterRemoval.........................................................30
4-02.07. Pre-FilterInstallation.......................................................31
4-02.08. Pre-FilterFilterMissing.....................................................31
4-02.09. Pre-FilterReplacement.....................................................32
4-02.10. EACFilterRemoval........................................................32
4-02.11. EACFilterInstallation......................................................33
4-02.12. EACFilter tatus..........................................................34
4-02.13. EACFilterCleaning........................................................34
4-02.14. CharcoalFilterRemoval ....................................................35
4-02.15. CharcoalFilterInstallation ..................................................36
4-02.16. CharcoalFilterMissing.....................................................36
4-02.17. CharcoalFilterReplacement.................................................37
4-03. FilterAlarmChart.........................................................37

v
Model: FSH-3.5 &FSH-4Safety
Safety Overview
Safety
The instructions contained in this manual have been prepared to aid you in learning the proper procedures
for installing and servicing your unit.
Throughout this manual, safety precautions are identified through the use of the safety alert symbol and
three signal words: DANGER, WARNING, and CAUTION. All safety alert information precedes the
step(s) to which they apply. Suggested, recommended, or other noteworthy information is identified
through the use of NOTES. Additionally, certain words are used to indicate a specific meaning or to add
emphasis.
The following words are used as indicated throughout the manual:
Shall: understood to be mandatory.
Should: understood to be advisory.
May: understood to be permissive.
Will: indicates a future event/condition to occur.
or
(Safety Alert Symbol)
Used in conjunction with signal words (DANGER, WARNING, or CAUTION) to alert you of potential per-
sonal injury hazards, immediately preceding precautionary measures that pertain to subsequent step(s).
Obey all safety messages that follow this symbol to avoid possible injury or death. Failure to adhere to
safety precautions identified by the safety alert symbol may also void the warranty.
!!
•Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Use of this is limited to the most extreme situations.
!DANGER
•Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
!WARNING
•Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
Also used to alert against unsafe practices.
!CAUTION
•When used without the safety alert symbol, CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in equipment/property damage, and void the warranty.
CAUTION
NOTE:
•Identifies suggested, recommended, or other noteworthy information.

vi
Model: FSH-3.5 &FSH-4 Safety
Spe ifi Safety Pre autions
For your safety, please observe the following precautions when operating or servicing your Ventless Hood
equipment. ead the following important safety information to avoid personal injury and/or damage to the
equipment or property.
•Always disconnect the source of the main power before removing the service entrance box cover.
•Failure to ensure the Power switch is in the “OFF” position during servicing and when replacing filters
could result in equipment damage, electrical shock and/or personal injury.
•Failure to comply with these DANGER notices will result in death or serious injury, equipment/property
damage, and void the warranty.
!DANGER
•DO NOT use or store flammable liquids or materials that produce flammable vapors in the vicinity of
this or any other appliance!
•Consult a qualified electrician to ensure all electrical specifications have been met and the unit is prop-
erly grounded.
•Before installing or servicing this equipment, read the contents of this manual thoroughly.
•Improper installation, adjustment, alteration, service or maintenance could result in death or serious
injury, equipment/property damage, and void the warranty.
•Failure to comply with these WARNING notices could result in death or serious injury and
equipment/property damage.
!WARNING

vii
Model: FSH-3.5 &FSH-4Safety
•Maintain a minimum clearance of 14” (355.6mm) between the hood outlet and the ceiling or any
obstruction above the hood. 18” (457.2mm) is re ommended for best performan e.
•Exercise care when lifting or moving the unit. See Section 1-4.4 for Hood weights.
•Exercise care when removing the wooden crate from around the unit.
!CAUTION
•DO NOT operate the unit unless you fully understand the components and their intended function.
•Be careful not to bend the fins or break the ionizer wires on the Electrostatic Air Cleaner (EAC). Doing
so will prevent the EAC from working properly and cause a shutdown of power to the appliance being
used with the hood.
• Failure to comply with these CAUTION notices may result in minor or moderate injury, equip-
ment/property damage, and void the warranty.
!CAUTION
•The electronic components of the Control Panel are impact-sensitive. Exercise care around the Control
Panel to maintain proper operation.
•Do not attempt to dry the EAC after cleaning by installing it and running the hood to force air dry or by
running an appliance below to heat dry. This could potentially damage the EAC system leading to fail-
ure and voiding the warranty. The filter must air dry at ambient room temperature, preferably overnight.
•During cleaning of Hood.
•• DO NOT steam clean.
•• DO NOT use products containing chlorine.
•• DO NOT use abrasive products, steel wool or scouring pads.
•Failure to comply with these CAUTION notices may result in equipment/property damage and void the
warranty.
CAUTION

viii
Model: FSH-3.5 & FSH-4 Safety
NOTE:
•The decibel level of the hood when operating is approximately 73 dB.
NOTE:
•If upon receipt, the palletized unit shows any signs of damaged, immediately inspect the entire
Ventless Hood and the included accessories, and promptly notify the freight company of any damages.
•To aid the electrician, an electrical wiring diagram is attached inside the back cover of this manual.
efer to the wiring diagram during installation or servicing. A wiring diagram is also attached to the
inside of the filter access door.
•Comply with all appropriate state and/or local heath regulations regarding the cleaning and sanitation of
equipment.
•For cleaning areas with excessive particulate build up, a mild bio-degradable non-toxic degreaser (such
as Clear Magic or Simple Green) may be used.
•Always ensure the unit is electrically grounded and installed in accordance with local codes, or in the
absence of local codes, in accordance with the National Electrical Code ANSI/NFPA No. 70-1984.
NOTE:
•A HVAC spe ialist may be required for installations to onfirm proper air
ex hange and the heat load apabilities of the on-site AC system.
•Exhaust ventilation is recommended for areas in which recirculating hoods are used. We recommend
50 CFM per lineal ft. of hood.
•This amount could vary based on local codes and the site specific installation requirements.

1
Model: FSH-3.5 &FSH-4Introduction
Congratulations on the purchase of a new FSH-3.5 or FSH-4 Giles Ventless Hood System manufactured by
Giles Enterprises, Inc., Montgomery, Alabama (USA), hereafter referred to as "Giles". These two models
are available in either ceiling mounted or free-stand mounted versions. The stand mounted version is
available in a 72” or 78” height (measured from the floor to the bottom edge on the hood skirt).
Proper care and maintenance of this unit will ensure years of trouble-free service and to help protect your
investment in this equipment, we recommend taking a few moments to familiarize yourself with the
installation, cleaning, and maintenance procedures described in this manual. We urge you to read these
instructions before installing or using this hood. Adherence to these recommended procedures will
minimize potential for costly downtime and equipment repairs. Please retain this manual for future
reference.
Control Panel
• Two LED light clusters indicate the status of the left and right EAC filters.
• “Appliance Powered” light indicates that power is being supplied to the interlocked appliance(s) under
the hood.
• “Filter Missing” light indicates that one (or more) Baffle filter, Pre-filter, and/or Charcoal filter is missing
or installed improperly.
• “Filter Clogged” light indicates that the Baffle filters, Pre-filters, and/or Charcoal filters are possibly
clogged and require attention to ensure proper hood performance.
Filters
• Baffle Filters - capture large grease particles in the air stream.
• Pre-Filters - capture the smaller grease particles.
• Electronic Air Cleaners (EAC) - capture smoke & fine particle air contaminates.
• Charcoal Filters - help eliminate cooking odors.
1. Introduction
1-1. Construction
1-2. Standard Features
The Ventless Hood System exterior is constructed of stainless steel.
1-3. Optional Features
Inter-Locking Start System (ILS)
• Inter-Locking Start System (ILS) - Should there be a power interruption to the the hood, this system will
not allow the Hood and the Appliance(s) below it to restart without the attendance of an operator. This
system is required by code in some cities and/or states. Please consult with your local code officials to
see if this option is required.
Floor Stand Mount
• 72” or 78” high stand mounts are available instead of the standard ceiling hung mount (*height
measured from floor to bottom edge of skirt).

2
Model: FSH-3.5 &FSH-4 Introduction
1-4. Specifications

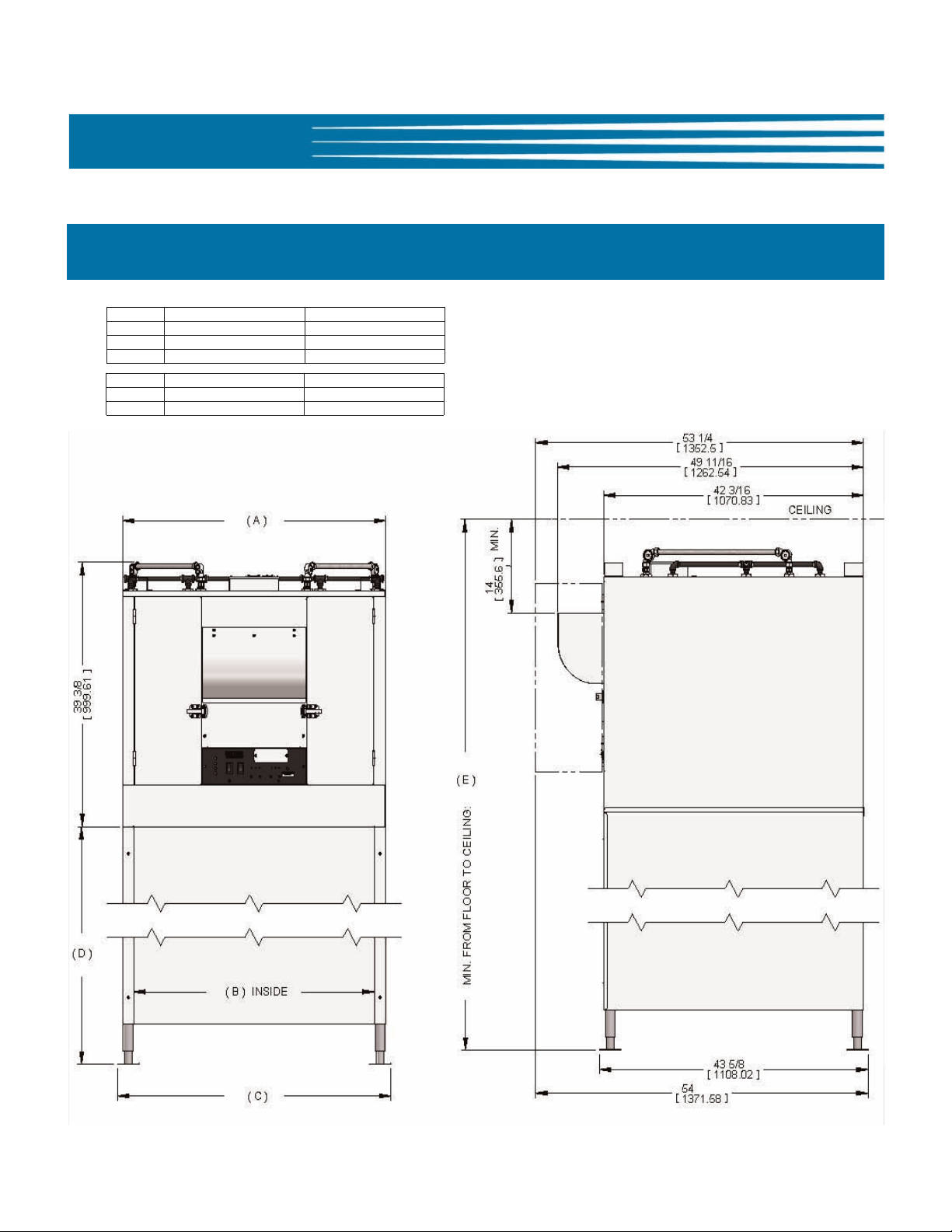

1-4.1. Overall Dimensions for FSH-3.5 / 4 (Ceiling Mount Option)
DIM FSH-3.5 FSH-4
(A) 42-11/16 [1084.4] 48-11/16 [1236.7]
(B) 37-11/16 [958.0] C to C 43-11/16 [1109.7] C to C
(C) 42-5/8 [1081.9] 48-5/8 [1235.1]

3
Model: FSH-3.5 &FSH-4Introduction
1-4.2.Overall Dimensions for FSH-3.5 / 4 (Free Standing Option)
DIM FSH-3.5 FSH-4
(A) 42-11/16 [1084.4] 48-11/16 [1236.7]
(B) 39-1/16 [991.7] 45-1/16 [1144.6]
(C) 44-3/8 [1126.6] 50-3/8 [1279.5]
(with 72” Stand Mt) (with 78” Stand Mt)
(D) 72 [1828.8] 78 [1981.2]
(E) 115-5/8 [2936.9] 121-5/8 [3089.3]
I CHES [MILLIMETERS]

4
Model: FSH-3.5 &FSH-4 Introduction
1-4.3. Regulatory Listings
1-4.4. Hood eights
Hood Crated eight Uncrated eight
FSH-3.5 (Ceiling Mt.) 664 lbs [302 kg] 464 lbs [211 kg]
FSH-3.5 (Stand Mt.) 733 lbs [333 kg] 553 lbs [251 kg]
FSH-4 (Ceiling Mt.) 724 lbs [328 kg] 524 lbs [243 kg]
FSH-4 (Stand Mt.) 793 lbs [368 kg] 613 lbs [284 kg]

5
Model: FSH-3.5 &FSH-4Installation
2. Installation
This section summarizes the procedures necessary to install your new FSH-3.5 or FSH-4 Hood. Before
installing or servicing this equipment, please read the contents of this manual thoroughly. Following these
procedures will help ensure a safe and proper installation.
Your Ventless Hood should arrive palletized with a wooden protective frame, wrapped in machine applied
stretch-wrap, and secured to by means of high-tensile plastic strapping. Perform the following steps to
unpack the unit:.
1. Position the palletized unit in an area that has sufficient space for unpacking.
2. Cut and remove stretch-wrap and all strapping.
3. Use a hammer and pry-bar to remove the wooden crate from around the unit
2-01. Unpacking
!! IM ORTANT NOTE:
•If the palletized unit shows any signs of damage, immediately inspect the equipment and other packed
components, and notify the freight company of any and all damages.
•Use suitable equipment to lift the hood and carefully move it away from the pallet ... see Section 1-4.4
for hood weights. Take precautions not to damage to the hood’s bottom skirting. If possible, it is
advisable to rig and lift the hood from the topside, utilizing the hood’s hanging brackets.
•Exercise care when removing the wooden framing from around the unit.
•Failure to comply with these CAUTION notices may result in minor or moderate injury, equipment or
property damage, and void the warranty.
!CAUTION
NOTE:
•A HVAC specialist may be required for some installations to confirm proper
air exchange and the heat load capabilities of the on-site AC system.
•Exhaust ventilation is recommended for areas in which recirculating hoods are used. We recommend
50 CFM per lineal ft. of hood.
•This amount could vary based on local codes and the site specific installation requirements.

6
Model: FSH-3.5 &FSH-4 Installation
1. Do not obstruct the exhaust air outlet. Maintain a minimum clearance of 14 inches (355.6mm)
between the air outlet and ceiling, or any obstruction.
2. Ensure intended mounting site is structurally sound and capable of supporting the hood’s weight.
See Section 1-4.4 for hood weights
2-02. Location
NOTE:
•The decibel level of the hood when operating is approximately 73 db.
•DO NOT MODIFY, ALTER OR ADD ATTACHMENTS TO THIS EQUI MENT
!CAUTION
2-03.1 Hood Mounting Detail (Ceiling Mount)
1/2” All-Thread
1/2” Hex Nut
1/2” ock Washer
1/2” Flat Washer
1/2” Hex Nut
1/2” ock Washer
1/2” Flat Washer
1. Ensure the hood is level, left to right and front to back.
2. Ensure all mounting fasteners are tight and secure.
NOTE:
•A HVAC specialist may be required for some installations to confirm proper
air exchange and the heat load capabilities of the on-site AC system.
•Exhaust ventilation is recommended for areas in which recirculating hoods are used. We recommend
50 CFM per lineal ft. of hood.
•This amount could vary based on local codes and the site specific installation requirements.

7
Model: FSH-3.5 &FSH-4Installation
2-03.2 Hood Skirt Installation (Ceiling Mount)
(21) 1/4-20 x 3/8 Screw
(21) 1/4-20 Nut
Bead of Hi-Temp
Silicone (enclosed)
Bead of Hi-Temp
Silicone (enclosed)
1. Apply a bead of Hi-Temp Silicone (included) to the top flanges of both Side Skirts.
2. Attach eft and Right Side Skirts to hood with enclosed fastners (do not tighten completely).
3. Apply a bead of the Hi-Temp Silicone to the top flange of the Rear Skirt.
4. Attach Rear Skirt to hood with enclosed fastners (do not tighten completely) .
5. Fasten eft and Right Skirts to Rear Skirt.
6. Completely tighten all fastners and wipe any excess silicone from the assembled Skirt.
NOTE: Peel all protective film from parts before assembling.
eft Skirt Right Skirt
Rear Skirt
NOTE:
•Hood Skirts MUST be installed for proper air capture.

8
Model: FSH-3.5 &FSH-4 Installation

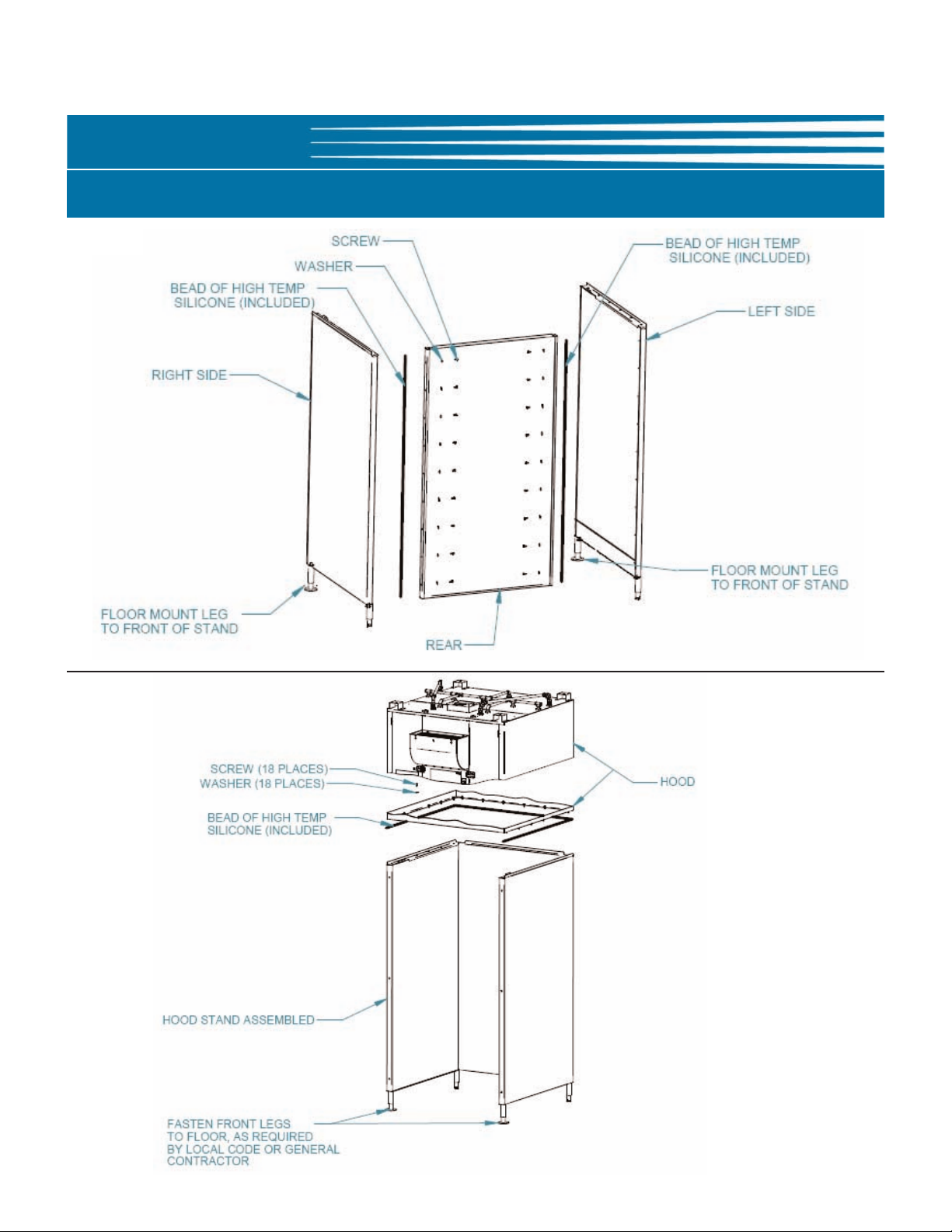

2-03.3 Hood Mounting Detail (Free-Standing)
STE 1
STE 2

9
Installation Model: FSH-3.5 &FSH-4
2-04.1. Fryer Limitations (Electric Appliances Only)
Hood Max. Temp. Max. kW Input
Max.
Shortening
Capacity
Max Cooking
Surface (per
Fryer)
Max Cooking
Surface (Total
all Fryers)
FSH-3.5 / 4 400 20(1)/40 Total 20 Gal. 576 Sq. In. 576 Sq. In.
Inches [Millimeters]
2-04.2. Fryer Clearances (side-to-side overhang requirement does not apply with
Free-standing Mount model)
2-04. Cooking Appliance Limitations and Clearances

10
2-04.3. Oven Limitations (Electric Appliances Only)
Hood Max. Temp. Max. kW Input
(Total all Ovens)
FSH-3.5 / 4 500 55
2-04.4. Oven Clearances

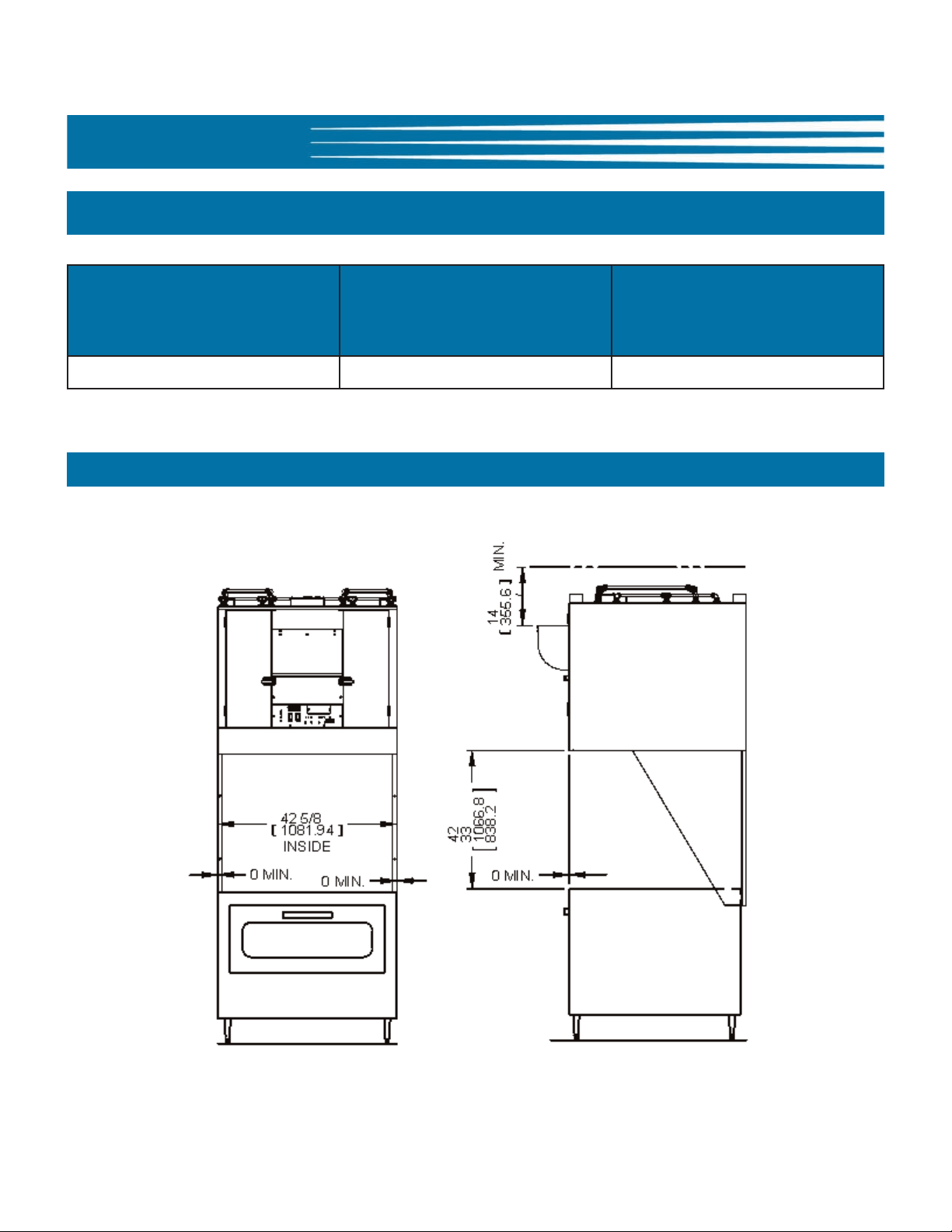

Inches [Millimeters]
Model: FSH-3.5 & FSH-4 Installation
