Ginger Hill Thermee User manual
1
Thermee
Non-Contact Forehead Thermometer
Instruction manual
0482
GHC-1001
V2.5
2
Introduction
Thank you for choosing the NON-contact Digital Infrared Forehead
Thermometer from Ginger Hill Creations, Forehead Thermometer for short
in these instructions
With this unique technology, the forehead thermometer can give you
accurate results with non-contact, stable measurement and without the
interference from ambient temperature. The product will self-test every time
it starts up to make sure of normal operation and accuracy.
The forehead thermometer can be used to measure body temperature,
which is suitable for people of all ages. It can be used to measure the
temperature of milk and many other items as well. In our examples we will
use milk –but feel free to adapt it as needed.
Please read the instructions carefully before using the product, and put it in
a safe and secure place for reference.
3
Contents
Cover Page……………………………………………………………………..1
Introduction…………………………….…………………………....………….2
Contents…………………………………………………………….…………..3
1.The advantages of our Forehead Thermometer GHC-1001 .................4
2.Necessary safety instructions ................................................................4
3.Instructions for product designs.............................................................5
4.How to measure with the forehead temperature....................................6
5.How to measure the milk temperature...................................................6
6.Instructions for display and operation....................................................6
7.Technical specifications..........................................................................9
8.After-sale service..................................................................................11
9.Security type.........................................................................................11
10.Correspondence:................................................................................11
11. Additional Use and Care……………………………………………...….11
4
1.The advantages of a Forehead Thermometer
Multiple uses (measurement of body temperature and milk temperature)
Forehead Thermometer provides measurement of body temperature, which
is from 32℃to 42.2℃(from 89.6℉to 107.9℉) , and milk temperature, which
is from 0℃to 100.0℃（from 32.0℉to 212.0℉）.
The product consists of ABS common plastics, TPR plastics, temperature
sensor, Infrared temperature measuring element, microcomputer controlled
circuit and LCD.
Convenient of use
●Special ergonomic design for easy use
●No interference for your normal life. Ability to take measurements during
your children’s sleep
●Comfortable compared with rectal thermometers for children, and more
rapid and simple compared with mouth thermometers and more flexible
compared with contact forehead thermometer.
Read multiple groups of memory data
The user can read 20 groups of memory data by choosing memory mode,
which is effective for tracing the change of temperature over time.
Safe and hygienic
●No-contact measurement won’t bring about the accumulation of bacteria,
and it doesn’t need to be cleaned very often.
●There is no danger of breaking the glass or swallowing mercury
●It is totally safe for children to use.
Fever warning
When the readings exceed 37.5℃/99.5℉, the product shall warn patients
that he/she may have a fever by 7 rapid, short rings and red backlight.(For
normal body temperature, the signal is long ring and green backlight)
Extensive clinical data of hospital use has been tested.
In cooperation with partner hospitals the unit has been subjected to precise
clinical verification, with the support of extensive clinical data and
professional medical experts.
2.Necessary safety instructions
●Operating Conditions:
Temperature: 10C to 40C
Humidity: <80% RH, non-condensing
Atmospheric pressure: 860hPa to 1060hPa
●Storage and Shipping Conditions:
Temperature: -10C to 60C
5
Humidity: 0 - 95% RH, non-condensing
Atmospheric pressure: 860hPa to 1060hPa
●The device is not normally used for a newborn baby.
●The device is not a continuous monitoring device.
●The device is not waterproof. Please do not wet it with water or with other
liquids. Cleaning and disinfection procedure must be in compliance with the
instructions specified in [cleaning and storage]
●Please do not use the product if the temperature sensor or the forehead
thermometer shows any sign of damage. Do not try to repair the product if it
is damaged. Please contact our Customer Service or Warranty Department.
●The device consists of precision parts of the highest quality. Please
prevent the product from falling. Please prevent any intense shock or
vibration. Do not twist the forehead thermometer and the temperature
sensor.

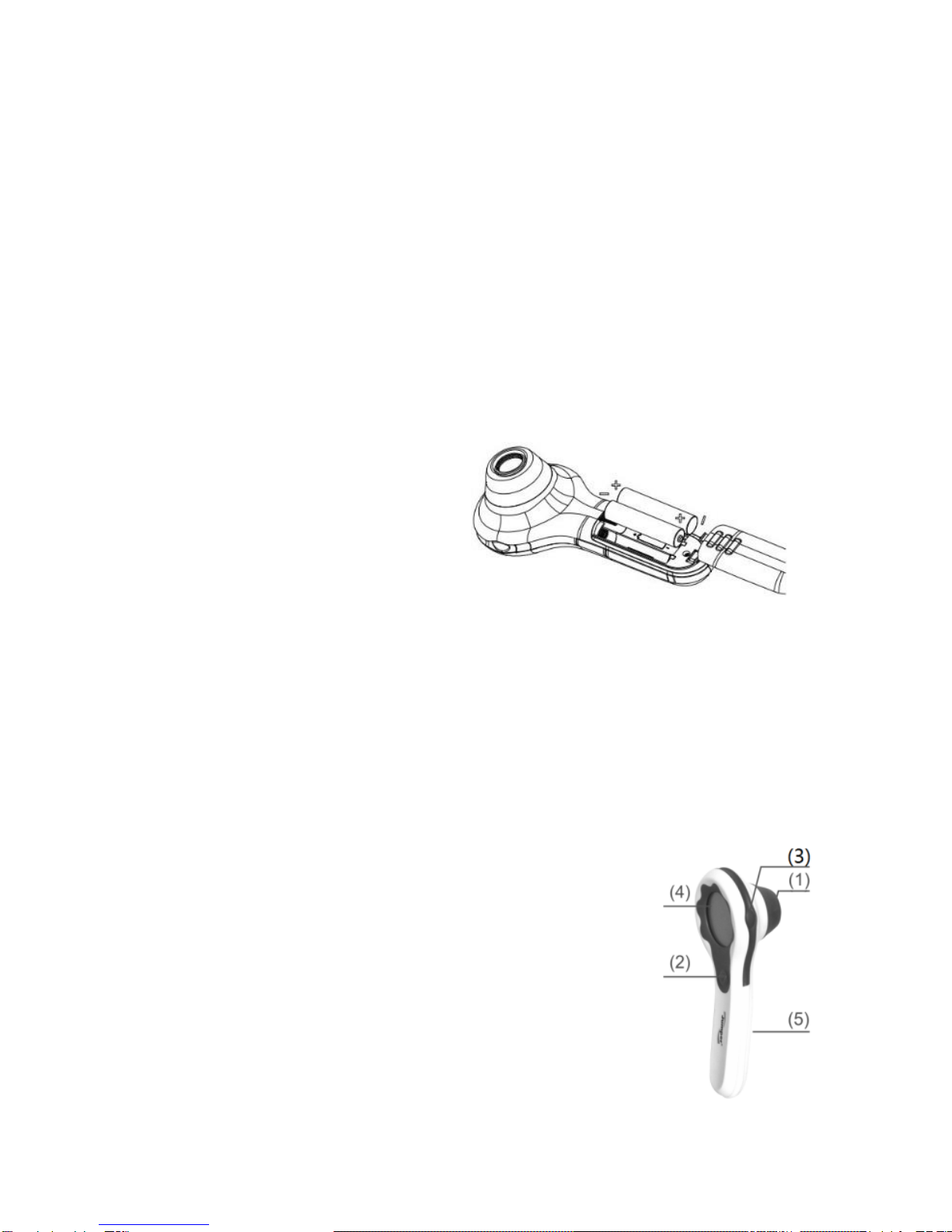

●Battery Installation:
1. Put the two AAA batteries into
battery compartment in
correct polarities.
2. Push the battery cover
horizontally along the arrow.
Notes:
If this is your first time using the thermometer, please pull out the Plastic
battery protector sheet .
Battery polarities should be correctly installed. Otherwise, damage may
be caused to the device.
Please put in or remove batteries in the correct order, or you may cause
damage to the device bracket.
Please remove the batteries if the thermometer will not be used for a
long time.
Warnings●Please keep the forehead thermometer
out of your children’s reach
●Medical assistance can’t be replaced by the use of
infrared forehead thermometer
●The forehead thermometer is not waterproof! Do not
put it into any liquid.
3.Instructions for product designs
(1)Temperature sensor
(2) Press button for measuring body temperature
(3) Press button for measuring milk temperature
6
(4) LCD display screen
(5) Battery cover
4.How to measure with the forehead
temperature
The device measures the infrared energy emitted
from the forehead, which will focus through the
lens and convert it to a temperature value by the
thermopile and measuring circuit. It is
recommended that you press button (2) and scan
the forehead from one side to another at a distance from ½” to 2”, then
release the button with the maximum value displayed. Fixed point
measurement may result in an inaccurate
diagnosis.
5.How to measure the milk temperature
The device measures the infrared energy emitted
from a feeding bottle, and it will display the milk
temperature by transition calculation and emission
rate compensation. Please use the press button (3)
for startup when measuring.
In order to avoid any inaccuracy:
●Please make sure that there is no dirt in on the temperature sensor
●Please make sure that there is no intense emotion and movement before
measuring. There should be no water on the forehead.
●If the device is transferred from one area to another which has different
ambient temperature, it is suggested to allow it acclimate for more about 30
minutes.
●Do not hold the device for long time as it is highly sensitive to heat.
the device has undergone clinical testing, it is safe and accurate when used
in accordance with the operation manual.
6.Instructions for display and operation
LCD display
Operational method and instruction
for displays
Sound and backlit
1.Measurement of body
temperature
1.Aim the temperature sensor (1) at
the measurer’s forehead directly
(effective distance from ½” to 2”)
under shutdown state, and press
Forehead temperature
mode”
1.When temperature
value is
between32.0℃/89.6℉
and 37.6℃/99.6℉,there
7
button (2) or hold down button (2), it
shall display measured value when
releasing button, which is under
forehead temperature mode.
Holding down the button and
scanning over the forehead are
suggested. The system will read
sequentially and record the
maximum

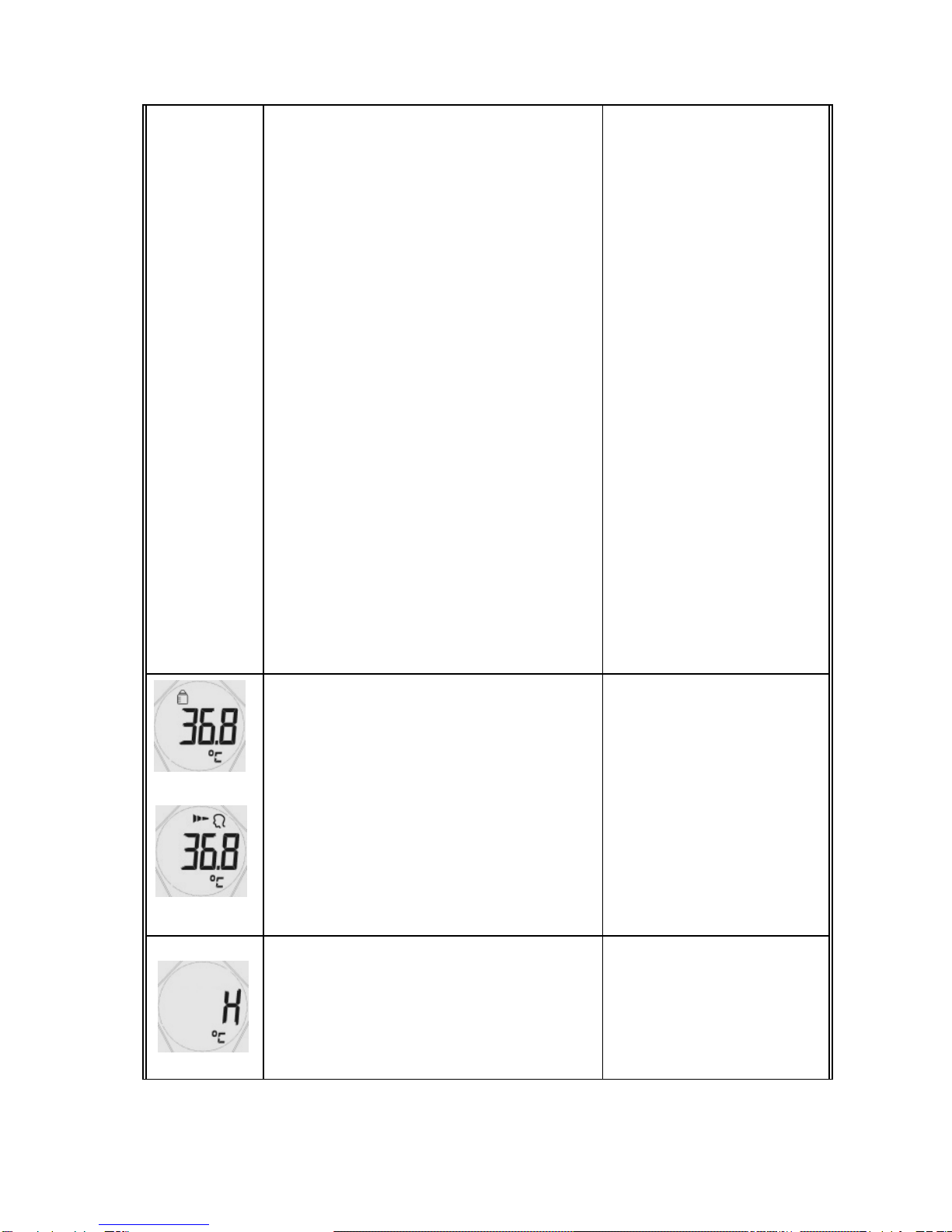

2.Measurement of milk temperature
Press button (3) within 4 seconds
and release it under shutdown state.
It shall display measured value,
which is under milk temperature
mode.
3.Press button (2) or (3) under
startup mode and enter
measurement mode again.
Attention:
There shall be 7 short rapid ticks
when the measured temperature
exceed 37.5℃/99.5℉, which is a
warning for patients that he/she may
have a fever
shall be one long ring
and green backlit for 3
seconds.
2.When temperature
value is
between37.6℃/99.6℉to
42.2℃/107.9℉, there
shall be 7 short ticks
and red backlit for 3
seconds
Milk temperature mode
1.When the
temperature value is
between 0.0℃/32.0℉to
100.0℃/212.0℉, there
shall be a long tick and
green backlit for 3
seconds.
or
There shall be signal for relative
mode under measurement
preparedness. The ℃or ℉signal
shall twinkle.
If the measurer presses button(2) or
(3) again, the measurement mode is
available.
1.The measured value exceeds
100℃/212.0℉under milk
temperature mode.
2.The measured value exceeds
42.2℃/107.9℉
Under forehead temperature mode.
3 short tick and red
backlit for 3seconds.
8
1. The measured value exceeds
0℃/32.0℉under milk temperature
mode.
2. The measured value exceeds
32℃/89.6℉
Under forehead temperature mode.
3 short tick and red
backlit for 3seconds.
Inquiry for memory data, Storing 20 groups of data
LCD display
Operational method and instruction for
displays
Sound and
backlit
Click button (3) for 4-8seconds and LCD
displays “- - -” with M signal twinkling.
silence
Click button (3) again and the LCD displays
the first data group with M signal twinkling.
Click button (3) and it shall display the serial
number for 1 second and then display the
measured data. There are 20 groups of data.
Mark:The memory is forehead data only.
silence
The LCD shall only display “- - - ”, ℃/℉and M
signal with M signal twinkling if there is no test
data.
silence
C/F conversion
LCD
display
Operational steps
Sound and
backlit
Press button (3) for 8-12seconds under
shutdown state, and the temperature unit
shifts automatically. Press button (3) within 5
seconds after release, and the temperature
unit shifts again unless the release time
exceeds 5 second. The products shall be
automatic startup and enter into the milk
temperature mode.
silence
Error message
It shall display “Er1” when ambient
temperature exceeds 40.0℃/104℉or drop
below 10.0℃/50.0℉.
3 short tick
and red backlit
for 3seconds.
9
It shall display “ErC” if there is EEPROM data
reading error or the correcting process is not
finished.Please contact your supplier.
3 short tick
and red backlit
for 3seconds.
There shall be low-voltage signal(no twinkling)
when the battery voltage is
below2.61V±2%.Please replace the battery.
silence
Power Off Mode
In any mode,if no operation for 10 seconds,it will power off automatically.
Attention:
●Electromagnetic interference: the device contains sensitive electronic
component and shall not use under the condition with electromagnetic
interference,( such as the place nearby the mobile phones and
microwaves )
●Please dispose the used products and batteries in accordance with local
regulation requirements when the products and batteries are not available.
●Please take out the battery if the device unused for long time.
7.Technical specifications
Items
Standards
models
Forehead thermometer the device
1.Applicable
regulations and
laws
ASTM 1965 GB/T 19146-2010
2.Temperature
units
℃/℉, adjustable
3.Measurement
range
Forehead temperature mode:32.0℃-42.2℃/ 89.6F –
107.9 F
Milk temperature mode:0.0℃-100.0℃/32.0F –212.0
F
4.Precision
±0.2℃/±0.4F
5.Display
resolution
0.1℃/0.1℉
6.Latency Time
1 second
10
7.Abnormal state
display
LCD displays “L ℃” if the measured temperature is
below the minimum of measurement range.
LCD displays “H ℃” if the measured temperature is
below the minimum of measurement range.
LCD displays “Er1”if the temperature measurement
circuit is abnormal (fault of SENSOR or the temperature
measurement circuit), or the ambient temperature
exceed 10℃~40℃(50℉-104℉).
There shall be “ErC” if the calibration process is not
completed or EEPROM is abnormal.
8.Sound and
backlit
volume≧50 db (the perpendicular distance from dB
Volume sensor to thermometer is 10cm )
Two kinds of backlist: red and green
Forehead temperature mode:
1.There shall be one long beep and green backlit for
3seconds when the temperature is between
32.0℃/89.6℉to 37.6℃/99.6℉.
2.There shall be seven short beeps and red backlit for 3
seconds when the temperature is between 37.6℃/99.6℉
to 42.2℃/107.9℉.
Milk temperature mode:
1. There shall be one long beep and green backlit for
3seconds when the temperature is between 0.0℃/32.0℉
to 100.0℃/212.0℉.
9.Automatic
shutdown
function
10s±1s
10.Low-voltage
display function
The product shall display low-voltage signal if the
voltage is below 2.61V±0.15V.
11.Memory
function
Memorize 20 groups of measured temperature.
12.Current
consumption
Istand-by<2μA; Iworking<0.5mA; IBuzzer on<2mA；Ibanklight<15mA
13.LED backlit
specifications
Red≧1.2cd/m2
Green≧2.0cd/m2
15.Operational
conditions
ASTM 10℃-40℃(50℉-104℉)/15-95%RH
16.Type of
measuing
Applicable for forehead temperature and milk
temperature
17.battery
Changeable for two 1.5V triple A batteries
18.Battery life
More than 1000 times
11
19.Accuracy for
clinical test
The maximum allowable error for clinical test is specified
in the formula below:
≦0.3℃/0.6℉(for 95%)
Among which:
T1 and T2 represent temperature value for thermometer
under test respectively, Tref represents the constant
reference temperature
※It is recommended that professional users and clinics conduct a technical
inspection once every two years in accordance with the Medical Products
User Law
8.Warranty Service
The device is under warranty for two years after the date of purchase.
Application for repairing should be presented during the warranty period.
Any damage caused by improper use is not under the scope of the warranty.
Batteries and packaging are not under warranty scope as well.
Please return the unit to: Ginger Hill Creations, 16238 Highway 620 N.,
Suite F-104, Austin TX 78717 for repair or replacement.
9.Security type
The signal indicates that the thermometer is a BF type device
with internal power supply.
10. Correspondence
Ginger Hill Creations
16238 Highway 620 N.
Suite F-104
Austin, TX 78717
11. Additional Use & Care Videos, Coupons, books and Special
Features:
Visit: www.GingerHillCreations.com
Terror =
T1-Tref
T2-Tref
+
2
12
Visit Us!
www.GingerHillCreations.com
for
Coupons
VIP Reviewers Club Signup
Videos
Guides
Parenting Reports
Table of contents
