Ginnie LITE 65 DG KIT User manual

LITE 65 DG KIT
Product Weight: 105 g
Measurement: 85x55 mm
Attention:
Thank you for purchasing the Lite 65 DG KIT. This is a
vaping device only. You must read the following
warnings before using.
1. This product is only to be used by people of legal
age(18+). It is not to be used by non-smokers,
children, pregnant or breastfeeding women,
people at risk of heart disease, or people taking
medication for depression or asthma.
2. Please don't drop, throw or mishandle this
product as the outer shell or inner components
may become damaged.
3. In case of any problem, don't open the battery to
repair by yourself nor DIY this device in any
method. Please contact our verified distributors
for return or repair services.
4. In order to prolong the life of your product,
please keep it away from excessive temperature
and humid environment.
5. Please obey local laws or regulations while
vaping. If there are any bans or potential dangers,
please keep your products off.

Parameters
Dimension: 38(H)*85(L)*26(W) mm
Net weight: 125g
Compatible battery: high-drain 18650, up 15A
Variable wattage (output): 7.0w-65.0w
Charging voltage (input): 4.2V/4200mah (3-5hrs)
Support minimum resistance: 0.1ohm
Material: Aluminum alloy and Zinc alloy

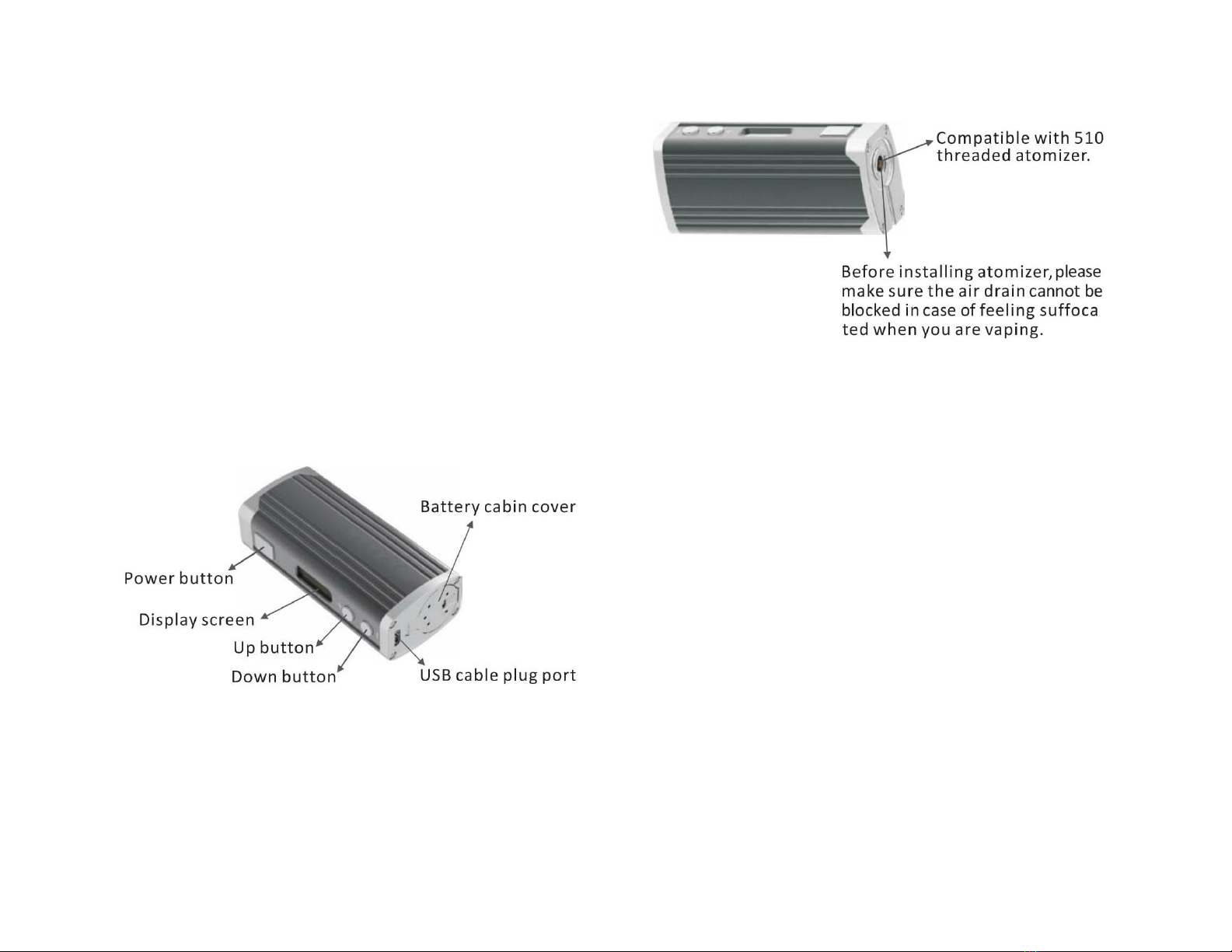

Components
Atomizer Installation
Screw the atomizer bottom to battery hole on the
top tightly, and then you can enjoy your vaping.
Operation Guide
1. Power on/off
Fast press the power button five times in 2.5
seconds, the screen shows datas, which means the
mod has been turned on. Fast press the power
button five times again, the screen shows "Ginnie
Lite 65 DG", which means power off and the power
button is locked.
2. Mode option
Two modes for option. Wattage mode and
temperature control mode. Fast press power button
3 times to switch the 2 modes.

3. Charging
Two ways of charging, USB charging directly and
rechargeable the high drain 18650 battery charging.
USB charging: the screen shows "Charging..." which
connecting with USB charger and the screen shows
"battery full" when voltage above 4.2V. After
stopping charging, the screen will light 5 seconds
then light off.
4. Check atomizer
When disconnected with atomizer, the screen will
show "CHECK ATOMIZER".
5. Warning Short
When atomizer short circuit, the atomizer will stop
working. In the mean time, the screen will show
"Warning Short".
6. Check battery
When battery voltage lowers than 3.2V, the screen
will show "Check Battery".
7. Memory Function
The device has power cut memory function.
8. Temp Protection
When temperature of PCB board over 85 degree, the
system will stop working. The screen will show "Cool
Down". When temperature of PCB board under 65
degree, the temperature protection will unlock.
Under wattage model
1. When power on, OLED screen shows power, null
voltage, null resistance and memory wattage.
When user vaping, the screen will show real-time
voltage, real-time resistance, power and setting
wattage.
2. Press "+" or "-" button to adjust wattage from
7.2W to 65.0W, per press add or reduce 0.1W,
long press can change faster.
3. Time of taking one puff is longer than 8 seconds,
atomizer will stop working, the screen will show
0.00V voltage, real-time resistance and real-time
wattage.

Under temperature Control model
At temperature control status, fast press 2 times to
switch between degrees Celsius and degrees
Fahrenheit.
1. When power on, OLED screen show null
resistance, 0.0W Wattage and memory degrees
Celsius or degrees Fahrenheit. When user vaping,
the screen will show real-time wattage, real-time
resistance, power and setting temperature.
2. Reference resistance Setting: Initial setting: make
sure the atomizer is normal temperature, press
"+" and "-" button at the same time, the screen
shows "set resistance x.xxΩ" which means the
resistance has been set successfully.
Intelligent reader: make sure the atomizer is in
normal temperature, in the mean time, the battery
power button once working without atomizer
connected. Connecting with atomizer, power on,
the system will show "new coil+" and "same coil",
press "-" indicates the same one, then enter into
the working status, press "+" indicates another
one, the screen shows "Set resistance x.xxΩ"
which means the resistance has been set
successfully.
3. Press "+" or "-" button to adjust temperature.
Degrees Celsius change from 100°C to 300°C, per
press add or reduce 1°C, long press can change
faster. Degrees Fahrenheit change from 200°F to
600°F, per press add or reduce 1°F, long press can
change faster.
4. When time of taking one puff is longer than 3
seconds, if the connected atomizer is not
temperature control tank, the system will switch
to Wattage Model and when puff time is longer
than 8 seconds, the atomizer will stop working. If
the connected atomizer is temperature control
tank, when puff time is longer than 8 seconds, the
system will stop working and the screen will show
0.00V voltage, current resistance and setting
wattage.

Micro USB charging Jack
Ginnie Lite 65 DG has a micro USB charging jack.
Please charge it with the USB cable in the kit.
Charging voltage is 3.0-4.2V; minimum charging
current is 1.0A.
Lite 65 DG TANK TC introduction
With OCC 0.5ohm & SSOCC 0.2ohm coil;
Airflow control drip tip for heat dissipation;
Specifications
Thread: 510
Capacity: 3.0ml
Size: 22*51mm
Color: Black/Silver
Material: Glass & Copper & Stainless steel

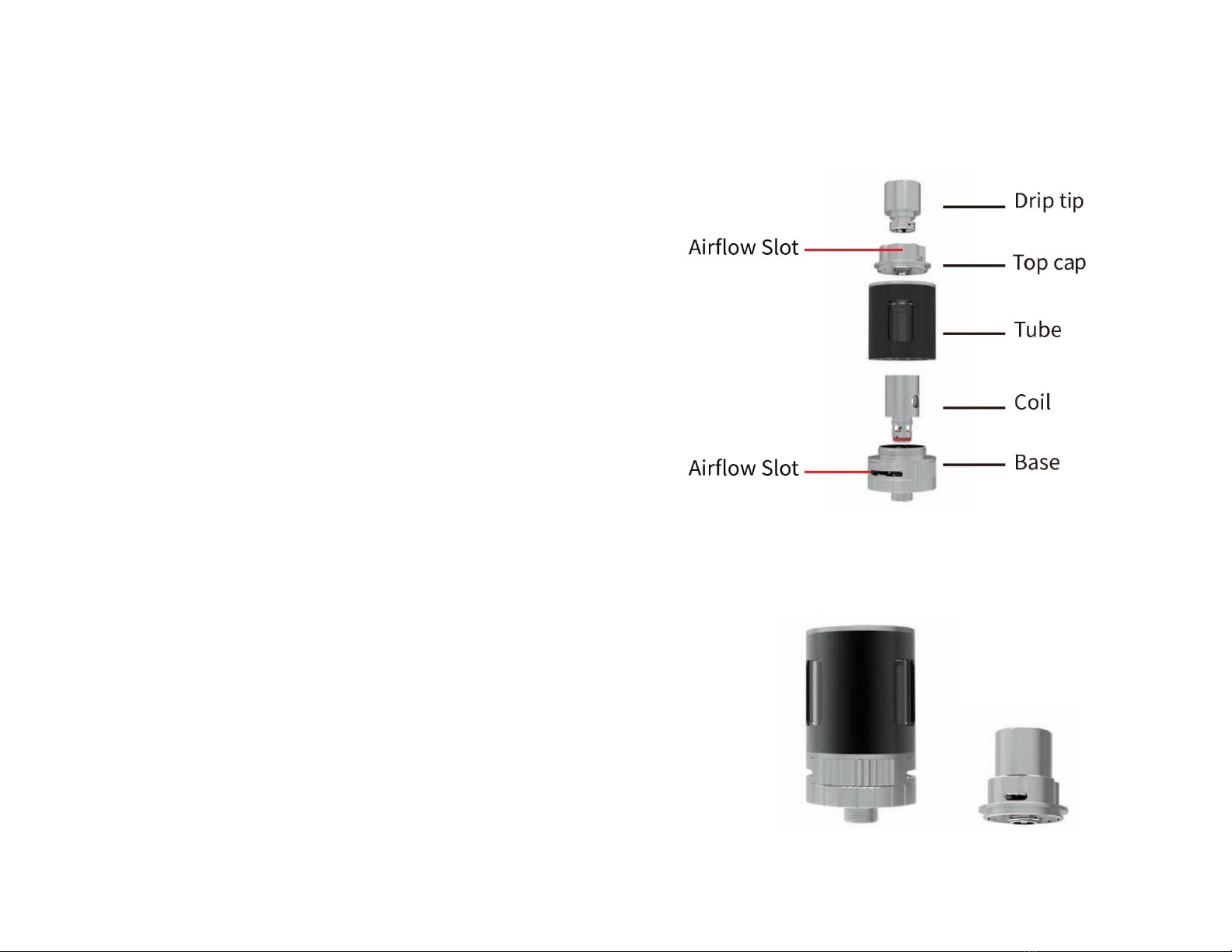

Components
How to fill in E-liquid
1. Hold the atomizer with one hand, and use.

Tips: Turn off airflow hole when you fill in e-liquid,
in case that the atomizer should drip because
of draught head.
2. Fill in e-liquid through the slot, but pay attention
not to drip it into the central airflow tube.
3. Close the top cap. Then let it stand for several
minutes to get the organic cotton completely
saturated.
Replace Atomizer Coil
Firstly, screw the base part off the atomizer; then
screw the atomizer core off the base part, and
replace with a new one.
Control Air Input
Rotate the adjustable airflow ring to control air input.

Tips
Please read the instruction manual carefully before
use.
1. The Ginnie LITE 65 DG is not suitable for persons
under the age of 18, pregnant or nursing women,
persons at risk of heart disease, persons with
hypertension and diabetes, or anymore taking
medication for depression or asthma.
2. The device may include small parts, please keep
out of children and pets.
3. Do not store the unit in excessively hot or cold
environments.
4. Do not install the battery backwards, the device
will not power on.
5. Do not abuse or leave the device unattended.
6. The device is sold purely for recreational
purposes. It is not a smoking cessation device and
has not been tested or approved for use as such.
7. Please adjust the wattage to lower than 15W
when you are using e-liquid atomizers.
8. Please attach coil with Lite 65 Atomizer (2 coils
available in Gift Box) before putting E-Liquid.
