UWELL Whirl T1 User manual

www.myuwell.com
Manufactured by SHENZHEN UWELL TECHNOLOGY CO., LTD.
©2021 By SHENZHEN UWELL TECHNOLOGY CO., LTD., All Rights Reserved.
Designed by UWELL Made in china
Uwell
Uwelltech Uwelltech Uwelltech Uwelltech

WHIRL T1 Pod Mod
User Manual
CRC Version

- 1 -
Specification
● Material: PCTG, Aluminum Alloy
● Size: 104.3 mm × 25.7 mm × 25.5 mm
● Net Weight: 53 g
● E-Liquid Capacity: 3 ml
● Output Wattage: 14W / 15W / 16 W
● Battery Capacity: 1300 mAh
● Pod cartridge specifications:
FeCrAl UN2 Meshed-H 0.75Ω WHIRL T1 Refillable Pod
(CRC Version)
The Packaging Includes
● 1 × WHIRL T1 Pod Mod (CRC Version)
● 1 × UN2 Meshed-H 0.75Ω WHIRL T1 Refillable Pod (CRC
Version) (Built-in)
● 1× User’s manual
Features
1. Three output mode, switch with ease.
2. Draw activation only, free from button false triggering.
3. The refillable pod cartridge adopts a proprietary child safety
lock design, a more reliable device is safer for the minor.
4. Airflow can be adjusted to different personal needs.
5. The Uwell Pro-FOCS technology ensures an authentic
flavour of the e-juice.
6. The chip-set inside functions a multiple circuit protection,
providing a stable, safe and reliable output.
7. Triangular shape provides a unique grip.

- 2 -
Illustration
Drip tip
Pod cartridge
Adjustable air valve
Filling port
Body
LED indicator light
Type-C port
Please read the following information
before use:
1. Pull out the pod cartridge.
2. Instill through e-juice inlet and allow the coil to soak for
10 minutes after the first filling.

- 3 -
Instructions

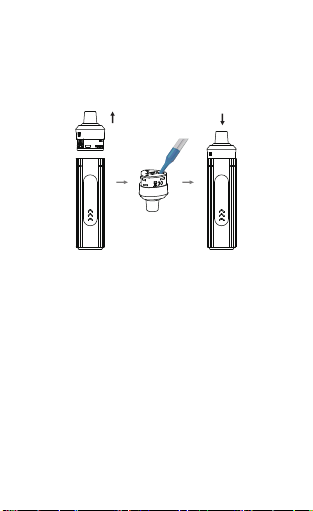

1. How to fill the pod
a. Pull out the pod cartridge from the body.
b. To instill, push e-juice inlet to start filling.
c. Install the pod cartridge into the body.
Attention
a. Reach inside the container with e-juice bottle nozzle when
filling.
b. To avoid dry-burning, please wait for 10 minutes after the
first e-juice top-up.
c. Please refill immediately when e-juice level reaches the
refill mark.
2. Vaping
The device will start working with drawing, and the LED
indicators will be on along while the device is working. The
maximum working time is 8 seconds with each draw as a
protection. In the case of exceeding 8 seconds of continuous
drawing, the device will cease working, while the LED indicators
will flash in green 5 times as a prompt.

- 4 -
3. Instructions for replacement of pod cartridge
Take out the old pod cartridge from the body and insert the
new one.
Attention
Allow the coil to soak for 10 minutes after the filling
before use.
4. Tri-power feature
To experience different flavoring, simply do the following:
a. Align the liquid inlet with the logo plate then insert the pod,
one green arrow will flash 3 times to indicate that the device
will be running in minimum power mode.
b. Align the "II" Mark and insert the pod, two green arrows
will flash 3 times to indicate that the device will be running
in medium power mode.
c. Align the "III" Mark and insert the pod, three green arrows
will flash 3 times to indicate that the device will be running
in maximum power mode.
a b c

- 5 -
Attention
a. In case of insufficient power for high power mode, device
can still be run in medium power mode.
b. In case of insufficient power for medium power mode,
device can still be run in low power mode.
5. Battery indication function
The LED will flash green to signal the remaining battery
capacity is over 60%; blue to signal 30%-60%; red to signal
below 30%; 10 times of red flashes upon battery depletion.
6. Short circuit protection
In the case of short-circuit, the indicators will flash red 3 times
and stop working.
7. Low voltage protection
The indicators will flash red 10 times and stop working if the
battery is depleted.
8. Timeout protection
The maximum working time is 8 seconds with each draw as a
protection. In the case of exceeding 8 seconds of continuous
drawing, the device will cease working, while the LED indicators
will flash in green 5 times as a prompt.
9. Open circuit prompt
When the pod cartridge is not properly connected or not
connected, the LED indicators will flash blue 3 times to signal
open circuit.
10. Charging
While charging, the indicators will flash to signal power level:
green to signal battery level is charged over 60%; blue to
signal 30%-60%; red to signal below 30%; indicators will
stay on upon charge completion.

- 6 -
Attention
1. Please charge with certified high-quality adaptor from a
reputable company and a Type-C cable with the charging
current of 5V/2A.
2. The device and adaptor may warm up when charging,
keep away from flammable and explosive goods.
3. Please use a dry and soft cloth to clean the device. Keep
away from water or any liquids.
4. Please remove the pod cartridge and store it separately
when you are on a plane to avoid leakage due to pressure
changes.
5. Please do not put the device in your pocket with other
hard objects to avoid damages.
6. Please charge the device at least once a month.
7. Don’t disassemble the device.
8. Avoid high temperature, low temperature and humidity
during use or storage to avoid damage to the equipment.
9. The product parameters or pictures in this manual are for
illustration purpose only, please refer to the actual product.
Safety Instruction
Please read the following safety instructions carefully before
using the product.
1. This product is only available to people who have reached
the legal age of smoking. It is strictly forbidden for young
children, pregnant women and women during breastfeeding
or for patients with heart disease, high blood pressure,
diabetes, depression and asthma.
2. Please put the product out of reach of children and pets
to avoid injury.

- 7 -
3. When using this product, please keep away from inflammable
and explosive materials to avoid injury.
4. The company does not assume any responsibility for any
equipment damage or personal injury caused by user
misuse.
Warranty Details
Please keep the anti-counterfeit code and proof of purchase
after purchasing the product. The warranty period is 180 days
from the date of purchase. Our company provides warranty
service (Device and atomizer only, exclude coil head and
pod cartridge).
Please note that any of the following conditions are not
covered by the warranty:
1. Exceeding the warranty period.
2. Damage caused by the use, maintenance, and storage
that is not in accordance with the requirements as
instructed.
3. Damage caused by unauthorized repair.
4.
Damage caused by the usage of non-UWELL components.
5. Damage caused by force majeure.
Verification
1. Visit the UWELL official website www.myuwell.com through
a smartphone or PC.
2. Please enter the 16 digits authentic code, and the result
will be displayed in a few seconds.
3. Please feel free to contact UWELL via e-mail, phone or
website for more help.

- 8 -
Customer Service
We pride ourselves on manufacturing quality products and
providing excellent customer service. For any issues, please
contact us at [email protected].
* UWELL reserves the right of final interpretation in the
user manual.
* It is hereby stated that the markable area on the product
is not enough to mark the CE and WEEE as the standard
dimensions.
