Giro FACTOR ACC User manual

MR-1 AND MR-2 BUCKLE REMOVAL INSTRUCTIONS
GIRO SPORT DESIGN

2
FACTOR ACC
FACTOR ACC HV
MR-1
GIRO SPORT DESIGN

3
GIRO SPORT DESIGN

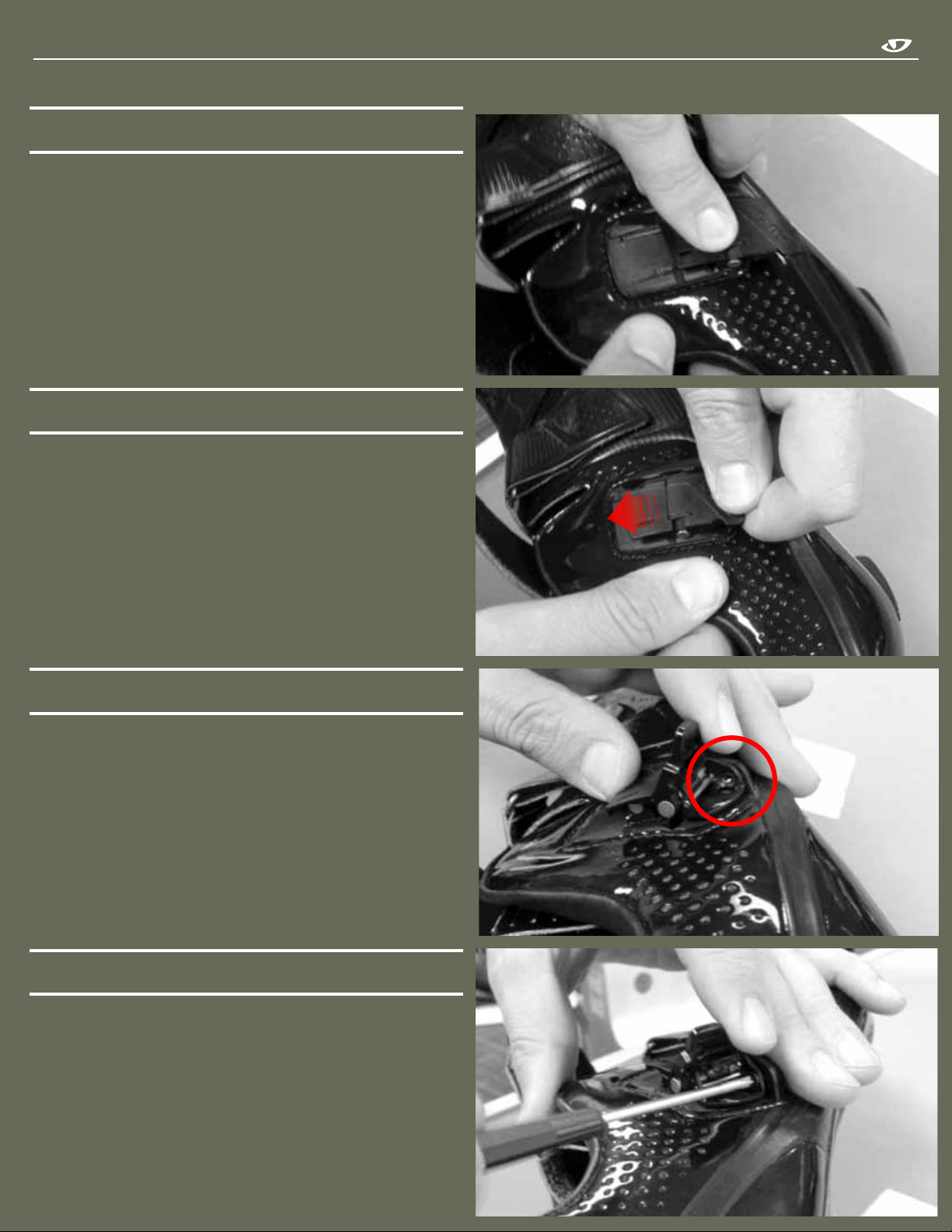

STEP 1
DEPRESS RELEASE LEVER TO REMOVE
STRAP COMPLETELY OUT OF BUCKLE
REMOVE SCREW WITH A STANDARD
PHILLIPS SCREW DRIVER
LOCATE SCREW ON BASE PLATE SHIELD
NOTE.
SCREW IS PLACED ON BASE PLATE SHIELD
NOT ON BASE PLATE
PUSH BUCKLE SLIGHTLY TOWARDS SOLE TO
ALLOW IT TO BE RELEASED
STEP 2
STEP 3
STEP 4
3

3
GIRO SPORT DESIGN
STEP 5
LIFT OLD BUCKLE OUT OF BASE PLATE
PLACE LONGER TAB IN THE RECEIVER ON
SHIELDED SIDE
LOCATE PLACEMENT TABS ON BOTTOM OF
NEW BUCKLE
PLACE SHORTER TAB IN SECOND RECEIVER
ON OPPOSITE SIDE OF SHIELD
STEP 6
STEP 7
STEP 8
4

3
GIRO SPORT DESIGN
STEP 9
PRESS NEW BUCKLE DOWN TO ENSURE TAB
GOES INTO RECEIVER
MAKE SURE HOLE ON BUCKLE LINES UP
WITH SCREW RECEIVER ON BASE PLATE
SHIELD
NOTE.
BUCKLE SHOULD BE SET AT LOWER POSITION
FOR NORMAL INSTEP
PUSH NEW BUCKLE SLIGHTLY TOWARDS TOP
OF SHOE TO ENSURE TABS ARE IN PLACE.
PLACE AND TIGHTEN SCREW WITH A
STANDARD PHILLIPS SCREWDRIVER
NOTE.
ONCE BUCKLE HAS BEEN PLACED, CYCLE
THROUGH EVERY POSITION IN THE STRAP TO
ENSURE THAT BUCKLE HAS BEEN SET
PROPERLY
STEP 10
STEP 11
STEP 12
5

6
MR-2
GIRO SPORT DESIGN
TERRADURO
TERRADURA
TERRITORY
REVIELLE
6

3
GIRO SPORT DESIGN
STEP 1
DEPRESS RELEASE LEVER TO REMOVE
STRAP COMPLETELY OUT OF BUCKLE
REMOVE SCREW
LOCATE SCREW ON FACE OF BUCKLE UNDER
LEVER ARM
REMOVE OLD BUCKLE FROM BASE PLATE
STEP 6
STEP 3
STEP 4
7

GIRO SPORT DESIGN
STEP 5
PLACE NEW BUCKLE ON BASE PLATE
NOTE.
BUCKLE SHOULD BE SET AT LOWER POSITION
FOR NORMAL INSTEP
NOTE.
MR-2 BUCKLE IS COMPATIBLE WITH ALL GIRO MODELS
TIGHTEN SCREW TO SECURE NEW BUCKLE TO
BASE PLATE
NOTE.
ONCE BUCKLE HAS BEEN PLACED, CYCLE
THROUGH EVERY POSITION IN THE STRAP TO
ENSURE THAT BUCKLE HAS BEEN SET
PROPERLY
STEP 6
8
