Glacier bay SADIRA HD67471W-1008D2 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Model#
HD67471W-1008D2
HD67471W-1010H
SADIRA TWO-HANDLE PULLDOWN KITCHEN
FAUCET WITH SOAP DISPENSER
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
2/2023 REV.01THD
SKU#
1008704987
1008719406
３２３００８７２０
Internet#
323008720
323188280

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................7
Troubleshooting........................................8
Service Parts ........................................... 9
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts..
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2
Operation...................................................6
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

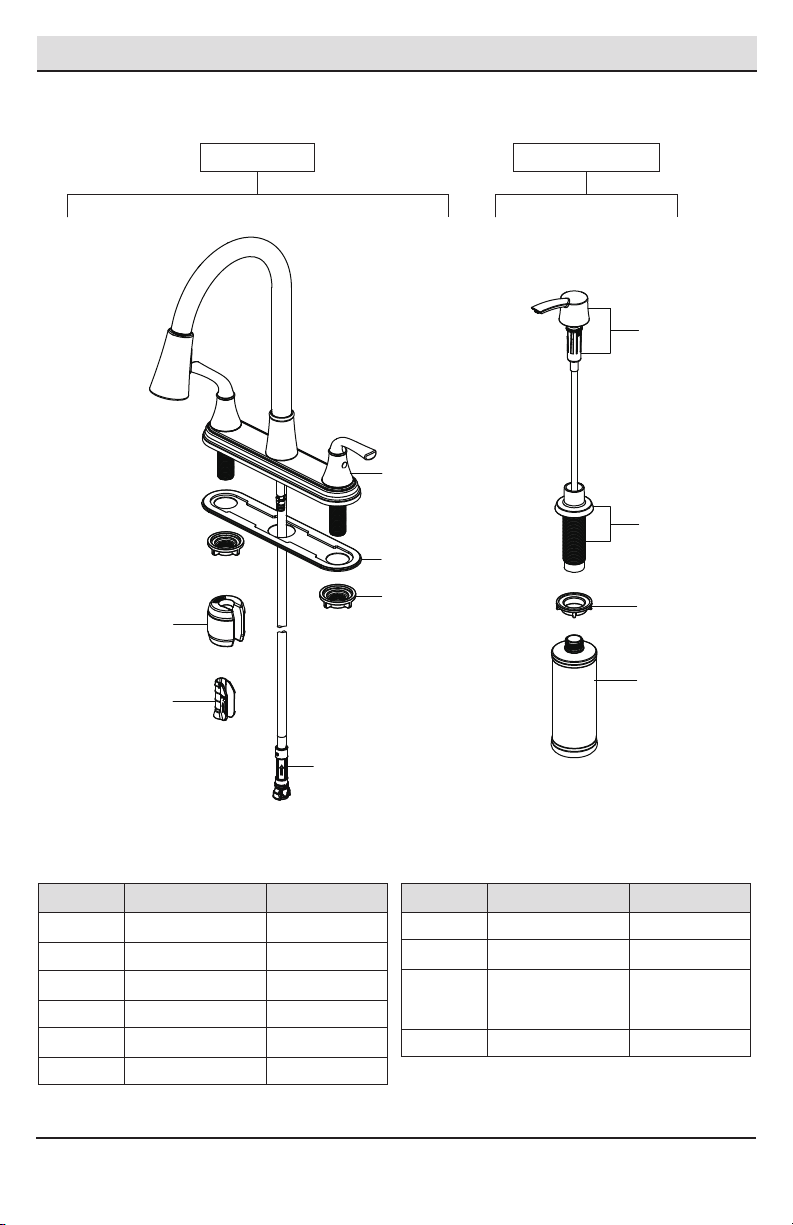

PACKAGE CONTENTS
Part Description Quantity
A 1
B 1
Faucet assembly
D 1
E 1
Gasket
C 2
F
Weight
1
Quick connector
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Faucet Assembly Soap Pump Assembly
G
Weight clip
1
Soap assembly
I 1
Soap dispenser
mounting nut
H 1
J Soap bottle 1
Soap pump
Part Description Quantity
B
A
C
D
E
F
G
H
I
J
Mounting nut

4

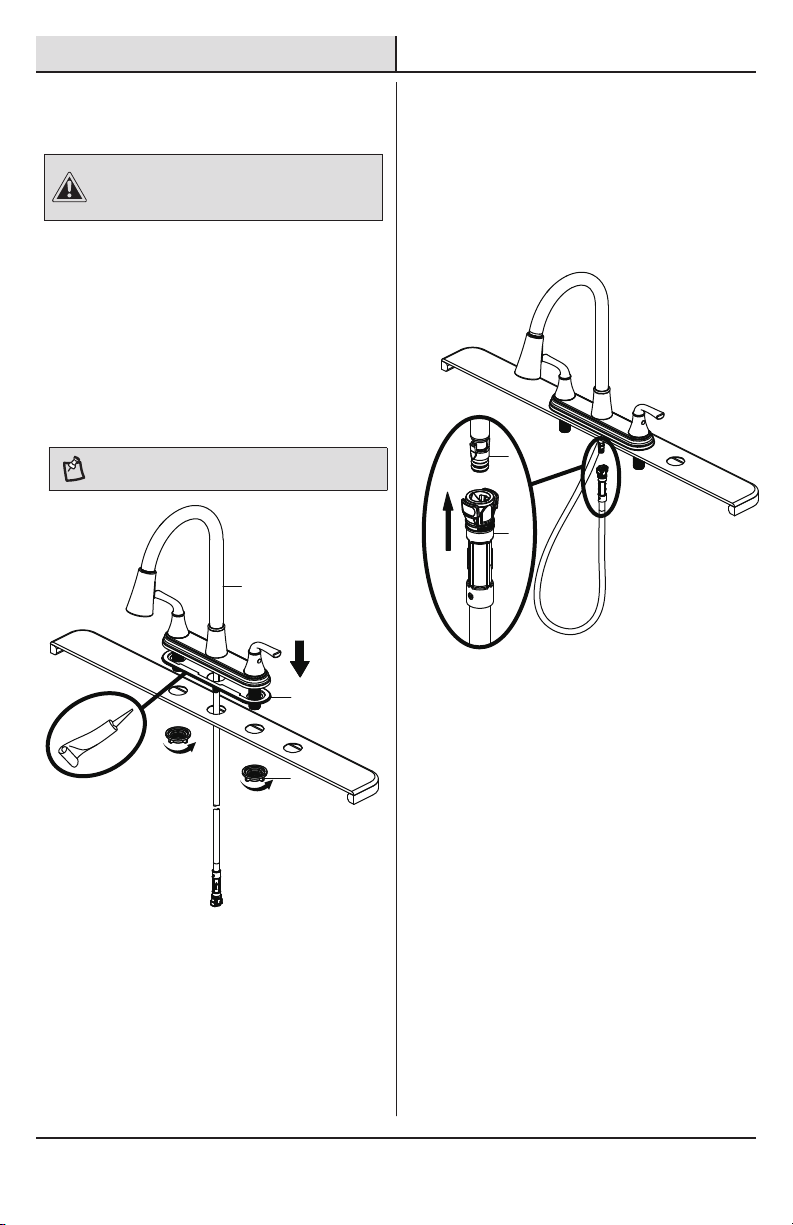

Installation
1
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Insert the faucet body through the hole in the
sink.
2
NOTE: Silicone sealant is required under the gasket (B).
Installing the faucet assembly Attaching the quick connector
to the receiving block
□Push the quick connector (D) rmly upward and
attach it to the receiving block (1). Pull down
moderately to ensure the connection has been
made.
□Shut off the water supply. Remove the old
faucet.
□Clean the mounting surface.
□Ensure the gasket (B) is on the bottom of the
new faucet (A).
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided. Hand tighten only.
A
B
C
SILICONE
1
D

5
Installation (continued)
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

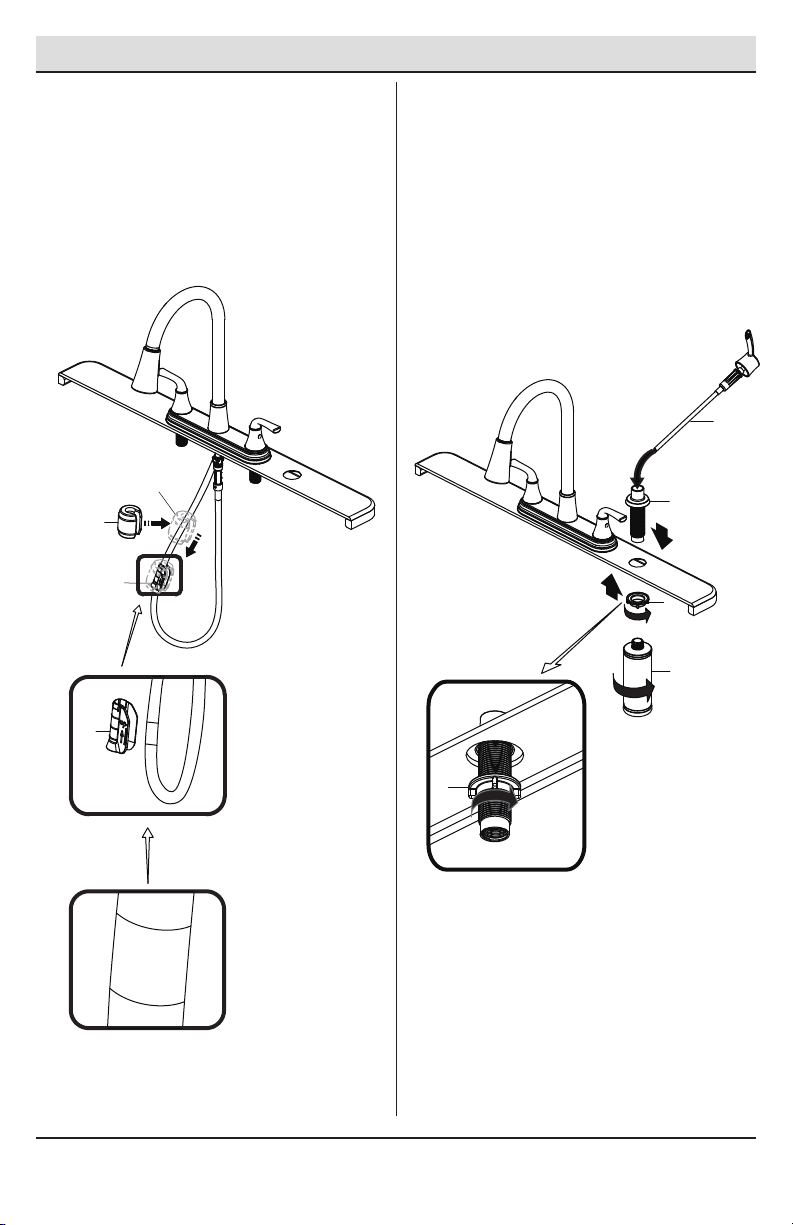

3 Installing the weight
□Insert the weight (E) onto the clip (F) by sliding
it down onto the clip (F).
□Install the weight clip (F) at the point of the
hose marking “weight here”.
Weight
here
Weight
here
F
F
E
E
4Installing the soap dispenser
□Insert the soap assembly (H) through the
selected hole in the sink. Secure the soap
assembly to the sink with the soap dispenser
mounting nut (I) provided.
□From under the sink, screw the soap bottle (J)
onto the soap assembly (H) shank. Insert the
soap pump (G) down into the soap assembly (H).
Screw
Sink
4
2
G
H
I
J
1
3
I

6
Installation (continued)
Operation
1Flushing and checking for leaks
□
□Pull the hose assembly out of the spout and
remove the spray head by unscrewing it from
the hose in a counterclockwise direction. Be
sure to hold the end of the hose down into the
sink and turn on the hot and cold handles to
allow the water to run for at least one minute.
This ushes away any debris that could cause
damage to internal parts. Check for leaks.
□Re-tighten any connections if necessary, but do
not overtighten. Reinstall the spray head by hand
tightening it back onto the spray hose in a
clockwise direction.
IMPORTANT: After installation is completed, turn on the
hot and cold water supplies. Check for leaks. Do not lose
the gasket (1) in the hose.
5 Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
□Use wrenches to tighten the connections. Do not
overtighten.
1
3
2
Ensure the faucet (A) handles are in the off
position, and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly. 1
A

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.

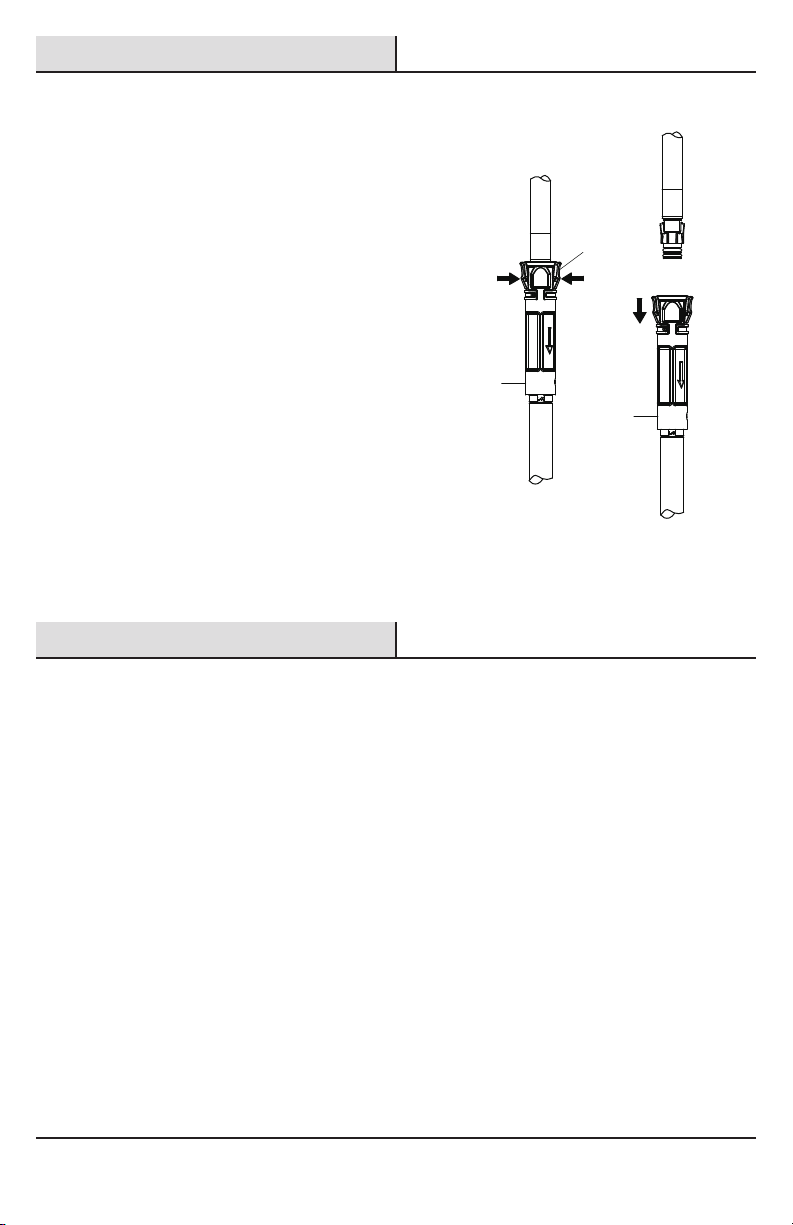

2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
Operation (continued)
Squeeze
Pull
down
1
1
2
7

8
Troubleshooting
Problem Possible Cause Solution
There are leaks
underneath the handle.
The bonnet nut has come loose and the
o-ring on the cartridge is dirty or damaged.
□Use wrench to retighten the
bonnet nut sufciently. Clean
or replace the o-ring.
The aerator leaks or has
an inconsistent water
ow pattern.
The aerator is dirty or mistted.
The cartridge may be clogged.
□Remove the aerator and check
for debris in the aerator screens.
□Remove the cartridge and check
for debris.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
□Ensure the aerator is properly
installed.
There are leaks from the
hose underneath the deck.
The hose and discharge tube connection
may be loose.
□Tighten the connection between
the discharge tube and hose.
The hose does not retract. The weight is not installed in the
appropriate position.
□Reinstall or readjust the weight.
The water pressure is low. The connector underneath the deck is
clogged with debris.
The aerator is clogged.
□Turn off the water supply and
disconnect the connector
/ aerator.
□Unscrew the connector / aerator
and clean under running water.
□Screw the connector / aerator
back.
□Test water ow. If water
pressure is still low then replace
the connector / aerator.
There is no hot or cold
water.
The water inlet hose was accidentally
kinked during installation and is limiting
the water ow through.
□Reinstall the water inlet hose.
There is a low ow of
water.
The screen lter in the spray head is dirty. □Turn off the water supply at
angle stop and unscrew the
spray head from spray hose.
□Clean the screen lter in the
spray head under running water.

9
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Part Description Part Number
1
2
3
4
Cartridge H
5
Bonnet nut
6
Washer
Cartridge C
7
Handle assembly H
Handle assembly C
Spray head and Hose
9
Part Description Part Number
10
11
12
Weight
13
Weight clip
14
Block
O-ring
O-ring
Clip
O-ring
Wearable ring
RP38563*
15
Gasket
16
17
Quick connect
assembly
18
Flange kit
Pump kit
19
Soap bottle
20
21
22 Soap dispenser kit
8
Service Parts
1
2
3
4
5
6
8
9
7
10
11
18
17
16
15
12
13
14
19
20
21
22
Faucet ID tags can be
found by removing
the hot water handle
Mounting nut
RP13878*
RP13879*
RP70678
RP20067
RP20068
RP64123
RP80181
RP56001
RP70689
RP70590
RP64056
RP70158
RP60125
RP70421
RP60002
RP60089
RP70697
RP46072
RP46101*
RP46099
RP46100*
