Glacier bay FP4A0033BNV Assembly instructions

INSTALLATION AND CARE GUIDE
SKU#
302357332
302357327
Model#
FP4A0033BNV
FP4A0033RBP
PULL-DOWN KITCHEN FAUCET
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
THANK YOU
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
THD 08/2017 REV.01

2
□Observe all local plumbing and building codes.
□Cover the drain in your sink to avoid losing parts.
□Review the care and cleaning section included in this guide.
Important Information..............................2
Warranty ...................................................2
Pre-installation.........................................2
Planning Installation ................................2
Tools and Hardware Required..................2
Package Contents....................................3
Installation................................................4
Operation...................................................7
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts.............................................9
Table of Contents
Important Information
Warranty
Pre-installation
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD Glacier (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD Glacier for
more details.
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service for
replacement parts.
LIMITED LIFETIME WARRANTY
PLANNING INSTALLATION
TOOLS AND HARDWARE REQUIRED
SILICONE
Adjustable
Wrench
Phillips
Screwdriver
Channel-
Lock Pliers
Safety
Goggles Sealant
(2)
Supply
Lines

3HOMEDEPOT.COM/GLACIERBAY
1-855-HD-GLACIER
Pre-Installation (continued)

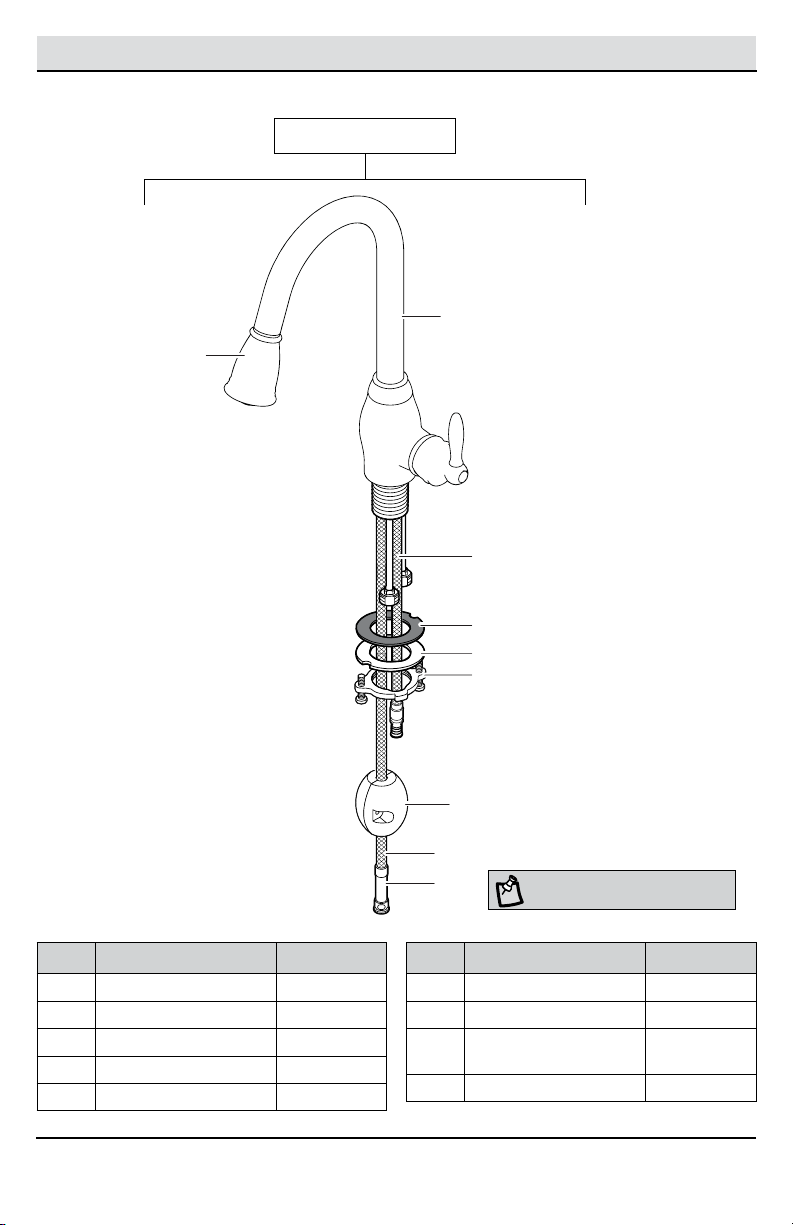

PACKAGE CONTENTS
G
I*
H*
Faucet Assembly
B*
A
D*
C*
E*
F*
Part Description Quantity
A Faucet 1
B Pull-down spray 1
C Outlet hose 1
D Rubber washer 1
E Metal washer 1
Part Description Quantity
F Guide washer 1
G Rubber weight 1
H Pull-down spray hose 1
I Quick connector 1
NOTE: *Items come pre-assembled.

4
Installation
A
C
H
2
3
D
E
F
H
A
1

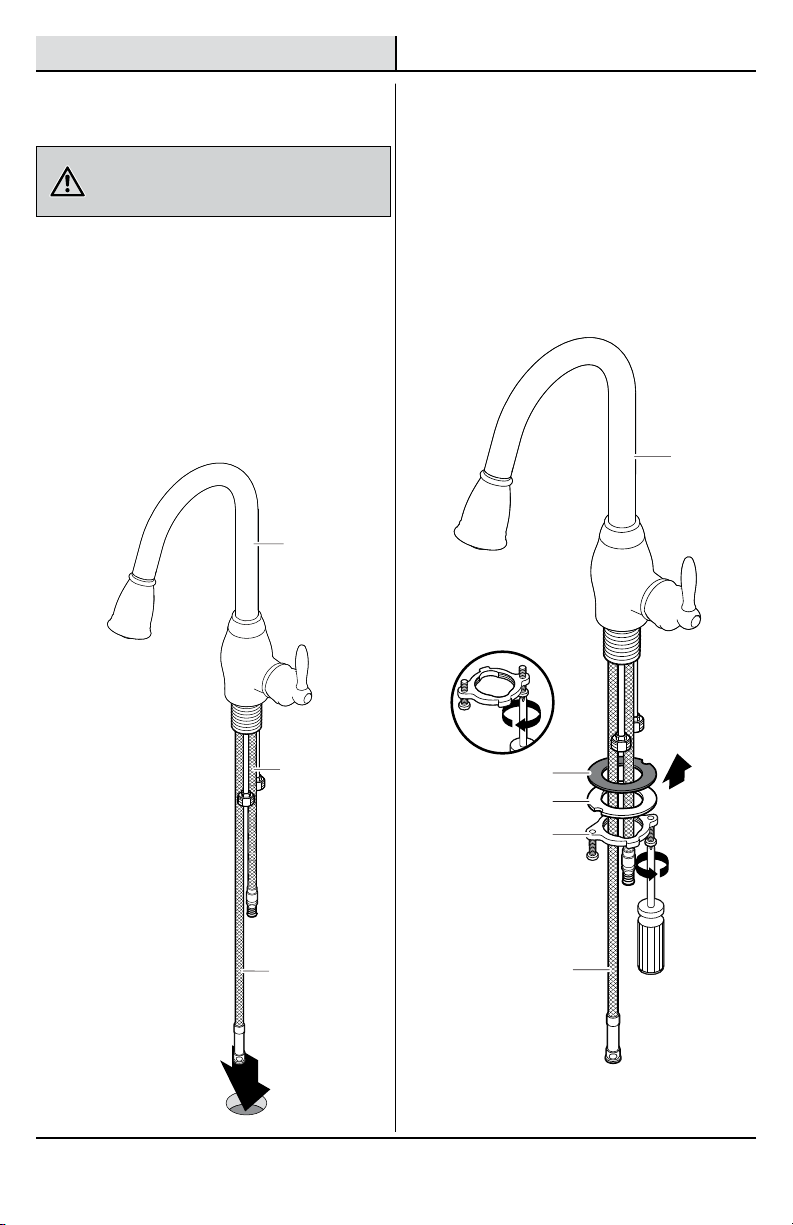

□Shut off the water supply. Remove the old
faucet.
□Clean off the mounting surface.
□Remove the guide washer (F), metal washer (E)
and rubber washer (D) from the faucet.
□Insert the pull-down spray hose (H), outlet hose
(C) and supply lines through the mounting hole
in the sink until faucet (A) sets on top of the
sink.
□Loosen the screws on the guide washer (F) until
the ends of the screws are ush with the face of
the guide washer (F).
□Attach the faucet (A) underneath the sink using
the rubber washer (D), metal washer (E) and
guide washer (F). Securely tighten the screws
on the guide washer (F).
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
1 Installing the faucet assembly 2 Securing the faucet

5HOMEDEPOT.COM/GLACIERBAY
1-855-HD-GLACIER
NOTE: For removal, see “Quick Connector Removal.”

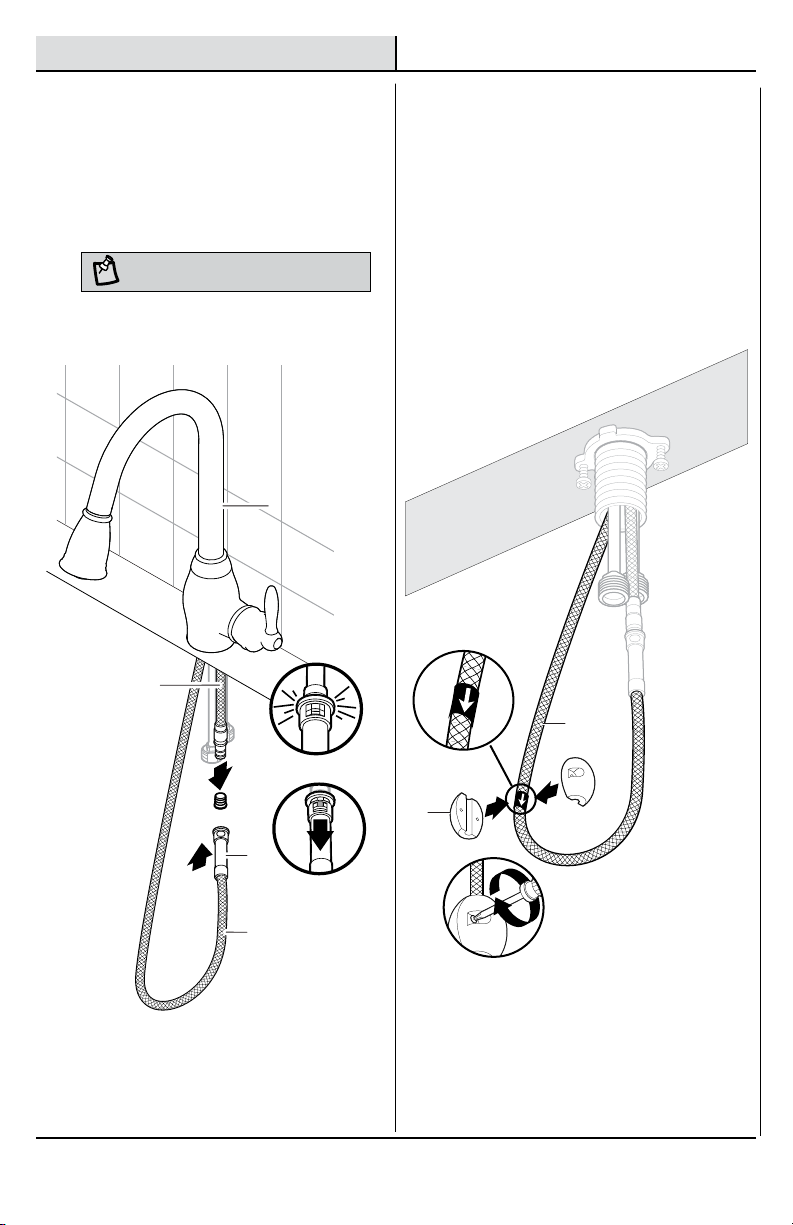

3 Attaching the quick connector 4 Attaching the weight
Installation
1
2
C
H
I
3
A
G
H
□Remove the cap from the outlet hose (C).
□Attach the quick connector (I) to the outlet hose
(C). Pull down the quick connector (I) to ensure
it is secure.
□The pull-down spray (B) should be nested in the
faucet body (A).
□Use a Phillips screwdriver to secure the weight
(G) at the lowest point on the pull-down spray
hose (H). The weight (G) should cover the weight
location decal on the pull-down spray hose (H).
□Pull the pull-down spray (B) away from the
faucet body (A) and ensure the pull-down spray
hose (H) is not obstructed.

6
Installation (continued)
5 Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (1), or a
3/8 in. O.D. ball-nose riser (2) with supply line
coupling nuts (3) (not included).
□Use a wrench to tighten the connections. Do not
over tighten or torque the copper supply line.
2
3
1

7HOMEDEPOT.COM/GLACIERBAY
1-855-HD-GLACIER
AA
B
3
2
1
Operation
1 Flushing and checking for leaks
□Detach the pull-down spray (B) from the pull-down spray hose (I). Hold the pull-down spray hose (I) rm to
prevent it from retracting into the faucet body (A).
□Ensure the handle is in the off position. Turn the hot and cold water supplies on and check all connections
for leaks. If leaks are discovered, check the connections to ensure they are tight and properly secured.
□Lift the handle to allow the water to run for approximately one minute. This ushes away any debris that
could damage the internal parts.
□Turn the water off and reattach the pull-down spray (B).
□If it is necessary to remove the quick
connector, push the quick connector
housing up, hold the housing together and
pull down.
2 Removing the quick connector hose
CAUTION: Use caution when removing the quick
connector hose to prevent cutting your hands.

8
Problem Possible Cause Solution
There are leaks from the
handle.
□The bonnet nut is loose.
□The O-ring on the cartridge is
dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the O-ring.
The pull-down spray leaks or
has a reduced water ow.
□The pull-down spray is dirty or
mis-tted.
□The cartridge may be clogged.
□Remove the pull-down spray and
check for debris.
□Remove the cartridge and check for
debris.
□Ensure the pull-down spray is
properly installed.
There are leaks from the hose
underneath the deck.
□The connection between the
pull-down spray and pull-down
spray hose may be loose.
□Tighten the connection between the
pulldown spray and pull-down spray
hose.
The hose does not retract. □The weight is not installed in the
correct position.
□The pull-down spray hose is
obstructed.
□Reinstall or readjust the weight.
□Check under the sink to ensure
the pull-down spray hose is not
obstructed.
The water pressure is low. □The quick connector may be
clogged with debris.
□Turn off the water supply and
disconnect the quick connector from
the outlet hose.
□Disconnect the quick connector from
the pull-down spray hose and ush
under running water.
□Reattach the quick connector to the
outlet hose.
□Test water ow. If water pressure
is still low then replace the quick
connector.
There is no hot or cold water. □The hot or cold water supply
lines may be kinked or twisted.
□Ensure hot and cold water supply
lines are not kinked or twisted.
Reinstall the supply line if necessary.
Care and Cleaning
Troubleshooting
NOTE: Refer to the service parts section in this manual for a
detailed drawing showing the location of the parts listed below.
□To clean, wipe down with a damp cloth and towel dry.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will be
voided.

9HOMEDEPOT.COM/GLACIERBAY
1-855-HD-GLACIER
*Specify Finish
2.
1.
3.
4.
5.
8.
11.
10.
9.
6.
7.
12.
DATECODE:
HOT
DONOT REMOVE
1-888-328-2383
Faucet ID Tags can
be found on the hot
supply line.
Service Parts
Part Description Part No.
1 Handle Cap A66G013*
2Metal Handle Assembly A662594*
3 Trim Cap A103290*
4 Bonnet Nut A104207
5 Ceramic Disc Cartridge A507348N
6 Spray Head A523483N-65*
Part Description Part No.
7Base Trim Ring A667674*
8Hose Adaptor Assembly A66G142N
9Filter Washer A022255N
10 Mounting Hardware A603171
11 Spray Hose A512133N*
12 Weight A504713
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
