Glacier bay HDQF51AC074CP Assembly instructions

TWO-HANDLE LAVATORY FAUCET
SKU#
1008088840
1008089090
1008089079
OMSID#
321486809
321486573
321486584
Model#
HDQF51AC074CP
HDQF51AC074BNV
HDQF51AC074OB
INSTALLATION AND CARE GUIDE
THANK YOU
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY

Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation...........................2
Tools and Hardware Required.............2
Package Contents...............................3
Installation................................................4
Operation...................................................7
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts.............................................9
Important Information
□Observe all local plumbing and building codes.
□Cover the drain in your sink to avoid losing parts.
□Review the care and cleaning section included in this guide.
□This product is engineered to meet the EPA WaterSense flow requirement. The flow rate is governed by the
aerator or flow controller. If replacement is ever required, be sure to replace it with a WaterSense compliant
aerator or flow controller to retain the water conserving flow rate of this product.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-
434-5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of the warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Pre-Installation
PLANNING INSTALLATION
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service for
replacement parts.

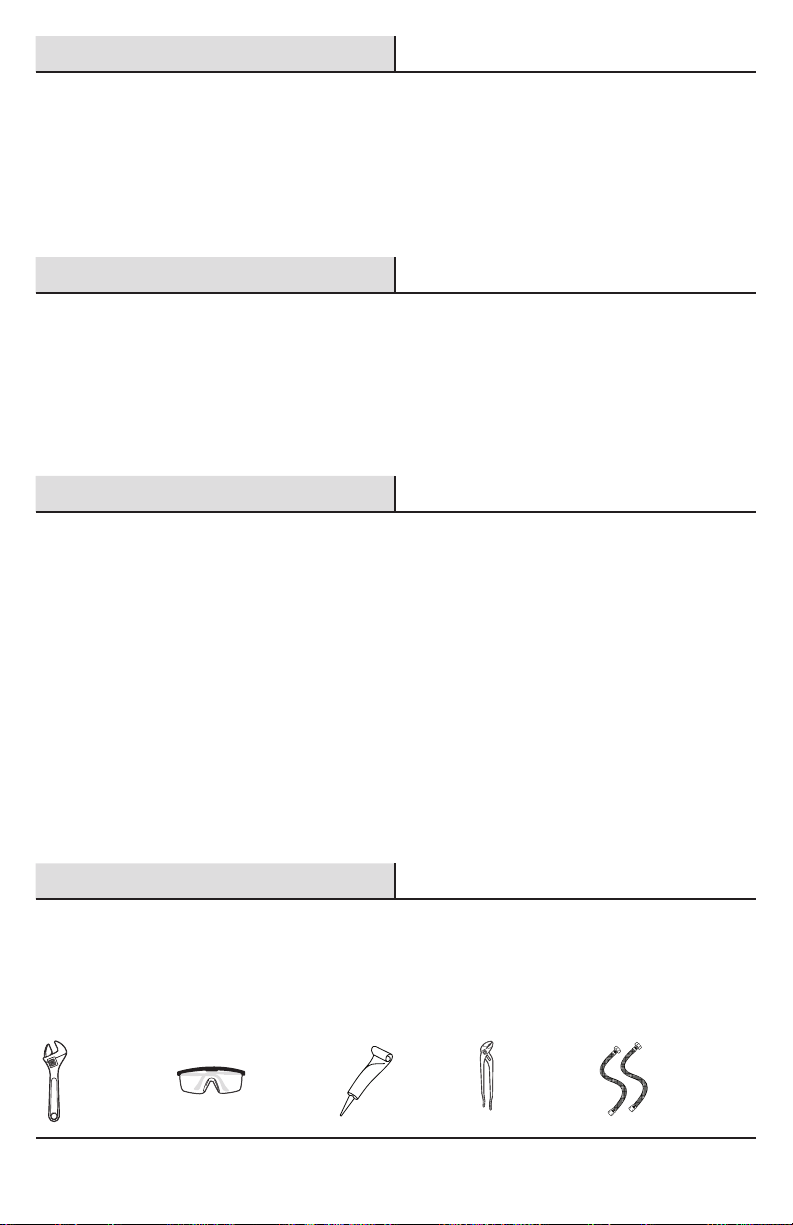

TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles Sealant Channel-lock
pliers
(2)
Supply
lines
SILICONE
2

Pre-Installation (continued)
PACKAGE CONTENTS
Faucet Assembly Drain Assembly
Tool
M
J
I
E*
D*
F*
G*
H*
C
L
A
B*
K
NOTE: *Items come pre-assembled.
Part Description Quantity
A Faucet 1
B Aerator 1
C Mounting nut 2
D Rubber washer 1
E Drain assembly 1
F Large rubber washer 1
G Lock nut 1
Part Description Quantity
H Main plunger 1
I Ball rod 1
J Lift rod strap 1
K Lift rod 1
L Gasket 1
MAerator Wrench 1
3 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for
further assistance.

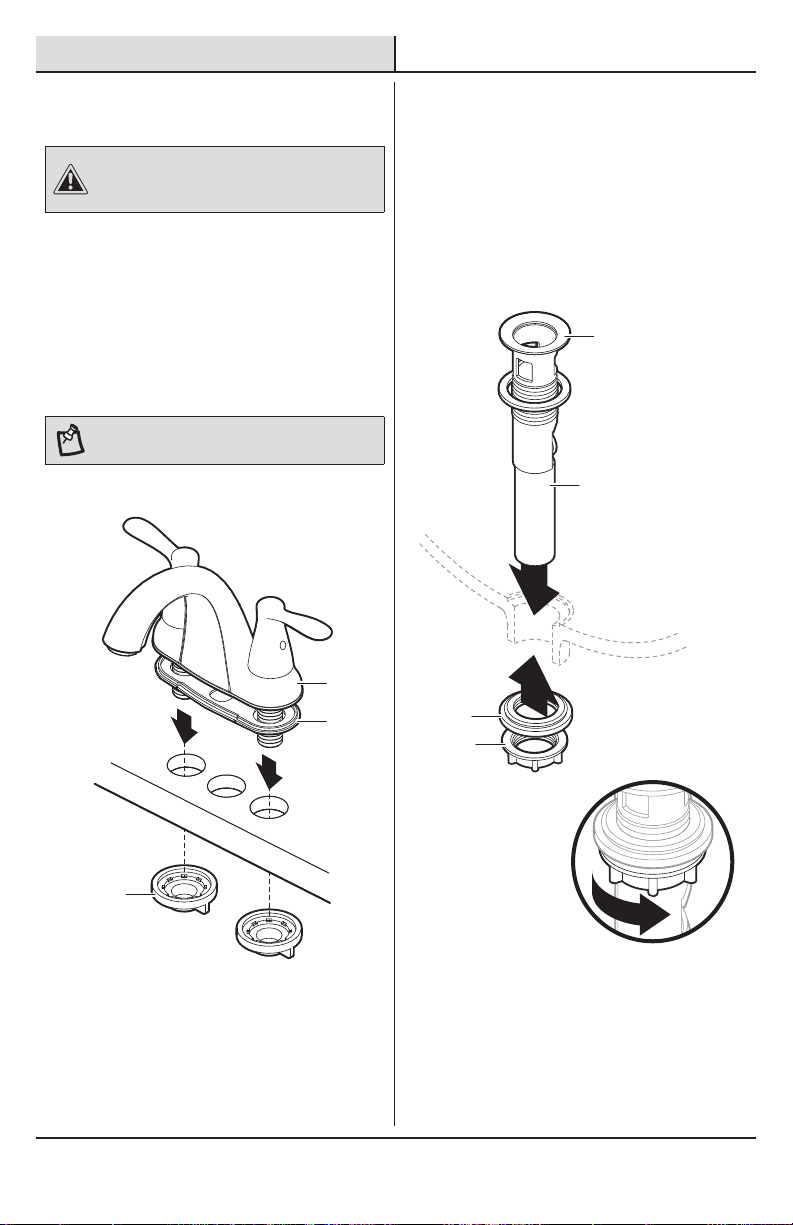

Installation
A
L
C
1
2
3
D
E
F
G
□Shut off the water supply. Remove the old faucet.
□Clean off the mounting surface.
□Ensure the gasket (L) is on the bottom of the new
faucet (A).
□Place the faucet (A) through the mounting holes
in the sink.
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided.
1 Installing the faucet assembly 2 Preparing the pop-up assembly
NOTE: If the sink is uneven, use silicone under the
gasket (N).
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Insert the drain assembly (E) and rubber washer
(D) into the sink.
□Secure the drain assembly (E) in place under the
sink using the large rubber washer (F) and lock
nut (G).
□Opening for ball rod must face towards rear of
sink.
4

Installation (continued)
H
1
2
E
I
Loop toward
rear of sink
Loop toward
front of sink

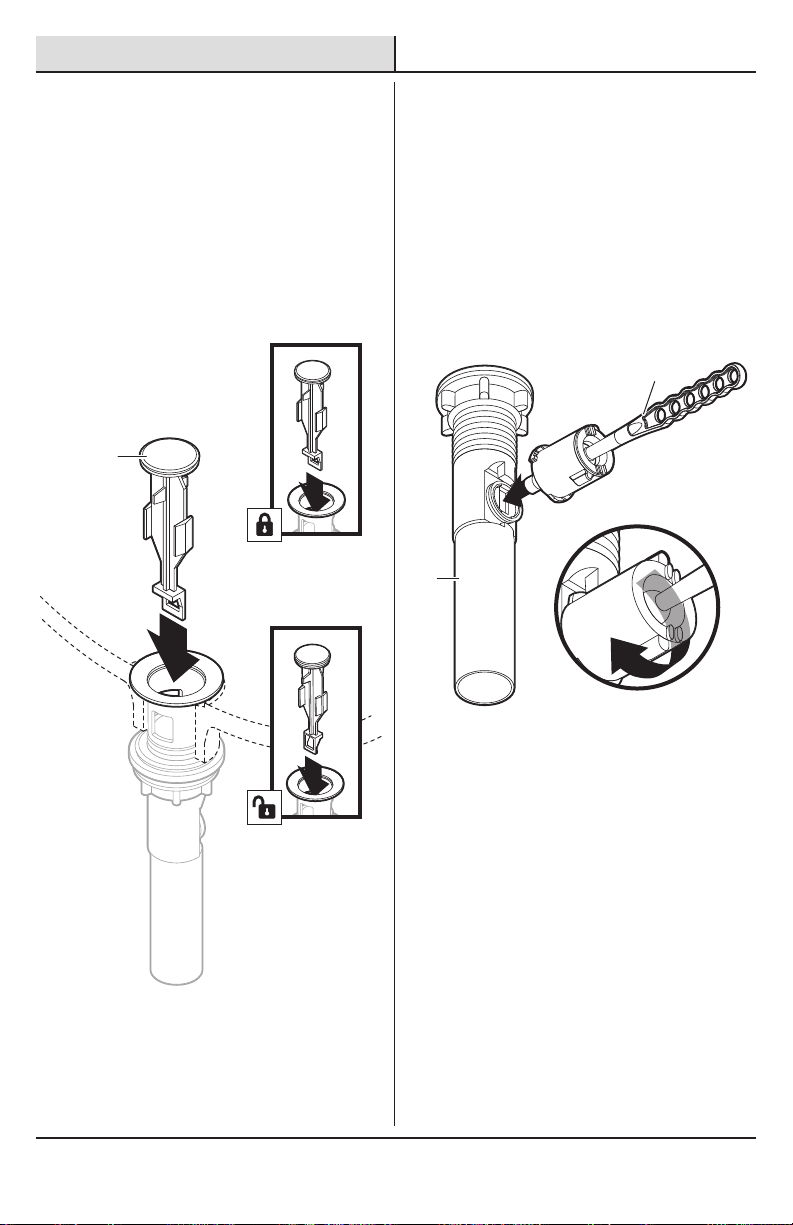

□Insert the plunger (H) into the sink with the
plastic loop of the plunger (H) facing the rear of
the sink. This ensures the plunger is in locked
mode and cannot be removed.
□If you place the plunger (H) with the plastic loop
facing the front of the sink, the plunger is in
unlocked mode and can be removed for easy
cleaning.
□Insert the ball rod (I) into the drain assembly (E).
Tighten the ball nut on the ball rod (I).
3 Installing the drain body 4 Installing the ball rod
5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for
further assistance.

Installation (continued)
1
3
2
I
1
2
KK
K
J
J
A
3

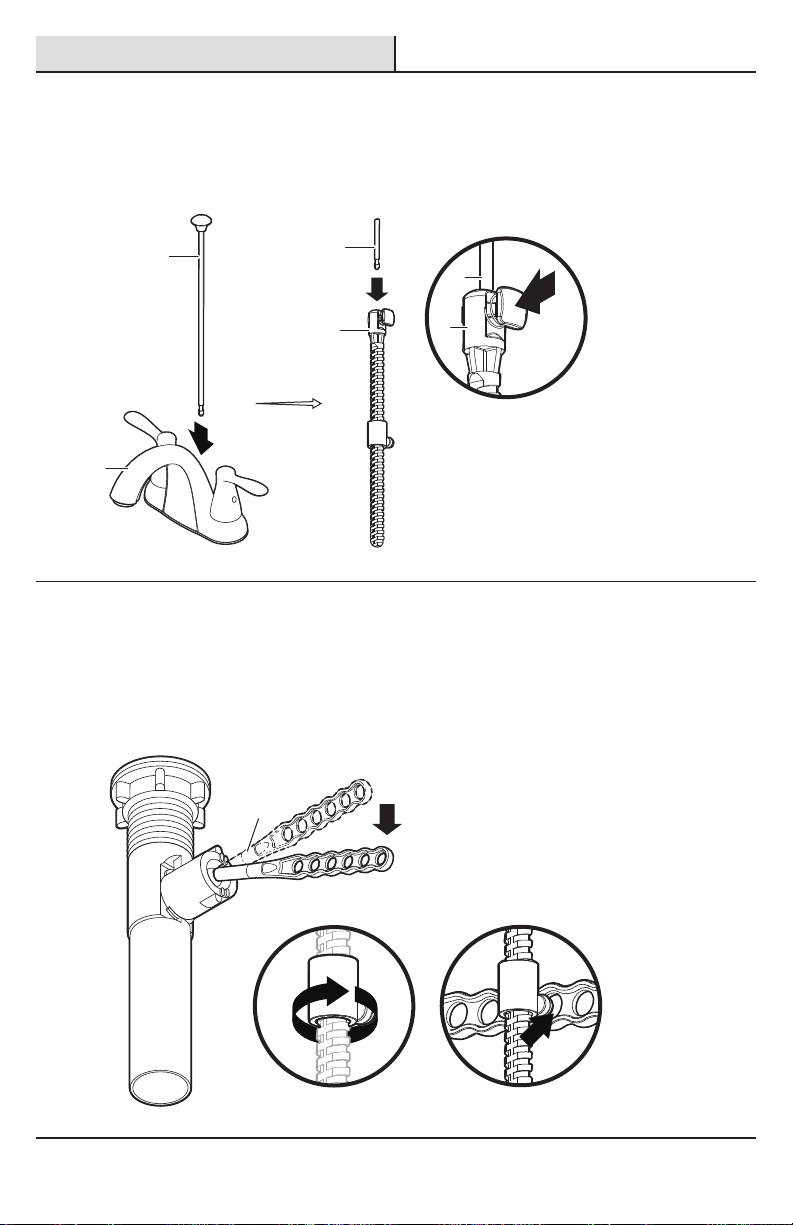

□Push down the ball rod (I) so that the drain is at “open position”.
□Rotate the connector on the strip to the proper height to connect to the ball rod when it is at
“open position”.
6 Adjusting the lift rod strap
5 Installing the lift rod
□Insert the lift rod (K) through the faucet (A) and attach the lift rod strap (J) to the lift rod (K).
□Push the button on the lift strap (J) to allow the lift rod (K) to slide through.
□Release to lock.
6

Installation (continued)
Operation
A
B
M
2
3
1
K
H

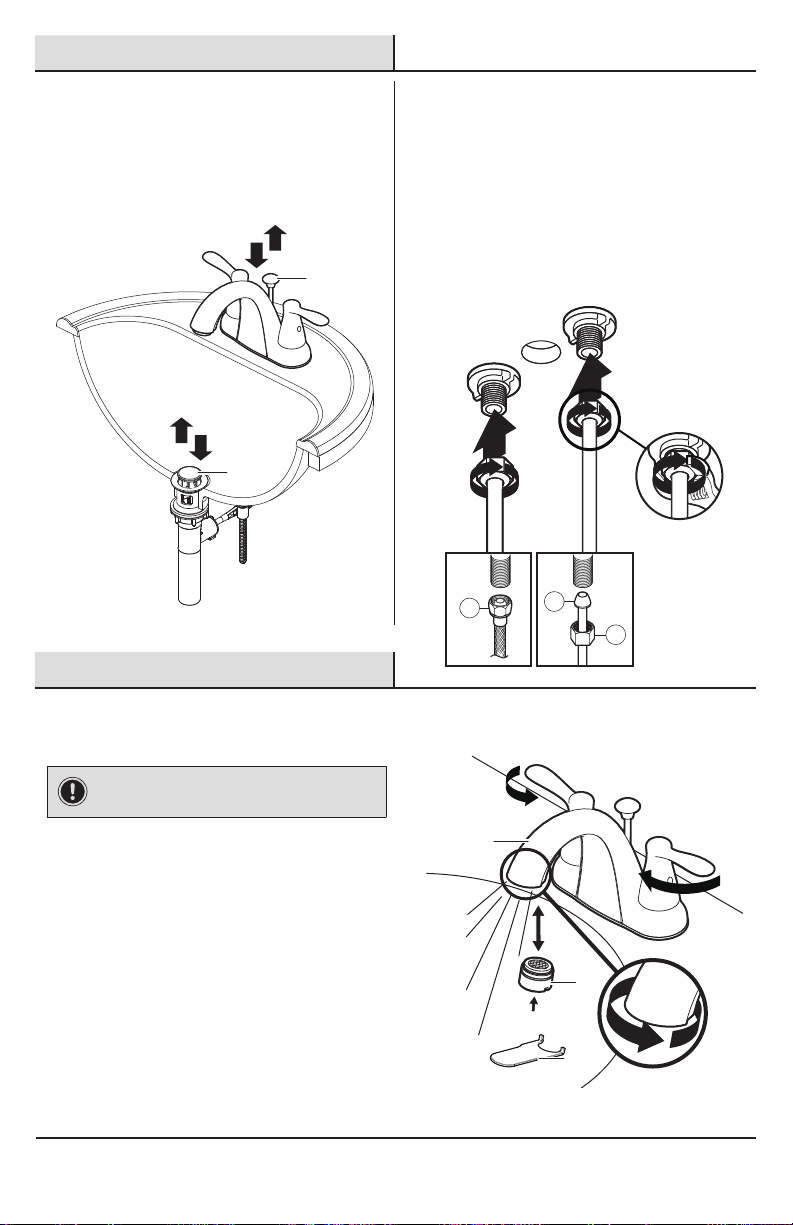

7 Checking the operation of the
pop up 8 Making the water supply connections
□Operate the lift rod (K) up and down to verify
that the stopper (H) opens and closes correctly.
□Use 1/2 in. I.P.S. faucet connections (1), or a
3/8 in. O.D. ball-nose riser (2) with supply line
coupling nuts (3) (not included).
□Use a wrench to tighten the connections. Do not
over tighten or torque the copper supply line.
□Ensuring the handles are in the off position, turn
on the water supply and check for leaks. If you
discover any leaks, check your connections to
ensure they are installed properly.
□Use aerator wrench (M) to remove the aerator
(B) from the faucet (A). Turn on the hot and cold
handles to allow the water to run for at least one
minute. This flushes away any debris that could
cause damage to internal parts.
□Turn off the water and reinstall the aerator (B) and
housing (if applicable).
IMPORTANT: After installation is complete, remove the
aerator to flush the water lines. Do not lose the gasket in
the aerator.
1 Flushing and checking for leaks
7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for
further assistance.

Care and Cleaning
Troubleshooting
□To clean, wipe down with a damp cloth and towel dry.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Problem Possible Cause Solution
There are leaks from the
handle.
□The bonnet nut is loose.
□The O-ring on the cartridge is
dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the O-ring.
The aerator leaks or has a
reduced water flow.
□The aerator is dirty or mis-fitted.
□The cartridge may be clogged.
□Remove the aerator and check for
debris.
□Remove the cartridge and check for
debris.
□Ensure the aerator is properly
installed.
The water will not shut off
completely.
□The locking nut is loose or
cartridge is not positioned
correctly.
□Remove the handle and cartridge to
check the rubber seat and spring.
□Tighten the lock nut.
□Clean or replace.
The sink drain at the base of
the sink is leaking.
□The sink surface is rough or
irregular.
□Apply additional silicone sealant to
the beveled side of the drain flange.
□Retighten and test for leaks.
NOTE: Refer to the service parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
8

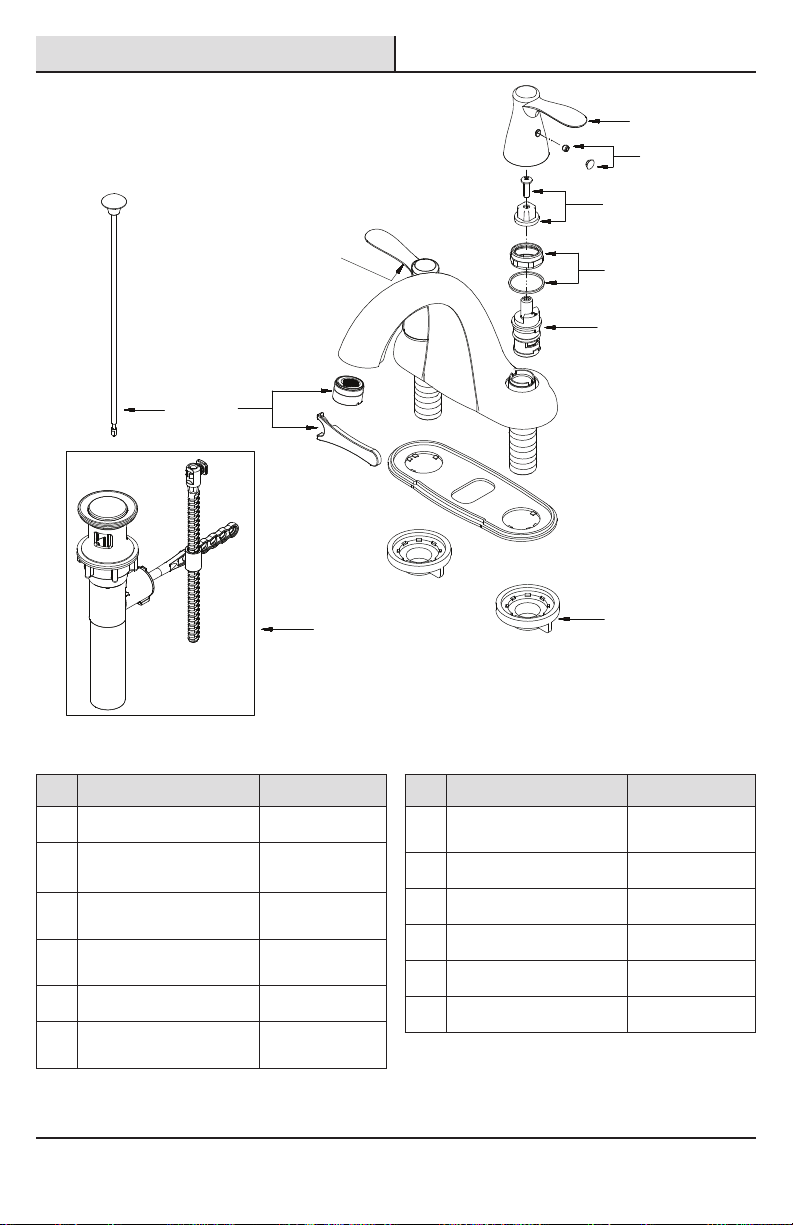

Service Parts
3.1
5.1
5.2
3.2
2.
4.
1.
6.
7.
8.
9.
10.
Faucet ID Tags can
be found by removing
the hot water handle
* Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM.
Part Description Part No.
1 Metal Handle A069382*
2 Index Button A66D558
A66D558KP
3.1 Handle Adaptor-Cold A66D574CCP
3.2 Handle Adaptor-Hot A66D574HCP
4 Retainer Nut A66D639CP
5.1 Ceramic Disc Cartridge (C) A507004N
5.2 Ceramic Disc Cartridge (H) A507003N
Part Description Part No.
6 Lock Nut Set A504023
7 Aerator A66D658N-T
8 Wrench A031025ZN
9 Lift Rod A025613
10 Pop-Up Assembly A505028
9 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for
further assistance.

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
