Glacier bay DORIND HD67111W-604405 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
DORIND 8 IN. WIDESPREAD 2-HANDLE
HIGH-ARC BATHROOM FAUCET
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
6/2021 REV.01THD
Model#
HD67111W-6001
HD67111W-6004
HD67111W-6010H
HD67111W-604405
HD67111W-6035
SKU#
1005537945
313824456
313824370
313824362
317421137

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts ........................................... 9
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.

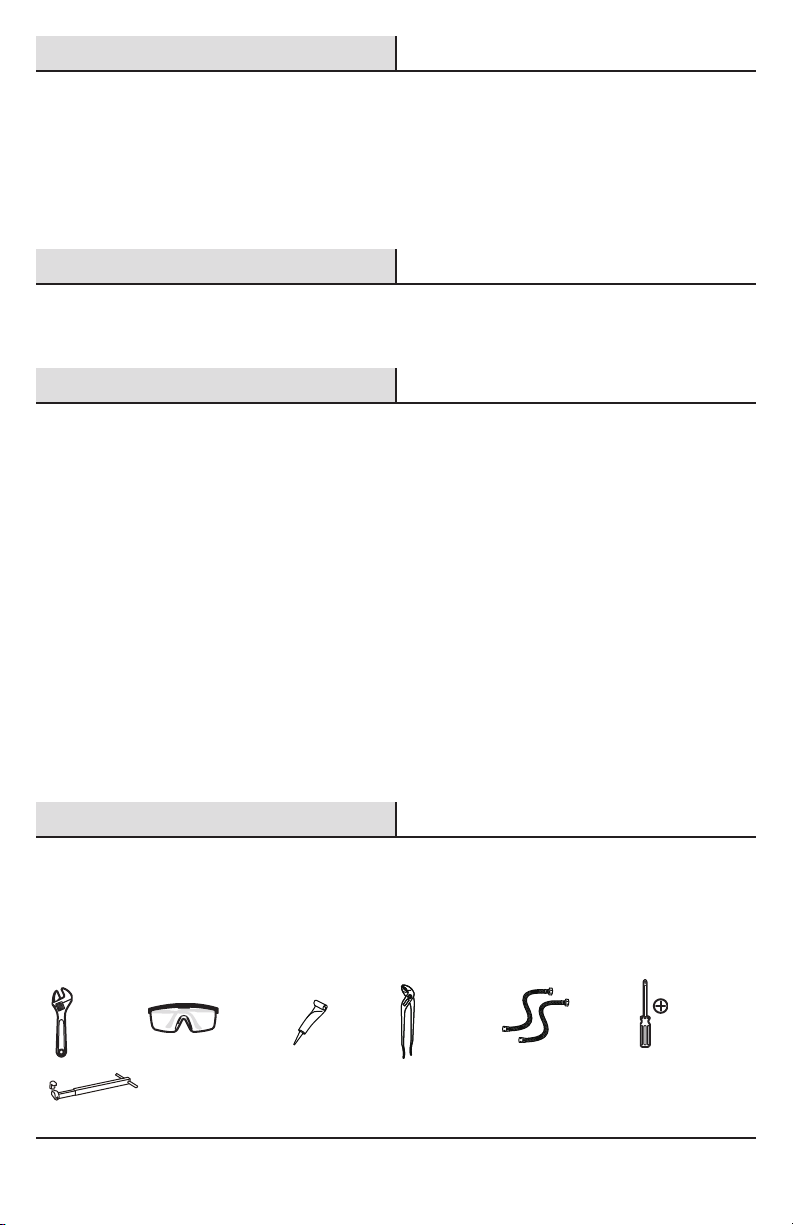

TOOLS AND HARDWARE REQUIRED
Tools and Hardware Required ...............2
Operation...................................................7
Phillips
screwdriver
Basin
wrench
Adjustable
wrench
Safety
goggles
Channel
lock pliers
(2) Supply
lines
SILICONE
Silicone
sealant
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

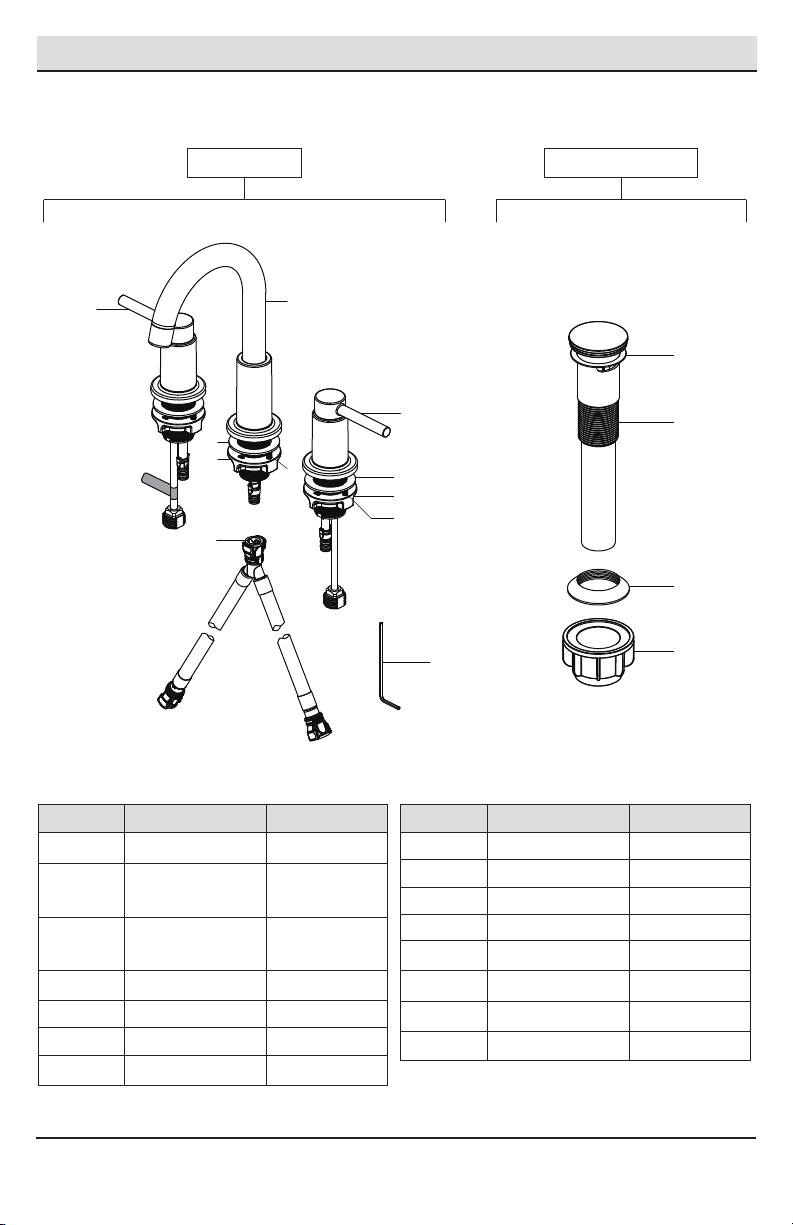

PACKAGE CONTENTS
Part Description Quantity
A 1
BHandle assembly
- Hot 1
CHandle assembly
- Cold 1
Faucet body
D 2
ENut (M30) 2
FScrew 4
Washer
G 1
HNut (M28) 1
IScrew 2
JQuick connect hose 1
K2.38mm hex wrench 1
Washer
Part Description Quantity
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Faucet Assembly Press Pop-Up Assembly
L 1Top gasket
M 1Pop-up body
N 1Bottom gasket
O 1Nut
L
M
N
O
A
B
C
D
E
F
J
G
HI
K

4
Installation

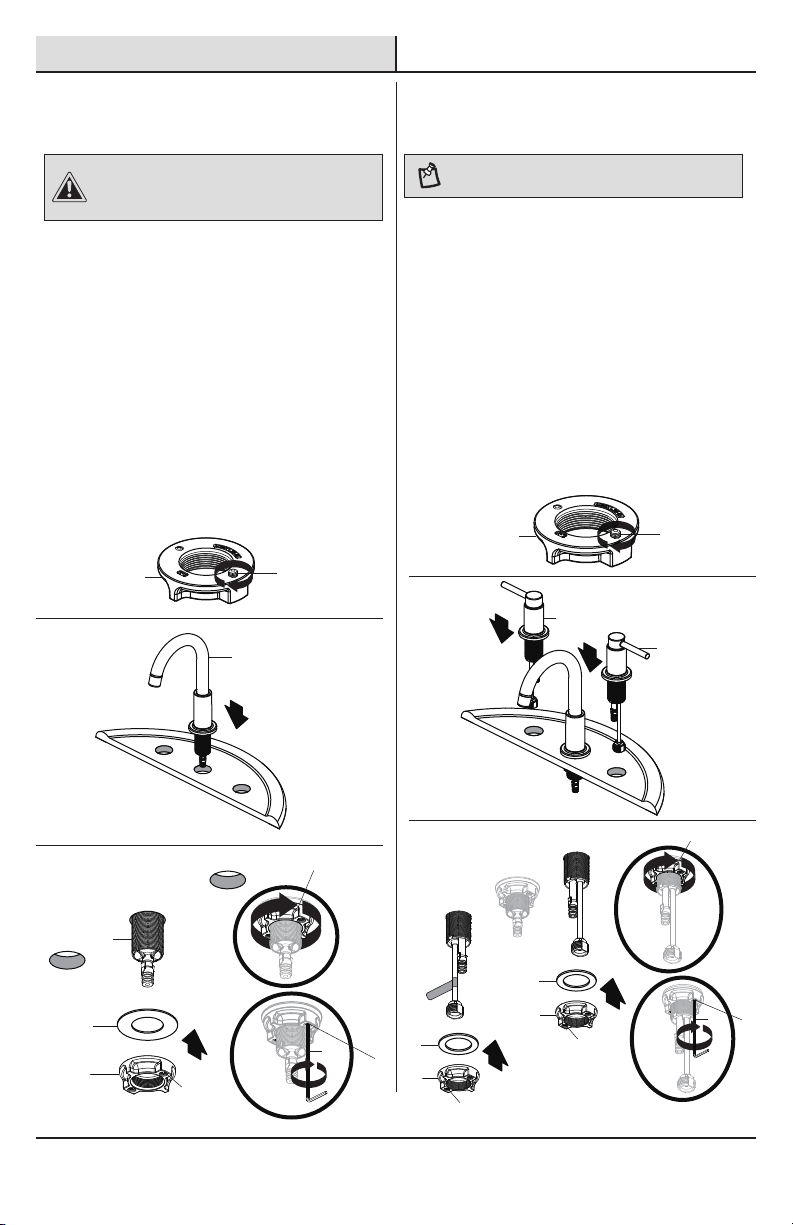

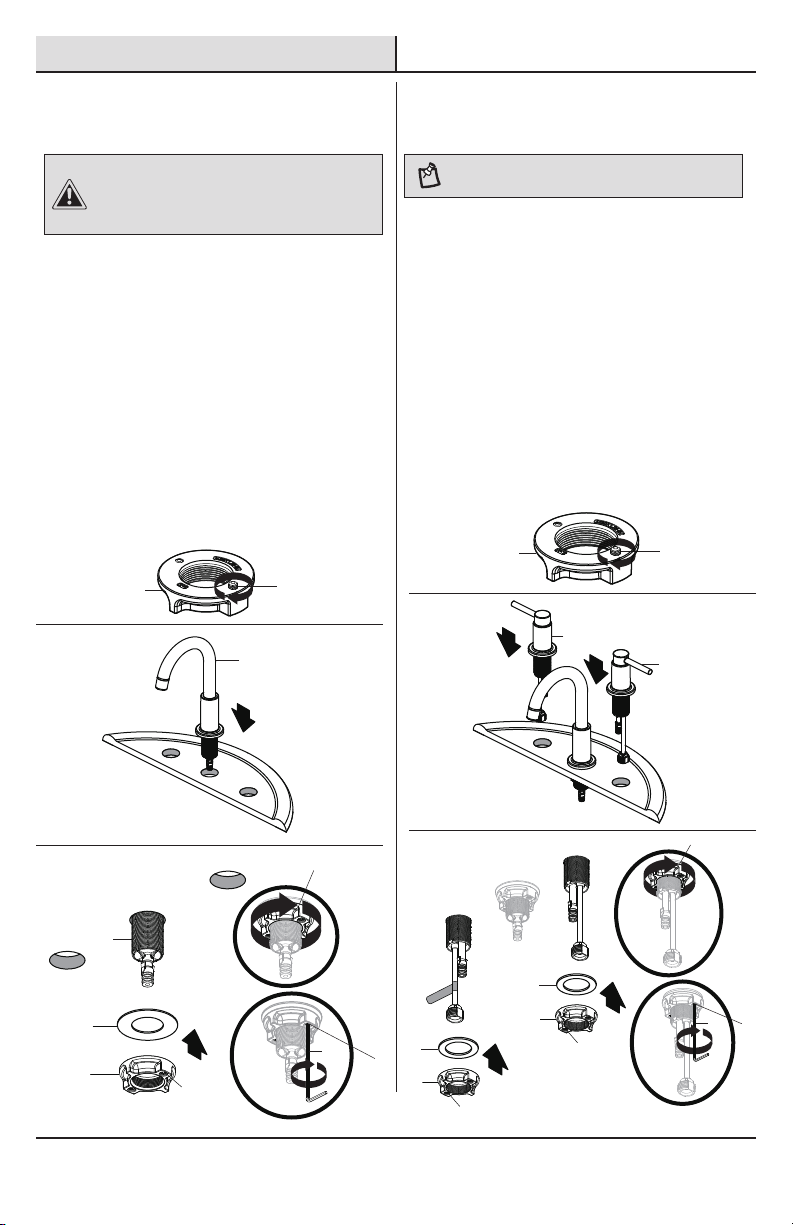

1 Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Place the faucet (A) through the mounting
holes in the sink.
□Secure the faucet (A) to the sink using the
washer (G) and nut (H) provided. Securely
tighten the screws (I) on the nut (H) with the
Hex wrench (Hex: 2.38 mm, K) provided.
2 Installing the faucet handles
□Remove the preassembled nuts (E) and washers
(D) from the hot and cold faucet handles (B and C).
□Insert the hot faucet handle (B) to the left of the
spout and cold faucet handle (C) to the right of
the spout.
NOTE: The hot water valve is identified with a label.
□Shut off the water supply. Remove the old
faucet.
□Clean the mounting surface. □Loosen the screws (F) on the nuts (E) until the
ends of the screws (F) are flush with the face of
the nuts (E).
□Attach the faucet handles (B and C) underneath
the sink using the washers (D) and nuts (E).
Securely tighten the screws (F) on the nuts (E)
with the Hex wrench (Hex: 2.38 mm, K) provided.
□Remove the preassembled nut (H) and
washer (G) from the new faucet (A).
□Loosen the screws (I) on the nut (H) until the
ends of the screws (I) are flush with the face
of the nut (H).
I
H
1
F
E
1
HI
G
3
A
H
I
K
4
5
F
E
D
F
3
3
K
E
D
F
4
E
5
2
A
B
C
2
2

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)

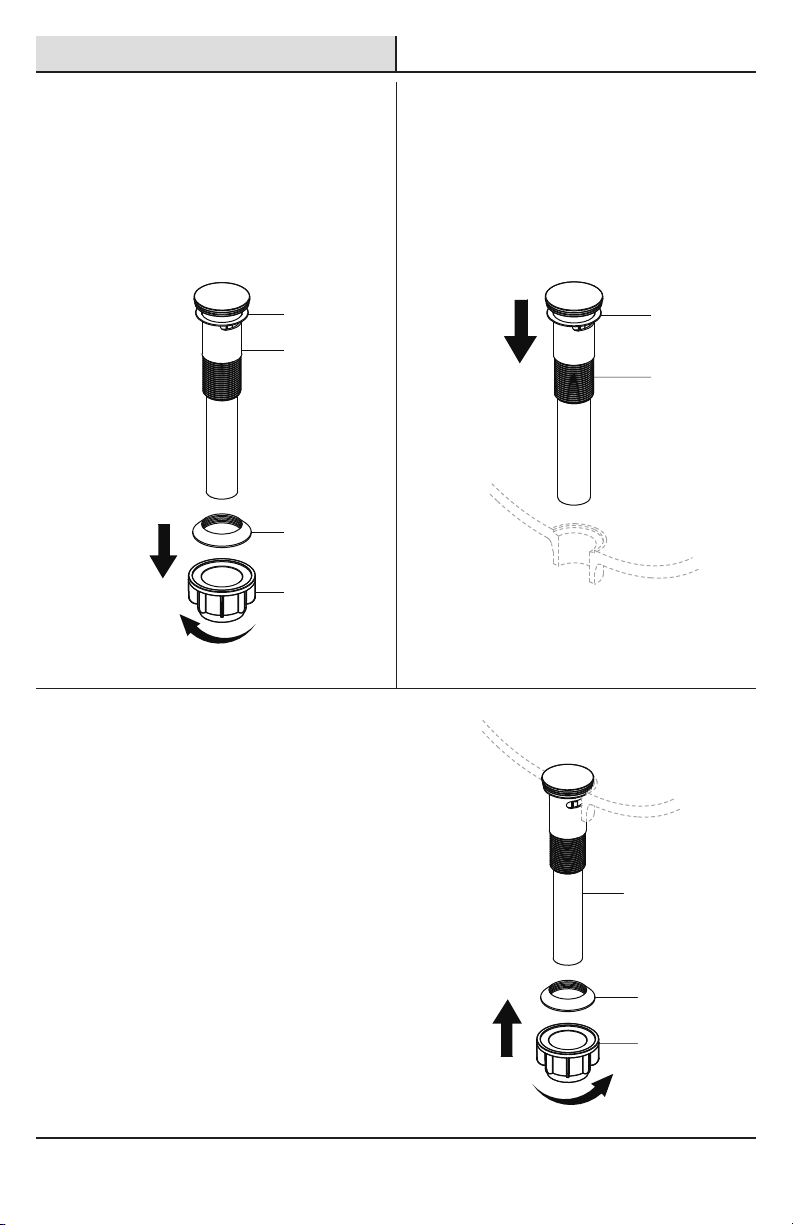

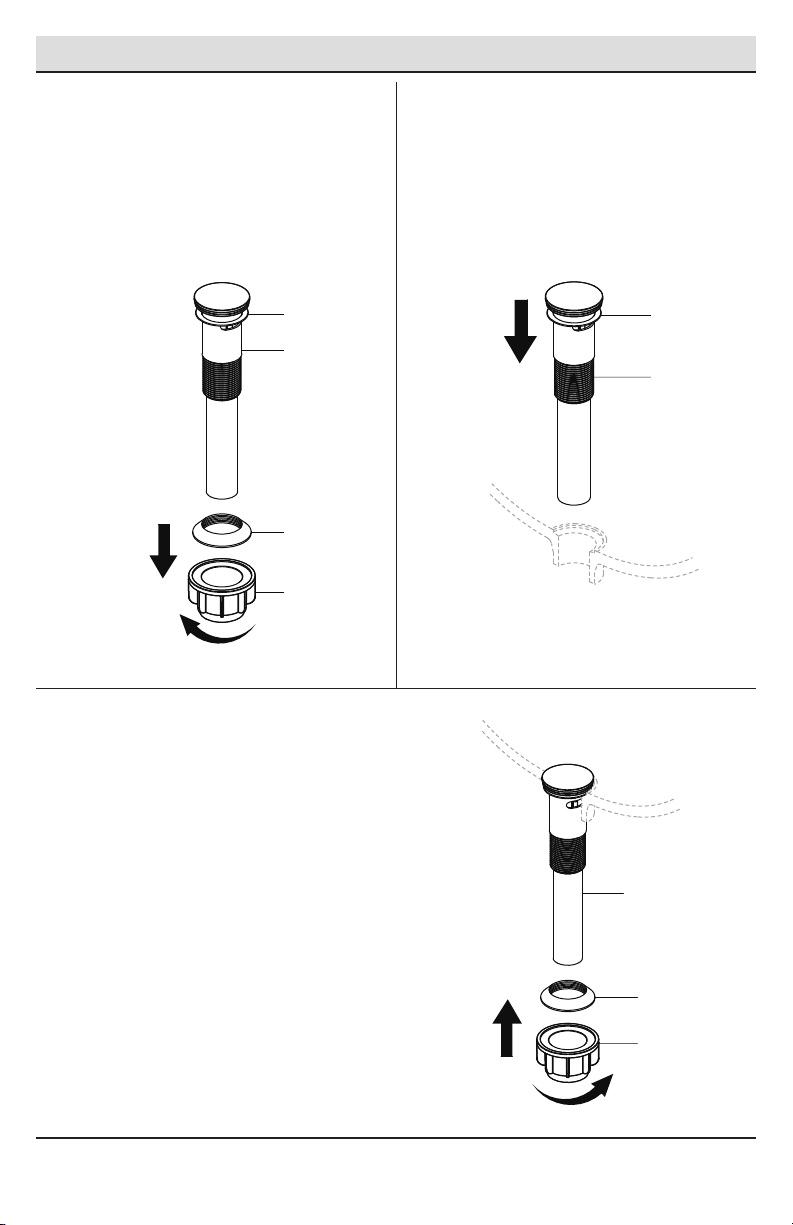

3 Preparing the pop-up assembly
□Remove the bottom gasket (N) and nut (O) from
the top gasket (L) and pop-up body (M).
□Attach these pieces together by pushing the
bottom gasket (N) down into the top of the
nut (O) and twisting together.
4 Installing the pop-up body
□Insert the pop-up body (M) into the sink. Ensure
that the top gasket (L) rests securely between
the top of the sink and the top of the pop-up
body (M).
5 Securing the pop-up body
□From underneath the sink, screw the bottom
gasket (N) and nut (O) assembly onto the pop-up
body (M) by twisting clockwise until secure.
L
M
L
M
N
O
M
N
O

6
Installation (continued)
7Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube fitting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
6Attaching the quick connect
hose
□Attach the quick connect hose (J) connections
to the hot faucet handle (B) connection, faucet
body (A) connection, and cold faucet handle (C)
connection. Push until the connections snap
together.
□Pull down moderately to ensure the connections
have been made.
2
1
C
J
A
B
3
3
12

7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

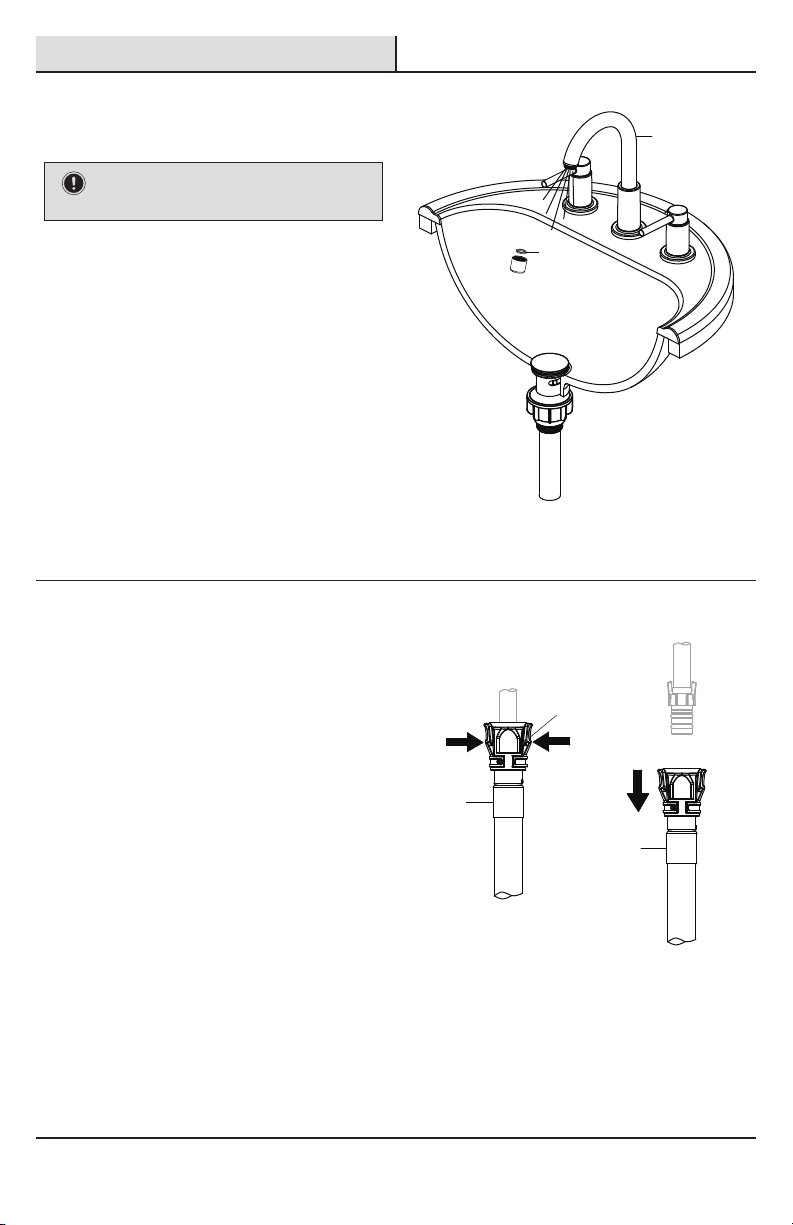

2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
Pull
down
Squeeze
Operation
1Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator from the faucet (A) to flush the water lines. Do not
lose the gasket (1) in the aerator.
□Ensure the faucet (A) handles are in the off
position and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold handles to allow the
water to run for at least one minute. This
flushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
2
1
1
1
A

8
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water flow.
□Remove the aerator and
check for debris.
□Ensure that the rubber washer
is properly installed.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
The aerator is dirty or mis-fitted.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or irregular surface. □Apply additional silicone sealant
to the beveled side of the drain
flange.
□Retighten and test for leaks.

9

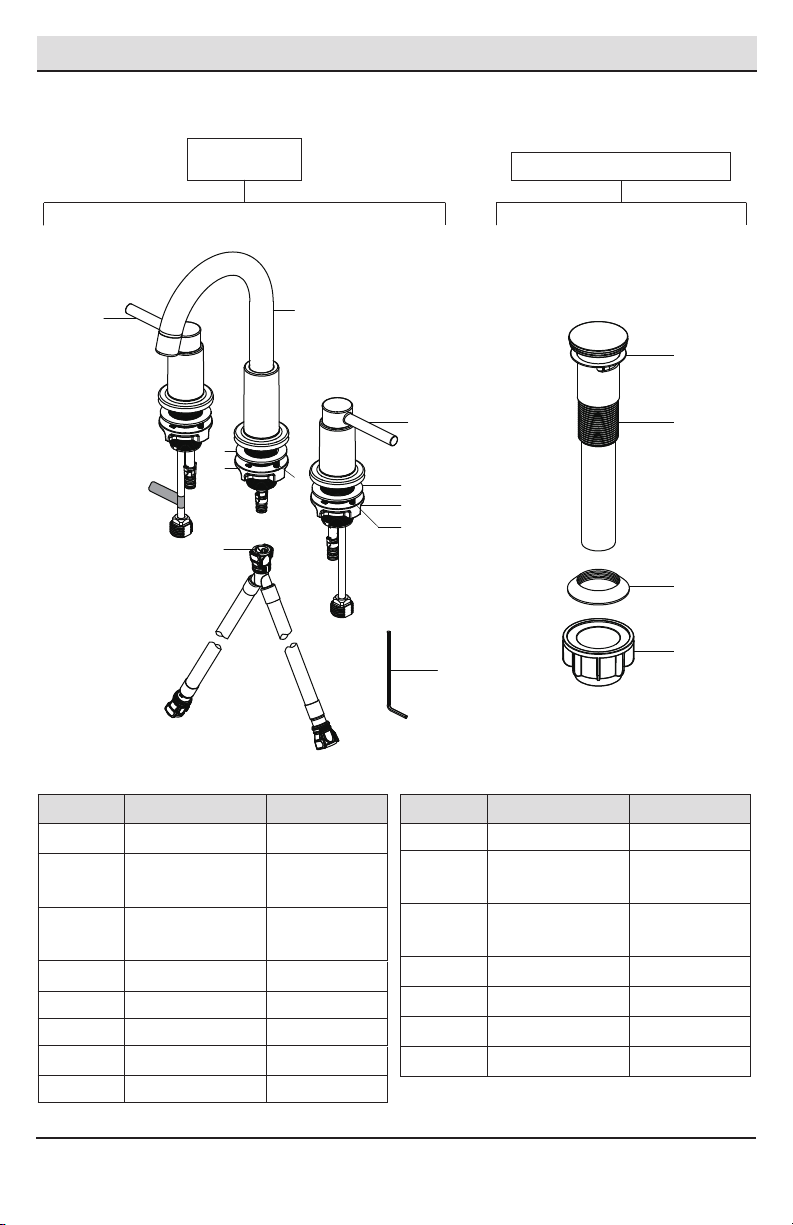

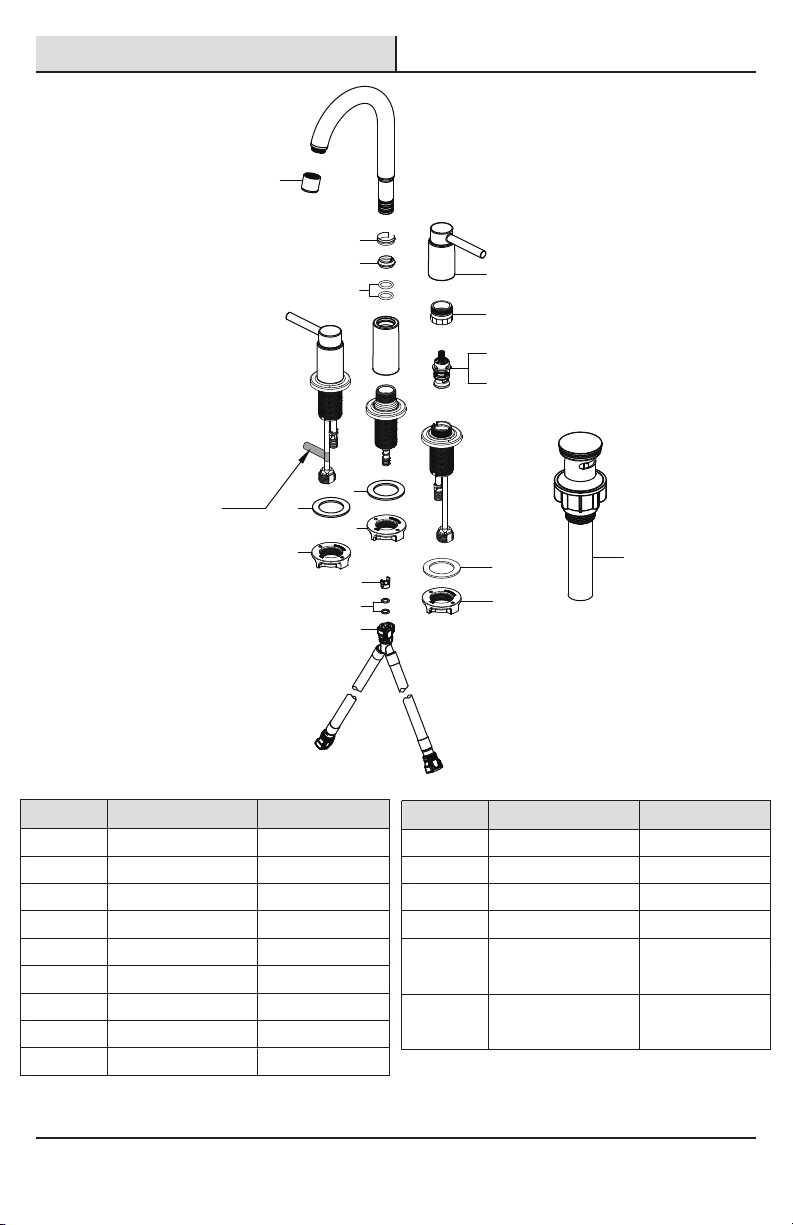

Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
Part Description Part Number
1
2 Bonnet nut
3
5
Cartridge H
6
7
8
Nut & Screw
4
Aerator
Cartridge C
Handle assembly
11
O-ring
Part Description Part Number
10
Wearable ring
14
Washer
12
13
Nut & Screw
Block
O-ring
15
Quick connect hose
Press pop-up
assembly
15
1
2
3
4
5
6
7
8
9
10
5
12
13
14
11
5
6
9Clip
RP13726*
RP70742
RP20079
RP20080
RP64147
RP56137
RP30298*
RP70077
RP70023
RP60008
RP56140
RP70421
RP60002
RP70430
RP40269*

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
