Assembly & Installation Instructions
Model
LT2036WWHD
All-in-one laundry sink and cabinet
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the
purchase of this laundry sink and cabinet. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Glacier Bay!

Pg 2 of 34 www.HOMEDEPOT.com IS2038
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
Cleaning Note:
Cleaning with a dry cloth may be sufficient, but for other stains or marks wipe
gently with a damp cloth.
DO NOT use strong detergents or abrasive cleaners, they may damage the
surface of this product.
Tools Needed
MOUNTING INSTRUCTIONS:
It is imperative that unit be fastened to
the wall for safety reasons.
(Mounting hardware NOT included)
Plumbers
Putty

Pg 3 of 34 www.HOMEDEPOT.com IS2038

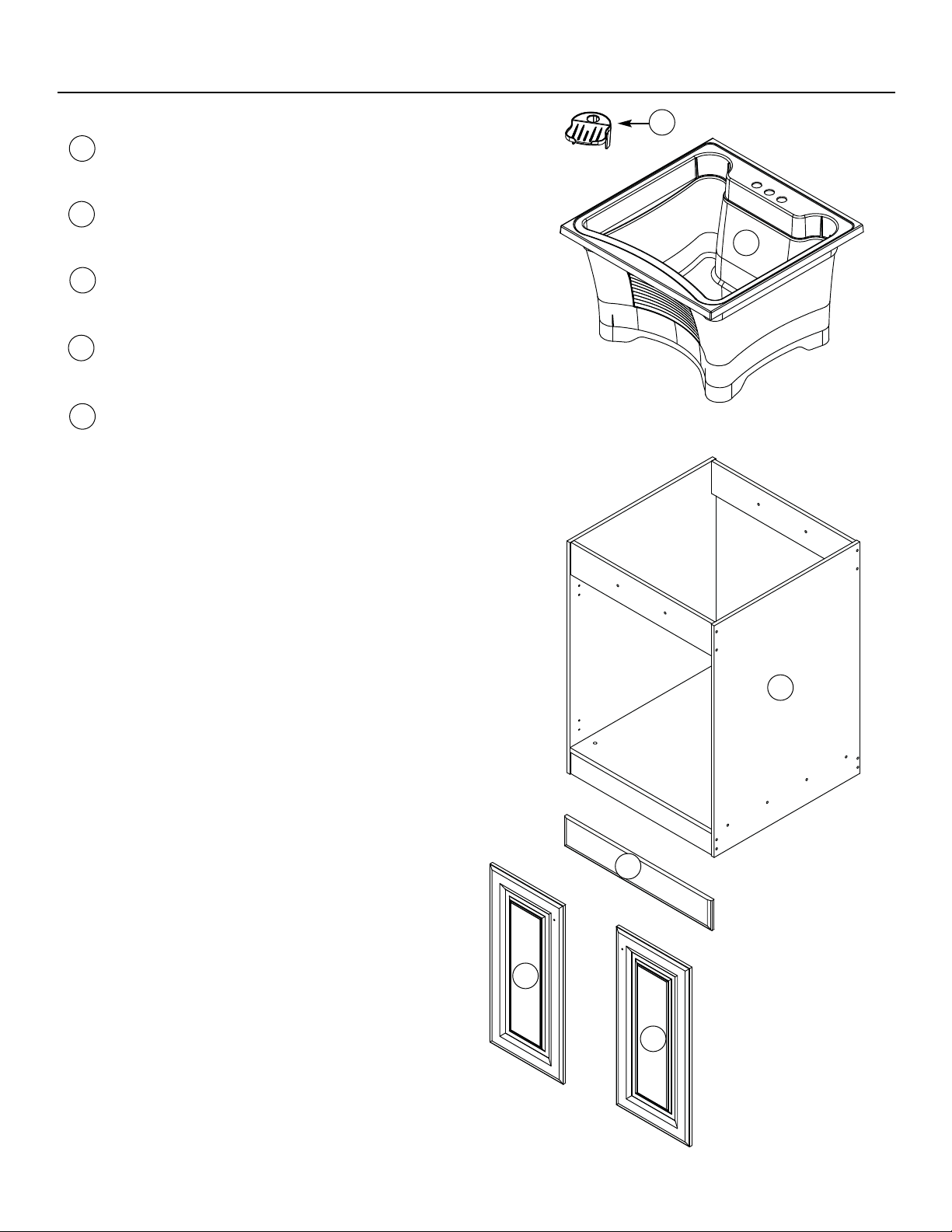

List of Parts
ASink Basin 1
BCabinet Body 1
CDoor 2
DTop Trim 1
EHose Guard with Soap Dish 1
A
B
C
D
C
E

Pg 4 of 34 www.HOMEDEPOT.com IS2038

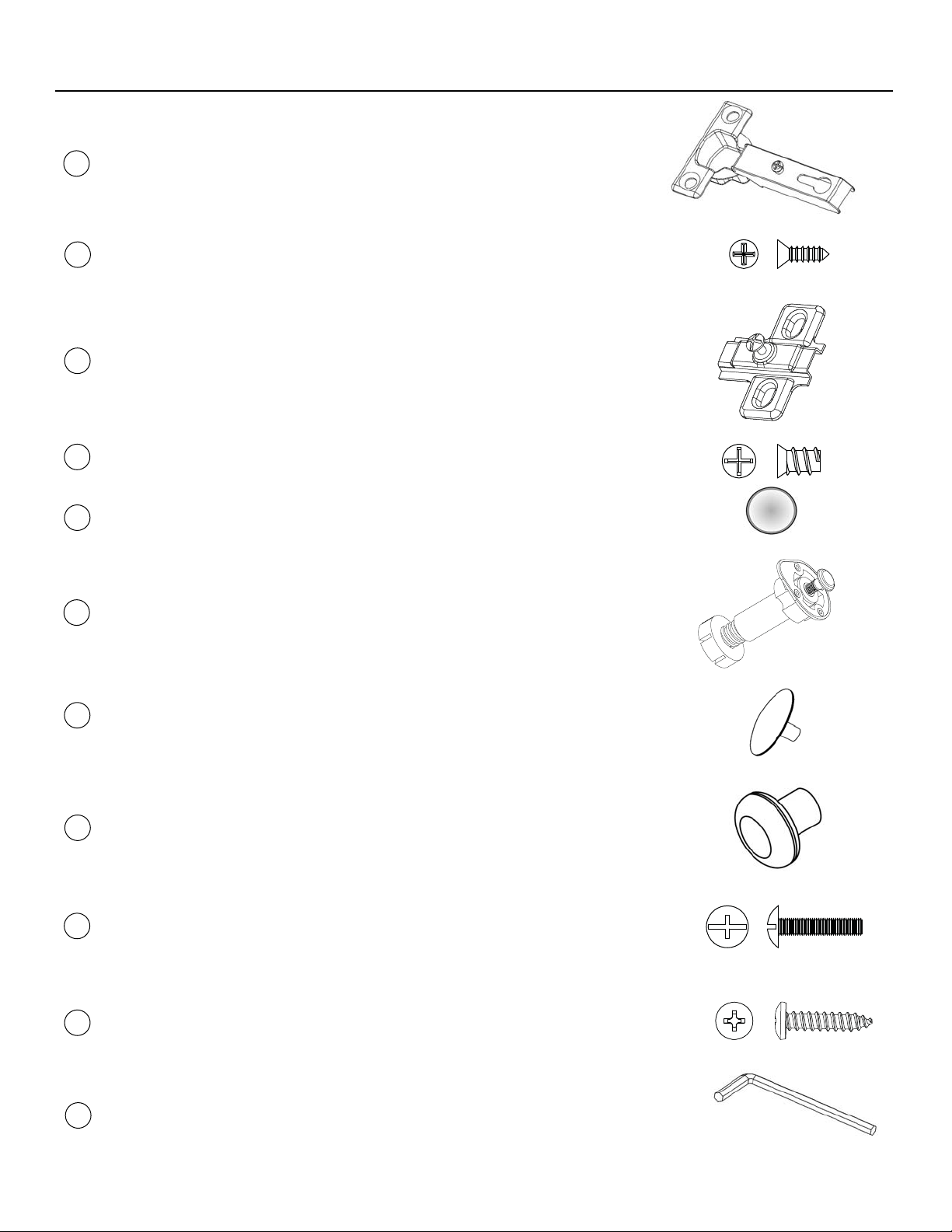

List of Hardware
Hinge
Mounting Plate
Hinge Screw
1
2
5
4
x 4
x 8
x 8
Door Bumper
3x 4
Mounting Plate Screw
x 4
6Adjustable Foot Assembly
(Foot, Bolt and Bolt Cap) x 4
9
Screw Cap
7x 24
Door Knob
8x 2
Door Knob Screw x 2
10 Trim Screw x 2
11 Allen Wrench x 1

Pg 5 of 34 www.HOMEDEPOT.com IS2038
List of Hardware continued
Lock Nut
14
x 1
Faucet Body
16
x 1
Basket Strainer with T-Washer and Nut
20 x 1
Plumbing Kit
Garden Hose Adapter with Washer
21 x 1
x 2
x 2
19
18
17 Supply Line
Tail piece with Tapered Washer and
Nut
P-Trap (consists of Trap Arm,
J-Bend and Nut) x 1
Hose Weight with Nut
22 x 1
13 Faucet Hose x 1
12 Faucet Head x 1
Connecting Pipe with Washer
15 x 1

Pg 6 of 34 www.HOMEDEPOT.com IS2038
1. Basket Strainer installation
Unscrew nut (20-F) and remove T-washer (20-E) from strainer body (20-A). NOTE: T-washer and nut will be used in step 9.
Disassemble strainer body (20-A), by unscrewing the large locknut (20-D) and removing the paper washer (20-C) and the
rubber washer (20-B).
Apply a sufficient amount of plumbers putty (not included) between the strainer and sink basin (A). Insert strainer body (20-A)
through the drain hole in the sink basin (A). Holding strainer body firmly in place, position rubber washer (20-B) then the paper
washer (20-C) onto the strainer body under the sink basin (A).
Screw lock nut (20-D) onto the threaded shank of the strainer body (20-A) and tighten, DO NOT OVERTIGHTEN!
Remove any excess plumbers putty from strainer body (20-A) and sink basin (A).
plumbers putty (not included)
20-A
A
20-B
20-C
20-D
Unscrew nut.
T-washer and nut will be
used in step 9.
20-E
20-F

Pg 7 of 34 www.HOMEDEPOT.com IS2038

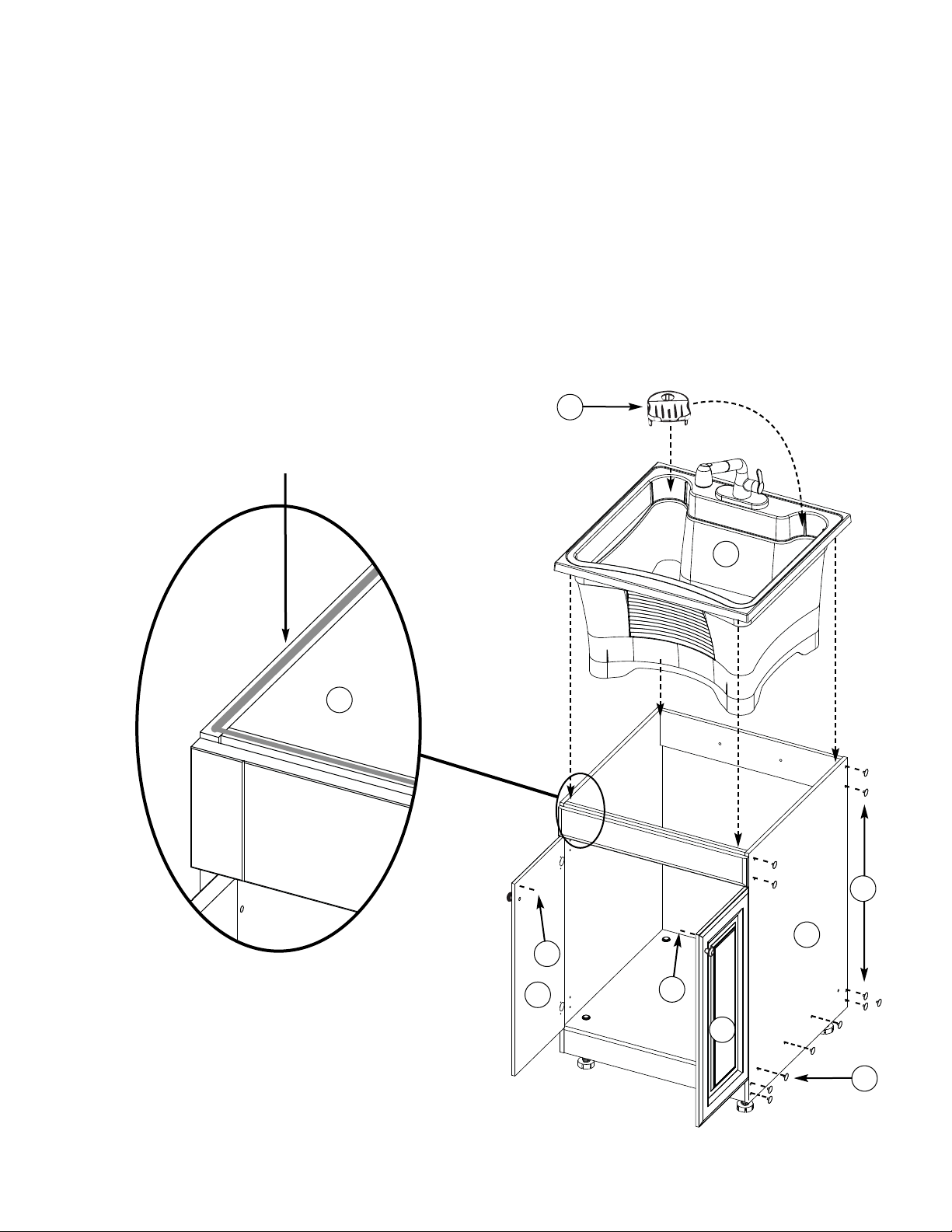

2. Cabinet assembly
Attach top trim piece (D) to cabinet body (B) with trim screws (10). NOTE: Finished edges of cabinet body (B) face away
from wall.
Carefully lay the the cabinet body (B) on it’s back (unfinished edge side down) and attach the adjustable feet (6) to cabinet
body (B), using allen wrench (11).
Attach the bolt caps (6-B) to the large bolts (6-A), as shown.
B
6
6
D
6-A
6-B
Unfinished Edge
10

Pg 8 of 34 www.HOMEDEPOT.com IS2038
3. Hinge and door installation
NOTE: Do Not Use Power Drill for Hinge and Mounting Plate installation.
Fig. 1: Fasten hinges (1) to doors (C) with hinge screws (2). DO NOT OVERTIGHTEN.
Fig. 2: Fasten mounting plates (3) to cabinet body (B) with mounting plate screws (4). NOTE: The long side of mounting
plates (3) point to the front of the unit. DO NOT OVERTIGHTEN.
Fig. 3:
F asten hinges (1) to mounting plates (3). NOTE: hinges must be adjusted after installation. Refer to step 4, page 10.
Fig. 4: Fasten knob (8) to the doors (C) with door knob screws (9).
Fig. 2
Fig. 3
Fig. 1
3
1
C
1
2
B
3
4
Fig. 4
8
9
C

Pg 9 of 34 www.HOMEDEPOT.com IS2038

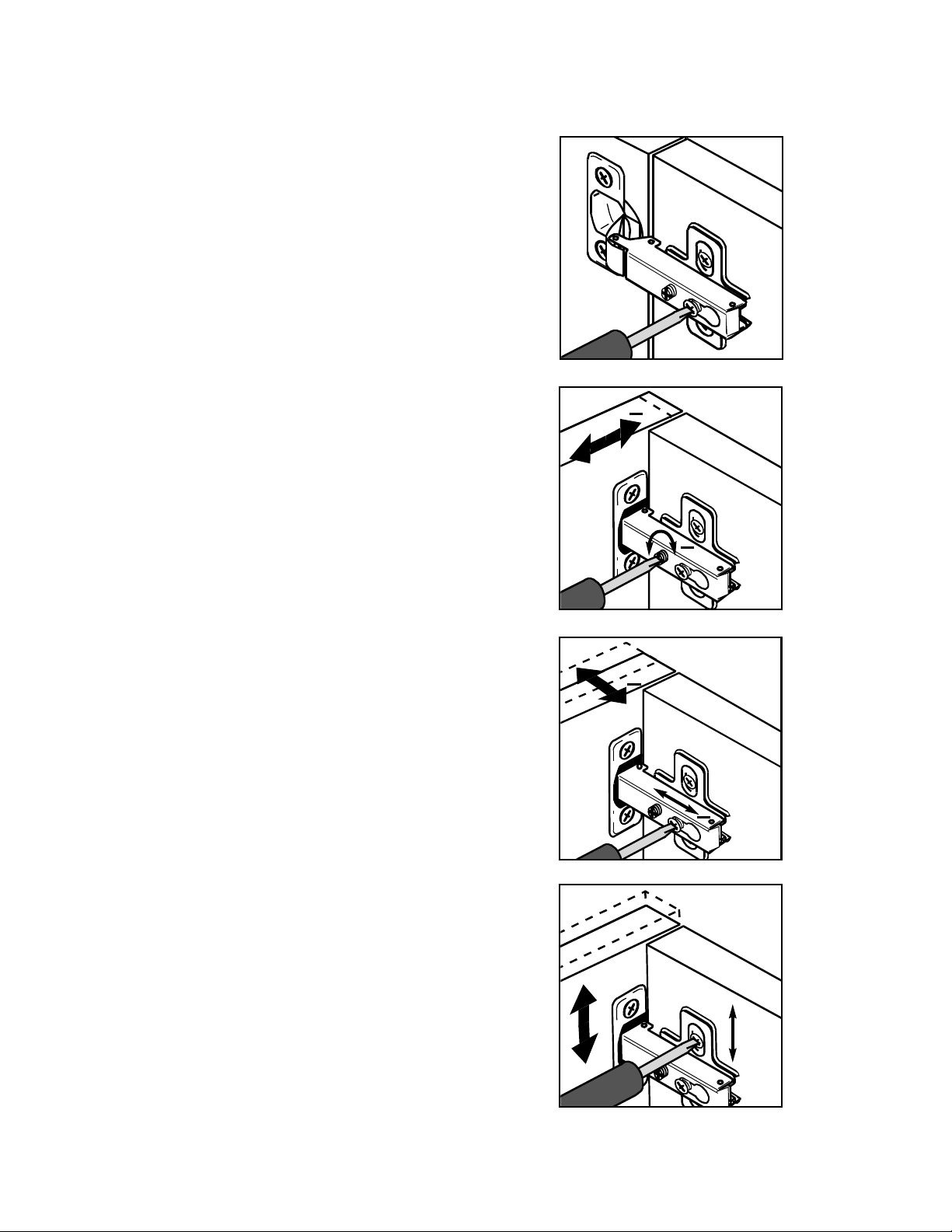

4. Hinge adjustment
Loosen the hinge keyhole screw that secures the
hinge to the mounting plate.
Lateral Adjustment Screw: Allows for adjusting the door
2.5mm left or right.
Horizontal Adjustment Screw: Allows for adjusting the
door forward or backward.
Vertical Adjustment: Allows for adjusting the door up
or down.
+
+
+
+
+
+

Pg 10 of 34 www.HOMEDEPOT.com IS2038

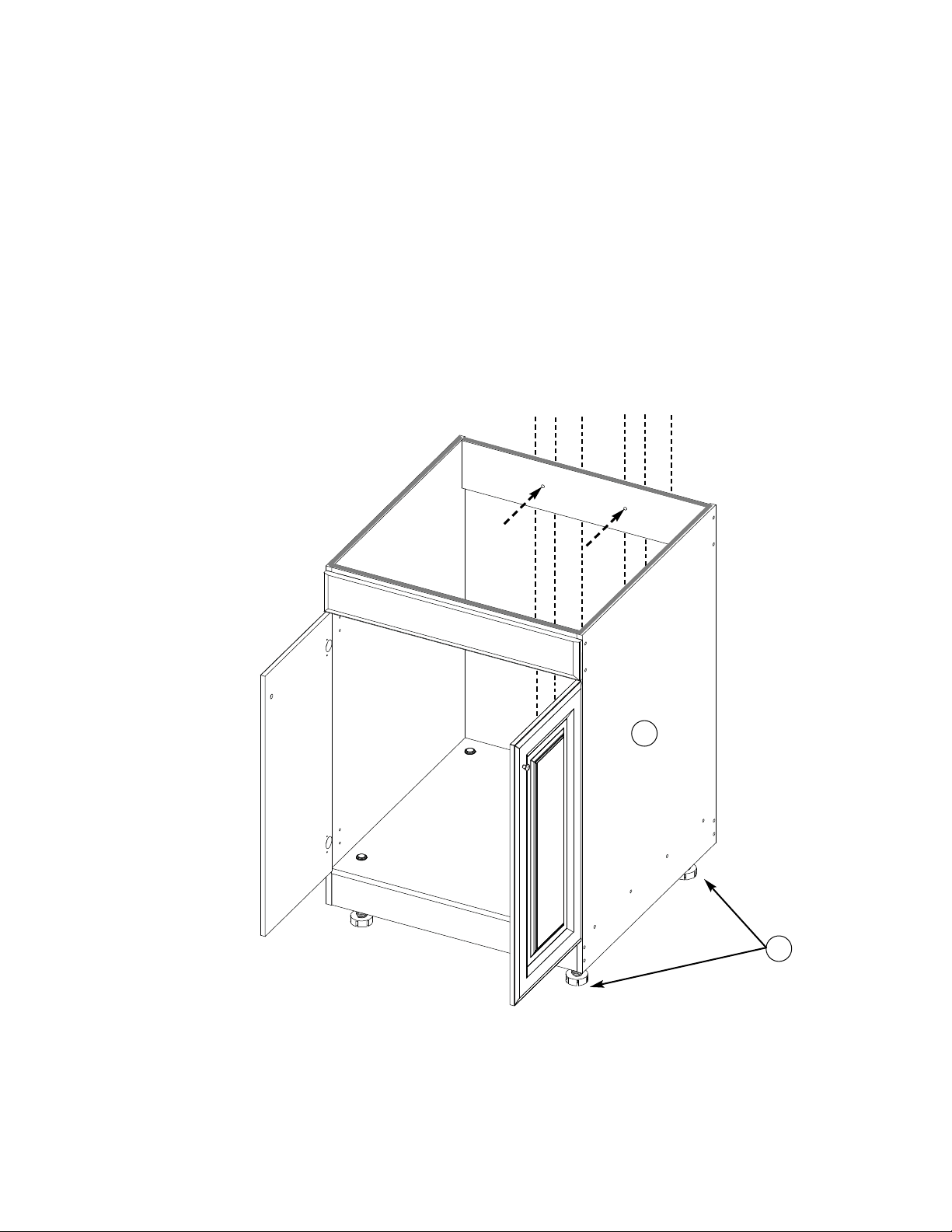

5. Cabinet installation
NOTE: IT IS IMPERATIVE THAT UNIT BE FASTENED TO THE WALL FOR SAFETY REASONS (MOUNTING HARDWARE NOT INCLUDED).
Warning: Before cutting, drilling or hammering into any wall surface, verify the location of electrical, plumbing and gas lines.
Cutting any of these may cause serious injury. NOTE: We recommend mounting the cabinet directly into studs.
Place the cabinet body (B) in the desired position and place the sink basin (A) into cabinet body (B). NOTE: This is a snug
fit and the sink basin (A) may need to be worked into place. Press down on all four corners, making sure the sink basin (A)
is completely seated onto the cabinet body (B).
With the cabinet body (B) in the desired position, make sure the cabinet body (B) is level by adjusting feet (6).
After carefully removing the sink basin (A), insert wood shims (not included) between wall and cabinet body (B) until snug.
Attach cabinet body (B) to wall using appropriate mounting hardware (not included).
B
6

Pg 11 of 34 www.HOMEDEPOT.com IS2038

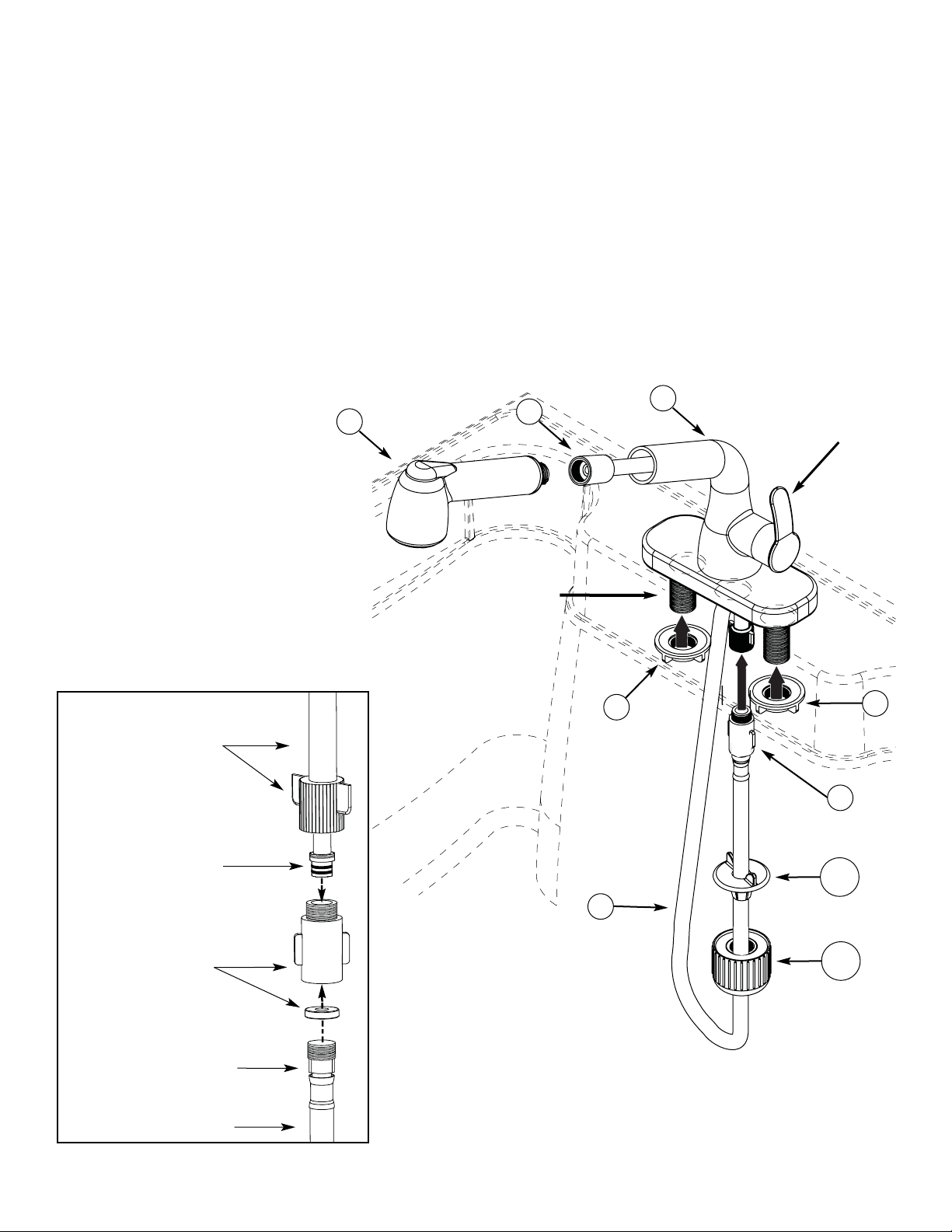

6. Faucet installation
nut on underside of
faucet body (14)
connecting pipe with
washer (15)
faucet hose (13)
two o-rings
NOTE: Confirm that connecting pipe is tight to
the faucet AND hose.
faucet shank
22-A
NOTE: Faucet body (14) must be installed with the faucet handle on the right.
Install faucet body (14) and secure in place with locknuts (16). NOTE: Hand tighten locknuts (16).
Pass the faucet hose (13) through faucet body (14-A) and adjust the position of the faucet so that faucet hose (13) does
not rub against the edge of the sink hole.
Slide hose through hose weight (22-A) and nut (22-B) onto hose
assembly, as shown.
Attach the faucet hose (13) onto the connecting pipe with washer (15) by turning connecting pipe with washer (15).
IMPORTANT: Be sure to hold plastic fitting of the faucet hose with a wrench while turning connecting pipe (15).
Attach faucet hose (13) to the faucet head (12). Tighten securely, DO NOT OVERTIGHTEN.
Attach the connecting pipe with washer (15) to the underside of the faucet body (14), by turning nut. Tighten securely while
keeping connecting pipe with washer (15) from turning and loosening. DO NOT OVERTIGHTEN.
22-B
faucet handle
on the right
12 13
13
16
14
16
15
wrench fitting location

Pg 12 of 34 www.HOMEDEPOT.com IS2038
7. Supply lines installation
faucet shank
Connect the water supply lines (17) onto faucet shanks and tighten with wrench. DO NOT OVERTIGHTEN.
17
17
14

Pg 13 of 34 www.HOMEDEPOT.com IS2038
8. Tub installation
Place a bead of silicone caulk/sealant (not included) around the top edge of the cabinet body (B), as shown.
Carefully set sink basin (A) into cabinet body (B). NOTE: This is a snug fit and the sink basin (A) may need to be worked into
place. Press down on all four corners, making sure the sink basin (A) is completely seated onto the cabinet body (B).
Insert screw caps (7) into exposed screw heads on the cabinet body (B).
Place bumpers (5) on doors (C) where they come in contact with the cabinet body (B).
Place hose guard with soap dish (E) into either side of the sink basin (A).
silicone caulk/sealant
(not included)
7
7
B
B
A
E
5
5
C
C

Pg 14 of 34 www.HOMEDEPOT.com IS2038
9. Plumbing installation
NOTE: Keep connections loose until all
drain components are aligned, then
tighten securely by hand.
NOTE: Plumbing should be done by a qualified plumber and in accordance with National
and Local Plumbing Codes.
NOTE: Tapered side down
A
19-A
18-A
19-C 19-B
20-E
Preparation: Slip nut (19-C) onto trap-arm (19-A). Position two nuts (18-B and 20-F) and tapered washer (18-C) onto
tailpiece (18-A). Slip tailpiece (18-A) into J-bend (19-B). Slip tapered washer (18-C) down tailpiece (18-A) and fasten using nut (18-B).
Insert trap-arm (19-A) into J-bend (19-B) and hand tighten all nuts. Holding plumbing assembly in the desired position, measure
trap-arm (19-A) and tailpiece (18-A), to required length. Remove trap-arm (19-A) and tailpiece (18-A) and cut with a
hacksaw. NOTE: Cut untapered end of tailpiece (18-B) and trap-arm (18-A). NOTE: Be sure to remove burrs with a file or
sandpaper.
Installing new plumbing: Loosely connect trap-arm (19-A) and tailpiece (18-A) to J-bend (19-B). Fasten trap-arm (19-A)
to existing waste drain and tighten using existing hardware. Using T-washer (20-E) from strainer kit (20), place it on top of tail-
piece (18-A). Fasten tailpiece (18-A) to tub (A) using nut (20-F). NOTE: DO NOT OVERTIGHTEN.
18-C
18-B
20-F

Pg 15 of 34 www.HOMEDEPOT.com IS2038
10. Supply lines to outlet shut off valve installation
Fig. 1: Connect the water supply lines (17) onto the shut off valves and tighten with wrench. DO NOT OVERTIGHTEN.
NOTE: Connect supply lines to shut off valve in full compliance with local code requirements.
NOTE: Turn on water supply and check for leaks on all supply and drain connections. Re-tighten connections as needed.
Fig. 2: Flush lines and check for leaks.
• Pull faucet head (12) out of the faucet spout and unscrew fitting. Holding the end of the faucet hose (13) down into sink,
turn faucet to warm water postion and full water flow, then repeat with cold water position.
• Re-attach faucet head (12) and washer to hose fitting. DO NOT OVERTIGHTEN.
• Check all faucet and drain connections. Re-tighten as needed. DO NOT OVERTIGHTEN.
outlet
shut off valves
17
17
Fig: 2
remove faucet head to flush away debris
Fig: 1
faucet hose (13)
faucet head (12)
NOTE: The notch on the faucet
head ring is at the bottom.

Pg 16 of 34 www.HOMEDEPOT.com IS2038
TROUBLESHOOTING
Leaks:
Be sure both hot and cold water supply lines are closed at the outlet shut off valves.
• Check all plumbing and faucet connections to locate source of leak. See page 14 for plumbing connections and page 11
for faucet connections. If source of leak cannot be located, check these items:
• Confirm that connector pipe, quick connector fitting and faucet stem are properly aligned and tightened, see page 11.
If necessary, loosen the connector pipe completely and re-tighten.
• Inspect pull-out hose and hose connectors for leaks.
• Confirm appropriate location for the weight on the pull-out hose. The weight should be located on the hose so that the
hose can be pulled out and recoiled back under the tub freely without kinking, catching anything underneath the tub, or
rubbing the edge of the center faucet hole, causing unnecessary wear to the hose.
• Confirm that all other connection fittings are properly threaded together and re-tighten if needed.
No Water Flow or Restricted Water Flow:
Be sure both hot and cold water supply lines are closed at the outlet shut off valves.
• Confirm proper connecting pipe installation, see page 11.
• Pull faucet head out of the faucet spout and unscrew fitting. Holding the end of the hose down into sink, turn faucet to
warm water postion to max, then repeat with cold water position.
• Remove the aerator head, by loosening with a wrench and then turn with your fingers.
• Remove any debris. Reinstall spring and re-tighten aerator head. Do not overtighten.
• Loosen each faucet and pull-out hose connection one at a time and inspect. Remove any debris and re-tighten.
See page 15.

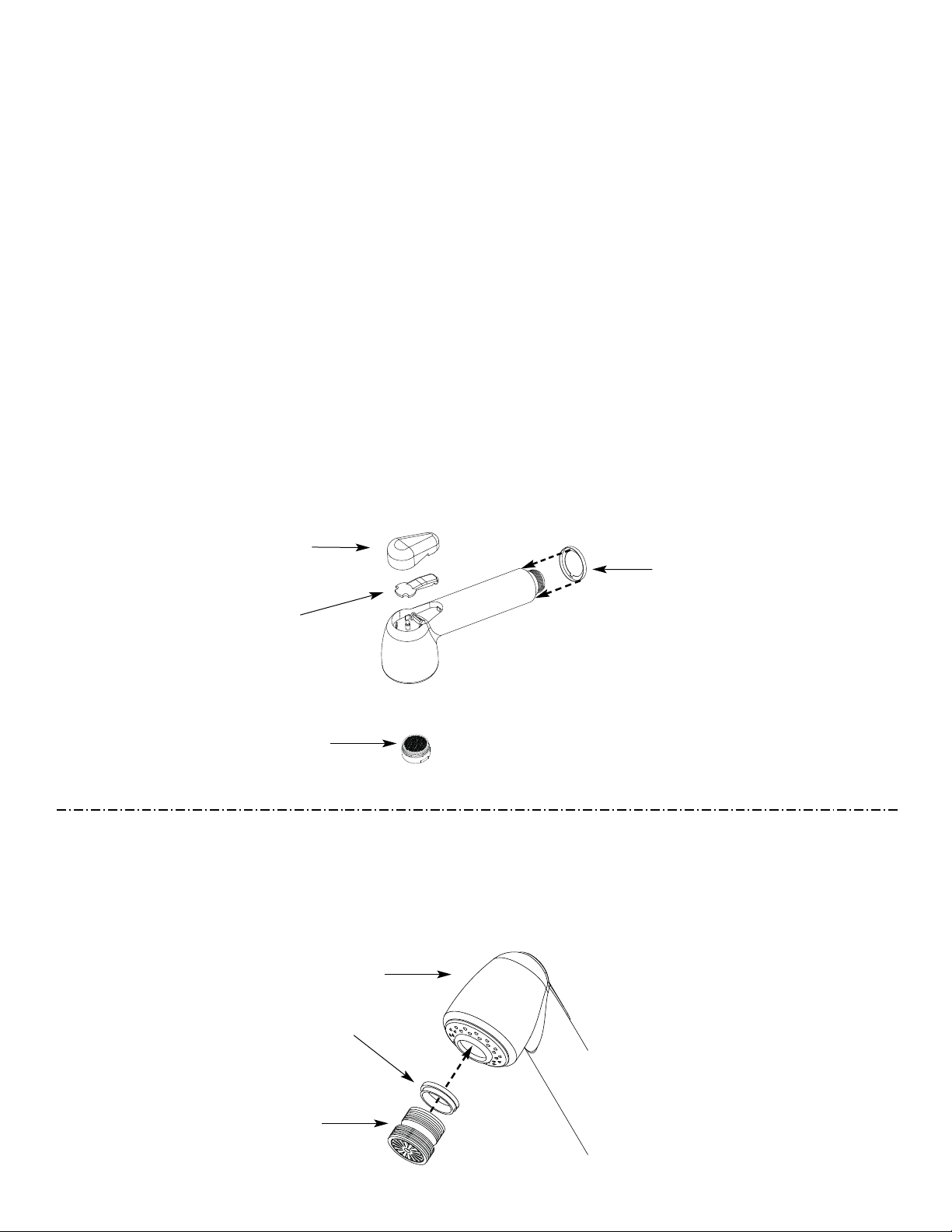

Faucet Head (12) assembly
Garden Hose Adapter (21)
OPTIONAL: Garden hose adapter installation
• Remove the faucet cartridge and attach the garden hose adapter (21) as shown below. NOTE: Use of garden hose
adapter may require installation of a vacum breaker (not included) for backflow prevention. Check with your
local building department to confirm local code requirements.
aerator head
sprayer button
button cover
garden hose adapter (21)
rubber washer
faucet head (12)
faucet head ring

Pg 17 of 34 www.HOMEDEPOT.com IS2038
Tub & Cabinet Warranty
Limited Lifetime Warranty
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by
our limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD Glacier
(1-855-434-5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original
consumer purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear
and tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby,
extended a five year limited warranty from the date of purchase, with all other terms of this warranty applying
except the duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitations may not apply to you. This warranty gives you specific legal rights and you may
also have other rights that vary from state to state and province to province. Please see a store or contact
1-855-HDGlacier for more details.
Plumbing Warranty
Limited One Year Warranty
The manufacturer warrants to the original purchaser that this product will be free from defects in materials or
workmanship for a period of one year from the date of original purchase. This warranty only covers the proper
and intended use of this product. In the event of and bona fide warranty claim relating to this product, the
manufacturer will, at its election and sole discretion, provide a replacement product or a substantially similar
product. This replacement is the sole and exclusive remedy with respect to any warranty claim relating to this
product. Under no circumstances will the manufacturer’s liability exceed the purchase price of this product.
All costs of removing and reinstalling the product are the purchaser’s responsibility. Any alteration of this product or
use of this product in any manner other than its intended use is not covered by this warranty. The manufacturer
assumes no responsibility whatsoever for product installation during the limited one year warranty.
The manufacturer disclaims any and all warranties. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specified in the expressed warranty. The manufacturer shall not be
liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance, except as may otherwise be accorded by law. This warranty gives specific rights, and you may
have other rights which vary from state to state.
The manufacturer shall not be liable for any special, incidental, and/or consequentail damages.
To obtain warranty service, call our customer service department at [phone] for return authorization and
shipping instructions so that we may repair or replace the product. No warranty claim will be processed without
a copy of the receipt as proof of purchase.
Model #
LT2036WWHD

Pg 18 of 34 www.HOMEDEPOT.com IS2038
Instrucciones de ensamble e instalación
Modelo
LT2036WWHD
Fregadero para lavado de ropas y gabinete
todo en uno
¡GRACIAS!
Agradecemos la confianza que ha depositado en Glacier Bay a través de la adquisición
de este fregadero para lavado de ropas y gabinete. Nos esforzamos constantemente
en crear productos de calidad diseñados para embellecer su hogar. Visítenos en línea
y vea nuestra línea completa de productos para realizar mejoras en su hogar.
¡Gracias por elegir Glacier Bay!

Pg 19 of 34 www.HOMEDEPOT.com IS2038
¿Tiene preguntas, problemas, le faltan piezas?
Antes de regresar a la tienda, llame al Servicio al Cliente de
Glacier Bay, de 8 a.m. - 7 p.m., Hora Estándar del Este, de
lunes a viernes, de 9 a.m. - 6 p.m., Hora Estándar del Este,
sábado 1-855-HD-GLACIER
Nota para limpieza:
Puede ser suficiente limpiar con un paño seco, pero para otras manchas o marcas,
limpie suavemente con un paño humedecido.
NO USE detergentes fuertes o limpiadores abrasivos; pueden dañar la superficie de
este producto.
Herramientas necesarias
INSTRUCCIONES DE MONTAJE:
POR RAZONES DE SEGURIDAD, ES FUNDAMENTAL QUE ESTA
UNIDAD SEA MONTADA A LA PARED.
(NO SE INCLUYE LA TORNILLERÍA DE MONTAJE)
Plumbers
Putty

Pg 20 of 34 www.HOMEDEPOT.com IS2038
Lista de piezas
AFregadero 1
BCuerpo del gabinete 1
CPuerta 2
DTerminación superior 1
EProtección de manguera con
jabonera 1
A
B
C
D
C
E
