Glacier bay HD67596W-7001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
SINGLE-HANDLE LAVATORY FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
11/2018 REV.01HOMEDEPOT.COM
Model#
HD67596W-7001
HD67596W-7004
HD67596W-7027D
Internet#
306838694
306838841
306838833
SKU#
1003620774
1003620773
1003620771

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................7
Troubleshooting........................................7
Service Parts ........................................... 8
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2
Operation...................................................6
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.
Channel
lock pliers

3
Pre-Installation (continued)

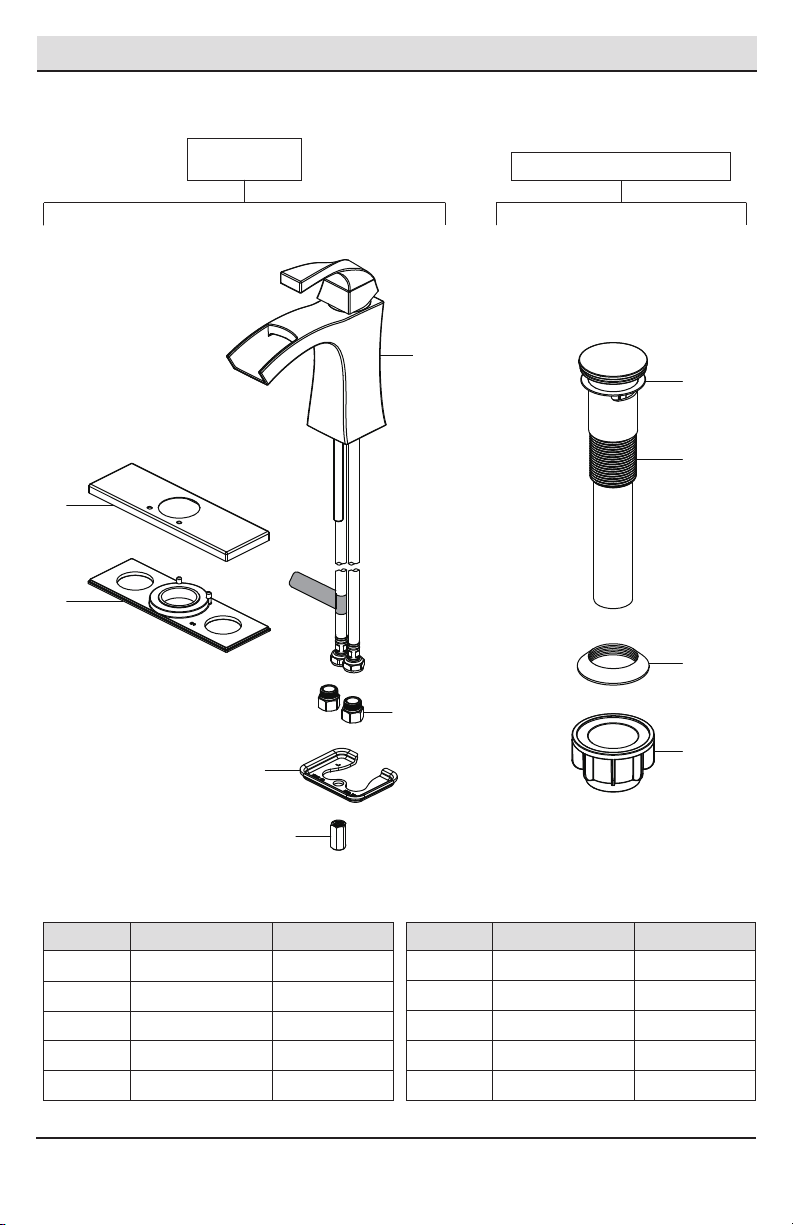

PACKAGE CONTENTS
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Faucet Assembly Press Pop-Up Assembly
Part Description Quantity
A 1Faucet
B 1Washer
C 1Lock nut
F 2Connector
D 1Deck plate
E 1Gasket
Part Description Quantity
G 1Top gasket
H 1Pop-up body
I 1Bottom gasket
J 1Nut
G
H
I
J
A
B
C
D
E
F

Installation
4

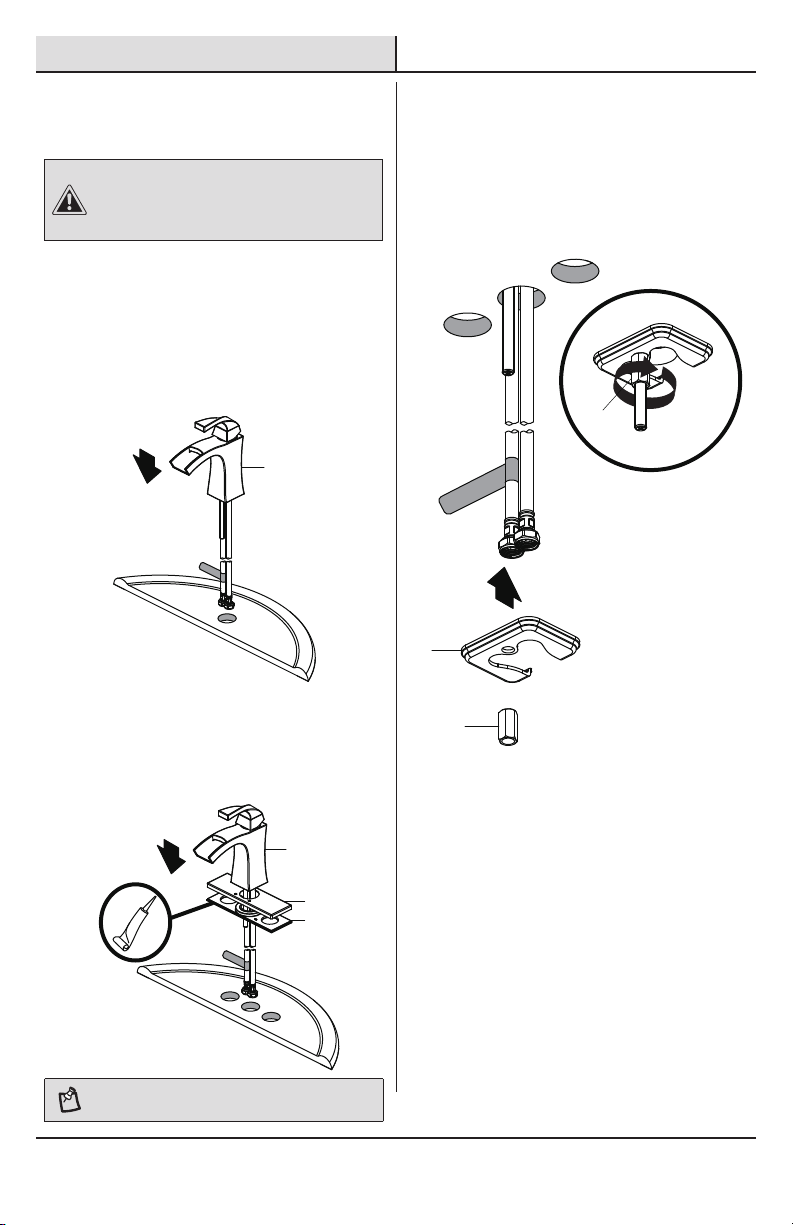

1 Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
2 Securing the faucet
□Secure the faucet (A) to the sink using the
washer (B) and lock nut (C) provided.
□WITH DECK PLATE: Align the hole in the gasket
(E) and deck plate (D) with the mounting hole in
the sink. Place the faucet (A) through the deck
plate (D) and mounting hole in the sink until
the faucet (A) sets on top of deck plate (D).
□Clean the mounting surface.
□Remove the preassembled lock nut (C) and
washer (B) from the new faucet (A).
□WITH FLANGE: Place the faucet (A) through the
mounting holes in the sink until the faucet (A)
sets on top of the sink.
A
NOTE: A silicone is required under the gasket (E).
A
E
D
SILICONE
1
C
B
C
2

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
5
Installation (continued)

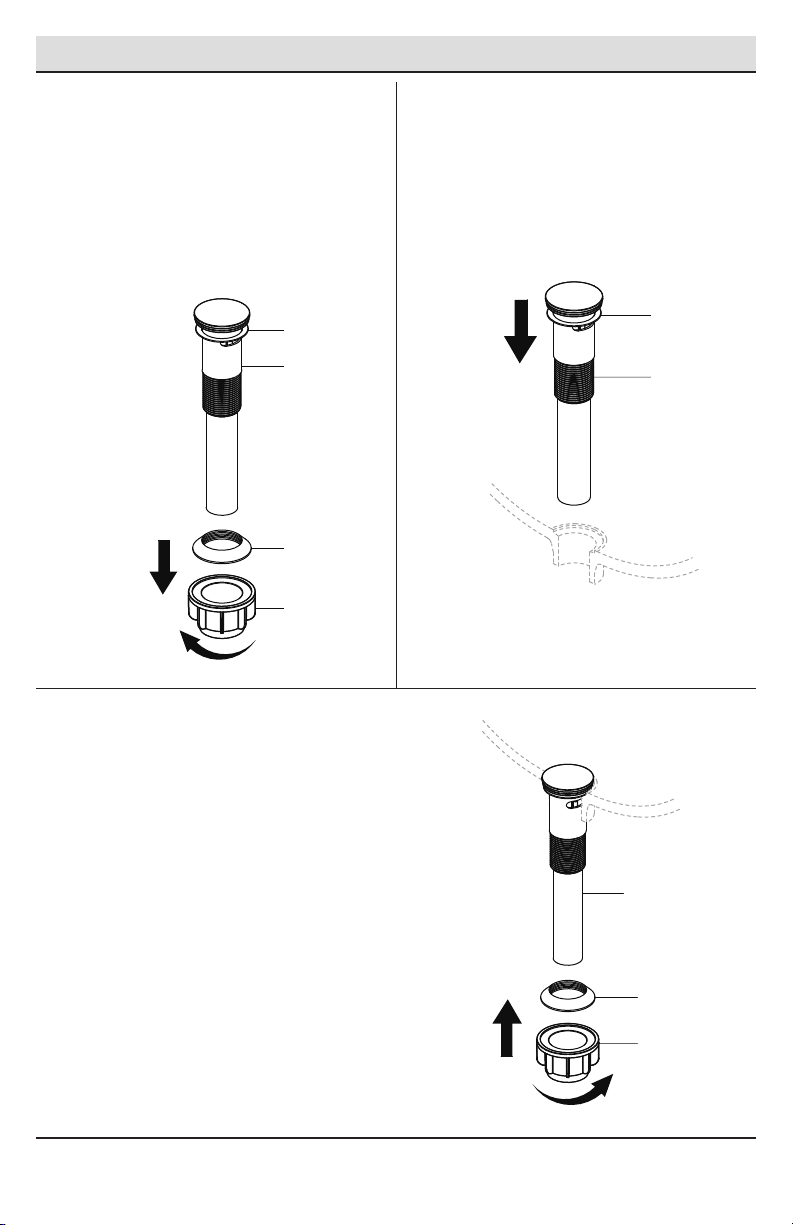

3 Preparing the pop-up assembly
□Remove the bottom gasket (I) and nut (J) from
the top gasket (G) and pop-up body (H).
□Attach these pieces together by pushing the
bottom gasket (I) down into the top of the
nut (J) and twisting together.
4 Installing the pop-up body
□Insert the pop-up body (H) into the sink. Ensure
that the top gasket (G) rests securely between
the top of the sink and the top of the pop-up
body (H).
5 Securing the pop-up body
□From underneath the sink, screw the bottom
gasket (I) and nut (J) assembly onto the pop-up
body (H) by twisting clockwise until secure.
G
H
G
H
I
J
H
I
J

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
6
Installation (continued)
A
6Making the water supply
connections
□Thread the connector (F) onto the outlet of the
water supply valve (1), then thread the nut (2)
on the supply line onto the connector (F) and
tighten with a wrench. Do not overtighten.
NOTE: The hot side inlet tube is indicated by a label. Avoid
twisting wires together or placing the wires close to each
other and damaging. Clean the the screen lter in the
connector (F) regularly.
H
1
F
2
1
F
2
C
2
1
2
1
1Flushing and checking for leaks
Operation
□Ensure the faucet (A) handle is in the off
position, and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Turn on the hot and cold water handle to allow
the water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water.

7
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or irregular surface. □Apply additional silicone sealant
to the beveled side of the drain
ange.
□Retighten and test for leaks.

8

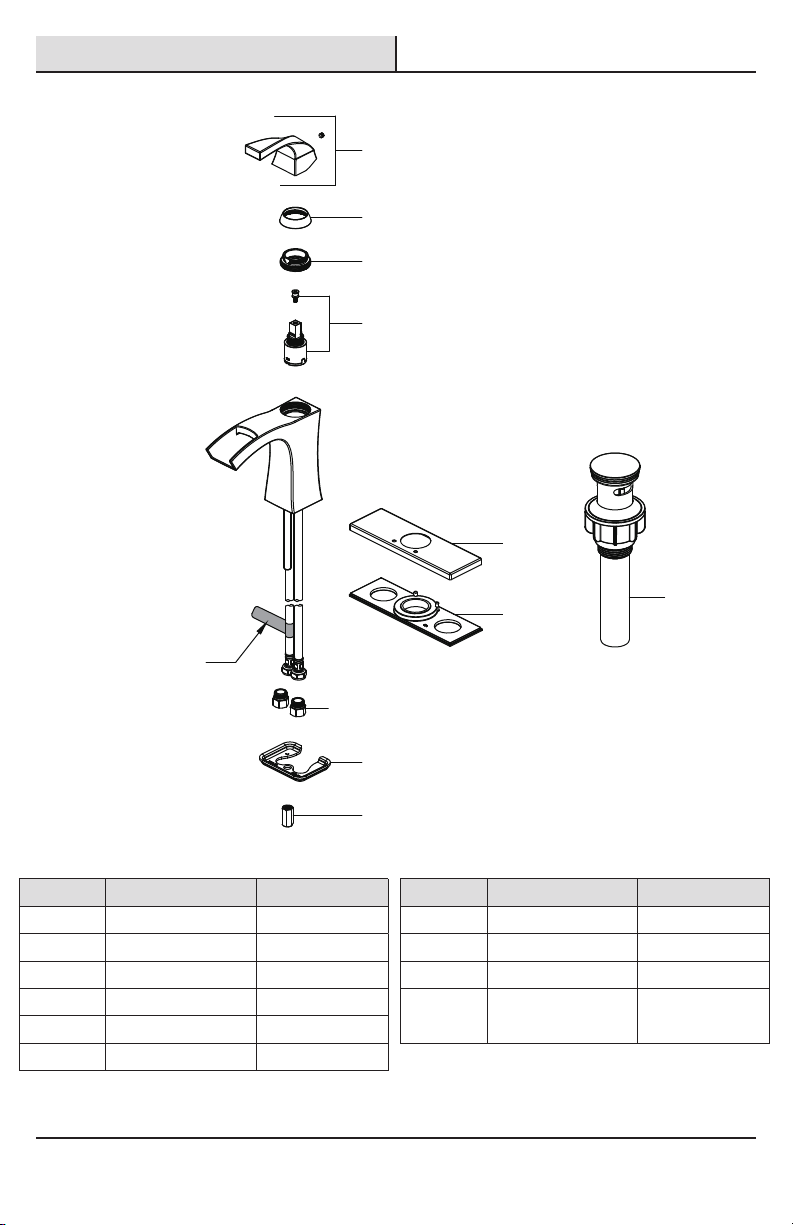

Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
Part Description Part Number
1 RP13659*
2Cap RP80408*
Handle assembly
10 Press pop-up
assembly RP40269*
Part Description Part Number
4 Cartridge & Screw RP20052
7 Lock nut RP56026
9 Gasket RP80520
8 Deck plate RP80519*
3Bonnet nut RP70465
6 Washer RP70228
5Connector RP70656
1
2
3
4
5
6
7
8
9
10

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Retain this manual for future use.
