Glacier bay HDQF51A1130CP Assembly instructions

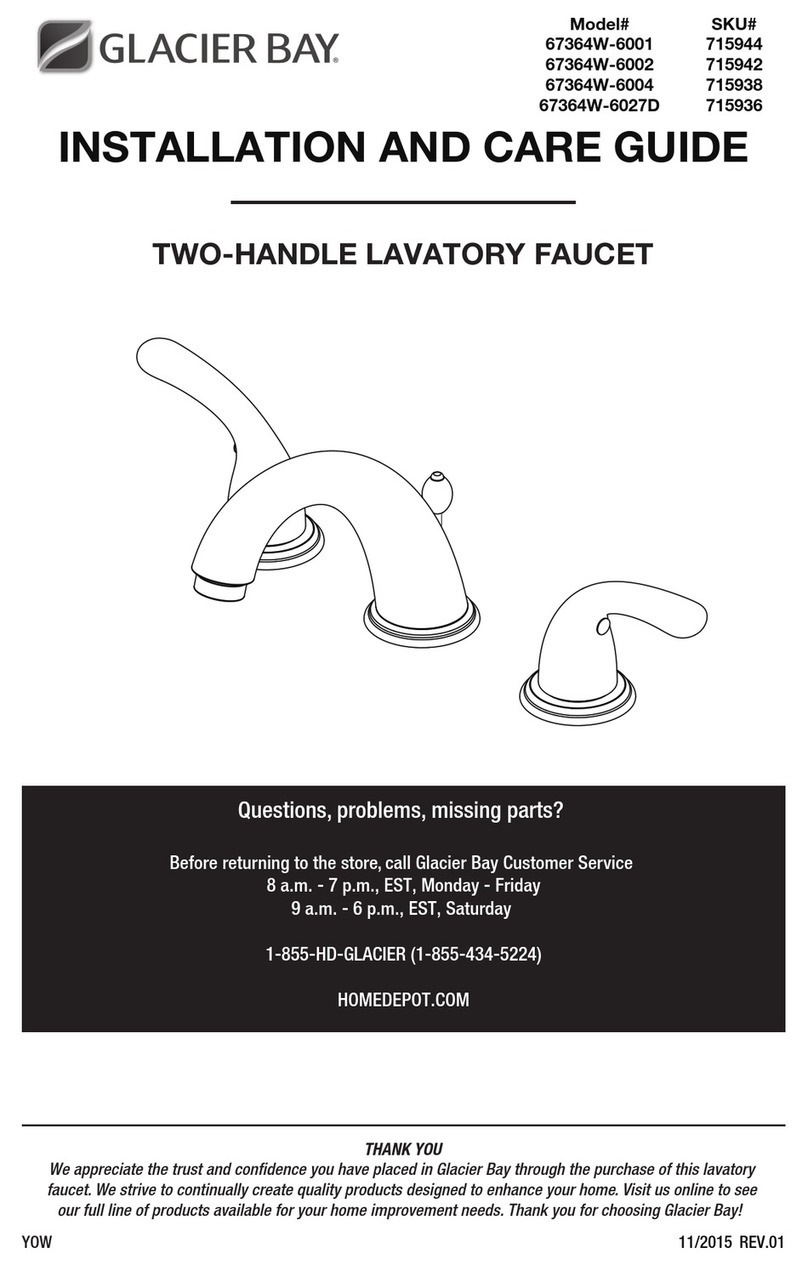

INSTALLATION AND CARE GUIDE
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
TWO-HANDLE LAVATORY FAUCET
SKU#
1008089078
1008089153
1008089140
1008088853
OMSID#
321486585
321486569
321486570
321486784
Model#
HDQF51A1130CP
HDQF51A1130BNV
HDQF51A1130BL
HDQF51A1130CZ

2
□Observe all local plumbing and building codes.
□Cover the drain in your sink to avoid losing parts.
□Review the care and cleaning section included in this guide.
□This product is engineered to meet the EPA WaterSense flow requirement. The flow rate is governed by the
aerator or flow controller. If replacement is ever required, be sure to replace it with a WaterSense compliant
aerator or flow controller to retain the water conserving flow rate of this product.
Important Information..............................2
Warranty ...................................................2
Pre-installation.........................................2
Planning Installation ................................2
Tools and Hardware Required..................2
Package Contents....................................3
Installation................................................4
Operation...................................................7
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts.............................................9
Table of Contents
Important Information
Warranty
Pre-installation
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD Glacier (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD Glacier for
more details.
This product is engineered to meet the EPA WaterSense flow requirement. The flow rate is governed by the aerator
or flow controller. If replacement is ever required, be sure to replace it with a WaterSense compliant aerator or flow
controller to retain the water conserving flow rate of this product.
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service for
replacement parts.
LIMITED LIFETIME WARRANTY
PLANNING INSTALLATION

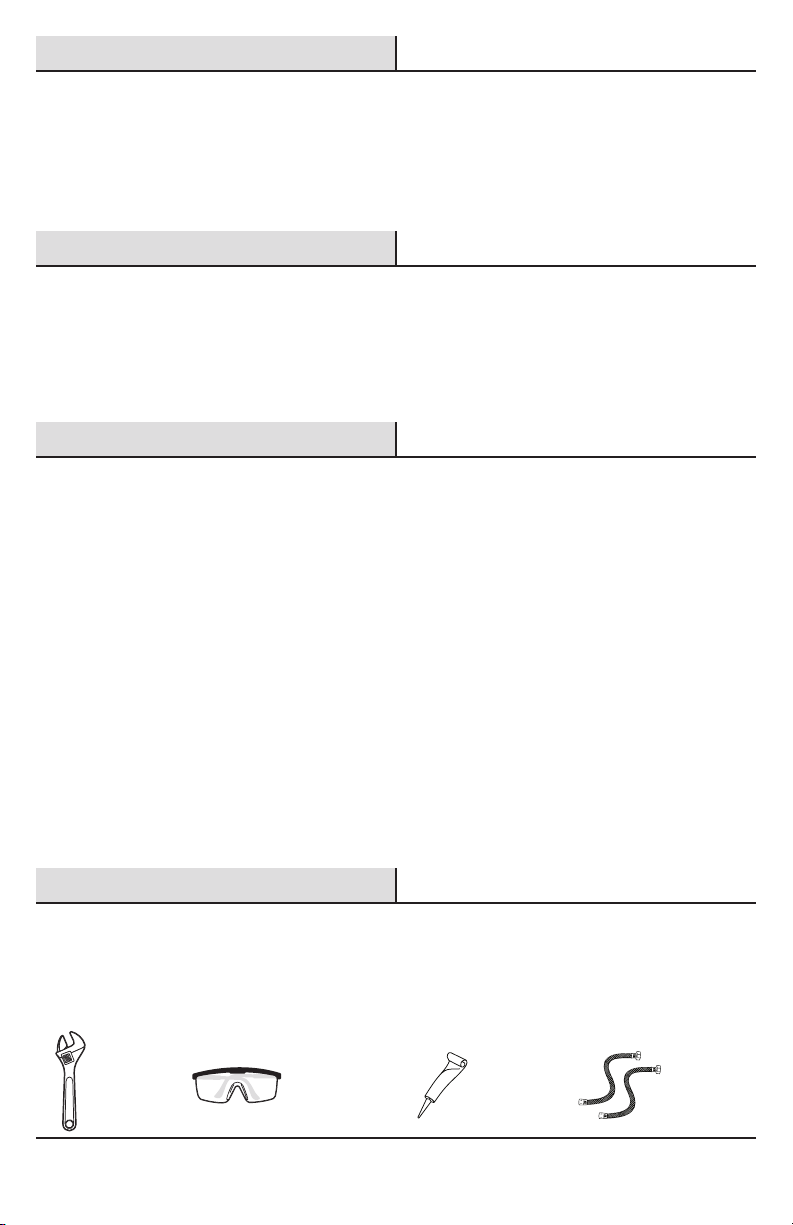

TOOLS AND HARDWARE REQUIRED
SILICONE
Adjustable
wrench
Safety
goggles Sealant (2) Supply lines

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for
further assistance.
3
Part Description Quantity
A Faucet 1
B* Aerator 1
C Mounting nut 2
D* Pop up stopper 1
E* Drain flange 1
F* Rubber washer 1
G* Lock nut 1
H* Drain body 1
I Joint 1
J Horizontal rod 1
K Lift rod strap 1
L Clip 1
M Lift rod 1
N* Gasket 1
OAerator Wrench 1
Faucet Assembly Drain Assembly
NOTE: *Items come pre-assembled.
K
L
I
J
E*
D*
F*
G*
H*
A
C
O
M
B*
N*
Pre-Installation (continued)
PACKAGE CONTENTS

4
Installation
1
2
F
G
H
E
D
C
A
N
1"Max
26m Max
NOTE: If the sink is uneven, use silicone under the
gasket (N).
□Shut off the water supply. Remove the old
faucet.
□Clean off the mounting surface.
□Place the faucet (A) through the mounting holes
in the sink.
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided.
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
1 Installing the faucet assembly 2 Preparing the pop-up assembly
□Remove the pop up stopper (D) and drain flange
(E) from the drain body (H).
□Screw the lock nut (G) all the way down, and
push the rubber washer (F) down.

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for
further assistance.
5
Installation (continued)
1
3
Insert 2
Insert 1
2
J
I
J
I
2
1
H
D
H
1
2
SILI
F
1
G
E
H
3 Installing the drain body 4 Installing the stopper and
horizontal rod
□Apply silicone sealant (not included) under the
drain flange (E) and place the drain flange (E)
over the drain hole in the sink.
□From underneath the sink, screw the drain body
(H) onto the drain flange (E). Ensure that the
opening (1) for the ball rod on the drain body (H)
faces towards the rear of the sink.
□Tighten the rubber washer (F) and lock nut (G)
on the drain body (H). Do not overtighten.
□Before installation, unscrew the protective cap
(1) from the horizontal rod (J).
□Insert the stopper (D) into the drain hole in the
sink.
□Insert the horizontal rod (J) into the drain body
(H) and through the hole of the stopper (D). See
insert 1.
□For easier removal and cleaning, rotate the
stopper (D) 90 degrees so that the horizontal
rod (J) does not go through the hole in the
stopper (D). See insert 2.
□Make sure the joint (I) on the horizontal rod (J)
inserts into the drain body (H) completely, as
shown (2). You can press the two sides of the
joint (I) to remove the horizontal rod (J).

6
Installation (continued)
5 Installing the lift rod
6 Attaching the horizontal rod and strap
□Slide the lift rod (M) through the faucet (A).
□Slide the lift rod (M) down into the lift rod strap (K) until it clicks into the lift rod strap (K).
□Press the rod (J) down to ensure the stopper (D) is in the maximum open position.
□Slide the clip (L) upward, adjust the location of the lift rod strap (K) to the appropriate height and insert the
horizontal rod (J) with the correct hole of the lift rod strap (K).
□Move the lift rod strap (K) in or out to choose an appropriate location.
□Slide the clip (L) downward until it secures with the horizontal rod (J).
NOTE: If the pop up lift rod strap (K) is interfering with your installation, the lift rod strap (K) can be cut shorter. Once you have identified
the proper hole in the lift rod strap (K) that is necessary for your installation, you may cut off the bottom portion of the lift rod strap (K).
1
2
M
K
M
K
A
M
1
3
2
3
4
4
5
K
L
K
L
K
L
D
L
J
D
J
D
J
Hole

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for
further assistance.
7
A
B
O
Installation (continued)
Operation
7 Checking the operation of the
pop up
1 Flushing and checking for leaks
2
3
1
IMPORTANT: After installation is complete, remove the
aerator to flush the water lines. Do not lose the gasket in
the aerator.
□Operate the lift rod (M) up and down to verify
that the stopper (D) opens and closes correctly.
□Use 1/2 in. I.P.S. faucet connections (1), or a
3/8 in. O.D. ball-nose riser (2) with supply line
coupling nuts (3) (not included).
□Use a wrench to tighten the connections. Do not
over tighten or torque the copper supply line.
□Ensuring the handles are in the off position, turn
on the water supply and check for leaks. If you
discover any leaks, check your connections to
ensure they are installed properly.
□Use aerator wrench (O) to remove the aerator
(B) from the faucet (A). Turn on the hot and cold
handles to allow the water to run for at least one
minute. This flushes away any debris that could
cause damage to internal parts.
□Turn off the water and reinstall the aerator (B) and
housing (if applicable).
8 Making the water supply
connections
D
M

8
Problem Possible Cause Solution
There are leaks from the
handle.
□The bonnet nut is loose.
□The O-ring on the cartridge is
dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the O-ring.
The aerator leaks or has a
reduced water ow.
□The aerator is dirty or mis-fitted.
□The cartridge may be clogged.
□Remove the aerator and check for
debris.
□Remove the cartridge and check for
debris.
□Ensure the aerator is properly
installed.
The water will not shut off
completely.
□The locking nut is loose or
cartridge is not positioned
correctly.
□Remove the handle and cartridge to
check the rubber seat and spring.
□Tighten the lock nut.
□Clean or replace.
The sink drain at the base of
the sink is leaking.
□The sink surface is rough or
irregular.
□Apply additional silicone sealant to
the beveled side of the drain flange.
□Retighten and test for leaks.
Care and Cleaning
Troubleshooting
NOTE: Refer to the service parts section in this manual for a
detailed drawing showing the location of the parts listed below.
□To clean, wipe down with a damp cloth and towel dry.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will be
voided.

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for
further assistance.
9
Part Description Part No.
1 Metal Handle A079215*
2 Index Button A66D558
Index Button (BL) A66D558KP
3.1 Handle Adapter - Cold A66D574CCP
3.2 Handle Adapter - Hot A66D574HCP
4Retainer Nut Assembly A66D642CP
5.1 Ceramic Disc Cartridge-Cold A507004N
5.2 Ceramic Disc Cartridge-Hot A507003N
6 Lock Nut Set A504023
7 Aerator 1.2gpm A663B26N
8Aerator Wrench A031024ZN
9 Lift Rod A025631*
10 Pop-Up Drain Assembly A505032
*Specify Finish
1.
2.
3.1
3.2
4.
5.1
5.2
6.
7.
8.
9.
10.
Service Parts
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM.

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
