Glacier bay MELINA HD67486W-6004 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Model#
HD67486W-6004
HD67486W-6010H
Internet#
324555861
324555925
MELINA SINGLE-HANDLE PULL DOWN
BATHROOM FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
2/2023 REV.01HOMEDEPOT.COM
SKU#
1009369086
1009369108
With Deck Plate Without Deck Plate

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts ........................................... 9
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Channel
lock pliers
Tools and Hardware Required ...............2
Operation...................................................7
Phillips
screwdriver
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
SILICONE
Silicone
sealant
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)
PACKAGE CONTENTS
Faucet Assembly Press Pop-Up Assembly
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Part Description Quantity
A 1Faucet
B
C
D
1Easy install nut
E
1Quick connector
G
1Deck plate
H
1Gasket
Part Description Quantity
J
1Top gasket
K
1Pop-up body
1Bottom gasket
1Nut
I
1Weight clip
F1Weight
H
I
J
K
A
D
E
F
G
B
C

Installation
4
1 Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□
2
□Clean the mounting surface.
□Remove the preassembled nut (D) and
washers (B & C) from the new faucet (A).
□WITH DECK PLATE: Align the hole in the
gasket (E) and deck plate (D) with the mounting
hole in the sink. Place the faucet (A) through the
deck plate (D) and mounting hole in the sink until
the faucet (A) sets on top of deck plate (D).
□WITH NO DECK PLATE: Place the faucet (A)
through the mounting holes in the sink until the
faucet (A) sets on top of the sink.
Shut off the water supply. Remove the old faucet.
Securing the faucet assembly
□From underneath the sink, secure the faucet
assembly to the sink with the easy install nut
system (B). Push the easy install nut system (B)
up over the threads until it stops against the
bottom of the sink, then hand turn (clockwise)
to tighten (Fig 1).
B
B
Sink
Push
up
1 1 2
Push
up Sink
Screw
Sink
3
B
A
A
D
E
B

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
3 Preparing the pop-up assembly
□Remove the bottom gasket (J) and nut (K) from
the top gasket (H) and pop-up body (I).
□Attach these pieces together by pushing the
bottom gasket (J) down into the top of the
nut (K) and twisting together.
H
K
I
J
4 Installing the pop-up body
□Insert the pop-up body (I) into the sink. Ensure
that the top gasket (H) rests securely between
the top of the sink and the top of the pop-up
body (I).
5 Securing the pop-up body
□From underneath the sink, screw the bottom
gasket (J) and nut (K) assembly onto the pop-up
body (I) by twisting clockwise until secure.
K
I
J
5
Installation (continued)
H
I

6
Installation (continued)

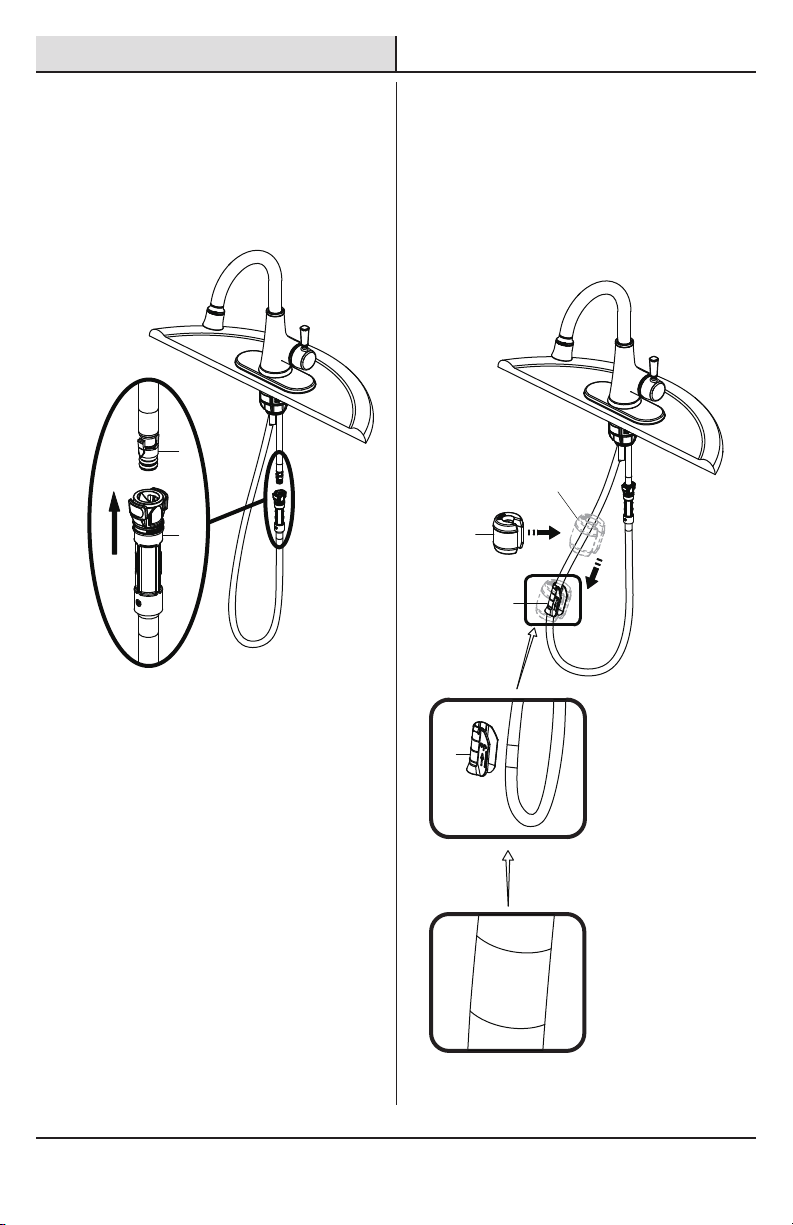

6 Attaching the quick connector
to the receiving block
□Push the quick connector (C) rmly upward and
attach it to the receiving block (1). Pull down
moderately to ensure the connection has been
made.
7 Installing the weight
□Insert the weight (F) onto the clip (G) by sliding
it down onto the clip (G).
□Install the weight clip (G) at the point of the
hose marking “weight here”.
1
C
F
F
Weight
here
Weight
here
G
G

Installation (continued)
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
7
1 Flushing and checking for leaks
Operation
8Making the water supply
connections
□Thread the nut (1) on the supply line onto the
outlet of the water supply valve (2) and tighten
with a wrench. Do not overtighten.
NOTE: The hot side inlet tube is indicated by a label. Avoid
twisting wires together or placing the wires close to each
other and damaging.
2
1
1
A
□Ensure the faucet (A) handle is in the off
position, and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Pull the hose assembly out of the spout and
remove the aerator (1) by unscrewing it from the
hose in a counterclockwise direction. Be sure to
hold the end of the hose down into the sink and
turn the faucet to the warm position where it
mixes hot and cold water. Flush the water lines
for one minute. This ushes away any debris that
could cause damage to internal parts.
□Re-tighten any connections if necessary, but do
not overtighten. Reinstall the aerator by hand
tightening it back onto the hose in a clockwise
direction.
IMPORTANT: After installation is completed, turn on the
hot and cold water supplies. Check for leaks.

Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Use wrench to retighten the
bonnet nut sufciently.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
The aerator is dirty or mis-tted.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or irregular surface. □Apply additional silicone sealant
to the beveled side of the drain
ange.
□Retighten and test for leaks.
Operation (continued)
8
□Ensure that the rubber washer
is properly installed.

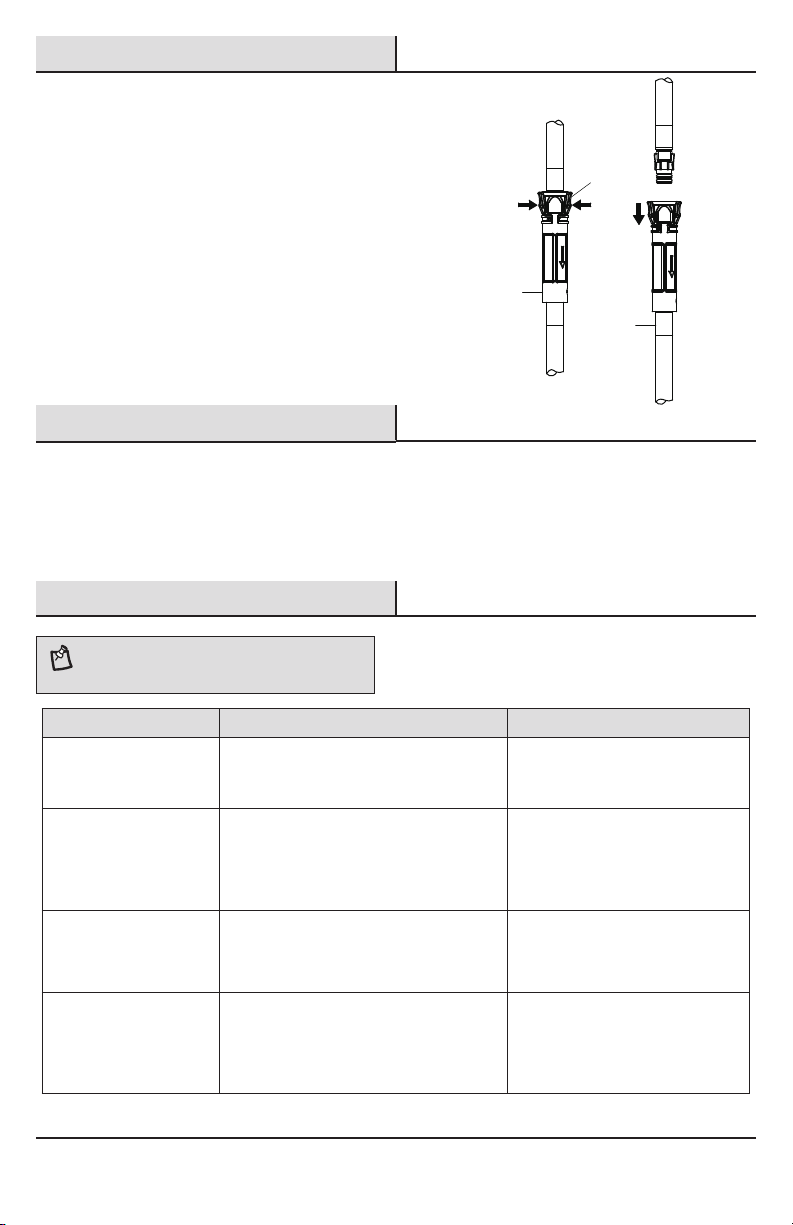

2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect. Squeeze Pull
down
1
1
2

9
Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
Part Description Part Number
1 RP30317*
3 RP70870
5
Wearable ring
RP20134
Aerator
12
Handle assembly
RP70697
RP70769
11
Cap
RP60089
Part Description Part Number
Press pop-up
assembly RP40269*
Bonnet nut
RP60002
2 RP64261
9
10
Clip
4 RP60008
O-Ring
O-Ring
O-Ring
7RP80761*
6RP70662
8RP13843*
17
19
18
Gasket RP80844
RP80612*
13
Deck plate
Quick connector
Easy install nut
Weight
Block
Cartridge & Screw
RP70421
14
15
16 Weight clip
1
4
2
3
5
6
7
8
18
17
9
10
12
11
13
16
15
14 19
RP70871*
Hose
RP70689
RP70590

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Retain this manual for future use.
