Glacier bay HD67688W-6001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
MODERN SINGLE HOLE TOUCHLESS
BATHROOM FAUCET
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
10/2019 REV.01HOMEDEPOT.COM
Model#
HD67688W-6001
HD67688W-6010H
Internet#
311893464
311893465
SKU#
1004931228
1004929183

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents..................................3
Installation................................................4
Operation ..................................................11
Troubleshooting ......................................13
Care and Cleaning ................................... 12

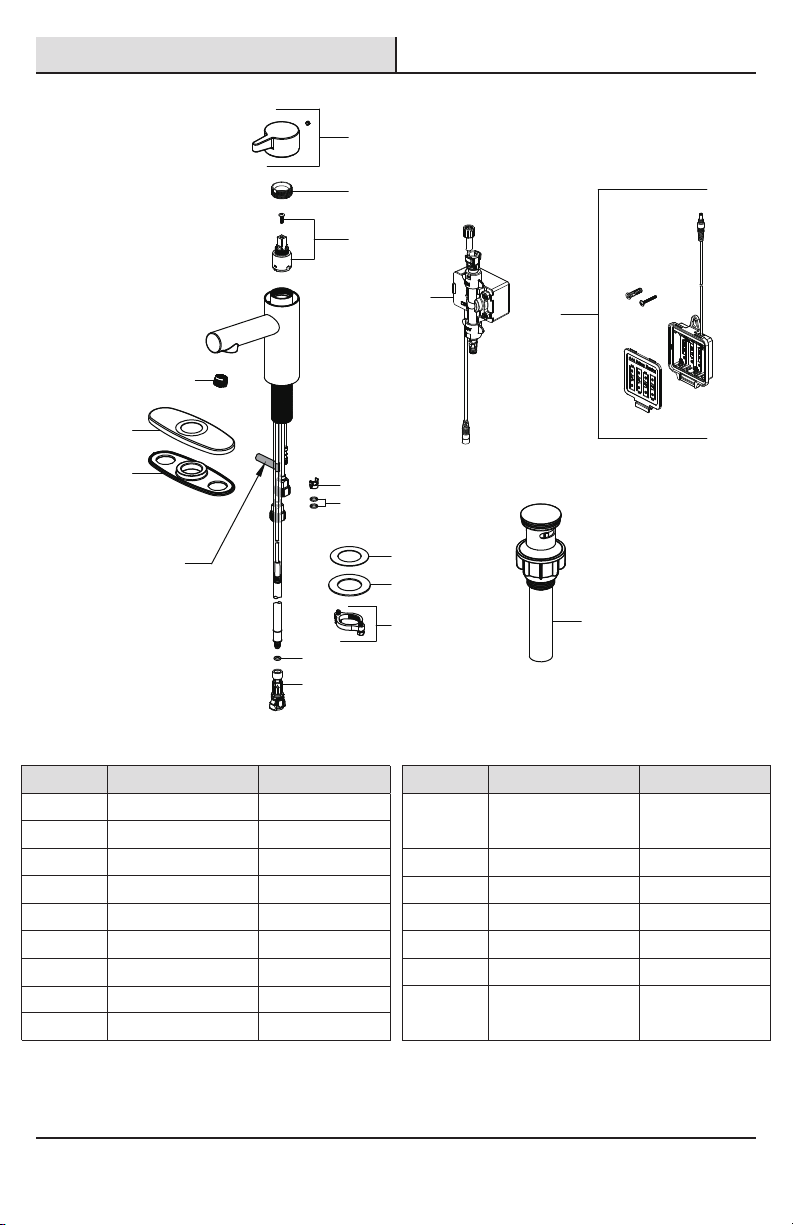

Service Parts
........................................... 15
Adjustable
wrench
Safety
goggles
Phillips
screwdriver
SILICONE
Silicone
sealant
6mm
diameter
Electric
drill

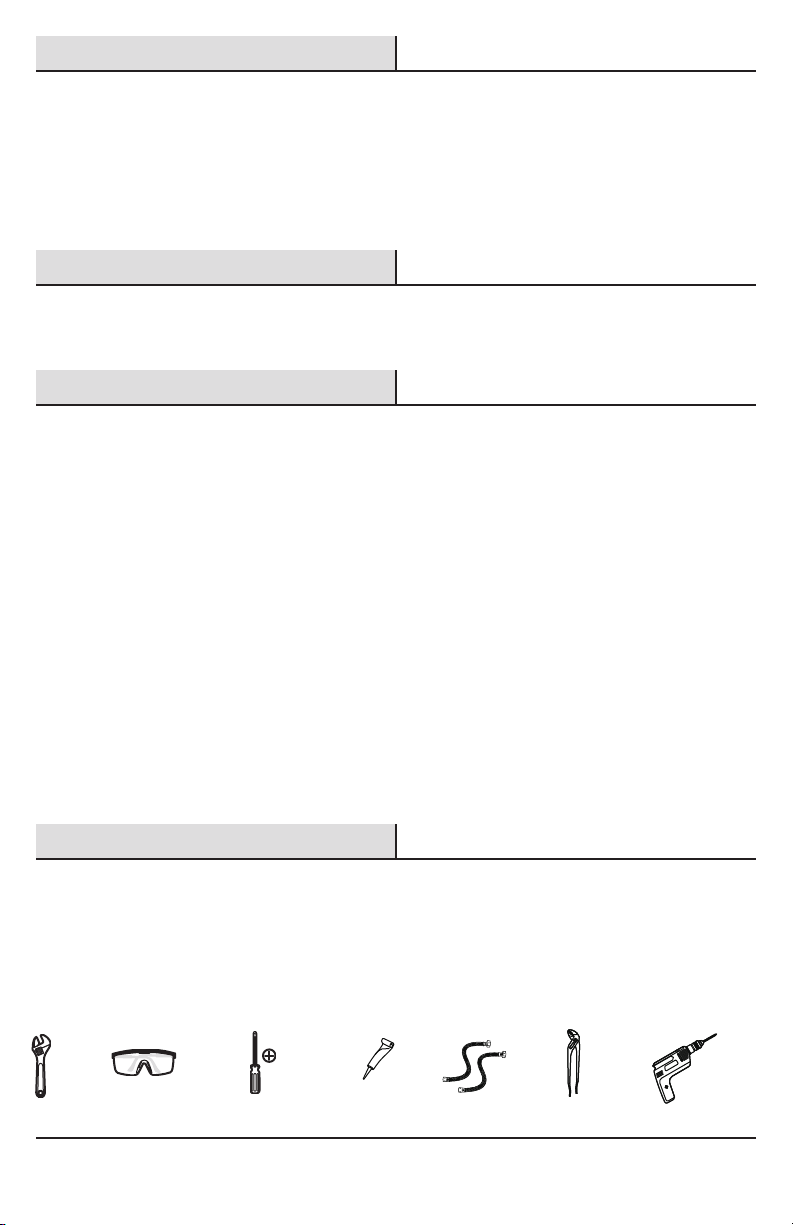

Tools and Hardware Required ...............2
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Channel
lock pliers
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Sensor mechanism excluded from Limited Lifetime Warranty and is covered by a 3-year warranty from date of
purchase. Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER
(1-855-434-5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original
consumer purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.
(2) Supply
lines

3
Pre-Installation (continued)

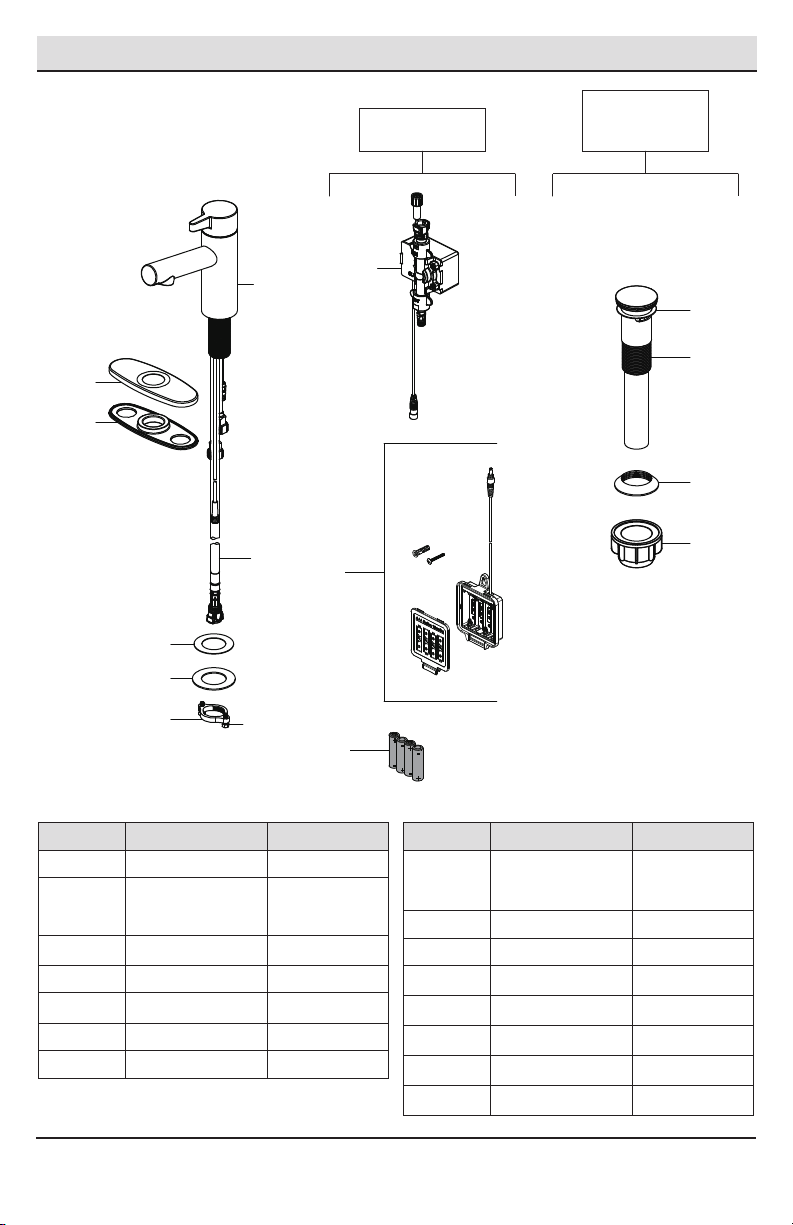

PACKAGE CONTENTS
Part Description Quantity
A 1Faucet
DWasher 1
C Washer 1
FDeck plate 1
GGasket 1
Part Description Quantity
ENut 1
BQuick connect
assembly 1
H 1
I Battery pack 1
Sensor control box
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
J"AA" Battery 4
Sensor Control Box
K
L
M
N
Press Pop-Up Assembly
K 1Top gasket
L 1Pop-up body
M 1Bottom gasket
N 1Nut
O 2Screw
H
+
-
-
+
+
-
-
+
I
J
A
B
D
E
C
F
G
O

Installation
4

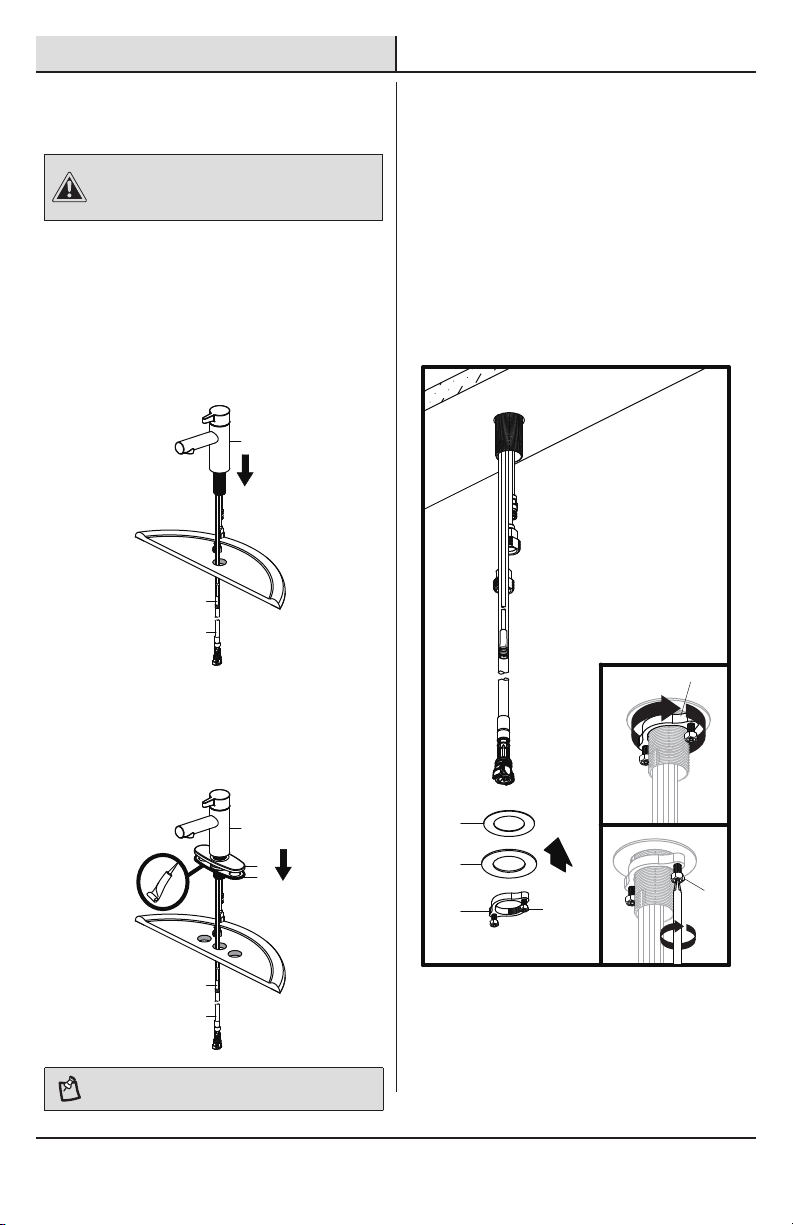

1 Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
2 Securing the faucet assembly
□Install the washers (C & D) onto the threaded
mounting shank. Thread the nut (E) onto the
mounting shank. Lock the nut (E) into position
by tightening the screws (O). Do not
overtighten.
□WITH DECK PLATE: Align the holes in the
gasket (G) and deck plate (F) with the mounting
holes in the sink. Install the faucet body (A)-
including inlet tubes, hose (1) and sensor cable
(2)-through the middle hole in the deck plate (F).
□Clean the mounting surface.
□Remove the preassembled nut (E) and
washers (C & D) from the new faucet (A).
□WITH NO DECK PLATE: Install the faucet
body (A)-including inlet tubes, hose (1) and sensor
cable (2)-through the hole in the sink.
NOTE: Silicone sealant is required under the gasket (G).
A
2
1
SILICONE
A
F
G
2
1
□Loosen the screws (O) on the nut (E) until the
ends of the screws (O) are ush with the face
of the nut (E).
1
O
D
E
C
O
E
2
3

5
Installation (continued)

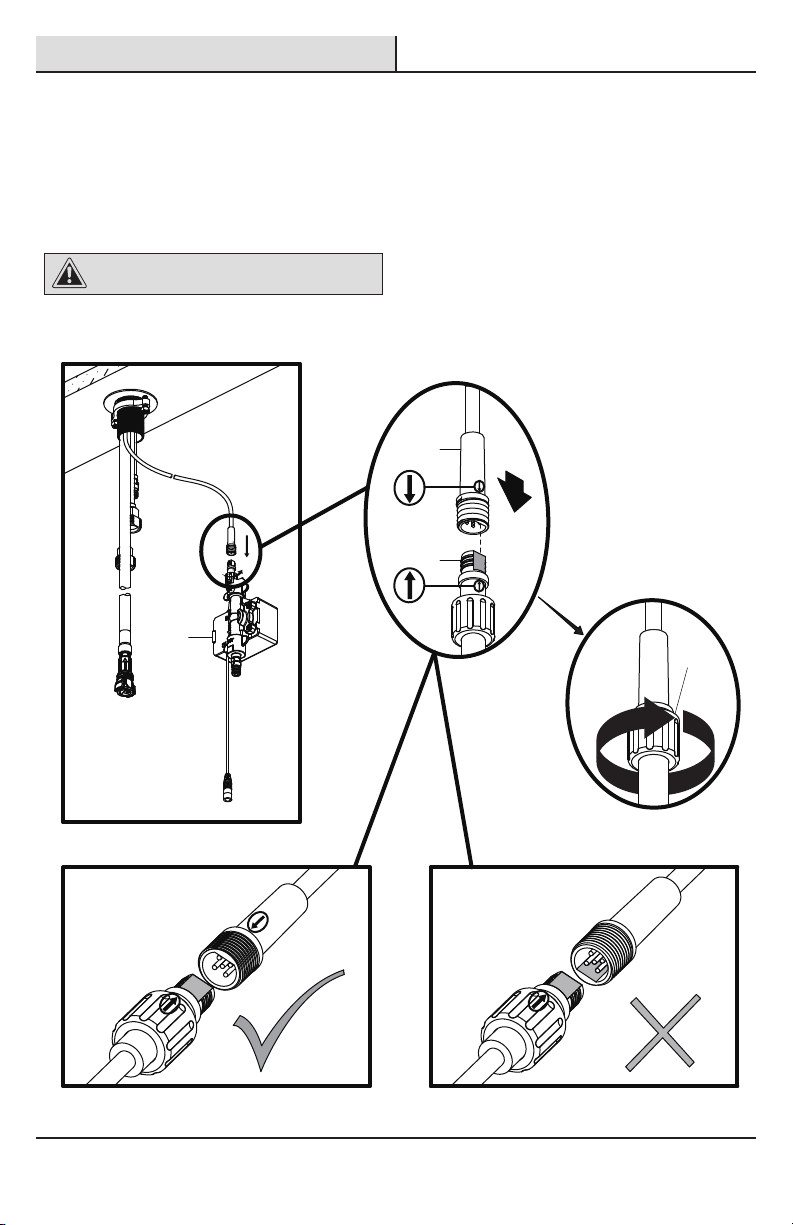

3Installing the sensor cable
□Install the sensor cable (1) to the control box connection (2). Ensure the arrows on the sensor cable and
control box connection are aligned to one another to ensure proper installation. Ensure they are tightly
connected by rmly pushing together.
□Secure the connection by hand tightening the nut (3) in a clockwise direction onto the threaded sensor cable.
CAUTION: If the connections are not made properly, the
sensor feature will not work.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
3
1
1
2
2
H

6
Installation (continued)
□Connect the hose with the yellow tag to the hose on the control box (H) with a matching yellow tag. Push
rmly together until they snap into place. As shown in the Fig 1.
□Connect the hose with the green tag to the hose on the control box (H) with a matching green tag. Push
rmly together until they snap into place. As shown in the Fig 1.
4Attaching the quick connector
to the receiving block
Fig 1
Yellow
Green
Green
Yellow
2
1
H

7
Installation (continued)

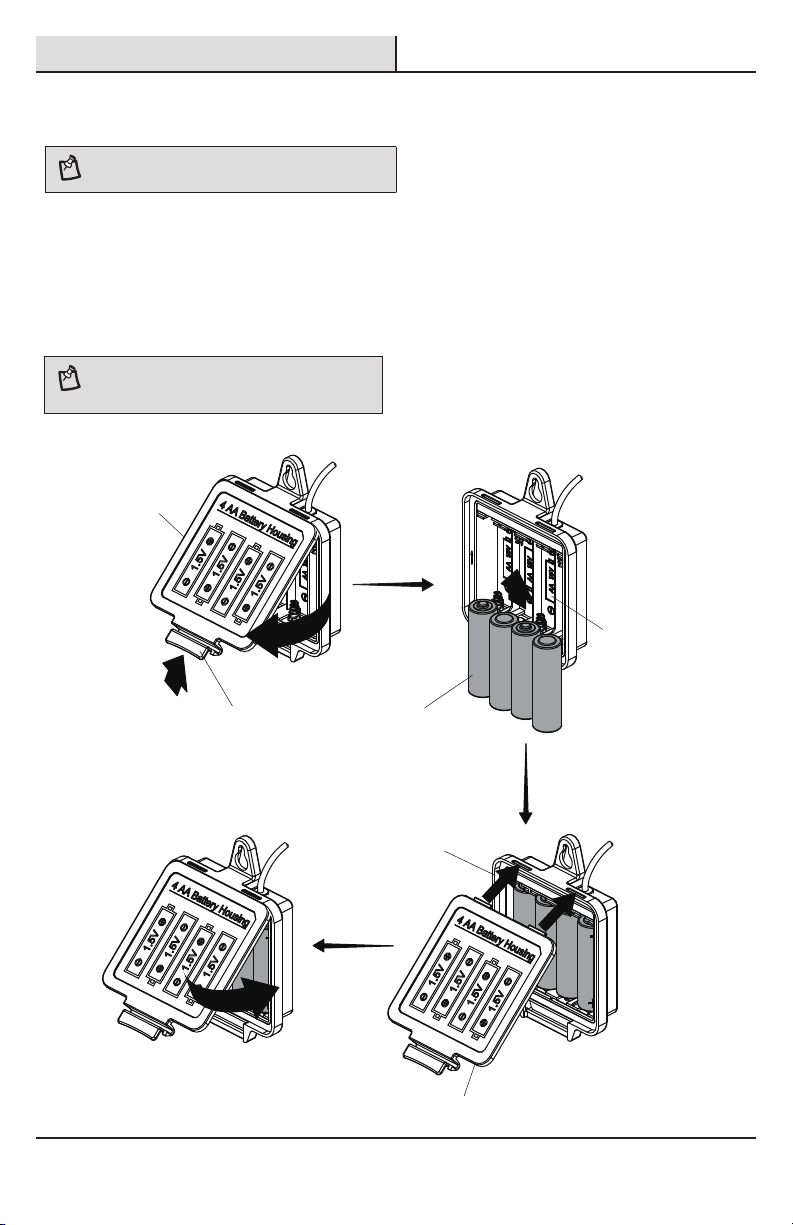

5Installing the batteries
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
NOTE: This step is for battery installation (optional). If the
battery will not be used, install as described in step 7.
□To open the battery housing, squeeze the tabs (1) on the cover (2), then remove the cover (2).
□Install the four AA batteries (J) included by matching the positive (+) and Negative (-) ends on the battery (J)
to the (+) and (-) markings in the battery pack (I). The negative ends of the battery (J) should always
connect to the spring end of the battery slots in the battery pack (I).
□Reinstall the battery pack cover (2) by pushing up and snapping into place.
NOTE: When the sensor ashes 10 times continuously
and slowly, the batteries have lost their charge. Replace
the batteries (J).
+
-
-
+
+
-
-
+
2
+-
+
+
-
-
3
4
4
J
I
I
1
1
2
5
2

8
Installation (continued)
6Installation using the battery
pack
NOTE: After installing the battery pack, the light on the
sensor will ash and the faucet control box will make a "click"
sound when you move your hand in the sensor area. If not,
check to ensure the batteries are installed correctly.
NOTE: This step is for battery installation (optional). If the
battery will not be used, install as described in step 7.
□Insert the battery pack cable (3) into the control box connection (4).
□Drill a hole in the wall using a 6mm (15/64 in.) diamater drill bit. Install the battery pack (I) using the molly
anchor (1) and screw (2) provided.
(15/64 in.) dia.
6mm
2
I
1
3
4
1
2

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
9

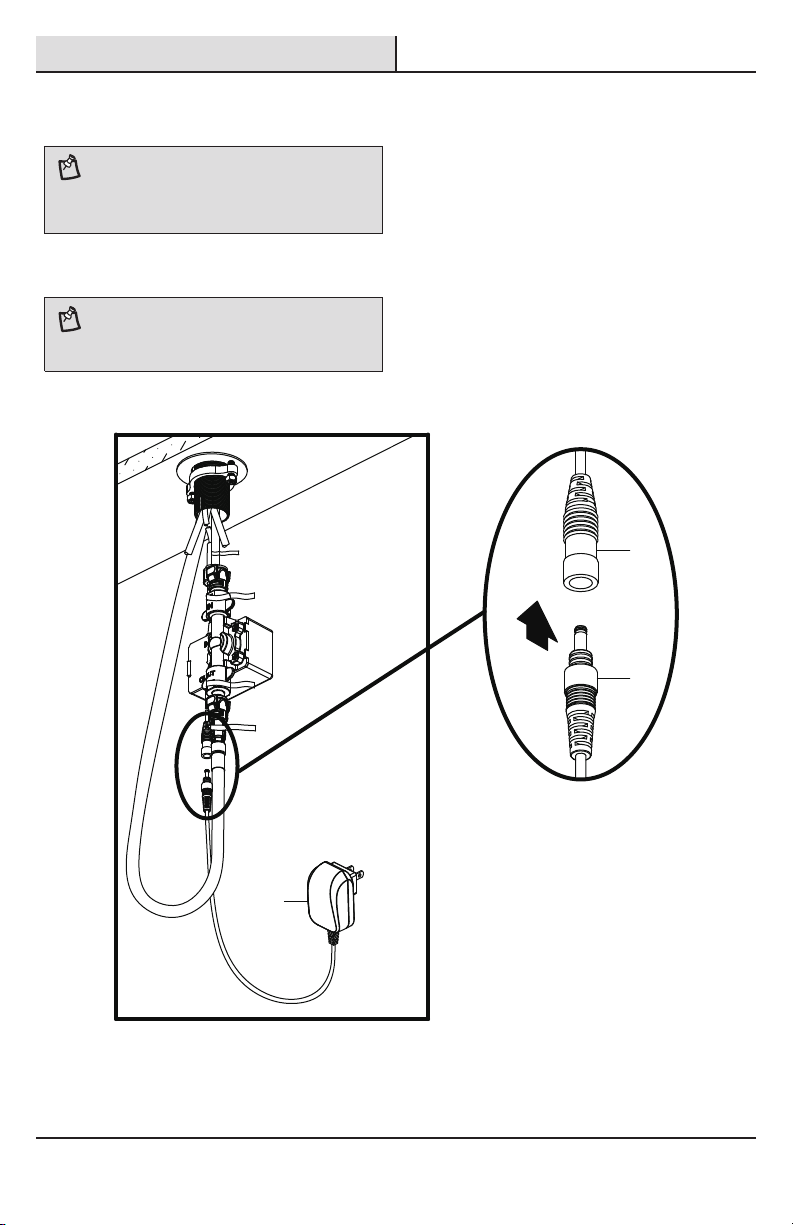

7Installation using the AC
adapter (not included)
NOTE: This step is for installation without batteries using
an AC adapter (not included). If using the batteries, install
as instructed in step 5 and skip to step 8. The AC adapter
is not included with the product, but can be purchased from
Homedepot.com.
□Install the AC adapter (3) into the power outlet.
□Insert the AC adapter cable (1) into the control box port (2).
NOTE: After installing the AC adapter, the light on the
sensor will ash and the faucet control box will make a
"click" sound when you move your hand in the sensor area.
If not, check if the connections are made properly.
1
2
3

10
Installation (continued)

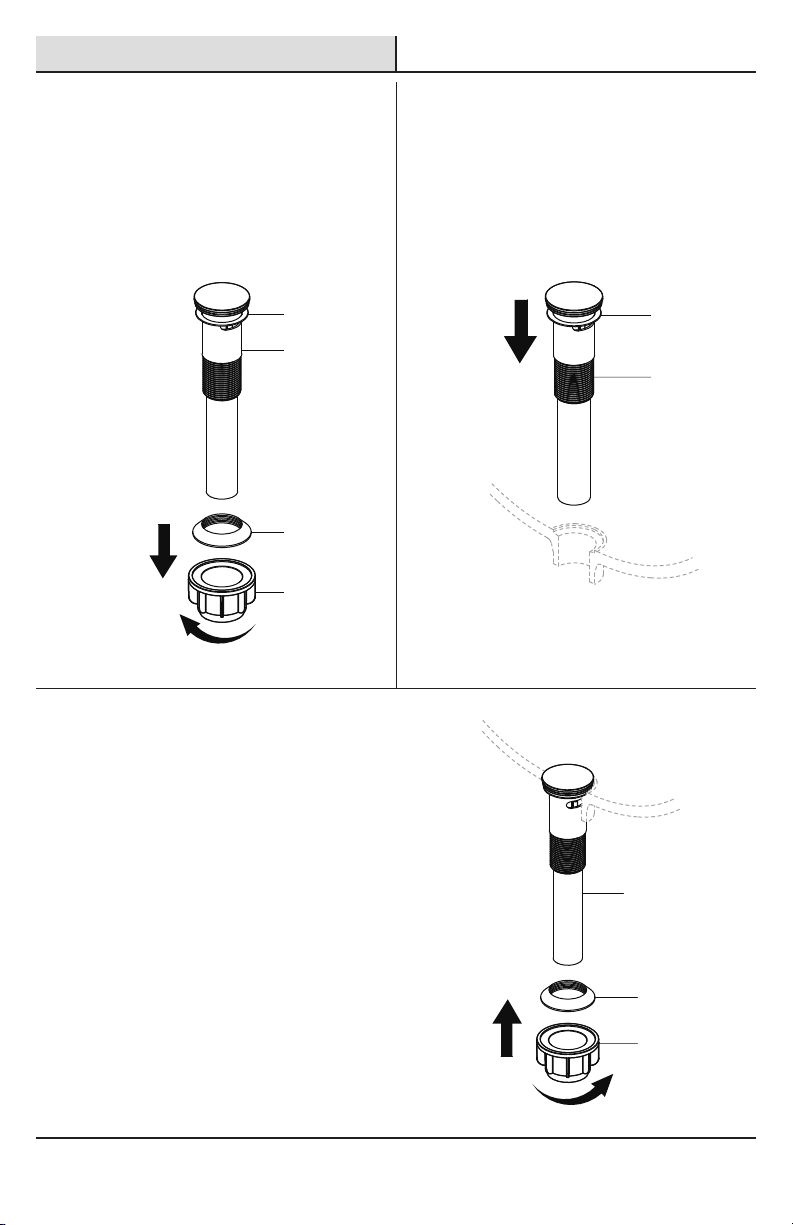

8 Preparing the pop-up assembly
□Remove the bottom gasket (M) and nut (N) from
the top gasket (K) and pop-up body (L).
□Remove these pieces by pushing the bottom
gasket (M) down into the top of the nut (N) and
twisting together.
9 Installing the pop-up body
□Insert the pop-up body (L) into the sink. Ensure
that the top gasket (K) rests securely between
the top of the sink and the top of the pop-up
body (L).
10 Securing the pop-up body
□From underneath the sink, screw the bottom
gasket (M) and nut (N) assembly onto the
pop-up body (L) by twisting clockwise until
secure.
K
L
K
L
M
N
L
M
N

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
11
Installation (continued)
11 Making the water supply
connections
NOTE: The hot side inlet tube is indicated by a label.
If the label is not present, the hot supply tube is the longer
of the two inlet tubes.
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube tting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
3
12
15
0
30
45
1
min.
1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator from the faucet (A) with a coin (1) to ush the water
lines.
Operation
□Turn on the water supply to check for leaks.
If you discover any leaks, check your connections
to ensure they are installed properly.
□Turn the water on by activating the sensor (2)
by keeping your hand within 4 inches of the
sensor and allow both hot and cold water to
run for at least one minute each. This ushes
away any debris that could cause damage to
internal parts.
□Turn off the water and reinstall the aerator.
1
2
A

Operation (continued)
12
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
3Removing the quick connector
(not required)
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect. Squeeze
2
1
Pull
down
1

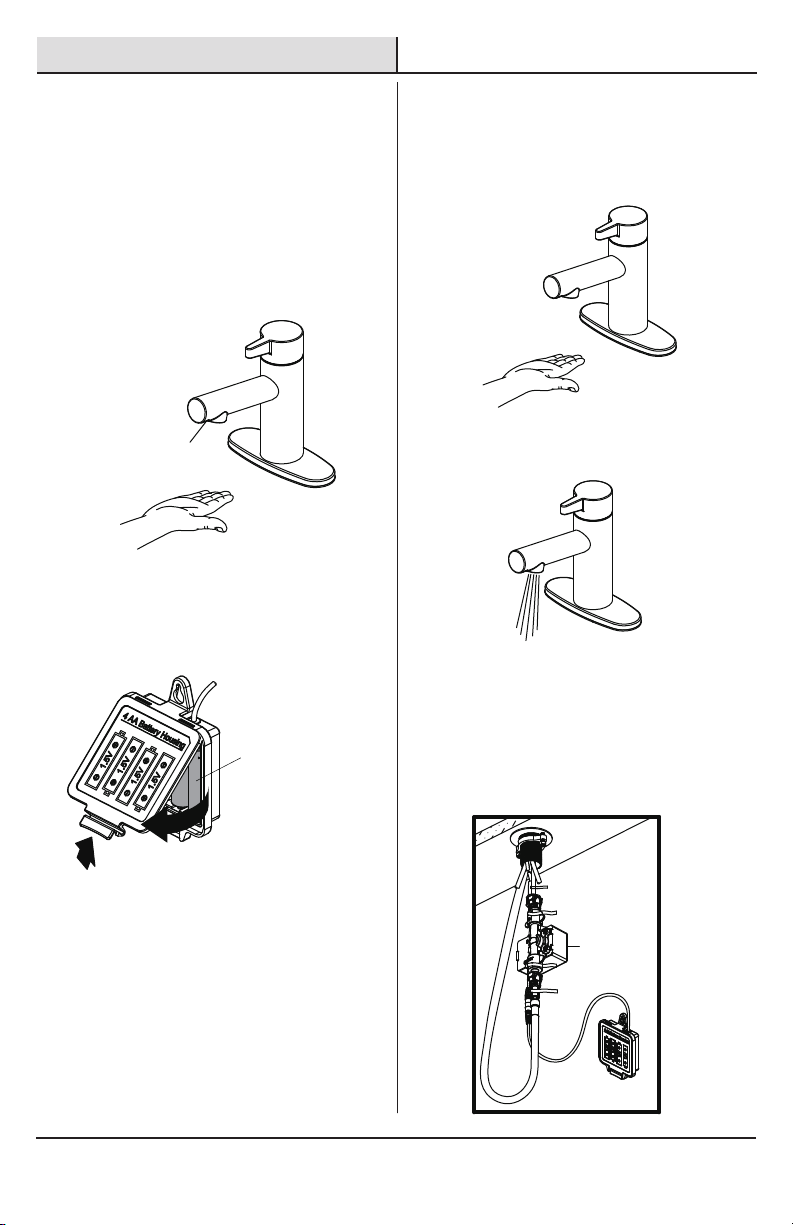

2Operating the sensor
□Turn the water on by activating the sensor (1)
by keeping your hand within 4 inches of the
sensor. When removing your hand from within
4 inches of the sensor, the water will turn off.
□Rotating the handle towards right will turn
the water to cold. Rotating the handle
towards left will turn the water to hot.
□If you are having trouble with the sensor,
please refer to the troubleshooting section.
NOTE: The handle only controls the water temperature.
Turn the water on and off with the keep of your hand.
NOTE: As a water saving feature, the water will turn off
automatically after 1 minute of continuous ow.
4 in. Max
ColdHot
1
15
0
30
45
1
min.

13
Troubleshooting
1The light on the sensor is
flashing continuously
□Turn on the water supply and activate the sensor.
If the sensor ashes 10 times continuously and
slowly, then replace the 4 "AA" batteries.
2The sensor is not activating
the water flow
□If your water does not turn on by keeping your
hand within 4 inches of the sensor.
□Or if you are unable to turn your water off when
removing your hand from within 4 inches of the
sensor.
□This indicates the sensor window may need
to be cleaned. If the sensor window is clean,
and still not functioning, this means the
control box will need to be replaced. Call
Glacier Bay customer service to request a
replacement control box. Replace the old
control box with the new control box.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Flash 10 times
continuously
and slowly
J
Replace the batteries
-
2
1
H

14
Troubleshooting (continued)
3There is a low flow of water
□This could indicate that the washer in the "in" end of the control box is dirty or damaged. Remove the
outlet tube and unscrew the connector. Take out the washer from the control box. Clear the washer or
replace the washer. Reassemble the connector and outlet tube.
Outlet tube
Connector
Control box
Washer

15
Service Parts
Part Description Part Number
1 RP13708*
3 Cartridge & Screw RP20117
4 Aerator RP30209
5 Deck plate RP80527*
Handle assembly
8 O-ring RP60002
Part Description Part Number
10 Quick connect
assembly RP70683
9 O-ring RP60131
2 Bonnet nut RP70539
6 Gasket RP80528
7 Block RP70421
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
14 Sensor control box RP70720
15 Battery pack RP70707
11 Washer RP64131
16 Press pop-up
assembly RP40269*
12 Washer RP64146
13 Nut & Screw RP56119
Faucet ID tags can
be found on the
hot water inlet
15
16
1
2
3
4
5
67
8
9
10
11
12
13
14

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Retain this manual for future use.

Internet núm.
311893464
311893465
Modelo núm.
HD67688W-6001
HD67688W-6010H
SKU núm.
1004931228
1004929183
GRACIAS
GUÍA DE USO Y MANTENIMIENTO
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
MODERN MEZCLADORA PARA BAÑO, CON UN
SOLO AGUJERO Y ACTIVACIÓN SIN TOCARLA
Agradecemos la conanza que has depositado en Glacier Bay al comprar este grifo para lavamanos. Nos esforzamos
por crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos en Internet para ver
nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar. ¡Gracias por
elegir a Glacier Bay!

Llave
ajustable
Gafas de
seguridad
Destornillador
Phillips
SILICONE
Sellador
de
silicona
Taladro
eléctrico de
6 mm de
diámetro
Pinzas
ajustables
18
Información importante
□ Cumple con todos los códigos locales de construcción y de plomería.
□ Cubre el drenaje del lavabo para evitar que se pierda alguna pieza.
□ Consulta la sección de mantenimiento y limpieza incluida en esta guía.
HERRAMIENTAS Y HERRAJES NECESARIOS
Tabla de contenido
Información importante .........................18
Garantía...................................................18
Pre-instalación .......................................18
.............18
Herramientas y herrajes necesarios....18
Contenido del paquete.........................19
Instalación ..............................................20
Funcionamiento......................................27
Cuidado y limpieza ................................28
Piezas de repuesto ................................31
Planicación de la instalación Solución de problemas...........................29
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Antes de comenzar la instalación de este producto, asegúrate de que no falta ninguna pieza. Compara las piezas
con la lista de Contenido del paquete. Si falta alguna pieza o está dañada, no intentes instalar el producto.
Comunícate con el servicio al cliente para piezas de repuesto.
Garantía
GARANTÍA DE POR VIDA LIMITADA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor
original de estar libres de defectos en materiales o mano de obra. Reemplazaremos LIBRE DE CARGOS cualquier
producto o pieza que se demuestre está defectuosa. El mecanismo del sensor se excluye de la garantía limitada de
por vida y queda cubierto por otra de 3 años a partir de la fecha de compra. Símplemente, devuelva el producto a
cualquiera de las ubicaciones de venta al detalle de The Home Depot o llame al 1-855-HD-GLACIER (1-855-434-5224)
para recibir el artículo de reemplazo. La prueba de compra (recibo de venta original) del comprador consumidor
original debe estar disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores por la
presente, se les ha ampliado una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuenciales,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicar a usted. Esta garantía le otorga derechos
legales especícos y también puede tener otros derechos que varían de un estado a otro. Por favor, vaya a una
tienda o llame al 1-855-HD-GLACIER para más detalles.
Póngase en contacto con el Equipo de Servicio al Cliente llamando al 1-855-434-5224 o visite www.HomeDepot.com.
Líneas de
suministro

D Arandela 1
E Tuerca 1
K
L
M
N
O 2Tornillo
H
+
-
-
+
+
-
-
+
I
J
A
B
D
E
C
F
G
O
19
Pre-instalación (continuación)
CONTENIDO DEL PAQUETE
HOMEDEPOT.COM
Para obtener asistencia, llama al 1-855-HD-GLACIER.
Caja de control
del sensor
Pieza Descripción Cantidad Pieza Descripción Cantidad
H 1
I Paquete de baterías 1
Caja de control
del sensor
JBatería “AA” 4
Presiona el
ensamblaje
emergente
K 1Junta superior
L 1Cuerpo emergente
M 1Junta inferior
N 1Tuerca
A 1Mezcladora
C Arandela 1
FPlaca de la cubierta 1
GJunta 1
BEnsamblaje del
conector rápido 1

□Instala la arandelas (C y D) en el vástago de
montaje roscado. Enrosca la tuerca (E) en el
vástago de montaje. Fija la tuerca (E) en posición,
apretando los tornillos (O). No aprietes demasiado.
A
2
1
SILICONE
A
F
G
2
1
□Aoja los tornillos (O) en las tuerca (E) hasta que
los extremos de los tornillos (O) estén al ras de la
cara de las tuerca (E).
1
O
D
E
C
O
E
2
3
Instalación
20
1 Cómo instalar el ensamblaje
del grifo
PRECAUCIÓN: Cierra siempre el suministro de agua
antes de retirar un grifo existente o reemplazar alguna
parte del mismo. Abre la llave del grifo para liberar la
presión de agua y asegúrate de que el suministro de agua
esté completamente cerrado.
□CON PLACA DE CUBIERTA: Alinear los
oricios en la junta (G) y placa de cubierta (F) con
los oricios de montaje en el lavamanos. Instalar
el cuerpo de la mezcladora (A) —incluyendo
tuberías de suministro, manguera (1) y cable del
sensor (2)— a través del oricio intermedio en
la placa de cubierta (F).
□Cierra el suministro de agua. Retira el grifo
anterior.
□Limpia la supercie de montaje.
□Retira las tuerca (E) preensambladas y las
arandelas (C y D) del grifo (A) nuevo.
□SIN PLACA DE CUBIERTA: Instalar el
cuerpo de la mezcladora (A) —incluyendo
tuberías de suministro, manguera (1) y cable
del sensor (2)— a través del oricio del lavabo.
NOTA: Se requiere aplicar silicona debajo de la junta (G).
2 Cómo fijar el ensamblaje del
grifo
