Glacier bay 67392W-6101 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
TWO-HANDLE LAVATORY FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
7/2016 REV.02YOW
Model#
67392W-6101
67392W-6104
SKU#
703461
704342

Phillips
screwdriver Basin
wrench
2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents..................................3
Installation................................................4
Care and Cleaning ....................................9
Troubleshooting........................................9
Service Parts ........................................... 10
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service
for replacement parts.

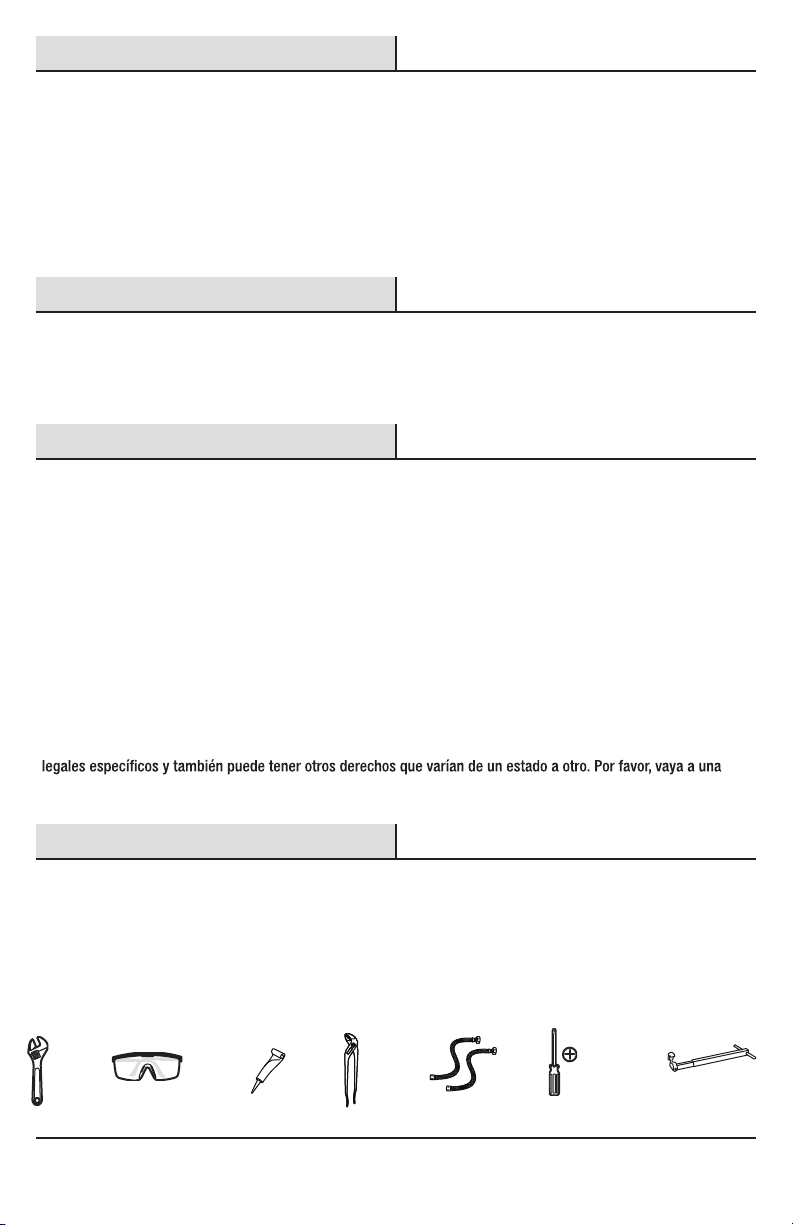

TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Channel
lock pliers
(2) Supply
lines
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2
Operation...................................................8
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.

3
Pre-Installation (continued)
PACKAGE CONTENTS
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Part Description Quantity
A 1
BHandle assembly
- Hot 1
CHandle assembly
- Cold 1
IQuick connecting
hose 1
Faucet body
D 2
ENut 2
FScrew 4
Washer
G 2
HLock nut 1
Washer
J 1Pop up stopper
K 1Drain ange
L 1Rubber washer
M 1Lock nut
N 1Drain body
O 1Ball nut
P 1Ball rod
Q 1Spring clip
S 1Lift rod strap
R 1Thumb screw
Part Description Quantity
T 1Lift rod
J*
K*
L*
M*
P
Q
N*
0*
S
T
R
C
A
B
D
E
F
I
G
H
Faucet Assembly Drain Assembly
U
U 1Plastic wrench
NOTE: *Items J - O come pre-assembled.

4

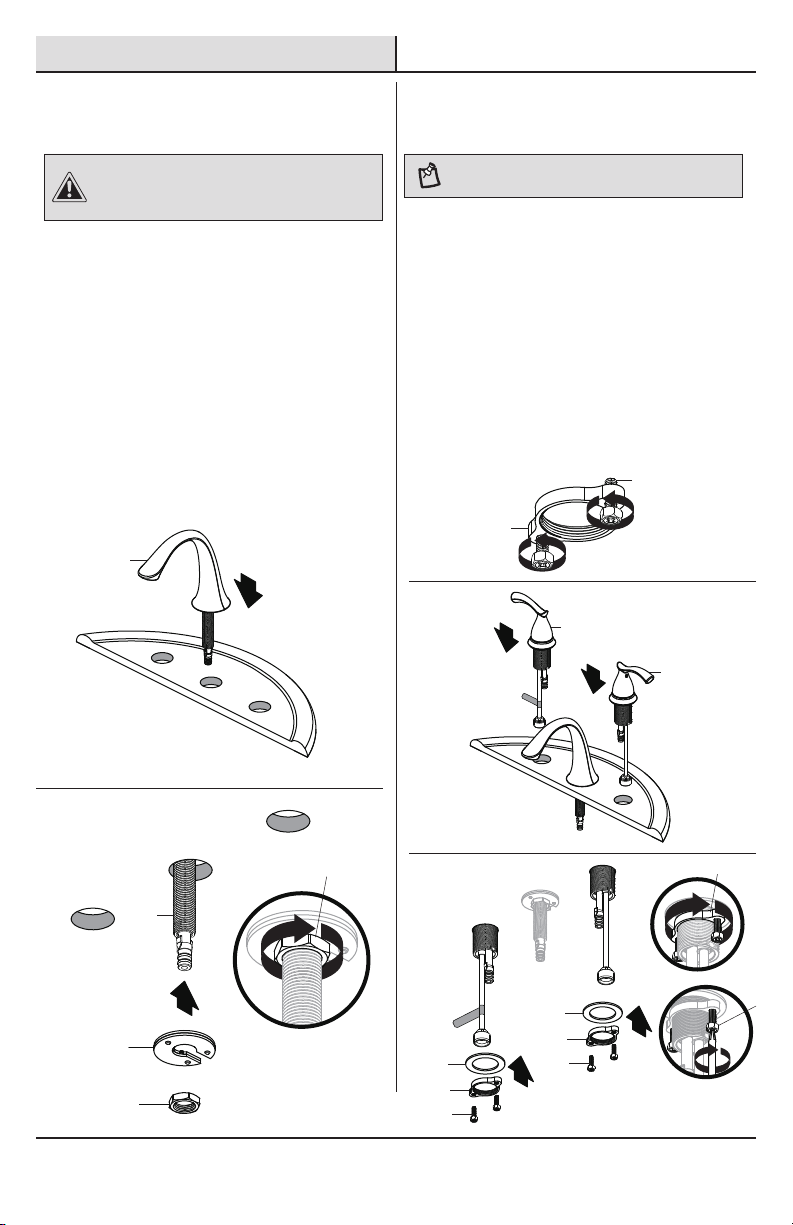

Installation
1 Installing the faucet assembly
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Place the faucet (A) through the mounting
holes in the sink.
□Ensure the slot openings of the washers (G) face
toward to the rear of the sink.
2 Installing the faucet handles
□Remove the preassembled nuts (E) and washers
(D) from the hot and cold faucet handles (B and C).
□Insert the hot faucet handle (B) to the left of the
spout and cold faucet handle (C) to the right of
the spout.
NOTE: The hot water valve is identied with a label.
A
□Shut off the water supply. Remove the old
faucet.
□Clean the mounting surface. □Loosen the screws (F) on the nuts (E) until the
ends of the screws (F) are ush with the face of
the nuts (E).
H
G
□Attach the faucet handles (B and C) underneath
the sink using the washers (D) and nuts (E).
Securely tighten the screws (F) on the nuts (E).
H
E
D
F
E
D
F
3
3
1
2
□Secure the faucet (A) to the sink using the lock
nut (H) provided.
A
3
4
E
5
1
1
F
E
2
2
B
C
□Remove the preassembled lock nut (H) and
washers (G) from the new faucet (A).
F

5
Installation (continued)
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.

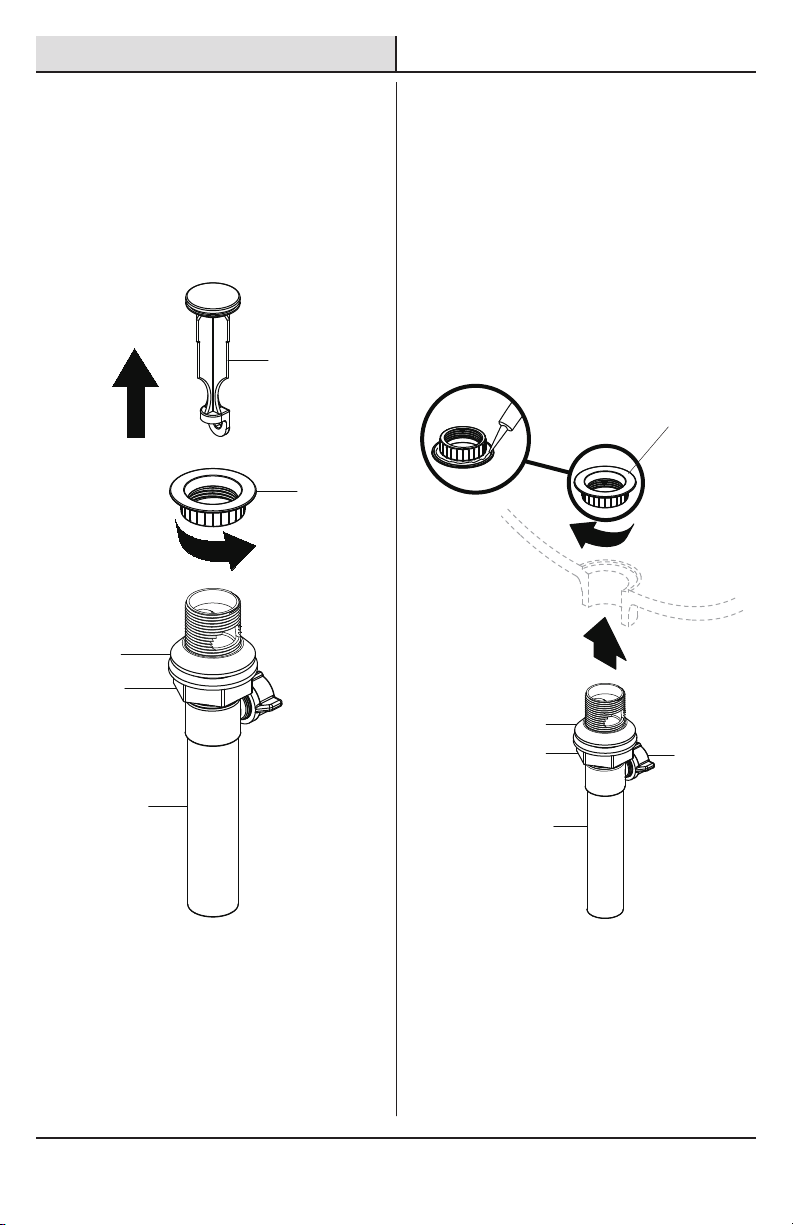

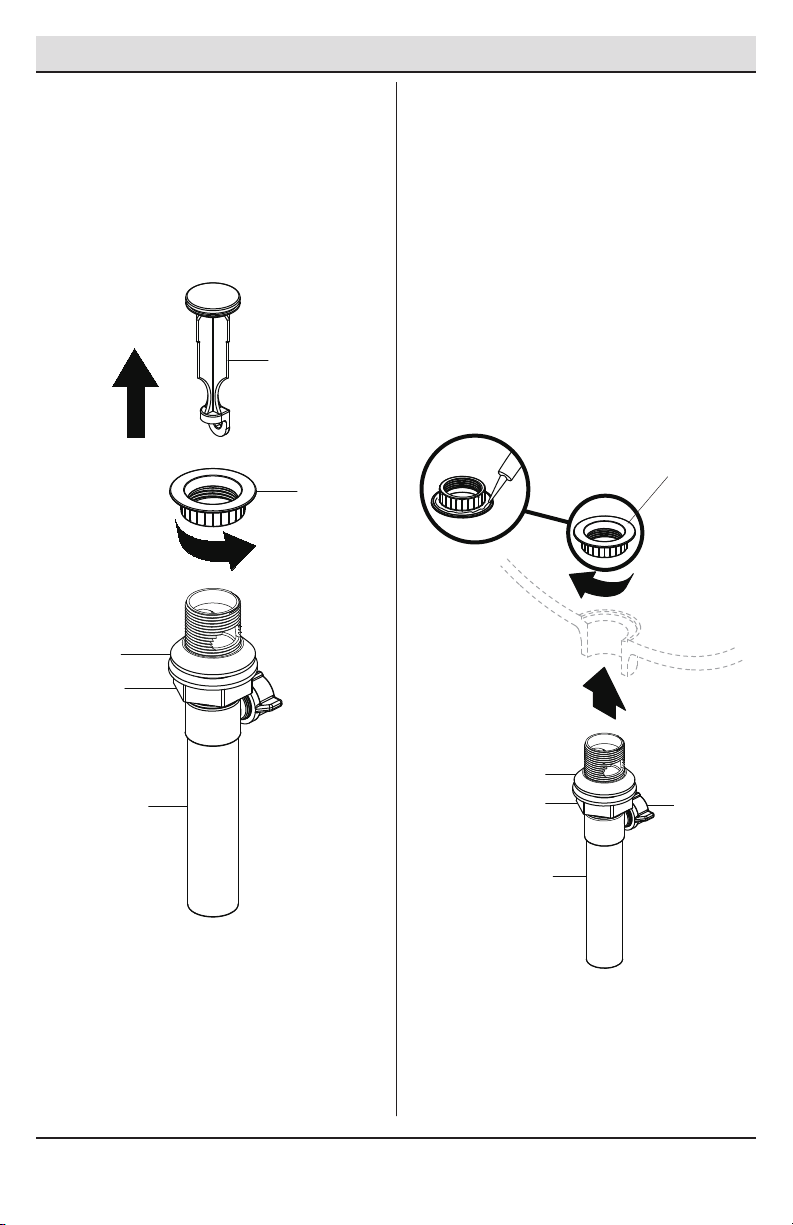

3 Preparing the pop-up assembly
□Remove the pop up stopper (J) and drain
ange (K) from the drain body (N).
□Screw the lock nut (M) all the way down, and
push the rubber washer (L) down.
4 Installing the drain body
□Apply silicone sealant (not included) under the
drain ange (K) and place the drain ange (K)
into the drain hole of the sink.
□From underneath the sink, screw the drain
body (N) onto the drain ange (K). Ensure that
the opening (1) for the ball rod on the drain
body (N) faces towards the rear of the sink.
□Tighten the rubber washer (L) and lock nut (M)
on the drain body (N). Do not overtighten.
N
M1
K
SILI
L
1
2
J
K
L
M
N

6

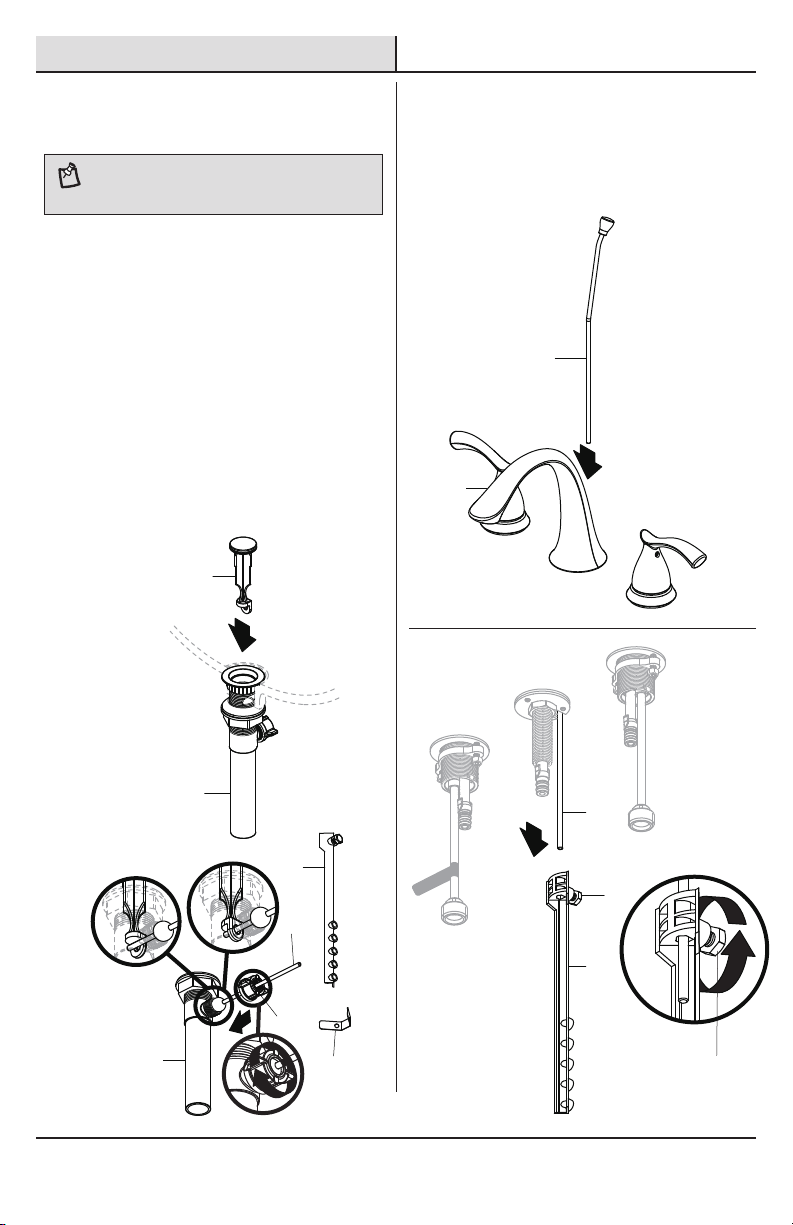

Installation (continued)
5 Installing the stopper and ball
rod
□Insert the stopper (J) into the drain hole in the
sink.
□Remove the lift rod strap (S) and spring clip (Q)
from the ball rod (P).
□For easier removal and cleaning, rotate the
stopper (J) 90 degrees so that the ball rod (P)
does not go through the hole in the stopper (J).
See Insert 2.
□Secure the ball nut (O) against the hole in the
drain body (N) and tighten the ball nut (O) onto
the threaded end. Do not overtighten.
□Remove the ball nut (O). Insert the ball rod (P)
into the drain body (N) and through the hole of
the stopper (J). See Insert 1.
1
J
2
2
3
N
Q
S
P
N
O
Insert 2 Insert 1
6 Installing the lift rod
□Insert the lift rod (T) through the faucet (A) and
down into the lift rod strap (S). Tighten the
thumb screw (R).
1
T
A
S
T
R
2
NOTE: In shallow cabinet installations, the ball rod (P) may
need to be shortened. Use a hack saw to cut the end of the
rod, away from the ball, to the desired length.
3
R

7
Installation (continued)
2
T
1
R
S
3
R
S
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.

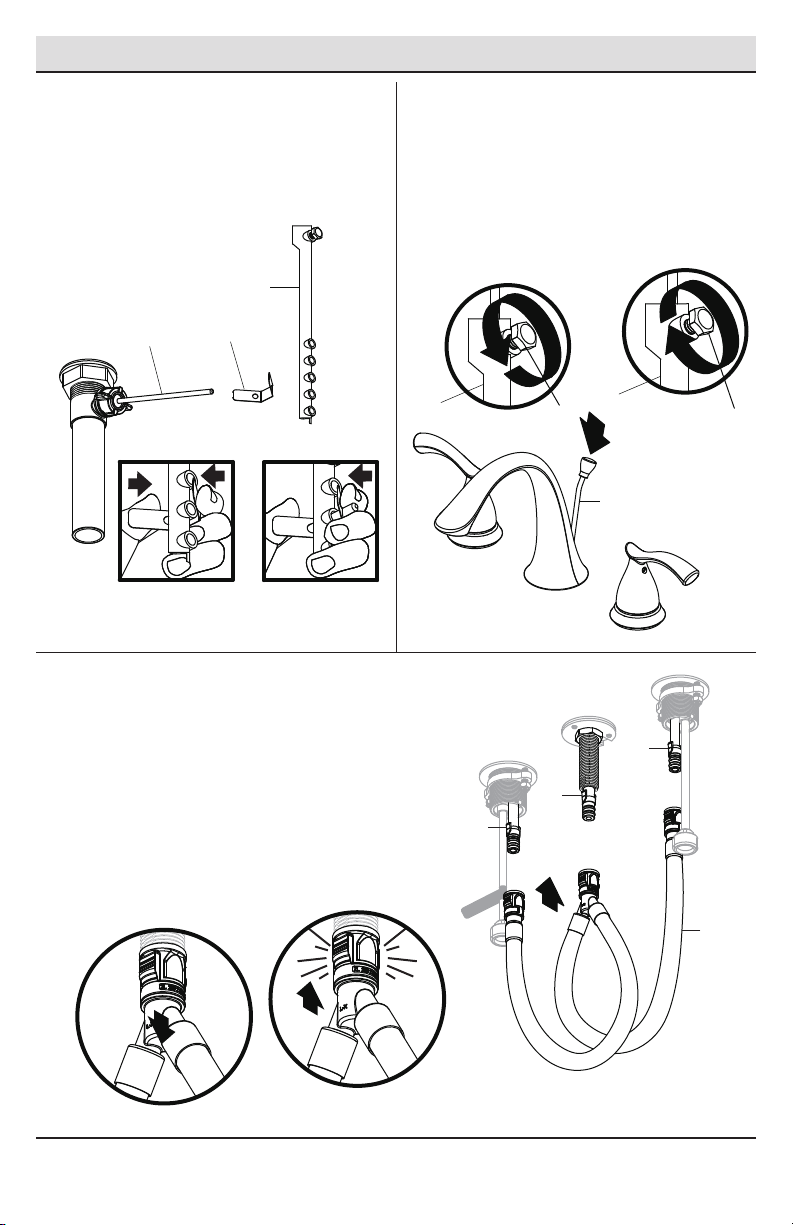

9 Attaching the quick connecting
hose
□Attach the quick connecting hose (I) connections
to the hot faucet handle (B) connection, faucet
body (A) connection, and cold faucet handle (C)
connection. Push until the connections snap
together.
□Pull down moderately to ensure the connection
has been made.
1
C
I
7 Attaching the ball rod and strap
□Attach the ball rod (P) to the lift rod strap (S)
using the spring clip (Q).
1 2
1
PQ
S
8 Adjusting the lift rod
□Loosen the thumb screw (R) on the lift rod
strap (S).
□Push down on the lift rod (T) until the drain
stopper is in the open position. Retighten
the thumb screw (R).
A
B
3
2

8
Installation (continued)
10
3
12

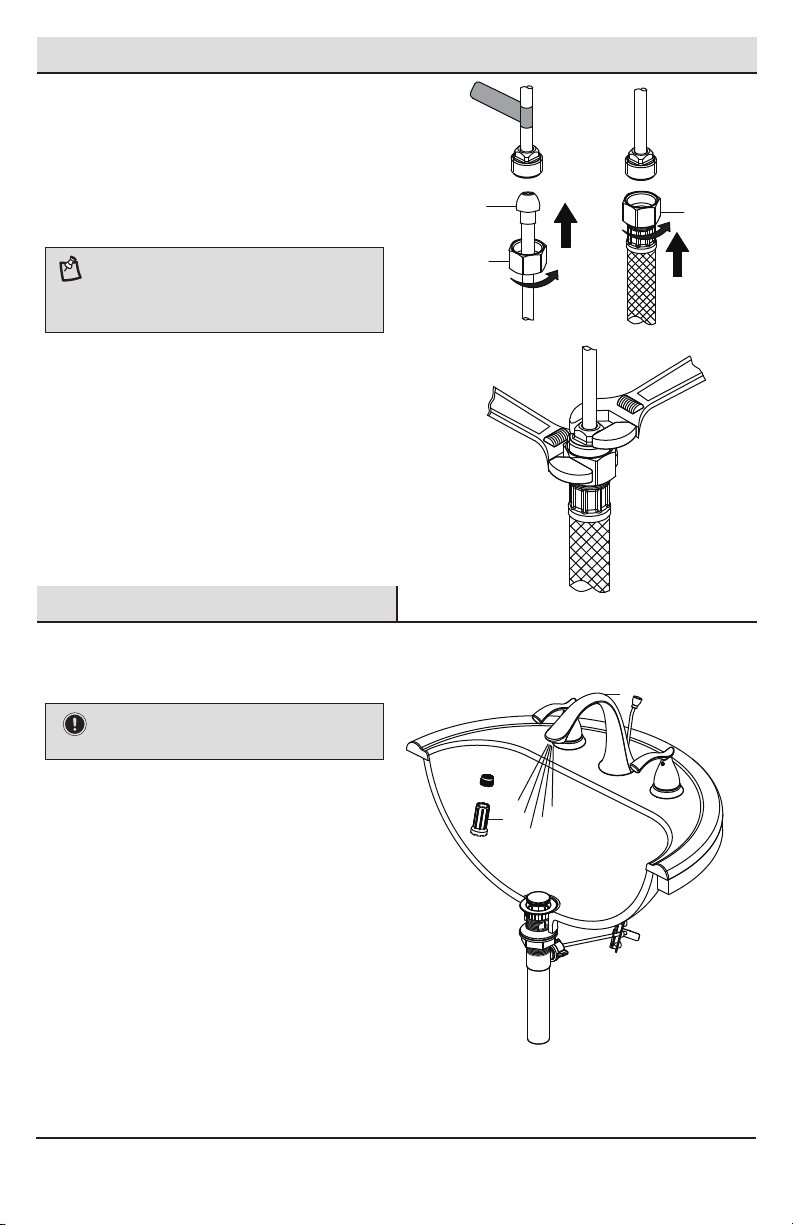

Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube tting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
U
A
1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator from the faucet (A) with the plastic wrench (U) to
ush the water lines.
□Ensure the faucet (A) handles are in the off
position, and turn on the water supply and check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold handles to allow the
water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
Operation

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
9
Troubleshooting
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
The aerator is dirty or mis-tted.
Operation (continued)

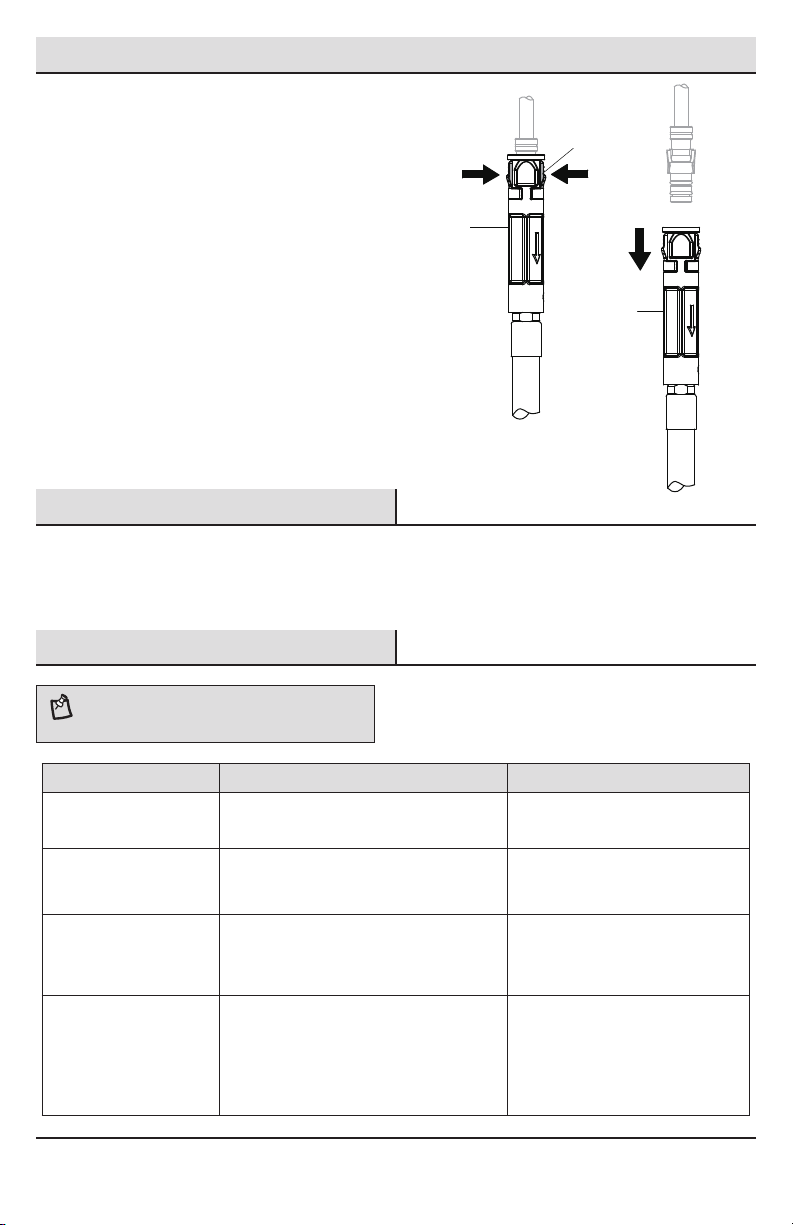

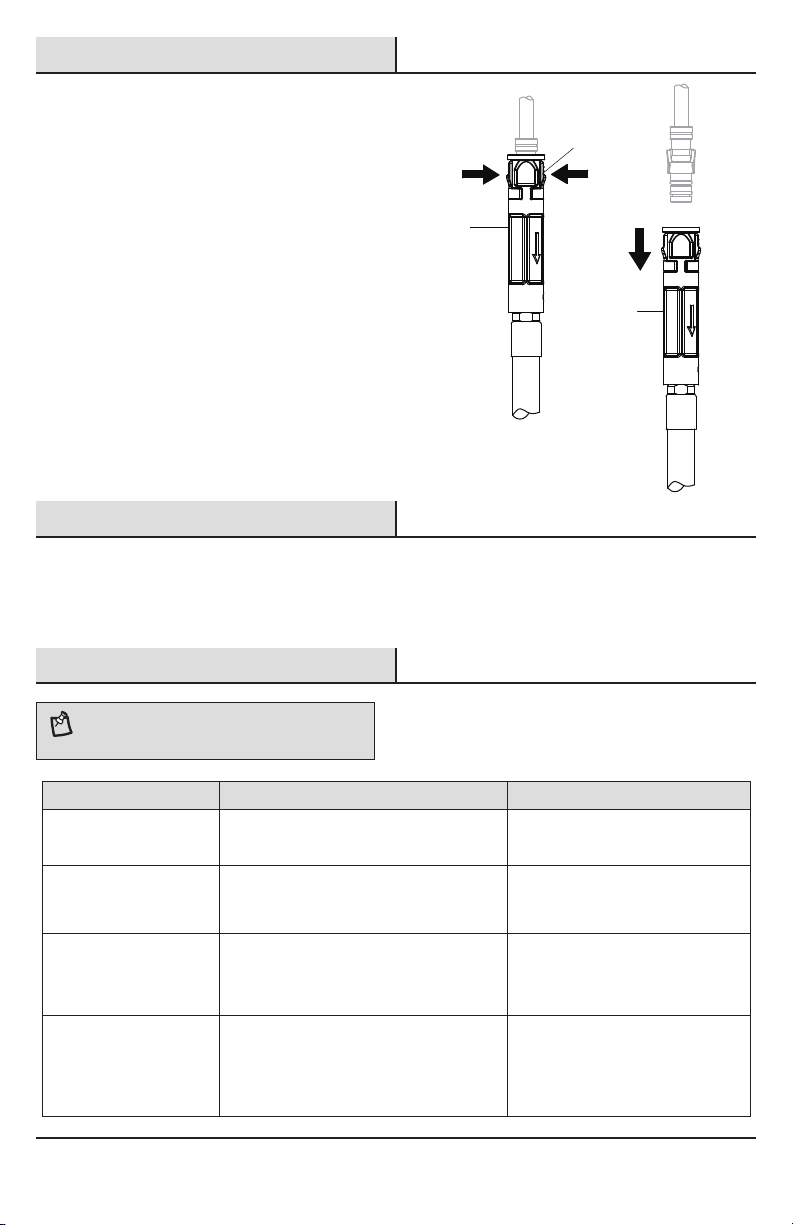

2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
2
Squeeze
Pull
down
1
1
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or irregular surface. □Apply additional silicone sealant
to the beveled side of the drain
ange.
□Retighten and test for leaks.
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.

10
Service Parts
Part Description Part Number
1 RP13149*
2 Set screw RP50002
3
4
Connector RP50003
5
6
Inverter RP64044
7
Cartridge H RP20013
8
Cartridge C RP20014
9
Flange RP80296*
Handle
Nut RP56059
O-ring RP60002
Part Description Part Number
10
11
Washer RP64147
13
Screw RP50004
14
15
16
17
Plastic wrench RP30040
Washer RP64193
Lock nut RP56062
Bonnet nut RP70193 Block RP70421
18 Quick connecting hose RP70430
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
19
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
19 Drain assembly
less lift rod RP40027*
20 Lift rod RP40102*
12 Aerator RP30191
