Glacier bay 67624W-6001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
TWO-HANDLE LAVATORY FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
8/2015 REV.01YOW
Model#
67624W-6001
67624W-6004
67624W-6027H2
SKU#
703466
703468
703470

2
Table of Contents
Safety Information....................................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Tools Required .......................................2
Package Contents..................................3
Installation................................................4
Operation...................................................9
Care and Cleaning ....................................9
Service Parts ........................................... 10

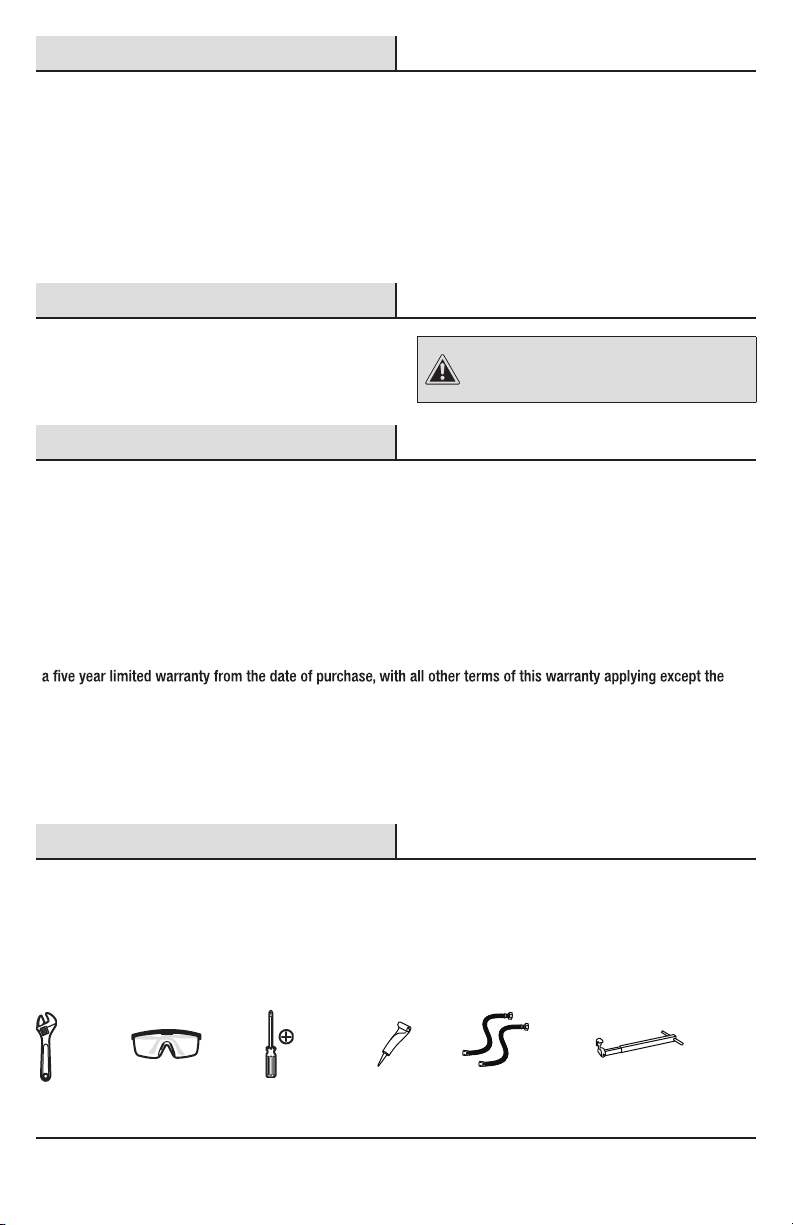

Safety Information
Please read and understand this entire manual before
attempting to assemble, operate, or install the product. CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Adjustable
wrench
Safety
goggles
Phillips
screwdriver
SILICONE
Silicone (2) Supply
lines
Basin
wrench
Pre-Installation
PLANNING INSTALLATION
TOOLS REQUIRED
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents section. If any part is missing or damaged, do not attempt to install the product.

3
Pre-Installation (continued)
PACKAGE CONTENTS
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Part Description Quantity
A 1
B Hot end valve 1
C Cold end valve 1
J
Quick connect
assembly 1
Spout assembly
D 2
E Nut 2
F Screw 4
Washer
G 1
H
Washer
1
I
Nut
K
1Stopper
L
1Flange
M
1Gasket
N
1Nut
O
1Pop-up body
P
1Clip
Q
1Horizontal rod
R
2Button
T
1StrapS
2Slip joint
Part Description Quantity
1Clip
U 1Lift rod assembly
S
N
L
M
O
Q
R
P
K
T
J
U
B
A
C
G
H
I
D
E
F
V
V 1Plastic wrench

4
Installation

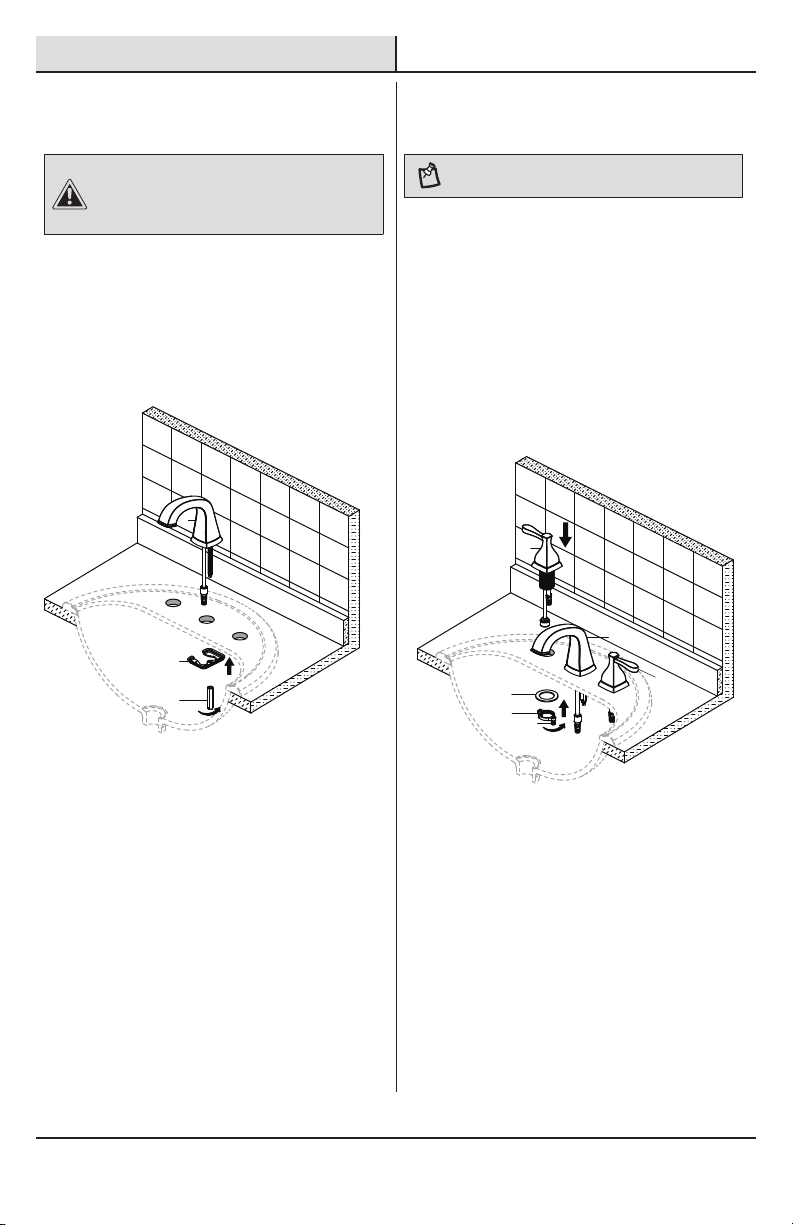

1 Installing the spout assembly
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply.
□Place the spout assembly (A) through the middle
mounting hole in the sink.
□Secure the spout assembly (A) with the washer
(G) and the nut (H). Use the basin wrench to
tighten the nut (H).
2 Connecting the hot and cold
valves
□Slide the hot and cold end valves (B & C) through
the sink mounting holes. Make sure the long
tubes are installed away from the spout
assembly (A).
□Secure the end valves (B & C) with the washers
(D) and the nuts (E). Hand tighten the nuts (E)
onto the end valve (B & C) shanks. Lock the nuts
(E) into position by tightening the screws (F) with
a phillips screwdriver.
NOTE: The hot side end valve is labeled.
E
D
F
A
B
C
G
H
A

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
5
Installation (continued)

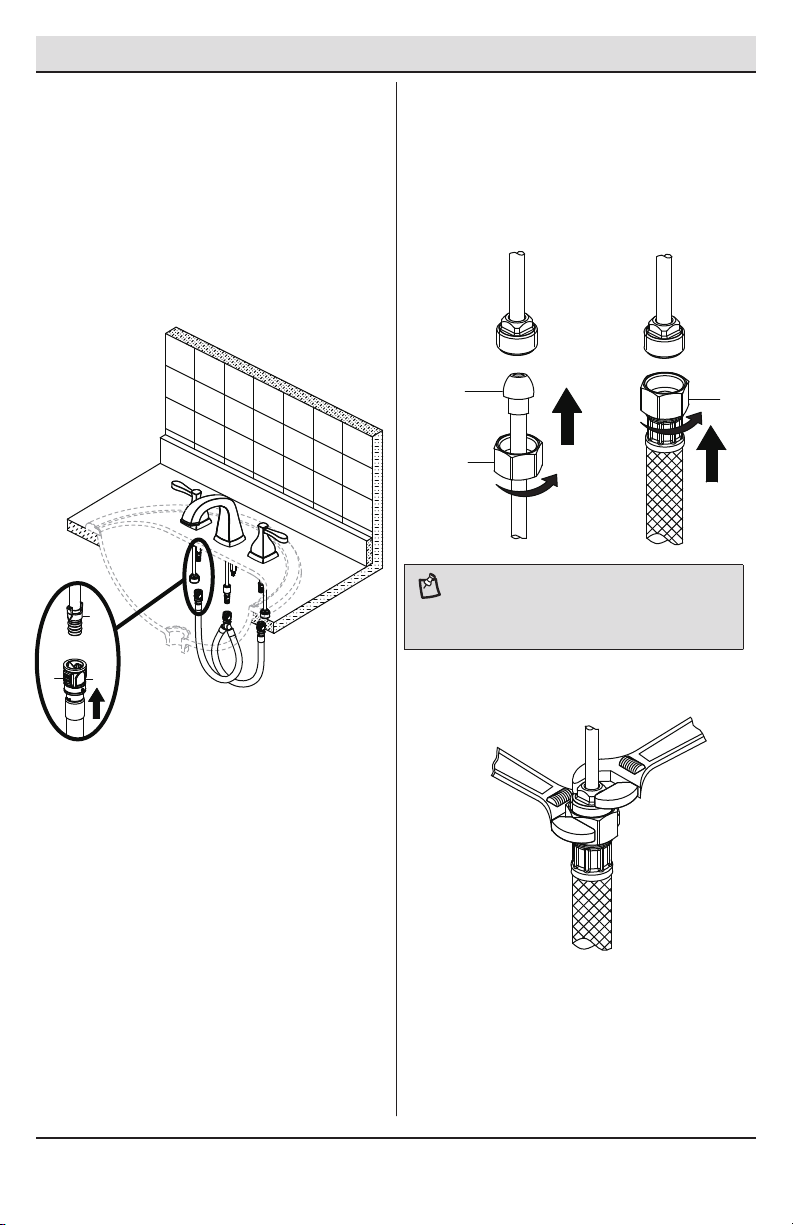

3 Connecting the hose
□Align the tabs (1 & 2) on the quick connect
assembly (I).
□Push the quick connect assembly (I) rmly
upward and snap it onto the receiving tube tab.
Pull down moderately to ensure the connection
has been made.
4Making the waterline
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube tting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
3
12
1
2I

6
Installation (continued)

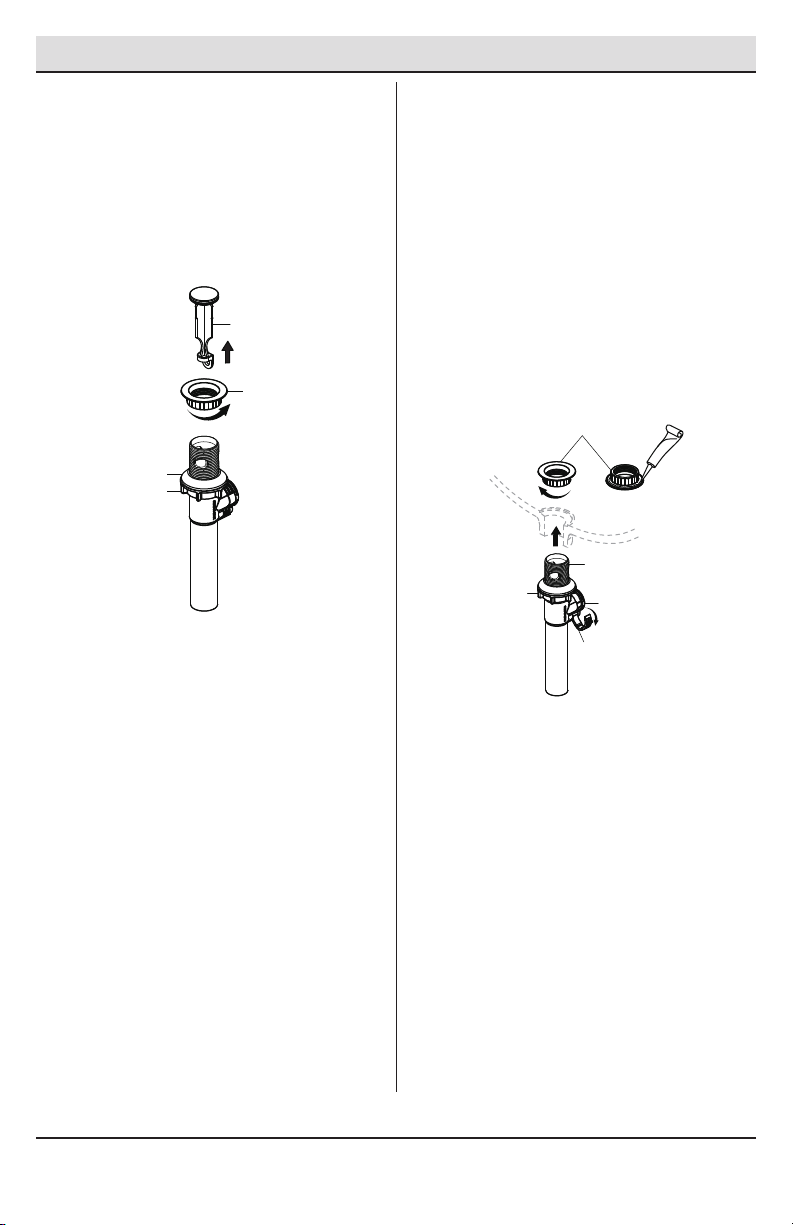

5 Preparing the pop-up assembly
□Remove the stopper (J) and ange (K).
□Screw the nut (M) all the way down, and push
the gasket (L) down.
6 Installing the pop-up body and
pop-up flange
□Apply silicone to the underside of the ange (K).
□Insert the pop-up body (N) into the sink. Screw
the ange (K) onto the pop-up body (N). The
pivot hole (1) must face the back of the sink.
□Use the groove joint pliers to tighten the nut (M),
but do not over tighten. Do not turn the pop-up
body (N) while tightening the nut (M) or the
sealant may not seal properly. Clean away any
excess putty.
□Open the easy install rotating clip (O).
K
J
M
L
N
K
1
M
O
SILICONE
Open

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
7
Installation (continued)

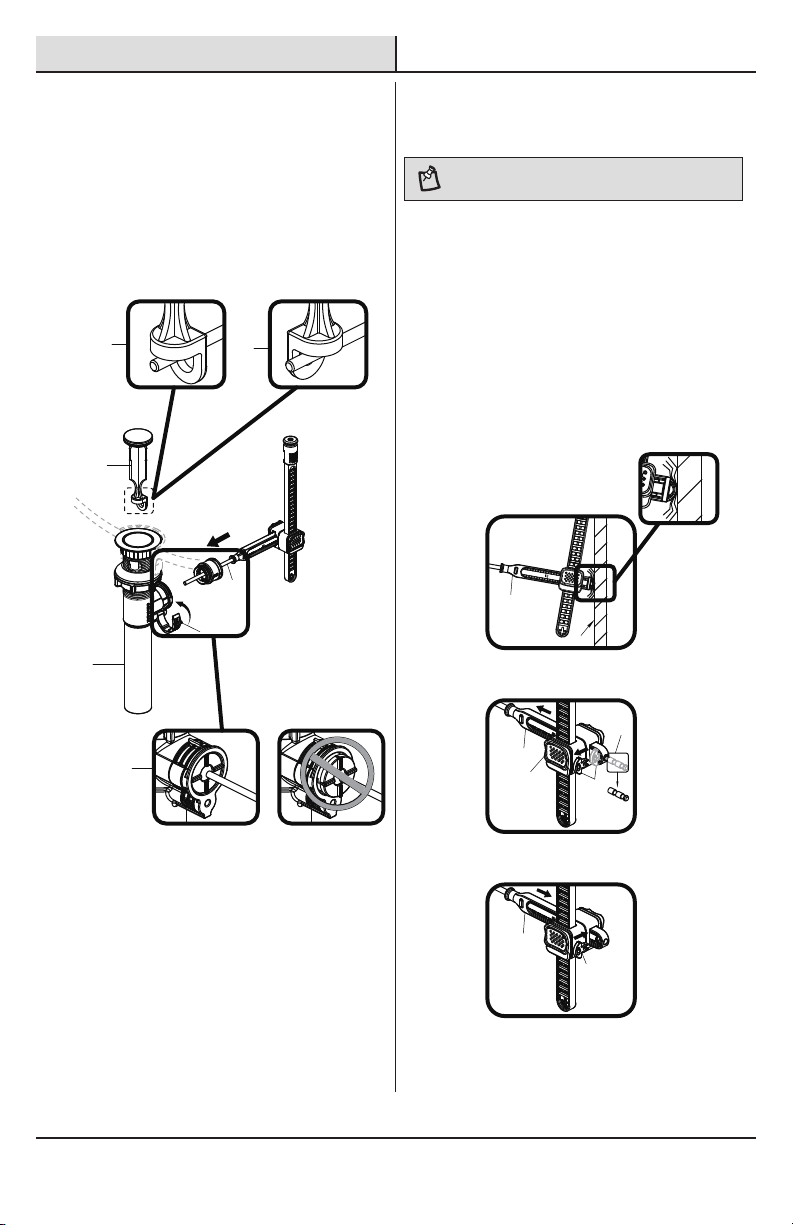

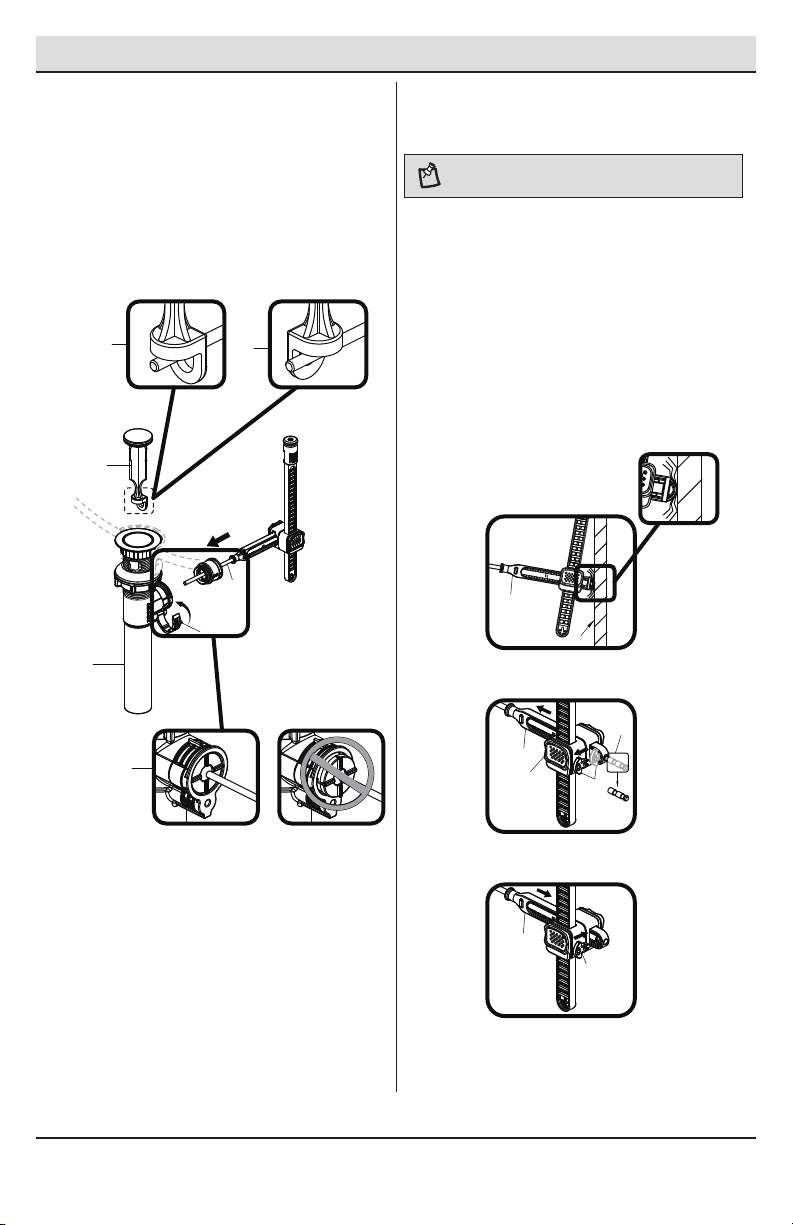

7Installing the horizontal rod,
stopper, and strap
□Install the horizontal rod (P) and stopper (J), as
shown (1) and (2). Make sure the horizontal
rod (P) insert into the pop-up body (N)
completely, as shown (3).
□Close the easy install rotating clip (O).
8 Adjusting the length of
horizontal rod
□If the horizontal rod (P) is too long, as shown in
Fig 1, the length can be adjusted.
□After the plastic portion is positioned properly,
reinstall the clip (T) as shown in Fig 3
□Remove the clip (T) from the horizontal rod (P).
Slide the plastic portion of the rod to adjust to the
desired length. The excess length (1) can be
removed by snapping off with pliers at the
perforated segment, or cut off with a saw.
NOTE: If the horizontal rod of the pop-up assembly is too
long, do not cut, it can be adjusted.
J
Close
1
O
P
2
N
3
Fig 2
Fig 1
P
Wall
T
P
T
1
P
Fig 3
Q

Installation (continued)

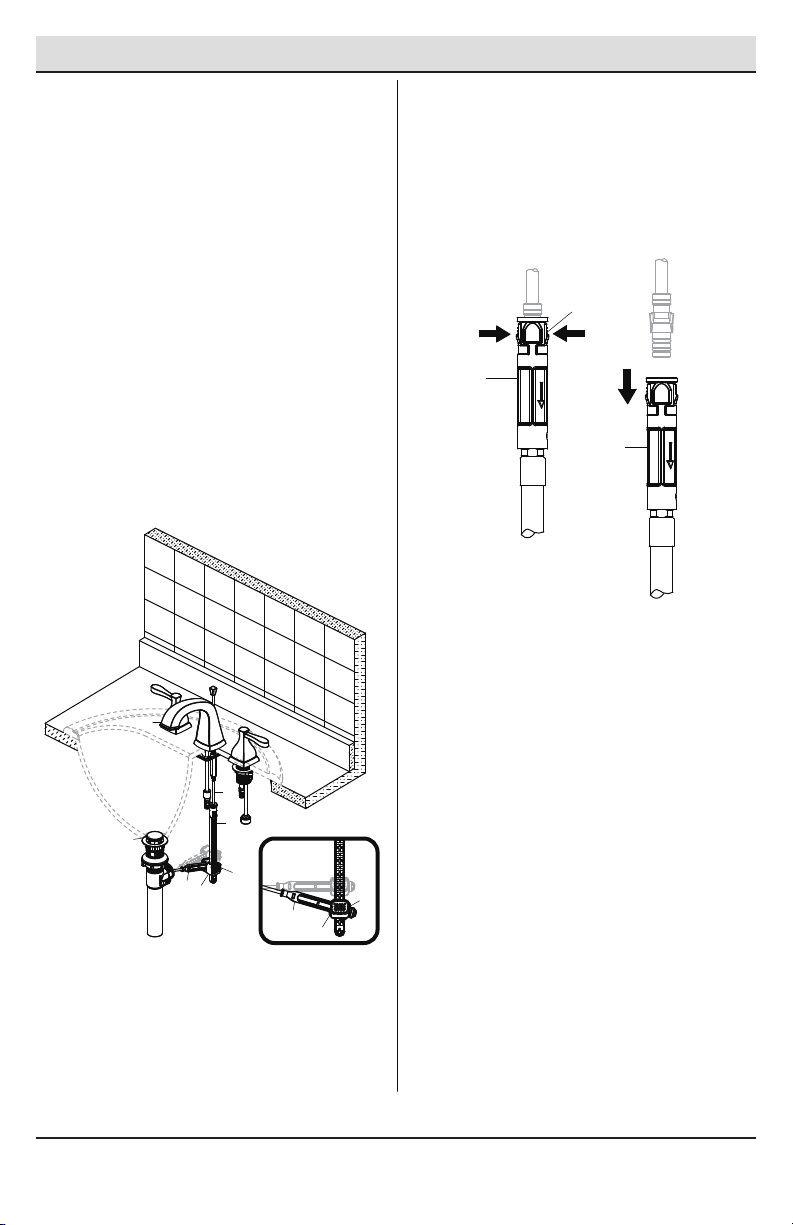

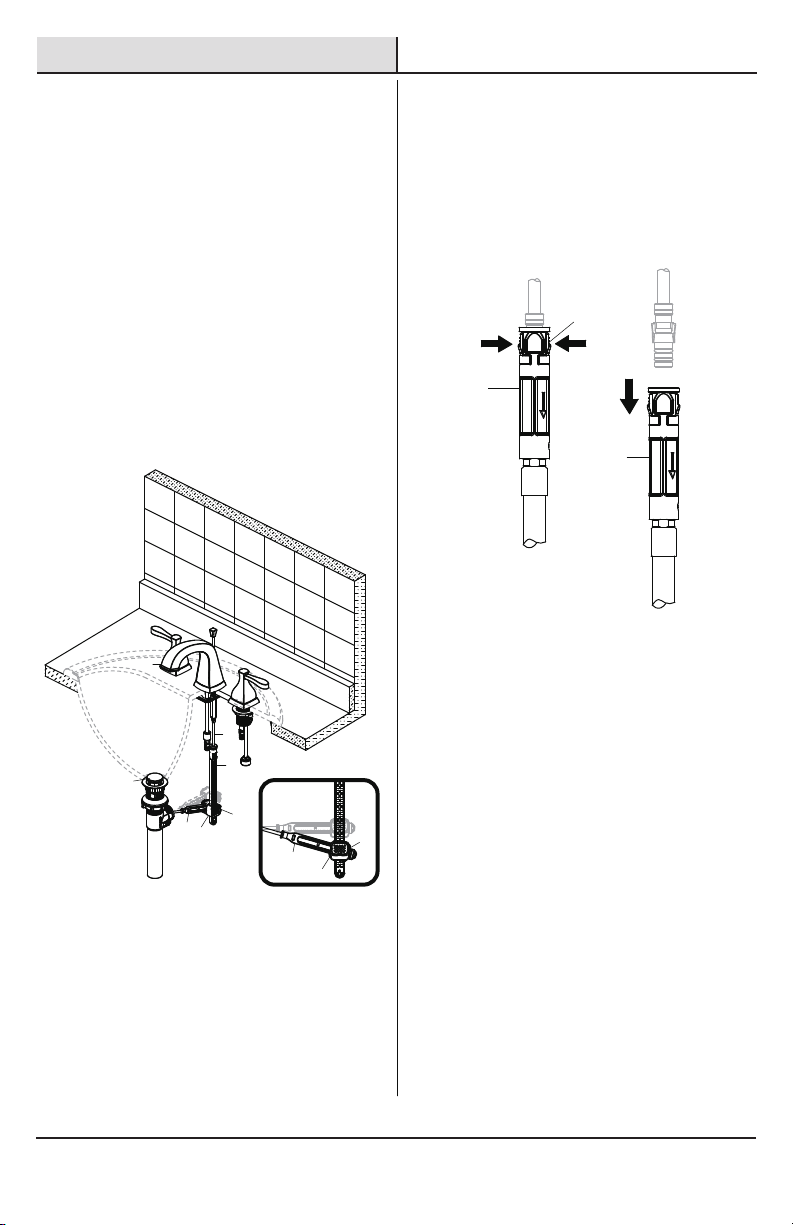

9 Installing the lift rod
8
10 Remove the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
□Push the pivot rod (P) to the down position until
the stopper (J) is completely open. Press the
button (Q) on the slip joint assembly (R) and
adjust the vertical rod (S) up or down and front
or back along the pivot rod (P) until the vertical
rod (S) is in the correct position to engage with
the lift rod (U). Press lift rod (U) into the top of the
vertical rod (S) until it engages.
□Operate the lift rod (U) up and down to verify that
the stopper opens and closes correctly.
□Slide the lift rod (U) through the faucet
assembly (A) until the knob rests on the faucet
assembly.
R
P
Q
J
U
A
PR
S
Q
2
Squeeze Pull
down
1
1

Care and Cleaning
□
□
□Do not use abrasive cleaners when cleaning this faucet.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.

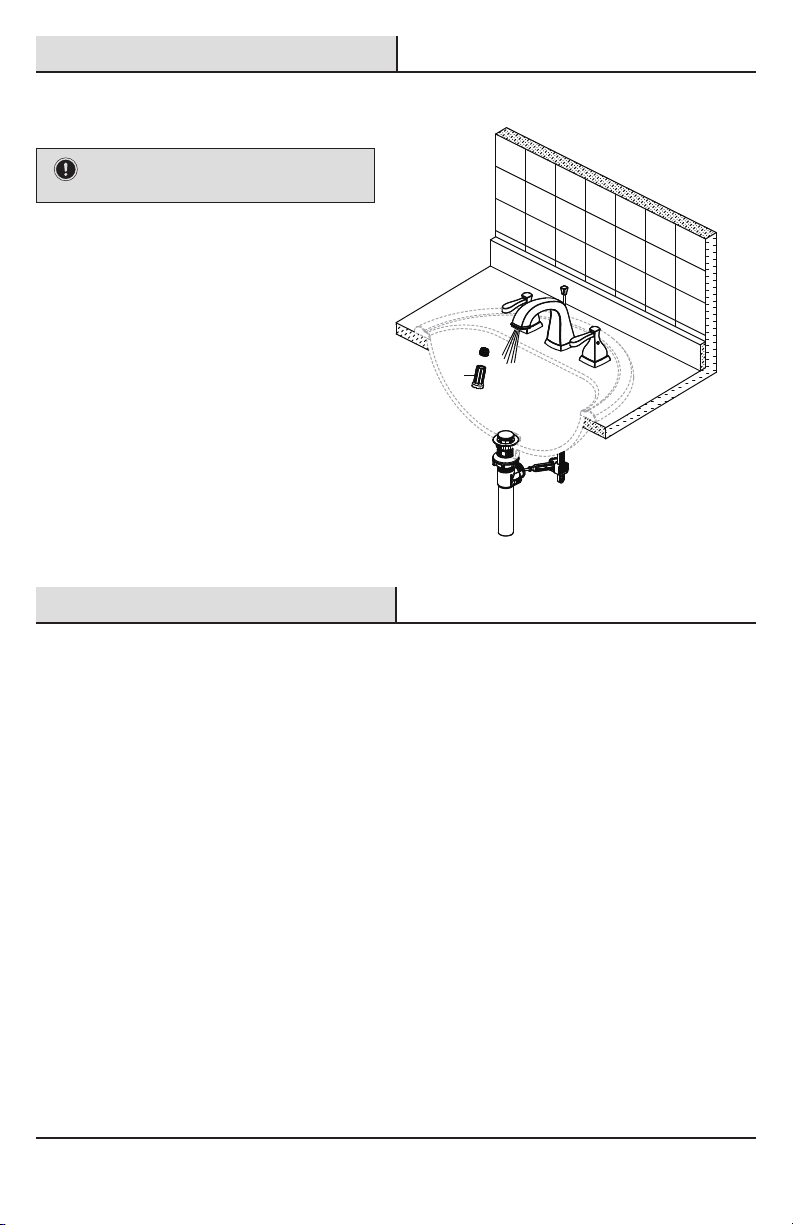

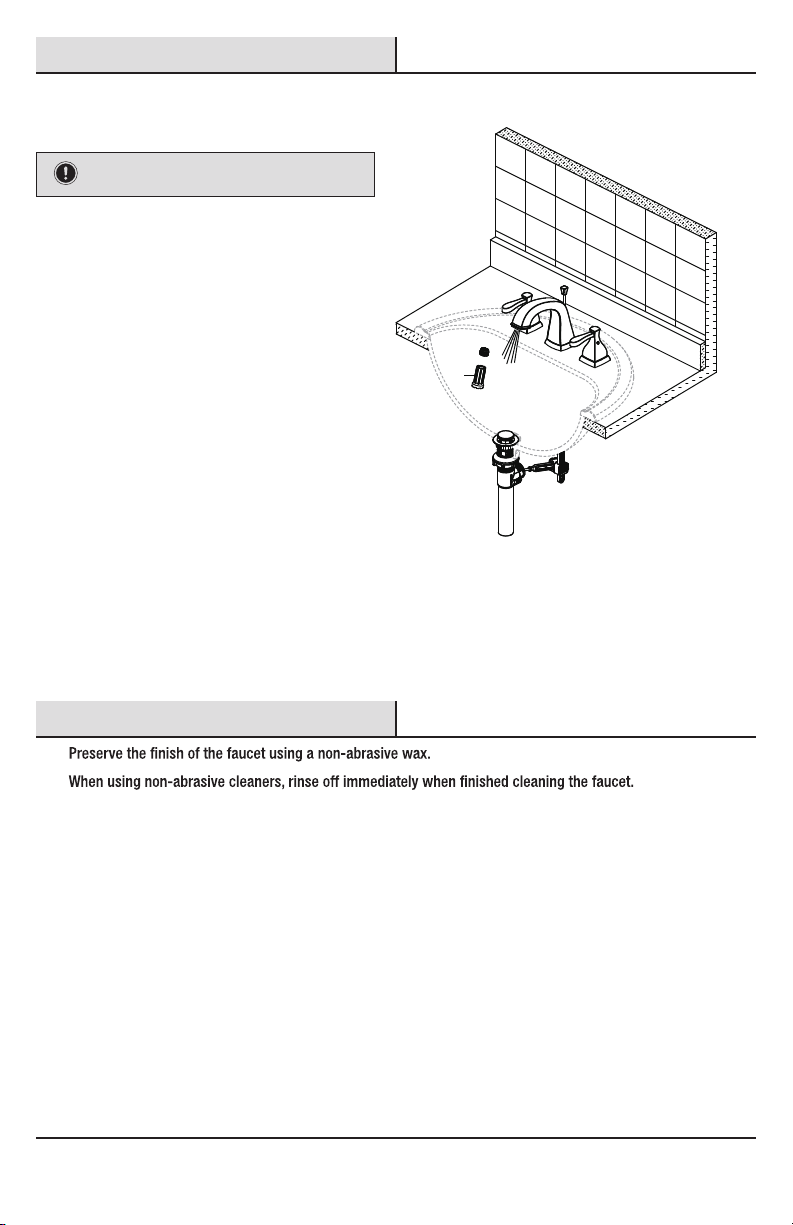

1Flushing and checking for leaks
□Turn on the water supply and allow both hot
and cold water to run for at least one minute
each. This ushes away any debris that could
cause damage to internal parts.
□While the water is running, check for leaks.
□Turn off the water and replace the aerator.
Operation
9
IMPORTANT: After installation is complete, remove the
aerator with the plastic wrench (V) to ush the water lines.
V

10

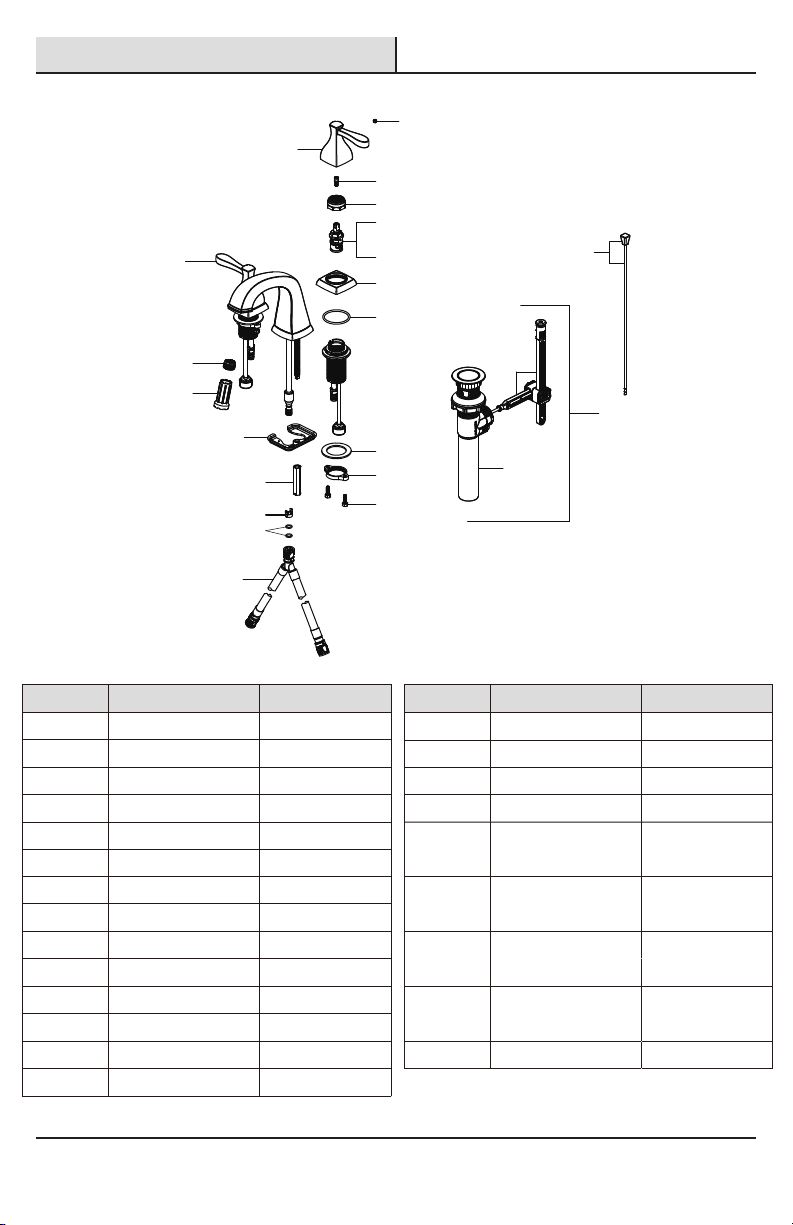

Service Parts
*Specify Finish
Part Description Part Number
1
RP50003
2Handle C RP13377*
3
4
5
11
12
Nut RP56059
13
Screw RP50004
15
Aerator RP30215
Connector
Block RP70421
Easy install drain
assembly less body RP40193
Part Description Part Number
16
17
18
Nut RP56012
20
O-ring RP60002
Quick connect
assembly RP70430
21
Easy install
drain body RP40192*
Bonnet RP70435
Easy install drain
assembly RP40191*
23 Lift rod & lift rod knob RP40207*
22
19
Washer RP70228
Set screw RP50002
Handle H RP13376*
3
2
4
5
6
7
8
9
1
13
14
10
11
12
15
16
17
18
19
22
21
20
23
6
RP60098
7Cartridge C RP20014
8
9
10
O-ring
Washer RP64147
Flange RP80447*
Cartridge H RP20013
14 Plastic wrench RP30040
