Glasdon MODUS 770 Manual

MODUS SHELTER 770 AND 1280
FLAT PACK
ASSEMBLY & FIXING INSTRUCTION LEAFLET
TM
NOTE: Ensure that all relevant personnel read the points listed below and that a copy is passed on to staff involved
with the installation. Please also refer to the ‘Manual Handling Operations Regulations 1992’ during the
handling of the product and materials used for installation.
CONTENTS:
Tools Required Page 1
KIT CONTENTS:
Smoking Shelter Page 1-2
Smoking Shelter Optional Extras Page 3
Standard Shelter Page 4-5
Standard Shelter Optional Extras Page 6
Section 1 : ASSEMBLY OF SHELTER Page 7-10
Section 2 : ASSEMBLY OF SHELTER- OPTIONALEXTRAS Page 10-15
Section 3 : UNPACKING THE SHELTER Page 16
Section 4 : INSTALLATION OF SHELTER Page 16-17
Section 5 : ADJUSTMENT OF LEGS Page 18

TOOLS REQUIRED:
13mm Spanner x1
Hand Drill with Pozi Drive Drill Bit x1
M6 Pin Torx Screwdriver Bit x1
19mm x 150mm Masonry Drill Bit x1
Rubber Mallet x1
Hammer x1
Flat Head Screwdriver x1
Pencil and Tape Measure
17mm Spanner / Socket x2
5mm Allen Key x1
6mm Allen Key x1
19mm Spanner / Socket x1
18mm Masonry Drill Bit x1
Torque Wrench with 19mm Socket x1
Heavy-Duty Electric Drill x1
Scalpel or other sharp blade x1
Assembled
Shelter (770)
Assembled
Shelter (1280)
SMOKING SHELTER
KIT CONTENTS:
Modus 770 1280
ITEM 1 770 Roof x1
ITEM 2 1280 Roof x1
ITEM 3 Front Left Corner Extrusion x1 x1
ITEM 4 Front Right Corner Extrusion x1 x1
ITEM 5 Rear Corner Extrusion x2 x2
ITEM 6 Spigot Leg x4 x4
ITEM 7 Top Glazing Support Side 770 x2
ITEM 8 Top Glazing Support Side 1280 x2
ITEM 9 Top Glazing Support Rear x1 x1
ITEM 10 PETG Glazing Side 770 x2
ITEM 11 PETG Glazing Side 1280 x2
ITEM 12 PETG Glazing Rear x1 x1
ITEM 13 Middle Support Extrusion Side 770 x2
ITEM 14 Middle Support Extrusion Side 1280 x2
ITEM 15 Middle Support Extrusion Rear x1 x1
ITEM 16 PETG Panel Clamp Extrusion x6 x6
ITEM 17 PETG Glazing Filler Strip Side 770 x2
ITEM 18 PETG Glazing Filler Strip Side 1280 x2
ITEM 19 PETG Glazing Filler StripRear x1 x1
ITEM 20 Ecoboard Panel Side 770 x2
ITEM 21 Ecoboard Panel Side 1280 x2
ITEM 22 Ecoboard Rear Panel x1 x1
ITEM 23 Bolt M8 x 20mm x8 x8
ITEM 24 Washer M8 x8 x8
ITEM 25 Security Screw M6 x 16mm x8 x8
ITEM 26 Roof Corner Bracket x2 x2
ITEM 27 Security Screw 20mm x24 x26
ITEM 28 Bolt M10 x 50mm x4 x4
ITEM 29 Nylon Spacer 20mm OD x4 x4
ITEM 30 Nylon Plug x5 x5
ITEM 31 M10 Nut x4 x4
ITEM 32 M12 Ground Fixing Anchor Bolt x4 x4
P. 1

P. 2
25
23 24
29
28
20 21 22
1
2
3
10 11 12
45
13 14 15
78 9
6
17 18 19
16
26 27
30
770 SIZE 1280 SIZE
31 32
SMOKING SHELTER

P. 3
Ashmount (various sizes)
ITEM 40 Ashmount x1
ITEM 37 No. 10 (Ø4.8 x 32mm) Pozi Screw x4
Please see page 13 for fitting instructions
Ashmount SG
ITEM 36Ashmount SGx1
ITEM 37 No. 10 (Ø4.8 x 32mm) Pozi Screw x4
ITEM 38 Washer x4
ITEM 39Nylon Spacer (Lift-offmounting) x4
Please see page 12-13 for fitting instructions
36
40
38
37
37
39
Full Rear Ecoboard Panel Kit Modus 770 1280
ITEM 33 Pozi PanScrew60mm x2 x2
ITEM 34 Washer M5x 25mm OD x2 x2
ITEM 35EcoboardPanel Rear Top x1 x1
As well as the above additions,the following item QTY’s are affected:
ITEM 9TopGlazing Support Rear Removedfrom kit
ITEM 12 PETG Glazing Rear Removedfrom kit
ITEM 16PETGPanel Clamp Extrusion x4 x4
ITEM 19PETG Glazing Filler StripRear Removedfrom kit
35
34
33
Please see page 10 for fitting instructions
SMOKING SHELTER
OPTIONAL EXTRAS: (please refer to your order)

STANDARD SHELTER
KIT CONTENTS:
Modus 770 1280
ITEM 1 770 Roof x1
ITEM 2 1280 Roof x1
ITEM 3 Front Left Corner Extrusion x1 x1
ITEM 4 Front Right Corner Extrusion x1 x1
ITEM 5 Rear Corner Extrusion x2 x2
ITEM 6 Spigot Leg x4 x4
ITEM 7 Top Glazing Support Side 770 x2
ITEM 8 Top Glazing Support Side 1280 x2
ITEM 9 Top Glazing Support Rear x1 x1
ITEM 10 PETG Glazing Side 770 x2
ITEM 11 PETG Glazing Side 1280 x2
ITEM 12 PETG Glazing Rear x1 x1
ITEM 13 Middle Support Extrusion Side 770 x2
ITEM 14 Middle Support Extrusion Side 1280 x2
ITEM 15 Middle Support Extrusion Rear x1x1
ITEM 16 PETG Panel Clamp Extrusion x6 x6
ITEM 17 PETG Glazing Filler Strip Side 770 x2
ITEM 18 PETG Glazing Filler Strip Side 1280 x2
ITEM 19 PETG Glazing Filler Strip Rear x1 x1
ITEM 20 Ecoboard Panel Side770 x2
ITEM 21 Ecoboard Panel Side1280 x2
ITEM 22 Ecoboard Rear Panel x1x1
ITEM 23 Bolt M8 x 20mm x8 x8
ITEM 24 Washer M8 x8 x8
ITEM 25 Security Screw M6 x16mm x8 x8
ITEM 26 Roof Corner Bracket x2 x2
ITEM 27 Security Screw 20mm x24 x26
ITEM 28 Bolt M10 x 50mm x4 x4
ITEM 29 Nylon Spacer 20mm OD x4 x4
ITEM 30 Nylon Plug x5 x5
ITEM 31 M10 Nut x4 x4
ITEM 32 M12 Ground FixingAnchor Bolt x4 x4
Assembled
Shelter (770)
Assembled
Shelter (1280)
P. 4

P. 5
20 21 22
1
2
3
10 11 12
45
13 14 15
78 9
6
17 18 19
16
25
23 24
29
28
26 27
30
770 SIZE 1280 SIZE
31 32
STANDARD SHELTER

Blank SignagePanel
ITEM 45 Blank Signage Panel x1
ITEM 46 5.5 x 50mm Security Screw x6
ITEM 47 Washer M5 x 25mm x6
ITEM 48 Nylon Spacer x6
Please see page 14 for fitting instructions
PolycarbonateGraphic
To fit to: Blank Signage Panel (see above)
ITEM 49Polycarbonate Signage Panel x1
ITEM 50 4.5 x 20mm Security Screw x16
ITEM 51 HingedWhite Cover Cap x16
Please see page 15 for fitting instructions
45
42
41
43
P. 6
Perch Seat 1200 QTY:1
ITEM 41 Perch Seat 1200 x1
ITEM 42 M10 Coach Bolt x4
ITEM 43M10 Nut x4
Please see page 11 for fitting instructions
Perch Seat600 QTY:2 QTY:1
ITEM 42 M10 Coach Bolt x8 x4
ITEM 43M10 Nut x8 x4
ITEM 44 Perch Seat 600 x2 x1
Please see page 12 for fitting instructions
44
47
46
48
49
50
51
Full RearEcoboardPanel KitModus7701280
ITEM 33 PoziPan Screw 60mm x2 x2
ITEM 34Washer M5 x 25mm OD x2 x2
ITEM 35EcoboardPanel Rear Top x1 x1
As well as the above additions,the following item QTY’s are a ected:
ITEM 9TopGlazing Support Rear Removedfromkit
ITEM 12 PETG Glazing Rear Removedfrom kit
ITEM 16 PETGPanel Clamp Extrusion x4 x4
ITEM 19PETG Glazing Filler Strip Rear Removedfrom kit
Please see page 10 for fitting instructions
35
34
33
STANDARD SHELTER
OPTIONAL EXTRAS: Please refer to your order

Section 1: Assembly of Shelter
P. 7
Slide all 4 Spigot Legs (ITEM 6’s)
into the bottom of each of the
Corner Extrusions (3-5). The holes
in the Spigot Legs will align with
the diagonally spaced holes in the
Extrusions. Secure the Spigot Legs
in place using the M8 fixings
(23-24) with the 13mm spanner.
12
Take the Rear Panel (22) and slide
it into the right hand slot in one of
the Rear Corner Extrusions (5) as
above. For the Smoking Shelter,
ensure the ‘cut’ edge of the panel
faces upwards.
3
745mm
Measure from the top of the
Extrusion and mark in pencil a
distance of 745mm. Align the top
of the Ecoboard Panel with this
mark and ensure the Panel is
located inside the channel in the
Extrusion so that it sits flush with
the back of the channel.
Using rubber mallet, tap the side
at the bottom of the Extrusion to
ensure that the Panel is pushed
fully into the Extrusion.
5
Using the hand drill and security
bit, fix the Panel into the Extrusion
using a Security Screw (27)
through the upper fixing hole.
4
Using the hand drill and security
bit, fix the Panel into the Extrusion
using another Screw (27) through
the lower fixing hole (see above).
6
789
Repeat STEPS 2-6 to fix the
remaining Rear Corner
Extrusion (5) to the other end
of the Panel.
Repeat the process to fix a Side Panel
(20 or 21) to the Corner Extrusion (5).
Attach a Front Left Corner Extrusion
(3) to the opposite end of the Panel.
Fix the remaining Side Panel (20 or 21)
to the vacant slot in the Rear Corner
Extrusion (5). Attach the Front Right
Corner Extrusion (4) to the Panel.
6
3
23 24
5
22
5
27
5
20 5
321
20
21
4

10
Push the Middle Support Exrusion
(15) onto the top edgeof the
Panel (22). Ensure the side with the
two notches meets with the Panel.
Repeat this for the Side Panels
using theExtrusions (13 or 14.)
11
Use the timber to tap the Panel
Clamp level with the top of the
Corner Extrusion. Once aligned,
hammer the Panel Clamp fully into
the channel using the timber until it
locks into place. Repeat for the
Middle Support Extrusions (13 or 14).
Push itin by hand, aligning the
topof the Clamp with the
Extrusion. Using the rubber mallet
and a piece of timber* (not
supplied)gently tap the Panel
Clampinto the channelpart way.
*30-50cm softwood baton.
Slide the 3 x PETG Panels (12 and
10 or 11) into the slots in the
Corner Extrusions from the top.
Ensure the sides of the PETG with
the printed protective sheets on
face outwards.
12
Peel back (but do not remove) this
outersheet from all the edges.
Insert the Panel Clamp (16) into the
channel of the Extrusion from the
inside of the shelter with the teeth
touching the PETG sheet.
13 14
Using a sharp blade, run the knife
down theedge of the Panel
Clamps to carefully cut the clear
protective films on the inside of
the PETG sheets and remove. Insert
the Rear Glazing Filler Strip (19) in
the channel into the Extrusion (15).
15
16
Usethe rubber mallet and timber to
secure the GlazingStrip fully within
the channel along its entire length.
Repeat for Side Filler Strips (17 or 18).
17
Slide the Top Glazing Supports (9
and 7 or 8) over the top of the PETG
Panels. Ensure the deeper face of the
Top GlazingSupport faces outwards.
18
Check there is a Nut in each of the
moulded legs. If not, place oneof
the Nuts (31) into each of the four
hexagonal shaped recesses.
P. 8
15
22
16
19
8
7
31

19
Lift the Roof (1 or 2) above the
shelter and drop the Roof legs
into the Extrusions (3-5) in the
four corners of the Frame. This
may require two people.
Use the M10 Fixings (28-29) to
secure the Roof to the Corner
Extrusion through the central hole,
tighten using your fingers. Repeat
this for the other three Extrusions.
21
Slide the Roof Corner Brackets (26)
into the largest cavity in the Front
Corner Extrusions with the part of the
Bracket with the hole pointing in
towards the entrance to the shelter.
20
Using the drill fix the M6 Security
Screws (24-25) into the two
remaining holes in each of the
four Corner Extrusions (3-5).
22 24
Using the drill and security drill
bit secure the 2x Brackets (26) to
the underside of the Roof (1 or 2)
using Security Screws (27).
25
Using the drill fix the top glazing
supports into the roof using the
remaining Securit Screws (27). Fix
through all four holes in each Top
Glazing Support Extrusion.
Finally, remove all the protective
film from the outside of the
Glazing Panels.
The shelter is now assembled and
ready for installation.
P. 9
Using a 17mm spanner, carefully
tighten the M10 Fixings from STEP
21 until you feel resistance. DO
NOT OVERTIGHTEN.
23
12
26
28 29
24 25
27
27

Secure the hood to the panels usingthe drill to fix the Screw and
Washer (33 and 34) though the Roof Tabs and through into the
Panelling. In order to minimise any gaps between the Roof and Panels
you may require somebody to apply force to the Roof from the
outside whilst the Fixingsare installed from the inside.
27
A rubbermallet may be required to
push the Panel down the channel
as the fit is quite tight. Tap the top
of the Panel until it is level with the
topof the Extrusions as shown.
26
Follow STEPS 1-10. At STEP 11,
rather than fitting Glazing (12) in
the rear of the shelter, instead
substitute with an Ecoboard Rear
TopPanel (35). Slot the Panel
down thechannelfrom the top.
Section 2: Assembly of Shelter - OPTIONAL EXTRAS
Move straight onto SECTION 3 if your shelter does not include any of these features:
1. FULL REAR BACK PANEL
Follow STEPS 12-24, with the
exception of fitting the Glazing
fixing components to the rear
of the shelter (i.e. do not fit
9,12, 16 and 19).
P. 10
28
29
1. FULL REAR BACK PANEL SEE STEPS 26-29
2.PERCH SEAT 1200 SEE STEPS 30-37
3.PERCH SEAT(S) 600 SEE STEPS 38-39
4.ASHMOUNT SGSEE STEPS 40-45
5.ASHMOUNT SEE STEPS 46-48
6. BLANKSIGNAGEPANEL SEE STEPS 49-53
7.POLYCARBONATE SIGNAGESEE STEPS 54-58
35
9
12
16 19
33 34

2. PERCH SEAT 1200
31 32
Hold the Seat (41) where you want
it to be positioned on the Rear
Panel (ensure the top of the Seat is
at a height of 750mm). Mark the
position of the four fixing keyhole
slots onto the RearPanel.
From inside the shelter, drill the
upper left fixing keyhole through
the Panel using a 12mm drill bit
and hand drill.
From outside the shelter fit one of
the Coach Bolts (42) through the
drilled hole.
33
Slot the upper left fixing keyhole
of the Seat over the Bolt from
inside the shelter. Hand tighten a
Nut (43) onto the thread. Pivot the
Seat up at the
opposite end,
ensuring it is level by using a spirit
level. Mark the hole positions.
34
Check the marks align with the
keyslots in the seat. If not, remark
their positions. Remove the Nut
and then whole Seat and set aside.
Follow STEPS 31-32 for the
remaining fixing points.
35
Lift the Seat up so that the key
holes line up with the protruding
Bolts that are now sticking
through the Panel on the inside of
the shelter.
36
Slot the key holes over the Bolts and
push down to locate them. Screw on the
Nuts (38) until finger tight.
37
Using the 17mm socket or
spanner, tighten the fixings until
the head of the Coach Bolt
compresses against the outside
face of the Ecoboard Panel with
the fixing no longer turning. Take
care that the head of the Coach
Bolt does not pull against the
Ecoboard such that the Panel is
dented or dished. This indicates
that the fixing is overtightened.
Repeat until all four fixings are
secured.
P. 11
30
42
38

39
38
For the Perch Seat 600 these are
fitted on the interior Side Panels
(see above). The installation is very
similar to the Perch Seat 1200 so
follow the same procedures as
STEPS 30 to 37.
Theseat can be placed centrally or
to either side of the the Side
Panels. However, please ensure the
top of the seat is installed at a
height of 750mm.
P. 12
3. PERCH SEAT 600
4. ASHMOUNT SG
Open the Ashmount SG (36) and
remove the liner. Pop out the four
holes as illustrated above (we
recommend a screwdriver for this).
40
Place the unit in the desired
position on the Ecoboard Panel
and markthrough the four hole
positions using a scribe or pen .
Remove the unit and drill four pilot
holes using a 3mm drill bit. Drill to
a depth of 10mm. Use a piece of
masking tape wrapped onto the
drillbit as a guide. (CAUTION - DO
NOT DRILL ALL THE WAYTHROUGH
THE PANEL!)
41
Attach the unit to the panel using
Screws and Washers provided (37
and 38) and tighten using the
hand drill.
42
PERMANENT MOUNTING
ADDITIONAL TOOLS REQUIRED:
3mm Drill Bit x1
20
21
38
37
36

P. 13
5. ASHMOUNT
Remove the Liner from inside the
Ashmount (40). Hold the
Ashmount in position on the Panel
where you want it to be sited.
Mark the hole centres through the
keyhole slot in the unit (see above)
using a pen or scribe. Ensure the
unit is level with the top of the
Panel either by measuring the
same distances from the top of the
Panel to the hole centres or by
using a spirit level.
46
Drill a small pilot hole using the
3mm drill bit from inside the
shelter into the positions just
marked using the hand drill
(CAUTION - DO NOT DRILL ALL THE
WAY THROUGHTHE PANEL!).
Fixthe Screws (37) into the Panel.
Leave the screw heads proud of
the Panel by approx.3mm to allow
the screw head to slot into the
keyhole slot in the rear of the unit.
47
Attach the unit to the Panel. The
depth of the Screws may need to
be adjusted to ensure the keyhole
slots in the unit are securely
engaged with the screw heads.
With the unit in this position fixthe
Screws (37) into the two smaller
holes to complete the installation.
Open the unit and line up the
bulbous ends of the ‘L’shaped slots
with the screw heads sticking out
from the Panel. Slot the unit over
the screw heads and slide the
Ashmount SG to the right and
downwards to engage the Fixing
in the top of the ‘L’shaped slot. The
unit can be removed when
required.

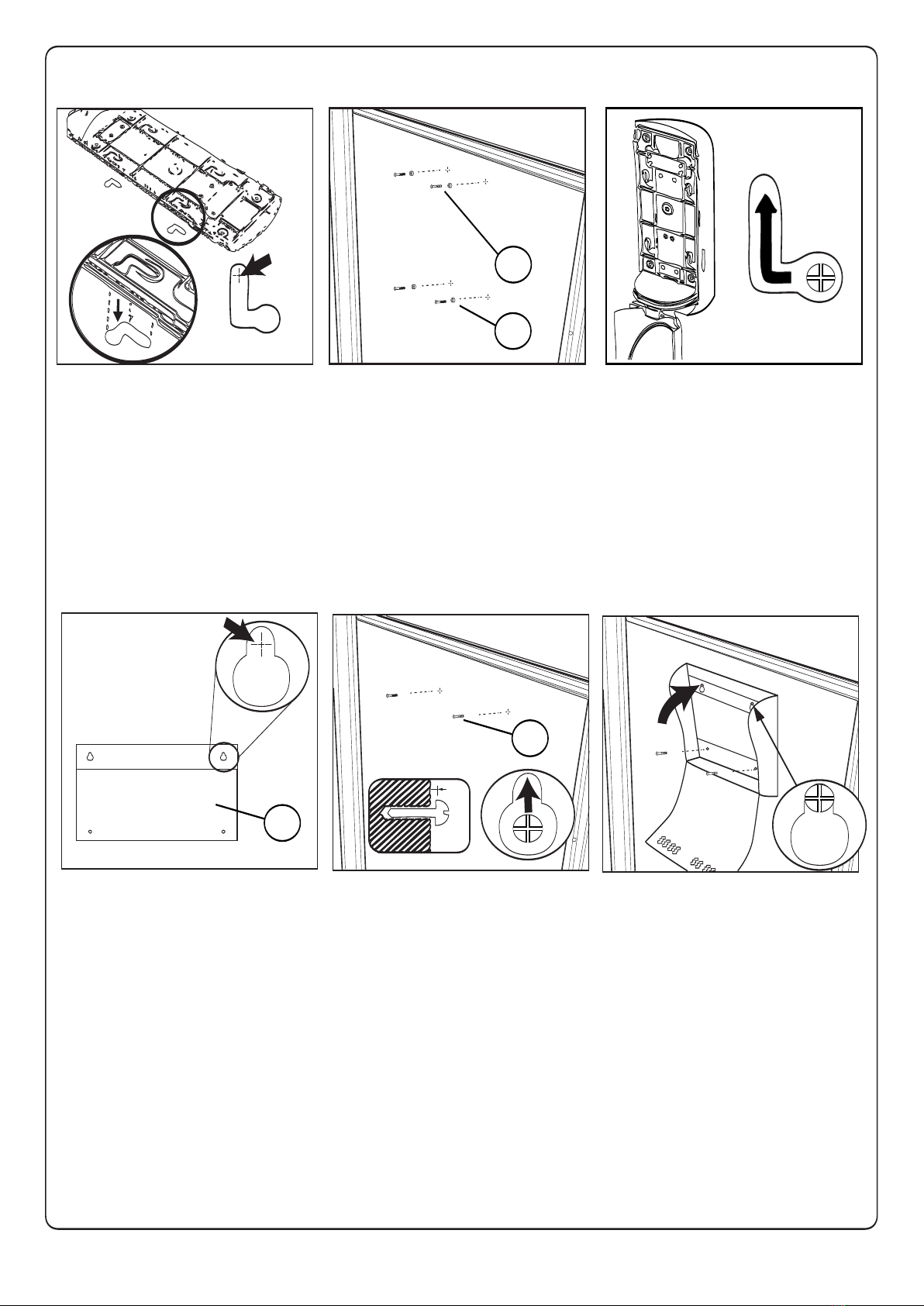

Open the Ashmount SG and
remove the liner. Pop out the four
‘L’shapes as illustrated above.
Place the unit in the desired
position on the Ecoboard Panel.
Mark the four hole centres (see
above) using a scribe or pen onto
the Panel.
43
Drill four pilot holes using a 3mm
drill bit (CAUTION - DO NOT DRILL
ALL THE WAY THROUGHTHE
PANEL!)-see STEP 41.Fixthe
Screw and Washer (37 and 39) into
the Panel so that the screw heads
stick out enough to allow the unit
to be fitted (approx.5-10mm). If
the unit does not fit then adjust
the depth of the Screws until it
does so.
44 45
LIFT OFF MOUNTING
4. ASHMOUNT SG
3mm
48
NOTE:Follow these same steps for all sizes of Ashmount (1.5L,3L or 12L). The number of fixings for
the 12LAshmount increase to six,however the procedures are the same.
37
39
40
37

P. 1 4
6. BLANK SIGNAGE PANEL
49
Ensure the Panel is correctly
positioned. Looking from the
outside, check there is an even
gap all around the sign of approx.
5mm between the sign recess in
the Roof and the Sign itself.
Position the Signage Panel (45) in
the sign recess in the Roof at the
front of the shelter. The Panel is
dual-sided so it does not matter
which way it faces. You will need
to ask someone to hold the sign in
place from the outside whilst the
Sign is secured inside theshelter.
51
From insidethe shelter, drill the
Signage Panel through the two
outermost holes in the Roof panel
recess using a 3mm drill bit. Be
careful not to drill right through
the Panel. Use a collar on the drill
bit or mark the bit with tape to a
depth of 40mm. Once the tape is
reached, stop drilling.
(CAUTION -
DO NOTDRILL ALL THEWAY
THROUGH THE PANEL!)
50
5mm
ADDITIONAL TOOLS REQUIRED:
3mm Drill Bit x1
52
Fix the Signage Panel in place
with the hand drill through the
two outer holes drilledin STEP 51
using the Security Screws, Washer
and Spacer (46, 47and 48) as
shown.
Drill the remaining four holes and
fix the Panel into place using the
remaining Fixings as shown in
STEP 52.
53
45
464748

7. POLYCARBONATE SIGNAGE
P. 15
54
Position the Polycarbonate
Signage Panel (49) in to the
desired position on the Blank
Signage Panel (45). Leave an equal
gap of approx. 10mm around the
edge so the Sign is fitted equally.
55
Using a 3mm drill bit drill three
small pilot holes through the
three holes shown above. Be
careful not to drill all the way
through the Blank Signage Panel.
56
Fix the Panel through the three
fixing holes drilled with the hand
drill using the Fixings (50 and 51).
57
Once the three initial Fixings are in
place the remaining thirteen holes
can be drilled in the same manner
as STEP 55. Then fix the Panel in
place using the remaining Fixings
in the same way as STEP 56.
58
Once all the fixings have been
tightened fold over the tops of the
CoverCaps (51) to shield the
Fixings from view.

60 61 62
Using a 18mm masonry drill bit,
drill through the hole in the
Spigot Leg down into the
concrete approximately 105mm
deep.
Place the M12 Ground Fixing (32)
through the Spigot Leg and down
into the drilled hole. Using a
hammer, tap the Fixing Bolt until it
hits the top of the Spigot Leg Plate.
Tighten the Bolts using a 19mm
spanner. A torque setting of
80Nm is recommended.
59
Section 3: Unpacking the Shelter (when supplied pre-assembled)
Position the shelter close to the intended site
using a pallettruckor forklift. Unfasten the
screws holding the shelter to the pallet using the
hand drill with pozi drill bit attached.
PLEASENOTE: A pre-laid concrete foundation
should be prepared prior to installation. Please
refer to Section 4for guidelines on dimensions.
CAUTION:
To remove the shelter from the transportation pallet requires a
minimum of three people. Once the fixings are removed the shelter
should be carefully lifted so that the rear legs of the shelter are clear of
the pallet. The rear legs should be lowered to the ground so that the
shelter is tiltedbackat an angle with the front legs raised o the pallet.
At this point, with the weight borne by therear legs, the pallet can be
pulled out from the front of the shelter by a third person. The shelter
should then be tipped backlevel so that all four legs are backon the
ground.
P. 1 6
Section 4: Installation of Shelter

P. 17
200
200
1900 1550
1900 1200
CONCRETE BASE - RECOMMENDED MINIMUM DIMENSIONS.
!!IMPORTANT!!
MODUS SHELTER 770
MODUS SHELTER 1280

P. 1 8
63
Using a 13mm spanner/socket
unscrew the two Bolts (23) with
Washers on the inside at the
bottom of the Extrusions and
remove.
Lift theExtrusion upwards and
pull the Spigot Leg down to a
more appropriate height ensuring
that the shelter is now level.
Replace the Bolts and Washers
into the new holes within the
Spigot Leg and tighten with a
spanner or socket. Repeat
STEPS 53-55 on the other Legs
that need adjusting.
64 65
Section 5: Adjustment of Spigot Legs when sited on uneven ground

AND MODUS ARE TRADEMARKS OF GLASDON GROUP AND ITS SUBSIDIARIES IN
THE U.K. AND OTHER COUNTRIES.
Replacement components are available direct from GLASDON.
GLASDON cannot be held responsible for claims arising from incorrect installation, unauthorised modifications or misuse of
the product.
Issue 1 July 2012 C000/1009
©Copyright 2012
Should you require any further assistance please contact us on
tel: [phone], fax: [phone] or email: [email protected]
In accordance with our policy of continuous development and improvement, we reserve the right
to make changes in design and specification without notice.
Glasdon UK Limited products are manufactured under license worldwide and
various components of the models are patented and design registered.
Glasdon U.K. Limited
Preston New Road
BLACKPOOL
Lancashire
FY4 4UL
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]
www.glasdon.com
Glasdon U.K. Limited
Preston New Road
BLACKPOOL
Lancashire
FY4 4UL
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
www.glasdon.com
