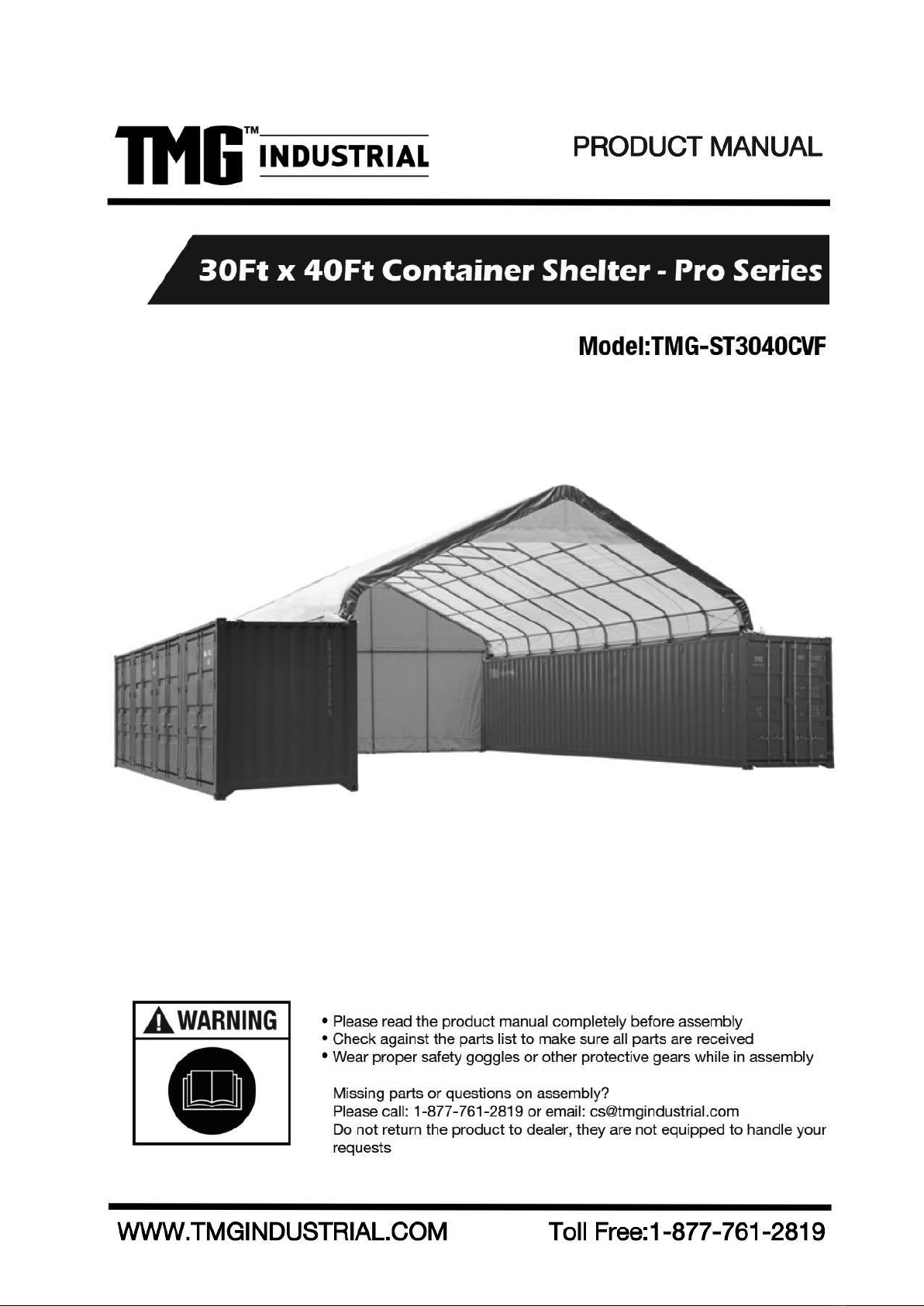

TMG PRO Series User manual

W W W . T M G I N D U S T R I A L . C O M P 1 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Main Specifications :
Overall assembled size : W9.15 x L11.97 x H3.0 (m) / 30 x 40 x 10(ft)
Ridge Peak Height : 3 m / 10ft + container height
Prior to assembly
Please read the instructions carefully before installation. It is very important to
follow your local safety regulations and industry standards during installation.
Regulations may include but are not limited to:
- Safety helmets, protective eyewear, and clothing
- Safety harnesses for all elevated workers
- Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part
number, please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not
make any alterations to the structure. Do not hang any weights on the frame during
installation, including parts. We are not responsible for any damages or injuries caused by
inappropriate installation, unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to tape or add foam/rubber on the frame where joints connect and
where it touches the cover. This will help extend the life span of the cover.
Read the following item list carefully and count the number of items to ensure that all
parts are included prior to setup.
Installation steps
Step 1 : Review the whole structure and choose the proper installation site
Choose a solid flat level ground area to set up the building. Do not install the building on
soft ground, wetland, uneven surfaces, sloped surfaces, or on top of structures that are not
rated to hold its weight.
We strongly recommend that you put the containers on hard foundations before installing
the shelter.
Be aware of the surrounding area. Do not set up the building near snowdrifts, open flames

W W W . T M G I N D U S T R I A L . C O M P 2 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
or exposed electrical wires. Do not keep heat sources near the fabric cover. Keep the
building surroundings clear at all times.

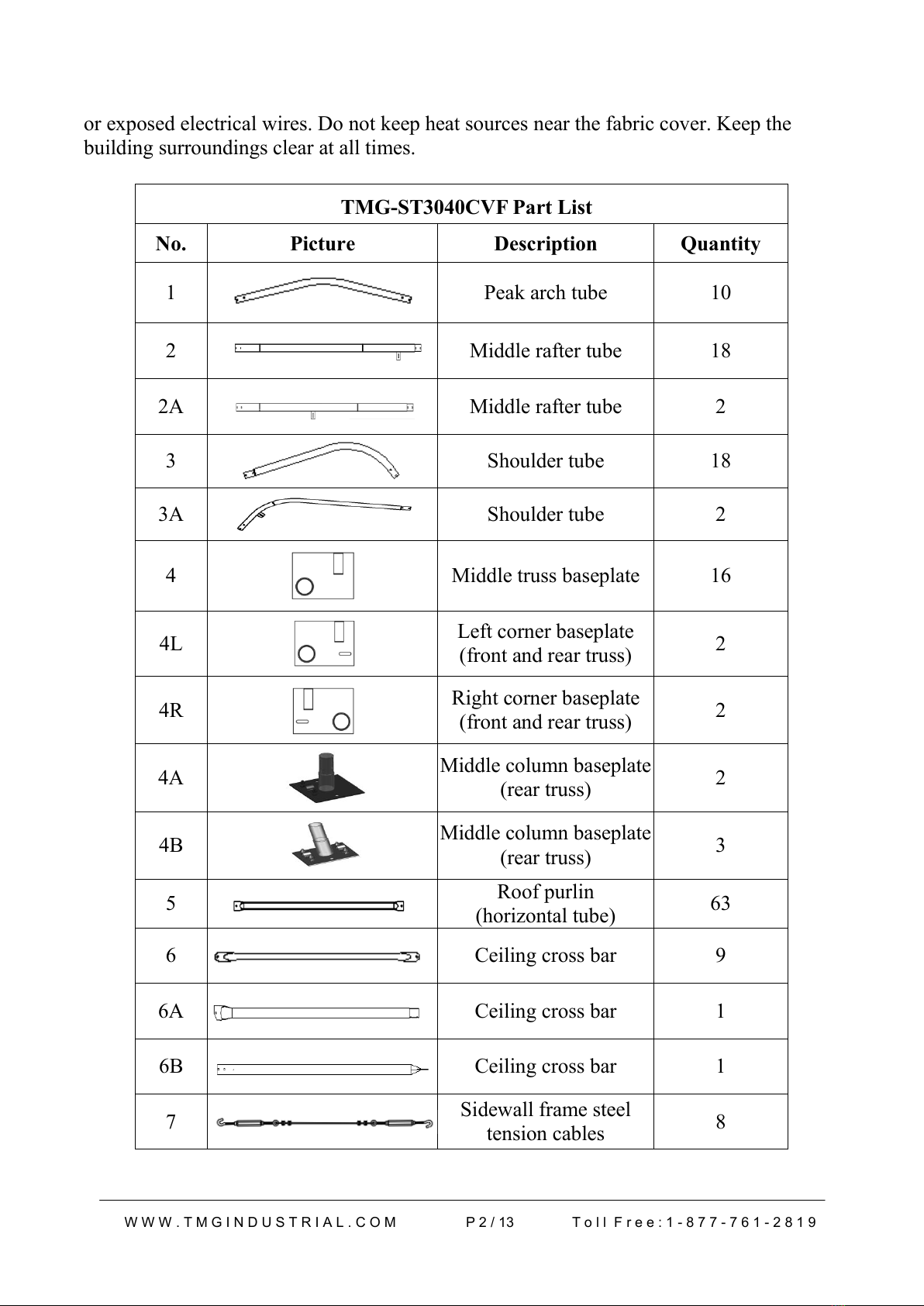

TMG-ST3040CVF Part List
No.
Description
Quantity
1
Peak arch tube
10
2
Middle rafter tube
18
2A
Middle rafter tube
2
3
Shoulder tube
18
3A
Shoulder tube
2
4
Middle truss baseplate
16
4L
Left corner baseplate
(front and rear truss)
2
4R
Right corner baseplate
(front and rear truss)
2
4A
Middle column baseplate
(rear truss)
2
4B
Middle column baseplate
(rear truss)
3
5
Roof purlin
(horizontal tube)
63
6
Ceiling cross bar
9
6A
Ceiling cross bar
1
6B
Ceiling cross bar
1
7
Sidewall frame steel
tension cables
8

W W W . T M G I N D U S T R I A L . C O M P 3 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
7A
Ratchet
20
7B
Ratchet straps
20
8
Mounting base
8
8A
Cable connection plate
8
9
Top cover tension tube
(for both bottom sides)
12
9A
Top cover tension tube
2
9B
Rear cover tension tube
4

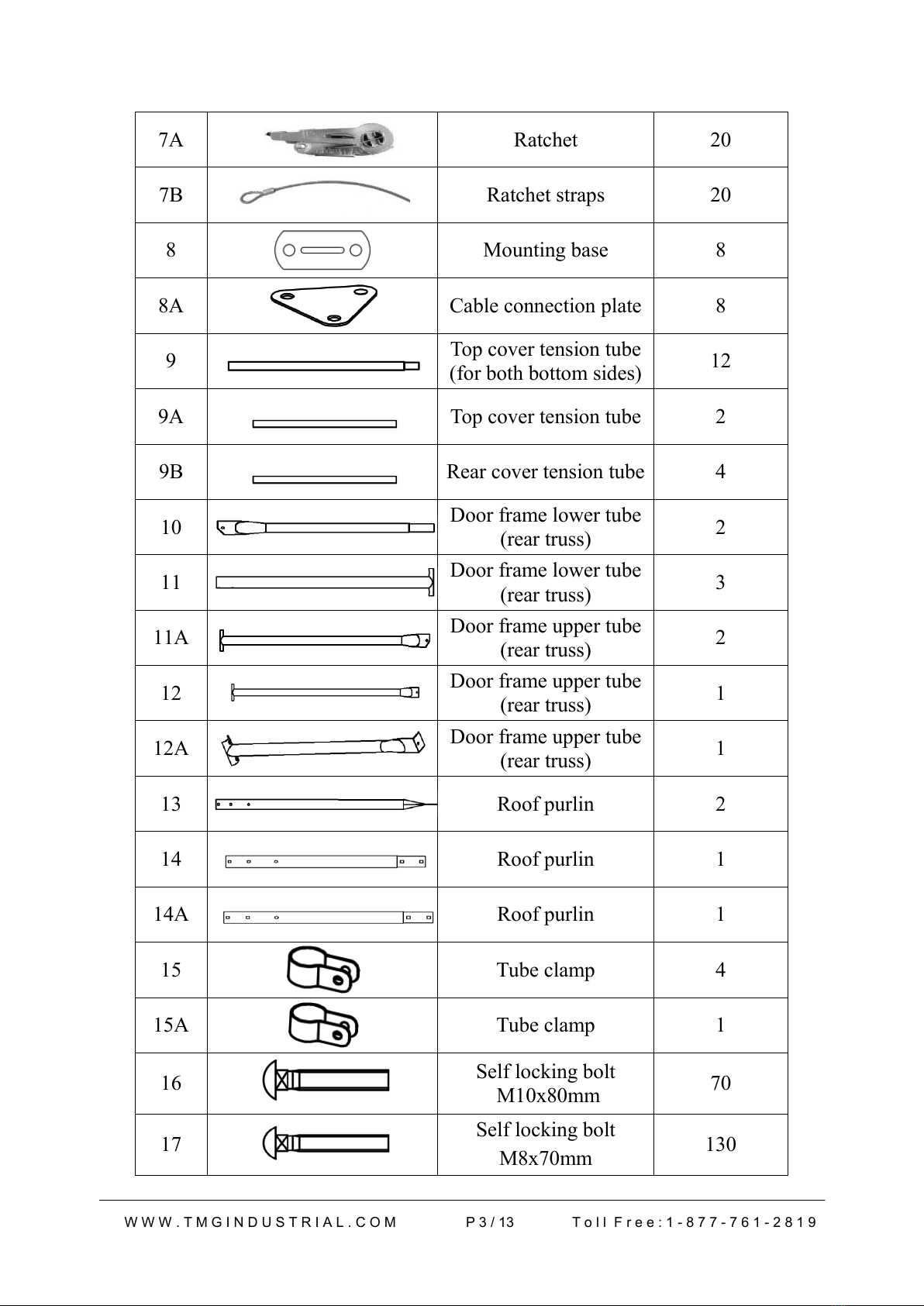

10
Door frame lower tube
(rear truss)
2
11
Door frame lower tube
(rear truss)
3
11A
Door frame upper tube
(rear truss)
2
12
Door frame upper tube
(rear truss)
1
12A
Door frame upper tube
(rear truss)
1
13
Roof purlin
2
14
Roof purlin
1
14A
Roof purlin
1
15
Tube clamp
4
15A
Tube clamp
1
16
Self locking bolt
M10x80mm
70
17
Self locking bolt
M8x70mm
130

W W W . T M G I N D U S T R I A L . C O M P 4 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
18
Hex bolt
M10x30mm
20
19
Hex bolt
M10x50mm
5
20
Self locking bolt
M8x80mm
12
21
Top cover
1
22
Front cover panel
1
22A
Rear cover panel
1
23
Braided rope (120m)
1
24
Scratch resistant tape
2
25
Water plug
12
26
Expansion bolt
ф16x150mm
10
Step 2 : Place the containers making sure they are parallel and the correct width
apart. Make sure there is a gap of about 3 feet around the building. the center point
of the round pipe of the base is the reference point, and the diagonal X and Y must
be equal. The base plate shall be welded to the top of the container on the same
horizontal plane to ensure that the welding is firm and reliable. (refer to picture 1）
Components are :
- (16) Middle truss baseplate (#4)
- (2) Left corner baseplate (#4L)
- (2) Right corner baseplate (#4R)

W W W . T M G I N D U S T R I A L . C O M P 5 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
- (2) Middle column baseplate (#4A)
- (3) Middle column baseplate (#4B)
- (10) Expansion bolt (#26)
Picture 1
Step 3 : Connect all trusses
Layout all truss components on the ground in the correct configuration before bolting
them together.
The building includes 10 trusses : (1) front truss, (1) rear truss, and (8) middle trusses.
The front and the rear truss are to install with the fabric panel (#22 and #22A).
Parts used to install the front truss in this step (refer to Picture 2) :

W W W . T M G I N D U S T R I A L . C O M P 6 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
- (1) Peak arch tube (#1)
- (2) Middle rafter tube (#2A)
- (2) Shoulder tube (#3)
- (1) Ceiling cross bar (#6A)
- (1) Ceiling cross bar (#6B)
- (2) Hex bolt (#19)
- (8) Half round head bolt (#17)
- (2) Hex bolt M10x30mm (#18)
- (2) Self locking bolt M8x80mm (#20)
Picture 2
Parts used to install the rear truss in this step (refer to Picture 3) :
- (1) Peak arch tube (#1)
- (2) Middle rafter tube (#2)
- (2) Shoulder tube (#3A)
- (1) Ceiling cross bar (#6)
- (8) Self locking bolt M8x70mm (#17)
- (2) Hex bolt M10x30mm (#18)
Picture 3

W W W . T M G I N D U S T R I A L . C O M P 7 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Parts used to install the middle truss in this step (refer to Picture 4) :
- (1x8) Peak arch tube (#1)
- (2x8) Middle rafter tube (#2)
- (2x8) Shoulder tube (#3)
- (1x8) Ceiling cross bar (#6)
- (8x8) Self locking bolt M8x70mm (#17)
- (2x8) Hex bolt M10x30mm (#18)
Picture 4
Lay down all (10) trusses on the ground when the assembly is all completed and before
moving to next step, and then wrap (#24) around the sharp points of the joint to avoid
friction between the fabric and the interface, resulting in fabric damage ( picture 5).
- (2) Scratch resistant tape (#24)
Picture 5

W W W . T M G I N D U S T R I A L . C O M P 8 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

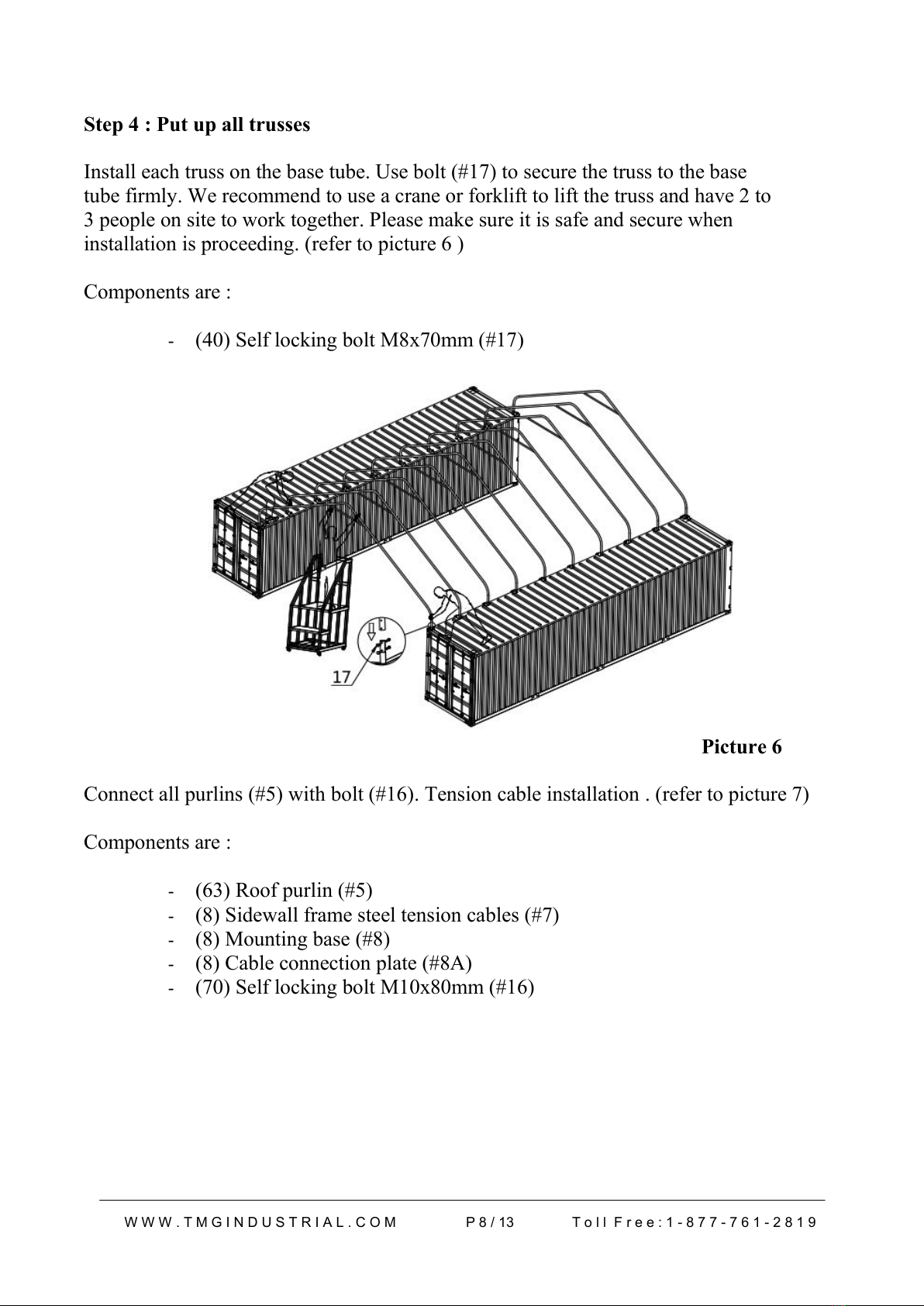

Step 4 : Put up all trusses
Install each truss on the base tube. Use bolt (#17) to secure the truss to the base
tube firmly. We recommend to use a crane or forklift to lift the truss and have 2 to
3 people on site to work together. Please make sure it is safe and secure when
installation is proceeding. (refer to picture 6 )
Components are :
- (40) Self locking bolt M8x70mm (#17)
Picture 6
Connect all purlins (#5) with bolt (#16). Tension cable installation . (refer to picture 7)
Components are :
- (63) Roof purlin (#5)
- (8) Sidewall frame steel tension cables (#7)
- (8) Mounting base (#8)
- (8) Cable connection plate (#8A)
- (70) Self locking bolt M10x80mm (#16)

W W W . T M G I N D U S T R I A L . C O M P 9 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Picture 7
Step 5 : Install the remaining parts on the front truss (refer to picture 8)
Components are :
- (1) Door frame upper tube (#12A)
- (1) Self locking bolt M8x80mm (#20)
Picture 8

W W W . T M G I N D U S T R I A L . C O M P 10 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

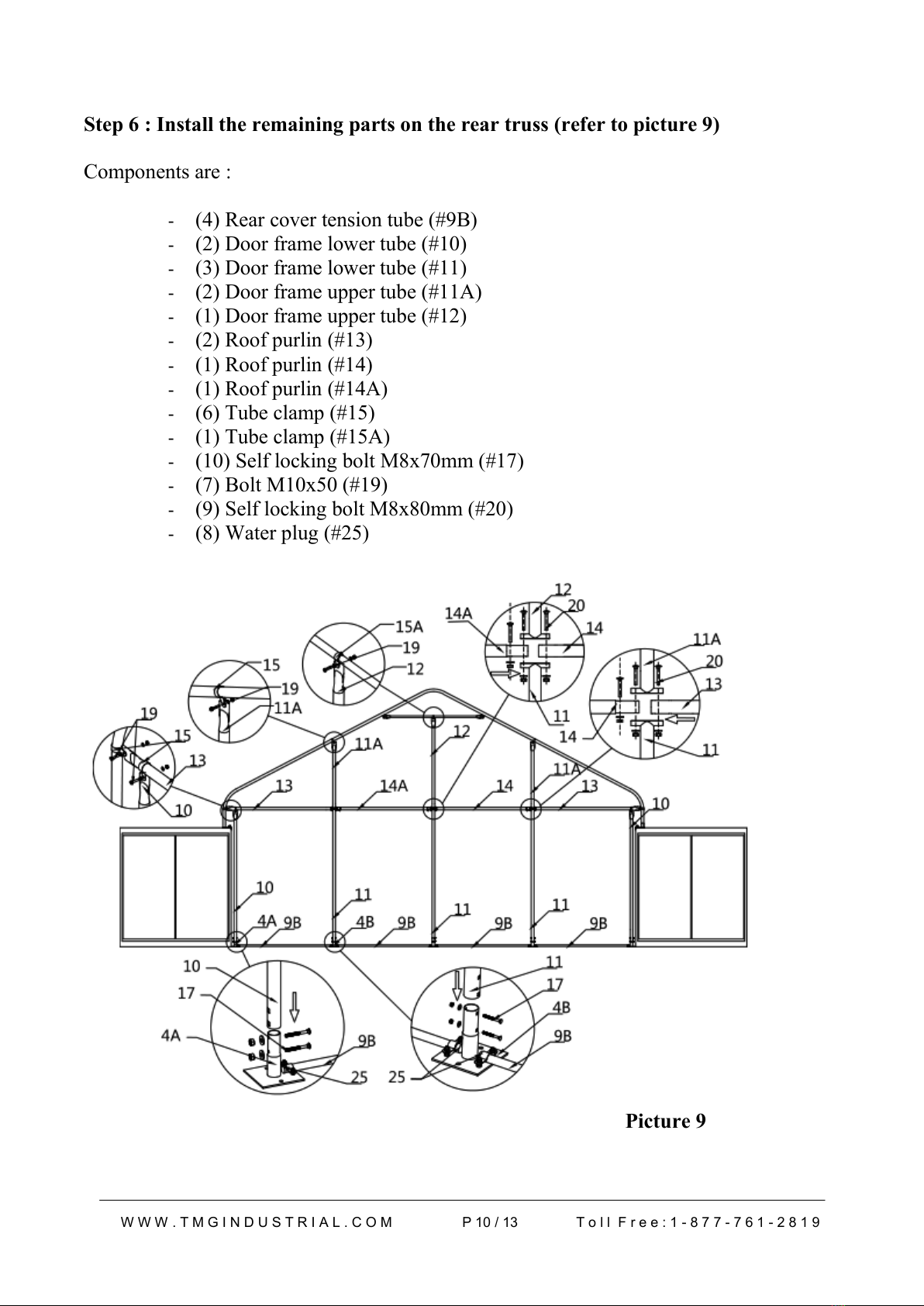

Step 6 : Install the remaining parts on the rear truss (refer to picture 9)
Components are :
- (4) Rear cover tension tube (#9B)
- (2) Door frame lower tube (#10)
- (3) Door frame lower tube (#11)
- (2) Door frame upper tube (#11A)
- (1) Door frame upper tube (#12)
- (2) Roof purlin (#13)
- (1) Roof purlin (#14)
- (1) Roof purlin (#14A)
- (6) Tube clamp (#15)
- (1) Tube clamp (#15A)
- (10) Self locking bolt M8x70mm (#17)
- (7) Bolt M10x50 (#19)
- (9) Self locking bolt M8x80mm (#20)
- (8) Water plug (#25)
Picture 9

W W W . T M G I N D U S T R I A L . C O M P 11 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Overall structural inspection :
Check all components and trusses to ensure the entire structure is rectangular as specified
in. All trusses must be 90 degrees straight up from the container.
Secure and tighten all bolts and nuts on this step. But do not over tie! Otherwise you
might damage the tubes or components.

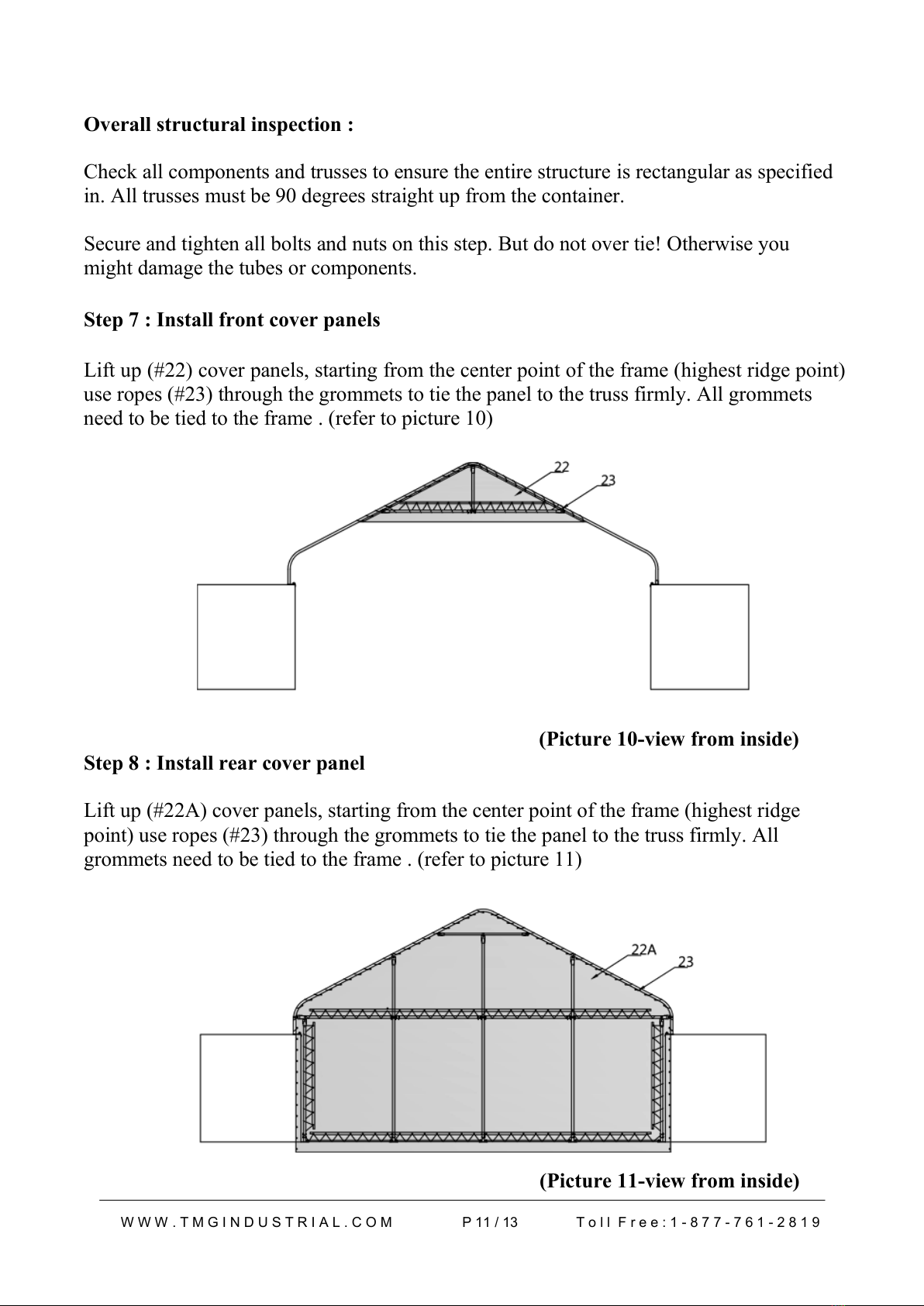

Step 7 : Install front cover panels
Lift up (#22) cover panels, starting from the center point of the frame (highest ridge point)
use ropes (#23) through the grommets to tie the panel to the truss firmly. All grommets
need to be tied to the frame . (refer to picture 10)
(Picture 10-view from inside)
Step 8 : Install rear cover panel
Lift up (#22A) cover panels, starting from the center point of the frame (highest ridge
point) use ropes (#23) through the grommets to tie the panel to the truss firmly. All
grommets need to be tied to the frame . (refer to picture 11)
(Picture 11-view from inside)

W W W . T M G I N D U S T R I A L . C O M P 12 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

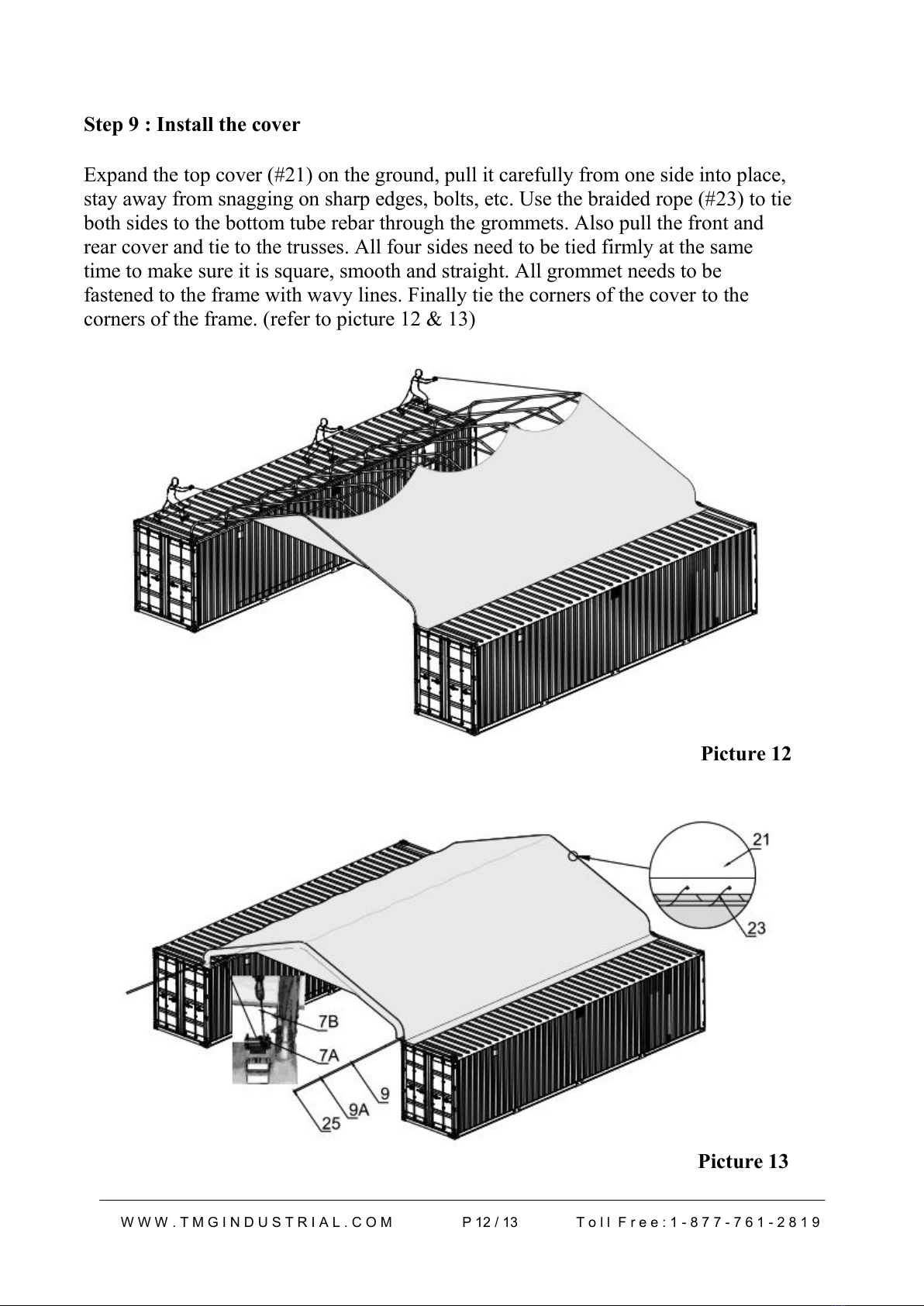

Step 9 : Install the cover
Expand the top cover (#21) on the ground, pull it carefully from one side into place,
stay away from snagging on sharp edges, bolts, etc. Use the braided rope (#23) to tie
both sides to the bottom tube rebar through the grommets. Also pull the front and
rear cover and tie to the trusses. All four sides need to be tied firmly at the same
time to make sure it is square, smooth and straight. All grommet needs to be
fastened to the frame with wavy lines. Finally tie the corners of the cover to the
corners of the frame. (refer to picture 12 & 13)
Picture 12
Picture 13

W W W . T M G I N D U S T R I A L . C O M P 13 / 13 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

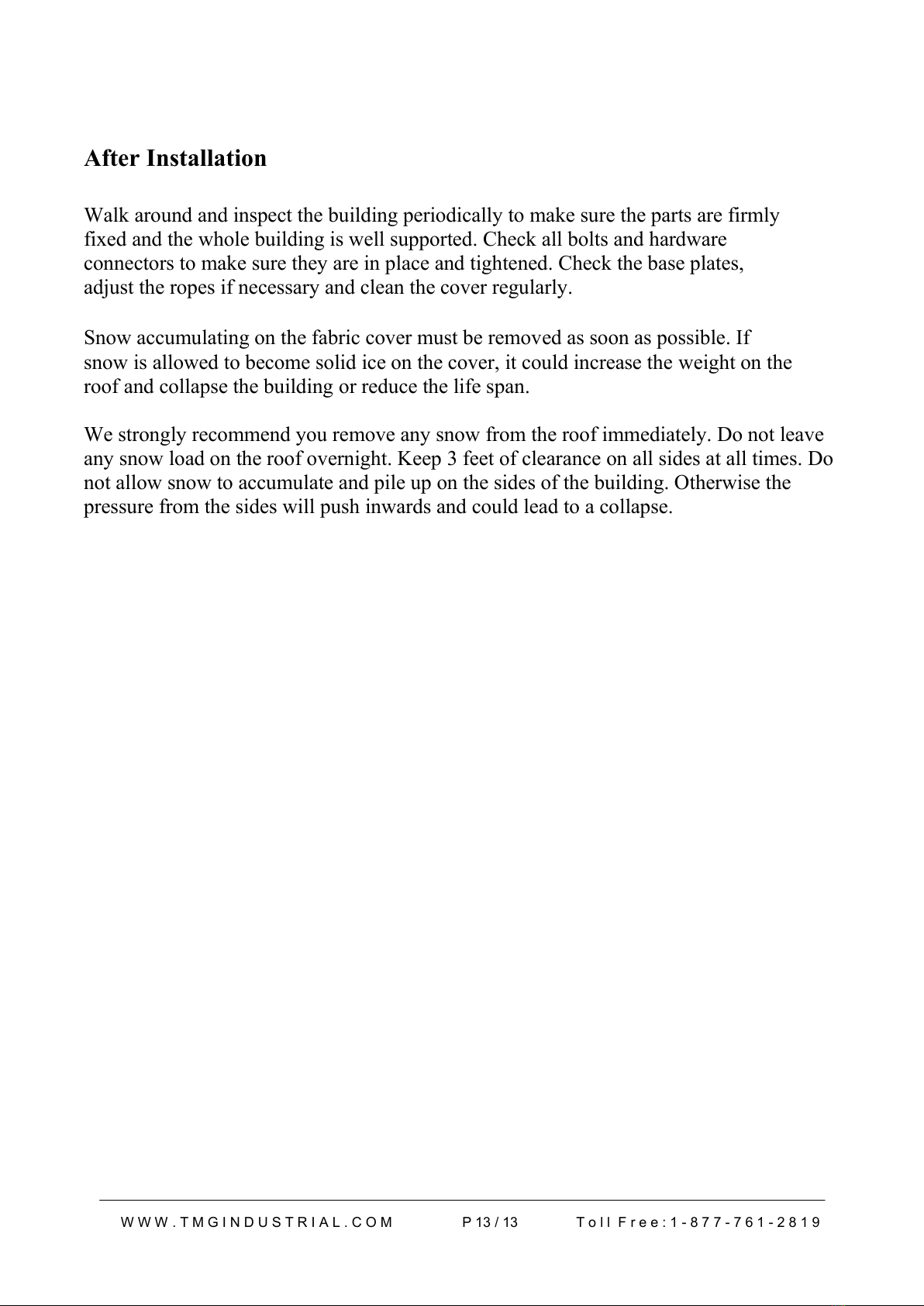

After Installation
Walk around and inspect the building periodically to make sure the parts are firmly
fixed and the whole building is well supported. Check all bolts and hardware
connectors to make sure they are in place and tightened. Check the base plates,
adjust the ropes if necessary and clean the cover regularly.
Snow accumulating on the fabric cover must be removed as soon as possible. If
snow is allowed to become solid ice on the cover, it could increase the weight on the
roof and collapse the building or reduce the life span.
We strongly recommend you remove any snow from the roof immediately. Do not leave
any snow load on the roof overnight. Keep 3 feet of clearance on all sides at all times. Do
not allow snow to accumulate and pile up on the sides of the building. Otherwise the
pressure from the sides will push inwards and could lead to a collapse.
