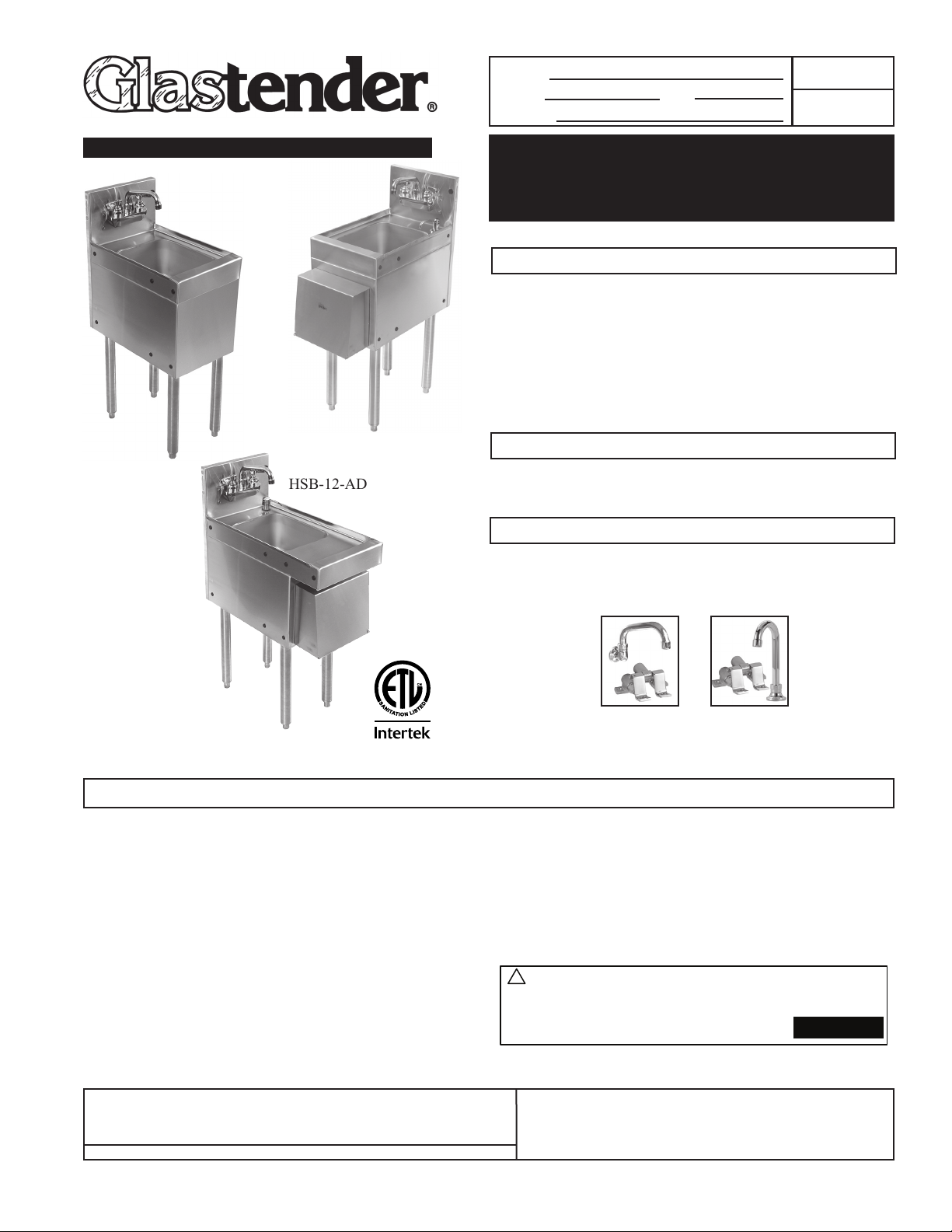

Hand Sinks
Rev. 05-28-20
HS
Standard Features
Specications
HSA-12, HSA-12-D, HSA-18, HSB-12, HSB-12-D, HSB-12-AD, HSB-18
• All stainless steel
• One-piece seamless top and backsplash featuring 1/4″ radius
corners
• Drawn sink bowl
• Heavy-duty, hot and cold water faucet
• Adjustable stainless steel bullet feet
• HSA-12-D, HSB-12-D and HSB-12-AD include soap
dispenser and front-mounted C-fold paper towel dispenser
Drain
• 1-1/2″I.P.S. threaded drain will fit Dearborn part #8033
slipnut and part #W-573P washer
Faucet
• HSA-18, HSB-12, HSB-12-D, & HSB-18: deck mount
on 4″centers, accepts 3/8″sink leads, hot and cold water
connections required
• HSA-12, HSA-12-D, & HSB-12-AD: backsplash
mounted on 4″centers, accepts 3/8″sink leads, hot and
cold water connections required
• Optional foot-operated faucet: single hole, (2) 1/2″NPT
female inlets and (1) 1/2″NPT female outlet
• NSF/ANSI 61, 372 low lead compliant
HSA-12-D
HSA-12
HSB-12-AD
To view underbar installation instructions, please visit: https://www.glastender.com/PDF/F-750-165_Underbar_Installation_Instructions.pdf
To view cleaning and care instructions, please visit: https://www.glastender.com/PDF/F-423-011_ss_clean_care.pdf
4004503
Conforms to ANSI/NSF STD 2
Certied to CSA/CAN STD B45.4
!
WARNING: The plastic wet waste strainer accessory can expose
you to chemicals including Bisphenol A (BPA), which is known to the State
of California to cause birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Warning applies to State of California only. Part #03000483
Sink Bowl Dimensions
• 9-1/4″by 11-1/2″by 6″deep
Legs
• 1-5/8″diameter, 16 gauge stainless steel
• Adjustable stainless steel bullet feet for total leg height of 16″
to 17-1/4″
Materials
• 20 gauge stainless steel parts include: all components unless
otherwise noted
Congurable Options
• Foot-operated faucet; specify option FOF-B (for HSA-12,
HSA-12-D, HSB-12-AD) or FOF-D (for HSA-18, HSB-12,
HSB-12-D, HSB-18)
Accessories
03000483 Lift-out perforated plastic wet waste strainer
FOF-B
Foot-operated
faucet
FOF-D
Foot-operated
faucet

Dimensional Information
Printed in USA
5400 N Michigan Rd • Saginaw, MI • 48604-9780
989.752.4275 • 800.748.0423 • Fax [phone]
www.glastender.com
24"
BACKSPLASH
30"
16"
37"
7"
18"
19"
24"
18"
FRONT RAIL
FRONT
RAIL DRAIN
BACKSPLASH
37"
7"
30"
16"
24"
19" 24"
12"
24"
12"
29"
24"
12"
FRONT RAIL
DRAIN
PAPER TOWEL
DISPENSER
PAPER TOWEL
DISPENSER
PAPER TOWEL
DISPENSER
19"
12"
24"
12"
LIQUID SOAP
DISPENSER
LIQUID SOAP
DISPENSER
LIQUID SOAP
DISPENSER
19" 16"
30"
7"
37"
19"
BACKSPLASH
Hand Sinks
PLAN VIEWS
SIDE ELEVATIONS
TYPICAL “A” DEPTH
SIDE ELEVATION
(12" wide unit shown with back-
splash mounted faucet. 18" wide
units have deck mounted faucet.)
TYPICAL “B” DEPTH
SIDE ELEVATION
HSA-12 HSA-18
HSB-18
HSB-12
HSA-12-D
HSB-12-DHSB-12-AD
HSB-12-AD
SIDE ELEVATION
