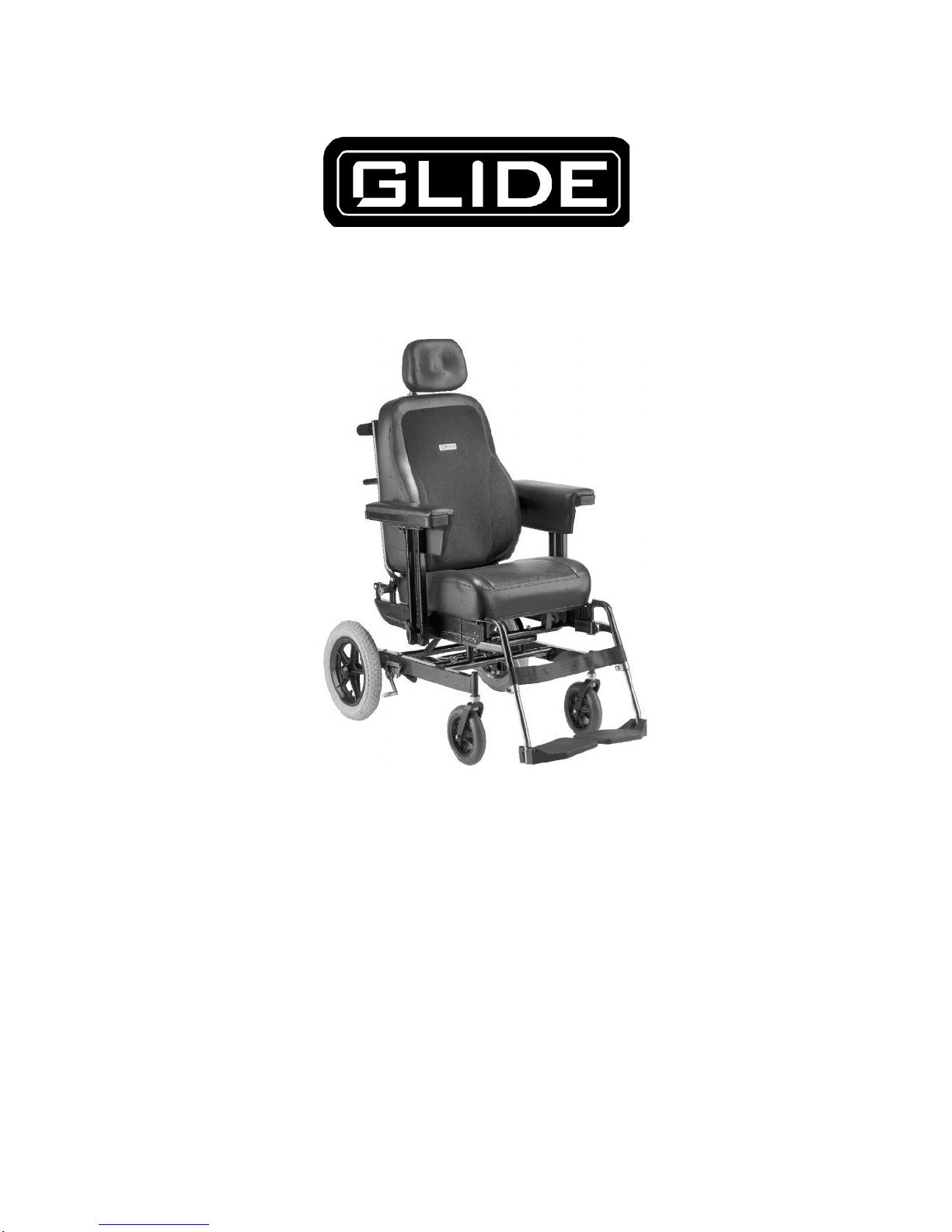

Glide COMFORT-PLUS DELUXE User manual

COMFORT-PLUS DELUXE
OWNERS MANUAL
For your safety and comfort read carefully and understand all of the
features prior to using your new Glide Rehabilitation Products chair.
Maximum Recommended User Weight 100kg

TABLE OF CONTENTS
SECTION 1. INTRODUCTION
SECTION 2. STANDARD FEATURES
SECTION 3. OPERATING YOUR WHEELCHAIR
SECTION 4. TRANSPORTING YOUR CHAIR
SECTION 5. ROUTINE MAINTENANCE
SECTION 6. ENVIRONMENT PRECAUTIONS
SECTION 7. TRANSFERRING TO AND FROM
YOUR WHEELCHAIR
SECTION 8. AVAILABLE OPTIONS
SECTION 9. SPARE PARTS
SECTION 10. WARRANTY
2

BVQI logo in here
SECTION1. INTRODUCTION
Thank you for choosing the Glide Rehabilitation Products
Comfort - Plus Deluxe Wheelchair.
With proper care and operation your wheelchair will provide years
of trouble free mobility.
Please take the time to familiarise yourself with the functions and
features of your chair by reading this owners manual. If you have
any queries about the functions of the chair you can call Glide
Rehabilitation Products or your nearest Glide Rehabilitation
Products dealer.
GLIDE REHABILITATION PRODUCTS
25 LEDGAR RD
BALCATTA
PERTH. WA.
AUSTRALIA. 6021
PH [phone]
FAX [phone]
3

SECTION 2. STANDARD FEATURES

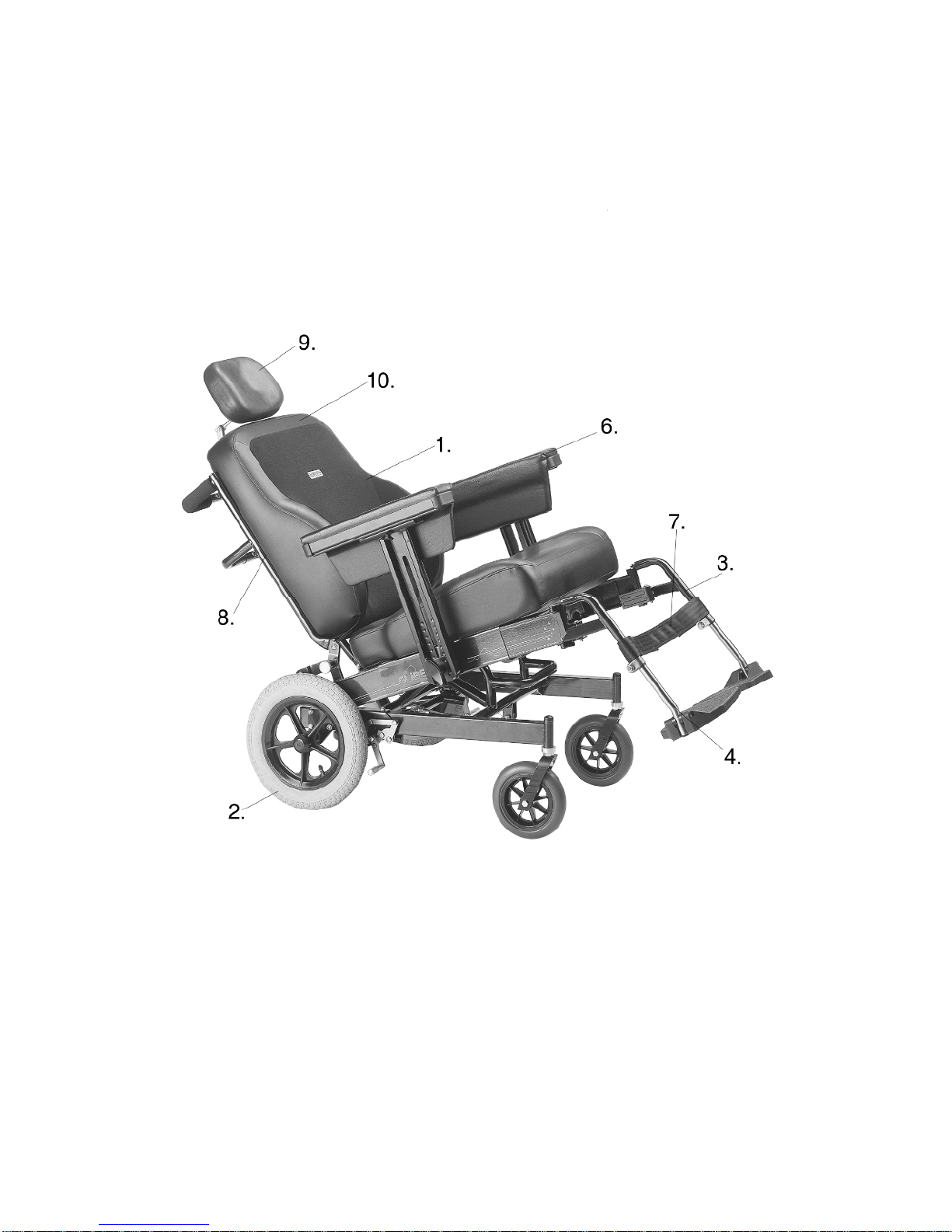

The illustration (Fig 1. below) is a list of standard features on
your Comfort - Plus Deluxe wheelchair.
1. 12” Rear Wheels
2. 7” MCP front castor wheels
3. Inner Sprung Deluxe Seat & Back Upholstery
for Superior Comfort
4. Foot Operated Attendant Brakes
5. Swing Away Legrests
6. Adjustable Arm Pads
7. Push Handle
8. Adjustable Angle Back Rest
9. Fully Adjustable Seat Width and Seat Depth Frame
10. Foot Operated Gas Seat Tilt Adjustment
Fig 1.
4

SECTION 3. OPERATING YOUR WHEELCHAIR
ARMRESTS
The armrests are adjustable in height and position forward or aft
of arm pad.
Height Adjustment
Loosen Turn Wheel located at seat level on outside of armrest T -
Post. When adjustment is complete retighten Turn Wheel
ensuring that dimpled locking plate is located in corresponding
dimples on T-Post. This helps prevent armrest from slipping
down.
Forward and Aft Adjustment of Arm Pad
Loosen small turn wheel located on the outside and underneath
arm pad. Retighten when adjustment is complete.
FOOTRESTS
The footrests are swing away and detachable. They swing out by
either pushing or pulling the release lever.
The type of release lever fitted to your chair depends on your
ability and footplate type fitted to your chair.
When lever is released the footplate will simply swing out and lift
off the two locating pins.
When refitting footrest to chair ensure that it is located on both
locating pins. Damage may result if only one pin is used.
HEIGHT ADJUSTMENT OF FOOTPLATE
Your footplate will be fitted with one of two types of adjustment
styles.
1. Clamp Type - to adjust height simply loosen clamp bolt,
move to desired position, retighten clamp bolt.
2. Incremental Hole Type - to adjust height simply un - do
and remove bolt, move footplate to nearest hole to suit
desired height, replace and tighten bolt firmly.
ADJUSTING THE BACKREST ANGLE (RECLINE)
There are 2 options available for backrest angle adjustment
1. Standard on all Comfort - Plus Deluxe chairs, unless
otherwise ordered, is an incrementally adjustable support
strut. You will need either a 13mm open - end spanner or
socket spanner. Simply remove bolt, move to nearest hole
to suit desired position, replace and tighten bolt firmly.
5

2. Gas Operated Reclining Back Rest - to adjust angle simply
depress operating lever located on rear push handle, push
down on rear push handle to move to desired position,
release operating lever. This will lock backrest in position.
ADJUSTING THE SEAT ANGLE (TILT)
The Comfort - Plus Deluxe has as standard, a foot activated, Gas
Operated Tilt function. To adjust, simply press down on foot
pedal, push down on rear push handle to move to desired position,
release foot pedal. This will lock seat in position.
BRAKES
The Comfort - Plus Deluxe, has as standard, foot operated manual
brakes. To apply brakes simply press down on foot pedal. To
release, place foot under foot pedal and lift lever upwards. Ensure
brake is fully retracted.
ADJUSTABLE SEAT WIDTH AND DEPTH
The Comfort - Plus Deluxe wheelchair has an incrementally
adjustable seat frame. This feature will allow for changes in
growth and condition. It is recommended that a Glide
Rehabilitation Products representative make these adjustments.
Note: When changes are made to either seat width or depth, new
upholstery will need to be supplied. Your Glide Rehabilitation
Products Agent will have all the relevant information to assist you
on these changes.
TYRES
The Comfort - Plus Deluxe comes standard, unless otherwise
ordered, with 12 ½”x 2 ¼”pneumatic rear tyres and 7” MCP
(solid) front castors.
Rear tyres need to be inflated to 40 psi.
Pneumatic tyres should be kept at correct inflation. Under inflated
tyres will make it difficult to push and steer.
6

COMFORT PLUS HI-CARE
Within the range of the Comfort Plus is the Comfort Plus Hi-Care
chair.
It has all of the same features and operating functions as the
standard Comfort Plus wheelchair as per the operating instructions
in this manual.
Unique to the Hi-Care are the following features:
Removable armrest padding
The armrest pads have a slip on style padded cover. These are
easily removed for cleaning (see Section 5 -Vinyl Care) or
replacement.
Adjustable Lateral Support Wings
The lateral support wings on the Hi-Care have three lateral
adjustments to cater for individual client needs.
To adjust remove top backrest upholstery attachment screw and
move wing to the desired position and replace screw. Note you
may need to loosen bottom attachment screw in order to move
wing.
Removable legrest padding
The Hi Care has two styles of legrest padding - single piece and
split.
In either case they are both held in place by the use of Velcro
straps that secure the padding around the legrest and footplate as
well as Velcro attachment under the seat.
To remove ensure that all straps are undone and that the underseat
attachment has been released - In the case of the split legrest
padding ensure that the central Velcro attachment holding each
side together has been released.
Removable headrest padding
The headrest padding is also removable for ease of cleaning or
replacement. (see Section 5 - Vinyl Care). To remove pull
headrest padding away from back upholstery.
7

SECTION 4. TRANSPORTING YOUR CHAIR
Transporting your Comfort - Plus Deluxe Chair in motor vehicles
can be easily achieved by the following methods.
STATION WAGON
The backrest folds down onto the seat by pulling out pins A, B,
and C (see Fig 2 below)
Note: Pins A & B are released by first pulling them out and then
twisting. They will then remain out allowing a free hand to release
Pin C. Support weight of backrest, slide Pin C bracket off
mounting spigot, lower backrest forward onto the seat. The
linkage system will allow the back to lie flat on the seat.
Caution: Make sure that Pins A, B & C are located correctly
in their respective holes prior to occupant use.
TRANSPORTING IN A SPECIAL WHEELCHAIR TAXI,
BUS OR PRIVATE VEHICLE WHILE THE USER IS IN
CHAIR.
To date there is no recognized Australian Standard that covers
wheelchairs suitable for vehicle transport while the user is in the
chair. However the Comfort Plus is suitable for transport
provided the appropriate tiedown brackets are fitted to the chair
and a 4 point restraint system (Unwin) is used. Where possible,
wheelchair occupants should be transferred into and use the
proper vehicle seat and restraints. However, if your chair is to be
transported in a vehicle, your vehicle restraint system must
comply with AS2942 –1994.
8

CAUTION : Do not use the Tilt and Brake Operating Pedals
as attachment points for your tie down system
Do not use legrests or footplates as attachment points for your
tie down system.
Do not use armrests as attachment points for your tie down
system.
Unoccupied wheelchairs in vehicles must be safely secured or
stored securely outside the passenger compartment.
Posture Positioning Belts should not be used as vehicle
restraint belts.
NOTE: Ensure that your restraint system complies with AS2942
and you fully understand the manufacturer instructions on how
your tie down system works and whether it is compatible with the
Glide Rehabilitation Products Comfort - Plus Deluxe Chair.

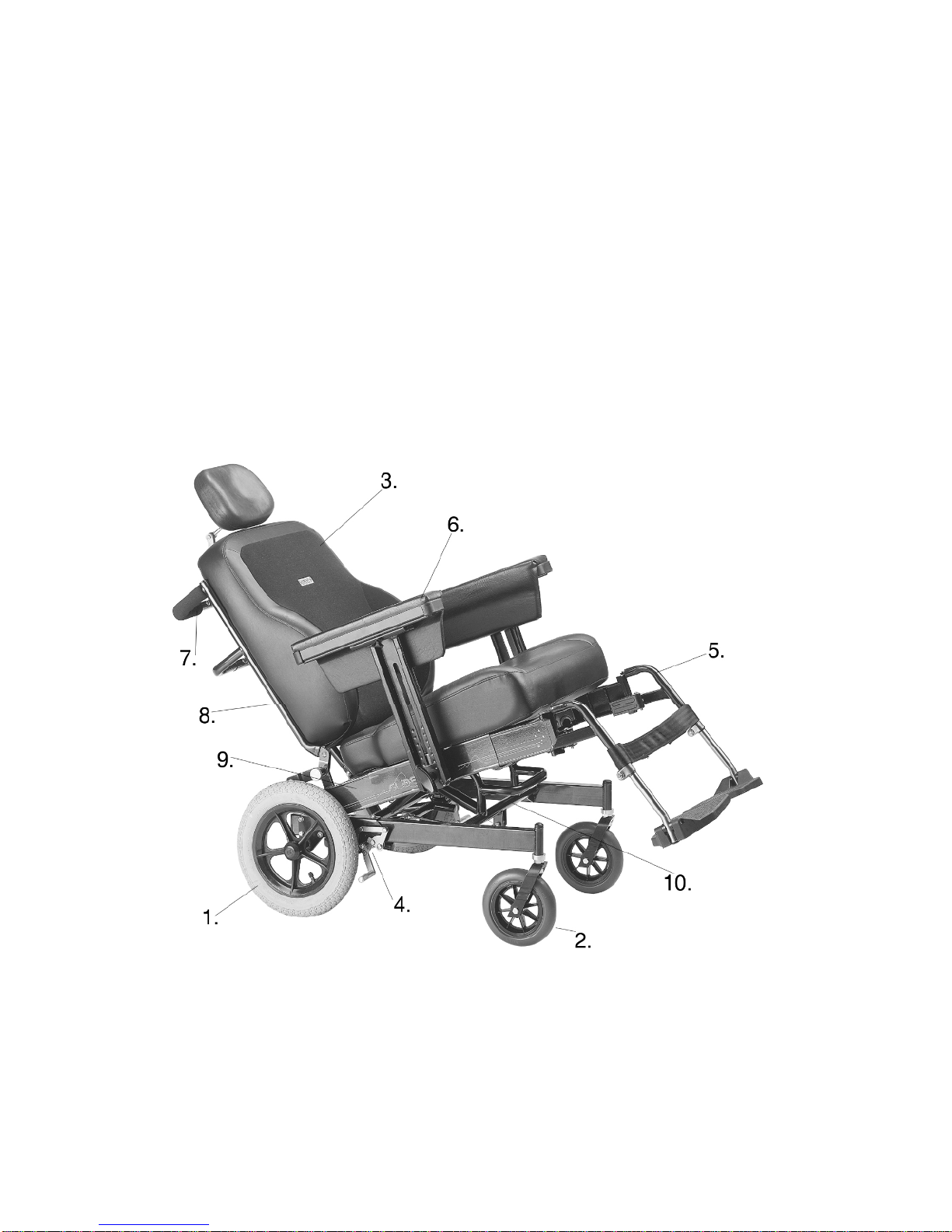

Fig 2. Fold Down Back
9

SECTION 5. ROUTINE MAINTENANCE
VINYL CARE
WEEKLY
1. Check tyre pressures 205kpa (30PSI)
2. Clean frame and vinyl parts with mild soapy solution.
3. Wipe upholstery with a clean damp cloth
4. Check function of brakes
5. Check all cables and connectors are secured; i.e. Pins A, B
& C in Fig 3
MONTHLY
1. Give the chair a general inspection for loose nuts and bolts.
2. Inspect and clean upholstery, functionality of Gas Operated
Tilt & Recline mechanisms and operation of Pins A, B & C.
3. Check for correct adjustment (contact) of brakes on tyres.
When tyres are correctly inflated the brake contact lever
should depress tyre by 1cm. If they require adjustment,
simply loosen bolts F in Fig 3, make adjustment, retighten
bolts firmly
For any questions concerning procedures or service, contact your
nearest Glide Rehabilitation Products Agent or Glide
Rehabilitation Products direct.
ANNUALLY
We recommend that your wheelchair, be serviced by an approved
Glide Rehabilitation Products Agent at least once a year.
Fig 3.
10

VINYL CARE
General Cleaning Instructions
To clean, wipe with a sponge or cloth, which has been moistened
in warm soapy water. Then dry with a clean cloth. Regular
cleaning (weekly) of headrests, armrests and seat cushions is
important to remove body oils, which can cause hardening of the
vinyl. More stubborn grime may require gentle scrubbing with a
soft brush.
Treatment of Specific Stains
•Prompt attention yields more complete removal
•wipe stain from ‘outside in’ to avoid spreading
•With more difficult stains use a proprietary brand vinyl
cleaner which is available in large supermarkets and
hardware stores.
Warning
Never use furniture polishes, abrasive cleaners, steel wool or non
proprietary cleaners containing solvents as these items can cause
damage to the vinyl surface.
Non colourfast dyestuffs found in some articles of clothing may
transfer dye to the fabric surface. Dye transfer to the surface of the
fabric is not recognized as a manufacturing fault.
11

SECTION 6. ENVIRONMENT PRECAUTIONS
The Glide Rehabilitation Products Comfort - Plus Deluxe
wheelchair has been designed with the user safety as it's prime
consideration.
Even though the Comfort - Plus Deluxe has been designed with
safety as it's prime consideration, this does not negate the effect or
take into account, circumstances, which put the wheelchair outside
the specified operating conditions for which it was designed.
It is important that the user takes due care and understands the
limitations within the environment that the chair will be operated.
As a guide only, the following is a brief list of scenarios that could
have an impact on occupant safety.
•When attendant is pushing chair, ensure that chair is slightly
tilted, this will help keep occupant positioned in seat.
•When leaving occupant unattended, ensure that Foot Operated
Attendant Brakes are applied.
•When parking chair on an incline, ensure that Foot Operated
Attendant Brakes are applied.
•If there is a concern for the occupant sliding forward out of
chair then a suitable posture-positioning device, may need to
be fitted. Consult your health professional for advice on
posture-positioning devices.
•Take care when accessing door thresholds. Changes in floor
height can stop castors and cause chair to tip.
•Never take your chair onto stairs or escalators
12

SECTION 7. TRANSFERRING TO AND FROM
YOUR WHEELCHAIR
The Glide Rehabilitation Products Comfort - Plus Deluxe Chair is
designed in such a way that transferring in and out can be done
with a minimum of fuss. Please be aware that there is a point
during transfer when the seat will not be underneath you. Please
take the following precautions when transferring
1. Armrests can either be dropped down or flipped back
(depending on type specified when ordering) allowing easy
lateral movement from either side of chair or for the fitting
of a patient hoist sling.
2. If occupant is ambulant, or able to do standing transfers,
removing swing away footplates will allow better
placement of feet when standing or conversely, closer
access to seat when transferring into chair.
3. Where possible have someone assist you during the
transfer.
4. You will need to learn safe transfer techniques from your
health professional.
5. Always have chair as close as possible to chair that you are
transferring to.
6. Ensure that the front castors are facing forward when
transferring.
7. If your chair is fitted with Gas Operated Seat Tilt or
Recline functions, ensure that they are in the down and
upright position before attempting to transfer.
8. Ensure that your wheelchair brakes are applied.
13

SECTION 8. AVAILABLE OPTIONS
1. Pump Up Lumbar
2. 22” Rear Wheels (not shown)
3. Elevating Legrests (not shown)
4. Stump Supports - refer to Glide Agent (not shown)
5. Flip Up and Fold Away Tray - refer to Glide Agentt
(not shown)
6. Adjustable Arm Support - refer to Glide Agent
(not shown)
7. Calf Sling
8. Gas Operated Reclining Backrest
9. Glide Adjustable Angle and Positional Head Rest
10. Foam and Ply Backrest and Seat upholstery
Fig 4
14

SECTION 9. SPARE PARTS
TYRES
12 1/2” x 2 1/4” Rear Transit Type
22” Rear Pneumatic
7” MCP Front Castor Wheel
TUBES
12 1/2” x 2 1/4” Thorn Proof
22” Thorn Proof
CASTOR PINTLE AXLE ASSEMBLY
1. Dust Cap
2. Circlip
3. Top Nylon Bush
4. Pintle Axle
5. Bottom Bearing Housing
6. Bearing
7. Top & Bottom Castor Fork Retaining Nuts
8. Castor Fork
9. Castor Wheel
10. Bearing Spacer
11. Castor Wheel Bearings
12. Spacer Washers
13. Axle Bolt
14. Nyloc Axle Retaining Nut
Fig 5
For service advice contact your Glide Rehabilitation Products
Agent or Glide Rehabilitation Products direct.
15

SECTION 10. WARRANTY
Lendal Pty Ltd (trading as Glide Rehabilitation Products) warrants
the following as listed:
Controllers - 12-months warranty
Controllers and associated hardware will be repaired where
possible. Replacement will only occur if repair is not practical or
not possible.
Motors/Gearbox - 12-months
Automatic replacement within six months of invoice. There
afterwards, unit must be returned for evaluation and possible
repair before replacement.
Actuators - 12 months warranty.
Automatic replacement within six months of invoice. There
afterwards, unit must be returned for evaluation and possible
repair before replacement.
Frame - 3-year warranty
Frame will be replaced within the first twelve month period.
Thereafter, Glide will extend the warrant for further two years and
will either replace or repair frame.
Upholstery - 6 month warranty
This will cover against defects in materials or workmanship.
Warranty does not cover against normal wear or damage.
Tyres and Tubes - No Warranty
Spare Parts
All spare parts sold will have a 6 months warranty period from
date of purchase.
This warranty does not extend to parts or electrical components
damaged by misuse, neglect, accident or improper installation, nor
those tampered with, altered or serviced by an agency not
authorised by Lendal Pty Ltd.
The foregoing in lieu of all other warranties expressed, implied or
statutory, Lendal Pty Ltd’s sole liability shall be to repair or
replace parts of components as specified above.
16

IMPORTANT
1. Lendal Pty Ltd (trading as Glide Rehabilitation Products) does
not warrant either expressly or impliedly the suitability of the
product for the purchaser or any intended user. Purchasers and
intended users are advised that advice from an appropriate
registered medical practitioner should be obtained prior to
using the product.
2. Except insofar as is prohibited by statute, Lendal Pty Ltd shall
not be responsible for damage, injury or loss of any kind to
any property or person howsoever caused arising from or in
connection with the product. All conditions and warranties that
(but for this provision) would be implied in favour of, and all
rights and remedies that (but for this provision) would be
conferred upon the purchaser or other persons against Lendal
Pty Ltd arising under or as a result of the Trade Practices Act
1974, any other legislation or the general law are excluded and
limited to the maximum extent possible and in cases where
Lendal Pty Ltd’s liability cannot be completely excluded but
may be limited, the liability of Lendal Pty Ltd is limited to one
of the following (at the option of Lendal Pty Ltd)
a) The replacement of the product or the supply of an
equivalent product
b) The repair of the product
c) The payment of the cost of replacing the product or of
acquiring an equivalent product
d) The payment of the cost of having the product repaired
Warranty could be voided if chair is not returned to Glide
Rehabilitation Products or authorized agent for it’s free service
within 3 months of purchase date.
17

NOTES
18

NOTES
19

REHABILITATION PRODUCTS
Glide Rehabilitation Products are manufactured in Australia by
Lendal Pty. Ltd. (ACN 009 003 694)
25 Ledgar Rd Balcatta, Western Australia 6021
Phone [phone] Fax [phone]
Email: [e-mail]
Web: www.glide.com.au
