Invacare Action3 NG User manual

Invacare
®
Action3 NG RC *
* Rocking Chair
en Manual wheelchair medium active
Service Manual
DEALER: Kee this
manual.
The rocedures in this manual MUST be erformed by a qualified technician.

Contents
1 Trouble Shooting and Maintenance Guidelines ..................................................... 3
1.1 Trouble Shooting........................................................................................................................... 3
1.2 Tightening Torques ....................................................................................................................... 4
1.3 Suggested Maintenance Procedures .......................................................................................... 4
1.4 Stability Warning ........................................................................................................................... 5
2 Central Wheels and Front Castors ......................................................................... 6
2.1 Removing/Installing Central Wheels ......................................................................................... 6
2.1.1 Removing Central Wheels (24" or 22") .............................................................................. 6
2.1.2 Installing Central Wheels (24" or 22") ................................................................................ 7
2.2 Adjusting Quick-Release Axles .................................................................................................. 8
2.3 Re lacing Handrims ...................................................................................................................... 8
2.4 Adjusting Wheelbase Length ...................................................................................................... 9
2.5 Change Central Wheel Size (24" or 22") .............................................................................. 10
2.6 Adjusting Forks ............................................................................................................................ 11
2.7 Removing/Installing Castor Assemblies .................................................................................. 11
2.7.1 Removing Front Wheels ....................................................................................................... 11
2.7.2 Installing Front Wheels ......................................................................................................... 11
3 Wheel rakes........................................................................................................... 12
3.1 Adjusting Wheel Brakes ............................................................................................................ 12
3.1.1 Adjusting Wheel Brake Schoe Position (ste 1) .............................................................. 12
3.1.2 Adjusting Wheel Brake Schoe Position (ste 2) .............................................................. 13
4 Anti-Tipper Arm ..................................................................................................... 14
4.1 Adjusting Anti-Ti er Wheel Height ...................................................................................... 14
5 Periodic Maintenance Guidelines .......................................................................... 15
5.1 Ins ect/Adjust Initially ................................................................................................................ 15
5.2 Ins ect/Adjust Weekly ............................................................................................................... 16
5.3 Ins ect/Adjust Monthly .............................................................................................................. 16
5.4 Ins ect/Adjust Annually ............................................................................................................. 16

60122664-A
3
1Troubleshooting and Maintenance Guidelines
General Information
User manual and pre-sales information:
For re-sales information and user manual related to this wheelchair, lease consult the
www.invacare.eu.com website.
IMPORTANT: For general maintenance, refer to the same section, in the ordinar Action3 NG Service
Manual. Alwa s use this document in combination with the ordinar Service Manual.
NOTE: Please recommend the user to follow the rules mentioned in the User Manual about
Maintenance Schedule, Cleaning and Troubleshooting sections.
1.1 Trouble Shooting
CAUTION
It is com ulsory to use original Invacare s are arts which you can obtain from any
Invacare subsidiaries. A list of s are arts is available at www.invacare.eu.com
.
WARNING
After ANY adjustments, re air or service and before use, make sure all attaching hardware
is tighten
ed securely
-
otherw
ise injury or damage may occur.
CAUTION
DO NOT overtighten the bolt connections of any hardware attached to the frame.
This could cause damage to the frame tubing.

Invacare
®
Action3 NG RC
4
1.2 Tightening Torques
The tightening torques stated in the following table are de endent on the thread diameters for
the nuts and bolts for which no s ecial values are determined. All values a ly to dry and
grease-free threads.
Thread M4 M5 M6 M8 M10/12
Tightening torque
in Nm mini/max.
1,5/3 Nm 3/6 Nm 7/12 Nm 10/20 Nm 20/30 Nm
1.3 Suggested Maintenance Procedures
1. Before using your wheelchair, make sure all nuts and bolts are tight. Check all arts for
damage or wear and re lace if necessary. Check all arts for ro er adjustment.
2. Kee quick release axles free of dirt and lint to ensure ositive locking and ro er
o eration.
3. Clean quick release axles once a week with a Teflon lubricant.
4. Recommended tire ressure is listed on the sidewall of the tire (BAR, KPa or P.S.I.).
5. The wheels, castors and tires must be checked eriodically for cracks and wear and must
be re laced when necessary.
6. Regularly check for loose s okes in the rear wheels. If loose, have them adjusted.
7. Periodically check handrims to ensure they are secured to the rear wheels.
CAUTION
All other nuts not noted here must be tightened FINGERTIGHT!
WARNING
DO NOT use WD-40, 3-in- 1 oil, or other enetrating lubricants on quick-release axles.
Otherwise, binding and/or damage to the wheelchair may occur.
WARNING
DO NOT use your wheelchair unless it has the ro er tire ressure (BAR, KPa or P.S.I.).
DO NOT over inflate the tires. Failure to follow these suggestions may cause the tire to
ex lode and cause bodily harm. The recommended tire ressure is on the sidewall of the
tire.
CAUTION
As with any vehicle, the wheels and tires must be checked eriodically for cracks and wear
and must be re laced if damaged.

60122664-A
5
8. Periodically check caster wheel bearings to make sure they are clean and free from
moisture. Use a Teflon
®
lubricant if necessary.
9. Check u holstery for sagging, ri s or tears.
10. Clean u holstery with mild soa and water.
1.4 Stability Warning
The seat height, seat de th, back angle, seating system/u holstery, size/ osition of the central
wheels, size/ osition of the front castors, seating o tions (e.g., back bag, …) as well as the user
condition directly relate to the stability of the wheelchair.
Any change to one or any combination of these factors changes the centre of gravity and may
cause the wheelchair to increase/decrease in stability.
Seat-to-floor heights have s ecific ositions de ending on central wheel size, central wheel
osition, front castor size/ osition and seat-to-floor angle.
NOTE: Refer to section Changing Seat-to-floor Height table in the ordinar Action3 NG Service
Manual.

Invacare
®
Action3 NG RC
6
2Central Wheels and Front Castors
2.1 Removing/Installing Central Wheels
2.1.1 Removing Central Wheels (24” or 22”)
NOTE: For this procedure, refer to FIGURE 2.1.
1. Hold the centre of the central wheel and ush in the ti A of the quick release axle.
2. Pull the quick release axle and central wheel out of the axle bracket B on the
wheelchair frame.
3. Push in the ti A of the quick release axle again and ull the quick release axle out of
the existing central wheel.
4. Install new/existing central wheel onto wheelchair. Refer to the Installing rocedure in
this section.
WARNING
The seat height, seat de th, back angle, seating system, size/ osition of the central wheels,
size/ osition of the front castors, seating o tions (e.g. back bag, …) as well as the user
condition directly relate to the stability of the wheelchair. Any change to one or any
combination of these factors changes the centre of gravity and may cause the wheelchair

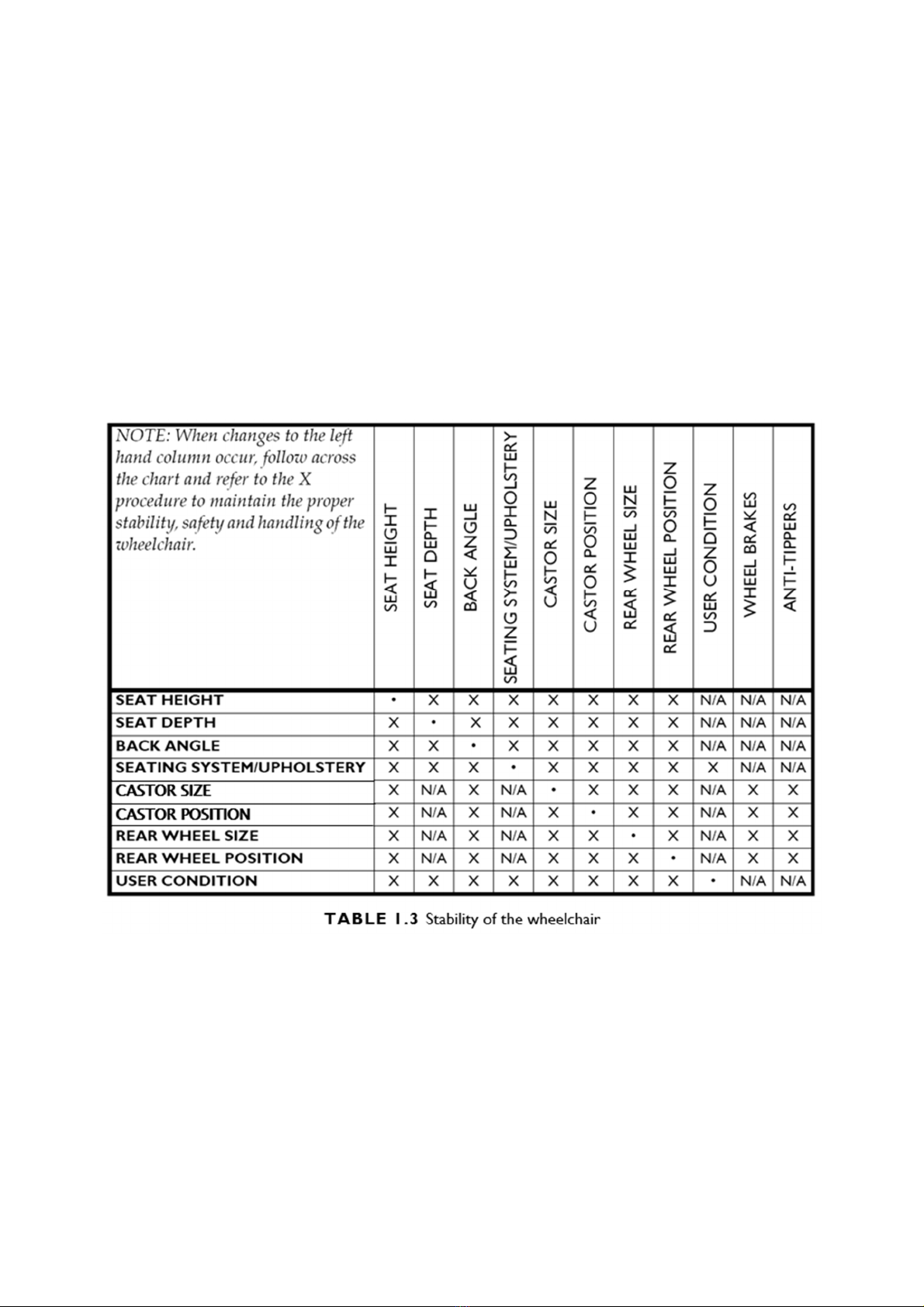

to increase/decrease in stability. Refer to the TABLE 1.3 in section 1.4 Stability Warning.
After ANY adjustments, re air or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
A
B
FIGURE 2
.1

60122664-A
7
2.1.2 Installing Central Wheels (24” or 22”)
NOTE: For this procedure, refer to FIGURE 2.1.
1. Install the existing quick release axle through the new/existing central wheel.
2. Install the new/existing central wheel and quick release axle into the axle bracket (B) on
the wheelchair frame. Refer to section 2.2 Adjusting Quick-Release Axles if the locking
ins are not rotruding ast the inside of the axle bushing or there is too much
movement of the central wheel assembly in a back and forth osition.
NOTE: The front castor needs to be adjusted at the same position in accordance with the central
wheel size (24” or 22”).
Refer to sections Adjusting Castor Angle and Adjusting Castor Assembl Position and Changing Seat-
to-floor Height table, in the ordinar Action3 NG Service Manual.
WARNING
Make sure the detent in and locking ins of the quick-release axle are fully released before
o erating the wheelchair.
The locking ins MUST be rotruding ast the inside of central wheel hub for a ositive
lock.
Kee locking ins clean.
Invacare recommends inserting quick-release axles with the head end to the inside of the
wheelchair to revent accidental release during contact leisure activities.

Invacare
®
Action3 NG RC
8
2.2 Adjusting Quick-Release Axles
NOTE: For this procedure, refer to FIGURE 2.2.
1. Remove central wheel and quick release
axle from the wheelchair. Refer to section
2.1 Removing/Installing Central Wheels
2. De ress detent in in the quick release
axle and slide the quick release axle
through the central wheel hub.
3. Release detent in to ensure that the
locking ins are fully released.
4. Increase or decrease end lay by adjusting
the locknut on the end of the quick
release axle.
5. Reinstall central wheel onto the wheelchair. Refer to section 2.1 Removing/Installing
Central Wheels.
6. Re eat STEPS 4 to 5 until the quick release axle detent ins are fully released ast the
wheelchair frame.
2.3 Re lacing Handrims
NOTE: for this procedure, refer to FIGURE 2.3.
1. Remove the central wheel from the
wheelchair. Refer to section 2.1
Removing/Installing Central Wheels
2. Remove the mounting screws that secure the
existing handrim to the central wheel.
3. Remove the existing handrim.
4. Install the new handrim and secure to the
central wheel with the existing mounting
screws.
5. Reinstall the central wheel to the wheelchair.
Refer to Removing/Installing Central Wheels
aragra h.
6. Re eat STEPS 1 to 5 for o osite wheel, if
necessary.
WARNING
Make sure the detent in of the quick release axle is fully released BEFORE o erating the
wheelchair.
Kee locking ins clean.
FIGURE 2.3
FIGURE 2.2

60122664-A
9
2.4 Adjusting Wheelbase Length
NOTE: For this procedure, refer to FIGURE 2.1 to section 2.1 Removing/Installing Central Wheels.
1. Remove the wheel. Refer to section 2.1 Removing/Installing Central Wheels aragra h.
2. Remove the four mounting screws A that secure the to and bottom of the adjustable
axle bracket B to the back-cane bracket C.
3. Align the adjustable axle bracket B with the adjustment holes on the back-cane bracket
C. There are 3 ositions ossible: Factory setting is osition “A” Standard, osition “B”
is more Passive (better stability), osition “C” is more Active (better manoeuvrability).
NOTE: For this procedure, refer to FIGURE 2.4.
4. Secure the adjustable axle bracket to the back-cane bracket, at the desired length, with
the locknut and washer D.
5. Re eat STEPS 1 to 4 for the other axle bracket.
NOTE: Both adjustable axle brackets should be set at the same position.
WARNING
The four mounting screws need to be four adjustment holes a art to maintain frame
integrity.
Active osition “C” and Passive osition” B” (not factory settings) of the axle lates directly
relate to the stability of the wheelchair. Any change to one or any combination of the 3
ositions may cause the wheelchair to increase/decrease in stability.
FIGURE 2.4
P
osition “C” Active Position
“
A
”
Standard Position
“
B
”
Passive
C
D
D
A
B

Invacare
®
Action3 NG RC
10
2.5 Change Central Wheel Size 610mm (24”) or 560mm
(22”)
NOTE: For this procedure, refer to FIGURE 2.5 and to sections 2.1 Removing/Installing Central
Wheels and 3.1 Adjusting Wheel Brakes.
1. Remove the central wheel from the wheelchair. Refer to section 2.1 Removing/Installing
Central Wheels.
2. Install the new central wheel. Refer to section 2.1 Removing/Installing Central Wheels.
3. Re eat STEPS 1 to 2 for the other central wheel.
NOTE: The front castor needs to be adjusted at the same position in accordance with the central
wheel size 610mm (24”) or 560mm (22”) and the seat-to-floor heights (24” = 485mm; 22”
= 460mm).
Refer to section Changing Seat-to-floor Height table, in the ordinar Action3 NG Service Manual.
A
B
FIGURE 2
.
5

60122664-A
11
2.6 Adjusting Forks
NOTE: For this procedure, refer to sections Adjusting Castor Angle and Adjusting Castor Assembl
Position, in the ordinar Action3 NG Service Manual.
2.7 Removing/Installing Castor
Assemblies
NOTE: If replacing a front castor note the mounting
position of the existing front castor for installation of
the new front castor.
NOTE: Both front castors MUST be the same size
and adjusted to the same height.
NOTE: For this procedure, refer to Seat-to-floor
heights table in the ordinar Action3 NG Service
Manual.
2.7.1 Removing Front Wheels
NOTE: For this procedure, refer to FIGURE 2.6.
1. Remove the mounting bolt, axle s acers (if resent) and locknut that secure the front
wheel to the fork.
2. Remove the wheel from the fork.
2.7.2 Installing Front Wheels
NOTE: For this procedure, refer to FIGURE 2.6.
1. Using the mounting bolt, axle s acers (if resent) and locknut, secure the wheel to the
desired wheel mounting osition.
2. Ensure fork stem is er endicular to the flat surface.
.
WARNING
Risk of wobbling castors
Caster angle vertical axis MUST be at 90° +/- 1° from the ground. Both castor assemblies
should be at the same angle.
After ANY adjustments, before use, make sure all attaching hardware is tightened securely
- otherwise injury or damage may occur.
FIGURE 2.6

Invacare
®
Action3 NG RC
12
3Wheel Brakes
3.1 Adjusting Wheel Brakes
NOTE: When changing the size of the central wheels (24” or 22”), the wheel brakes MUST be
readjusted.
NOTE: Before adjusting or replacing the wheel brake assemblies, ensure that the tires are inflated to
the recommended BAR, KPa, P.S.I on the side wall of the tire.
NOTE: For this procedure, refer to FIGURE 3.1.1
3.1.1 Pre-adjusting Wheel Brake Shoe Position (ste 1)
NOTE: For this procedure, refer to FIGURE 3.1.2, next page
1. Remove the central wheel. Refer to section 2.1 Removing/Installing Central Wheels.
2. The hand brake lever must be in forward osition.
3. Pre-adjust the distance around 10mm with the adjustment nut A (8mm s anner).
4. Securely tighten the fixation nut B (8 mm s anner).
5. Re eat STEPS 1 to 4 for the o osite side.
WARNING
On stee slo es you can lose braking control of your wheelchair and overturn. Do not
take slo es exceeding 4°to ensure erfect braking control of the wheelchair.
FIGURE
3.1.1
A
B
D
C
10 mm
E

60122664-A
13
3.1.2 Adjusting Wheel Brake Shoe Position (ste 2)
NOTE: For this procedure, refer to FIGURE 3.1.2 and 31.3
Finalize the shoe brake adjustment by adjusting its osition on the anti-ti er arm.
1. Adjust the cable tension with the locking nut E (10mm s anner and Allen key 3mm/2-3
Nm) to obtain a shoe bracket osition to 90° with anti-ti er arm.
2. Install the central wheel. Refer to section 2.1 Removing/Installing Central Wheels.
3. Adjust the shoe brake C osition with the adjustment screw D (10mm s anner) until the
measurement is 8 mm for solid tire and for neumatic.
4. Securely tighten the adjustment screw D (10mm s anner/5-6 Nm).
5. Re eat STEPS 1 to 4 for the o osite wheel brake.
6. Engage the wheel brakes and ush against the wheelchair to determine if the
wheel brakes engage the central wheels enough to hold the occu ied wheelchair in a slo e
of 4° with a maximum user weight of 125 kg.
7. Re eat STEPS 1 to 5 until the wheel brakes engage the central wheels enough to hold
the occu ied wheelchair.
CAUTION
The brake cable must be changed on each side EVERY YEAR.
FIGURE
3.1.2
FIGURE
3.1.3
A
B
10 mm
D
C
90°
E

Invacare
®
Action3 NG RC
14
4Anti-Ti er Arm
NOTE: This adjustment is required with reference to the position and diameter of the central wheel as
well as the user’s conditions and his/her safet limits.
4.1 Adjusting Anti-Ti er Wheel Height
NOTE: For this procedure, refer to FIGURE 4.1.
1. Unscrew but do not remove the adjusting screws A that secures the vertical axle B to
the anti-ti er wheel bracket.
2. Adjust vertical axle to the two desired heights C = 485mm (central wheel 24”) D =
460mm (central wheel 22”) with one of the two adjustment circles on the vertical axle
body.
3. Secure the vertical axle to the anti-ti er wheel bracket, at the desired height, with the
adjusting screws A (5mm Allen key/8-9 Nm).
4. Re eat STEPS 1 to 3 for the other side.
NOTE: Make sure that the anti-tipper wheel is fitted at the same height on both sides.
WARNING
After ANY adjustments, re air or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Ensure both anti-ti er arms are fitted correctly on each side before using the wheelchair
and have it set or readjusted if necessary.
Always check that security levers are activated in forwards osition, close to the
adjustable axle bracket before using the wheelchair.
FIGURE
4
.1
B
A
C
= 485mm (cental wheel 24”)
D
= 460mm (central wheel 22”)

60122664-A
15
5Periodic Maintenance Guidelines
IMPORTANT: For general Periodic Maintenance Guidelines, refer to same section, in the ordinar
Action3 NG Service Manual. Alwa s use this document in combination with the ordinar Service
Manual.
NOTE: Alwa s clean the wheelchair before an inspection/adjustment. Regular cleaning will reveal loose
or worn parts and enhance the smooth operation of the wheelchair.
Initial Inspection:
Initial adjustments should be made to suit the ersonal body structure needs and references
of the user. Thereafter follow these maintenance rocedures:
5.1 Ins ect/Adjust Initially
Wheelchair rolls straight (no excessive drag or ull to one side).
Ensure all hardware is tight (see age 4).
All fasteners on clothing guards are secure.
Adjustable height arms o erate and lock securely.
Armrest arm ad sits flush against arm tube.
Seat and/or back u holstery have no ri s.
Ins ect adjustable angle back attaching hardware is securely tightened.
Ensure hand gri s are secure to backrest canes.
Sealed bearings and axle nut tension are correct.
No excessive side movement or binding when rear wheels are lifted and s un.
Quick-release axles lock ro erly (see age 8).
Ins ect handrims for signs of rough edges or eeling finish.
Ins ect for broken s okes.
Wheel/fork assembly has ro er tension when castor is s un. Castor should come to a
gradual sto .
Wheel bearings are clean and free of moisture.
Loosen/tighten locknut if wheel wobbles noticeably or binds to a sto
Ensure all castor/wheel/fork fasteners are secure (see ages 4 & 11).
Wheel brakes do not interfere with tires when rolling.
Wheel brakes ivot oint are free of wear and looseness.
Wheel brakes are easy to engage.
Ins ect tires/castors for flat s ots and wear.
Check neumatic tires for ro er inflation
(recommended tire ressure is listed on the side wall of the tire).
Ensure axles are free from dirt, lint, etc.
Ensure roller bearings are free from dirt, lint, etc.
Adjust wheel brakes as tires wear.
Clean and wax all arts.
Clean u holstery and armrests.
Ensure castors are free of debris.

Invacare
®
Action3 NG RC
16
5.2 Ins ect/Adjust Weekly
Wheelchair rolls straight (no excessive drag or ull to one side).
Quick-release axles lock ro erly (see age 8).
Ins ect for broken s okes.
Wheel/fork assembly has ro er tension when castor is s un. Castor should come to a
gradual sto .
Ins ect tires/castors for flat s ots and wear.
Check neumatic tires for ro er inflation
(recommended tire ressure is listed on the side wall of the tire).
Ensure castors are free of debris.
5.3 Ins ect/Adjust Monthly
Ins ect seat ositioning stra for any signs of wear. Ensure buckle latches. Verify hardware
that attaches stra to frame is secure and undamaged. Re lace if necessary.
Loosen/tighten locknut if wheel wobbles noticeably or binds to a sto .
Wheel bearings are clean and free of moisture.
Wheel brakes do not interfere with tires when rolling.
Wheel brake ivot oint are free of wear and looseness.
Check the tension and a earance of the brake cable.
Ensure all castor/wheel/fork/head tube fasteners are secure (see ages 4 & 11).
Ensure all hardware is tight (see age 4).
Ensure hand gri s are secure to backrest canes.
Ensure castors are free of debris.
5.4 Ins ect/Adjust Annually (1)
Wheelchair rolls straight (no excessive drag or ull to one side).
Adjustable height arms o erate and lock securely.
Armrest arm ad sits flush against arm tube.
All fasteners on clothing guards are secure.
Seat and/or back u holstery have no ri s.
Ins ect adjustable angle back attaching hardware is securely tightened.
No excessive side movement or binding when rear wheels are lifted and s un.
Ins ect handrims for signs of rough edges or eeling finish.
Ins ect tires/castors for flat s ots and wear.
Check neumatic tires for ro er inflation
(recommended tire ressure is listed on the side wall of the tire).
Wheel brake ivot oint are free of wear and looseness.
Clean u holstery and armrests.
Sealed bearings and axle nut tension are correct.
Wheel/fork assembly has ro er tension when castor is s un. Castor should come to a
gradual sto .
Loosen/tighten locknut if wheel wobbles noticeably or binds to a sto .
Wheel bearings are clean and free of moisture.

60122664-A
17
5.4 Ins ect/Adjust Annually (2)
Wheel brakes are easy to engage.
Change brake cable and readjust the brake tension cable
Ensure axles are free from dirt, lint, etc.
Ensure roller bearings are free from dirt, lint, etc.
Adjust wheel brakes as tires wear.
Clean and wax all arts.
Ensure castors are free of debris.

Invacare
®
Action3 NG RC
18
NOTES:

60122664-A
19
NOTES:

20
Invacare Sales Companies
Ireland:
Invacare Ireland Ldt,
Unit 5 Seatown Business
Cam us
Seatown Road, Swords, County
Dublin
Tel: [phone]
Fax: [phone]
[e-mail]
www.invacare.ie
United Kingdom:
Invacare Limited
Pencoed Technology Park, Pencoed
Bridgend CF35 5AQ
Tel: (44) (0) 1656 776 222
Fax: (44) (0) 1656 776 220
[e-mail]
www.invacare.co.uk
60122664
-
A
2019
-
06
-
10
