Glide G1 Series User manual

G1 & G3 SERIES
OWNER/USER MANUAL
FOR YOUR SAFETY
AND COMFORT READ
CAREFULLY AND
UNDERSTAND ALL OF
THE FEATURES PRIOR
TO USING YOUR NEW
MANUAL WHEELCHAIR
Maximum recommended
user weight 100kg
99516 OWNER MANUAL G1-G3 22/7/05 02:58 PM Page 1

TABLE OF CONTENTS
SECTION DESCRIPTION PAGE
1 INTRODUCTION 1
2 GETTING ACQUAINTED
WITH YOUR CHAIR 2
3 BACKREST AND SEAT
UPHOLSTERY 3
4 ARMREST 4
5 FOOTPLATES 5
6 FORKS AND CASTORS 6
7 BRAKES 7
8 WHEELS 8
9 OPENING AND FOLDING THE
WHEELCHAIR 9
SECTION DESCRIPTION PAGE
10 CROSS BRACE 9
11 TYRES/CASTOR TYRES 9
12 OPERATION OF THE WHEELCHAIR 12
13 TRANSPORTING YOUR CHAIR 13
14 OPTIONS 14
15 SERVICING 15
16 WARRANTY 16 - 17
99516 OWNER MANUAL G1-G3 22/7/05 02:58 PM Page 2

SECTION 1
INTRODUCTION
Thank you for choosing the Glide G1/G3
Manual Wheelchair.
An Australian designed and manufactured
product which complies with AS 3695 and
EN 12183 Standards (Type B classification)
and has a manufacturers recommended
user weight of 100kg for standard G1 and
G3. 180kg recommended maximum user
weight for Heavy Duty G3 wheelchair.
With proper care and operation, your G1/G3
chair will provide years of trouble free use.
Please take the time familiarise yourself
with the functions and features of your chair
by reading this owner/user manual. If you
have any queries about the functions of the
chair you can call Glide Rehabilitation
Products or your nearest Glide
Rehabilitation Products dealer.
Glide Rehabilitation Products
[phone]
1
99516 OWNER MANUAL G1-G3 22/7/05 02:58 PM Page 3

SECTION 2
GETTING ACQUAINTED WITH YOUR MANUAL WHEELCHAIR
2
99516 OWNER MANUAL G1-G3 22/7/05 02:58 PM Page 4

SECTION 3
UPHOLSTERY
With proper care your upholstery should give years of trouble free service. It is very important to read the
following:
• Regular (weekly) cleaning of back and seat upholstery is very important to remove body oils which can
cause hardening of the vinyl.
To clean, wipe with a cloth or sponge, which has been moistened in warm soapy water, and then dry with a
soft, clean cloth. The use of mild non-abrasive pure soap is recommended. Stubborn grime may require
gentle scrubbing with a soft brush.
Warning
• Never use furniture polishes, abrasive cleaners or steel wool.
Regular use of cleaners containing hydrocarbons or similar additives may cause damage to the vinyl and
harden the surface.
• Always replace broken upholstery screws immediately to avoid possible tearing.
• Stretched, torn or split upholstery must be replaced for safety reasons.
3
99516 OWNER MANUAL G1-G3 22/7/05 02:58 PM Page 5

ARMREST

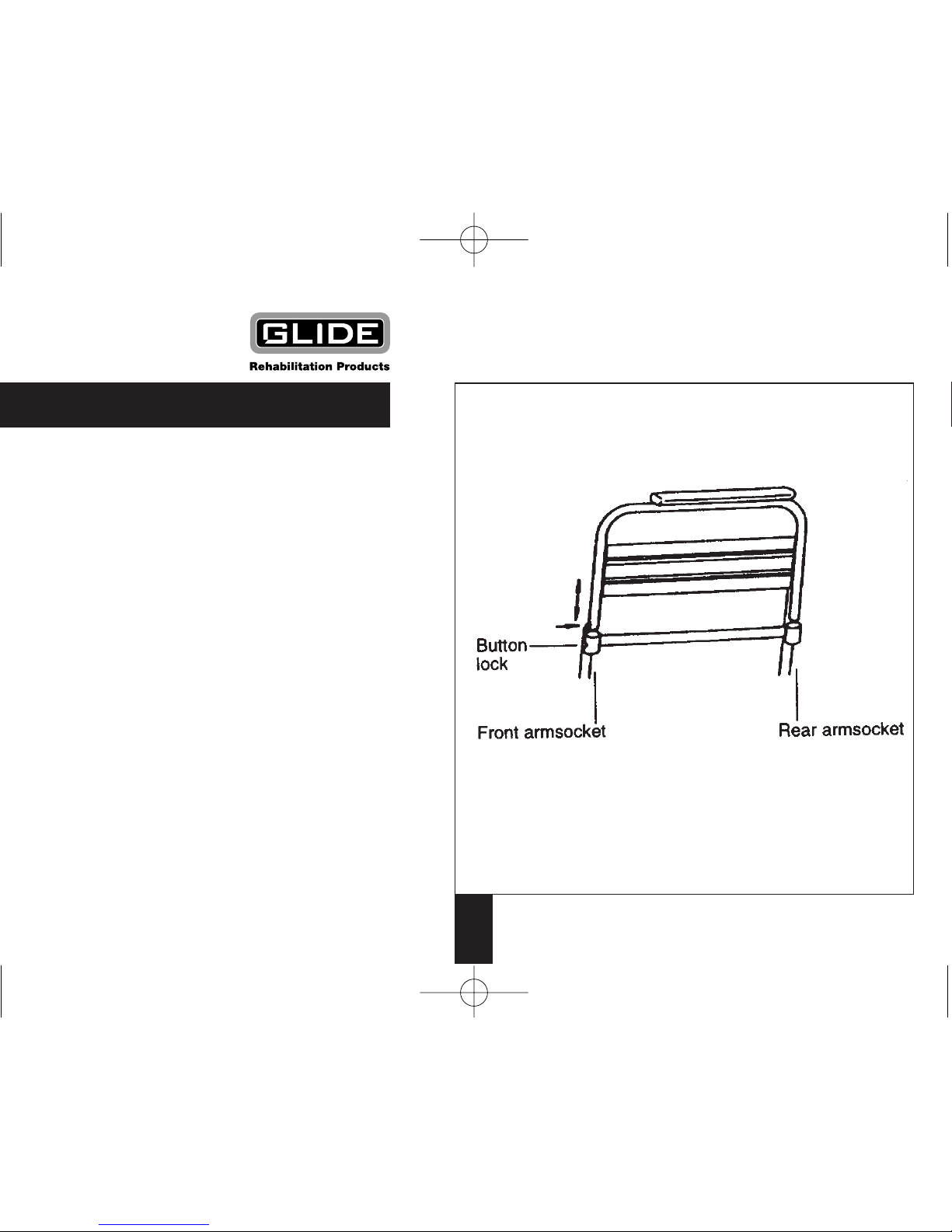

To remove:
• Push button and hold in on front arm
socket.
• Using other hand lift armrest upwards.
Note: Wheelchairs may be supplied without
button locks.
To install:
• Replace armrest into front and rear arm
sockets, push button in and armrest
down simultaneously.
• Ensure armrest is secure and button
has popped out.
Warning
• Never lift wheelchair by armrest as
damage may occur.
4
SECTION 4
99516 OWNER MANUAL G1-G3 22/7/05 02:58 PM Page 6

FOOTREST
To remove:
• Push lever inwards to unlock and swing
outwards.
• Lift upwards to remove.
To install
• Insert footrest back on the two
locating pins and swing inwards for
automatic locking.

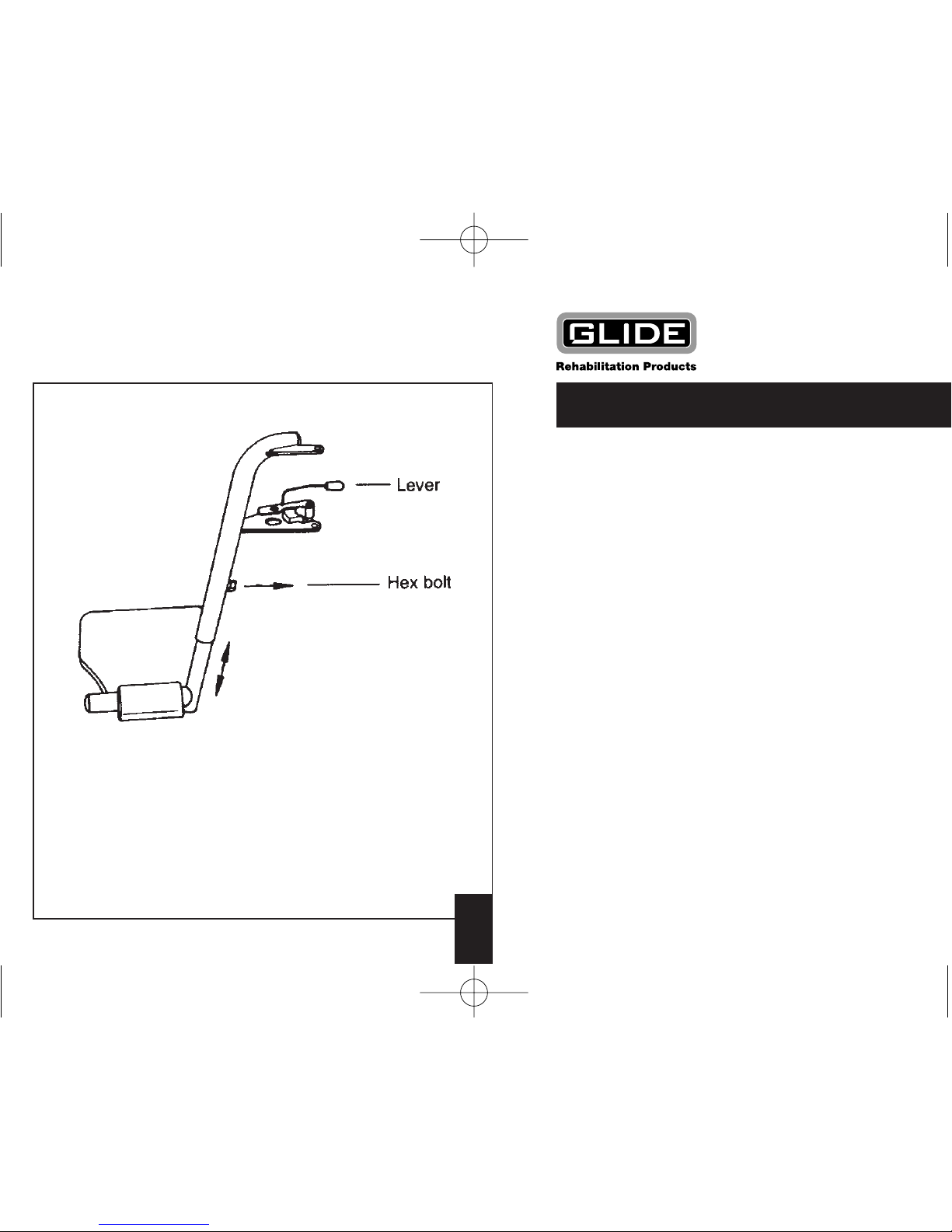

To adjust footplates
• Remove hexagonal bolt.
• Move up or down. Line up the
nearest hole for the desired height.
• Replace hexagonal bolt and tighten.
5
Warning
• The footrests are designed to support the
weight of the leg only.
Never stand on footplates.
SECTION 5
99516 OWNER MANUAL G1-G3 22/7/05 02:58 PM Page 7

FORKS AND CASTORS

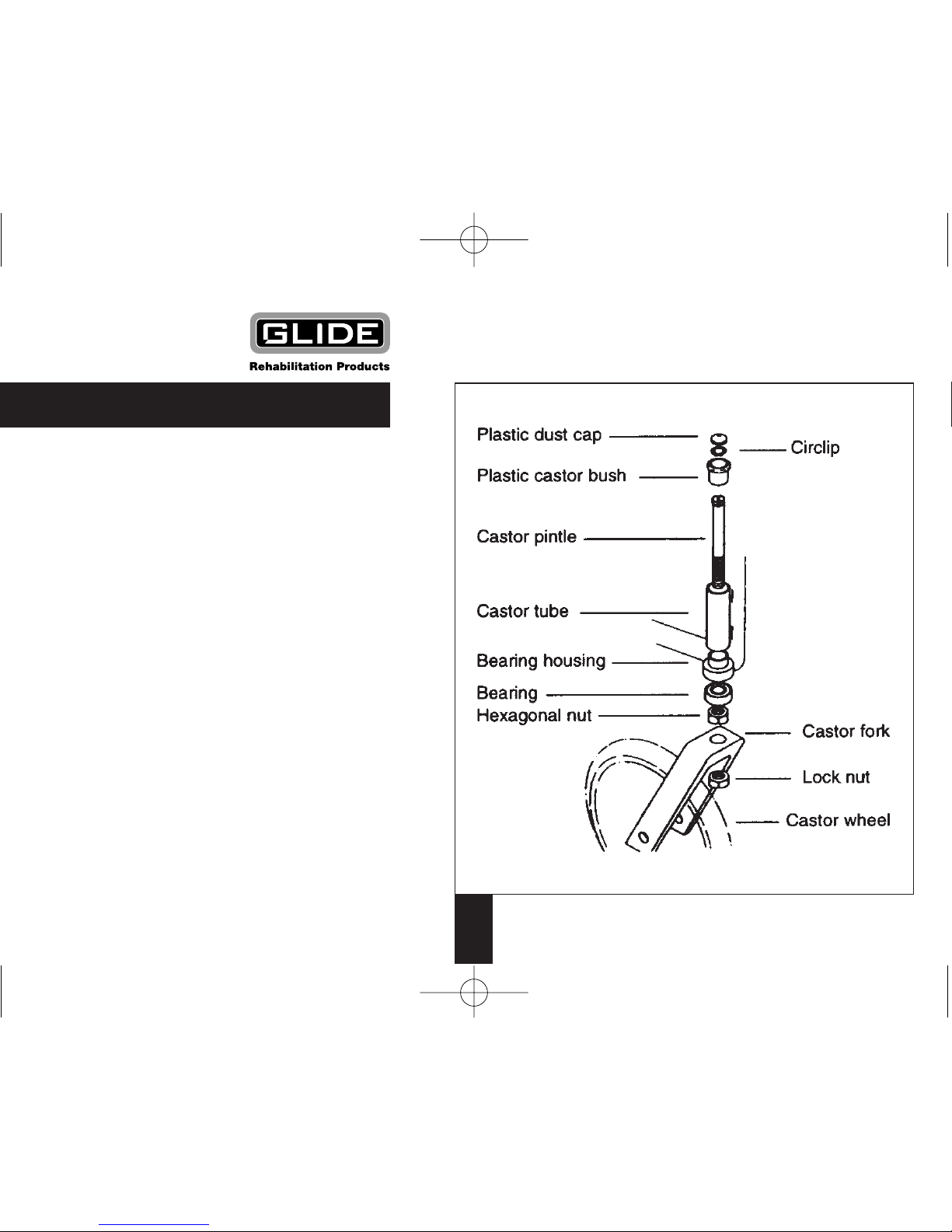

Assembly
• Press bearing housing into bottom of castor
tube.
• Press castor bush into top of castor tube.
• Slide castor pintle through bearing housing
the castor bush.
• Place circlip on castor pintle.
• Slide bearing on pintle and locate in bearing
housing.
• Screw hex-nut until there is 1mm of up and
down pintle movement.
• Place castor fork in position and tighten
locknut.
Important
Once tightened ensure 1mm of up and down
movement and castor turns freely.
6
SECTION 6
99516 OWNER MANUAL G1-G3 22/7/05 02:58 PM Page 8

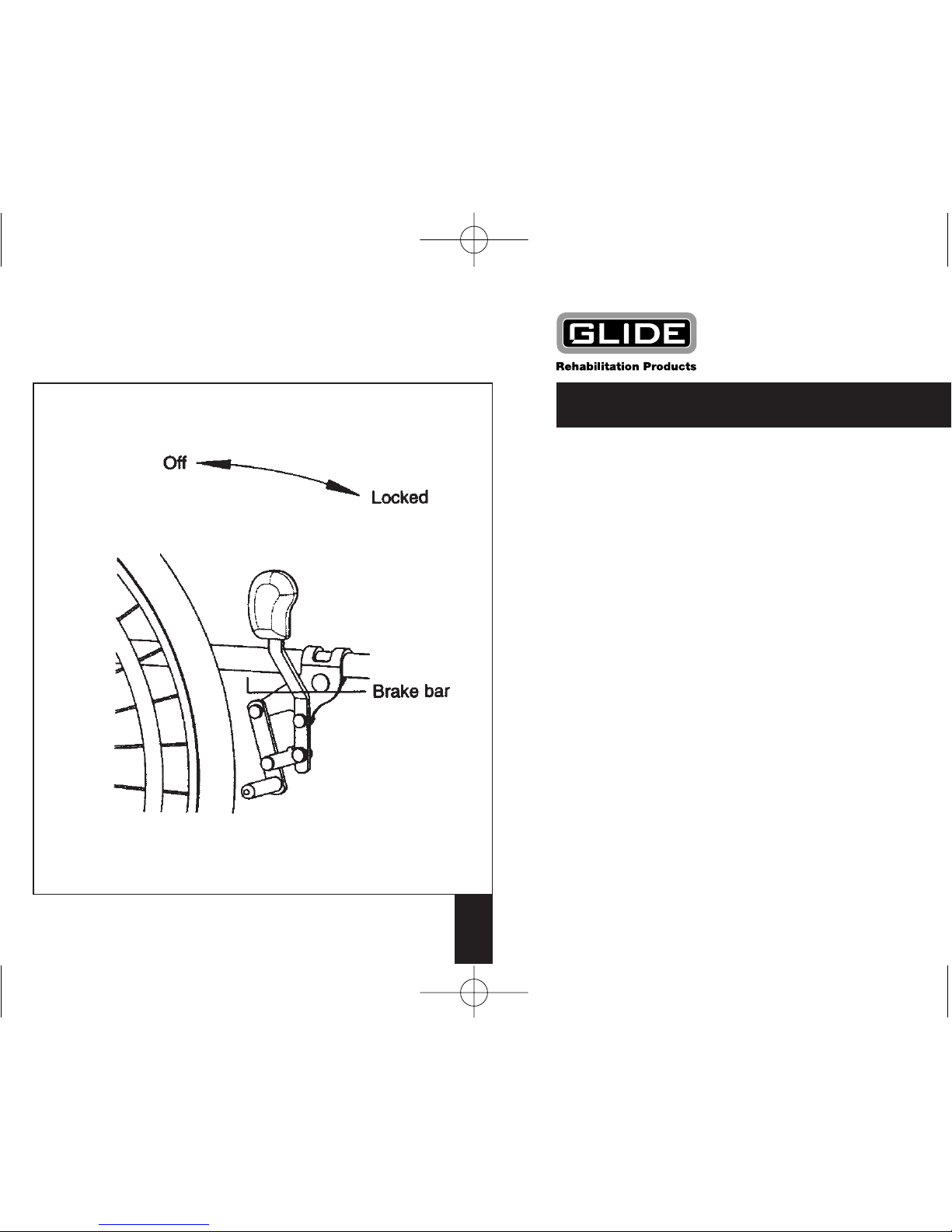

BRAKES
• Brakes are designed as a locking device
only and should be applied when the
wheelchair is stationary. Do not use
brakes for slowing the wheelchair. Use
the push rims as a means of braking.
Adjusting Brakes
• Inflate tyre to correct pressure before
making adjustment to brakes.
• Loosen locking screws, using 5mm
Allen key, on brake clamp and adjust
brake so when the lever is in the locked
position the wheel is firmly held.
• Re-tighten locking screws using 5mm
Allen key.
• Check that, when both brakes are
applied, the wheelchair will not roll.
If rolling occurs re-adjust.
• When brakes are in the off position the
bars should not rub against the tyre
7
SECTION 7
99516 OWNER MANUAL G1-G3 22/7/05 02:58 PM Page 9

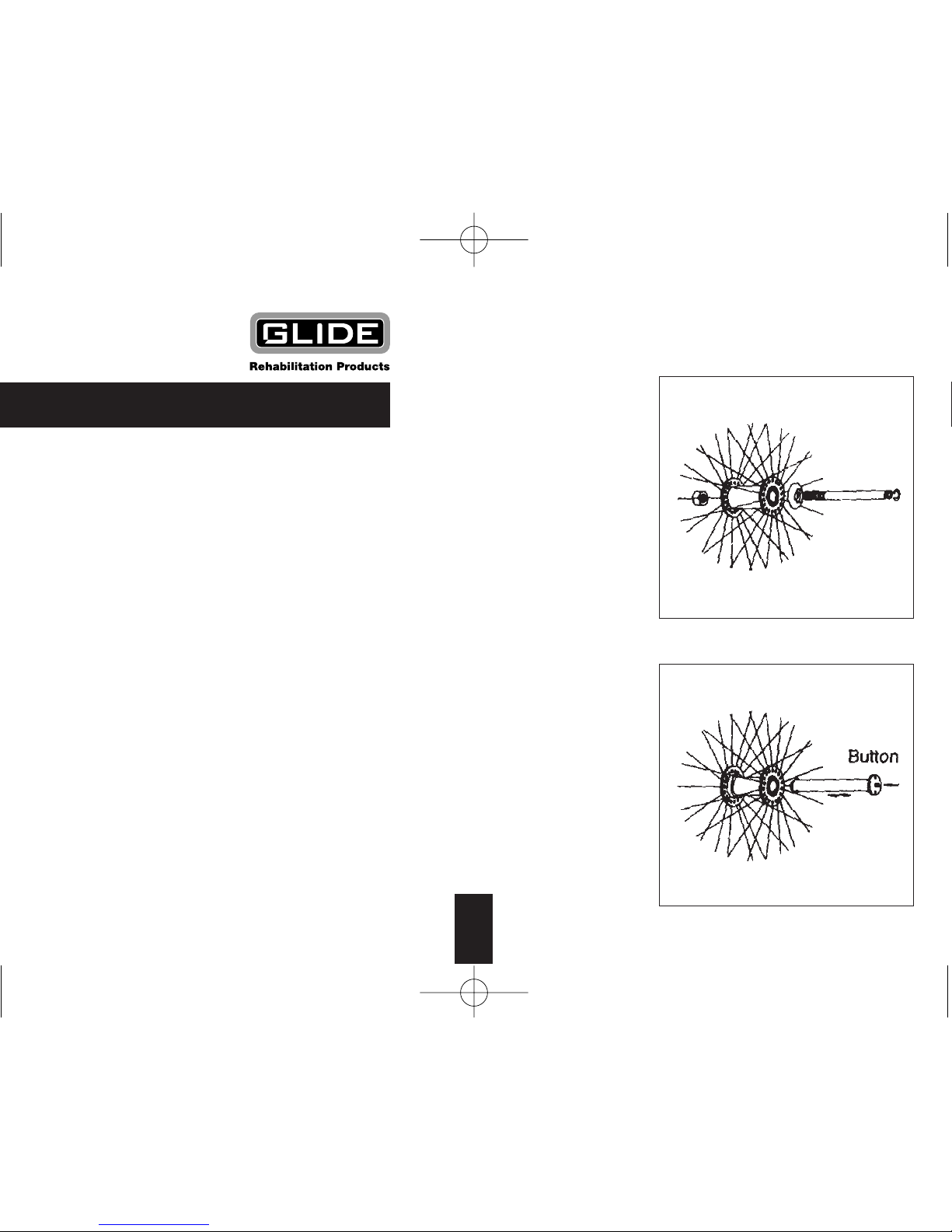

The large wheels are fitted with sealed ball bearings and should
last many years without replacement.
Large Wheels (fixed)
• To remove large wheels unscrew locknut and using a large
screwdriver unscrew axle and remove when free.
• Installation is the reverse procedure.
Large Wheels (quick release)
• To remove large wheels (quick release) push button in and
slide wheel out while button is still pushed in.
• To install push button in and slide wheel in.
• Wheels should be removed weekly and axles and sockets
wiped clean with a soft cloth to avoid jamming in socket.
Smear axle with dri-lube stick before replacing.
Warning
• Do not use wheelchair, unless button is fully out when
wheels are in place.
8
SECTION 8
