User’s Manual
Mini-ITX-Motherboard-
2807840
Version 5.0, August
2007

Copyrights
This manual is copyrighted and all rights are reserved. It does not allow any non authorization in
copied, photocopied, translated or reproduced to any electronic or machine readable form in
whole or in part without prior written consent from the manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental or
consequential damages arising from the use of inability to use the product or documentation, even
if advised of the possibility of such damages. The manufacturer keeps the rights in the subject to
change the contents of this manual without prior notices in order to improve the function design,
performance, quality and reliability. The author assumes no responsibility for any errors or
omissions, which may appear in this manual, nor does it make a commitment to update the
information contained herein.
Trademarks
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product's name mentioned herein are mentioned for
identification purposes only, and may be trademarks and/or registered trademarks of their
respective companies or owners.

ii
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize pollution and
ensure protection of the environment, please recycle.

i
USER’S NOTICE.....................................................................................................................ii
MANUAL REVISION INFORMATION ..............................................................................ii
ITEM CHECKLIST................................................................................................................ii
CHAPTER 1 INTRODUCTION OF VIA CN700 CHIPSET MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD..........................................................................1
1-2 SPECIFICATION .....................................................................................................2
1-3 LAYOUT DIAGRAM & JUMPER SETTING ......................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 HARDWARE INSTALLATION STEPS................................................................5
2-2 CHECKING MOTHERBOARD'S JUMPER SETTING......................................5
2-3 GLOSSARY...............................................................................................................6
2-3-1 SETTING CPU BUS CLOCK & MEMORY CLOCK JUMPER..........7
2-3-2 OVER CLOCK RUNNING .......................................................................7

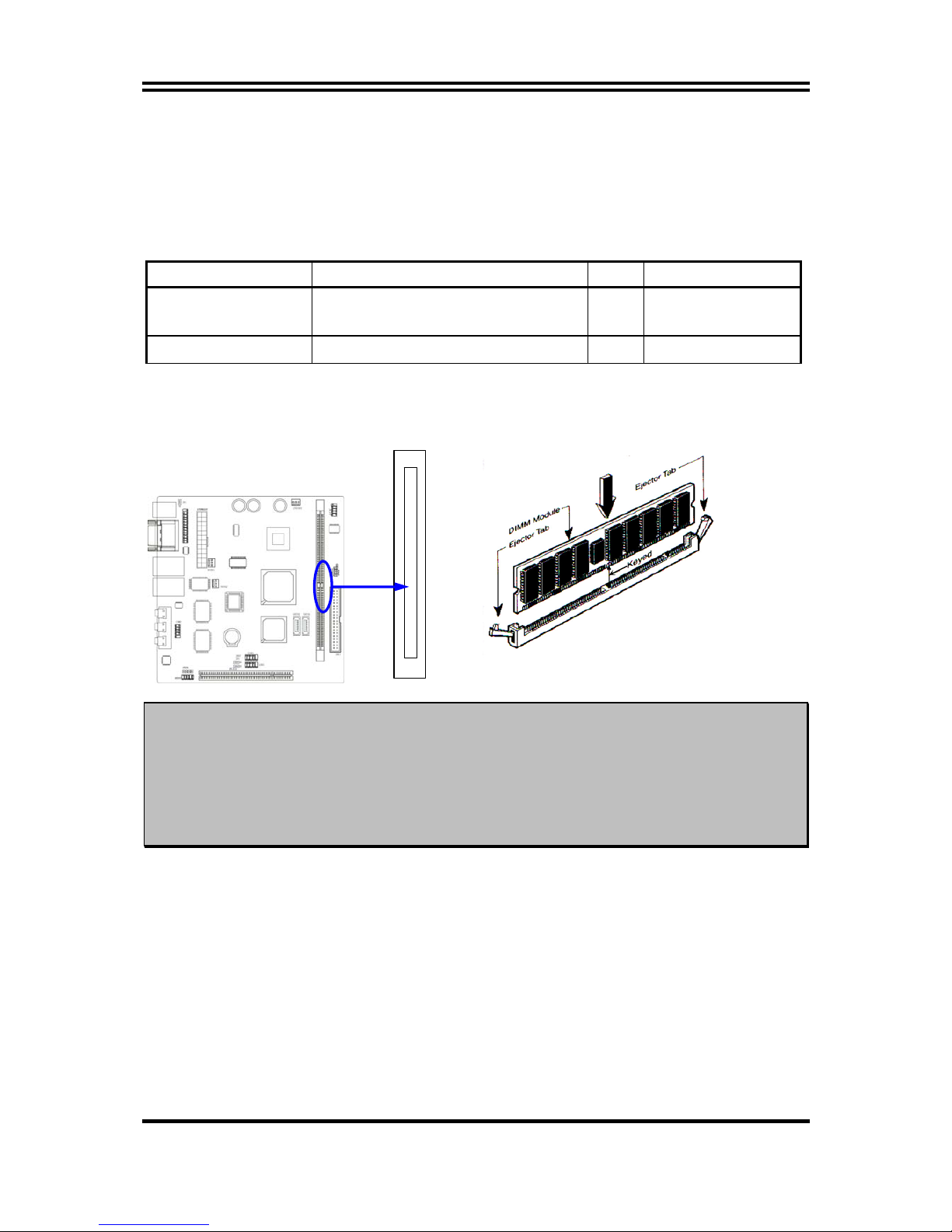

2-4 INSTALL MEMORY ...............................................................................................8
2-5 EXPANSION CARDS...............................................................................................9
2-5-1 PROCEDURE FOR EXPANSION CARD INSTALLATION ...............9
2-5-2 ASSIGNING IRQ FOR EXPANSION CARD.........................................9
2-5-3 INTERRUPT REQUEST TABLE FOR THIS MOTHERBOARD.......9
2-6 CONNECTORS, HEADERS....................................................................................10
2-6-1 CONNECTORS ..........................................................................................10
2-6-2 HEADERS...................................................................................................12
2-7 STARTING UP YOUR COMPUTER.....................................................................15
TABLE OF CONTENT

ii
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD AND WE DO
ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF
ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR
CONSEQUENTIAL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS
OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
5.0 Fifth Edition Aug. 2007
Item Checklist
5Motherboard
□Cable for IDE(Option)
5CD for motherboard utilities
□Cable for USB Port 2/3 (Option)
5User’s Manual
□Cable for COM2 Serial Port (Option)

1
Chapter 1
Introduction of VIA CN700 Chipset Motherboards
1-1 Feature of motherboard
The VIA CN700 Chipset motherboard series are designed for the new generation VIA C7™
processor family guaranteed both of the performance and stability of general purpose IPC and
dedicated IPC platform solutions. The VIA CN700 north bridge chipset is fully optimized to
provide the variety IPC platform solutions by featuring the high compatibilities and cost-effective
support for HD digital media experience and the all new high bandwidth V4 bus as well as
support for DDR2 memory modules which is expandable up to 1.0GB.
The VIA CN700 Chipset motherboard series utilize VIA CN700 north bridge chipset which
supports 400 / 533MHz system bus of data transferring. With featuring a robust shared memory
architecture and provides 133 / 166 / 200 MHz Memory clock frequency for DDR2 533 / 400
system memory modules. The motherboard series are embedded with VIA VT8237R Plus South
Bridge that offers ULTRA ATA 133 and Serial ATA with RAID 0, 1, JBOD functions to
provide speedier HDD throughout that boosts overall system performance. The VIA CN700 north
bridge chipset ITX motherboard series also implement the optional Realtek RTL8100C or Realtek
RTL8110SC PCI LAN chip for the Fast Ethernet LAN function support of 10 / 100 Mb/s or 10 /
100 / 1000 Mb/s data transfer rate.
The motherboard series also have an integrated 6-channel AC’97 CODEC on board which is fully
compatible with Sound Blaster Pro®that gives you the best sound quality and compatibility.
The VIA CN700 north bridge chipset ITX motherboard series are integrated with the VIA
Graphics UniChrome™ Pro IGP graphics core, and it features the Chromotion CE Video Display
engine with hardware MPEG-2 playback function and advanced 2D / 3D graphics core together to
guarantee the exceptional playback and streaming of various digital video formats that keeps the
benefits of ultra low power consumption and exerting minimal loading of embedded C7
processor.
Embedded USB controllers offer the capability of expanding to 8 of USB2.0 functional ports
delivering 480Mb/s bandwidth of rich connectivity, these motherboards meet USB2.0 demands
data transport demands which are also equipped with hardware monitor function on system to
monitor and protect your system and maintain your non-stop business computing.
Targets at High Growth Markets: Digital Home / Digital Office / Digital World
-Personal electronics such as personal video recorders (PVR), set top boxes, home theatres,
digital audio centers, etc.
-Mini PCs / Green clients / Quiet desktop PCs / High density servers
-Home server appliances / Public information/entertainment kiosks / Point-of-Sales systems /
Intelligent displays / Edge networking devices / Hospital monitoring systems / Municipal
control & monitoring systems

2
1-2 Specification
Spec Description
Design ∗Mini ITX form factor 6 layers PCB size: 17.0x17.0cm
Chipset ∗VIA CN700 Chipset
∗VIA VT8237R Plus Chipset
CPU ∗Embedded VIA CN700 NANO BGA processor
Memory Socket ∗240-pin DDR2 DIMM socket x1
∗Support DDR2 533/400 system RAM Modules DDR memory
∗Expandable to 1GB
Expansion Slot ∗32-bit PCI slot x 1cs
Integrate VGA
∗Integrate 2D/3D graphic Engines
∗8/16/32/64MB frame buffer using system memory
∗Internal AGP 8x performance
∗Support 24-bit 250MHz RAMDAC
Integrate IDE and
Serial ATA RAID
∗Two PCI IDE controllers support PCI Bus Mastering, ATA
PIO/DMA and the ULTRA DMA 33/66/100/133 functions that
deliver the data transfer rate up to 133 MB/s; Two Serial ATA
ports provide 150 MB/sec data transfer rate for two Serial ATA
Devices and offer RAID 0, 1, JBOD functions
Dual 10 / 100 LAN
(For 7F4B Series)
∗Integrated Dual Realtek RTL8100C LAN Chip supporting 10/100
BASE-T Transfer rate
Dual Gigabit LAN
(For 7F4K Series)
∗Integrated Dual Realtek RTL8110SC LAN Chip supporting
10/100/1000 BASE-T Transfer rate
Audio ∗AC’97 Digital Audio controller integrated
∗6-channel AC’97 Audio CODEC onboard
∗Audio driver and utility included
BIOS ∗Award 4Mb Flash ROM
Multi I/O ∗PS/2 keyboard and PS/2 mouse connectors
∗Hard disk drive connector x1
∗VGA x1, Serial port x1
∗USB 2.0 connector x2
∗USB 2.0 Pin-header x2 (connecting cable is option)
∗Parallel Port Pin-header x1(connecting cable is option)
∗Serial COM Port COM2 Pin-header x1(connecting cable is option)
∗Audio connector (Line-in, Line-out, MIC)

3
1-3 Layout Diagram & Jumper Setting
PS/2 MOUSE
PS/2 Keyboard
USB
COM1 LINE-OUT
LINE-IN
MIC
Optional LAN
VGA
ATX Power Connector
USB Port (USB1/USB2)
4Mbit Flash ROM BIOS
USB/KB/MS Power ON Jumpe
r
(JP1)
USB Port/LAN Connector
COM2 Connector
Clear CMOS (JBAT)
PS2 KB/Mouse Port
VGA / COM1 Connector
VIA C7 EBGA CPU
DIMM Socket X1
ATA 133 IDE Connector
(IDE1)
Front Panel Connector
CPU FAN
SFAN2
F71805F LPC I/O Chip
Speaker/Power LED Conn.
SFAN1
Front Panel Audio
CD Audio
Parallel Connecto
r
PCI Slot
MIC
LINE IN
LINE OUT SATA Connector
(SATA1,SATA2)
VIA VT8237R Plus Chip
USB Power
On Jumper (JP3)
VIA CN700 North Bridge
Dual Optional RTL8110 SC
Gigabit LAN PHY

4
Jumpers
Jumper Name Description Page
JP1 Keyboard Power ON Function Setting 3-pin Block p.5
JP3 USB Power On Function Setting 3-pin Block p.5
JBAT CMOS RAM Clear Function Setting 3-pin Block p.6

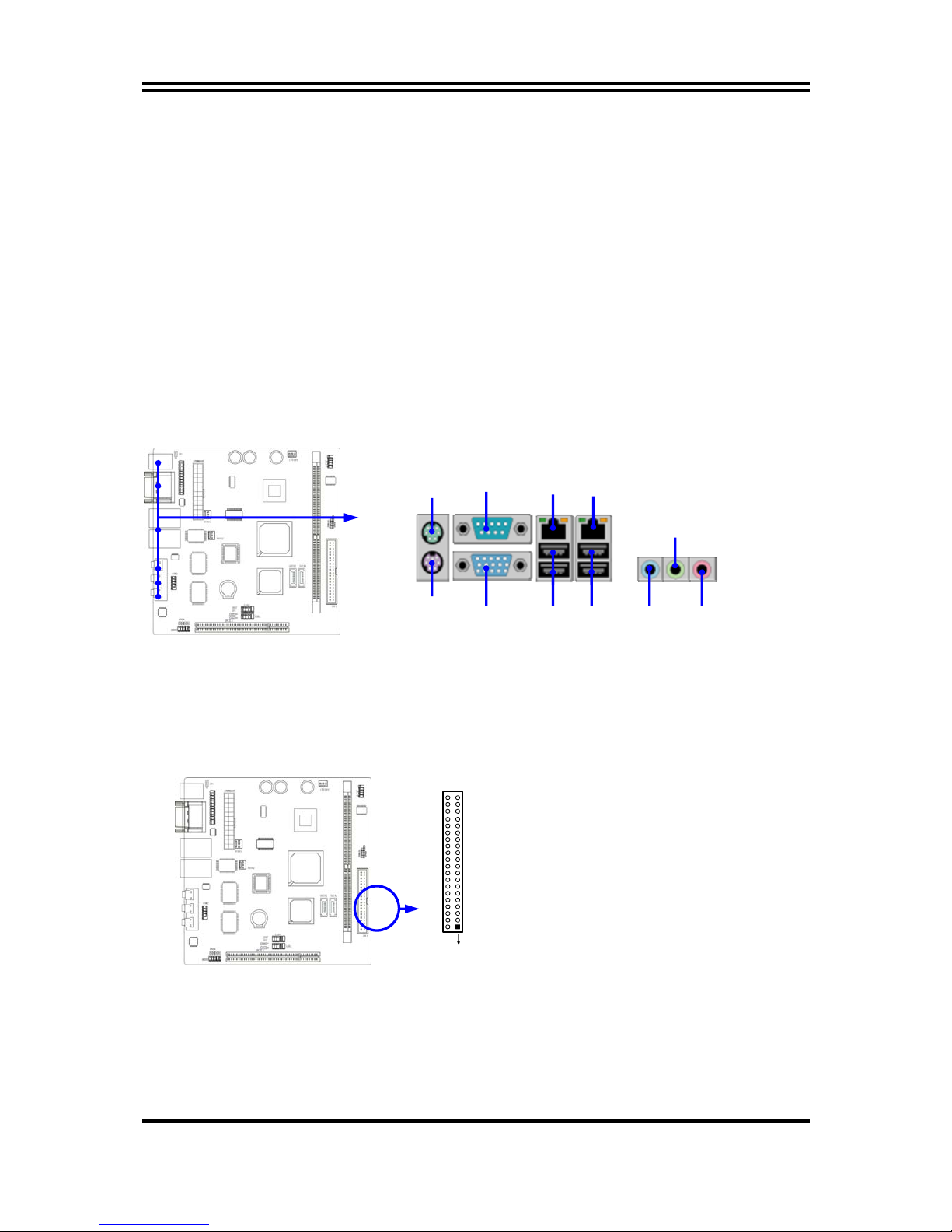

Connectors
Connector Name Description Page
ATXPWR ATX Power Connector 20-pin Block p.10
KB/MS1 PS/2 Mouse & PS/2 Keyboard Connector 6-pin Female p.10
UL1 / UL2 RJ45 Over USB Connector 4-pin Connector p.11
COM1 Serial Port Connector 25-pin Female p.11
VGA VGA Port Connector 15-pin Female p.11
Line-In/Out, MIC Line-Out/Line-In/MIC Audio Connector Phone Jack p.11
IDE1 Primary/Secondary Connector 40-pin Block p.11
SATA1/2 Serial ATA IDE Connector 7-pin Connector p.12

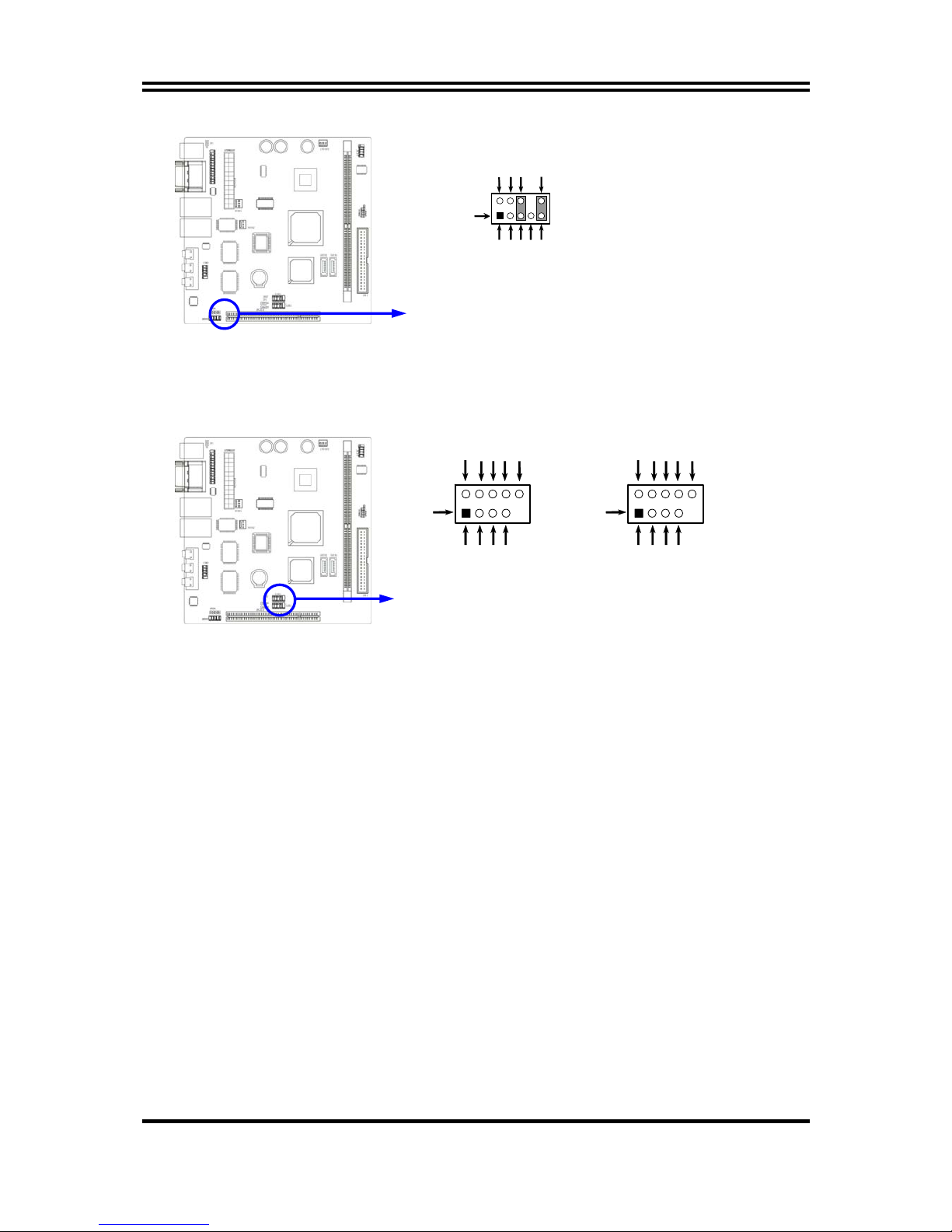

Headers
Header Name Description Page
COM2 COM2 Serial Port Headers 10-pin Block p.12
PARALLEL Parallel Port Headers 25-pin Block p.12
AUDIO Line-Out/MIC output Header 4-pin Block p.13
USB1/USB2 USB2.0 Port Headers 10-pin Block p.13
HD_LED Hard drive LED connector 3-pin Block p.13
RESET Reset switch lead 2-pin Block p.13
SPEAK Speaker connector 4-pin Block p.13
PWR LED Power LED Headers 2-pin Block p.13
PWR BTN Power Button Headers 2-pin Block p.14
CPUFAN, SFAN1/2 FAN Speed Headers 3-pin Block p.14
CDIN CD Audio-In Headers 4-pin Block p.14
Expansion Sockets
Socket/Slot Name Description Page
DDR2 DDR2 SDRAM Module
Socket 240-pin DDR2 SDRAM Module Expansion Socket p.8
PCI1 PCI Slot 32-bit PCI Local Bus Expansion slots p.9

5
Chapter 2
Hardware installation
2-1 Hardware installation Steps
Before using your computer, you had better complete the following steps:
1. Check motherboard jumper setting
2. Install CPU and Fan
3. Install System Memory (DIMM)
4. Install Expansion cards
5. Connect IDE and Front Panel /Back Panel cable
6. Connect ATX Power cable
7. Power-On and Load Standard Default
8. Reboot
9. Install Operating System
10. Install Driver and Utility
2-2 Checking Motherboard’s Jumper Setting
(1) Keyboard Power On function Enabled/Disabled (3-pin): JP1
When setting Enabled you can using keyboard by key in password to power on system.
Keyboard Power On Setting
2-3 closed K/B Power ON Enabled
JP1 1
3
JP1 1
3
1-2 closed K/B Power ON Disable
(Default)
(2) USB Power On function Enabled/Disabled (3-pin): JP3
When setting Enabled you can using USB Device to power on system.
1-2 closed USB Power On Disabled (Default)
2-3 closed USB Power On Enabled
JP3
13
JP3
13

6
(3) CMOS RAM Clear (3-pin): JBAT
A battery must be used to retain the motherboard configuration in CMOS RAM short 1-2
pins of JPAT to store the CMOS data.
To clear the CMOS, follow the procedure below:
1. Turn off the system and unplug the AC power
2. Remove ATX power cable from ATX power connector
3. Locate JBAT and short pins 2-3 for a few seconds
4. Return JBAT to its normal setting by shorting pins 1-2
5. Connect ATX power cable back to ATX power connector
Note: When should clear CMOS
1. Troubleshooting
2. Forget password
3. After over clocking system boot fail
2-3 Glossary
Chipset (core logic) -two or more integrated circuits which control the interfaces between the
system processor, RAM, I/O devises, and adapter cards.
Processor socket - the socket used to mount the system processor on the motherboard.
Slot (AGP, PCI, ISA, RAM) - the slots used to mount adapter cards and system RAM.
AGP - Accelerated Graphics Port - a high speed interface for video cards; runs at 1X (66MHz), 2X
(133MHz), or 4X (266MHz).
PCI - Peripheral Component Interconnect - a high speed interface for video cards, sound cards,
network interface cards, and modems; runs at 33MHz.
Serial Port - a low speed interface typically used for mouse and external modems.
Parallel Port - a low speed interface typically used for printers.
PS/2 - a low speed interface used for mouse and keyboards.
USB - Universal Serial Bus - a medium speed interface typically used for mouse, keyboards,
scanners, and some digital cameras.
Sound (interface) - the interface between the sound card or integrated sound connectors and
speakers, MIC, game controllers, and MIDI sound devices.
BIOS (Basic Input/Output System) - the program logic used to boot up a computer and
establish the relationship between the various components.
Driver - software, which defines the characteristics of a device for use by another device or other
software.
Processor - the "Central Processing Unit" (CPU); the principal integrated circuit used for
doing the "computing" in "personal computer"
Front Side Bus Frequency - The working frequency of the motherboard, which is generated
by the clock generator for CPU, DRAM and PCI BUS.
CMOS RAM Clear Setting
2-3 closed Clear CMOS
JBAT JBAT
1-2 closed Normal (Default)
13 13

7
CPU L2 Cache - The flash memory inside the CPU, normally Pentium III CPU has 256K or
above, while Celeron CPU will have 128K.
2-3-1 Setting CPU Bus Clock & Memory Clock Jumper
Setting the front side bus frequency and SDRAM frequency
The motherboard uses jumper less function for the front side bus frequency and SDRAM
frequency users don’t need setting any jumper when plug the CPU in motherboard
For experience user looking for over clocking possibility, please refer to sec 2-3-2.
2-3-2 Over clock Running
WARNING! This section is for experienced motherboard installer only. Over clocking
can result in system instability or even shortening life of the processor.
Users can choose over clock running by BIOS CMOS SETUP UTILITY. When you entered
CMOS SETUP UTILITY, choose “Miscellaneous Control” you will see the screen as below
then. Phoenix – AwardBIOS CMOS Setup Utility
Miscellaneous Control
Item Help
Auto Detect PCI Clock Enabled
Spread Spectrum Disabled
** Current Host Clock 100MHZ
Host Clock at Next Boot 100MHZ
** Current DRAM CLOCK 266MHz **
DRAM Clock at Next Boot 266MHz(By SPD)
VDIMM Select 1.90V(Default)
VAGP Select 1.55V(Default)
Flash Part Write Protect Disabled
Menu Level >
↑↓→← Move Enter:Select Item +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5:Previous Values F6:Optimized Defaults F7:Standard Defaults
WARNING! The Design of this motherboard follows chipset and CPU vender’s design
guideline. Any attempts to push beyond product specification are not
recommended and you are taking your own risk to damage your system or
important data. Before over clocking, you must make sure your
components are able to tolerate such abnormal setting, especially CPU,
memory, hard disks, and VGA cards.

8
2-4 Install Memory
The motherboards provide one 240-pin DUAL INLINE MEMORY MODULES (DIMM)
sites for memory expansion available from minimum memory size of 64MB to maximum
memory size of 1.0GB DDR2 SDRAM.
Valid Memory Configurations
Bank 240-Pin DIMM PCS Total Memory
Bank 0, 1 (DDR1) DDR2 533/DDR2 400
DDR2 SDRAM Module X1 64MB∼1.0GB
Total System Memory (Max. 1.0GB) 1 64MB∼1.0GB
Generally, installing DDR SDRAM modules to your motherboard is very easy, you can refer
to figure 2-4 to see what a 240-Pin DDR2 400/DDR2 533 DDR2 SDRAM module looks
like.
DIMM1 (BANK0+BANK1)
NOTE! When you install DIMM module fully into the DIMM socket the eject tab should be
locked into the DIMM module very firmly and fit into its indention on both sides.
WARNING! For the DDR SDRAM CLOCK is set at 133MHz, use only DDR266-compliant DDR
Modules. When this motherboard operate at 133MHz, most system will not even
boot if non-compliant modules are used because of the strict timing issues, if your
SDR Modules are not DDR266-compliant, set the DDR SDRAM clock to 100MHz
to ensure system stability.
Figure 2-4

9
2-5 Expansion Cards
WARNING! Turn off your power when adding or removing expansion cards or other system
components. Failure to do so may cause severe damage to both your
motherboard and expansion cards.
2-5-1 Procedure For Expansion Card Installation
1. Read the documentation for your expansion card and make any necessary hardware or software
setting for your expansion card such as jumpers.
2. Remove your computer’s cover and the bracket plate on the slot you intend to use.
3. Align the card’s connectors and press firmly.
4. Secure the card on the slot with the screen you remove above.
5. Replace the computer system’s cover.
6. Set up the BIOS if necessary.
7. Install the necessary software driver for your expansion card.
2-5-2 Assigning IRQs For Expansion Card
Some expansion cards need an IRQ to operate. Generally, an IRQ must exclusively assign
to one use. In a standard design, there are 16 IRQs available but most of them are already in
use.
Standard Interrupt Assignments
IRQ Priority Standard function
0 N/A System Timer
1 N/A Keyboard Controller
2 N/A Programmable Interrupt
3 * 8 Communications Port (COM2)
4 * 9 Communications Port (COM1)
5 * 6 Sound Card (sometimes LPT2)
6 * N/A Floppy Disk Controller
7 * 7 Printer Port (LPT1)
8 N/A System CMOS/Real Time Clock
9 * 10 ACPI Mode when enabled
10 * 3 IRQ Holder for PCI Steering
11 * 2 IRQ Holder for PCI Steering
12 * 4 PS/2 Compatible Mouse Port
13 N/A Numeric Data Processor
14 * 5 Primary IDE Channel
15 * N/A Secondary IDE Channel
* These IRQs are usually available for ISA or PCI devices.
2-5-3 Interrupt Request Table For This Motherboard
Interrupt request are shared as shown the table below:
INT A INT B INT C INT D INT E INT F INT G INT H
Slot 1 √
Onboard VGA √
Onboard USB 1 √
Onboard USB 2 √
LAN
√
AC97/MC97
√
IMPORTANT! If using PCI cards on shared slots, make sure that the drivers support “Shared IRQ” or
that the cards don’t need IRQ assignments. Conflicts will arise between the two PCI
groups that will make the system unstable or cards inoperable.

10
2-6 Connectors, Headers
2-6-1 Connectors
(1) Power Connector (24-pin block) : ATXPWR
ATX Power Supply connector. This is a new defined 24-pins connector that usually comes with
ATX case. The ATX Power Supply allows to use soft power on momentary switch that connect from
the front panel switch to 2-pins Power On jumper pole on the motherboard. When the power
switch on the back of the ATX power supply turned on, the full power will not come into the system
board until the front panel switch is momentarily pressed. Press this switch again will turn off the
power to the system board.
** We recommend that you use an ATX 12V Specification 2.0-compliant power supply unit (PSU)
with a minimum of 80W power rating. This type has 24-pin and 4-pin power plugs.
** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the 20-pin power plug
can provide at least 6.6A on +12V and the power supply unit has a minimum power rating of 80W.
The system may become unstable or may not boot up if the power is inadequate.
(2)PS/2 Mouse & PS/2 Keyboard Connector: KB/MS1
If you are using a PS/2 mouse, you must purchase an optional PS/2 mouse set which
connects to the 5-pins block and mounts to an open slot on your computer’s case.
Pin 1
ROW1 ROW2
24-Pin
ROW1 ROW2
Pin 1
20-Pin
PIN ROW1 ROW2
1 3.3V 3.3V
2 3.3V -12V
3 GND GND
4 5V Soft Power On
5 GND GND
6 5V GND
7 GND GND
8 Power OK -5V
9 +5V (for Soft Logic) +5V
10 +12V +5V
11 +12V +5V
12 +3V GND

11
(3) USB Port connector: UL1 / UL2
The connectors are 4-pins connector that connect USB devices to the system board,
and standard RJ45 connector for Gigabit or 10/100 BASE-T LAN function.
(4) Serial Port Connector (9-pin female): COM1
Serial Port connector is a 9-pin D-Subminiature connector. The On-board Serial Port
can be disabled through the BIOS SETUP. Please refer to Chapter 3 “INTEGRATED
PERIPHERALS SETUP” section for more detail information.
(5) VGA Connector (15-pin female): VGA
VGA Connector is a 15-pin D-Subminiature Receptacle connector.
This connector is for connection Monitor and System to display.
(6) Audio Connector: (Line-Out/ Line-IN/ MIC)
This Connector are 3 phone Jack for LINE-OUT/ LINE-IN/ MIC.
Line-out : Audio output to speaker
Line-In : Audio input to Audio controller
MIC : Microphone Connector
(7) Primary IDE Connector (40-pin block): IDE1
This connector supports the provided IDE hard disk ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to your hard disk(s).
If you install two hard disks, you must configure the second drive to Slave mode by
setting its jumpers accordingly. Please refer to the documentation of your hard disk for
the jumper settings.
Pin 1
IDE1
•Two hard disks can be connected to each connector. The first HDD is referred to as the
“Master” and the second HDD is referred to as the “Slave”.
•For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM
drive on the same IDE channel as a hard disk. Otherwise, the system performance on this
channel may drop.
PS/2
MOUSE
PS/2
Keyboard MICLINE OUT
USB
VGA
LINE IN
COM1 Optional LAN

12
(8) Serial-ATA Port connector: SATA1 / SATA2
This connector supports the provided Serial ATA IDE hard disk cable to connecting the
motherboard and serial ATA hard disk.
2-6-2 Headers
(1) COM2 Serial Port Headers (9-pin) : COM2
This board has two serial port COM1 (Connector)/COM2(Headers), it come with cable
providing serial port COM1/COM2. The On-board serial port can be disabled through
BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP“ section
for more detail information.
COM2
Pin 1 Note: Orient the read marking on the
COM1/2 ribbon cable to pin 1
(2) Parallel Port Headers (25-pin Block): Parallel
The On-board Parallel Port can be disabled through the BIOS SETUP. Please refer to
Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail
information.
Pin 1
PARALLEL Connector
(3) Line-Out, MIC Header (9-pin): AUDIO
This header connects to Front Panel Line-out, MIC connector with cable.

13
Line-Out, MIC Headers
AUDIO
Pin 1
AUD-MIC
AUD-FPOUT-L
AUD-MIC-BIAS
AUD-FPOUT-R
HP-ON
AUD-GND
AUD-RET-L
AUD-RET-R
AUD-VCC
2
9
10
(4) USB Port Headers (9-pin) : USB1/USB2
These headers are used for connecting the additional USB port plug. By attaching an
option USB cable, your can be provided with two additional USB plugs affixed to the
back panel.
USB Port Headers
Pin1
USB1
VCC
-DATA
GND
+DATA
VCC
OC
-DATA
GND
+DATA
Pin1
USB2
VCC
-DATA
GND
+DATA
VCC
OC
-DATA
GND
+DATA
(5) IDE Activity LED: HD_LED
This connector connects to the hard disk activity indicator light on the case.
(6) Reset switch lead: RESET
This 2-pin connector connects to the case-mounted reset switch for rebooting your
computer without having to turn off your power switch. This is a preferred method of
rebooting in order to prolong the lift of the power supply unit. See the figure below.
(7) Speaker connector: SPEAK
This 4-pin connector connects to the case-mounted speaker. See the figure below.
(8) Power LED: PWR LED
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin.
(9)Power switch: PWR BTN
This 2-pin connector connects to the case-mounted power switch to power ON/OFF the
system.

14
System Case Connections
HDLED
RESET
VCC5
GND
VCC5 PWR LED
PWRBTN
PWRBTN
PWRLED
HDDLE
RSTSW
NC GND
JW FP
Pin 1
SPEAK
SPKR
GND
NC
VCC5
PWRLED
Pin 1
(10)FAN Speed Headers (3-pin) : CPUFAN, SFAN1/SFAN2
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the
fan manufacturer, the wire and plug may be different. The red wire should be positive,
while the black should be ground. Connect the fan’s plug to the board taking into
consideration the polarity of connector.
CPUFAN
13
SFAN1
1
3
1
3
SFAN2
(11)CD Audio-In Headers (4-pin) : CDIN
CDIN is the connectors for CD-Audio Input signal. Please connect it to CD-ROM
CD-Audio output connector.
CD Audio-In Headers
CDIN 1 4

15
2-7 Starting Up Your Computer
1. After all connections are made, close your computer case cover.
2. Be sure all the switch are off, and check that the power supply input voltage is set to
proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your
country’s voltage used.
3. Connect the power supply cord into the power supply located on the back of your system
case according to your system user’s manual.
4. Turn on your peripheral as following order:
a. Your monitor.
b. Other external peripheral (Printer, Scanner, External Modem etc…)
c. Your system power. For ATX power supplies, you need to turn on the power supply
and press the ATX power switch on the front side of the case.
5. The power LED on the front panel of the system case will light. The LED on the
monitor may light up or switch between orange and green after the system is on. If it
complies with green standards or if it is has a power standby feature. The system will
then run power-on test. While the test are running, the BIOS will alarm beeps or
additional message will appear on the screen.
If you do not see any thing within 30 seconds from the time you turn on the power. The
system may have failed on power-on test. Recheck your jumper settings and connections
or call your retailer for assistance.
Beep Meaning
One short beep when displaying logo No error during POST
Long beeps in an endless loop No DRAM install or detected
One long beep followed by three short
beeps Video card not found or video card memory bad
High frequency beeps when system is
working CPU overheated
System running at a lower frequency
6. During power-on, press <Delete> key to enter BIOS setup. Follow the instructions in
BIOS SETUP.
7. Power off your computer: You must first exit or shut down your operating system
before switch off the power switch. For ATX power supply, you can press ATX power
switching after exiting or shutting down your operating system. If you use Windows 9X,
click “Start” button, click “Shut down” and then click “Shut down the computer?”
The power supply should turn off after windows shut down.
