INTRODUCTION
1
Introduction
Product Description
The 2808030 Mini ITX board incorporates the Mobile Intel® 910GML/915GME
Express Chipset for Embedded Computing, consisting of the Intel® 910GML/
915GMEGraphic Memory Controller Hub (GMCH) and Intel® I/O Controller
Hub 6-M (ICH6-M), is an optimized integrated graphics solution with a
400/533MHz front-side bus.
The integrated 32-bit 3D graphics engine, based on Intel® Graphics Media
Accelerator 900 (Intel® GMA 900) architecture, operates at core speeds of up to
320 MHz. It features a low-power design, is validated with Intel® Pentium M/
Celeron® M processors on 130nm or 90nm process. With one DIMM socket on
board, the board supports up to 1GB of DDR2 system memory (400MHz for
910GML, 400/533MHz for 915GME chipset).
Intel® Graphics supports a unique intelligent memory management scheme
called Dynamic Video Memory Technology (DVMT). DVMT handles diverse
applications by providing the maximum availability of system memory for
general computer usage, while supplying additional graphics memory when a
3D-intensive application requests it. The Intel GMA 900 graphics architecture
also takes advantage of the high-performance Intel processor. Intel GMA 900
graphics supports Dual Independent Display technology.
The main features of the board are:
Supports Celeron® M processors, 400MHz FSB (910GML chipset)
Supports Socket 479, 533/400MHz FSB (915GMEchipset)
One DDRII SDRAM DIMM supports up to 1GB of DDR2 400MHz
(910GML chipset), DDR2 400/533MHz (915GMEchipset)
Onboard 10/100 BaseT and Marvell PCI-Express Gigabit LAN
Intel® 915 Express VGA for CRT, SDVO port supports LVDS and
DVI / LVDS
2x SATA, 6x USB 2.0, 4x COM, Watchdog timer
1x PCI, 1x MiniPCIe, CF socket, DC-in for +12V input
Dimensions of the board are 170mm x 170mm.

INTRODUCTION
2
Checklist
Your 2808030 package should include the items listed below.
•The 2808030 Celeron®M Mini-ITX motherboard
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
•Cable kit (IDE, Serial port, Serial ATA, VGA)

INTRODUCTION
3
2808030 Specifications
[ Form Factor Mini ITX
CPU Type Intel Celeron M / Pentium M (on Socket 479) processor (Banias or
Dothan core):
- Banias: ULV Celeron M 600MHz (512KB L2 Cache),
- Dothan: Zero L2 cache Celeron M 1GHz or Celeron M 373
CPU Voltage 0.700V ~ 1.708V
CPU FSB 400MHz (910GML); 400/533MHz (915GME)
CPU Socket Socket 479 co-layout with micro-FCBGA
Chipset Intel 910GML/915GMEchipset
ICH6M: 82801FBM
BIOS /APM Award BIOS, support ACPI Function & APM1.2
Memory DDRII 400/533 SDRAM DIMM socket x1 (w/o ECC function), Max.
1GB
VGA 910GML built-in, supports dual display with CRT, LVDS & TV-Out
DVI Chrontel CH7307 x1 for DVI
LVDS Chrontel CH7308 x1 for 18 or 24-bit single/dual channel LVDS
LAN LAN1: ICH6M built-in 10/100BT MAC + Intel 82562ET PHY
Optional LAN2: Marvell 88E8053 PCI Express Gigabit LAN controller
USB ICH6M built-in USB 2.0 host controller, support 6 ports
Serial ATA ICH6M built-in SATA controller, supports 2 ports
Parallel IDE ICH6M built-in one channel Ultra DMA 33/66/100 for IDE & CF
Audio ICH6M built-in Audio controller + AC97 Codec ALC655 w/ 6 channels
(Line-out, Line-in & Mic.) + ADI SSM2304 4ohm 2W, class D, stereo
audio power amplifier (note: 1.4W for 8 ohm)
LPC I/O Winbond W83627EHG: PS/2 Keyboard/Mouse, 2x serial (RS232) &
Hardware monitor (3 thermal inputs, 4 voltage monitor inputs,
VID0-4 & 2 fan headers)
2nd I/O Fintek F81216DG x1 for COM3, 4 (RS-232)
Expansion Slots PCI (33MHz/32-bit) slot x1
Optional Mini PCI-express (1 lane) socket x1 (for wireless module)
Edge
Connectors DC-in power connector (Jack type) x1 PS/2 stack connector x1 for keyboard/mouse
DVI + DB9 stack connector x1 for DVI & COM 1
RJ45 (10/100) + dual USB stack connector x1 for LAN1 & USB1, 2
S-Video connector x1 for S-Video
RJ45 (GbE) + dual USB stack connector x1 for LAN2 & USB3, 4
*** Option with dual USB stack connector (LAN2 option)
3x1 phone jack stack connector x1 for Audio (Line-Out, Line-In & Mic)
Onboard
Headers /
Connectors
Compact flash socket (vertical type) x1 @component side
SATA connector x2 for 2 SATA ports
DF13-20 (20-pin) header x2 for LVDS
15 pins pin-header x1 for VGA
40 pins box-header x1 for IDE
30 pins pin-header x1 for COM2~4
8 pins pin-header x1 for USB 5~6
3 pins pin-header x1 for power LED
6 pins pin-header x1 for Reset, HDD LED & power button
Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)
System Voltage +5V, +3.3V, +12V, -12V, 5VSB
Other LAN Wakeup
Digital I/O 4 in + 4 out (TTL level)
Power In / Out Power Input: +12V DC power input
Power Output: 4-pin power connector x1 for HDD/CD-ROM/DVD
Board Size 170mm x 170mm

INTRODUCTION

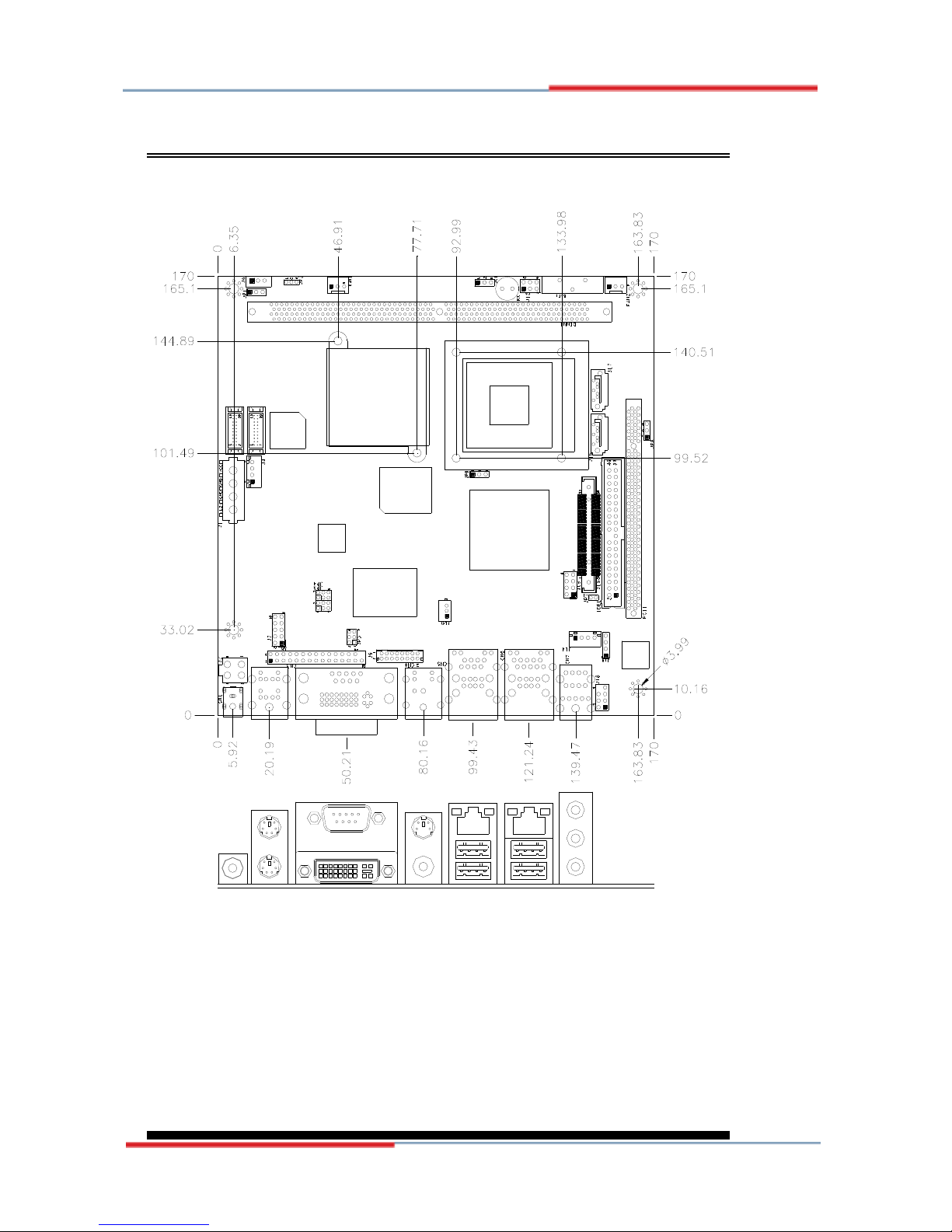

Board Dimensions
4

INSTALLATIONS
5
Installations
This section provides information on how to use the jumpers and
connectors on the 2808030 in order to set up a workable system. The
topics covered are:
Installing the CPU........................................................................ 6
Installing the Memory.................................................................. 7
Setting the Jumpers...................................................................... 8
Connectors on 2808030............................................................... 12

INSTALLATIONS
Installing the CPU
The 2808030 board supports a Socket 479 processor socket for Intel®
Pentium®M or Celeron®M processors.
The processor socket comes with a screw to secure the processor. As
shown in the left picture below, loosen the screw first before inserting
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, fasten the
screw. Refer to the figures below.
NOTE: Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that would
cause your system to hang or be unstable.
6

INSTALLATIONS
Installing the Memory
The 2808030 board supports one DDR2 memory socket for a maximum
total memory of 1GB in DDR2 memory type.
Installing and Removing Memory Modules
To install the DDR2 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR2 module so that the key of the DDR2 module align
with those on the memory slot.
2. Gently push the DDR2 module in an upright position until the clips of
the slot close to hold the DDR2 module in place when the DDR2
module touches the bottom of the slot.
3. To remove the DDR2 module, press the clips with both hands.
DDR2 Module
Lock Lock
Lock Lock
7

INSTALLATIONS
8
Setting the Jumpers
Jumpers are used on 2808030 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on 2808030 and their respective functions.

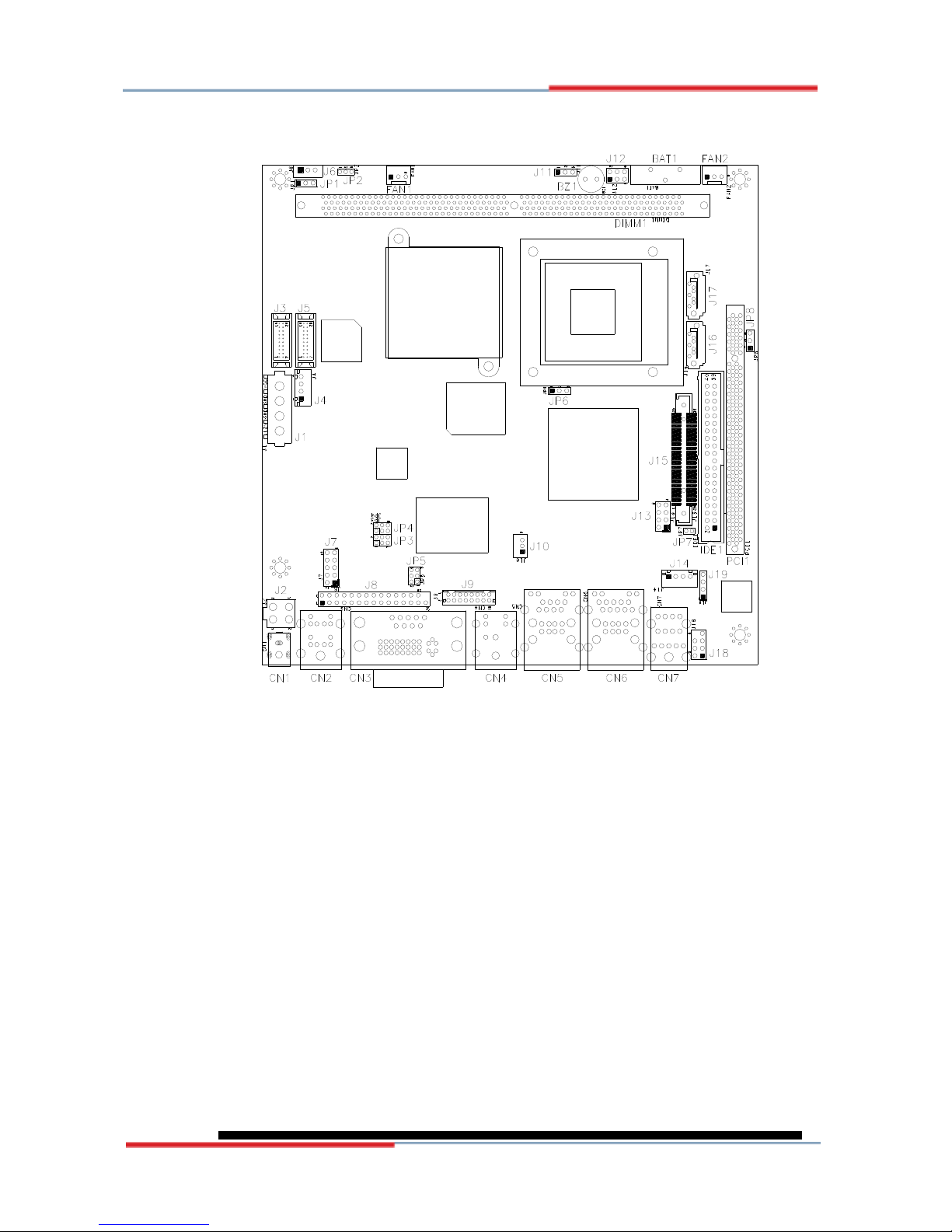

Jumper Locations on 2808030........................................................9
JP1: LCD Panel Power Selection..................................................10
JP8: Clear CMOS Setting.............................................................10
JP7: CompactFlash Slave/Master Selection..................................10
JP2: ATX/AT Mode Select...........................................................10
JP3: COM3 RS232 +5V / +12V Power Setting............................10
JP4: COM4 RS232 +5V / +12V Power Setting............................11
[JP5: VGA/DVI DDCDATA and DDCCLK Signal Select...........11
JP6: CPU FSB Selection (915GMEonly).......................................11

Jumper Locations on 2808030
Jumpers on 2808030............................................................................Page
JP1: LCD Panel Power Selection ................................................. 10
JP8: Clear CMOS Setting............................................................. 10
JP7: CompactFlash Slave/Master Selection ................................. 10
JP2: ATX/AT Mode Select .......................................................... 10
JP3: COM3 RS232 +5V / +12V Power Setting ........................... 10
JP4: COM4 RS232 +5V / +12V Power Setting ........................... 11
[JP5: VGA/DVI DDCDATA and DDCCLK Signal Select........... 11
JP6: CPU FSB Selection (915GMEonly) ...................................... 11
9

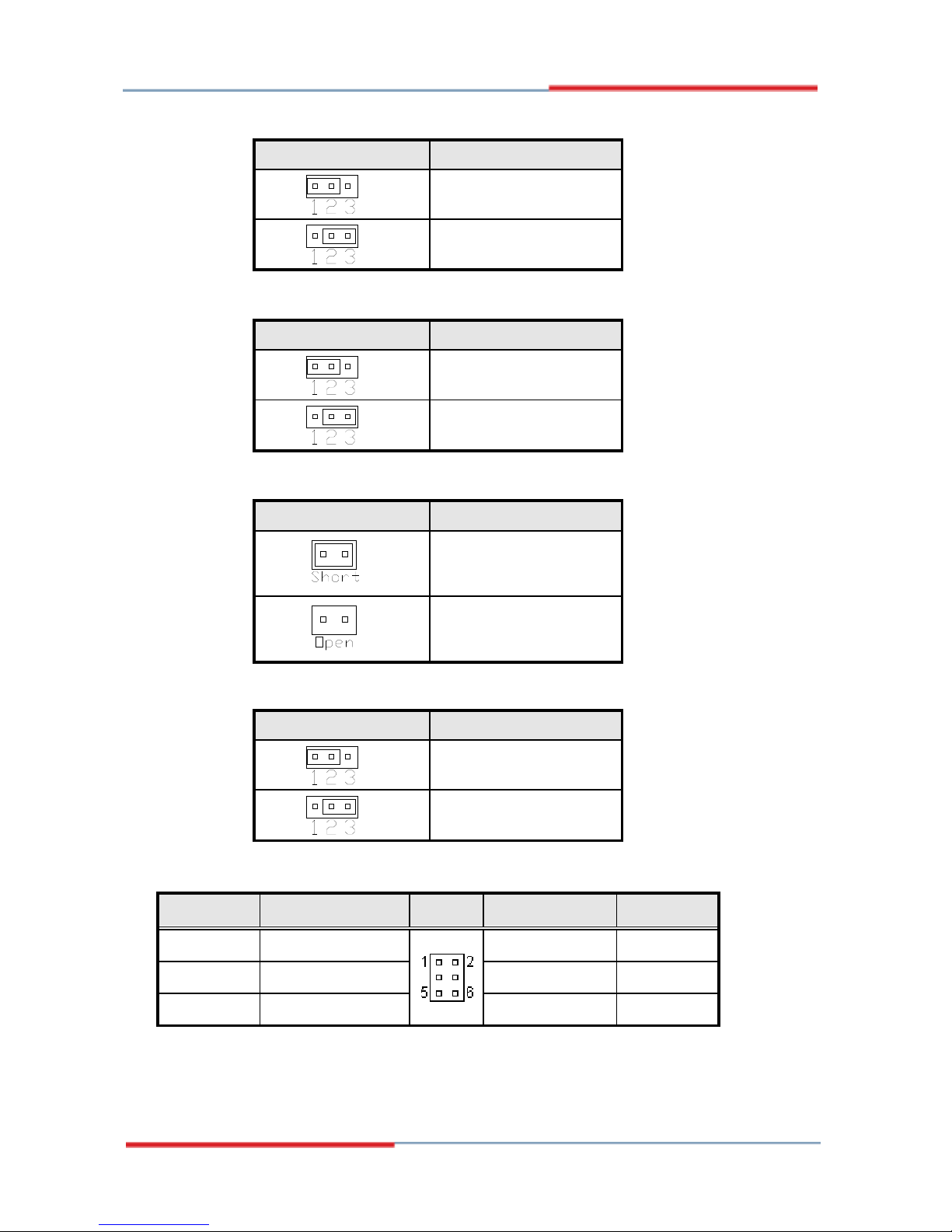

JP1: LCD Panel Power Selection
JP1 LCD Panel Power
3.3V
5V
JP8: Clear CMOS Setting
JP8 Setting
Normal
Clear CMOS
JP7: CompactFlash Slave/Master Selection
JP7 CF Setting
Master
Slave
JP2: ATX/AT Mode Select
JP2 ATX / AT
ATX mode
AT mode
JP3: COM3 RS232 +5V / +12V Power Setting
Pin # Signal Name JP3 Signal Name Pin #
1 RI +12V 2
3 RI (Default) RI (Default) 4
5 RI +5V 6
COM3 Settings: Pin 1-2 short = +12V, Pin 5-6 short = +5V, Pin 3-4
Standard COM Port
10

INSTALLATIONS
JP4: COM4 RS232 +5V / +12V Power Setting
Pin # Signal Name JP4 Signal Name Pin #
1 RI
+12V 2
3 RI (Default) RI (Default) 4
5 RI +5V 6
COM4 Settings: Pin 1-2 short = +12V, Pin 5-6 short = +5V, Pin 3-4
Standard COM Port
JP5: VGA/DVI DDCDATA and DDCCLK Signal Select
JP5 VGA/DVI Select
VGA
DVI
JP6: CPU FSB Selection (915GMEonly)
JP6 FSB
400MHz
533MHz
11

INSTALLATIONS
12
Connectors on 2808030
The connectors on 2808030 allows you to connect external devices such as
keyboard, floppy disk drives, hard disk drives, printers, etc. The
following table lists the connectors on 2808030 and their respective
functions.
Connector Locations on 2808030.................................................13
FAN1: CPU Fan Power Connector...............................................14
FAN2: System Fan Power Connector...........................................14
CN1: DC Jack (DC in, 12V only).................................................14
CN2: PS/2 Keyboard and PS/2 Mouse Connectors......................14
CN3: COM1 and DVI-I Connector .............................................15
CN4: S-Video and RCA Connector for TV out............................15
CN5: 10/100 RJ-45 and USB1/2 Ports.........................................15
CN6: GbE RJ-45 and USB3/4 Ports.............................................15
CN7: Audio Connector.................................................................15
J1: HDD Power Connector...........................................................16
J2: ATX_12V Connector..............................................................16
IDE1: IDE Connector...................................................................16
J3, J5: LVDS Connectors (1st channel, 2nd channel) ..................17
J6: LCD Backlight Connector ......................................................17
J7: Digital I/O...............................................................................17
J8: COM2, COM3, COM4 Serial Ports........................................18
J9: VGA Connector ......................................................................18
J10: Wake On LAN Connector.....................................................18
J11: Power LED Connector..........................................................19
J12: System Function Connector..................................................19
J13: USB5/6 Port Pin Header.......................................................19
J14: Speaker Connector................................................................19
J15: Compact Flash Connector.....................................................19
J16, J17: Serial ATA Connectors .................................................19
J18: Front Audio Connector .........................................................20
J19: CD-In Pin Header .................................................................20
PCI1: PCI Slot (supports 2 Master)..............................................20
U38: Mini PCI- E(x1) Connector (bottom side)...........................20

INSTALLATIONS

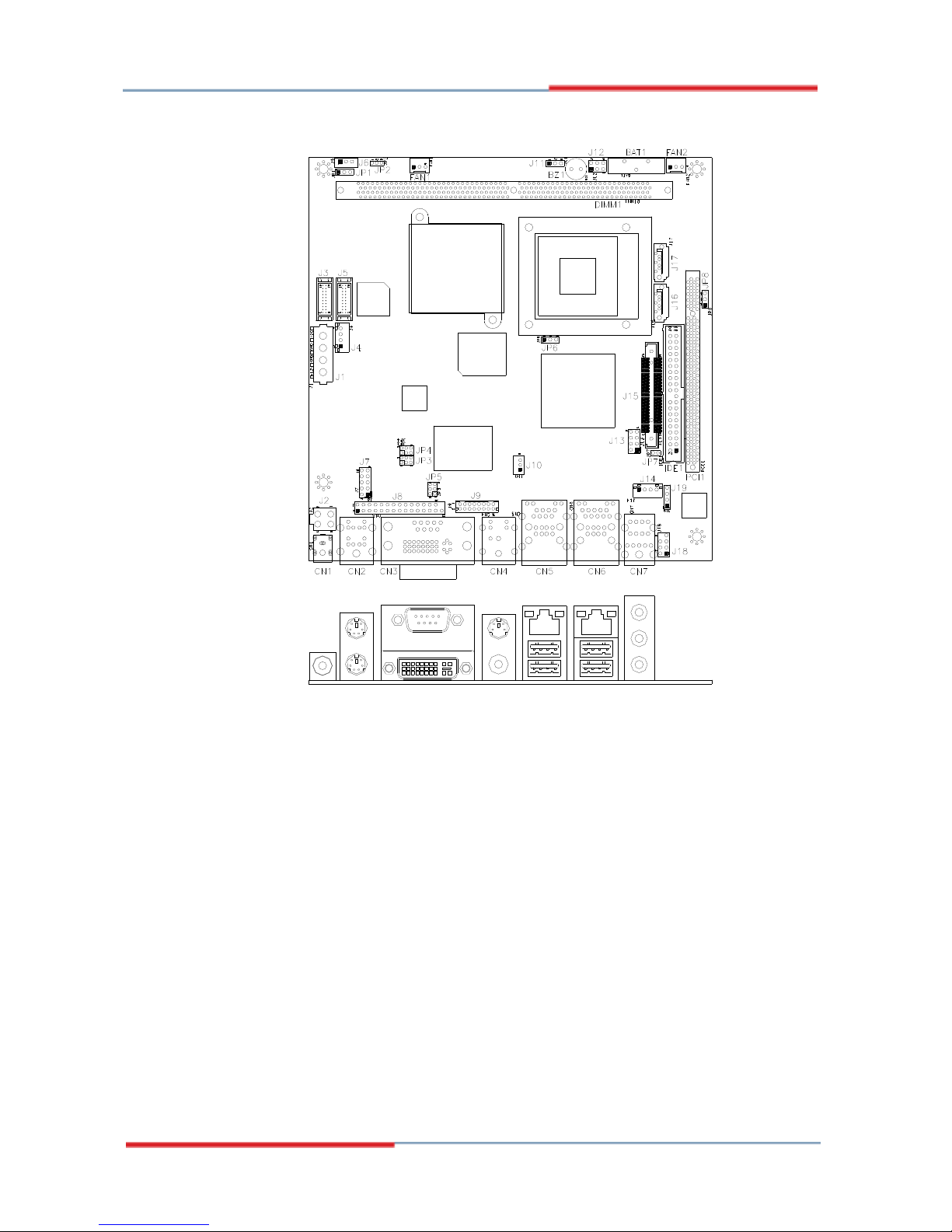

Connector Locations on 2808030
Connector Locations on 2808030 ...........................................................Page
FAN1: CPU Fan Power Connector..........................................................14
FAN2: System Fan Power Connector......................................................14
CN1: DC Jack (DC in, 12V only)............................................................14
CN2: PS/2 Keyboard and PS/2 Mouse Connectors.................................14
CN3: COM1 and DVI-I Connector.........................................................15
CN4: S-Video and RCA Connector for TV out.......................................15
CN5: 10/100 RJ-45 and USB1/2 Ports....................................................15
CN6: GbE RJ-45 and USB3/4 Ports........................................................15
CN7: Audio Connector............................................................................15
J1: HDD Power Connector......................................................................16
J2: ATX_12V Connector.........................................................................16
IDE1: IDE Connector...............................................................................16
J3, J5: LVDS Connectors (1st channel, 2nd channel) .............................17
J6: LCD Backlight Connector..................................................................17
J7: Digital I/O ..........................................................................................17
J8: COM2, COM3, COM4 Serial Ports...................................................18
J9: VGA Connector .................................................................................18
J10: Wake On LAN Connector................................................................18
J11: Power LED Connector.....................................................................19
J12: System Function Connector.............................................................19
J13: USB5/6 Port Pin Header ..................................................................19
J14: Speaker Connector...........................................................................19
J15: Compact Flash Connector................................................................19
J16, J17: Serial ATA Connectors ............................................................19
J18: Front Audio Connector ....................................................................20
J19: CD-In Pin Header.............................................................................20
PCI1: PCI Slot (supports 2 Master) .........................................................20
U38: Mini PCI- E(x1) Connector (bottom side)......................................20
13

INSTALLATIONS
FAN1: CPU Fan Power Connector
FAN1 is a 3-pin header for the CPU fan. The fan must be a 12V fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
FAN2: System Fan Power Connector
FAN2 is a 3-pin header for system fans. The fan must be 12V (500mA).
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
CN1: DC Jack (DC in, 12V only)
CN2: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 4 4 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
14

INSTALLATIONS
CN3: COM1 and DVI-I Connector
[ Signal Name Pin # Pin # Signal Name
DCD 1 6 DSR
RXD 2 7 RTS
TXD 3 8 CTS
DTR 4 9 RI
GND 5 10 Not Used
Signal Name Pin # Pin # Signal Name
DATA 2- 1 16 HOT POWER
DATA 2+ 2 17 DATA 0-
Shield 2/4 3 18 DATA 0+
DATA 4- 4 19 SHIELD 0/5
DATA 4+ 5 20 DATA 5-
DDC CLOCK 6 21 DATA 5+
DDC DATA 7 22 SHIELD CLK
VSYNC 8 23 CLOCK -
DATA 1- 9 24 CLOCK +
DATA 1+ 10 C1 A RED
SHIELD 1/3 11 C2 A GREEN
DATA 3- 12 C3 A BLUE
DATA 3+ 13 C4 HYNC
DDC POWER 14 C5 A GROUND2
A GROUND 1 15 C6 A GROUND3
CN4: S-Video and RCA Connector for TV out
CN5: 10/100 RJ-45 and USB1/2 Ports
CN6: GbE RJ-45 and USB3/4 Ports
CN7: Audio Connector
15

INSTALLATIONS
J1: HDD Power Connector
Pin # Signal Name
1 +12V
2 Ground
3 Ground
4 5V
Note: +12V power is provided with 2A maximum load.
J2: ATX_12V Connector
J2 can be used in situations where the 12V current from the ATX power
is insufficient to supply needed current.
Pin # Signal Name
1 Ground
2 Ground
3 +12V
4 +12V
IDE1: IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 4 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 14 Host data 13
Host data 1 15 16 Host data 14
Host data 0 17 18 Host data 15
Ground 19 20 Protect
p
in
DR
Q
0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IR
Q
14 31 32
N
o connec
t
Address 1 33 34
N
o connec
t
Address 0 35 36 Address 2
Chi
p
select 0 37 38 Chi
p
select 1
Activit
y
39 40 Ground
16
