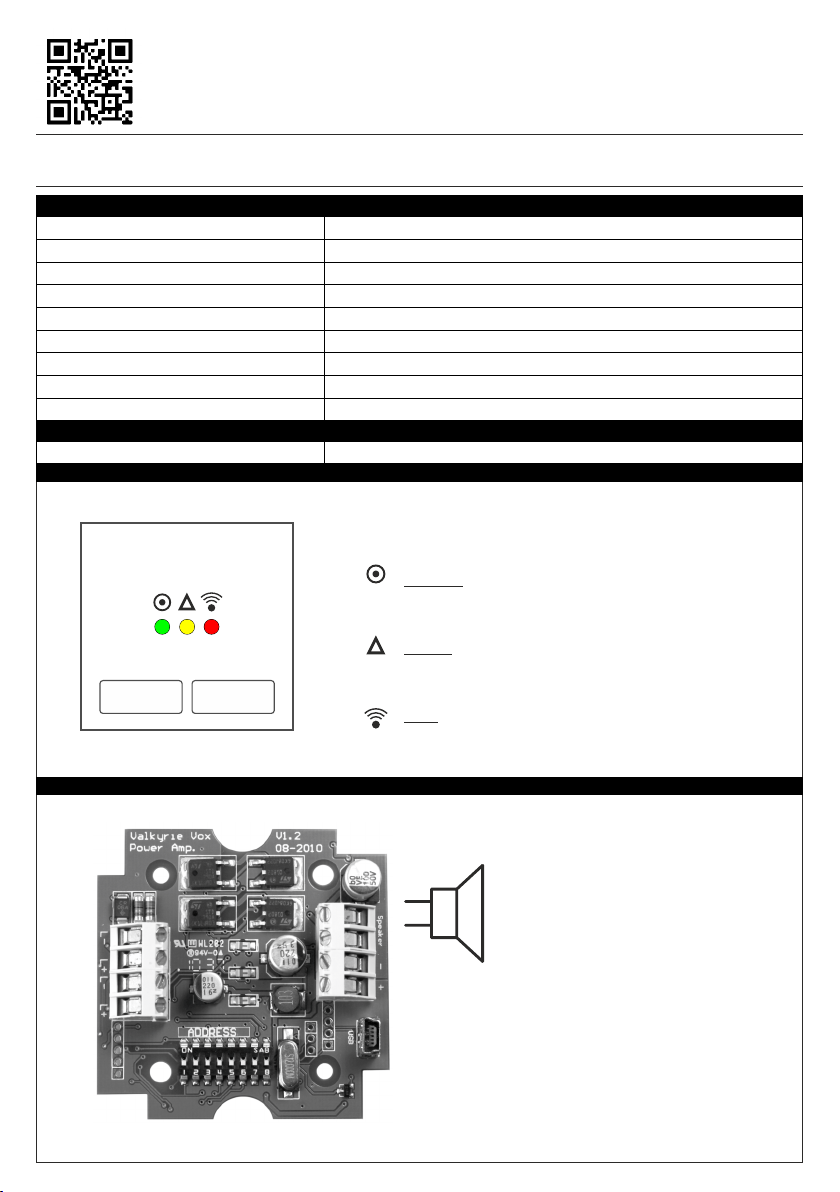

Global Fire Equipment GFE-PA-VOX-C User manual

TECHNICAL SPECIFICATIONS
SUPPLY VOLTAGE
SOUNDER CIRCUIT - CURRENT
EXTERNAL SUPPLY - CURRENT
POWER OUTPUT MAX.
MAX. CABLE SIZE
MAX. HUMIDITY
OPERATING TEMPERATURE
ENCLOSURE - MATERIAL / PROTECTION
DIMENSIONS / WEIGHT
Loop: 17-30 V DC - External Supply: 20-30 V DC
2.0 mA (Sounder Active)
5.0 mA (Quiescent) - 1.0 A (Sounder Active)
24 Watts rms
2
2.5 mm
85% RH Non-Condensing
-10ºC to 50ºC
White or Red ABS / IP44
100 (D) x 48 (H) mm / 125 g - 160 g including packaging
ORDER CODE
CONVENTIONAL VOICE CONTROLLER/AMPLIFIER
GFE-PA-VOX-C
DESCRIPTION
In order to indicate the status of the module’s working
condition, 3 LEDs are provided:
STATUS: This LED will flash Green, while the
conventional sounder circuit is active.
FAULT: The Yellow LED will be ON when there is a
fault in the module.
FIRE: This Red LED will be illuminated intermittently
whenever the speaker is active.
STATUS & REPORT DETAILS
SPEAKER CONNECTION
Maximum Load Allowed
1 x 8 Ohm
24 Watt rms
or
2 x 16 Ohm
12 Watt rms
CONVENTIONAL VOICE CONTROLLER/AMPLIFIER
GLOBAL FIRE EQUIPMENT S.A.
Sítio dos Barrabés, Armazém Nave Y, Caixa Postal 908-Z, 8150-016 São Brás de Alportel - PORTUGAL | Tel: [phone]
Email: [e-mail] | Technical Support: [email protected]om | www.globalfire-equipment.com
MANUAL 221117
MADE IN PORTUGAL - EU
GFE-PA-VOX-C

MORE INFO >> GLOBALFIRE-EQUIPMENT.COM
NOTE: This device is polarity sensitive.
+24V DC
GND
LOOP
OUT
PANEL
To next device
in sounder circuit.
LOOP & EXT. SUPPLY CONNECTIONS
USB CONNECTOR
USB CONNECTOR
Use USB connector in conjuction with
GFE’s Vox Loader PC Software to program
new tones and voice messages.
Software can be downloaded from our website.
End-of-line device should be connected
to last device on sounder circuit.
Please always follow panel
manufacturer instructions.
