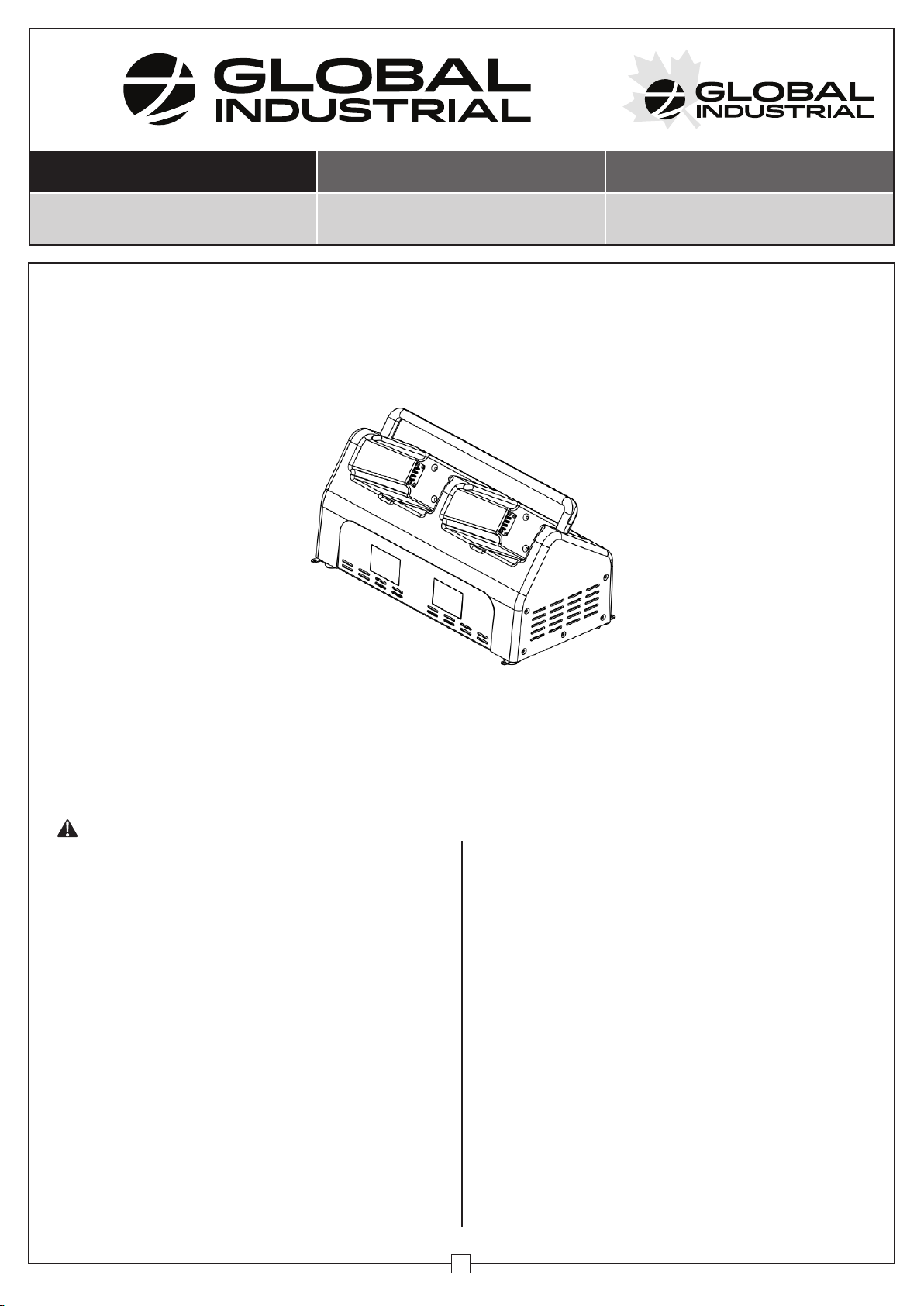

Dual Charging Station
101123
User's manual Manual del usuario Manuel de l'utilisateur
Customer Service
US: 1-800-645-2986
Servicio de atención al Cliente
US: 1-800-645-2986
Service à la clientèle
Canada: 888-645-2986
WARNING
•
Failure to follow installation instructions will void warranty.
•After use, please turn off the machine in time
•Please charge by the supplied power cord. Please apply
the specified battery.
•When the product accidentally drops into the water while
using, please unplug the input socket and place it in a
safe and open area. The product shall not be turned on.
•While using or delivering the product, its screen should
be carefully protected from strike.
•When the product is on, it is forbidden to touch pins in
the battery compartment with hands or metal devices.
Model:812545
b82045fc-0b136962-90871f19-f891407c
TM
TM
Read this manual thoroughly prior to installation, operation or maintenance. Keep these instructions in a safe
location for future reference. For questions, visit globalindustrial.com or contact Customer Service at 1-800-645-
1-800-645-2982.
•When plugging in or pulling out the battery, please be
cautious about the operation to avoid pins damage;
•The product should be kept away from fire, high-
temperature environments, and humid and rainy
environments during use and storage, otherwise it may
lead to dangerous situation.
•Non-professionals should not disassemble it by
themselves.
•Do not discard the product at the end of its service life.
Recycle the product according to local laws and
regulations.
•This product should be protected from rain, water
immersion, moisture, and violent vibration during
transportation.
•It cannot be used at an altitude exceeding 2000m.
•Do not drop, squeeze, or collide with the product, so as
not to subject the product to external pressure, which may
cause a short circuit of the internal circuit of the product
and damage to the battery.
User's Manual
2
b82045fc-0b136962-90871f19-f891407c
Package Contents:
Dual Charging Station 812545
•AC Power Cord * 1
•Product Instruction Manual * 1
•Dual Charging Station * 1
Item Parameter
Charging Power 294W*2
Input Information AC INPUT:100-240V 50/60Hz 10A Max
Charger Output DC OUTPUT：29.4V 10A
Constant Current and Constant Voltage * 2
Battery LiFePO4 8S 20/25AH
Product Size 18.89 x 10.55 x 10.47 inch（L*W*H）
Product N.W. 15.18 lbs
Product G.W. 20.32 lbs
Working Environment 14-104°F
Relative Humidity≤80%
Altitude≤2000M
Transport and Storage
Environment
Temperature: 5-131 °F
Relative Humidity≤93%（no condensation）
Atmosphere Pressure:70kPa～106kPa
Technical parameters
3
User's Manual
b82045fc-0b136962-90871f19-f891407c
Dual Charging Station 812545
Front of Charging Station
Rear of Charging Station
B Battery Display
Screen
B Battery
Mains Input Socket, Input Over-
current
A Battery
A Battery
Display Screen
Application and Function Instruction:
A dual charging station which uses two internal chargers with constant
current and voltage can charge two batteries or one battery independently. When the
battery needs to be charged, it can be inserted into the plastic station to
complete the process. This product can protect itself from input over-current.
What’s more, the charger output voltage is the DC safe one, which has functions
like short circuit and anti-reverse connection protection, and no-load impulse. The
product has two 1.7-inch LCD screens, which display the status of two batteries
independently and show charging prompt as well as high-precision battery capacity
when charging.
Product Main Structure Composition
The charging station is mainly composed of a sheet-metal base, battery plastic base, charger, and
LCD screen.
User's Manual
b82045fc-0b136962-90871f19-f891407c
Product Maintenance
1. Socket contacts in the battery compartment are fragile so they should be inspected regularly. The
deformed or cracked one should be replaced. Otherwise, it may cause charging failure.
2. Regularly remove dust and dirt from the heat dissipation window.
3. Regularly check whether the external screws and lifting rings of the chassis are fully tightened.
No Response
When Power
on
Unable to
Charge
•Confirm whether the mains input voltage is within the range of the product
specification.
•Check whether the fuse inside the input socket is damaged.
•Check whether the over-current protector on the back is disconnected.
•Check whether the power cord is in open-circuit or broken.
Issue Suggested Action
1.
Operation and Usage
2.
Check whether there is any visible damage to the appearance of the product and whether the
input socket or the battery pins are loose or damaged (If abnormal conditions occur, stop using).
3.
Plug one end of the supplied power cord into the AC socket on the back and connect the other
end to the mains.
4.
Plug one battery or two batteries into the plastic battery compartment in the product.
5.
Turn on the power switch on the back of the product and check the screen. At this point, the
battery grid icon on the display screen will flash to indicate that it is charging.
Turn off the power input switch and pull out the battery after charging.
Dual Charging Station 812545
Troubleshooting
•Confirm whether the battery is completely inserted into the battery
compartment and the sockets in the bottom of the battery should be
completely connected to the battery station pins.
•Check whether the battery station pins are deformed or falling off.
4
