Global Industrial 604147 User manual

Portable Pressure Washer
050923
User's manual Manual del usuario Manuel de l'utilisateur
Customer Service
US: 1-800-645-2986
Servicio de atención al Cliente
US: 1-800-645-2986
Service à la clientèle
Canada: 888-645-2986
Model 604147
FEATURES
•Low water consumption & High water
pressure
•Energy-saving & Environmental friendly
•Portable, Durable, Safe & Splash proof
•Housework Cleaning: Bathroom, sinks,
pets, and garden
•Perfect for Camping, Boating and any
outdoor activities
SPECIFICATIONS
•Water pressure: 100 PSI
•Voltage: 12V (DC)
•Power: 36W
•Hose: 16.4 ft.
•Charger Cable: 10 ft.
•Capacity: 4 Gallons
•Weight: 8.8 lbs.
•Dimension: 14" x 11.4" x 17.9"

Portable Pressure Washer
2
CONTENTS
Operating Instructions...........................................................................................................................3
Important Safety Instructions.............................................................................................................3
Warning (To Reduce the risk of injury)...........................................................................................4
Features............................................................................................................................................................5
Howto Assemble........................................................................................................................................6
MultifunctionalSpray Gun...................................................................................................................7
Howto Operate.........................................................................................................................................10
Auto Stop.......................................................................................................................................................13
General Maintenance.............................................................................................................................13
Storing of Portable Car Washer........................................................................................................15
Trouble Shooting......................................................................................................................................16

3
CONGRATULATIONS
We trust your new purchase will bring you many years of satisfaction. Our company has designed and
developed this product with you in mind. We are very proud of our products and hope that you are equally
satisfied with the quality and performance.
Thank you for your support in choosing our products.
When you use the appliance, basic precautions should always be followed:
1. DO NOT FILL ANY LIQUID OTHER THAN CLEAN WATER, SERIOUS INJURY MAY OCCUR.
2. STUDY THE PRODUCT THOROUGHLY BEFORE OPERATING IT, BE FAMILIAR WITH IT’S OPERATING
CONTROLS.
3. DO NOT OPERATE THE PRODUCT WHEN IN DOUBTS OR UNDER THE INFLUENCE OF ALCOHOL OR
DRUGS.
4. DAMAGED HIGH PRESSURE HOSES CAN BURST AND CAN CAUSE A POTENTIALLY HAZARDOUS
SITUATION OR INJURY. HIGH PRESSURE HOSES SHOULD NOT BE KINKED, CRUSHED, TWISTED, OR
DAMAGED IN ANY WAY. REPLACE THE HIGH PRESSURE HOSE SHOULD THIS OCCUR.
5. USE WATER OF TEMPERATURE AT 50°F to 104°F ONLY.
OPERATING INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
OPERATING INSTRUCTIONS
1
2
Portable Pressure Washer
Please read these instructions and warnings carefully before using your Portable Pressure washer.
WARNING
Small parts may cause choking hazard.

4
Portable Pressure Washer
TO REDUCE THE RISK OF INJURY:
1. Do not leave appliance when plugged in. Unplug from power port when not in use and before
maintenance of machine.
2. This is NOT a toy. Close attention is necessary when used near children.
3. Use only manufacturer’s recommended accessories and replacement parts.
Do not use with damaged cord or plug. Do not use the appliance if it is damaged or dropped into water
and when it is not working as it should.
4. Do not pull or carry by cord, or to use cord as handle, or to pull cord around sharp edges. Keep cord away
from heated surfaces.
5. Keep nozzle free of obstructing objects. Do not use machine when nozzle clogged; keep free of dust, lint,
hair, and anything that may reduce air flow.
6. Keep hair, loose clothing, fingers, and all parts of body away from moving machine parts.
7. Do not use without water filter in place.
8. Turn o all controls before unplugging.
9. Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage
is listed on the cleaner plate.
10. Do not direct the water jet toward the unit itself, electrical parts or towards other electrical equipment.
11. Do not alter the original diameter of the spray head nozzle.
12. DISCHARGE residual pressure before disconnecting the portable car washer hose.
13. Before using the portable car washer, CHECK every time that the screws are fully tightened and that there
are no broken or worn parts.
14. Not to be used with chlorine based type cleaners, or any detergents.
15. Do not fill the water container with anything but water, or your warranty will be VOID.
16. Never submerse the machine in water.
17. Do not allow the system to freeze. Always empty and store indoors. Freezing will damage pump and water
lines.
18. Do not remove cover plate or attempt to disassemble your machine. This will void all warranty, and may
cause serious injury.
19. Always use the recommended plug/amp fuse for your machine. Any other may cause damage to your
machine or vehicle.
20. Do not spray water directly at eyes or mouth.
WARNINGS
3

5
Portable Pressure Washer
FEATURES
4
1. Cleaning agent bucket
2. Clear water bucket
3. Power Switch
4. Work indicator
5. Charging port
6. Spring water pipe
7. Spray gun
8. Breathable bucket lid
9. Charger box
10. Cigarette lighter box
11. Foam flow adjustment knob
12. Connection tube
13. Universal telescopic tube
(Air conditioning cleaning tube)
14. Charger

Portable Pressure Washer
Assembly
5
The portable pressure washer is shipped fully assembled.
Note: The battery should be fully charged before the first use. Using charger to connect the charging port and
charge the unit until the light on the charger is green.

7
Portable Pressure Washer
MULTIFUNCTIONAL SPRAY GUN
6
The water flow can be switch between cylindrical and fan-shaped by rotating the
sprayer nozzle clockwise and counter clockwise.
Spray Nozzle
Self-Lock Switch

8
Portable Pressure Washer

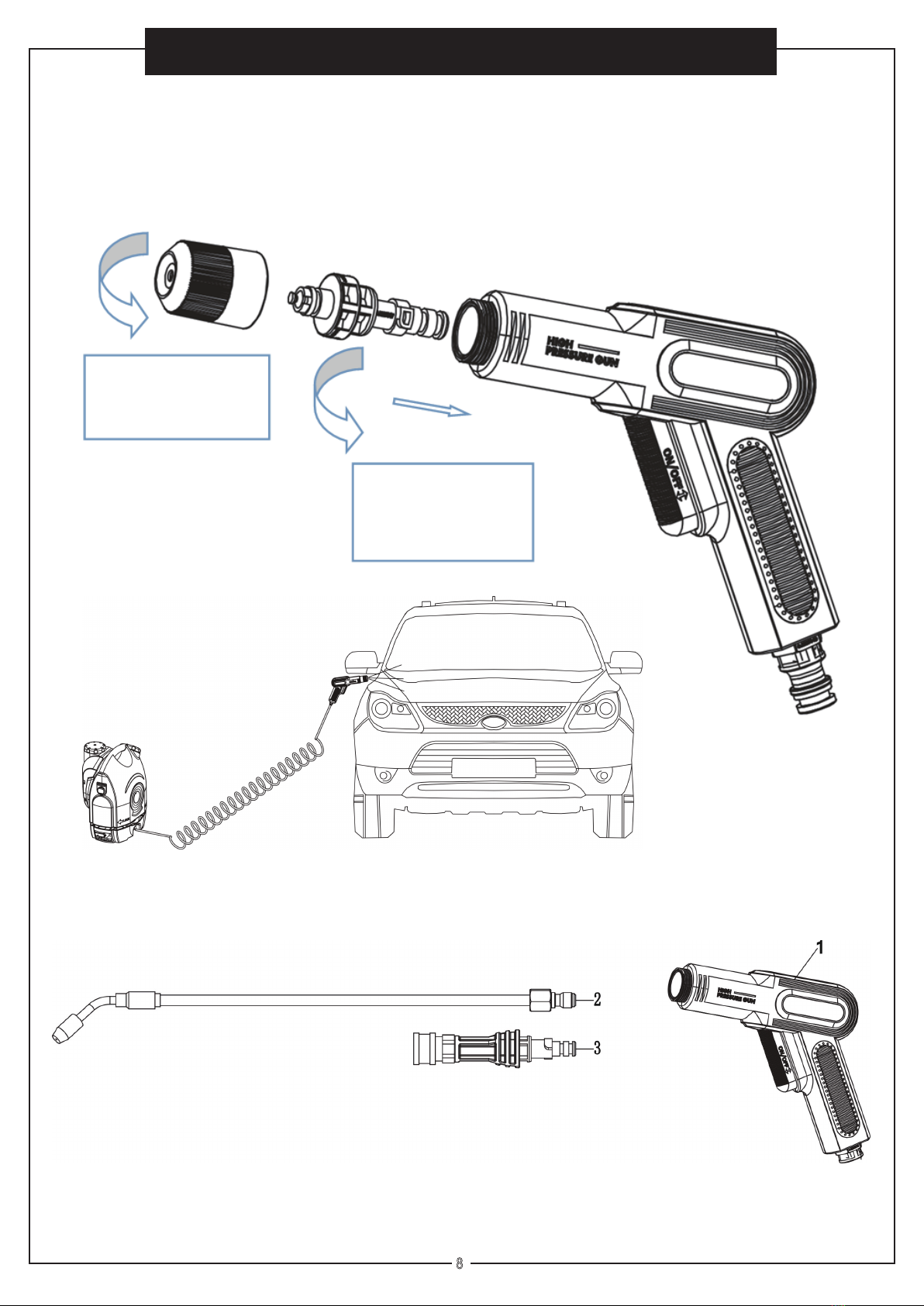

1. The water gun head can be replaced with a variety of standard gun headson the market, the
replacement method is shown below.
Twist off
Counterclockwise
After pressing
down, unscrew
counterclockwise
2. Air conditioning cleaning kit, can be universal to a variety of standard gun head on the market
(1). Spray gun
(2). Universal telescopic tube (air condition cleaning tube)
(3). Connection tube

9
Portable Pressure Washer

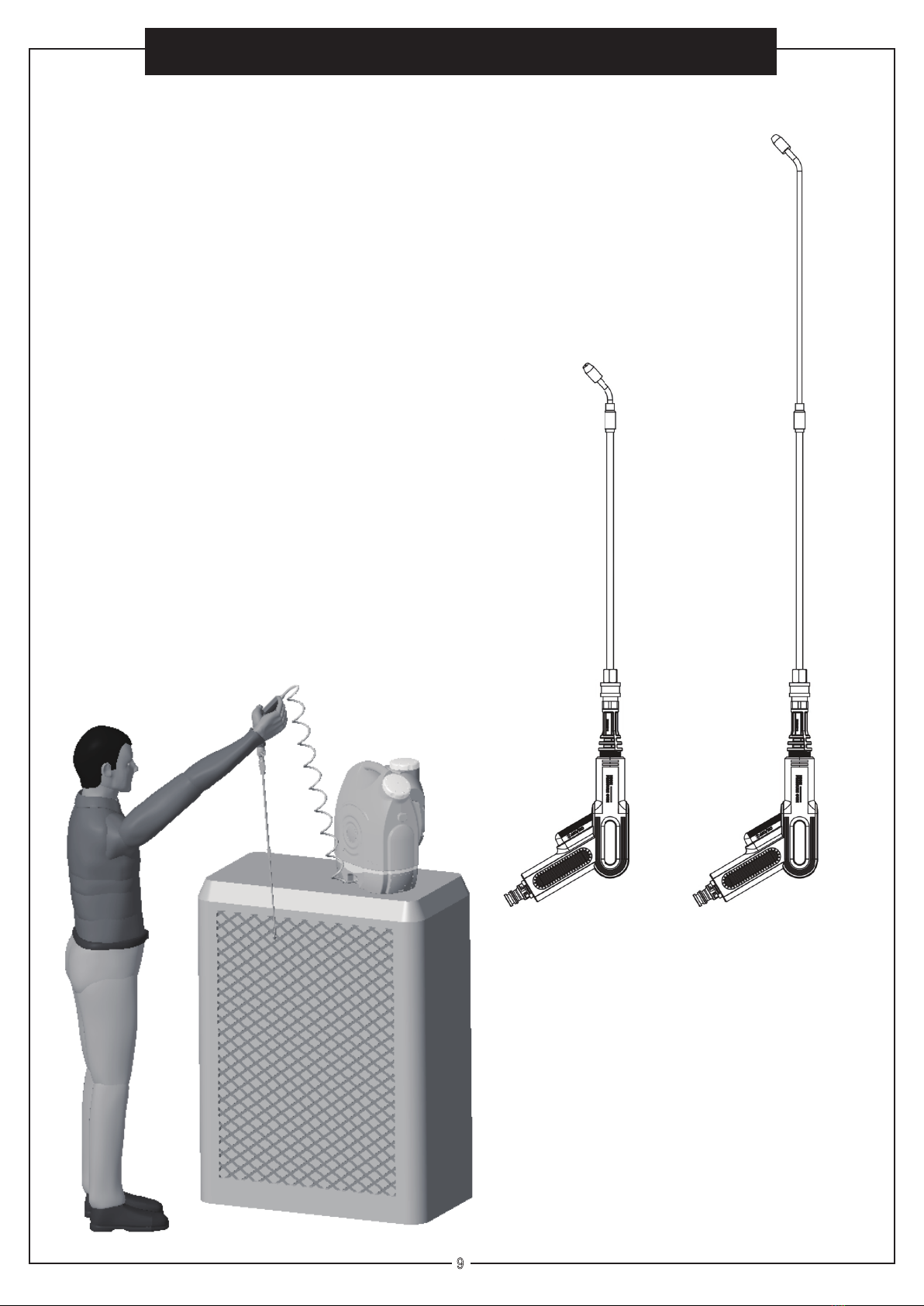

Air conditioning cleaning
Cleaning tube after extending

10
Portable Pressure Washer
HOW TO OPERATE
7
IMPORTANT: MUST READ ALL OPERATING INSTRUCTIONS PRIOR TO FIRST USE.
IMPORTANT: DISCONNECT THE POWER CABLE WHENEVER ENGINE IS TURNED OFF FOR EXTENDED
PERIODS OF TIME. THE POWER DOES NOT TURN OFF AFTER SWITCHING OFF THE ENGINE IN
SOME CARS. IF THE POWER PLUG IS LEFT CONNECTED, THE BATTERY MAY BECOME RUN
DOWN OR DAMAGED.

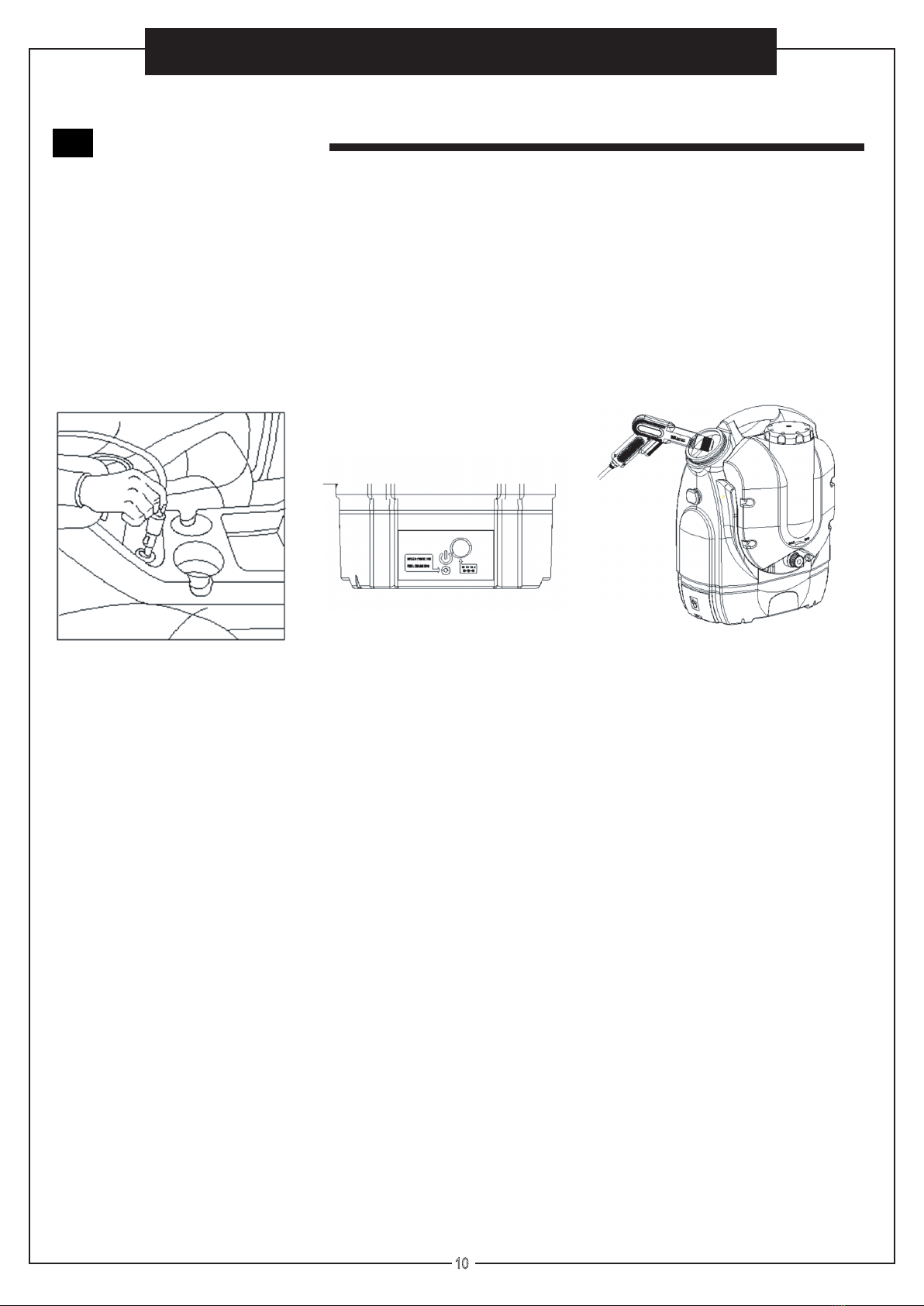

Plug into car cigarette lighter
or power port.
PURGE AIR FROM SYSTEM: To purge air, turn unit on (Diagram2). Point nozzle into water tank and squeeze
lever until steady stream of water exits hose (Diagram 3).
With normal use, air can get trapped in the hose. We recommend the following steps to purge the air out of
our system and get the maximum amount of pressure out of your new car washer.
Detergent adjustment: Detergent adjustment knob clockwise twist all for o detergent state, at this time the
machine only out of water; counterclockwise twist all for the ratio of detergent and water for 1 to 1 output.
The ratio of detergent to water can be adjusted according to the use of the situation.
(Diagram 2) (Diagram 3)
NOTE: Some vehicles require
that ignition be in
accessory position.
(Diagram 1)

11
Portable Pressure Washer
HOW TO OPERATE :
7
FOLLOW
Instruction For Air Conditioner clean
THESE STEPS AFTER EACH TIME YOU REFILL YOUR TANK:
1. Connect the power cord to the unit to check the battery is fully charged or not. Before using the unit, make
sure the battery is full charged.
2. Fill the water and chemical tanks. Before priming the pump, make sure chemical valve is fully closed and
remove any nozzle from the spray gun.
3. Connect the hose to the unit.
4. Turn on the spray gun firstly and then turn the power on and run for approximately 30 seconds or until
a steady stream of water is present.
NOTE: If you are having trouble priming the pump, make sure the water tank is fully filled, place the unit
on a table or support, hold the spray gun below the level of the pump and squeeze the trigger until
a steady flow of water appears.

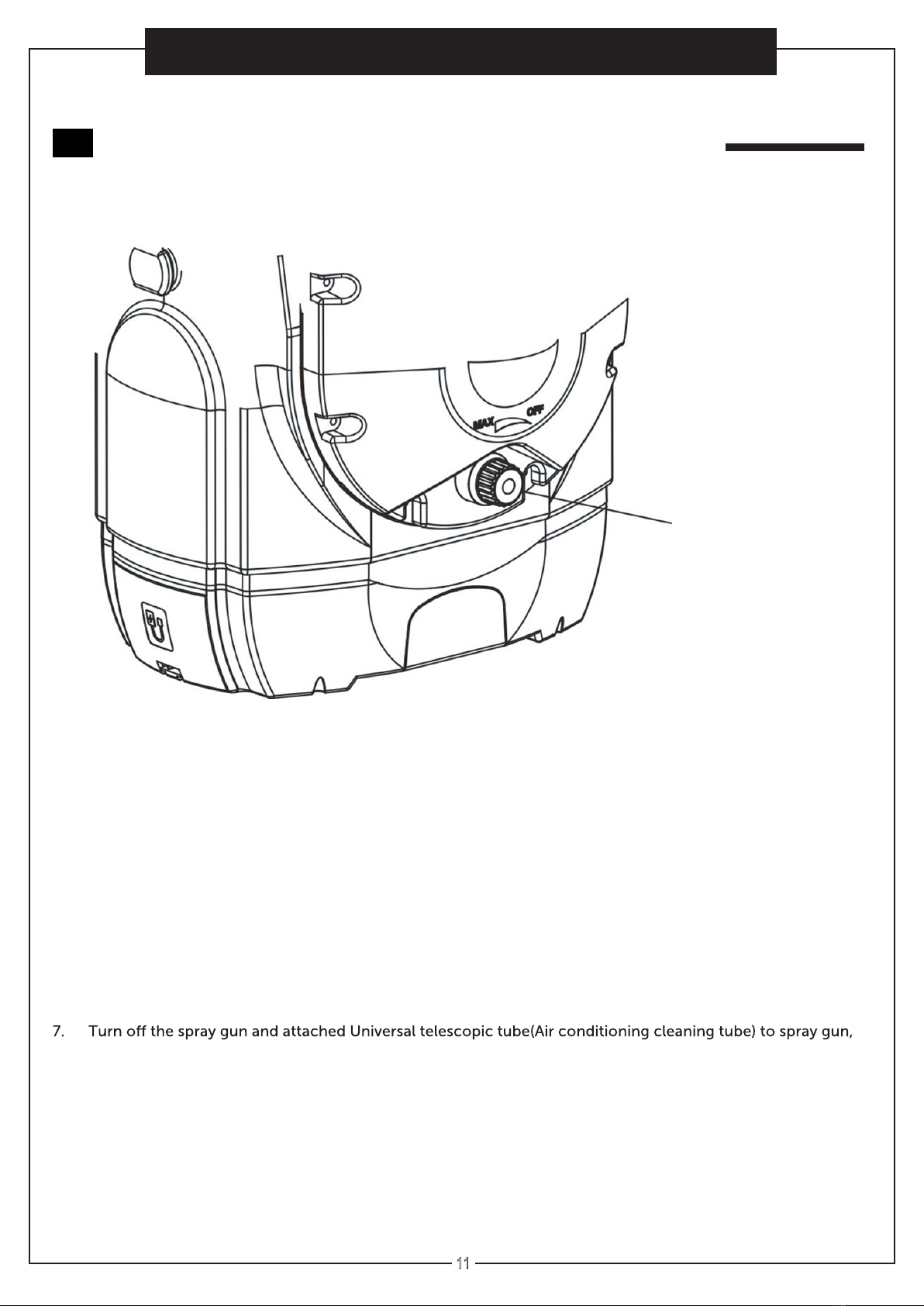

5. Fully open the Foam flow adjustment Knob(counter-clockwise)
6. Adjust foam flow adjustment knob to desire dilution ratio.
and then turn on the spray gun.
8. Apply water/chemical solution evenly to coils.
9. Fully close the foam flow adjustment knob(clockwise)
10. If possible, let foaming coil cleaner solution sit for 5 minutes to penetrate into coils.
11. Rinse coils with clean water.
12. Flip Power Switch to OFF. Always relieve the pressure by pointing the spray gun in a safe direction and
squeezing the spray gun trigger.
Foam flow adjustment knob

12
Portable Pressure Washer
HOW TO OPERATE:
7
FOLLOW

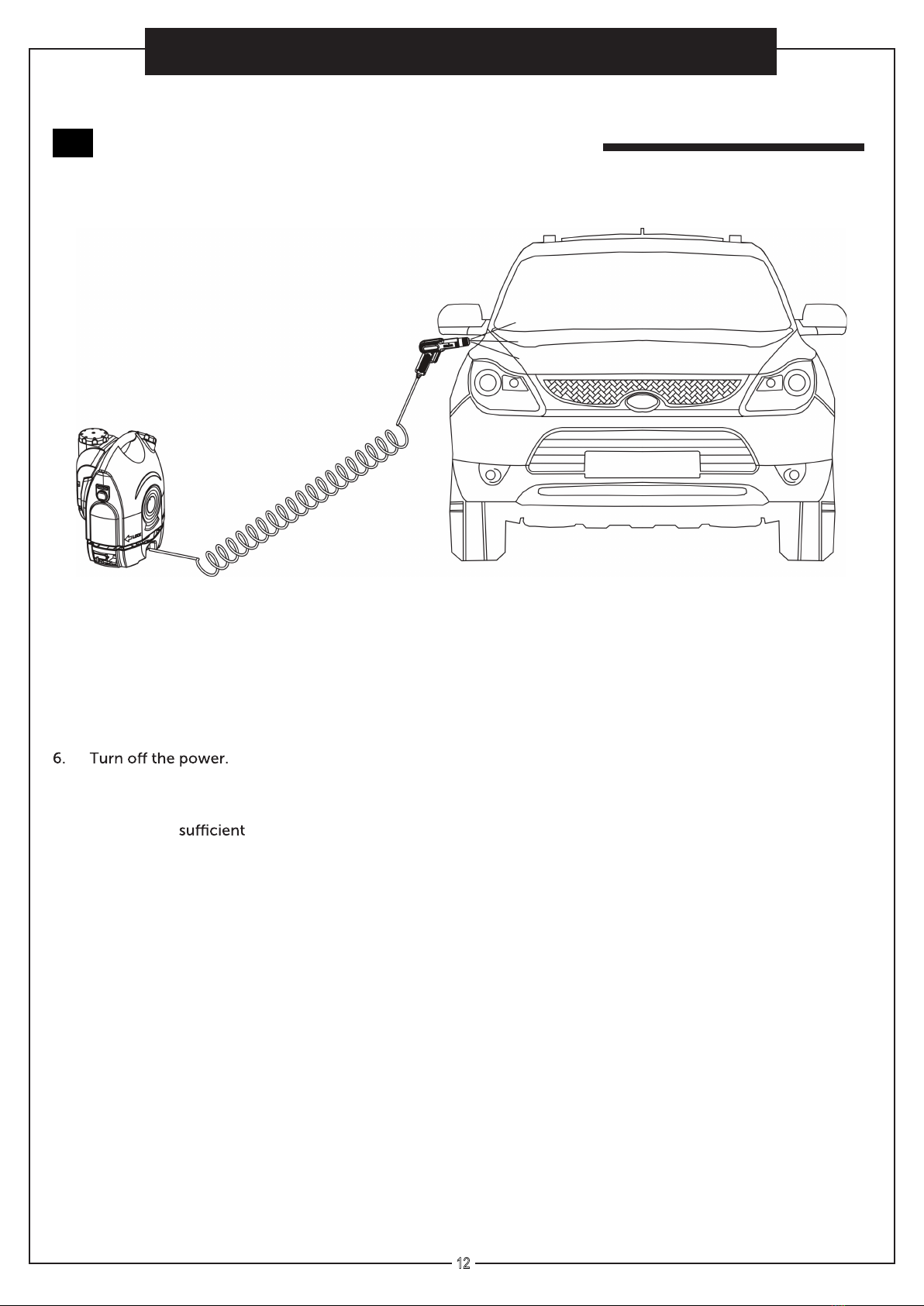

Instruction for Car washer
THESE STEPS AFTER EACH TIME YOU REFILL YOUR TANK:
1. Fill the tank with water.
2. Connect the hose to the unit.
3. Connect the power cord to the unit.
4. Direct the hose. Without the nozzle attached, into the tank.
5. Turn the power on and run for approximately 30 seconds or until a steady stream of water is present.
7. Connect the nozzle to the hose.
NOTE: Please start the engine while using the device if you are not sure whether the capacity of the car
battery is or not.

13
Portable Pressure Washer
GENERAL MAINTENANCE
8
9
Close your portable cleaner
1. Press the OFF switch.
2. Hold the trigger tightly to release the water pressure in the water pipe.
3. Take down the pipe.
4. Remove the spray gun.
5. Hold the trigger tightly to release the remaining water.
6. Turn the power.
7. Connect the nozzle to the hose.
When the trigger is released, the water pressure will make the motor stop automatically; when the trigger is
tightened, it will start the motor and form the water pressure later. To ensure correct operation, the trigger release
interval is at least 5 to 10 seconds, and the trigger is self-locking, open with press one time , and closed with press
again.
WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER SUPPLY BEFORE ANY MAINTENANCE
IS STARTED.
Water Filter: Inspect the water filter before filling with water. Clean water filter if dirty.
Nozzle Clogged: A clogged nozzle will cause the operating pressure to be too
high causing the portable washer to surge. If this happens turn unit and unplug pressure washer:
i. Unplug power supply, pull trigger on spray nozzle handle to relieve pressure, remove nozzle
from hose.
ii. Clean the spray nozzle with the nozzle cleaning tool.( See Diagrams 1&2 below).
iii. Flush wand assembly backwards with water or compressed air.
iv. If pressure is still too high, repeat steps 1-2.
Lubrication: No lubrication is required for this pump. Silicone grease may be added to hose connector o-rings if
connecting becomes
Add some silicone grease to the metal part of the spray nozzle after long time no use.

14
Portable Pressure Washer
GENERAL MAINTENANCE
TO CLEAN SPRAY NOZZLE
STEP 2:
9
WARNING: HIGH PRESSURE HOSE, DAMAGED HIGH PRESSURE HOSES CAN BURST AND CAN CAUSE A
POTENTIALLY HAZARDOUS SITUATION OR INJURY. HIGH PRESSURE HOSE S SHOULD NOT BE KINKED, CRUSHED,
TWISTED, OR DAMAGED IN ANY WAY. REPLACE THE HIGH PRESSURE HOSE SHOULD THIS OCCUR.
Water faucet
STEP 1:
Take out the outlet
nozzle as shown

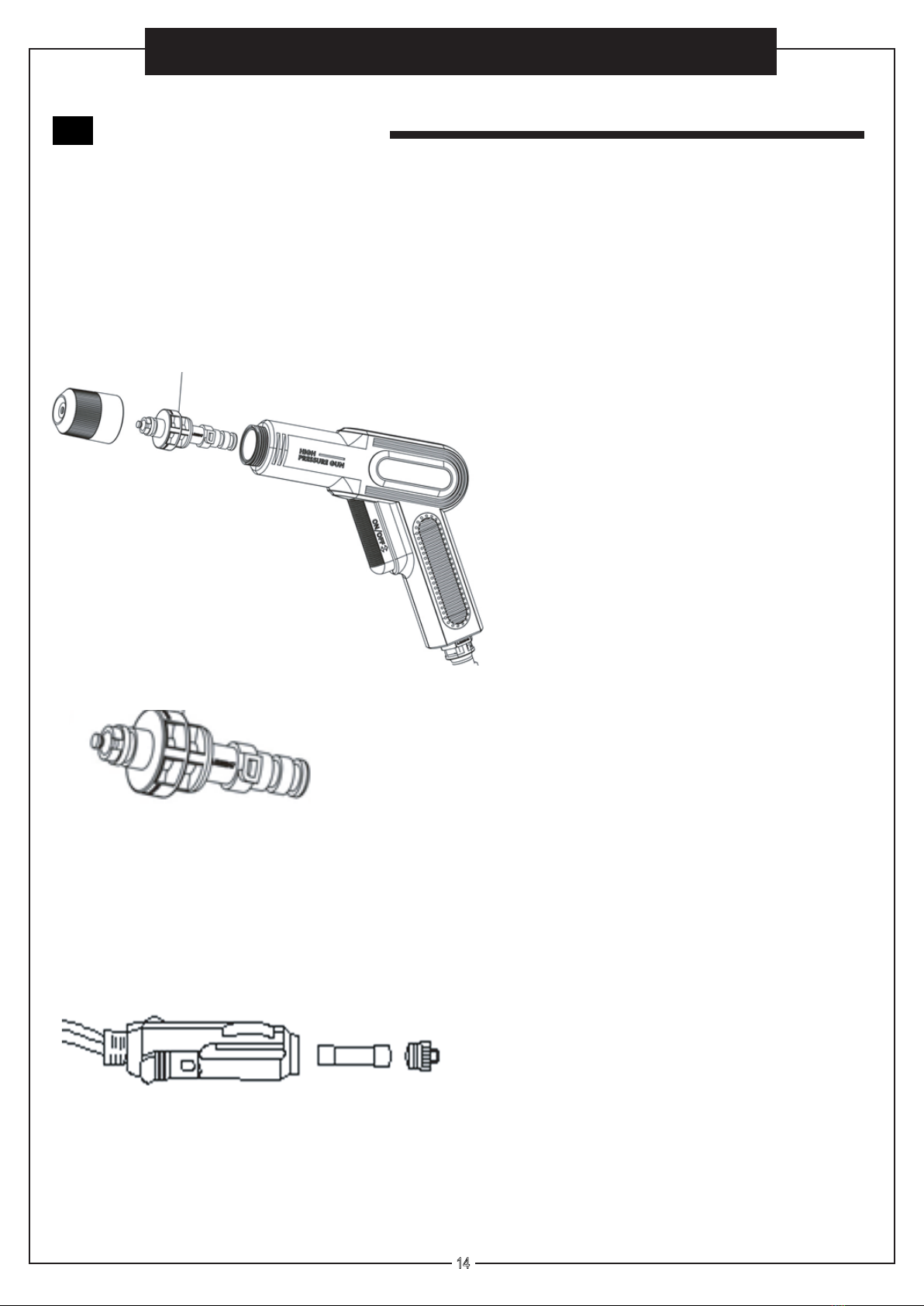

REPLACE FUSE
Unscrew end of power cord adapter to remove old
fuse. Discard and replace with new fuse.
Clean the nozzle

15
Portable Pressure Washer
STORING OF PORTABLE CAR WASHER
10
This portable car washer should be stored in such a way to protect it from freezing. Do not store this unit
outdoors or on an area where temperatures will fall below 32°F. This can cause extensive damage to this
unit and void the warranty. Before storing, consider the following steps. Follow shutting down instructions.
WARNING: USE ONLY RV ANTIFREEZE. ANY OTHER AHTI-FREEZE IS CORROSIVE AND CAN DAMAGE PUMP
AND VOID WARRANTY.
DRAIN WATER FROM SYSTEM
1. Turn portable cleaner, squeeze nozzle lever to release pressure. Remove nozzle and squeeze level and
drain water from nozzle. Empty water from tank. Turn unit on and run for approximately 30 seconds
without nozzle.
2. Detach high pressure hose. Elevate one end and allow water to drain from hose.
3. Place hose, nozzle and power cord in mesh storage compartments.
4. If unit must be stored under freezing condition, or will be stored for more the 30 days, a pump winterizer/
protector or a non-toxic RV anti-freeze can be used to prevent freezing and reduce mineral deposits
1. Pour approximately 1/2 gallon of RV anti-freeze into tank.
2. Connect high pressure hose, nozzle, and power cord.
3. Turn unit on, squeeze lever until a steady stream of RV anti-freeze in present.
4. Turn unit Squeeze nozzle lever to release pressure.
5. Remove and place hose, nozzle and power cord in mesh storage compartments
1. Drain RV anti-freeze. (follow steps 1 and 2 from Drain water from system)
2. Run 1 tank of fresh water through system before using and ensure all anti-freeze is purged from system.

16
Portable Pressure Washer
TROUBLE SHOOTING THE PORTABLE WASHER
11
Consumers are legally obligated and responsible for the proper disposal of electronic and
electrical devices by returning them to collecting sites designated for the recycling of electrical
and electronic equipment waste. For more information concerning disposal sites, please
contact your local authority or waste management company.
Electrical and electronic devices must never be disposed of in a regular household waste!
DISPOSAL
Item Name Portable Pressure Washer
Water pressure 100 PSI
Voltage 12V(DC)
Power 36W
Hose 16.4 ft.
Charger Cable 10 ft.
Capacity 4 gallons
Weight 8.8 lbs.
Dimension 14" x 11.4" x 17.9"
Problems Correction
The pump will not start. Check the battery pack is firmly attached to the battery
compartment.
Check the battery pack is out of power or in low battery.
The pump is running, but there is no water. Sometimes there is air inside the hose & pump, it needs to run
the device for a few seconds to bleed air out of hose & pump. Or
check the followings,
•Check the nozzle is not clogged.
•Check the hose is firmly attached to the main device.
•Check the hose is firmly attached to the spraygun.
•Check the hose is not bent or broken
The water pressure is weak. •Check the o-ring is missing on each connector.
•Check the hose is firmly attached to main device and spraygun.
•Check the battery level.
•Pump is faulty, contact authorized agent
