Global Lift Commercial Series User manual

Page | 1
GLOBAL LIFT CORP
Owner’s Manual
Commercial Series C-375
Commercial Series C-450
684 N Port Crescent Rd
Suite C
Bad Axe, MI 48413
Toll Free: 866-712-0606
Fax: [phone]
www.globalliftcorp.com

Page | 2
COMMERCIAL SERIES POOL LIFTS
C-375
C-450
TABLE OF CONTENTS
INTRODUCTION PAGE –3
ADA GUIDELINES FOR PLACEMENT PAGE –4
24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE –5
COMMERCIAL SERIES OPERATING INSTRUCTIONS PAGE –6
UNIT MAINTENANCE AND CARE PAGE –7
TROUBLESHOOTING PAGE –8
WARRANTY INFORMATION PAGE –9/10
WARRANTY REGISTRATION PAGE - 11
TRI POINT ANCHOR SYSTEM
TRI POINT PAVER INSTRUCTION ANCHOR METHOD
TRI POINT RETRO FIT ANCHOR SYSTEM
TRI POINT DROP IN ANCHOR SYSTEM
PORTABLE KIT INSTALLATION
SEAT INSTALLATION

Page | 3
INTRODUCTION
Your Number One Choice for
Commercial Pool Access Equipment
Global Lift Corp. is located in Mid-Michigan, Global Lift Corp. prides itself in manufacturing top of line
quality aquatic access equipment. Global Lift Corp's key staff has a century of combined industry
experience and we take pride in each and every product that we build. Our Company is ISO Certified
and our products are manufactured in the United States. Global Lift Corp. uses only the finest
materials and processes to provide our customers with the highest quality products while still
maintaining a price competitive edge.

Page | 4

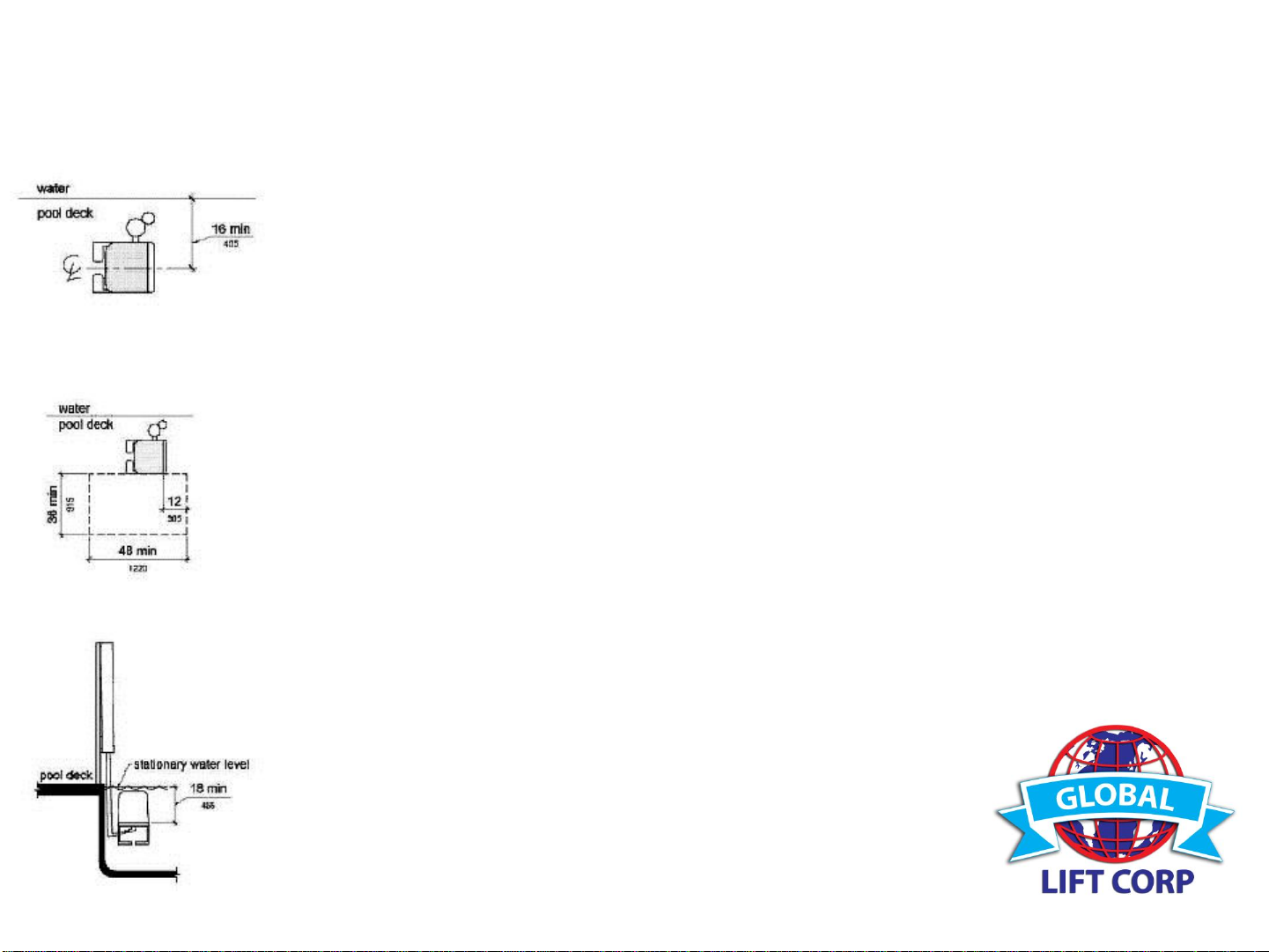

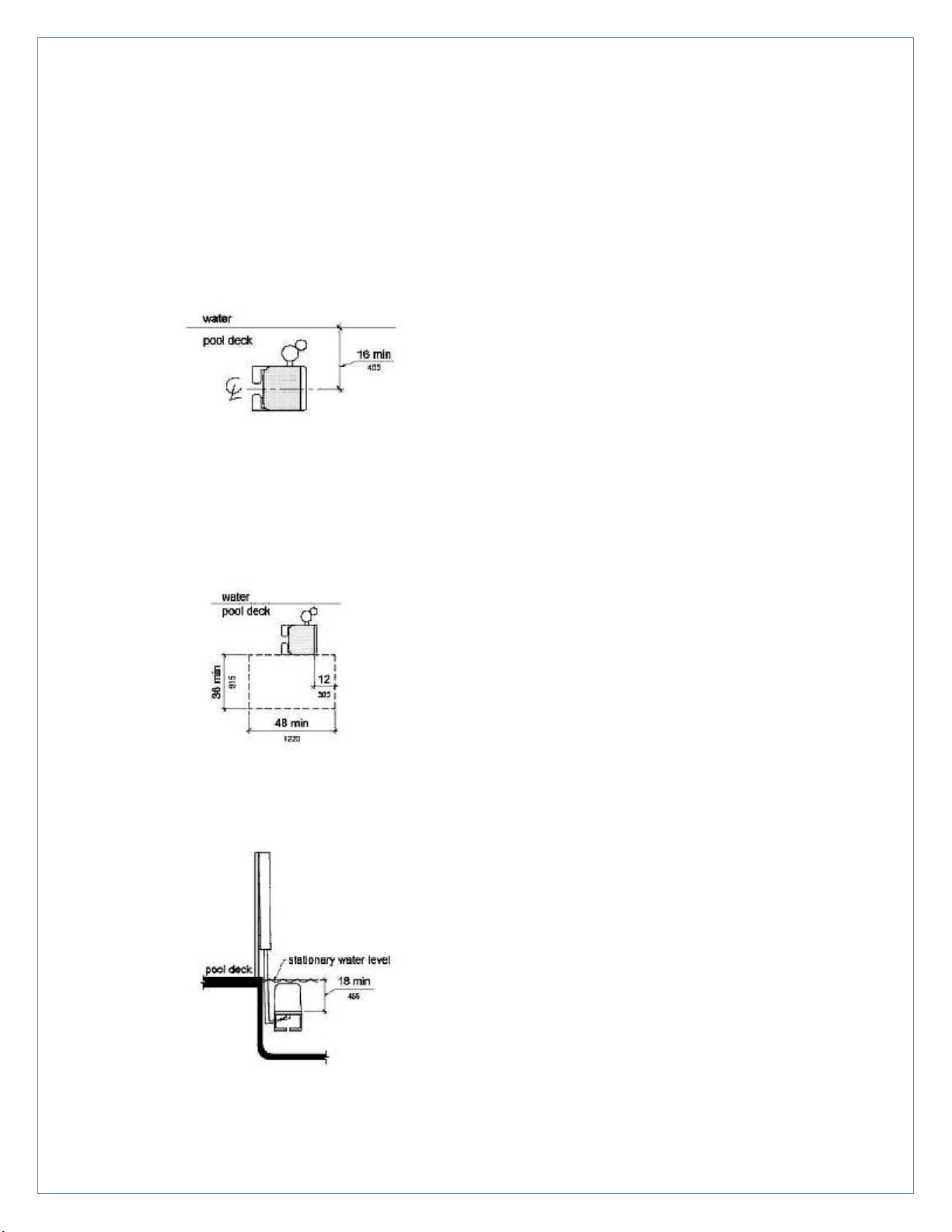

ADA GUIDELINES FOR POOL LIFT PLACEMENT
1. Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches
(1220 mm).
2. Seat Location. In the raised position, the centerline of the seat shall be located over the deck
and 16 inches (405 mm) minimum from the edge of the pool. The deck surface between the
centerline of the seat and the pool edge shall have a slope not steeper than 1:48.
3. Clear Deck Space. On the side of the seat opposite the water, a clear deck space shall be
provided parallel with the seat. The space shall be 36 inches (915 mm) wide minimum and
shall extend forward 48 inches (1220 mm) minimum from a line located 12 inches (305 mm)
behind the rear edge of the seat. The clear deck space shall have a slope not steeper than
1:48.
4. Submerged Depth. The lift shall be designed so that the seat will submerge to a water depth
of 18 inches (455 mm) minimum below the stationary water level. To make sure the lift has
enough clearance the lift should be installed at a location with 48” of Water depth

Page | 5
24 VOLT BATTERY SYSTEMS WITH CONTROLS
All of Global Lift Corp’s Commercial Series Lifts are equipped with a sealed
24 volt battery that is rechargeable. Along with a charging unit, hand held
controller and control compartment. The 24 volt battery mounts right
above the control compartment and the battery simply snaps in. The
battery should be charged for 5-8 hours prior to the 1st use.
The unit is operated by the 2 button easy to use controls. The arrow
pointing down will lower the lift when depressed, the arrow that points up
will raise the unit when depressed. If you hear the low battery indicator
tone “Do Not Use the Lift” remove the battery from the unit and recharge
the battery.
RECHARGING THE BATTERY:
Remove battery from the unit by unclipping from the control compartment.
Place the battery in the charging unit. When the battery is charging the
light will be illuminated, once fully charged the charge light turn green and
then the battery is ready for use in your Commercial series pool lift.

Page | 6
COMMERCIAL SERIES POOL LIFT OPERATING
INSTRUCTIONS
Prior to using the Commercial Series Pool Lift perform a test run of the lift empty. Once
that is completed and the lift is back to original position, make sure that the arm lifts
are in the up position and the seatbelt is unbuckled, once acknowledged you are ready!
Once you are in the seat, buckle the seatbelt (make sure it is snug) and lower the arm
rails. Before you attempt to operate the lift, make sure the pathway is clear from any
obstacles.
Once you have the 2 button easy controls in your hand, press the arrow that specifies
down, keep in mind you don’t have to go to the bottom of the cycle, you can stop the
lift whenever you deem comfortable to exit the lift. However when exiting the pool
while on the lift, you should complete the cycle back to the top to have a completely
safe exit from the pool.
Once submerged into the pool, unbuckle the seatbelt and raise the armrest and slide off
of the seat. Once you are done with your pool activity, make sure the seat is lowered
sufficiently to allow you too easily slide back into the chair. Once you are seated, buckle
the seatbelt and make sure that it is snug, lower the armrest.
Next, to raise the lift chair out of the pool, make sure you press the button/arrow that
represents up on the control. Apply continuous pressure until the lift comes to a
complete stop at the end of the complete up cycle on the deck. You now can unbuckle
the seatbelt and raise the arm rest and exit the unit.

Page | 7
Maintenance
Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very
important. The following is a routine maintenance you should follow.
Daily
oCheck and charge battery if needed
oTest for normal operations
oInspect your lift
oClean and dry the lift and seat with clean water
oCover lift after use
Weekly
oOverview Daily Checklist
oWipe away any surface rust with household spray cleaner
oClean tough stains with Scotchbrite pad and wipe clean
Monthly
oInspects all connections, frame, seat etc.,
oClean battery connections
oClean metallic surfaces with a wax cleaner
The maintenance provision of the ADA states that “a public accommodation shall maintain in operable
working condition those features of facilities and equipment that are required to be readily accessible
to and usable by persons with disabilities"

Page | 8
TROUBLESHOOTING GUIDE
Before any troubleshooting commences make sure the battery has a full charge!
(1) Does the lift raise or lower
NO
(a) Check the battery connection and reconnect
(b) Check hand controls, make sure they are connected properly
(c) Check for any lose wires on the control compartment
(d) Check the connection cable for damage
(e) Check the battery with a multi-meter to determine if the battery has at
least 24 volts of power.

Page | 9
Global Lift Corp Warranty Information
The Commercial,Proformance, and Rotational series lifts have a Lifetime Limited Warranty on
the metal components of the frame, not including the powder coating process. The Superior series
lift has a 5 year structural limited warranty. Global Lift Corp warrants to the original retail end user
only products manufactured by Global Lift Corp, when properly installed in accordance to the
assembly and installation instructions, and when the equipment is properly used and maintained, be
free from material defects and workmanship as stated below:
Warranty starts from date of original purchase
Metal structure (not including powder coat) –Lifetime Limited
(Commercial/Proformance/Rotational Series)
Metal structure (not including powder coat) 5 year limited structural warranty (Superior
Series)
Actuator and controls –2 years from date of purchase then 2 years prorated
Actuator and controls –3 years 50% coverage (Customer is responsible for 50% of
replacement cost
Actuator and controls –4 years 30% coverage (Customer is responsible for 70% of
replacement cost
Battery –1 year from date of purchase
This warranty does not cover damages to ANY of our lifts due to accident, abuse, negligence,
misuse, damage by improper use of chemicals, fading, ice damage, fire, rust beyond structural
damage( does not cover cosmetic rust), exceeding the weight capacity for model purchased, failure
to install or to assemble the product in accordance with the installation and assembly instructions,
normal wear and tear from day to day use, not maintained properly, if unit is altered or repaired
without written approval of Global Lift Corp –All Warranties are Void.

Page | 10
To commence the warranty claim process of a Global Lift Corp product, in writing provide place of
purchase along with the product name and description, date of installation and a detailed description
of the defect, along with a photo of the entire product and claimed defect. Prior to a 30 day period
after receiving the written warranty claim by Global Lift Corp and barring any unforeseen delays the
claimant will be notified of Global Lift Corp’s decision regarding the claim.
If the request made by Global Lift Corp for the product to be returned to its factory or distributor of
choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”. Global Lift Corp at
its option will replace or repair the defective item and deliver the repaired product or replacement to
the buyer of the product, freight prepaid by the purchaser to the destination on file in regards to the
original order. Parts and Products returned for replacement to Global Lift Corp shall remain the
property of Global Lift Corp under this limited warranty.
A new warranty period shall not be established for any repaired or replaced products. Replaced or
repaired products will remain under warranty only for the remainder of the original warranty period
for the original product purchased. No person or organization is authorized to make any other
specific or implied warranties on behalf of Global Lift Corp.
THE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
WHICH ARE HEREBY DISCLAIMED AND EXCLUDED, INCLUDING WITHOUT LIMITATION ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE.
IN NO EVENT SHALL GLOBAL LIFT CORP BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENCIAL, INDIRECT, SPECIAL EXEMPLARY OR PUNITIVE DAMAGES OR LOST
PROFITS FROM ANY BREACH OF THIS LIMITED WARRANTY.THE SOLE AND EXCLUSIVE
REMEDY OF THIS WARRANTY IN REGARDS TO GLOBAL LIFT CORP’S PRODUCT SHALL BE
LIMITED TO REPLACEMENT OR REPAIR AT A GLOBAL LIFT CORP’S FACILITY OR A DULY
APPOINTED DISTRIBUTOR’S LOCATION OR AT A GLOBAL LIFT CORP’S DESIGNATED
LOCATION. IN NO EVENT SHALL GLOBAL LIFT CORP LIABILITY EXCEED THE ENTIRE
AMOUNT PAID TO GLOBAL LIFT CORP BY THE ORIGINAL PURCHASER IN REGARDS TO THE
DEFECTIVE OR FAILED PRODUCT.
NO REPRESENTATIVE OF GLOBAL LIFT CORP SUCH AS AGENTS, DISTRIBUTORS AND
DEALERS HAS THE AUTHORITY TO ALTER IN ANY FASHION THE TERMS OF THIS
WARRANTY AND GLOBAL LIFT CORP IS “NOT” RESPONSIBLE FOR REPRESENTATION,
UNDERTAKING OR WARRANTY MADE BY ANY OTHER PERSON BEYOND THE WARRANTIES
EXPRESSED SET FORTH IN THIS WARRANTY.

Page | 11
Warranty Procedure
Warranty Claims shall be submitted to Global Lift Corporation by the distributor which
originated the sale with Global Lift Corporation or directly to Global Lift Corporation.
All RGA (Return Goods Authorization) documents shall be requested by and issued
only to the distributor which originated the sale or directly to Global Lift Corporation.
Global Lift Corporation shall determine warranty coverage validation and replacement
parts or repair, which were directed to the distributor which originated the sale or that
are initiated directly with Global Lift Corporation.
Warranty claims received from end users by Global Lift Corporation shall be re-directed
to the distributor which originated the sale with Global Lift Corporation or processed
directly by Global Lift Corporation.

Page | 12
GLOBAL LIFT CORP
WARRANTY REGISTRATION
PURCHASED BY:
Company
Name:__________________________________Contact:____________________
City: ______________________________ State: ___________ Zip: ___________
Phone: (_____) ______________________________
DEALER:
Name: ____________________________Phone Number___________________
City: __________________________ State: _______________ Zip: ___________
Phone: (_____) ______________________________
Model: __________________________ Serial Number: ____________________
Color: _______________ Purchase Price: $ _______ Date Purchased: ___________
I have read and I accept the warranty terms.
Signature: ______________________________________ Date: ______________
This card must be completed and returned to Global Lift Corp within 30 days of purchase date to assure
coverage.
Please mail to: Global Lift Corp, 684 N Port Crescent Suite C, Bad Axe, MI 48413

COMMERCIAL SERIES LIFTS
TABLE OF CONTENTS
1. TRI-Point Anchor System
2. TRI-Point Paver Instruction Anchor Method
3. TRI-Point Retro-Fit Anchor System
4. TRI-Point Drop In Anchor System
5. Commercial Series Portable Kit
6. Seat Installation
February 2012

COMMERCIAL SERIES LIFTS
C-375/C-450

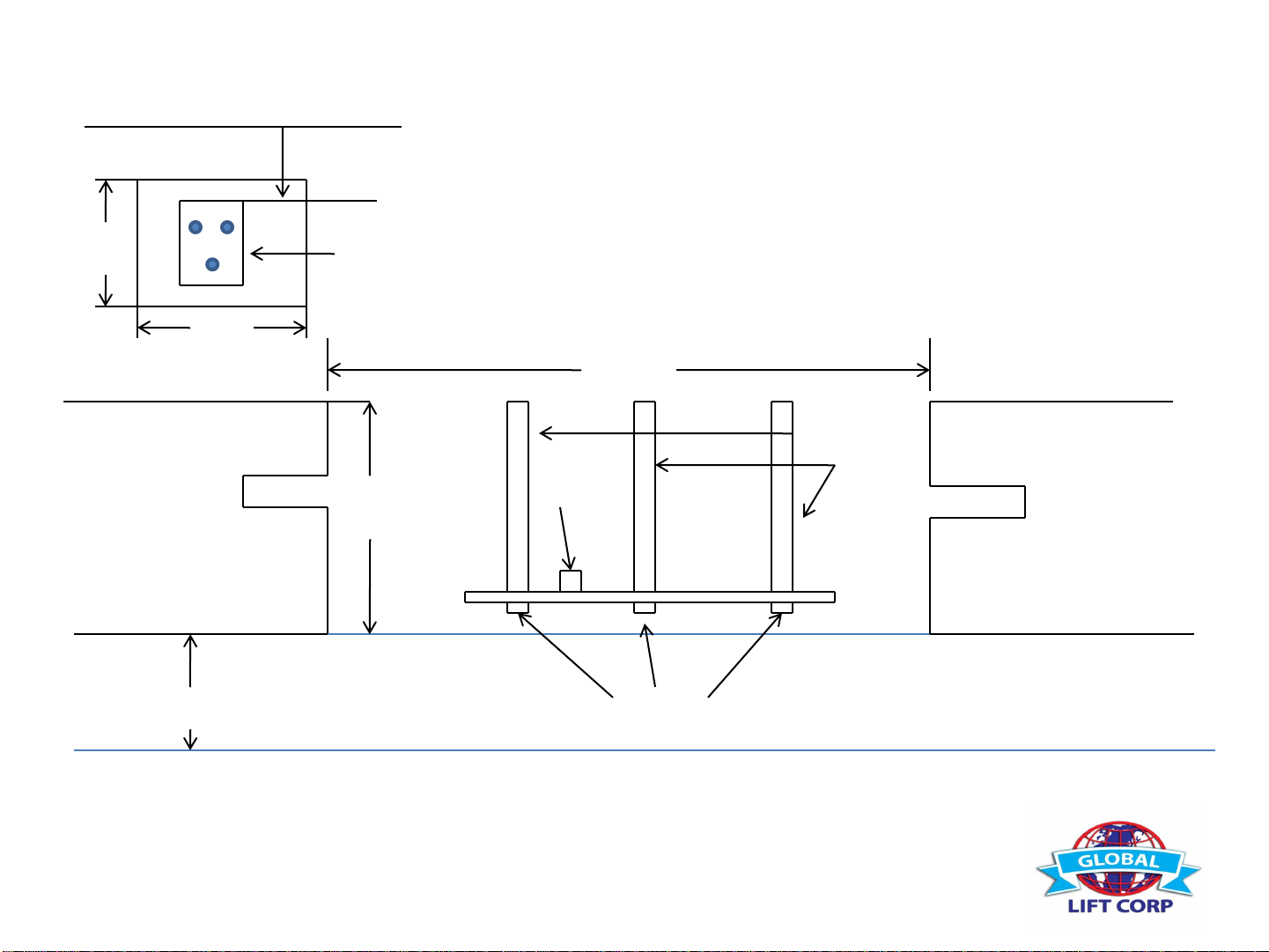

TRI-POINT ANCHORING SYSTEM
New Construction or Saw Cut
Patent Pending
INSTALLATION MANUAL
February 2012

COMMERCIAL SERIES
C-375/C-450
TRI-POINTANCHORING SYSTEM
INSTALLATION
Patent Pending
PARTS LIST
1 -Anchor Plate with bonding Lug & bolt
3 -5/8” x 1” Stainless Steel Bolts
3 -6” Anchoring Rods
3 –Plastic Caps
February 2012

ANCHORING PLATE, ANCHORS & BONDING LUG
5/8” x 1” Bolts
February 2012

ADA GUIDELINES FOR POOL LIFT PLACEMENT
•Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm).
Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm)
minimum from the edge of the pool. The deck surface between the centerline of the seat and the pool edge shall have a
slope not steeper than 1:48.
•Clear Deck Space. On the side of the seat opposite the water, a clear deck space shall be provided parallel with the seat.
The space shall be 36 inches (915 mm) wide minimum and shall extend forward 48 inches (1220 mm) minimum from a line located
12 inches (305 mm) behind the rear edge of the seat. The clear deck space shall have a slope not steeper than 1:48.
•Submerged Depth. The lift shall be designed so that the seat will submerge to a water depth of 18 inches (455 mm) minimum
below the stationary water level.
February 2012

Optimal placement of the anchor system is 13” from the front of the anchor plate to water’s edge.
Attach copper wire to the bonding lug and then to your bonding grid
Cold Pin’s should be ½” rebar 6” to 8” long
NOTE: Make sure your anchor plate is level and square with your pool’s edge.
COMPACT SAND
6”
3’
Concrete Concrete
Cold Pin
Cold Pin
5/8 Bolts
Bonding Lug
Water Pool Wall
6” Threaded
Anchor’s
3’
3’
Anchor Plate
Overview
Section Detail
COMMERCIAL SERIES C-375/C-450 –TRI POINT ANCHORING SYSTEM
Front of Anchor Plate can be placed 11” to 16” from water’s edge depending on you application
February 2012

Step 1: Determine the location for installation (Make sure all ADA requirements are
met).
***NOTE: The installation of Global Lift Corp’s anchor system’s are a guideline of
minimum requirements. In some states or municipalities they may require additional
steps due to their local codes or ordinances.***
Step 2: Make sure that all the parts are present (Refer to the parts list)
1 -Anchor Plate with Bonding Lug & bolt
3 -5/8” x 1” Stainless Steel Bolts
3 -6” Anchors
Step 3: At the determined location for installation, chalk out a 3’ X 3’ area prior to
cutting out the concrete. (Refer to overview, the front of the Anchor Plate must be
11” to 16” from the water’s edge and 6” deep). New Construction, the concrete
must be 6” deep with a ½” reinforcing rod, minimum of an 18” grid.
NOTE: Make sure all local codes and ordinances are met.
Step 4: Once the 3’ X 3’ area is cut out, make sure you drill in the inner wall of all 4
sides of the area (refer to the section detail) for the purpose of cold pinning the new
concrete to the old concrete. Use 1/2” rebar, 6” to 8” in length.
Step 5: Attach the 3 –6” threaded anchor’s with the 5/8” x 1” bolts (included) to the
Anchor Plate and tighten down.
February 2012

Step 6: Place the Anchor Plate in the area, make sure that the front of the Anchor
Plate is 11” to 16” from the water’s edge and that the decal’s arrow on the anchor
plate is pointing to the water’s edge (refer to overview). A key element is to make
sure that the Anchor Plate is level and square with the pool so that your Commercial
Series Lift sits properly on the deck.
Step 7: Bonding the unit –The bonding lug is included with the Anchor plate
(furthest point from the pool wall on the Anchor Plate) locate the bonding lug,
connect the bonding lug to the bonding grid.
NOTE: Make sure all local codes and ordinances are met.
Step 8: Pour in your concrete, (make sure you cover the holes in the 3 threaded
anchor’s so you don’t get concrete in the threads) minimum of 4,000 psi with
reinforcing rod. Also make sure that the tops of the threaded anchors are flush with
the deck. Before you install your lift make sure you let the concrete set up for 48
hours.
Step 9: After the concrete has set for 48 hours, now it’s time to install your lift. Place
your Commercial Series Lift over the anchor holes, screw in the Anchor bolts that are
included and tighten down securely. Once you have completed the installation, please
refer to User’s Manual for a safe operation.
February 2012
