GLOBAL PLASMA SOLUTIONS GPS-RN User manual

Global Plasma Solutions
10 Mall Terrace, Bldg C Savannah, GA 31406 [phone] ph [phone] fax
www.globalplasmasolutions.com [e-mail]
GPS-RN IOM MANUAL

OA
RA

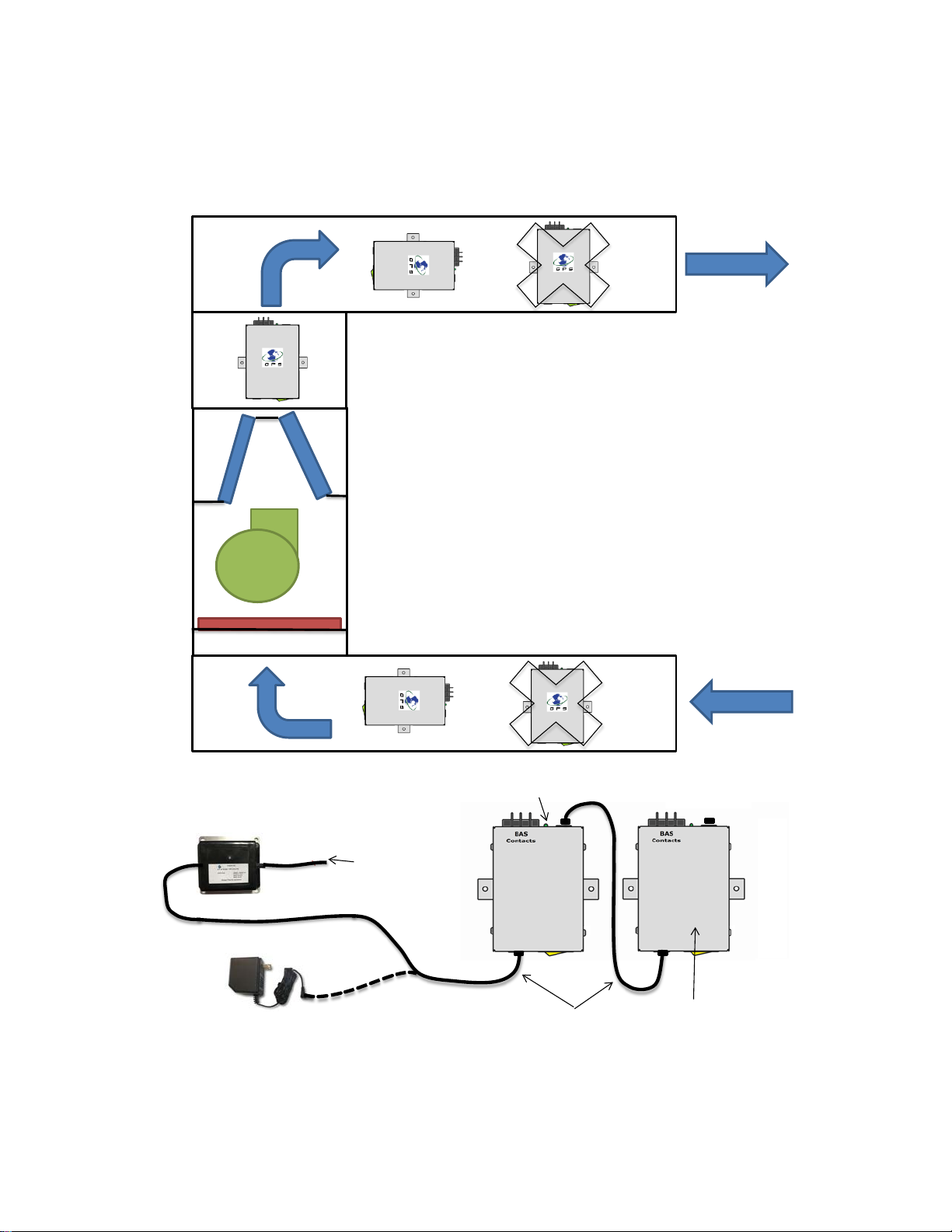

ROOFTOP INSTALLATION DIRECTIONS
1. Provide a bracket to hold the GPS-RN unit such that air flows across the needles simultaneously. See the
example of two units below.
2. The preferred mounting location is "B". The second preferred location is "C" and the third
preferred location is "A". Please note mounting in "A" the filter will stop the ions.
3' DC cable with 2.5mm plugs
(Provided by GPS)
PLAN OR ELEVATION VIEW
UNIT WIRING INSTRUCTIONS
1. Mount the GPS-RN unit to a bracket, provided by others.
2. The GPS-UP12-RN power supply can accecpt 24VAC to 240VAC input.
3. Secure the power supply in the RTU/AHU control panel or junction box, provided by others.
4. Plenum rated DC power cables will be provided by Global Plasma Solutions with each system.
5. The power supply will be provided with a 3' long cable. The wires colors are:
Green/Yellow = Ground BROWN = AC INPUT BLUE = AC INPUT
6. Connect the 2.5mm DC power plug into the first GPS-RN unit as shown.
7. If the system contains more than one GPS-RN unit, 3' DC power cables will be provided with 2.5mm
plugs on both ends. Simply plug the cable into the jacks as shown in the above samples.
8. All DC power jacks on the GPS-RN units are wired in parallel internally so there are no in/out requirements.
UNIT
DIMENSIONS
IN INCHES
Global Plasma Solutions
10 Mall Terrace, Bldg C Savannah, GA 31406 [phone] ph [phone] fax
www.globalplasmasolutions.com [e-mail]
GPS-RN RTU/AHU INSTALLATION AND WIRING DIRECTIONS
A
B
C
24-240VAC
Air Flow
2 Unit Example
Bracket "By Others"
GPS-RN units may be mounted
on their side or with the
needles facing up or down;
whichever is more convenient
for the mounting location
selected.

3' DC cable with 2.5mm plugs
(Provided by GPS)
PLAN OR ELEVATION VIEW
IMPORTANT NOTES:
The GPS-UP12-RN power supply can power up to two GPS-RN units.
GPS-UP12-RN Power Supply Specifications:
Voltage: 24VAC to 240VAC
Power: 12VA
Output: 12VDC at 1A
Power Input Connection: 3' Plenum Rated Cable with ground and AC input
Power Output Connection: 2.5mm DC Power Jack = center Pin +12V
Size: 3.5"L x 3.5"W x 1.25"H
Indication: Integral Green LED Power Indicator
Wire Colors: Green/Yellow = Ground, Blue = AC Input, Brown=AC Input
Global Plasma Solutions
10 Mall Terrace, Bldg C Savannah, GA 31406 [phone] ph (877)-270-5353 fax
www.globalplasmasolutions.com [e-mail]
GPS-RN RTU/AHU INSTALLATION AND WIRING DIRECTIONS
Air Flow
4 Unit Example
Bracket "By Others"
GPS-RN units may be mounted
on their side or with the
needles facing up or down;
whichever is more convenient
for the mounting location
selected.
24VAC to 240VAC Input

2. Drill (2) TWO 1/2" holes 1.6" apart, center to center.
duct using the two stainless steel tabs and sheet metal screws.
5. Mount the power supply near the GPS-RN.
6. Insert the 2.5mm DC plug into one of the power jacks on the GPS-RN
unit. If two GPS-RN units are required per duct, a double end cable
with 2.5mm plugs on both ends will be provided by GPS.
See the power drawing below as an example.
prevent the ions from traveling further down the duct.
It is recommended to mount the product after the filter.
Ion Output "On" Indicator Lamp
Model: GPS-UP12-RN
24VAC to 240VAC
Input
Wire Nuts Required
90VAC to
266VAC Input
(Wall Plug) 3' DC power cord with (2) 2.5mm plugs Up to 2 total per
GPS-UPW12 Power cord provided by GPS power supply*
NOTE: Only one power supply will be provided per AHU/duct. Options are shown for illustration purposes.
* Power supplies shown can only power up to two GPS-RN units.
Global Plasma Solutions
10 Mall Terrace, Bldg C Savannah, GA 31406 [phone] ph (877)-270-5353 fax
www.globalplasmasolutions.com [e-mail]
GPS-RN DUCT INSTALLATION AND WIRING DIRECTIONS
Note: Mounting the GPS-RN unit before the filter will
1. Locate position on duct such that air flows across the ion needles
simultaneously. Refer to examples shown for proper unit orientation.
3. Push wire through extensions and hand tighten to threaded nipple.
4. Insert ion needles through holes and secure the GPS-RN unit to the

2. Each GPS-RN can be wired for individual BAS control or wired in series
as shown in the above example so if one unit fails, an alarm is initiated.
NOTE: Dry contact rated for low voltage AC and DC only! Maximum of 1 AMP.
Illuminated ON/OFF switch
Global Plasma Solutions
10 Mall Terrace, Bldg C Savannah, GA 31406 [phone] ph (877)-270-5353 fax
www.globalplasmasolutions.com [e-mail]
GPS-RN BAS INTERFACE
Local Ion Output "On" Indication Lamp
1. When the ion output lamp is "ON", the dry contact is closed allowing
the building automation system (BAS) to know that there are no alarms.
TO BAS
Wiring By Others
TO BAS
Wiring By Others

1. Provide 12VDC power to either power jack. The center pin requires the 12V+ and the outer pin requires
the negative connection.
2. Up to two units may be powered in series using 2.5mm DC power cables provided by GPS.
1. Confirm 12VDC is being supplied to the power jack. The center pin requires the 12V+ and the outer pin
requires the negative connection.
2. Confirm only up to two units are being powered in series using 2.5mm DC power cables provided by GPS.
6. Please note that the ion output LED and BAS dry contacts are linked directly to the output side of the ion
circuit. If the ion output LED is on and/or the BAS dry contact is closed, there will be voltage output to the ion
needles.
7. If all components are functioning properly, but the ion count at the supply diffuser is less than
1,000 ions/cm, use a cotton ball with rubbing alcohol and wipe off the ion needles. Needle oxidation may
have occurred, resulting in ion output reduction.
1. NEVER TOUCH ION NEEDLES WHILE OPERATING. SHOCK MAY OCCUR.
2. GPS-RN SHOULD NEVER BE CONNECTED WITH AN EXTENSION CORD.
3. DO NOT CONNECT POWER BEFORE INSTALLATION IS COMPLETE. ALWAYS DISCONNECT POWER TO THE
UNIT BEFORE HANLDING ANY OF THE UNIT COMPONENTS OR SERVICING.
4. THIS PRODUCT SHALL NOT BE INSTALLED BEHIND A SUSPENDED FLOOR/CEILING, OR A STRUCTURAL WALL,
CEILING OR FLOOR.
5. THIS PRODUCT IS SUITABLE FOR MOUNTING INTO A DUCT OF METALLIC CONSTRUCTION ONLY.
6. PRODUCT SHOULD BE MOUNTED SUCH THAT THE POWER SUPPLIES CAN BE POWERED WITHOUT
THE USE OF AN EXTENSION CORD. FOLLOW ALL LOCAL AND NATIONAL ELECTRIC CODES WHEN WIRING.
Global Plasma Solutions
10 Mall Terrace, Bldg C Savannah, GA 31406 [phone] ph (877)-270-5353 fax
www.globalplasmasolutions.com [e-mail]
OPERATION / TROUBLESHOOTING
contacts will be open.
Standard Operation
Troubleshooting
CAUTION
3. Confirm the On/Off Switch is in the "On" position and illuminated.
4. If On/Off switch is "On" and illuminated, 12VDC jack has power and polarity is correct, but the ion LED light
is off, the unit must be returned to the factory and a replacement provided.
5. If the ion output LED is on, the BAS dry contacts will be closed. If the ion output LED is off, the BAS dry
3. The BAS Dry Contacts may be wired in series with no limit to the number of units that can be used.
4. Once 12VDC power is applied, turn the On/Off switch to the "On" position. The On/Off switch will now
illuminate.
5. Once the On/Off switch is turned to the "On" position, upon no faults, the ion output LED will illuminate.
6. When the ion output LED is illuminated, the BAS dry contact will closed.
BAS Dry Contacts Ion Output LED
12VDC Power Jack
12VDC Power Jack Illuminated
On/Off Switch
