Global SAR100 User manual

USER MANUALAWNINGHERITAGEModel SAR100
More information https://www.caravansplus.com.au

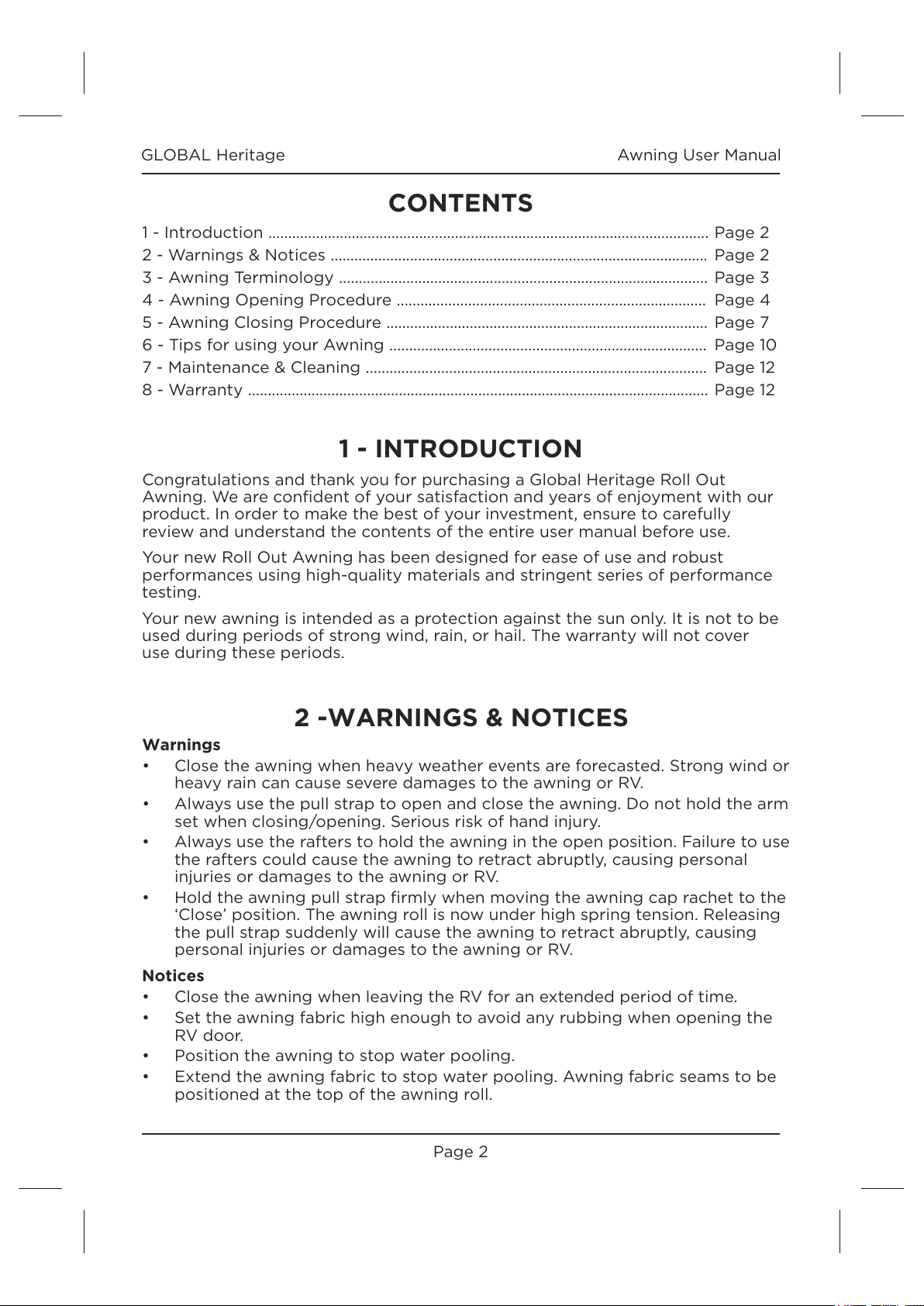

Page 2Awning User ManualGLOBAL Heritage2 -WARNINGS & NOTICESWarnings•Close the awning when heavy weather events are forecasted. Strong wind or heavy rain can cause severe damages to the awning or RV.•Always use the pull strap to open and close the awning. Do not hold the arm set when closing/opening. Serious risk of hand injury.•Always use the rafters to hold the awning in the open position. Failure to use the rafters could cause the awning to retract abruptly, causing personal injuries or damages to the awning or RV.•Hold the awning pull strap firmly when moving the awning cap rachet to the ‘Close’ position. The awning roll is now under high spring tension. Releasing the pull strap suddenly will cause the awning to retract abruptly, causing personal injuries or damages to the awning or RV.Notices•Close the awning when leaving the RV for an extended period of time.•Set the awning fabric high enough to avoid any rubbing when opening the RV door.•Position the awning to stop water pooling.•Extend the awning fabric to stop water pooling. Awning fabric seams to be positioned at the top of the awning roll.Congratulations and thank you for purchasing a Global Heritage Roll Out Awning. We are confident of your satisfaction and years of enjoyment with our product. In order to make the best of your investment, ensure to carefully review and understand the contents of the entire user manual before use.Your new Roll Out Awning has been designed for ease of use and robust performances using high-quality materials and stringent series of performance testing.Your new awning is intended as a protection against the sun only. It is not to be used during periods of strong wind, rain, or hail. The warranty will not cover use during these periods.1 - INTRODUCTIONCONTENTS1 - Introduction ............................................................................................................... Page 22 - Warnings & Notices ............................................................................................... Page 23 - Awning Terminology ............................................................................................. Page 34 - Awning Opening Procedure .............................................................................. Page 45 - Awning Closing Procedure ................................................................................. Page 76 - Tips for using your Awning ................................................................................ Page 107 - Maintenance & Cleaning ...................................................................................... Page 128 - Warranty .................................................................................................................... Page 12
More information https://www.caravansplus.com.au

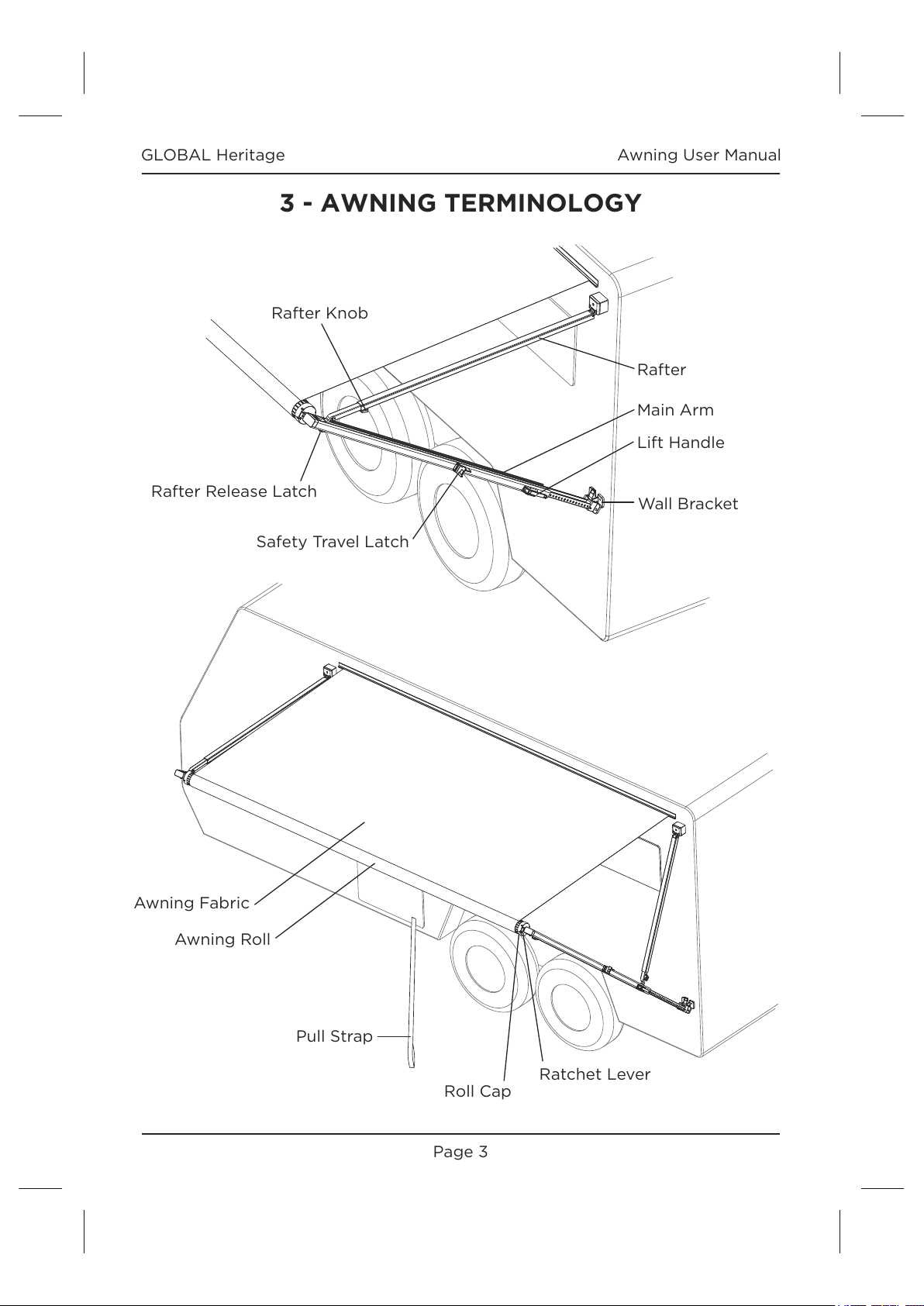

Page 3Awning User ManualGLOBAL HeritagePull StrapRoll CapRatchet LeverAwning RollAwning FabricWall BracketLift HandleSafety Travel LatchRafter Release LatchRafterMain ArmRafter Knob3 - AWNING TERMINOLOGY
More information https://www.caravansplus.com.au

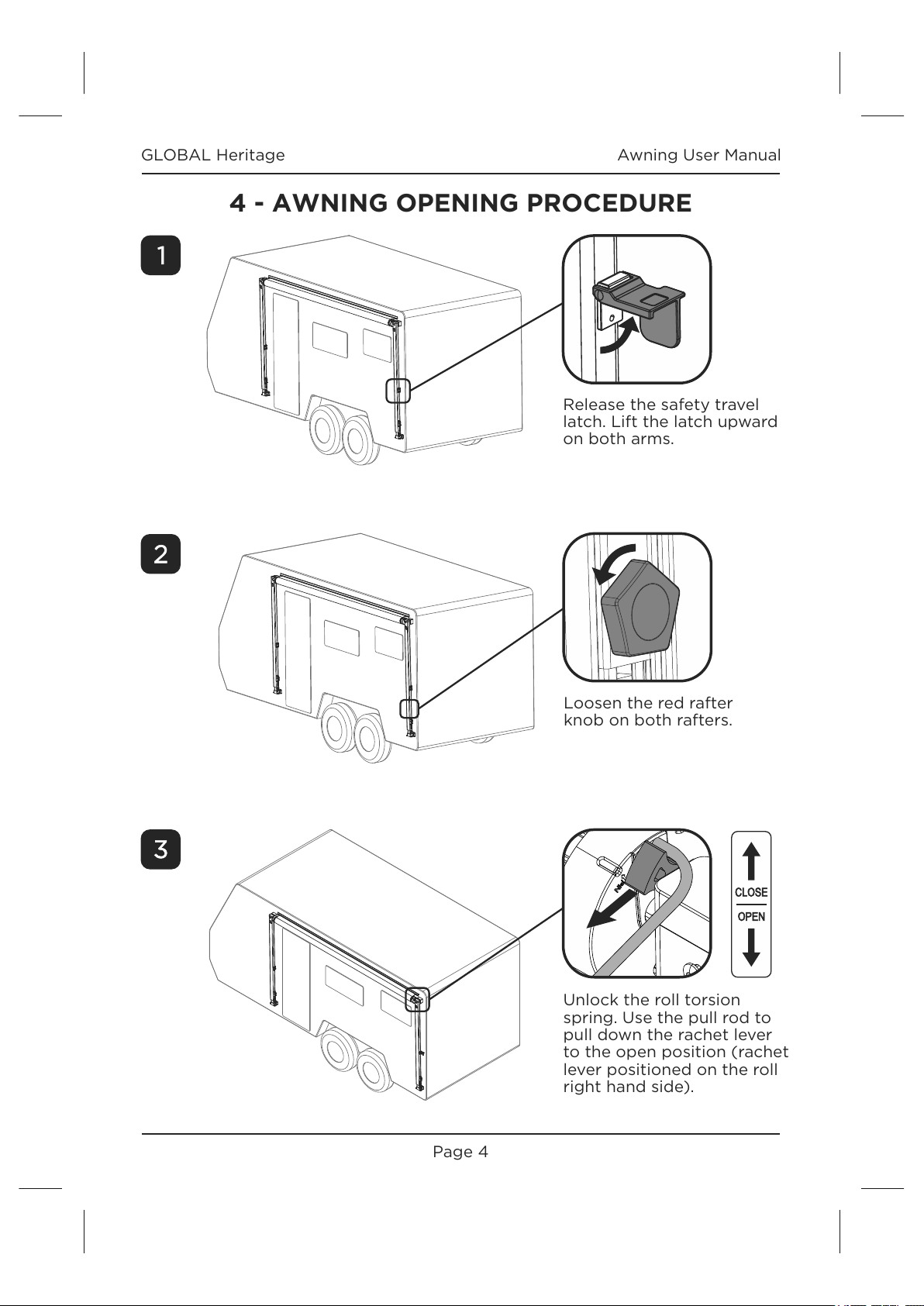

Release the safety travel latch. Lift the latch upward on both arms.Loosen the red rafter knob on both rafters.Unlock the roll torsion spring. Use the pull rod to pull down the rachet lever to the open position (rachet lever positioned on the roll right hand side).123Page 4Awning User ManualGLOBAL HeritageOPENCLOSE4 - AWNING OPENING PROCEDURE
More information https://www.caravansplus.com.au

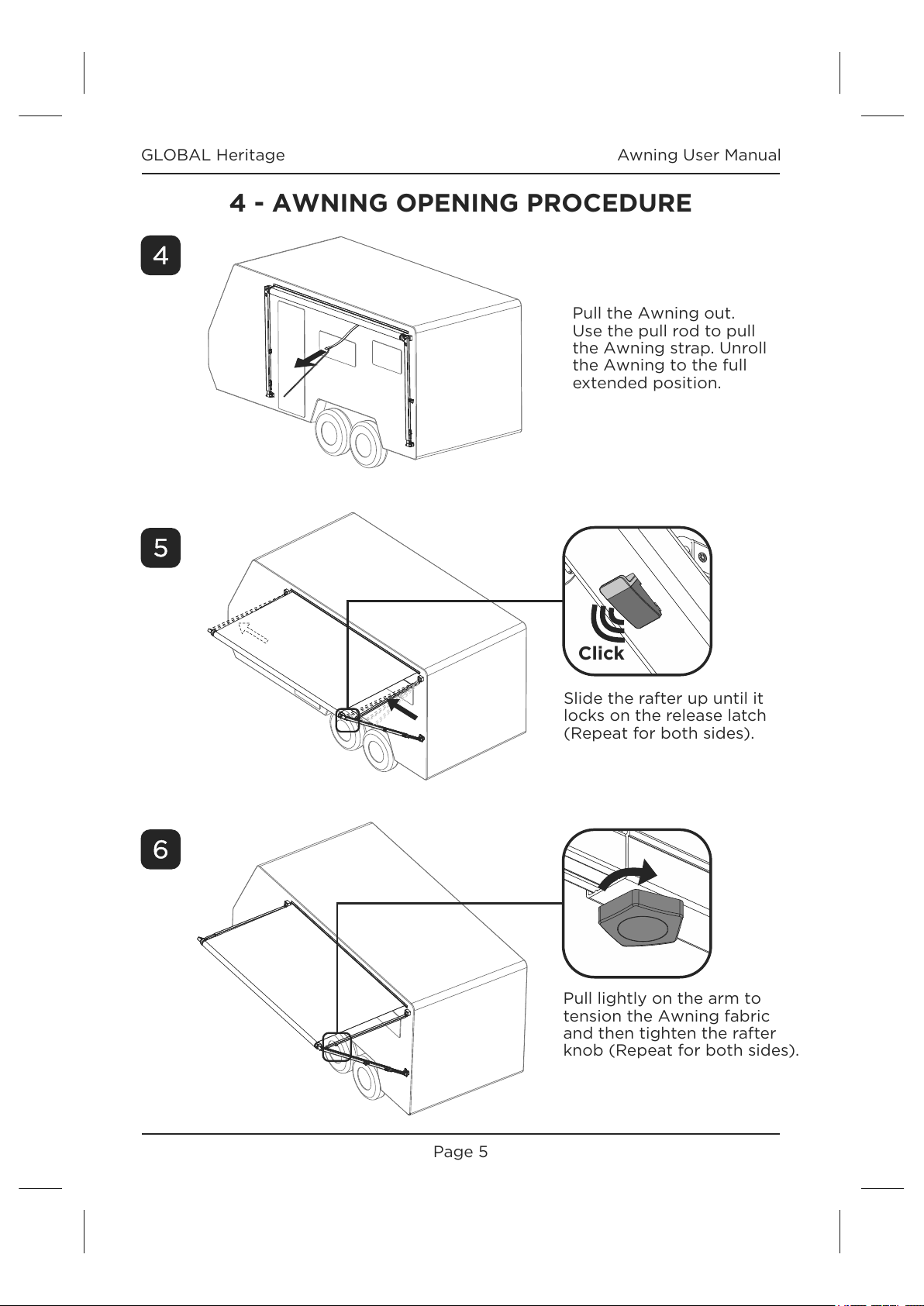

Slide the rafter up until it locks on the release latch (Repeat for both sides).Pull lightly on the arm to tension the Awning fabric and then tighten the rafter knob (Repeat for both sides).456Pull the Awning out.Use the pull rod to pull the Awning strap. Unroll the Awning to the full extended position.ClickPage 5Awning User ManualGLOBAL Heritage4 - AWNING OPENING PROCEDURE
More information https://www.caravansplus.com.au

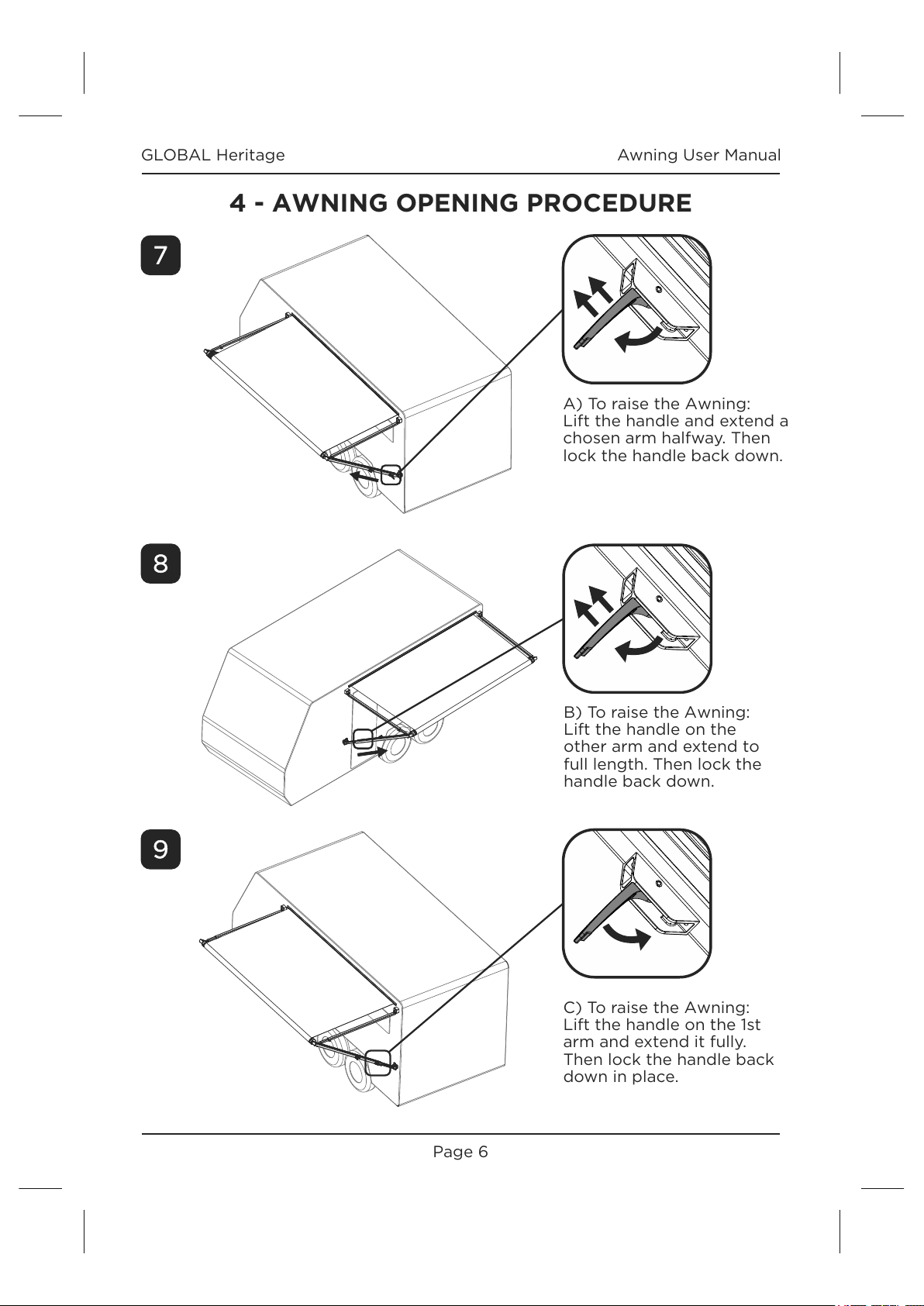

789C) To raise the Awning:Lift the handle on the 1st arm and extend it fully. Then lock the handle back down in place.B) To raise the Awning:Lift the handle on the other arm and extend to full length. Then lock the handle back down.A) To raise the Awning:Lift the handle and extend a chosen arm halfway. Then lock the handle back down.Page 6Awning User ManualGLOBAL Heritage4 - AWNING OPENING PROCEDURE
More information https://www.caravansplus.com.au

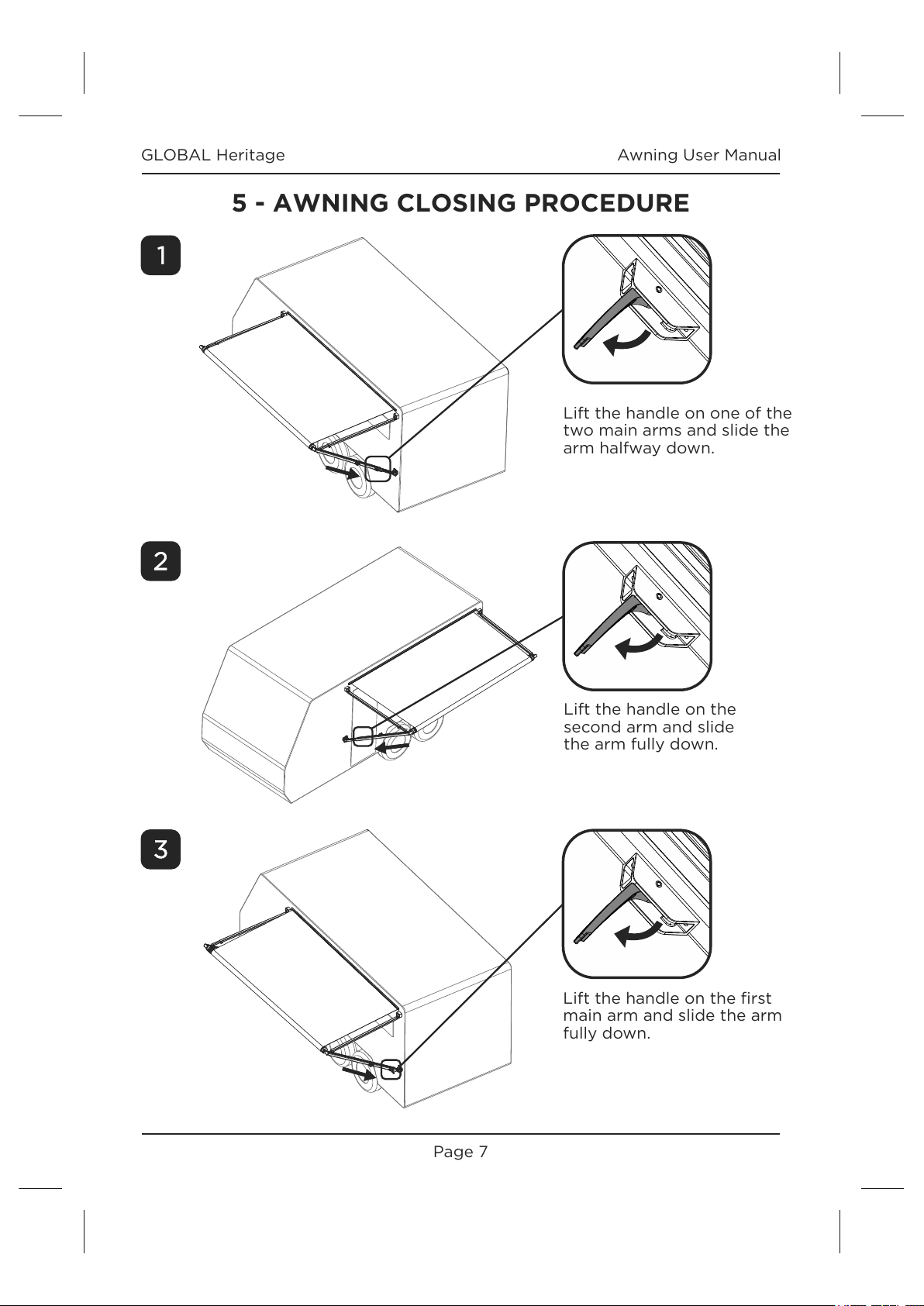

Page 7Awning User ManualGLOBAL Heritage1Lift the handle on one of the two main arms and slide the arm halfway down.2Lift the handle on the second arm and slide the arm fully down.3Lift the handle on the first main arm and slide the arm fully down.5 - AWNING CLOSING PROCEDURE
More information https://www.caravansplus.com.au

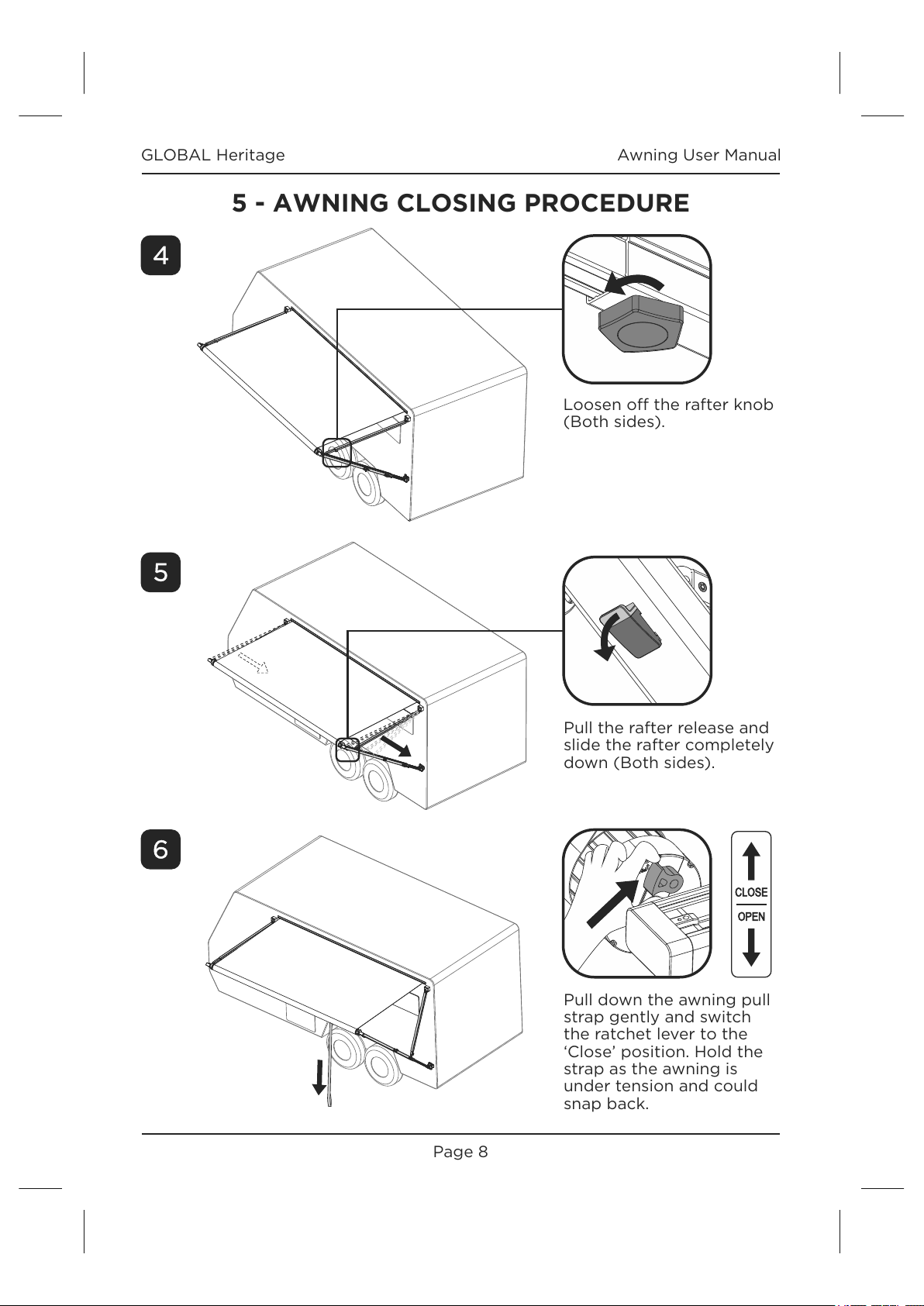

Loosen off the rafter knob (Both sides).4Page 8Awning User ManualGLOBAL HeritagePull the rafter release and slide the rafter completely down (Both sides).56Pull down the awning pull strap gently and switch the ratchet lever to the ‘Close’ position. Hold the strap as the awning is under tension and could snap back.OPENCLOSE5 - AWNING CLOSING PROCEDURE
More information https://www.caravansplus.com.au

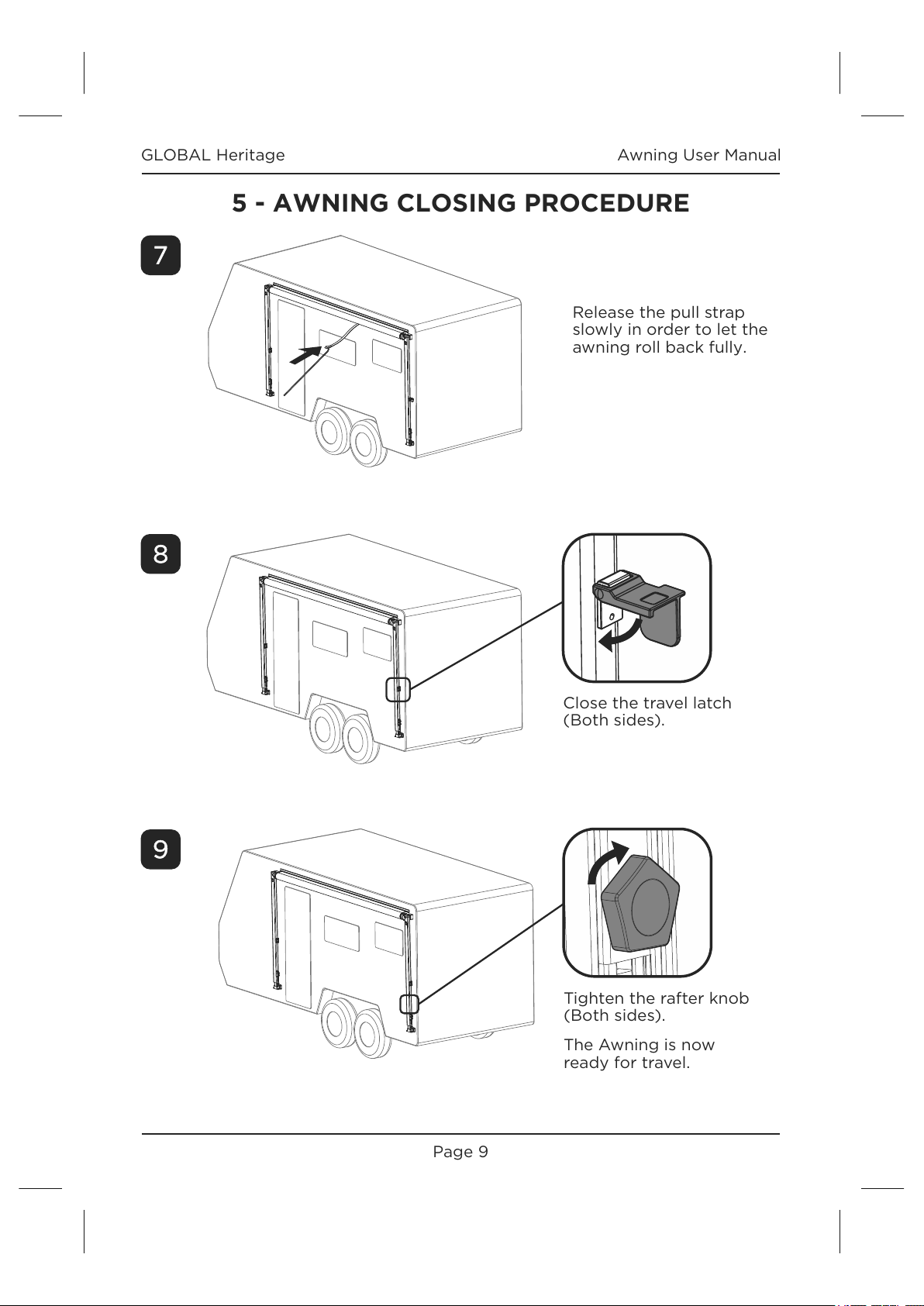

Page 9Awning User ManualGLOBAL Heritage7Release the pull strap slowly in order to let the awning roll back fully.Close the travel latch (Both sides).8Tighten the rafter knob (Both sides).The Awning is now ready for travel.95 - AWNING CLOSING PROCEDURE
More information https://www.caravansplus.com.au

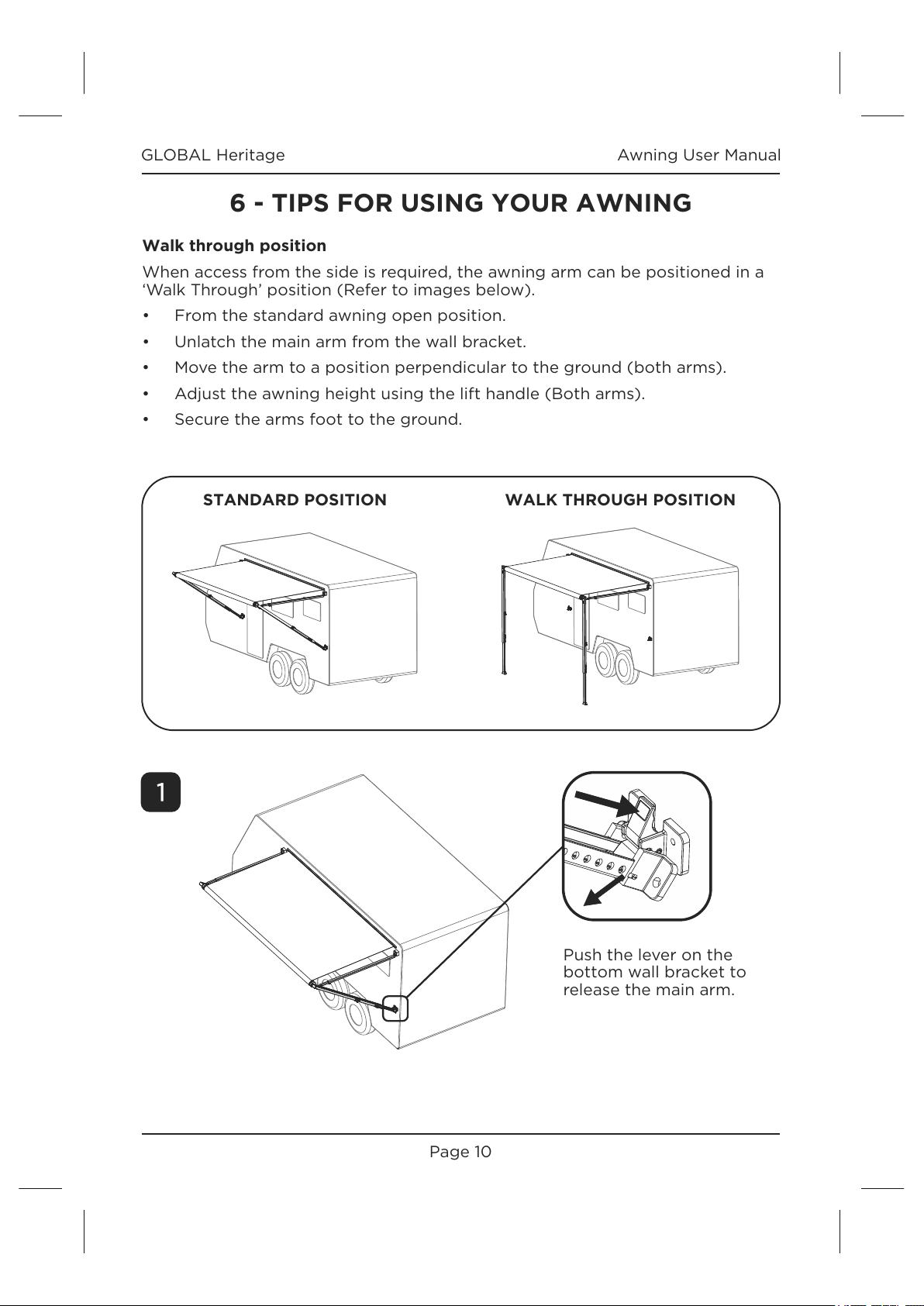

Page 10Awning User ManualGLOBAL HeritageWalk through positionWhen access from the side is required, the awning arm can be positioned in a ‘Walk Through’ position (Refer to images below).•From the standard awning open position.•Unlatch the main arm from the wall bracket.•Move the arm to a position perpendicular to the ground (both arms).•Adjust the awning height using the lift handle (Both arms).•Secure the arms foot to the ground.1Push the lever on the bottom wall bracket to release the main arm.WALK THROUGH POSITIONSTANDARD POSITION6 - TIPS FOR USING YOUR AWNING
More information https://www.caravansplus.com.au

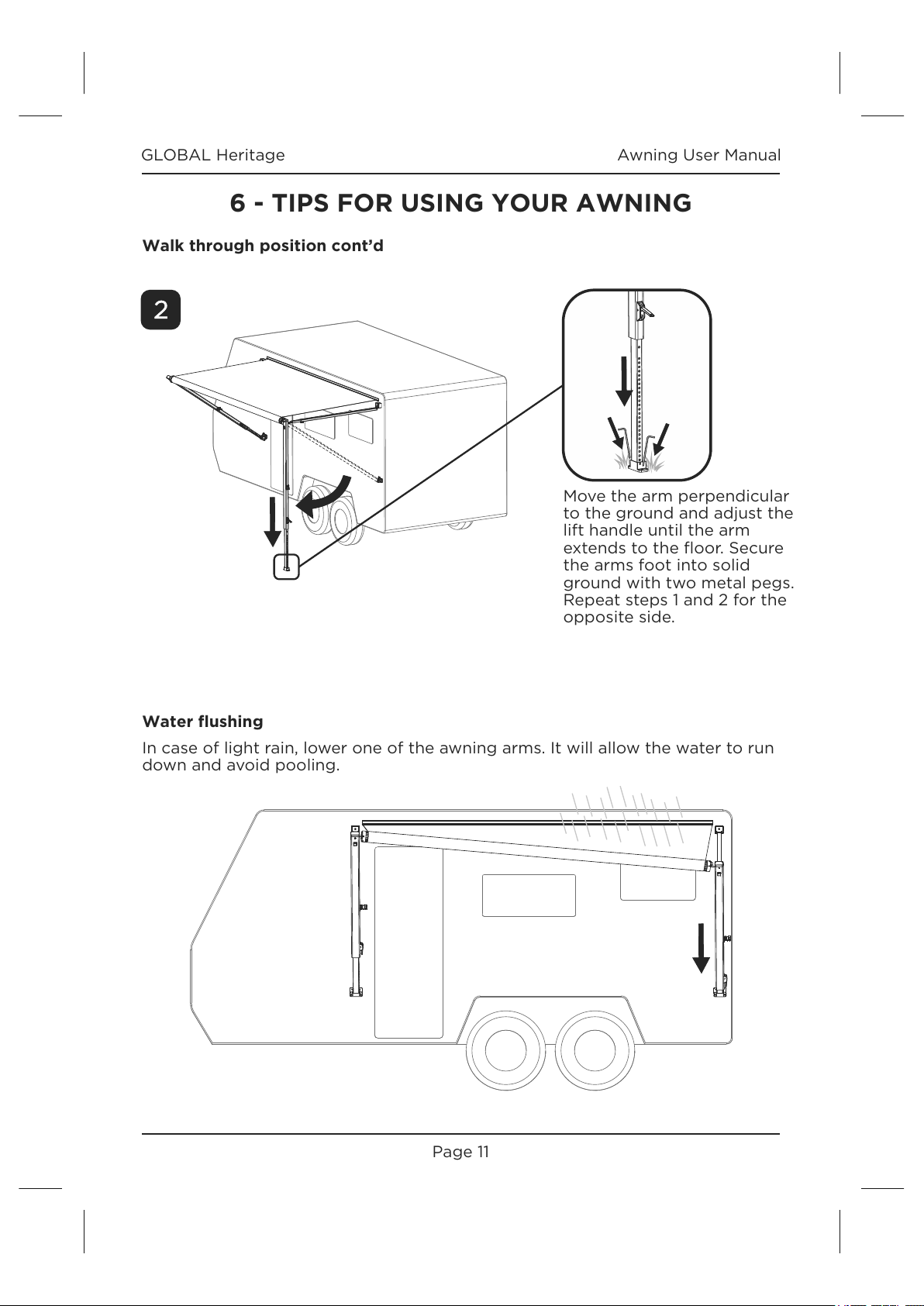

Page 11Awning User ManualGLOBAL Heritage2Move the arm perpendicular to the ground and adjust the lift handle until the arm extends to the floor. Secure the arms foot into solid ground with two metal pegs. Repeat steps 1 and 2 for the opposite side. Water flushingIn case of light rain, lower one of the awning arms. It will allow the water to run down and avoid pooling.Walk through position cont’d6 - TIPS FOR USING YOUR AWNING
More information https://www.caravansplus.com.au

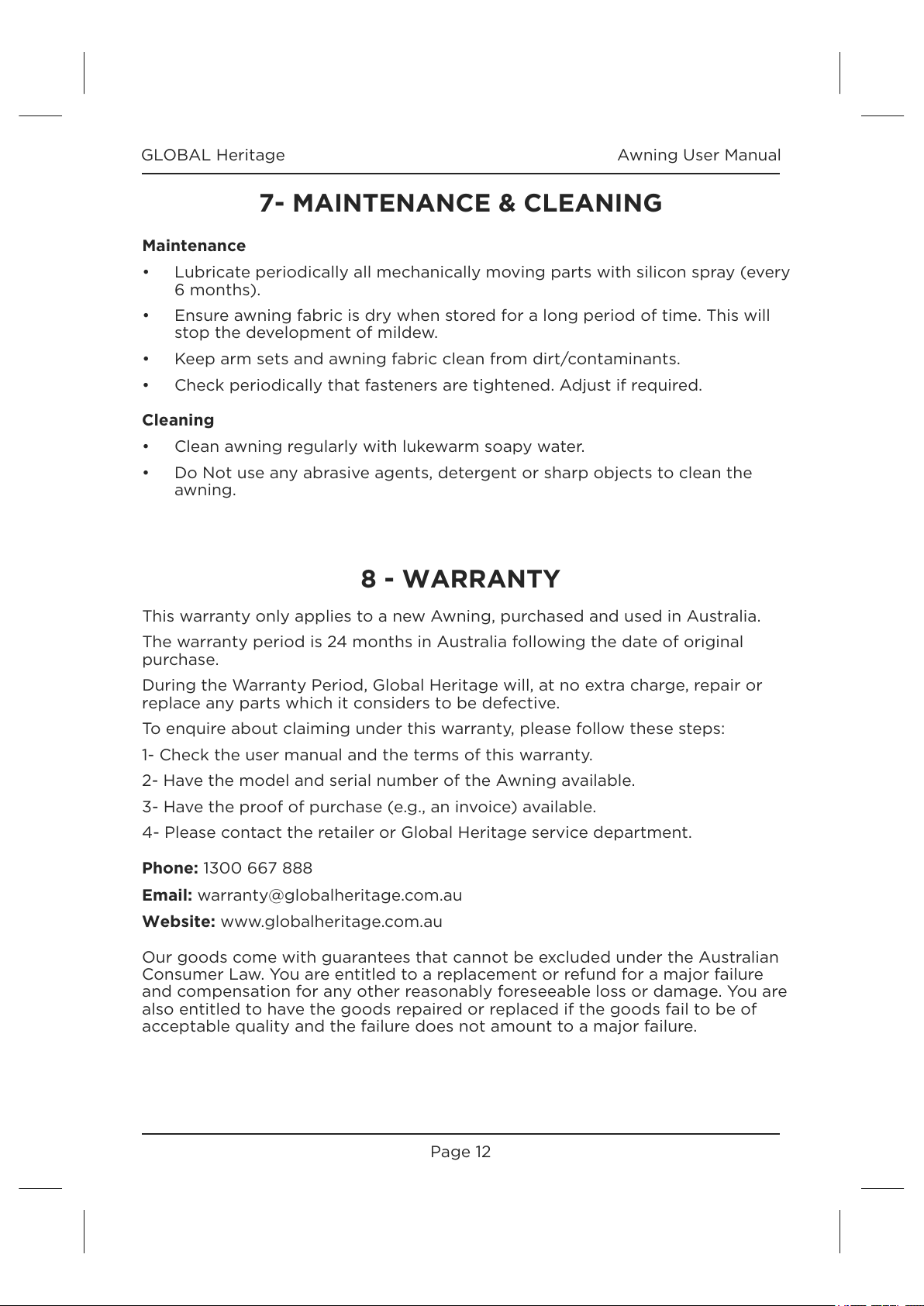

Page 12Awning User ManualGLOBAL HeritageThis warranty only applies to a new Awning, purchased and used in Australia. The warranty period is 24 months in Australia following the date of original purchase.During the Warranty Period, Global Heritage will, at no extra charge, repair or replace any parts which it considers to be defective.To enquire about claiming under this warranty, please follow these steps:1- Check the user manual and the terms of this warranty.2- Have the model and serial number of the Awning available.3- Have the proof of purchase (e.g., an invoice) available.4- Please contact the retailer or Global Heritage service department.Phone: [phone]Email: [e-mail]: www.globalheritage.com.auOur goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.Maintenance•Lubricate periodically all mechanically moving parts with silicon spray (every 6 months).•Ensure awning fabric is dry when stored for a long period of time. This will stop the development of mildew.•Keep arm sets and awning fabric clean from dirt/contaminants.•Check periodically that fasteners are tightened. Adjust if required.Cleaning•Clean awning regularly with lukewarm soapy water.•Do Not use any abrasive agents, detergent or sharp objects to clean the awning.7- MAINTENANCE & CLEANING8 - WARRANTY
