Installation & Servicing Instructions
221100C.08.98
Tobeleftwiththeuser
FIRE G.C No. 37 314 16
Forusewith
a specially designed
Glow-worm Back Boiler Unit only
References in these instructions to British Standards and Statutory
Regulations/Requirements apply only to the United Kingdom.
For Ireland the rules in force must be used. BS 6332
BS 5258
2
This is a Cat I2H Appliance

Supplied By www.heating spares.co Tel. [phone]
2
221100C
1 G e n e r a l N o t e s a n d I n f o r m a t i o n
All dimensions on diagrams are in millimetres (except as noted)
2449
783
485
338692
PREPARED
BASE
Diagram 1.1
If this fire front is to be fitted to a Glow-worm back
boiler WITHOUT a combustion products discharge
safety device please read the supplementary instructions
at the back of this booklet.
The instructions consist of three parts, Installation and
Servicing Instructions for the Back Boiler Unit,
Installation and Servicing Instructions for the Fire Front
and Instructions for Use, which includes the Guarantee
Registration Card. The instructions are an integral part
of the appliance and must, to comply with the current
issue of the Gas Safety (Installation and Use)
Regulations, be handed to the user on completion of the
installation.
This Glow-worm gas fire front is to be used with a
specially designed Glow-worm Back Boiler Unit only.
The fire front is delivered packed in one cardboard
carton, which contains all the parts necessary for the
installation of the fire front, see Section 4.
If the back boiler and fire front are to be installed at the
same time please read both sets of installation
instructions before starting.
Wherever possible, all materials, appliances and
components to be used shall comply with the
requirements of applicable British Standards.
Where no British Standards exist, materials and
equipment should be fit for their purpose and of suitable
quality and workmanship.
1 General Notes and Information
1.1 Important Notice
The fire is fitted with a safety device which will shut it
down if there is a lack of oxygen. If the fire shuts down
frequently for no apparent reason the first things to be
checked are the chimney and air inlets into the room.
An additional cause could be that the filter, in the gas tap
has become blocked. Any problems found must be put
right, by a competent person, before the fire is used
again.
This fire front is for use only on G20 gas.
Sheet Metal Parts
WARNING. When installing or servicing this fire front
care should be taken when handling sheet metal parts, to
avoid any possibility of personal injury.

Supplied By www.heating spares.co Tel. [phone]
3221100C
1 G e n e r a l N o t e s a n d I n f o r m a t i o n
446 446
100
MIN
MAX SHELF
DEPTH
150
2476
883
Diagram 1.2
PREPARED BOILER BASE
FLAT AREA
FIXING FACE
INSTALLATION
CENTRE LINE
1.2 Statutory Requirements.
The installation of this fire front must be carried out by a
competent person, in accordance with the current issue
and relevant requirements of:-
Manufacturer’s instructions provided.
The Gas Safety (Installation and Use) Regulations,
The Building Regulations, The Local Gas Undertaking,
The Local Water Company, The Building Standards
(Scotland), applicable in Scotland, The Health and
Safety at Work Act, The Control of Substances
Hazardous to Health, The Electricity at Work
Regulations and any applicable local regulations.
Detailed recommendations are contained in the current
issue of the following British Standards and Codes of
Practice:-
BS5440 Part 1 and 2, BS5871, BS6891, BS7671.
Manufacturer’s instructions must not be taken as
overriding statutory requirements.
CE Mark
The CE mark on this appliance shows compliance with:-
1. Directive 90/396/EEC on the approximation of the
Laws of the Member States relating to appliances
burning gaseous fuels.
2. Directive 73/23/EEC on the harmonization of the
Laws of the Member States relating to electrical
equipment designed for use within certain voltage limits.
3. Directive 89/336/EEC on the approximation of the
Laws of the Member States relating to electromagnetic
compatibility
1.3 Data
Gas connection - from boiler service cock
Electrical supply - from boiler electrical control
box 230V~50Hz
Electrical power input - 50W fire only
Weight - 36kg (79lb)
Injectors- upper - Bray Cat 77/160
lower - Bray Cat 18/280
Pressure setting - Hot 14.2mbar at Setting 4
Cold 13.6mbar
Heat input -
(Gross) 21,000 Btu/h nominal
Heat output - 12,100 Btu/h nominal
Data label - bottom right of combustion
chamber side.
All dimensions, except as noted, on diagrams are in
millimetres.
1.4 Fire Front Location
This fire front can only be fitted to a Glow-worm
45/2 or 56/2 back boiler unit which itself has been
installed in accordance with the Glow-worm Installation
and Servicing Instructions.
The back boiler air duct acts as a support for the fire
front. The top of the fire front must be secured to the
vertical fire front fixing wall face. This wall face may be
a chimney breast or surround, see diagram 1.2. The fire
front flue spigot projects into the back boiler flue
collector assembly.
The gas supply is taken from the back boiler gas service
cock.
The back boiler must be correctly positioned in the
builder’s opening as the fire front is located by
connection to it.
1.5 Clearances
Restrictions must not be placed around the assembled
fire front, see diagram 1.2.
A shelf or surround of a maximum depth of 150mm may
be fitted, provided clearances are as shown in
diagram 1.2. However, for every 25mm above the fire
front the depth of the shelf may be increased by 25mm.
Combustible furniture or materials must not be placed
closer than 1metre in front of the fire front.

Supplied By www.heating spares.co Tel. [phone]
4
221100C
1553
2555 2451
PREPARED
BASE 100mm
MIN 450mm
MIN
560mm MIN
to
590mm MAX
INSTALLATION CENTRE LINE
Diagram 2.2
706mm
MIN 50mm
MIN
300mm MIN
CORNER
IN-FILL
(not required
to be full
depth of
opening
13mm MIN
NON- COMBUSTIBLE
MATERIAL
C
LPREPARED
BASE
REMOVE
COMBUSTIBLE
MATERIAL FROM
THIS AREA
135mm
750mm
270mm 270mm
BUILDERS
OPENING
INSTALLATION
CENTRE
LINE
Diagram 2.3
Note. Refer to Section 2 in the Back Boiler Installation
book before starting.

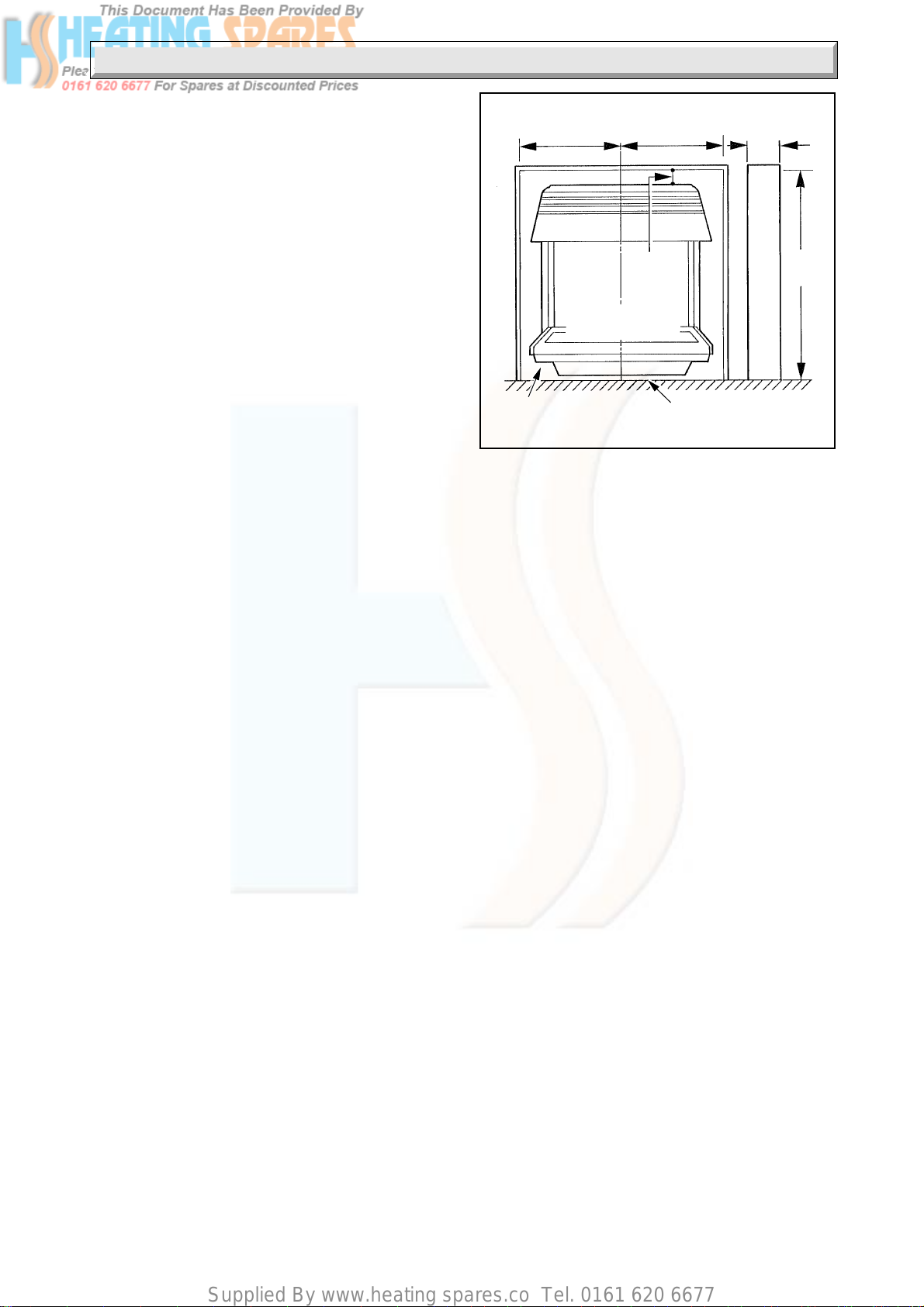

2.1 With Hearth
A fireproof hearth under the fire front must have the
minimum dimensions as shown in diagram 2.1.
2.2 With Surround
See diagram 2.2. The fire front casing should cover the
opening.
A wider opening will require any opening left to be
covered with a non combustible finished material, see
diagram 2.3.
Any greater opening will require corner infill.
The surround must have a minimum clear, flat area as
shown in diagram 1.2. Any projection on the surround
must be outside this area.
Any combustible material on the fire front fixing face
area of the surround must be removed, see diagram 2.2.
This area, to the depth removed should then be rendered
with a sand/cement mixture.
2.3 Without Surround or Hearth
The fire front fixing wall face must be flat over an area
as shown in diagram 1.2. This also shows the minimum
clearances for shelves or projections on the fire front
fixing wall face.
The information in the last two paragraphs of “With
Surround” above should now be followed.
Under no account must carpet or other combustible
material be laid directly under the fire front, unless the
minimum clearances shown in diagram 1.2 is achieved.
The dimension is taken from the bottom of the fire front
plinth to the top of the carpet pile or other floor covering.
2.4 Flue
The back boiler flue collector assembly accepts the fire
front flue spigot.
Note. Provision must have been made during
installation of the back boiler for total ventilation
requirement for the combined appliance. See relevant
section in Back Boiler Installation and Servicing
Instructions.
510mm
to
580mm
2 T y p e s o f I n s t a l l a t i o n a n d F l u e
Diagram 2.1

Supplied By www.heating spares.co Tel. [phone]
5221100C
2457
2468
Diagram 3.2
PLINTH
CONTROL KNOB
COALS
TRIM
BODY
ASSEMBLY
INSULATION
FUEL
SUPPORT
GRID
Diagram 3.1
KNURLED
SCREW
(3 OFF)
FRONT
GLASS
PANEL

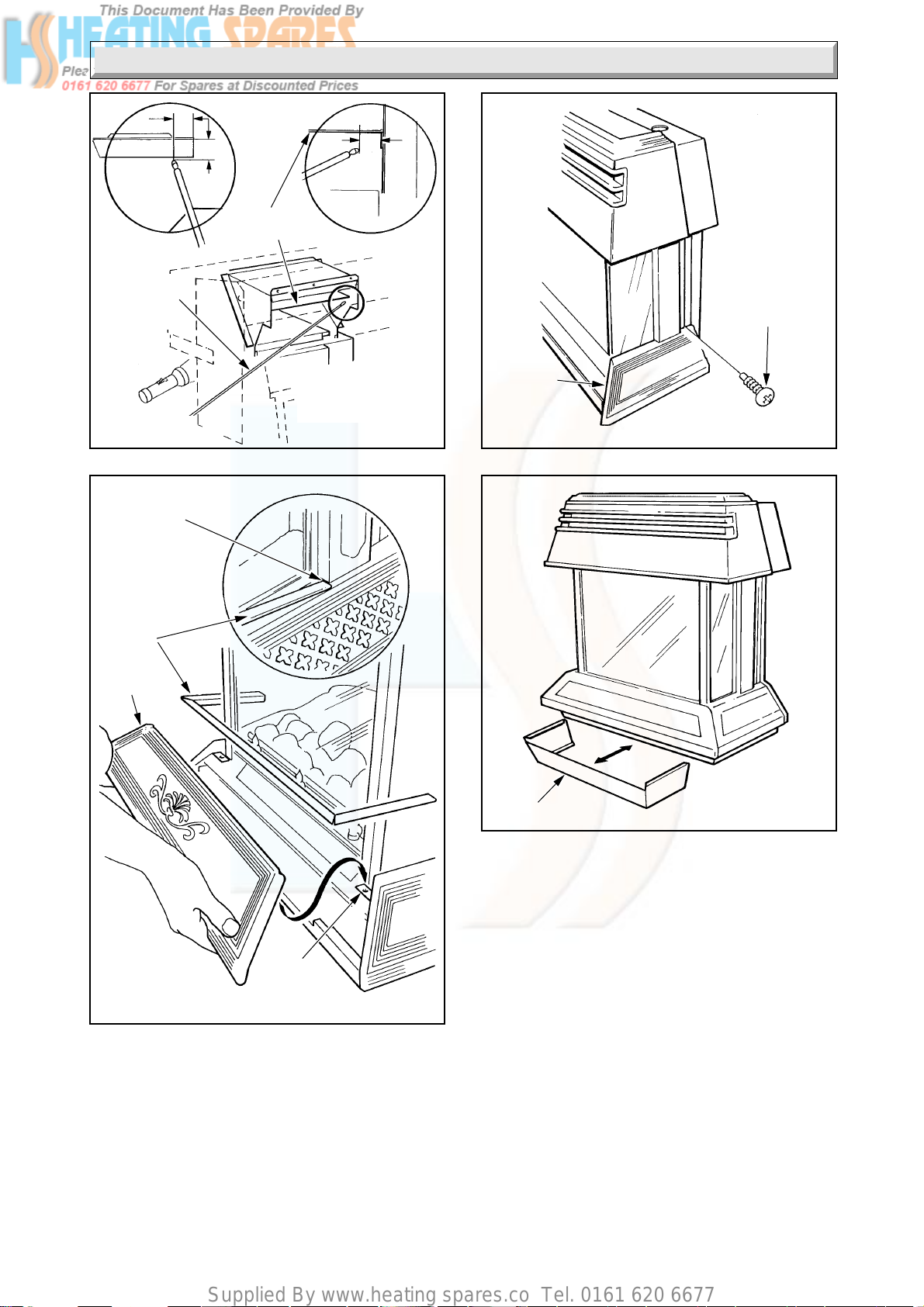

3.1 Unpacking
Remove the fire front flue spigot assembly.
Lift out the polystyrene tray which contains all the loose
parts, check these against diagram 3.1, also a loose items
pack, check contents against packed list.
Lift the outer carton clear to leave the fire front sitting on
the base tray.
The front glass panel must be removed before removal of
the fire front casing.
To remove the front glass panel release the three knurl
headed nuts and clamping plate, see diagram 3.2.
Place the glass panel aside until required.
To remove the casing release the two screws, as
diagram 6.26 tilt the casing forwards and lift it off,
leaving the fire front sitting in the base.
Note. Remove the black protective film from the canopy
trim, hearth trim and glass panel sides.
3 F i r e F r o n t P r e p a r a t i o n
CASING
HEARTH
CASTING CASING
FLUE
SPIGOT
GLASS
BASE
COLOURED
GLASS
CLAMPING
PLATE
FIXING PACK INCLUSIVE
OF BACK BOILER
SENSING TUBE

Supplied By www.heating spares.co Tel. [phone]
6
221100C
SENSING
TUBE
FITTING
ASSEMBLY
THREAD CUTTING
SCREW(Taptite)
3 mm
BACK
BOILER
SENSING TUBE
BULKHEAD CONNECTION
TUBING
NUT BOILER AIR DUCT
SENSING
TUBE
FITTING
ASSEMBLY
FRONT FACE
OF BOILER
CASTING
FILTER
3 F i r e F r o n t P r e p a r a t i o n
2452
Diagram 3.3
SECURING
SCREW
FLUE
SPIGOT
Diagram 3.4
* 'C'
* 'C'
'P' 45 56
1558
*'C' = Distance from fire fixing wall face to
datums on back boiler air duct. This represents
the length of pipe that requires cutting off.
BACK
BOILER
AIR
DUCT
GAS FIRE
SUPPLY TUBE
FIRE FIXING
WALL FACE

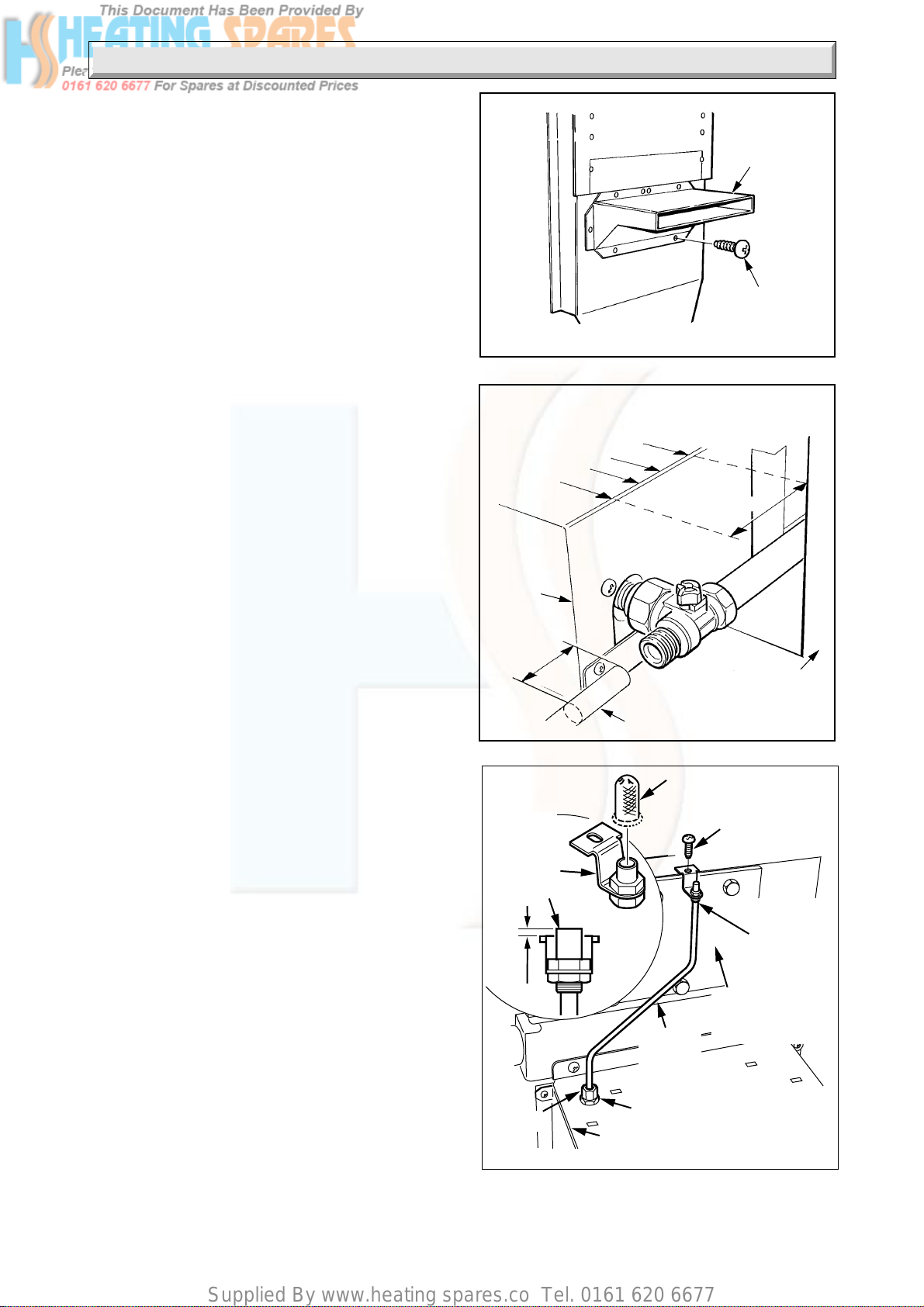

3.2 Flue Spigot Assembly
Note. This is marked “Homeglow BBU”.
Leave the fire front sitting in the base tray.
Secure the spigot assembly to the fire front back with the
self tapping screws provided, from the loose items pack,
see diagram 3.3.
Note, there are eight self tapping screws in the pack, two
are spare.
3.3 Gas Supply to Fire Front
Check that gas service cock is in the Off position,
see diagram 6.3.
The inlet supply tube is packed with the fire front plinth.
This supply tube may need to be cut, at the plain end,
dependent on the model and position of the back boiler
in the opening.
Measure the distance “C”, see diagram 3.4, from the
front mark “P” on the air duct to the fire front fixing wall
face.
Use a straight edge across the opening.
Shorten the plain end of the gas supply tube by distance
“C”. No shortening is required when mark “P” is level
with the fire fixing wall face, “C” being zero.
The maximum distance for “C” will be 67mm.
Deburr the tube end inside and out.
3.4 Back Boiler Sensing Tube Fixing
Removed plastic ferrule from bulkhead connector.
Fix the flared end of the back boiler sensing tube to the
bulkhead connection on the boiler air duct with the
tubing nut provided. Slide the sensing tube mounting
bracket assembly over the back boiler sensing tube and
fix to the casting with the screw provided,
see diagram 3.5. Fit the sensing tube fitting onto the
fitting assembly, see diagram 3.5. Take care not to
damage the filter.
Important. Make sure that the mounting bracket
assembly is pushed back to the front face of the boiler
casting, and check 3mm. distance is achieved and the
back boiler sensing tube does not extend above sensing
tube fitting, see diagram 3.5.
Note. After fitting the combustion products discharge
safety device sensing tube please refer to the
'commisioning' section of the back boiler unit and relight
the boiler to test the device.
Diagram 3.5
6138

Supplied By www.heating spares.co Tel. [phone]
7221100C
4 E l e c t r i c a l W i r i n g
4.1 General
The fire front electrical supply, 230V~50Hz, is taken
from the back boiler electrical control box.
A cable and plug assembly is supplied in the “loose
items” pack.
Refer to Back Boiler Installation Instructions,
Section 5.2 Control Box Access, for control box
removal.
Isolate electrical supply to the boiler.
4.2 Wiring
WARNING. This fire front must be earthed.
The cable supplied must be connected to the terminal
strip and earthing post inside the control box. Note,
these connections can be made when the back boiler
electrical connections are made, see back boiler
installation instructions, diagram 5.1 or 5.1A.
Thread cable through front of control box, see
diagram 4.1.
Connect incoming mains earth conductor to unwired
earthing post, see diagram 4.1, 4.2 or 5.1A, 5.5A in Back
Boiler Installation Instruction.
Connect incoming mains neutral conductor to N and live
conductor to L.
If additional controls are to be used the link between SL1
and SL2 MUST be removed.
The controlling supply from any such devices are to be
connected to terminal SL2, see diagram 4.2 or 5.1A, in
Back Boiler Installation Instruction.
Note, both the fire front and back boiler must be
supplied from the same isolating switch.
Place the strain relief grommet, from the loose items
pack, around the cable, squeeze the halves together.
Position location flats and push grommet into the hole in
the control box, see diagram 4.1.
Refer to “Control Box Fitting” in the Back Boiler
Installation Instructions.
Diagram 4.1
4498
4499
EARTH
STUD
STRAIN
RELIEF
GROMMET
g/y
b
TO BOILER
br
b
bk
bk
bk
b
br
g/y
br b
br
g/y
CONNECTOR FIRE CABLE
CONNECTION
IN THE BACK BOILER
CONTROL BOX
230V~50Hz
MAINS SUPPLY
FUSED AT 3AMP
br BROWN
b BLUE
bk BLACK
g/y GREEN AND YELLOW
KEY

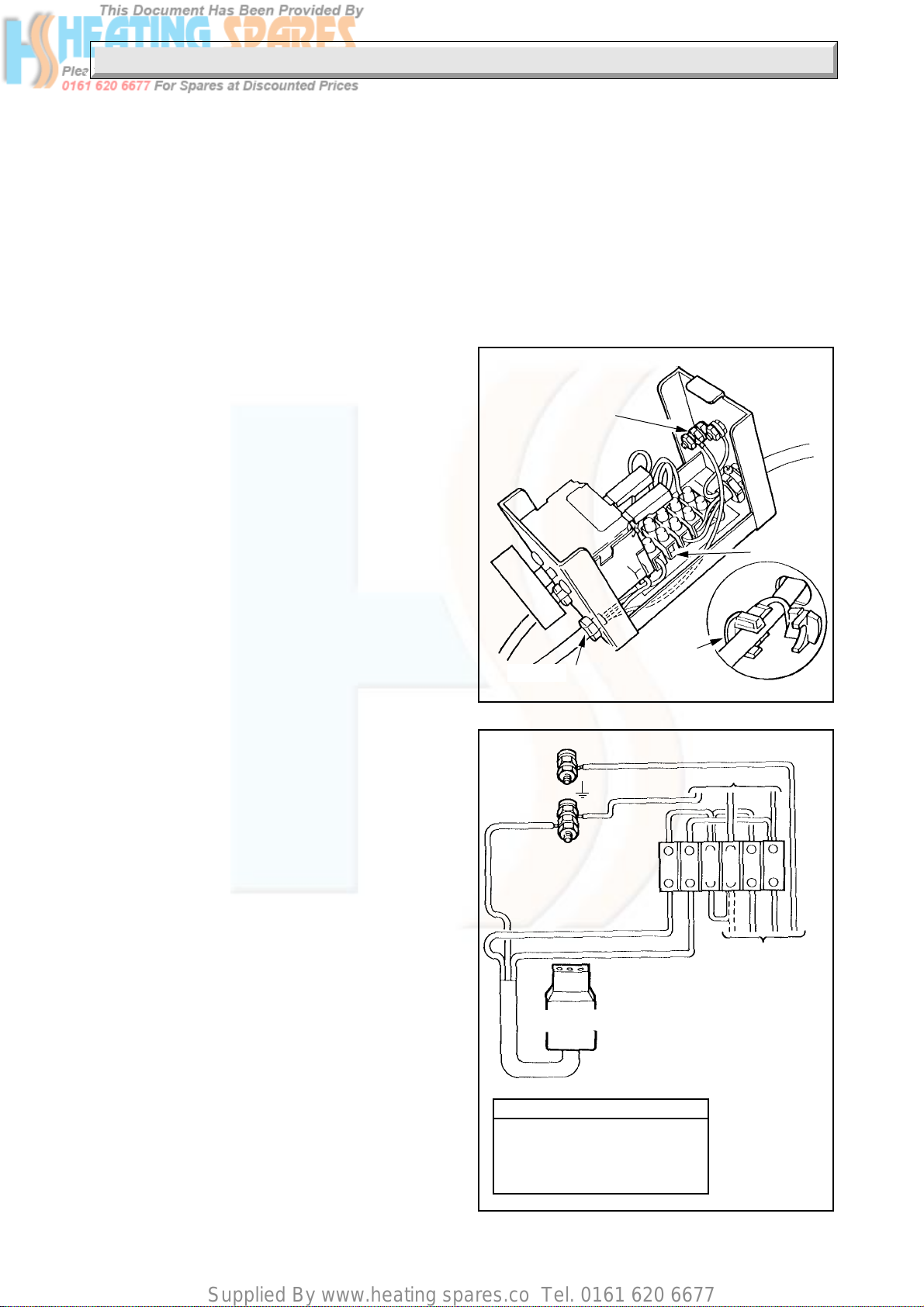

Diagram 4.2
L1
N1
SL1
SL2
L
N
EARTH
STUD
CABLE/CONNECTOR
ASSEMBLY
TERMINAL
STRIP
4.3 Testing
Checks to ensure electrical safety should be carried out
by a competent person.
After installation preliminary electrical system checks as
below should be carried out:
1. Test insulation resistance to earth of mains cables.
2. Test the earth continuity and short circuit of all
cables.
3. Test the polarity of the mains.

Supplied By www.heating spares.co Tel. [phone]
8
221100C
5 I n s t a l l a t i o n
Diagram 5.2
Diagram 5.3
2458
BACK
BOILER
AIR
DUCT
FLUE
COLLECTOR
ASSEMBLY
MOUNTING BRACKETS
SECURING SCREWS
POSITION ANCHOR
NUT
Enlarged view of
mounting bracket
MOUNTING BRACKET
SECURING
SCREW
(2)
FLUE
COLLECTOR
ASSEMBLY
2450 1561
Diagram 5.1
5.1 Positioning the Fire Front
Remove the fire front from the base tray.
Place the fire front onto the back boiler air duct, check
that the fire front spigot is central in the flue collector
assembly, push into contact with the fire front fixing
face, see diagram 5.1.
Mark the fire front fixing points through the mounting
bracket holes at the top, see diagram 5.2.
Pull the fire front forward and remove.
Drill the fire front fixing face using a 10mm masonry
drill to a minimum depth of 40mm to accept the anchor
nuts and screws provided.
Place the anchor nuts and screws into holes, screw up
but leave sufficient screw thread proud to accept the fire
front.
Note, if the fire front fixing wall face is not of a solid
construction to a minimum depth of 40mm, for example,
hollow brick or metal an alternative and rigid form of
fastening for the fire front must be used and extra care
taken.
Refer to diagram 5.3.
Offer fire front up at a slight angle to engage fire spigot
and position mounting bracket holes over screws in fire
front fixing wall face.
Lower fire front to locate fire front flue spigot into flue
collector assembly and onto back boiler air duct, push
back onto fire front fixing wall face and tighten up
securing screws. SECURING
SCREW
(2)
GAS SERVICE
COCK
FIRE FIXING
WALL FACE

Supplied By www.heating spares.co Tel. [phone]
9221100C
5 I n s t a l l a t i o n
2480
Diagram 5.4
2465
UNION
NUT
GAS
SUPPLY
TUBE
NUT (A)
NUT (B)
UNION NUTOLIVE
GAS
SERVICE
COCK
JOINT (C)
5.2 Gas and Electrical Connection
Place the tubing nut and olive, from the loose items
pack, onto the prepared end of the gas supply tube, see
diagram 5.4.
Connect the gas supply, as diagram 5.4, tighten the nut
and olive at the gas service cock.
To tighten the other end use a spanner to lock the
hexagon nut (A) at the bulkhead fitting and make sure
that it does not turn, tighten the nut (B) on the supply
tube in the usual manner, see diagram 5.4.
Make sure that joint (C) is checked for gas soundness,
as Section 6.1.
Connect the plug and socket as shown in diagram 5.5.
Make sure that the socket is fully engaged into the plug
on the fire front.
Note, when removing fire front do not break the union
nut connection at gas service cock, see diagram 5.4.
SOCKET
PLUG
SWITCH
Diagram 5.5
6 L i g h t i n g a n d T e s t i n g a n d F i t t i n g I n t e r n a l P a r t s
2465
Diagram 6.1
KNOB IN 'OFF'
POSITION
Push in and turn
anti-clockwise
GAS
RATE
IGNITION
6.1 Lighting and Testing
Make sure that the electrical supply to the back boiler is
isolated.
The fire front is fitted with a Combustion Products
Discharge Safety Device which will shut it down if there
is a lack of oxygen. If the fire shuts down frequently for
no apparent reason the first things to be checked are the
chimney and air inlets into the room. An additional
cause could be that the filter, in the gas tap has become
blocked. Any problems found must be put right, by a
competent person before the fire is used again.
The combustion products discharge safety device
MUST NOT be adjusted or disconnected.
If replacing use only the correct and approved parts.
Make sure that the flat on the drive rod faces the wall
before fitting the control knob, see diagram 6.1.

Supplied By www.heating spares.co Tel. [phone]
10
221100C
5297
6 L i g h t i n g a n d T e s t i n g a n d F i t t i n g I n t e r n a l P a r t s
Diagram 6.2 Diagram 6.3
Remove the pressure test point screw and fit a suitable
pressure gauge, see diagram 6.2.
Turn the gas service cock to back boiler and fire On, see
diagram 6.3.
To check for gas soundness, using the pressure drop
method, apply suitable leak detection fluid to all joints,
replace front glass panel.
Push the control knob in and turn it slowly anti-
clockwise to 1 - ignition.
As the knob is turned a click of the ignition will be heard
and the burner will light. Keep the knob pushed in for
10 seconds.
With the burner lit, visually check for leaks whilst
changing tap positions.
To change settings:
0 - 1 Push in and turn
1 - 2 Turn only
2 - 3 Push in and turn
3 - 4 Push in and turn
4 - 5 Turn only
Note, air may be present in the supply to the fire front so
the initial lighting operation may need to be repeated.
Check that the gas pressure is as quoted in the Data
Section or on the Data Label.
If there is any doubt about the gas rate, check at the
meter, having turned off all other gas appliances.
The rate for this fire front, after 10 minutes, is about
2mins 50secs for 1ft3.
If the burner does not light first time, wait 10 seconds
then repeat the above sequence.
Turn the burner off, remove pressure gauge, replace test
nipple screw and make sure that a gas tight seal is made.
GAS SERVICE
COCK UNION
BACK
BOILER
ONLY 'ON'
TURNED
FULLY
CLOCKWISE
90˚
180˚
'OFF'
TURN FULLY
ANTI-
CLOCKWISE
BACK
BOILER &
FIRE FRONT
'ON' TURNED
TO MID
POSITION
3924 S
PRESSURE
TEST POINT

Supplied By www.heating spares.co Tel. [phone]
11 221100C
6 L i g h t i n g a n d T e s t i n g a n d F i t t i n g I n t e r n a l P a r t s
Diagram 6.6
2474
2471 2472
COLOURED
GLASS
BASE
GLASS
SUPPORT
ANGLE
VERTICAL
LUG
GLASS
SUPPORT
LUG
FUEL
SUPPORT
GRID LUG
PLAIN GLASS
FUEL
SUPPORT
GRID PLAIN
GLASS
BASE
GLASS
SUPPORT
ANGLE
Ensure glass base sits
on support angle
COLOURED
GLASS
PLAIN
GLASS
BASE
COLOURED
GLASS
SUPPORT
ANGLE
Ensure glass base sits
on support angle Diagram 6.5
VERTICAL
LUG
6.2 Internal Parts - Fitting
CAUTION. If any of the glass panels, side and rear
insulation, support grid or coal effect pieces are damaged
do not light or further test the fire front before
replacement parts are fitted.
Remove the front glass panel, see diagram 3.2.
Check that the bulbs are screwed in, see diagram 8.9.
See diagram 8.10, operate switch to check that the lights
are working.
Follow the order given in diagram 6.4 to 6.22, to fit the
internal parts.
When replacing the front glass panel push it up into the
retaining angle, position the clamping plate and only
finger tighten the knurl headed nuts.
Diagram 6.4

Supplied By www.heating spares.co Tel. [phone]
12
221100C
6 L i g h t i n g a n d T e s t i n g a n d F i t t i n g I n t e r n a l P a r t s
Note: Refer to GLASS and GRID ARRANGEMENT Note: Refer to GLASS and GRID ARRANGEMENT
Diagram 6.8
Diagram 6.7
2482 c2482 d
2482 d2482 c
2482 e 2482 e
L.H. FUEL
SUPPORT
GRID
FRONT
SIDE
CHEEK
REAR
CHEEK REAR
COAL
REAR
SIDE
CHEEK
Diagram 6.12
Diagram 6.10
Diagram 6.9
L.H.FUEL
SUPPORT GRID R.H. FUEL
SUPPORT GRID
FRONT SIDE CHEEK
(L.H.ILLUSTRATED)
REARCHEEK REARCOAL
REAR SIDE CHEEK
(L.H.ILLUSTRATED)
Diagram 6.11

Supplied By www.heating spares.co Tel. [phone]
13 221100C
6 L i g h t i n g a n d T e s t i n g a n d F i t t i n g I n t e r n a l P a r t s
Diagram 6.13 Diagram 6.14
Ensure Coal
projections sit
on the chrome rail

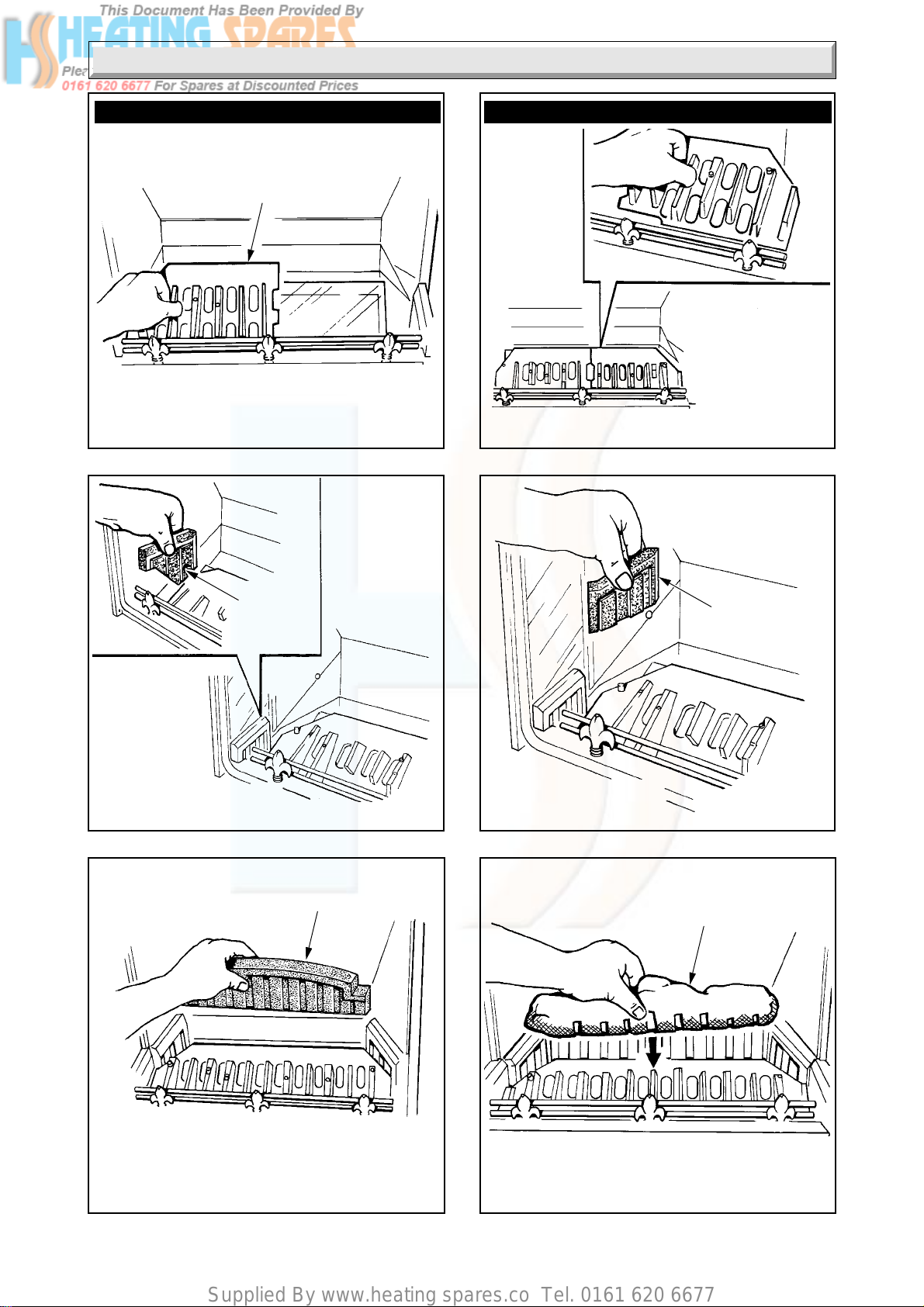

Diagram 6.15
Note: There should be no
gap between the front of
'Coal 2' and the back of the
'L.H Front Coal' Diagram 6.16
Diagram 6.17
Note: There should be no gap between the front
of 'Coal No 3' and the back of 'L.H Front Coal'
2482 h
2482 h 2482 f2482 g
2482 f2482 g
Diagram 6.18
L.H.FRONT COAL R.H. FRONT COAL
COAL1.(L.H.) COAL 2. (L.H.)
COAL3.(L.H.) COAL 4. (R.H.)
COAL
SITS
ON PIN
PIN FITS
INTO
HOLE

Supplied By www.heating spares.co Tel. [phone]
14
221100C
6 L i g h t i n g a n d T e s t i n g a n d F i t t i n g I n t e r n a l P a r t s
Diagram 6.19 Diagram 6.20
Diagram 6.22
2482 b2482 b
2482 a
COAL 5. (R.H.) COAL 6. (R.H.)
COMPLETECOALS
ARRANGEMENT
Note: 'Coal 5' sits
on top of 'Coal 4'
at R.H.S
Minimise gap
at front
Note: Ensure there are gaps
behind 'Coals 3, 5 and 6'.
6800
PIN
PIN FITS IN
GROOVE
ON REAR
COAL
COAL 7. (CENTRE) Diagram 26
PIN
To ensure that
the pin of NO7
sits in the base of
the groove, it may
be necessary
to adjust the
"rear coal".

Supplied By www.heating spares.co Tel. [phone]
15 221100C
6.3 Heat Settings
Light the fire front as relevant part of Section 6.1.
See diagram 6.1.
At tap position 1 - centre area only, reduced flame effect.
At tap position 2 - centre area only and flame effect.
At tap position 3 - centre area and partial outer and flame
effect.
At tap position 4 - (Full on) whole area and flame effect.
At tap position 5 - whole area but reduced flame effect.
In the unlikely event of the flame going out whilst the
fire front is on, then turn off. Wait 3 minutes before
relighting.
If relighting for any other reason, wait 2 minutes before
doing so.
6.4 Test for Clearance of Products
Notes
WARNING. Take care. The appliance will get hot
during testing.
To carry out the test on the boiler you will need a smoke
match extension and a torch.
For test, view for spillage each side above fire spigot as
shown in diagram 6.23.
The underbed light will help to make the smoke more
visible.
IN ALL CASES, if spillage continues after the specified
test periods steps must be taken to put the fault(s) right.
Possible causes include, flue obstruction, down draught
or restricted fresh air supply into the room.
If the problem cannot be put right the appliance must be
disconnected and expert advice sought.
6 L i g h t i n g a n d T e s t i n g a n d F i t t i n g I n t e r n a l P a r t s

Supplied By www.heating spares.co Tel. [phone]
16
221100C
6 L i g h t i n g a n d T e s t i n g a n d F i t t i n g I n t e r n a l P a r t s
2453
SMOKE MATCH
EXTENSION
25˚
60mm 140mm
Diagram 6.23
Test Where No fan is Present
Close all outside doors and doors and windows in the
room in which the appliance is installed.
Light the fire front only and set to tap position 4.
After 5 minutes apply a spillage test as shown in
diagram 6.23 and 6.24. During tests smoke should be
drawn into the fire draught diverter and the boiler
draught diverter.
If spillage occurs, leave fire alight for up to a further 10
minutes and repeat tests. Turn the fire front off.
Next, light the boiler only. After 10 minutes apply
spillage tests as shown in diagram 6.23 and 6.24. During
tests smoke should be drawn into the fire front draught
diverter and boiler draught diverter.
If spillage occurs, leave the boiler alight for up to a
further 5 minutes and repeat tests.
Leave the back boiler alight.
Light the fire front and set to tap position 4. After 10
minutes apply spillage tests as shown in diagram 6.23
and 6.24. During tests smoke should be drawn into the
fire front draught diverter and boiler draught diverter.
If spillage occurs, detected by looking above fire spigot,
see diagram 6.24. Leave the boiler and fire front alight
for up to a further 5 minutes and repeat tests.
Test. Where a Fan is Present
A fan means an extract fan or a fan for other open flued
appliances or a circulating fan for a warm air unit,
whether or not gas fired. With the fan switched off carry
out the appropriate spillage test with all doors and
windows closed, as above.
If the above spillage test is satisfactory carry on as
follows:-
Open all doors connecting the room containing the
appliance and the room in which the fan is fitted.
Close all other doors and windows in the premises.
If the fan is in the same room as the appliance, close all
doors and windows in that room. Switch on the fan and
repeat the spillage test as above.
6.5 Case Fitting
Remove the front glass panel and clamp by releasing the
knurl headed nuts.
Refit the outer casing, secure with the two screws
previously removed, see diagram 6.26.
Refit the front glass panel and clamp.
In all cases only finger tighten the knurl headed fixings.
Fit the front hearth casting and the brass trim, see
diagram 6.25.
Refit the controls cover plinth, push it back as far as it
will go, see diagram 6.27.
When the fire front is removed, it must always stand on
the plinth, to protect the thermocouple.

Supplied By www.heating spares.co Tel. [phone]
17 221100C
6 L i g h t i n g a n d T e s t i n g a n d F i t t i n g I n t e r n a l P a r t s
1890
2473
Diagram 6.24
DIVERTER
PLATE
SIDE VIEW FRONT VIEW
10
10
560 SMOKE
MATCH
EXTENTION
FIRE SPIGOT NOT
SHOWN FOR
CLARITY
BRASS
TRIM
HEARTH
CASTING
NOTE:
Ensure trim
is located
beneath the
side surround
Diagram 6.25
LOCATION
HOLE
Diagram 6.27
2463
2469
CASING
PLINTH
Diagram 6.26
SECURING
SCREW (2)

Supplied By www.heating spares.co Tel. [phone]
18
221100C
2475
Diagram 7.1
Hand the Instructions for Use to the user and instruct in
the safe and economical use of the fire and back boiler,
including lighting the fire with a spill, see below.
Draw attention, if applicable, to the current issue of the
Gas Safety (Installation and Use) Regulations, Section
35, which imposes a duty of care on all persons who let
out any property containing a gas appliance.
Advise that any smell which may be apparent on first
lighting is quite normal and it will quickly disappear.
Advise that the trims (not the decorative motif) are solid
brass and they only may be cleaned with a proprietary
metal cleaner and polish, such as “Duraglit”.
Important. Advise that soft wall coverings, for example,
blown vinyl wallpaper, are easily affected by heat, they
may, therefore, scorch or become discoloured when
close to a heating appliance. This should be borne in
mind when having a heating appliance installed and
when redecorating.
Advise the user, to ensure the continued efficient and
safe operation of the appliance it is recommended that it
is checked and serviced as necessary at regular intervals.
The frequency of servicing will depend upon the
particular installation and usage, but in general once a
year should be enough.
It is the law that servicing is carried out by a competent
person.
Advise that the under fuel bed lighting can be used at
any time.
Demonstrate lighting the fire front with a spill or long
match, see diagram 7.1.
Remove the brass trim and front hearth casting.
Hold a lighted spill or long match and insert it into the
hole in the front plate, position the spill so that the flame
is over the burner.
Keep the spill in position, push in and turn the gas tap
knob to position 1, keep knob pushed in for about 10
seconds and the burner will light.
Once lit operate the gas tap normally.
Advise that this is a temporary measure, to be used only
if the ignition system should fail.
7 I n s t r u c t i o n s t o U s e r
MATCH
EXTENSION
Advise the user of the precautions necessary to prevent
damage to the system, boiler and the building, in the
event of the heating system being out of use during frost
or freezing conditions.
Advise the user that the boiler and fire front are both
fitted with a combustion products discharge safety
devices and refer to the instructions for use.
Reminder, leave these instructions with the user.

Supplied By www.heating spares.co Tel. [phone]
19 221100C
8 S e r v i c i n g a n d R e p l a c e m e n t o f P a r t s
Notes.
(a) To ensure the continued efficient and safe operation
of the appliance it is recommended that it is checked and
serviced at regular intervals. The frequency of servicing
will depend upon the particular installation and usage,
but in general once a year should be enough.
(b) It is the law that servicing is carried out by a
competent person.
(c) Make sure that the fire front is cold before carrying
out any servicing.
(d) Before servicing or replacing parts isolate the gas and
electrical supplies.
(e) After servicing or replacement of parts always test for
gas soundness with a suitable leak detection fluid (to test
the gas tap refix the fire and apply leak detection fluid to
all joints replace front glass panel, light the burner and
visually check all the joints for leakage whilst changing
tap settings).
(f) Carry out functional check on controls. See Section 5
and 6.
(g) It is suggested that other than for servicing or
replacing the glass panels, coal effect pieces, insulation
and bulbs etc., the fire front be removed from its fixings
by reversing the instructions in Section 5 and 6.
(h) Unless stated otherwise reassembly of all
components should be in the reverse order to that for
removal.
(i) The back boiler should be serviced at this time, refer
to the Back Boiler Installation and Servicing
Instructions.
(j) The combustion products discharge safety device
MUST NOT be adjusted or disconnected.
If replacing use only the correct and approved parts.
8.1 Front Glass Assembly
Remove the brass trim and the front hearth casting and
unscrew the three knurl headed nuts and remove the
clamping plate and glass panel.
Remove the glass panel as above, clean both sides with a
ceramic hob cleaner and then buff.
When replacing only finger tighten the knurl headed
nuts.
8.2 Coal Effect Pieces, Supports and Glass
Bases
Remove the glass panel as above.
Remove the coal effect pieces and clean with a soft
brush. Do not use a vacuum cleaner. Take care when
cleaning the coal effect pieces as with use they become
brittle.
Remove the coal effect support grids and clean with a
soft brush.
Clean out the combustion chamber.
Clean as necessary the glass base and coloured glass
panel. Clean the reflectors.

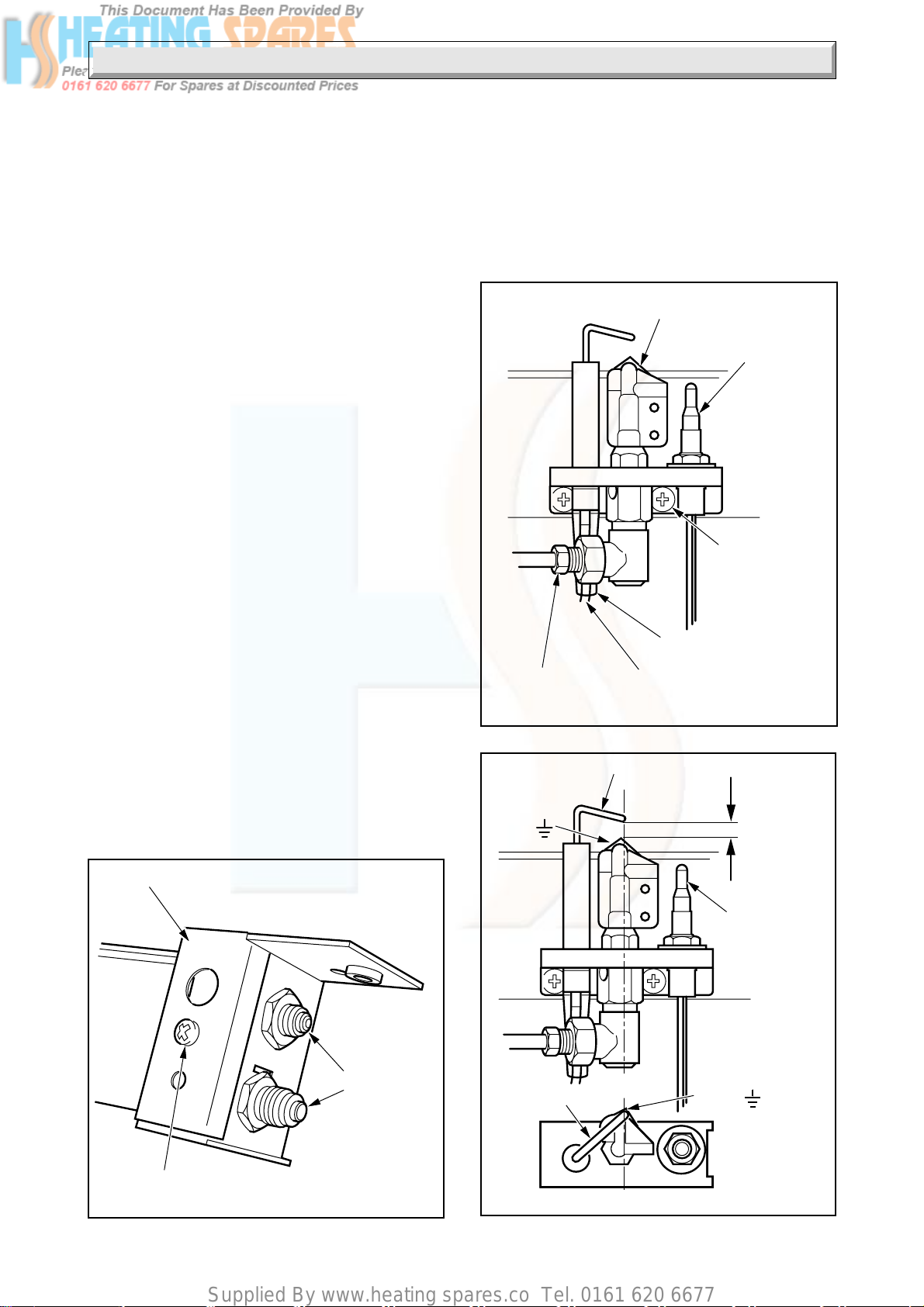

Diagram 8.1
INJECTOR
BOX
PLATE
INJECTORS
SECURING
SCREW BURNER
SUPPLY
PIPES
BURNER
SECURING
SCREW
5298
UNION
CONNECTOR
PILOT TUBE
UNION
CONNECTION

Supplied By www.heating spares.co Tel. [phone]
20
221100C
COMBUSTION PRODUCTS
DISCHARGE SAFETY DEVICE
5294
8 S e r v i c i n g a n d R e p l a c e m e n t o f P a r t s
8.3 Burner and Injectors
Disconnect the supply pipe unions at the injectors, the
front union connection and the pilot tube union
connection from the combustion products discharge
safety device, see diagram 8.1. Disconnect the ignition
lead from piezo unit on the gas tap, see diagram 8.5.
Disconnect the thermocouple at the base of the gas tap,
see diagram 8.5.
Unfasten the burner securing screws at each end and
remove taking care not to damage the thermocouple
capillary and ignition lead, see diagram 8.5.
Unscrew the injectors, inspect, clean or replace as
necessary. Do not clean with a wire or a sharp
instrument.
Remove injector box cover screw and plate, clean out
dust etc., see diagram 8.2.
Brush away any lint and dust from the burner, etc.
8.5 Combustion Products Discharge Safety
Device
Remove the burner refer to Section 8.3.
Check the condition of the electrode and thermocouple,
clean with a soft brush.
To replace slide the silicone cover off the electrode,
disconnect the ignition lead, remove the mounting
bracket securing screws and the combustion products
discharge safety device, see diagram 8.3.
Before replacing bend the new thermocouple capillary to
shape using the old one as a template, avoid making
sharp bends.
Make sure the spark gap is as in diagram 8.4.
Diagram 8.2
8.6 Ignition Lead
Remove burner as Section 8.3.
Slide the silicone cover of the electrode, disconnect the
and ignition lead at both ends. When fitting a
replacement the clear end is fitted to the electrode.
Diagram 8.4
5296
INJECTOR
BOX
SECURING
SCREW
INJECTORS
THERMOCOUPLE
SECURING
SCREW (2)
PILOT TUBE
UNION
CONNECTION
IGNITION LEAD
(CLEAR END) Diagram 8.3
5295
ELECTRODE
SPARK GAP
3
EARTH
POST - 0.5
+ 1
THERMOCOUPLE
EARTH
POST
TOP VIEW
ELECTRODE C
L
SILICONE
COVER)
