GLUCKSTEIN ELEMENTS HUGH 38710-HBC User manual

THANK YOU
create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Gluckstein Elements!
USE AND CARE GUIDE
HUGH 52-INCH INDOOR LED CEILING FAN
Item # 1001591933
Model # 38710-HBCG
Model #38710-HBC
Item # 1001591904
We appreciate the trust and confidence you have placed in Gluckstein Elements through the purchase of this ceiling fan. We strive to continually
HOMEDEPOT.CA

2
Table of Contents ................................................................ 2
Safety Information............................................................... 2
Warranty ............................................................................... 3
Pre-Installation .................................................................... 3
Installation............................................................................ 6
Assembly............................................................................ 7
Operation ........................................................................... 11
Care and Cleaning............................................................. 12
Troubleshooting................................................................. 13
To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting 15.9 kg (35 lbs). Use only UL-
listed
outlet boxes marked “Acceptable for Fan Support of 15.9 kg
Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
Do not place objects in the path of the blades.
Safety Information
Table of Contents
READ AND SAVE THESE INSTRUCTIONS.
installation should be performed bya qualified licensed
IC Statement ...................................................................... 13
WARNING:
To reduce the risk of personal injury, do not
WARNING:
WARNING:
To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
CAUTION:
To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
bend the blade brackets when installing the brackets,
balancing the blades, or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
To reduce the risk of fire, electric shock
or personal injury, mount to an outlet box marked
“acceptable for fan support of 15.9 kg (35 lbs) or less”
and use screws provided with the outlet box.
Thefan must bemounted with a minimum
CAUTION:
of 7 ft. (2.1m) of clearance from the trailing edge of the
blades to the floor.
After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
All set screws must be checked and retightened where
necessary before installation.
Changes or modifications not expressly
CAUTION:
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
WARNING:
shock, do not use this fan with any solid-state speed
control device.
To reduce the risk of fire or electric
WARNING:
fan must be installed with an isolating wall control/
switch.
To reduce the risk of electric shock, this
□
□
□
□
□
□
□
(35 lbs) or less”.
CAUTION:
To reduce the risk of personal injury,
use only the screws provided with the outlet box.

3
Pre-Installation
Warranty
TOOLS REQUIRED
NOTE:
These are approximate measures. They do not
include the amps and wattage used by the light kit.
Phillips
screwdriver
Flat head
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Contact the Customer Service Team visit WWW.HOMEDEPOT.CA
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of a lifetime
after the date of purchase by the original purchaser. We warrant that the light kit to be free from defects in workmanship and material at the time of
shipment from the factory for a period of five years after the date of purchase by the original purchaser. We also warrant that all other fan parts,
excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of
two years after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installation, or by
affixing any accessories, is not covered by this warranty. Because of varying climatic conditions, this warranty does not cover any changes in brass
finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful life when protected from varying
weather conditions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. We hereby disclaim any and all warranties, including but not limited to those
of merchantability and fitness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specified in the express warranty. Some provinces do not allow limitation on how long an implied warranty
lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in
connection with product use or performance except as may otherwise be accorded by law. Some provinces do not allow the exclusion of incidental or
consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have
other rights which vary from province to province. This warranty supersedes all prior warranties. Shipping costs for any return of the product as part
of a claim on the warranty must be paid by the customer.
SPECIFICATIONS
141.54
114.13
89.05
1849.96
3272.17
4825.86
Size Speed Volts CFM
Fan Power
Consumption
(Without Lights)
WATT
(Higher Is Better)
CFM/WATT
Net
Weight
Gross
Weight Cubic Feet
52 in.
Low
120
54.19
2.34 cu. ft.
Medium 28.67
High
13.07
19.13 lbs
(8.67 kgs)
21.64 lbs
(9.82 kgs)
HOMEDEPOT.CA

4
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE:
Hardware not shown to actual size.
AA
BB
CC
DD
EE
Blade screw (preassembled)
Mounting screw (preassembled) 4
Wire nuts
9
3
9
Fiber washer (preassembled)
FF
II
AA
BB
CC
DD
Part Description Quantity
EE
FF
Metal washer
GG
Wood screw 4
4
JJ
GG
8
Decorative sheet screws (preassembled)
3
Light kit plate screw (preassembled)
HH 4
Lamp screw (preassembled)
HH
II
JJ 2
Remote control holder screw

5
PACKAGE CONTENTS
DLight kit plate 1
A
B
C
4
1
1
Fan blade
Mounting plate
Fan motor assembly
Lamp shade
Remote control
1
H
F
B
A
E
Part Description Quantity Part Description Quantity
Pre-Installation (continued)
C
G
1
H
I
J
Decorative sheet 4
1H 8H
4H
2H
D
F
G
Lamp 1
E
Remote control holder 1
I
Battery AAA 1.5 V 2
J
HOMEDEPOT.CA

6
Installation
MOUNTING OPTIONS
WARNING:
personal injury, mounttooutletbox marked “acceptable
for fan support of 15.9 Kg (35 lbs) or less” using the
screwsprovided with theoutlet box. An outlet box
not beacceptable for fan support and may need to be
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 15.9 kg). Do not use a plastic
outlet box.
The illustrations below show three different ways to mount the
outlet box.
Outlet Box
Outlet Box
To reduce the risk of fire, electric shock, or
commonly used for the support of lighting fixtures may
replaced. If in doubt, consult a qualified electrician.

7
Assembly - Hanging the Fan
Attaching the mounting bracket to
the electrical box
1
Hanging the fan-motor assembly
□
2
□Secure the mounting plate (B) to the ceiling outlet box
with the screws and washers provided with your outlet
box.
B
Carefully lift the fan-motor assembly (C) and engage the slot
in the motor bracket on the top of the fan motor assembly (C)
with the hook on the mounting plate (B) so that it is securely
suspended.
B
C
WARNING :
To reduce the risk of fire, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 15.9 kg (35 lbs)
or less” and use screws provided with the outlet box.
HOMEDEPOT.CA

8
Assembly - Hanging the Fan (continued)
Making the electrical connections
3
WARNING:
Follow the steps below to connect the fan to your house supply
wires. Secure the wire nuts (DD) supplied with your fan by
wrapping the connections with electrical tape.
the electricity is turned off at the circuit breaker or main
fuse box before wiring.
To avoid possible electrical shock, ensure
□
□
□
□
□
WARNING:
including the ground, and that no bare wire is visible at
the wire nuts, except for the ground wire.
Check to see that all connections are tight,
prevent people being hurt in case the fixture drops
accidentally. It must be securely installed.
□
□
WhiteGreen Black
1
EE
FF
Put the end of the cable through the holes of the crimping column
and form a small loop of suitable size. Then tighten the crimping
screws to lock the cable. Use a wood screw (EE) with a metal
washer (FF) through the cable loop and secure it at the ceiling.
Connect the black (hot) wire from the ceiling to the
black wire from the fan motor assembly (C).
Connect the white (neutral) wire from the ceiling to
the white wire from the fan motor assembly (C).
If your outlet box (1) has a ground wire (green or bare
copper), connect it to the fan ground wires.
Secure the wire connection with a plastic wire nut
(DD) provided with the electrical hardware.
After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box (1) and the black wires are on the other side.
Carefully tuck the wire connections up into the outlet
box (1).
DD (x3) C
ATTENTION :
This steel cable is a protection device to

9
Assembly - Hanging the Fan (continued)
Completing the fan assembly
4Attaching the blades
5
Attaching the light kit plate
6

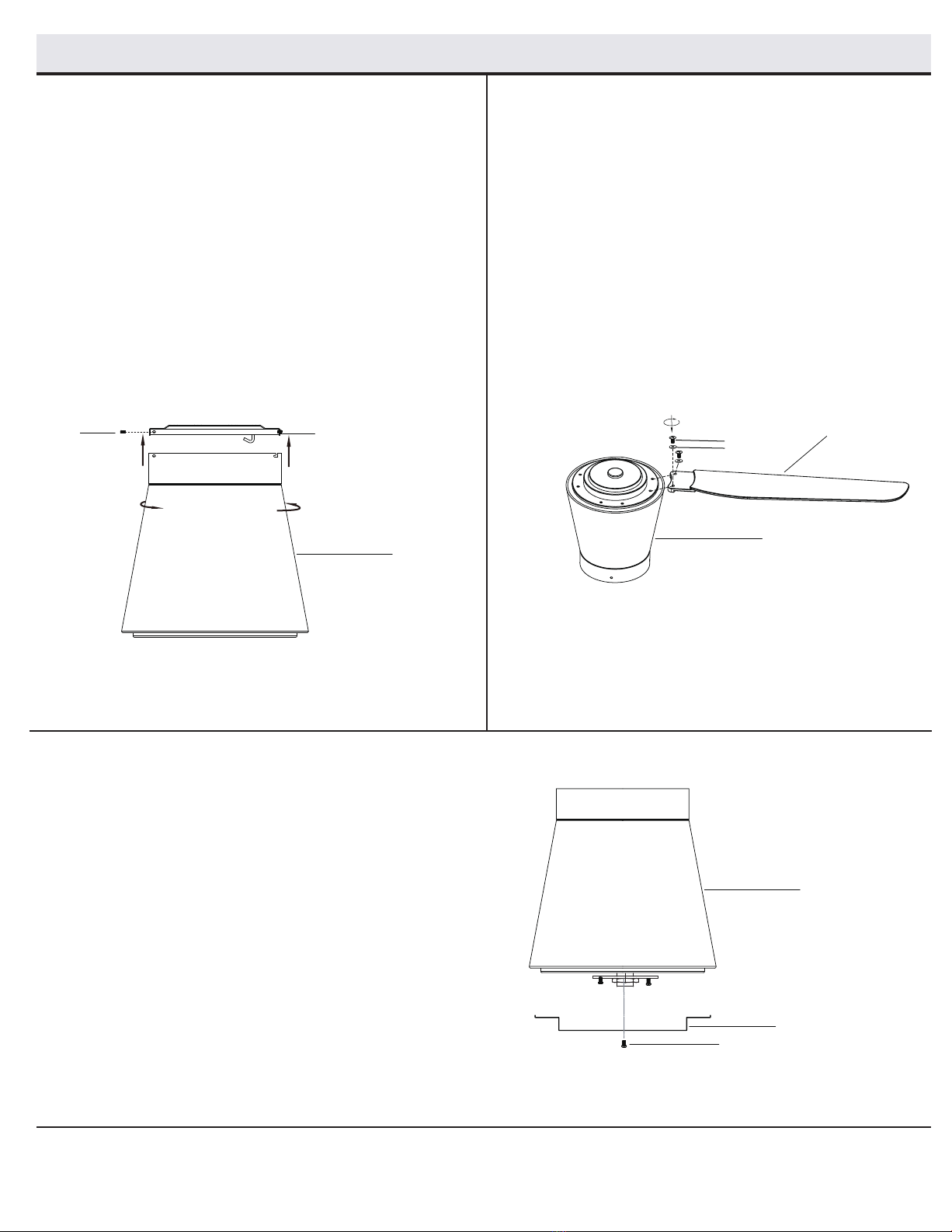

□Remove the two mounting screws (AA) on two diagonal sides
from the top of the mounting plate (B) and loosen the other
two mounting screws (AA).
Align the two key slots on the top of the fan motor assembly (C)
with the two mounting screws (AA) on the mounting plate (B).
Push the fan motor assembly (C) up and turn it clockwise to lock
in the mounting plate (B). Tighten the two screws.
Install the mounting screws (AA) that were removed at the
beginning of this step into the remaining two holes and tighten
the four mounting screws (AA) firmly.
□
□
C
D
GG
C
B
AA
BB
CC
C
A
□Attach the light kit plate (D) onto the fan motor assembly (G).
Align the locking slots of the light kit plate (D) with the two
light kit plate screws (GG) in the fan motor assembly (G). Push up
to engage the slots and turn clockwise to lock in place.
Install and tighten the screws (GG).
□Loosen two light kit plate screws (GG) located in the “L-shaped”
slots. Remove and save the light kit plate screw (GG) in the
round holes.
HOMEDEPOT.CA
□Attach the fan blades (A) to the fan motor assembly (C)
by using the blade screws (BB) and fiber washers (CC).
Tighten blade screws (BB) securely.
□
Remove the face of the motor. Discard any rubber blocks
attached to these screws. The rubber blocks are installedat
the factory to stabilize the motor during shipment.
Repeat these steps for the remaining blades (A).
□

10
Assembly - Hanging the Fan (continued)
Installing the lamp
7Installing the lamp shade
8
□Place the lamp shade (F) onto the light kit and rotate until
secure.
Attaching the decorative sheet
9
□Attach the decorative sheets (G) onto the fan motor
assembly (C) using two lamp shade screws (II).
Repeat these steps for remaining decorative sheets (G).
□Attach the lamp (E) onto the light kit plate (D).
Align the locking slots of the light kit plate (D) with the four
lamp screws (HH) in the light kit panel (D). Push up to
engage the slots and turn clockwise to lock in place. Firmly
tighten the four lamp screws (HH).
C
G
II
E
□
F
A wire connector (male) is located inside the electrical switch
housing and a female connector extends from the lamp. Push
them together.
□
D
HH

11
1
Operation
Install two 1.5V (J) battery into the remote control (H). To prevent
damage to the remote control, remove the battery if not used for long
periods of time.
3. Fan speed
1. Press and release the button, the fan will turn ON and OFF accordingly.
□
7. Timer (1H, 2H, 4H, 8H)
Press the (1H/2H/4H/8H) buttons to automatically turn the fan off
after 1, 2, 4 or 8 hours.
□

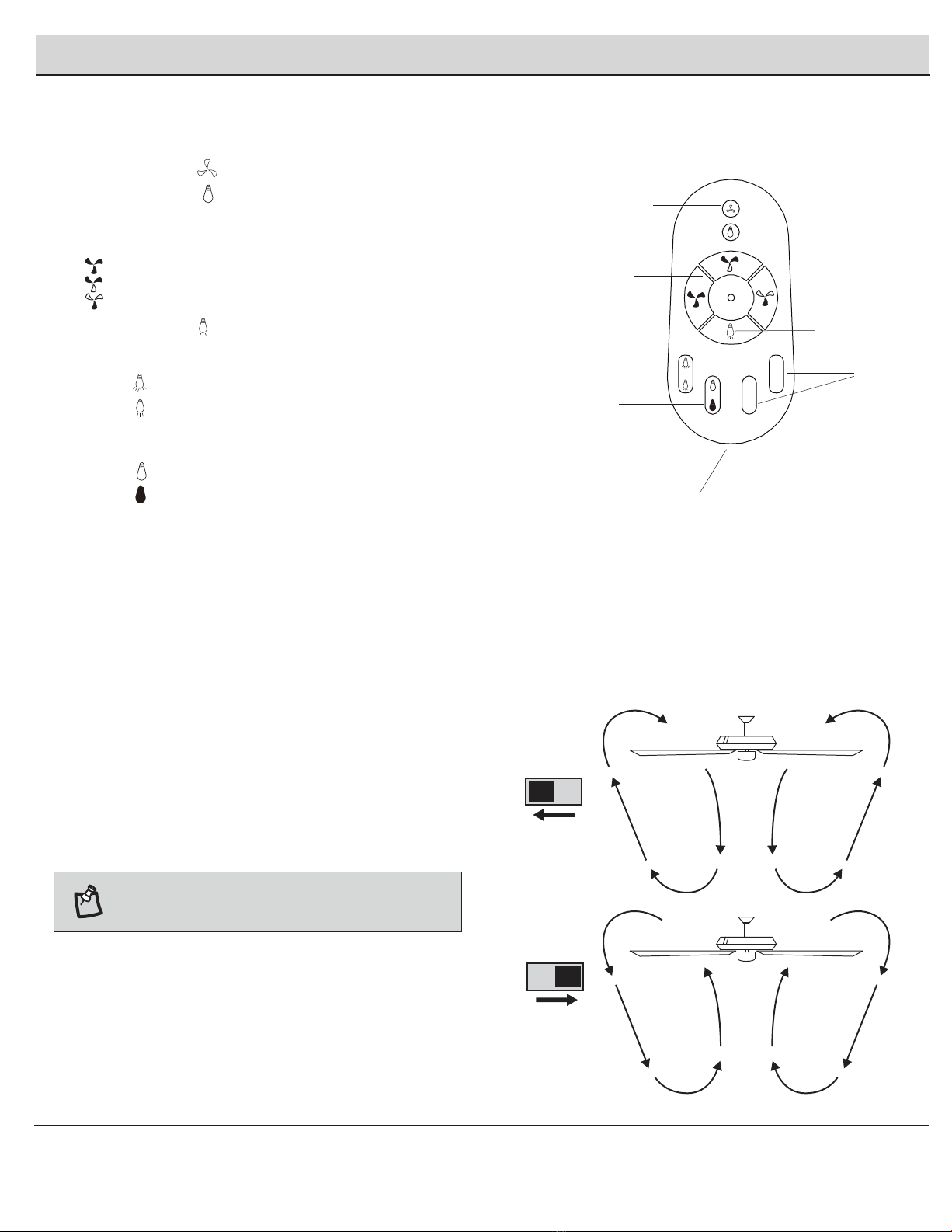

REMOTE CONTROL OPERATING INSTRUCTIONS
6. Color temperature
Press the button to change the light colour from warm light to white light.
□
5. Dimmer
Press the button to increase brightness.
□1H 8H
4H
2H
Press the button to decrease brightness.
□
Press the button to change the light colour from white light to warm light.
□
Press the respective FAN SPEED button, you can select fan speed 1-3. 2
3
5
6
7
4
HIGH SPEED
MEDIUM SPEED
LOW SPEED
2. Press and release the button, the light will turn ON and OFF accordingly.
4. Press and release the button, the light will change to lowest brightness.
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
The reverse switch is located on the surface of the motor assembly.
This switch controls directions: forward (switch left) or reverse
(switch right).
Warm weather - (counterclockwise direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (clockwise direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
REVERSE SWITCH OPERATING INSTRUCTIONS
HOMEDEPOT.CA
F

□Becauseof thefan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. Itisnot necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as thiscould damage
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can applya light coatoffurniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application ofshoe polish.
□You donotneed tooil your fan. The motor has permanently lubricated, sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
the motor, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the finish. The
□Always unplug the fan before cleaning, disassembly or servicing.
12
Operation (continued)
Care and Cleaning
I
JJ
□Install the wall plug onto the wall, and then attach the remote control
holder (I) with the two remote control holder screws (JJ).
INSTALLING THE REMOTE CONTROL HOLDER

13
Troubleshooting
This device contains license-exempt transmitter(s)/receiver(s) that comply with lnnovation, Science and Economic Development Canada’s
license-exempt RSS(s). Operation is subject to the following two conditions:
□ This device may not cause interference.
□ This device must accept any interference, including interference that may cause undesired operation of the device.
HOMEDEPOT.CA
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the ceiling fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket and outlet
box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□
The fan moves
backwards and
forwards when turned
on.
This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result of the DC
motor aligning the internal magnetic poles for proper motor operation. This design saves electricity and allows
the fan to operate more quietly than standard AC motor fans.
□
Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the
fan continues to wobble, please contact Customer Service. A balancing kit will be sent to you at no charge.
Check the battery in the remote control.
Ensure you are in the normal range of 10-17 feet.
□
□
IC Statement

Retain this manual for future use.
HOMEDEPOT.CA
