GMC DEC001SI User manual

Black Code: DEC001SI
Date: 060113 Edition: 10 Op: DCR
30W
SOLDERING
IRON
DEC001SI

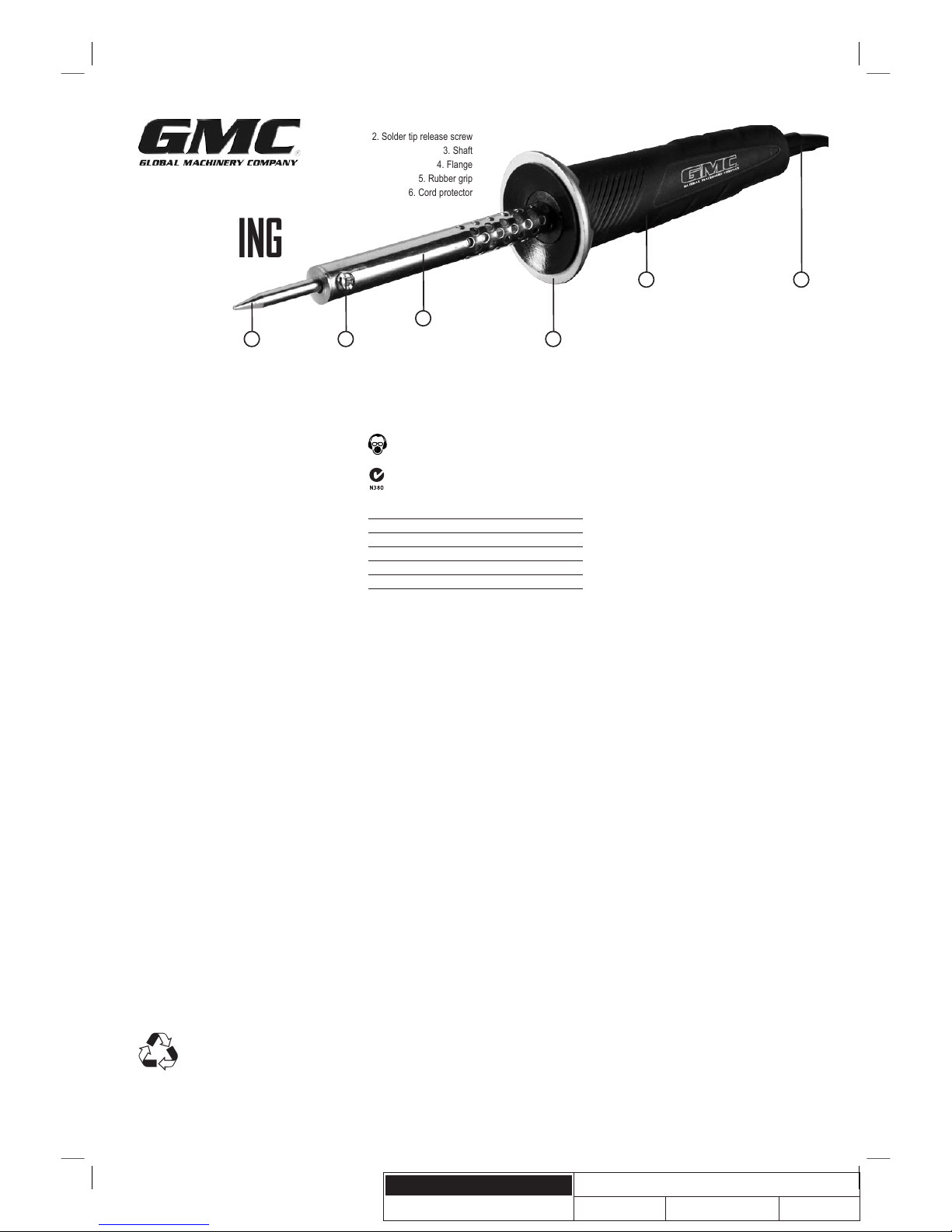

1. Solder tip
2. Solder tip release screw
3. Shaft
4. Flange
5. Rubber grip
6. Cord protector
Full 2 years home use warranty
Whilst every effort is made to ensure your complete
satisfaction with this tool, occasionally, due to the mass
manufacturing techniques, a tool may not live up to our
required level of performance and you may need the
assistance of our service department.
This product is warranted for a 2-year period for home
domestic use from the date of the original purchase. If
found to be defective in materials or workmanship, the
tool or the offending faulty component will be replaced
free of charge with another of the same item. A small
freight charge may apply.
The warranty replacement unit is only made available
by returning the tool to the place of purchase with
a confirmed register receipt. Proof of purchase is
essential. We reserve the right to reject any claim where
the purchase cannot be verified.
This warranty does not include damage or defects to
the tool caused by or resulting from abuse, accidents,
alterations or commercial or business use.
It also does not cover any bonus accessories unless the
tool is a GMC Platinum Professional model.
Please ensure that you store your receipt in a
safe place.
Conditions apply to the above warranty.
If you need direction of what constitutes a free of
charge warranty claim, please review the guide given
on the rear of the Receipt Holder. An indication is given
as to the types of claim that are permissible, and those
that are not.
Dear customer
If you require any help with your product, whether it is a
Warranty claim, spare part or user information, please
phone our Help Line for an immediate response.
Phone [phone] in Australia
or 0800 445 721 in New Zealand.
Introduction
Your new GMC power tool will more than satisfy
your expectations. It has been manufactured under
stringent GMC Quality Standards to meet superior
performance criteria.
You will find your new tool easy and safe to operate,
and, with proper care, it will give you many years of
dependable service.
Caution
Carefully read through this entire Instruction Manual
before using your new GMC Power Tool. Take special
care to heed the Cautions and Warnings.
Your GMC power tool has many features that will
make your job faster and easier. Safety, performance,
and dependability have been given top priority in the
development of this tool, making it easy to maintain and
operate.
Environmental protection
Recycle unwanted materials instead of
disposing of them as waste. All tools, hoses
and packaging should be sorted, taken to
the local recycling centre and disposed of in
an environmentally safe way.
Description of symbols
The rating plate on your tool may show symbols. These
represent important information about the product or
instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Conforms to relevant standards for
electromagnetic compatibility.
Specifications
Input power: 30W
Power supply: 230-240V ~ 50 Hz
Shaft material: Stainless steel
Solder tip: Nickel-coated
Cord length: 1.4 metres
Tool weight: 0.2 kg
Safety instructions
WARNING. Read and understand all instructions.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury. The term
“power tool” in all of the warnings below refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Save these instructions
Work area
• Keep work area clean and well lit. Cluttered and
dark areas invite accidents.
• Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
• If cordset is damaged, have it replaced by an
authorised service centre.
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.
• When operating a power tool outdoors, use an
outdoor extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the
risk of electric shock.
Personal safety
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol, or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
• Use safety equipment. Always wear eye protection.
Safety equipment such as a dust mask, non-skid
safety shoes, hard hat, or hearing protection use.
• Avoid accidental starting. Ensure the switch is in
the off-position before plugging in. Carrying power
tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before
turning the tool on. A wrench or a key that is left
attached to a rotating part of the power tool may
result in personal injury.
• Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
• If devices are provided for the connection of dust
extraction and collection facilities ensure that
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
Power tool use and care
• Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it
was designed.
• Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
• Disconnect the plug from the power source
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power tool accidentally.
• Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
• Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from intended could result
in a hazardous situation.
1 2 4
56
3

Service
• Have your power tool serviced by a qualified
repair personnel using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
• When operating a power tool outdoors, use an
outdoor extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the
risk of electric shock.
Additional safety instructions for
soldering irons
WARNING. This tool must be placed on it’s stand when
not in use.
• Ensure this product is always used on a mains circuit
protected by an earth.
• Always wear safety glasses when operating
the soldering iron as solder may spit
• When the soldering iron is not in use, always return
it to its stand
• Always ensure the work area is both well
lit and well-ventilated
• Never leave the soldering iron plugged in
and unattended
• Be sure to always solder on a fire resistant surface
• Never touch the soldering tip while the soldering iron
is plugged in
• Solder contains lead which is a poisonous metal, so
always ensure your hands are washed after using
solder
To use this tool properly, you must observe the safety
regulations, the assembly instructions and the operating
instructions to be found in this Manual. All persons who
use and service the machine have to be acquainted with
this Manual and must be informed about its potential
hazards. Children and infirmed people must not use this
tool. Children should be supervised at all times if they
are in the area in which the tool is being used. It is also
imperative that you observe the accident prevention
regulations in force in your area. The same applies for
general rules of occupational health and safety.
The manufacturer shall not be liable for any changes
made to the tool nor for any damage resulting from
such changes.
Even when the tool is used as prescribed it is not
possible to eliminate all residual risk factors. The
following hazards may arise in connection with the tool’s
construction and design:
• Damage to the lungs if an effective dust mask is
not worn
• Damage to hearing if effective earmuffs are not worn.
• Damage to eyes if effective goggles are not worn
• Risk of injury unless hands are kept well clear of
cutting devises
Unpacking
Due to modern mass production techniques, it is unlikely
that your GMC Power Tool is faulty or that a part is
missing. If you find anything wrong, do not operate the
tool until the parts have been replaced or the fault has
been rectified. Failure to do so could result in serious
personal injury.
Operation
WARNING. Before connecting a tool to a power
source, be sure that the voltage supply is the same as
that specified on the nameplate of the tool. A power
source with a voltage greater than that specified for
the tool can result in serious injury to the user, as well
as damage to the tool. If in doubt, do not plug in the
tool. Using a power source with a voltage less than the
nameplate rating is harmful to the motor.
Setting up the iron stand
1. By firmly holding the stand with both hands, press the
centre of the stand in so that it separates itself from
the rest of the stand and bend to approximately 45°
from the base.
Switch on
1. Ensure the soldering iron is resting securely on the
iron stand before plugging in to the power.
2. After switching on the power, allow the tool a few
minutes to heat up to its operating temperature.
Switch off
1. It is highly recommended that the soldering tip is
wiped clean on a damp sponge (not included) after
use to prolong service life and performance.
2. Place the soldering iron securely on its stand. Switch
off the tool at the power switch and unplug the unit.
For safety, please ensure the unit is well minded until
it has entirely cooled down.
Preparing to solder
WARNING. Always use safety glasses and ensure the
work area is well ventilated to help avoid breathing in
dangerous fumes.
The GMC Soldering Iron is typically used to melt and
apply solder on various surfaces including circuit boards.
1. Before beginning to solder, secure the work piece so
that it does not move and affect your accuracy.
2. Prepare a damp sponge nearby to clean the tip
when required.
3. Melt a small amount of solder onto the tip of the iron
(1). This process is known as ‘tinning’ and will assist
the heat in following from the soldering iron’s tip, to
the solder joint. It is important to do this immediately
with new soldering tips.
3. Ensure that the workpiece and soldering tip are
clean. The workpiece can be cleaned with the use
of a small file or knife blade. It is recommended
that the user wipe clean the soldering tip with a damp
sponge before, during and after soldering. This will
help promote a cleaner and stronger solder joint.
Soldering
1. Hold the soldering iron close to the base of the
handle (5), and just above the flange (4) like a pen.
WARNING. Never touch the shaft (3) or tip (1) as
temperatures can range up to 400°C.
2. Hold the soldering iron with the tip pressed onto the
workpiece for a few second to allow it to heat up.
3. Slowly feed the solder onto the joint, not the soldering
iron, allowing the solder to melt onto the joint.
4. Once the solder has been applied to the joint, hold
the workpiece still while removing the solder and
soldering iron simultaneously.
NOTE. A good solder joint will appear smooth and
shiny. If this is not the case, you will need to reheat the
joint and re-apply the solder.
Removing the tip
WARNING. Do not attempt to remove the tip while the
soldering iron is still hot.
1. To help prevent the tip from bonding to the shaft,
which may cause the heater element to burn out,
it is recommended that the tip (1) be removed after
each use.
2. To remove the tip (1), clamp the soldering iron and
apply two phillips head screwdrivers to the screws
just above the soldering tip (2) and turn anti-
clockwise until the screws are loose and remove
the tip.
45–55 South Centre Road Melbourne Airport
Victoria, Australia 3045
Tel: [phone] Fax: [phone]
Full 2-Year Warranty
This product is warranted for a 2-year period for
home domestic use from the date of the original
purchase. If found to be defective in materials
or workmanship, the tool or the offending faulty
component will be replaced free of charge with
another of the same item. A small freight charge
may apply.
The warranty replacement unit is only made
available by returning the tool to the place of
purchase with a confirmed register receipt.
Proof of purchase is essential. We reserve the
right to reject any claim where the purchase
cannot be verified. This warranty does not
include damage or defects to the tool caused by
or resulting from abuse, accidents, alterations or
commercial or business use.
Consistent with our product development
programme, improvements may have been made
which render the contents of the tool’s packaging
or user instructions slightly different to the
product received.
Phone [phone] Facsimile [phone]
Email [email protected]
Website www.gmcompany.com
Copyright Global Machinery Company Australia
Proprietary Limited, 2001
Dear customer, if you require any help with your
product, whether it is a Warranty Claim, spare
part or user information, please phone our
Help Line
1300 880 001 (Australia)
or 0800 445 721 (New Zealand), for an
immediate response.
Product of China manufactured to exacting
GMC quality standards.
ABN: 68 093 174 808
The GMC 777 Helpline
operates from 7am to
7pm, 7 days a week (EST).
This allows you to contact GMC directly with
any queries and technical questions you have
regarding our products.
Save this Manual for future reference.

3.6V
CORDLESS
SCREWDRIVER
DEC002SD

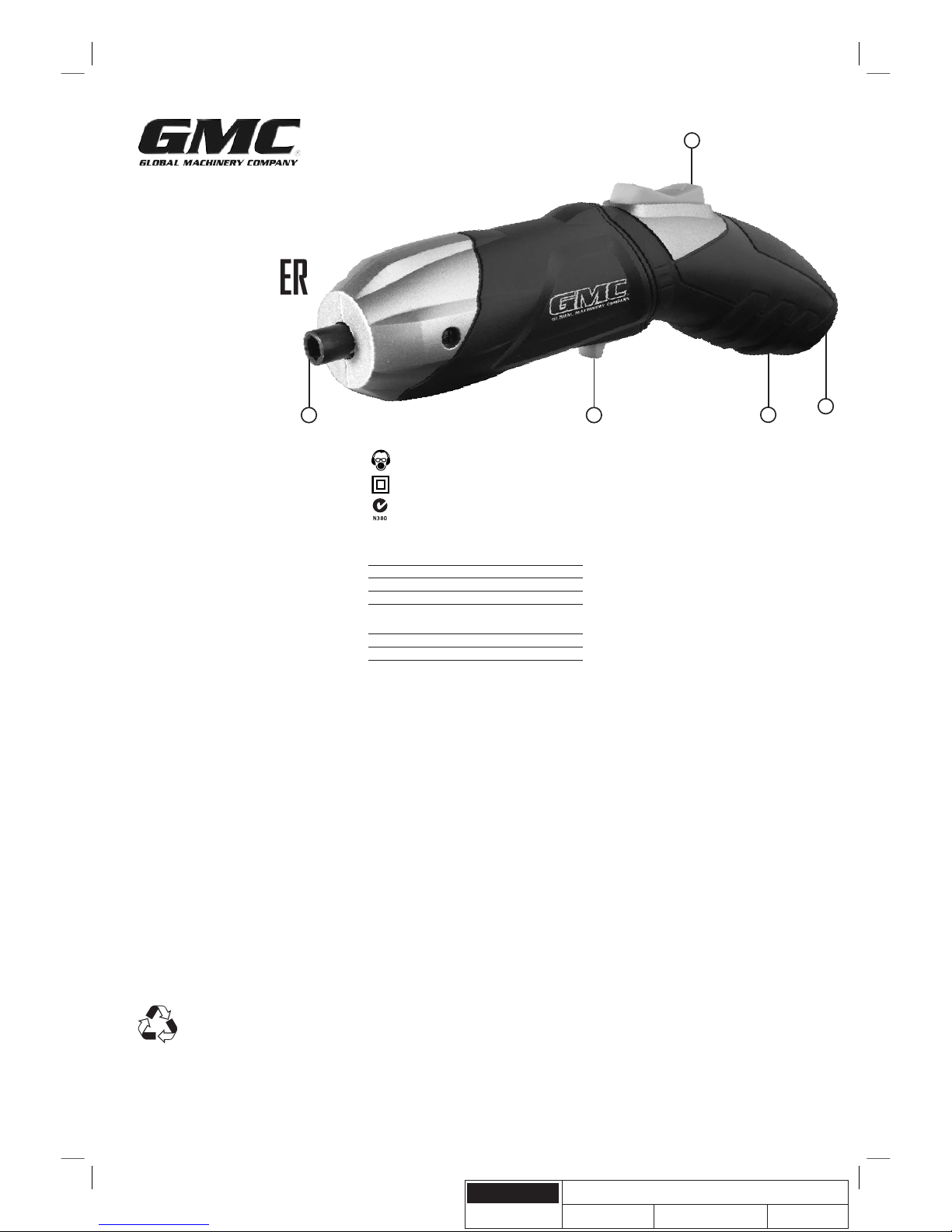

1. Chuck
2. Forward/Reverse switch
3. Handle adjusting switch
4. Charging socket
5. Charging indicator
Full 2 years home use warranty
Whilst every effort is made to ensure your complete
satisfaction with this tool, occasionally, due to the mass
manufacturing techniques, a tool may not live up to our required
level of performance and you may need the assistance of our
service department.
This product is warranted for a 2-year period for home domestic
use from the date of the original purchase. If found to be
defective in materials or workmanship, the tool or the offending
faulty component will be replaced free of charge with another of
the same item. A small freight charge may apply.
The warranty replacement unit is only made available by
returning the tool to the place of purchase with a confirmed
register receipt. Proof of purchase is essential. We reserve the
right to reject any claim where the purchase cannot be verified.
This warranty does not include damage or defects to the tool
caused by or resulting from abuse, accidents, alterations or
commercial or business use.
It also does not cover any bonus accessories unless the tool is a
GMC Platinum Professional model.
Please ensure that you store your receipt in a safe place.
Conditions apply to the above warranty.
If you need direction of what constitutes a free of charge
warranty claim, please review the guide given on the rear of the
Receipt Holder. An indication is given as to the types of claim
that are permissible, and those that are not.
Dear customer
If you require any help with your product, whether it is a
Warranty claim, spare part or user information, please phone our
Help Line for an immediate response.
Phone [phone] in Australia
or 0800 445 721 in New Zealand.
Introduction
Your new GMC power tool will more than satisfy your
expectations. It has been manufactured under stringent GMC
Quality Standards to meet superior performance criteria.
You will find your new tool easy and safe to operate, and, with
proper care, it will give you many years of dependable service.
Caution
Carefully read through this entire Instruction Manual before
using your new GMC Power Tool. Take special care to heed the
Cautions and Warnings.
Your GMC power tool has many features that will make your job
faster and easier. Safety, performance, and dependability have
been given top priority in the development of this tool, making it
easy to maintain and operate.
Environmental protection
Recycle unwanted materials instead of disposing
of them as waste. All tools, hoses and packaging
should be sorted, taken to the local recycling
centre and disposed of in an environmentally
safe way.
Description of symbols
The rating plate on your tool may show symbols. These
represent important information about the product or instructions
on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Double insulated for additional protection.
Conforms to relevant standards for
electromagnetic compatibility.
Specifications
Screwdriver
Battery voltage: 3.6V DC
Battery rating: 600mAh, Ni-Cd
No load speed: 200min-1
Tool weight: 0.4 kg
Battery Charger
Input voltage: 230-240V~50 Hz
Output voltage: 5V DC 300mA
Charging time: 5-7 Hours
Safety instructions
WARNING. Read and understand all instructions. Failure to
follow all instructions listed below may result in electric shock,
fire and/or serious injury. The term “power tool” in all of the
warnings below refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
Save these instructions
Work area
• Keep work area clean and well lit. Cluttered and dark
areas invite accidents.
• Do not operate power tools in explosive atmospheres, such
as in the presence of flammable liquids, gases, or dust.
Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical safety
• Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed
or grounded.
• Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an outdoor
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
Personal safety
• Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
• Use safety equipment. Always wear eye protection.
Safety equipment such as a dust mask, non-skid safety
shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
• Avoid accidental starting. Ensure the switch is in the off-
position before plugging in. Carrying power tools with your
finger on the switch or plugging in power tools that have the
switch on invites accidents.
• Remove any adjusting key or wrench before turning the
tool on. A wrench or a key that is left attached to a rotating
part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
• If devices are provided for the connection of dust
extraction and collection facilities ensure that these are
connected and properly used. Use of these devices can
reduce dust-related hazards.
Power tool use and care
• Do not force the power tool. Use the correct power tool for
your application. The correct power tool will do the job better
and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
• Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools
are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that
may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused
by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
• Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner
intended for the particular type of power tool, taking
into account the working conditions and the work to be
performed. Use of the power tool for operations different
from intended could result in a hazardous situation.
Service
• Have your power tool serviced by a qualified repair
personnel using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
Additional safety instructions for drills
• If possible, always use clamps or a vice to hold your work.
• Always switch off before you put the drill down.
• Ensure that the lighting is adequate.
2
4
5
31
Black Code: DEC002SD
Date: 060113 Edition: 08 Op: DCR

• Do not put pressure on the drill, such that it slows the motor
down. Allow the drill bit to cut without pressure. You will get
better results and you will be taking better care of your tool.
• Keep the area free of tripping hazards.
• Do not let anyone under 18 years operate this tool.
• Only use accessory bits in good condition.
• Before drilling, check that there is sufficient clearance for the
drill bit under the workpiece.
• Do not touch the bit after operation. It will be very hot.
• Keep your hands away from under the workpiece.
• Never use your hands to remove sawdust, chips or waste
close by the bit.
• Rags, cloths, cord, string and the like should never be left
around the work area.
• Support the work properly.
• If you are interrupted when operating the drill, complete the
process and switch off before looking up.
• Periodically check that all nuts, bolts and other fixings are
properly tightened.
• When using the drill, use safety equipment including safety
glasses or shield, ear defenders, and protective clothing
including safety gloves. Wear a dust mask if the drilling
operation creates dust.
If in doubt, do not plug in the tool. Using a power source with a
voltage less than the nameplate rating is harmful to the motor.
The tool must be used only for its prescribed purpose.
Any use other than those mentioned in this Manual will be
considered a case of misuse. The user and not the manufacturer
shall be liable for any damage or injury resulting from such
cases of misuse.
To use this tool properly, you must observe the safety
regulations, the assembly instructions and the operating
instructions to be found in this Manual. All persons who use and
service the machine have to be acquainted with this Manual and
must be informed about its potential hazards.
Children and infirmed people must not use this tool. Children
should be supervised at all times if they are in the area in which
the tool is being used. It is also imperative that you observe the
accident prevention regulations in force in your area. The same
applies for general rules of occupational health and safety.
The manufacturer shall not be liable for any changes made to
the tool nor for any damage resulting from such changes.
Even when the tool is used as prescribed it is not possible to
eliminate all residual risk factors. The following hazards may
arise in connection with the tool’s construction and design:
• Damage to the lungs if an effective dust mask is not worn.
• Damage to hearing if effective ear defenders are not worn
Additional safety instructions for the charger
• Before using the charger, read all the instructions and
cautionary markings on the charger and battery pack as well
as the instructions on using the battery pack.
• Only charge your batteries indoors as the charger is
designed for indoor use only.
• DANGER. If the battery pack is cracked or damaged in any
other way, do not insert it in the charger. There is a danger
of electric shock or electrocution.
• WARNING. Do not allow any liquid to come into contact with
the charger. There is a danger of electric shock.
• To allow the battery pack to cool down after charging, do not
place it in a hot environment such as a metal shed or open
trailer left in the sun.
• The charger is not intended for any use other than charging
the exact type of rechargeable battery pack as supplied
with the charger. Any other use may result in the risk of fire,
electric shock or electrocution.
• The charger and battery packs supplied with it are
specifically designed to work together. Do not attempt to
charge the battery pack with any other charger than the
one supplied.
• Do not place any object on top of the charger as it could
cause overheating. Do not place the charger near any
heat source.
• Do not pull on the lead of the charger to disconnect it from
the power source.
• Make sure that the charger cable is positioned where it will
not be stepped on, tripped over or otherwise subjected to
damage or stress.
• Do not use an extension cord unless it is absolutely
necessary. The use of an improper extension cord could
cause the risk of fire, electric shock or electrocution.
• Do not use the charger if it has been subjected to a heavy
knock, dropped or otherwise damaged in any way. Take the
charger to an authorised service centre for a check or repair.
• Do not disassemble the charger. Take it to an authorised
service centre when service or repair is required. Incorrect
re-assembly may result in the risk of fire, electric shock or
electrocution.
• To reduce the risk of an electric shock, unplug the charger
from the power supply before attempting to clean it.
Removing the battery alone does not reduce the risk.
• Never attempt to connect two chargers together.
• Do not store or use the tool and battery pack in locations
where the temperature may reach or exceed 104°F (40°C)
such as alongside sheds or metal structures in the summer.
• The charger is designed for use from a standard household
electrical supply (230–240 volts). Do not attempt to connect
the charger to a supply with a different supply.
• If you wish to charge a second battery pack, unplug the
charger from the mains supply and leave it for at least
15 minutes. After this time you can charge a second
battery pack.
Additional safety instructions for the
battery pack
• The battery pack for this tool has been shipped in a low
charge condition. You should charge the battery pack fully
before use.
• To ensure the longest battery life and best battery
performance, always charge the battery when the air
temperature is between 18–24°C. Do not charge the battery
pack when the temperature is below 4°C, or above 40°C.
This is important. Failure to observe this safety rule could
cause serious damage to the battery pack.
• Do not incinerate the battery pack even if it is seriously
damaged or can no longer hold a charge. The battery pack
can explode in a fire.
• Never attempt to open the battery pack for any reason. If the
plastic housing of the battery pack breaks open or cracks,
immediately discontinue its use and do not recharge it.
• The battery pack utilizes nickel-cadmium cells. Cadmium is
considered to be a toxic material. Use an environmentally
safe disposal unit at a municipal waste disposal centre to
dispose of a damaged or worn out battery.
Unpacking
Due to modern mass production techniques, it is unlikely that
your GMC Power Tool is faulty or that a part is missing. If you
find anything wrong, do not operate the tool until the parts have
been replaced or the fault has been rectified. Failure to do so
could result in serious personal injury.
Accessories
The GMC DEC002SD comprises the following components:
1 Instruction manual
1 Battery charger
1 Magnetic bit holder
2 Interchangeable screwdriver bits
Fitting and removing bits
NOTE. The drill bit supplied with the DEC002SD is not designed
for use with the magnetic bit holder.
1. To use the short drill bit supplied, insert the bit directly into
the chuck (1) as far as possible. The drill is now ready to
be used.
2. To use the magnetic bit holder, push the bit into the chuck
(1) as far as possible. The magnetic bit holder is compatible
for use with most standard sized drill bits.
Forward/Reverse switch
NOTE. This switch allows the direction of rotation of the chuck
to be changed: forward for driving, and reverse for removing
screws and nuts.
1. Press the top of the forward/reverse switch (2) for driving
and press the bottom of the forward/reverse switch to
engage the reverse direction.
Adjusting the handle
The handle can be turned to one of two positions to suit the task
at hand. The tool can be used as a straight handled screwdriver
or as a pistol grip screwdriver.
1. To change the position of the handle, push the handle
adjusting switch (3) forward and twist the handle to the
desired position.
2. Release the switch (3) to lock the handle in the new position.
Recharging the screwdriver
Your screwdriver is supplied to you partially charged and must
be fully charged before use.
For the first charge, we recommend charging for 10 to 12 hours.
1. Connect the charger plug to the charging socket (4).
2. Connect the mains plug of the charger to a suitable
power point.
3. The indicator light (5) illuminates to show that charging is
taking place.
NOTE. Whilst charging, the charger and the screwdriver may
become warm to touch. This is normal and does not indicate
a problem.
NOTE. The charger will not automatically switch off when the
battery is fully charged and the indicator will remain on.
WARNING. It is important to unplug the charger from the
screwdriver when the charging time has been completed.
DO NOT EXCEED 12 HOURS CHARGING TIME. It will damage
the battery.
3. After the initial charge, recharge the battery for 5 to 7 hours
when the battery is completely discharged. Do not “top up”
the battery when it is partially discharged.
4. Charging for 7 hours increases the length of time the tool
can be used.
WARNING. Do not leave your screwdriver on charge
continuously. This will damage the battery.
NOTE. Avoid charging your screwdriver in temperatures
below 4°C and over 40°C. The ideal temperature at which to
charge the tool is 20°C. The battery charger should only be
used indoors.
Maintenance
Cleaning
1. Remove dust and dirt regularly. Cleaning is best done
with a rag.
2. Never use caustic agents to clean plastic parts. A mild
detergent on a damp cloth is recommended.
Water must never come into contact with the tool.
CAUTION. Disconnect the charger from the mains supply
before cleaning.
Repairs
1. There are no user serviceable parts in this tool. Only an
authorised service centre should carry out repairs.
45–55 South Centre Road Melbourne Airport
Victoria, Australia 3045
Tel: [phone] Fax: [phone]
Full 2-Year Warranty
This product is warranted for a 2-year period for
home domestic use from the date of the original
purchase. If found to be defective in materials
or workmanship, the tool or the offending faulty
component will be replaced free of charge with
another of the same item. A small freight charge
may apply.
The warranty replacement unit is only made
available by returning the tool to the place of
purchase with a confirmed register receipt.
Proof of purchase is essential. We reserve the
right to reject any claim where the purchase
cannot be verified. This warranty does not
include damage or defects to the tool caused by
or resulting from abuse, accidents, alterations or
commercial or business use.
Consistent with our product development
programme, improvements may have been made
which render the contents of the tool’s packaging
or user instructions slightly different to the
product received.
Phone [phone] Facsimile [phone]
Email [email protected]
Website www.gmcompany.com
Copyright Global Machinery Company Australia
Proprietary Limited, 2001
Dear customer, if you require any help with your
product, whether it is a Warranty Claim, spare
part or user information, please phone our
Help Line
1300 880 001 (Australia)
or 0800 445 721 (New Zealand), for an
immediate response.
Product of China manufactured to exacting
GMC quality standards.
ABN: 68 093 174 808
The GMC 777 Helpline
operates from 7am to
7pm, 7 days a week (EST).
This allows you to contact GMC directly with
any queries and technical questions you have
regarding our products.
Save this Manual for future reference.

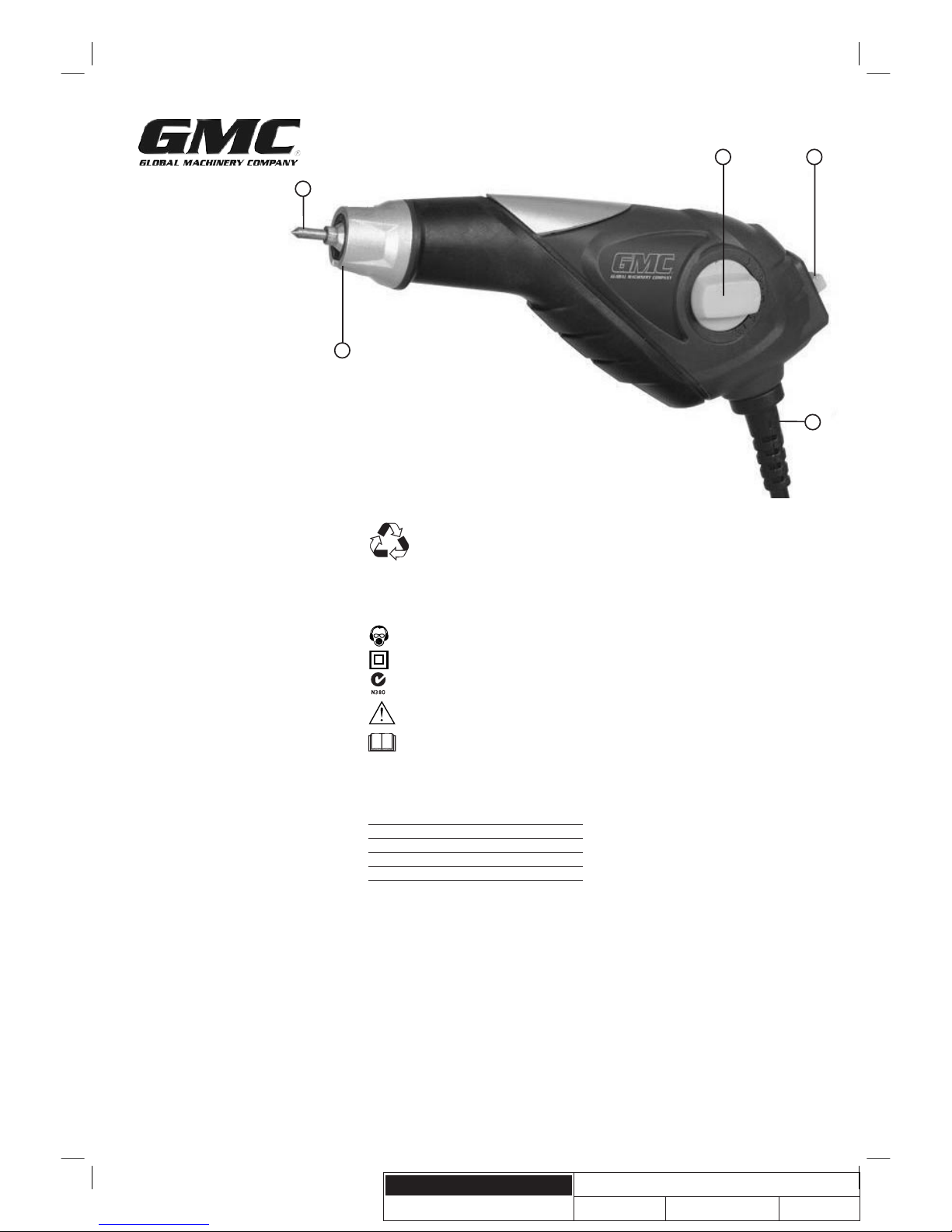

1. Cord protector
2. Wire loop
3. On/off switch
4. Variable speed dial
5. Spindle lock button
6. Collet nut
7. Collet
8. Brush caps
9. Collet cover
8
8
67
4 2
1
5
3
135W
AC ROTARY
TOOL
DEC003AC
9
Full 2 years home use warranty
Whilst every effort is made to ensure your complete
satisfaction with this tool, occasionally, due to the mass
manufacturing techniques, a tool may not live up to our
required level of performance and you may need the
assistance of our service department.
This product is warranted for a 2-year period for home
domestic use from the date of the original purchase. If
found to be defective in materials or workmanship, the tool
or the offending faulty component will be replaced free of
charge with another of the same item. A small freight
charge may apply.
The warranty replacement unit is only made available by
returning the tool to the place of purchase with a confirmed
register receipt. Proof of purchase is essential. We reserve
the right to reject any claim where the purchase cannot
be verified.
This warranty does not include damage or defects to the tool
caused by or resulting from abuse, accidents, alterations or
commercial or business use.
It also does not cover any bonus accessories unless the tool
is a GMC Platinum Professional model.
Please ensure that you store your receipt in a safe place.
Conditions apply to the above warranty.
If you need direction of what constitutes a free of
charge warranty claim, please review the guide given on the
rear of the Receipt Holder. An indication is given as to the
types of claim that are permissible, and those that are not.
Dear customer
If you require any help with your product, whether it is a
Warranty claim, spare part or user information, please phone
our Help Line for an immediate response.
Phone [phone] in Australia
or 0800 445 721 in New Zealand.
Introduction
Your new GMC power tool will more than satisfy your
expectations. It has been manufactured under
stringent GMC Quality Standards to meet superior
performance criteria.
You will find your new tool easy and safe to operate,
and, with proper care, it will give you many years of
dependable service.
Caution
Carefully read through this entire Instruction Manual before
using your new GMC Power Tool. Take special care to heed
the Cautions and Warnings.
Your GMC power tool has many features that will make your
job faster and easier. Safety, performance, and dependability
have been given top priority in the development of this tool,
making it easy to maintain and operate.
Environmental protection
Recycle unwanted materials instead of
disposing of them as waste. All tools, hoses
and packaging should be sorted, taken to the
local recycling centre and disposed of in an
environmentally safe way.
Description of symbols
The rating plate on your tool may show symbols. These
represent important information about the product or
instructions on its use.
M8 Spindle thread for Collet nut
Read instruction manual
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Double insulated for additional protection.
Conforms to relevant standards for
electromagnetic compatibility.
Specifications
Input power: 135W
Power supply: 230-240V ~ 50 Hz
No load speed: 15000-35000min-1
Collet size: Ø 2.4mm and Ø 3.2mm
M8 spindle
Max. Drill Ø 3.2mm
Max. Grinding disc Ø 25 x Ø 2mm
Cord length: 1.8 metres
Tool weight: 0.7 kg
Flexible shaft length: 1.0 m
Sound pressure level: 83 dB(A)
Sound power level: 96 dB(A)
Vibration: 0.482 m/s2
Safety instructions
WARNING. Read and understand all instructions.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. The term “power
tool” in all of the warnings below refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
Save these instructions
Work area
• Keep work area clean and well lit. Cluttered and dark
areas invite accidents.
• Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
• Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical safety
• If cordset is damaged have it replaced by an authorised
service centre.
• Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of
electric shock.
• When operating a power tool outdoors, use an
outdoor extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of
electric shock.
Personal safety
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol, or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
• Use safety equipment. Always wear eye protection.
Safety equipment such as a dust mask, non-skid safety
shoes, hard hat, or hearing protection use.
• Avoid accidental starting. Ensure the switch is in the
off-position before plugging in. Carrying power tools with
your finger on the switch or plugging in power tools that
have the switch on invites accidents.
• Remove any adjusting key or wrench before
turning the tool on. A wrench or a key that is left
attached to a rotating part of the power tool may result
in personal injury.
• Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
• If devices are provided for the connection of dust
extraction and collection facilities ensure that these
are connected and properly used. Use of these
devices can reduce dust-related hazards.
Power tool use and care
• Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
• Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power tool
for operations different from intended could result in a
hazardous situation.
Service
• Have your power tool serviced by a qualified repair
personnel using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
Additional safety instructions for
rotary tools
• Do not use a disc marked with a lower RPM than that of
the maximum no load speed shown on the rating label
• Always wear eye, ear and breathing protection
• Do not apply too much pressure when grinding, cutting, etc
• Keep your hands well clear of the cutting devices
WARNING. The use of an accessory or attachment, other
than those recommended in this Instruction Manual, may
present a risk of personal injury.
To use this tool properly, you must observe the safety
regulations, the assembly instructions and the operating
instructions to be found in this Manual. All persons who use
and service the machine have to be acquainted with this
Manual and must be informed about its potential hazards.
Children and infirmed people must not use this tool.
Black Code: DEC003
Date: 060113 Edition: 11 Op: DCR

Children should be supervised at all times if they are in the
area in which the tool is being used. It is also imperative
that you observe the accident prevention regulations in
force in your area. The same applies for general rules of
occupational health and safety.
The manufacturer shall not be liable for any changes made
to the tool nor for any damage resulting from such changes.
Even when the tool is used as prescribed it is not possible to
eliminate all residual risk factors. The following hazards may
arise in connection with the tool’s construction and design:
• Damage to the lungs if an effective dust mask is
not worn.
• Damage to hearing if effective earmuffs are not worn.
• Damage to eyes if effective goggles are not worn
• Risk of injury unless hands are kept well clear of
cutting devices
Unpacking
Due to modern mass production techniques, it is unlikely
that your GMC Power Tool is faulty or that a part is missing.
If you find anything wrong, do not operate the tool until the
parts have been replaced or the fault has been rectified.
Failure to do so could result in serious personal injury.
Operation
WARNING. Before connecting a tool to a power source
(power point receptacle, outlet, etc.) be sure that the voltage
supply is the same as that specified on the nameplate of
the tool. A power source with a voltage greater than that
specified for the tool can result in serious injury to the user,
as well as damage to the tool. If in doubt, do not plug in
the tool. Using a power source with a voltage less than the
nameplate rating is harmful to the motor.
Switch on
1. Set the variable speed dial (4) to 1 and push the on/off
switch (3) to “I”, the machine is in continuous operation,
and will start at minimum speed.
Switch off
1. Reset the variable speed dial (4) to 1 and push the on/off
switch (3) to position “0”.
Varying the speed
1. You can use the variable speed dial (4) to alter the speed
of the collet, as follows:
• Position 1 - Slow
• Position 3 - Medium
• Position 6 - Fast
2. Select the correct speed for the work and type of bit
you are using. In general, lower speeds are best suited
for large accessories and higher speed for smaller
accessories.
Quick reference guide
Operation Speed
• Cutting metal 5 - 6
• Sanding wood 5 - 6
• Cutting hard metal 5 - 6
• Engraving metal 4 - 5
• De-burring 4 - 5
• Drilling holes 4 - 5
• Removing rust 3 - 4
• Sharpening 3 - 4
• Polishing 1 - 2
Holding the tool
1. For jobs such as milling or engraving where precision is
required, hold the tool like a pen.
2. For heavier work like cutting or grinding hold the machine
in the palm of your hand.
Changing accessories
1. Make sure that the machine is switched off and the
plug removed from the power before you commence
changeover.
2. Loosen and tighten collet fully using the 2 in 1
wrench provided. (always ensure bits are tight before
commencing any work with your tool).
3. Press and hold down the spindle lock button (5) and
unscrew the Collet nut (6).
4. Select a suitable Collet for the accessory to be used and
insert it in the collet nut shaft.
5. Turn the Collet nut in an anti-clockwise direction to
loosen and, when the bit is in place, turn the Collet nut in
clockwise direction to lock it in place, whilst depressing
the spindle lock.
6. Make sure that the bit is inserted as far as possible.
Having too much shaft exposed could cause it to damage
or bend.
Locating a cutting/sanding disc
1. Insert the disc holder into the Collet (7) whilst the Collet
nut (6) is loosened.
2. Remove the screw from the end of the disk holder with
the 2 in 1 wrench provided, and insert the screw through
the cutting/sanding disc.
3. Replace the screw and tighten, attaching the cutting or
sanding disc onto the holder. (Do not over-tighten)
Locating a sanding drum
1. Loosen the small screw in the top of the holder
(This allows the rubber to slacken).
2. Slide the sanding drum onto the holder.
3. Secure the sanding drum in place by tightening the
screw causing the rubber drum to bulge and grip the
drum. (Do not over-tighten)
Attaching the flexible shaft
WARNING. Never bend the flexible shaft with a radius
of less than 150 mm (6”) when operating. Please store the
flexible shaft in the designated compartment of the carry
case when not in use.
1. Remove the collet cover (9), and loosen the collet nut (6)
by turning them anti-clockwise.
2. Insert the inner cable of the flexible shaft into the collet
(7) until the cable cannot go any further.
3. Tighten the collet nut (6) with the wrench by turning the
nut clockwise.
4. Thread the flexible shaft collet cover onto the tool housing
by turning it clockwise, and finger tighten only.
WARNING. Never tighten the collet nut with the use of
pliers or a wrench as the thread will strip.
Changing the collet and accessories
Note. To change the collet or install a cutter or accessory
into the flexible shaft, follow the same general procedure as
covered earlier under ‘Changing accessories’.
WARNING. Do not attempt to loosen the collet nut without
pulling the spindle lock back as far as possible. Damage to
the flexible shaft will result.
1. To lock the spindle lock, pull the lock back as far
as possible.
2. Use the wrench to loosen and tighten the collet nut.
Maintenance
1. Store the machine, instruction manual and, where
necessary, the accessories in the original packaging.
In this way you will always have all the information and
parts ready to hand.
Cleaning
1. Keep the tool’s air vents unclogged and clean at
all times.
2. Remove dust and dirt regularly. Cleaning is best
done with a rag.
3. Never use caustic agents to clean plastic parts.
CAUTION. Do not use cleaning agents to clean the
plastic parts of the tool. A mild detergent on a damp
cloth is recommended. Water must never come into
contact with the tool.
Repairs
1. Only an authorised service centre should replace the
cordset or effect other repairs. If the cordset is damaged
or worn, have it repaired or replaced by an authorised
service centre.
2. When the brushes are worn, the tool may not work.
Have new brushes fitted by an authorised service centre.
Please refer to your warranty card, which is separate
to these instructions
Accessories For DEC003AC Kit
Sanding
Sanding drums are perfect for detailed sanding jobs.
5 Coarse sanding sheets 20 mm diameter
5 Fine sanding sheets 20 mm diameter
5 Sanding bands 15 mm diameter
Mandrels
1 Mandrel for sanding band 3.2 mm Diameter shaft
1 Disc mandrel for cut-off wheel 3.2 mm Diameter shaft
1 Polishing pad mandrel 3.2 mm Diameter shaft
Grinding
The perfect way to remove burs and sharpen tools.
5 Grinding stones Various shapes & sizes
Cutting
Various cutting wheels let you cut, trim and shape metal,
glass and ceramics.
1 Ball-shaped high speed cutter 2.4 mm Diameter shaft
1 Corn-shaped cutter 2.4 mm Diameter shaft
8 Cut-off wheels 24 mm Diameter
Polishing & cleaning
Ideal for removing rust, smoothing out imperfections
or cleaning tools.
1 Polishing pads Felt 13 x 9 mm
1 Polishing pads Felt 25 x 5 mm
1 Bristle Brush Brass 3.2 mm Diameter shaft
1 Wire brush wheel 3.2 mm Diameter shaft
Drilling
An extremely convenient way to drill holes with more
detail and precision.
1 High speed drill bit 3.2 mm diameter
1 2 in 1 Wrench
2 Collets 2.4 mm and 3.2 mm
1 Stone for dressing grinding wheels 26 x 10 x 10 mm
45–55 South Centre Road Melbourne Airport
Victoria, Australia 3045
Tel: [phone] Fax: [phone]
Full 2-Year Warranty
This product is warranted for a 2-year period for
home domestic use from the date of the original
purchase. If found to be defective in materials
or workmanship, the tool or the offending faulty
component will be replaced free of charge with
another of the same item. A small freight charge
may apply.
The warranty replacement unit is only made
available by returning the tool to the place of
purchase with a confirmed register receipt.
Proof of purchase is essential. We reserve the
right to reject any claim where the purchase
cannot be verified. This warranty does not
include damage or defects to the tool caused by
or resulting from abuse, accidents, alterations or
commercial or business use.
Consistent with our product development
programme, improvements may have been made
which render the contents of the tool’s packaging
or user instructions slightly different to the
product received.
Phone [phone] Facsimile [phone]
Email [email protected]
Website www.gmcompany.com
Copyright Global Machinery Company Australia
Proprietary Limited, 2001
Dear customer, if you require any help with your
product, whether it is a Warranty Claim, spare
part or user information, please phone our
Help Line
1300 880 001 (Australia)
or 0800 445 721 (New Zealand), for an
immediate response.
Product of China manufactured to exacting
GMC quality standards.
ABN: 68 093 174 808
The GMC 777 Helpline
operates from 7am to
7pm, 7 days a week (EST).
This allows you to contact GMC directly with
any queries and technical questions you have
regarding our products.
Save this Manual for future reference.

Black Code: DEC007EN
Date: 060113 Edition: 12 Op: DCR
Full 2 years home use warranty
Whilst every effort is made to ensure your complete
satisfaction with this tool, occasionally, due to the mass
manufacturing techniques, a tool may not live up to our
required level of performance and you may need the
assistance of our service department.
This product is warranted for a 2-year period for home
domestic use from the date of the original purchase. If
found to be defective in materials or workmanship, the
tool or the offending faulty component will be replaced
free of charge with another of the same item. A small
freight charge may apply.
The warranty replacement unit is only made available
by returning the tool to the place of purchase with
a confirmed register receipt. Proof of purchase is
essential. We reserve the right to reject any claim where
the purchase cannot be verified.
This warranty does not include damage or defects to
the tool caused by or resulting from abuse, accidents,
alterations or commercial or business use.
It also does not cover any bonus accessories unless the
tool is a GMC Platinum Professional model.
Please ensure that you store your receipt in a
safe place.
Conditions apply to the above warranty.
If you need direction of what constitutes a free of
charge warranty claim, please review the guide given
on the rear of the Receipt Holder. An indication is given
as to the types of claim that are permissible, and those
that are not.
Dear customer
If you require any help with your product, whether it is a
Warranty claim, spare part or user information, please
phone our Help Line for an immediate response.
Phone [phone] in Australia
or 0800 445 721 in New Zealand.
Introduction
Your new GMC power tool will more than satisfy
your expectations. It has been manufactured under
stringent GMC Quality Standards to meet superior
performance criteria.
You will find your new tool easy and safe to operate,
and, with proper care, it will give you many years of
dependable service.
Caution
Carefully read through this entire Instruction Manual
before using your new GMC Power Tool. Take special
care to heed the Cautions and Warnings.
Your GMC power tool has many features that will make your
job faster and easier. Safety, performance, and dependability
have been given top priority in the development of this tool,
making it easy to maintain and operate.
Environmental protection
Recycle unwanted materials instead of
disposing of them as waste. All tools, hoses
and packaging should be sorted, taken to
the local recycling centre and disposed of in
an environmentally safe way.
Description of symbols
The rating plate on your tool may show symbols. These
represent important information about the product or
instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Double insulated for additional protection.
Conforms to relevant standards for
electromagnetic compatibility.
CAUTION
Thoroughly read and understand all
instructions before using this product.
S2: 10 min.; Indicates operating time at no more than
10 minutes at rated load followed by a complete cool
down of the tool.
Specifications
Input power: 13W
Power supply: 230-240V ~ 50 Hz
Engraving bit: Tungsten Carbide Tipped steel
Cord length: 1.4 metres
Tool Weight: 0.4 kg
Safety instructions
WARNING. Read and understand all instructions.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury. The term
“power tool” in all of the warnings below refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Save these instructions
Work area
• Keep work area clean and well lit. Cluttered and
dark areas invite accidents.
• Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools
create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
Electrical safety
• If cordset is damaged, have it replaced by an
authorised service centre.
• Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
• When operating a power tool outdoors, use an
outdoor extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the
risk of electric shock.
Personal safety
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol, or medication. A moment
of inattention while operating power tools may result
in serious personal injury.
• Use safety equipment. Always wear eye
protection. Safety equipment such as a dust
mask, non-skid safety shoes, hard hat, or hearing
protection use.
• Avoid accidental starting. Ensure the switch is in
the off-position before plugging in. Carrying power
tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before
turning the tool on. A wrench or a key that is left
attached to a rotating part of the power tool may
result in personal injury.
• Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
• If devices are provided for the connection of dust
extraction and collection facilities ensure that
these are connected and properly used. Use of
these devices can reduce dust-related hazards.
13W
ELECTRIC
ENGRAVER
DEC007EN
1. On/off switch
2. Engraving tip
3. Stroke adjustment dial
4. Tip release screw
5. Power cord
4
2
3 1
5

Power tool use and care
• Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it
was designed.
• Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must
be repaired.
• Disconnect the plug from the power source
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power tool accidentally.
• Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
• Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from intended could result
in a hazardous situation.
Service
• Have your power tool serviced by a qualified
repair personnel using only identical replacement
parts.
• When operating a power tool outdoors, use an
outdoor extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock. This will ensure that the
safety of the power tool is maintained.
Additional safety instructions for
engravers
• Always wear eye, ear and breathing protection
• Do not apply too much pressure when engraving
WARNING. The use of an accessory or attachment,
other than those recommended in this Instruction
Manual, may present a risk of personal injury.
To use this tool properly, you must observe the safety
regulations, the assembly instructions and the operating
instructions to be found in this Manual. All persons who
use and service the machine have to be acquainted with
this Manual and must be informed about its potential
hazards. Children and infirmed people must not use this
tool. Children should be supervised at all times if they
are in the area in which the tool is being used. It is also
imperative that you observe the accident prevention
regulations in force in your area. The same applies for
general rules of occupational health and safety.
The manufacturer shall not be liable for any changes
made to the tool nor for any damage resulting from such
changes.
Even when the tool is used as prescribed it is not
possible to eliminate all residual risk factors. The
following hazards may arise in connection with the tool’s
construction and design:
• Damage to the lungs if an effective dust mask is
not worn.
• Damage to hearing if effective earmuffs are not worn.
• Damage to eyes if effective goggles are not worn
• Risk of injury unless hands are kept well clear of
cutting devices
Unpacking
Due to modern mass production techniques, it is unlikely
that your GMC Power Tool is faulty or that a part is
missing. If you find anything wrong, do not operate the
tool until the parts have been replaced or the fault has
been rectified. Failure to do so could result in serious
personal injury.
Installing an engraver tip
WARNING. Disconnect the engraver from the power
supply before making any adjustments or maintenance
procedures.
1. Loosen the tip release screw (4) by turning it anti-
clockwise with a flat head screwdriver.
2. To fit the new engraving tip (2), insert the tip through
the centre of the hole of the engraver, ensuring the
tip fully enters the housing. A new tip should protrude
from the end of the housing by approximately 8.5mm.
3. Tighten the tip release screw (4) fully by rotating in a
clockwise direction.
Operation
WARNING. Always wear safety glasses when using
this tool.
The GMC engraver can be used to permanently mark
metal, glass, plastic, wood, ceramics and much more.
1. Before using the engraver you must ensure there is
an engraving tip installed.
2. Connect the engraver plug to the power supply and
while holding the engraver firmly, push up on the
on/off switch (1) with your thumb.
NOTE. To turn the tool on, press the small On/Off
Switch (1) upwards to the (I) position. To turn the tool off,
push the on/off Switch (1) down to the (O) position.
3. Hold the engraver at an angle, like you would hold a
pen. Do not press down hard while engraving, use
light pressure while guiding the point over the work to
be completed.
Adjusting the depth of engraving
1. The stroke adjustment dial (3) located on the side of
the engraver controls the stroke length and therefore
the depth of engraving.
2. For a fine mark turn the stroke adjustment dial (3)
anti-clockwise to position ‘1’.
3. For a deeper, thicker mark turn the stroke adjustment
dial (3) clockwise to position ‘5’
NOTE. It is recommended that you practice on scrap
material before you start.
Maintenance
WARNING. Always ensure that the tool is switched
off and the plug is removed from the power point before
making any adjustments or maintenance procedures.
1. Use a soft brush to remove any accumulated dust.
Wear safety glasses to protect your eyes whilst
cleaning.
2. If the body of the tool needs cleaning, wipe it with a
soft damp cloth. A mild detergent can be used but
never alcohol, petrol or other harsh cleaning agents.
3. Never use caustic agents to clean plastic parts.
CAUTION. Water must never come into contact with
the tool.
General inspection
Regularly check that all the fixing screws are tight. They
may vibrate loose over time.
Power cord maintenance
If the supply cord needs replacing, the task must be
carried out by the manufacturer, the manufacturer’s
agent, or an authorised service centre in order to avoid
a safety hazard.
Please refer to your warranty card, which is separate to
these instructions.
45–55 South Centre Road Melbourne Airport
Victoria, Australia 3045
Tel: [phone] Fax: [phone]
Full 2-Year Warranty
This product is warranted for a 2-year period for
home domestic use from the date of the original
purchase. If found to be defective in materials
or workmanship, the tool or the offending faulty
component will be replaced free of charge with
another of the same item. A small freight charge
may apply.
The warranty replacement unit is only made
available by returning the tool to the place of
purchase with a confirmed register receipt.
Proof of purchase is essential. We reserve the
right to reject any claim where the purchase
cannot be verified. This warranty does not
include damage or defects to the tool caused by
or resulting from abuse, accidents, alterations or
commercial or business use.
Consistent with our product development
programme, improvements may have been made
which render the contents of the tool’s packaging
or user instructions slightly different to the
product received.
Phone [phone] Facsimile [phone]
Email [email protected]
Website www.gmcompany.com
Copyright Global Machinery Company Australia
Proprietary Limited, 2001
Dear customer, if you require any help with your
product, whether it is a Warranty Claim, spare
part or user information, please phone our
Help Line
1300 880 001 (Australia)
or 0800 445 721 (New Zealand), for an
immediate response.
Product of China manufactured to exacting
GMC quality standards.
ABN: 68 093 174 808
The GMC 777 Helpline
operates from 7am to
7pm, 7 days a week (EST).
This allows you to contact GMC directly with
any queries and technical questions you have
regarding our products.
Save this Manual for future reference.
