Goaliath B2251 User manual

1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. To make assembly of your basketball system easier, use the Hardware Identifier on page 4
to identify and sort all fasteners. Check all cartons for kits. All hardware may not be
located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting holes
may not align and parts may not easily fit together. Leave locknuts slightly loose until you are instructed to
tighten them.
O W N E R ' S M A N U A L
MODEL NO.
GB54cs2.0
Please Do Not Return This Product To The Store!
Contact Escalade®Sports customer service department at:
Phone: 1-888-USA-GOAL T
Fax: [phone] T
E-mail: [e-mail]
Mailing Address (correspondence only):
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at: www.escaladesports.com
ON-LINE TROUBLE SHOOTING TECHNICAL ASSISTANCE
ON-LINE PARTS REQUESTS FREQUENTLY ASKED QUESTIONS
ADDITIONAL ESCALADE®SPORTS PRODUCT INFORMATION
2L-7539-01
Escalade®Sports products may be manufactured and/or licensed under the following patents:
6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128, 7244046
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product. 2017 Escalade Sports
© ®
oll Free!
oll Free!
B2251
5.
An electric screwdriver is helpful in assembly. However, please set at low torque and use caution
because you could overtighten the hardware and strip the screws.
6.
Save this instruction and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
BASKETBALL SYSTEM
11 - 80 lb. bags of concrete
1 - Post hole digger (optional)
1 - wheel barrow
1 - garden hose
1 - Concrete form (see note after step 2)
ITEMS NEEDED (NOT INCLUDED)
1 - 15/16" Open end Wrench
1 - 15/16” Socket and Ratchet (optional)
1 - 9/16” Deep Well Socket & Ratchet
1 - 3/4” Socket & Ratchet
1 - 3/4” Open end Wrench
1 - Phillips Screwdriver
1 - Level
1 - Tape Measure
1 - Rubber Mallet
1 - Set of Padded
Saw Horses
1 - 9/16” Open end Wrench
1 - Cordless drill & 9/64” drill bit
1 - 5/16” socket driver (for cordless drill)
1 - Safety glasses
1 - Ladder

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
Owner must ensure that all players know and follow these rules for safe operation of the system.
Owner must ensure that all players know and follow these rules for safe operation of the system.
SAFETY INSTRUCTIONS
WARNING!
Failure to observe this warning
may cause property damage
and/or serious injury.
This product is NOT designed to support a player hanging from any
component of this basketball system.
Rim height adjustments should be made under parental supervision.
Wear a mouth guard when playing to avoid dental injuries.
During play, do not wear jewelry (rings, watches, necklaces, etc).
Objects may entangle in net.
7
(Affixed to backboard)
2
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY
R E S U LT I N S E R I O U S I N J U R Y A N D / O R
PROPERTY DAMAGE.
Owner must ensure that all players know and
follow these rules for safe operation of the system.
!Do not dunk on this unit
!Do not hang from any part of the unit, including
the backboard, rim, support braces, or net.
!Do not slide, climb, or play on pole.
!Keep organic material away from pole base.
Grass, litter, etc. could cause corrosion and /or
deterioration.
!Check pole system for signs of corrosion
(rust, pitting, chipping). Remove rust and/or
loose paint completely and repaint with
exterior enamel paint. If rust has penetrated
through the steel anywhere, replace pole
immediately.
!Check system before each use for proper
ballast, loose hardware, excessive wear, and
signs of corrosion and repair before using.
!During play, use extreme caution to keep
players face away from the backboard, rim,
and net. Serious injury could occur if
teeth/face come in contact with backboard,
rim, or net.
!Wear a mouth guard when playing to avoid
dental injuries.
!When adjusting height, keep hands and
fingers away from moving parts.
!During play, do not wear jewelry (rings,
watches, necklaces, etc.). Objects may
entangle in net.
!Do not allow children to adjust system.
!Check system before each use for instability.
!Never play on damaged equipment. 4L-7609-00

3
FAILURE TO FULLY ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper pole must cover the
above orange portion of this sticker
(6” mark).
WARNING
!
4L-8151-00
(Affixed to Bottom Post)
(Affixed to Top Post)
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-00
WARNING
!

77
4
#10 X 1
(10 Pieces)
3/8”-16
Lock Nut
(14 pieces)
1/2”-13
Lock Nut
(1 piece)
5/8” Thread
Protector Cap
(4 Pieces)

5
ANCHOR SYSTEM INSTALLATION INSTRUCTIONS (Day 1)
Figure 1
INSTALLATION TIMELINE
1. Prior to anchor system and goal assembly, call utility services for location of underground utility lines before you dig.
2. Vertical main post assembly is a two part process.
PART 1
Day 1. Complete Anchor System Installation Instructions.
(Below)
Day 2-4. Allow concrete to cure.
PART 2
Day 5. Complete Goaliath® assembly instructions. (Requires
four adults)
Before digging hole for anchor system, check for
buried power, gas, water, and telecommunication
lines! Failure to do so could result in serious or fatal
injury! Contact your local utility company if unsure.
Note: For best results with less vibration, anchor system
should be independent of court. If pouring concrete for
both at same time, add an expansion joint in between.
Figure 2
2. Assemble anchor system as follows: Thread nut (#35) to bottom
of threads on anchor bolt (#39) insert threads of anchor bolt
(#39) through hole on anchor plate (#38) and secure with
nut (#35). Repeat this step for the
remaining anchor
bolts. See Figure
2. Note: Each leg
of anchor bolts
should face the
anchor bolt to the
right. See Detail A.
1. Determine the location of the anchor
system. The proper location is as close to
the court without making contact, as
shown in Figure 1. This,
however, is a general rule.
If you need to locate the
anchor system in a location other than
this, use the following dimensions as a
guide.
Overhang when adjusted to 10 ft. = 27”
20” Diameter
16” Diameter
Concrete
Rebar #40
36”
Court
Court Level
Anchor Plate must be
square to your court so
the backboard will
line up with court.
Court
Top View
OVERHANG
18 INCH
MINIMUM
REAR
CLEARANCE
REQUIRED
Note: When digging hole, if you hit rock
and cannot dig through contact a contractor.
Note: Minimum of 18” rear clearance is required behind pole.
THESE NUTS
USED FOR
LEVELING
Items needed for Anchor Installation (not included)
9 - 80 lb. bags of concrete (2-3 extra recommended)
1 - post hole digger (optional)
1 - 15/16” open end wrench
1 - 15/16” socket and ratchet (optional)
1 - wheel barrow
1 - garden hose
1 - level
1 - tape measure
1 - concrete form (see note after step 2)
3. Mix and pour concrete into hole. Follow instructions on
concrete bag. Stop about 18" below court level.
4. Insert four reinforcement bars (#40) into concrete 8" apart
creating a square in center on hole.
5. Finish pouring concrete up to court level.
6. Push anchor system into concrete and agitate to work out
voids in concrete. Immediately use a level to level and square
anchor plate to playing surface. Clean off any concrete that
may be on exposed threads.
Note: The bottom four nuts will be forever embedded
in concrete. The top four nuts remain on bolts and
are used for leveling. (See Step 12 on page 11).
Note: Failure to dig and fill hole as instructed will result
in increased system vibration.
Note: Using a concrete form for the top 4" of the concrete
is recommended. Cardboard forms can be purchased at
some hardware and home stores or a wooden form can
be constructed out of 2 x 4's.
*Tip: It is always a good idea to purchase two or three
extra bags of concrete, just in case you need them. If
extra bags are not used you can return them to the store.
Let concrete cure for a MINIMUM of 72 hours.

6
TOOLS REQUIRED FOR THE FOLLOWING STEPS
1 - 15/16" Open end Wrench
1 - 15/16” Socket and Ratchet (optional)
1 - 9/16” Deep Well Socket & Ratchet
1 - 3/4” Socket & Ratchet
1 - 3/4” Open end Wrench
1 - Phillips Screwdriver
1 - Level
1 - Tape Measure
1 - Rubber Mallet
1 - Set of Padded
Saw Horses
1 - 9/16” Open end Wrench
1 - Cordless drill & 9/64” drill bit
1 - 5/16” socket driver (for cordless drill)
1 - Safety glasses
1 - Ladder
ASSEMBLY INSTRUCTIONS (Day 5)
Figure 3B
Figure 3A
NOTCHES IN BASE
PLATE MUST BE ON
SIDE AS SHOWN
FRONT
BACK SIDE
Be sure that the
“Back Side”
stickers are at the
back of the poles.
BACK SIDE
PIECE OF
CARDBOARD
Must be at least as
big as pole base plate.
FAILURE TO FULLY ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper pole must cover the
above orange portion of this sticker
(6” mark).
WARNING
!
4L-8151-00
FAILURE TO FULLY ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper pole must cover the
above orange portion of this sticker
(6” mark).
WARNING
!
4L-8151-00
NOTE: Top Pole must cover upper
orange area of sticker. If Pole goes
slightly past the 6” mark, it is OK.
1. Before putting any of the poles tubes together, make sure that the orange area
of the Warning Sticker on Pole (#2) is 6 inches from the top end. Be sure that
the “Back Side” stickers are at the back of the pole. See Figure 3A.
WARNING: This pole assembly is heavy. Step 2 will require two adults.
Make sure you can control the pole when slamming it together. Have a
helper stand on the opposite side of the pole. Attention should be paid
to one’s feet and toes during entire slamming process.
Align the upper pole (#3) with the bottom pole (#2) as shown in Figure 3A and
slide them together. While maintaining control of the pole assembly stand poles
up STRAIGHT on a piece of cardboard from your box, lift poles up by bottom
pole below the 6” mark shown on sticker and slam down the bottom pole as
many times as needed on the cardboard until the bottom of the upper pole
reaches the 6” mark (on Sticker) on the bottom pole. Lift the pole 10-12 inches
off the ground when slamming the poles together. See Figure 3A & 3B.
Should any concerns exist about damaging your driveway, use a 12” X 12” piece
of Plywood or mdf board.
NOTE: When slamming poles together make sure to keep the poles
STRAIGHT. Slamming the poles down crooked will damage the bottom of
the pole and base plate. Top Pole must cover upper orange area of sticker.
If Pole goes slightly past the 6” mark, it is OK.
IMPORTANT! DO NOT hit poles with hammer or sledge hammer
to attach poles together you will damage your pole or pole cap.
If you want to see a video on how to put the poles together go to:
http://www.escaladesports.com/customer-service/instruction-videos/basketball
Or Scan with your
smart phone:
CARDBOARD
NOTE: When slamming
poles together make sure to
keep the poles STRAIGHT.
10-12”
WARNING
!
KEEP FEET AWAY WHEN
SLAMMING POLE.
6
TOOLS REQUIRED FOR THE FOLLOWING STEPS
1 - 15/16" Open end Wrench
1 - 15/16” Socket and Ratchet (optional)
1 - 9/16” Deep Well Socket & Ratchet
1 - 3/4” Socket & Ratchet
1 - 3/4” Open end Wrench
1 - Phillips Screwdriver
1 - Level
1 - Tape Measure
1 - Rubber Mallet
1 - Set of Padded
Saw Horses
1 - 9/16” Open end Wrench
1 - Cordless drill & 9/64” drill bit
1 - 5/16” socket driver (for cordless drill)
1 - Safety glasses
1 - Ladder
ASSEMBLY INSTRUCTIONS (Day 5)
Figure 3B
Figure 3A
NOTCHES IN BASE
PLATE MUST BE ON
SIDE AS SHOWN
FRONT
BACK SIDE
Be sure that the
“Back Side”
stickers are at the
back of the poles.
BACK SIDE
PIECE OF
CARDBOARD
Must be at least as
big as pole base plate.
FAILURE TO FULLY ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper pole must cover the
above orange portion of this sticker
(6” mark).
WARNING
!
4L-8151-00
FAILURE TO FULLY ENGAGE THE
BOTTOM OF THE UPPER POLE TO
THE 6” MARK ON THIS BOTTOM
POLE STICKER, COULD CAUSE
YOUR UNIT TO COLLAPSE AND MAY
RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE.
BACKSIDE
Bottom of upper pole must cover the
above orange portion of this sticker
(6” mark).
WARNING
!
4L-8151-00
NOTE: Top Pole must cover upper
orange area of sticker. If Pole goes
slightly past the 6” mark, it is OK.
1. Before putting any of the poles tubes together, make sure that the orange area
of the Warning Sticker on Pole (#2) is 6 inches from the top end. Be sure that
the “Back Side” stickers are at the back of the pole. See Figure 3A.
WARNING: This pole assembly is heavy. Step 2 will require two adults.
Make sure you can control the pole when slamming it together. Have a
helper stand on the opposite side of the pole. Attention should be paid
to one’s feet and toes during entire slamming process.
2.2. Align the upper pole (#3) with the bottom pole (#2) as shown in Figure 3A and
slide them together. While maintaining control of the pole assembly stand poles
up STRAIGHT on a piece of cardboard from your box, lift poles up by bottom
pole below the 6” mark shown on sticker and slam down the bottom pole as
many times as needed on the cardboard until the bottom of the upper pole
reaches the 6” mark (on Sticker) on the bottom pole. Lift the pole 10-12 inches
off the ground when slamming the poles together. See Figure 3A & 3B.
Should any concerns exist about damaging your driveway, use a 12” X 12” piece
of Plywood or mdf board.
NOTE: When slamming poles together make sure to keep the poles
STRAIGHT. Slamming the poles down crooked will damage the bottom of
the pole and base plate. Top Pole must cover upper orange area of sticker.
If Pole goes slightly past the 6” mark, it is OK.
IMPORTANT! DO NOT hit poles with hammer or sledge hammer
to attach poles together you will damage your pole or pole cap.
If you want to see a video on how to put the poles together go to:
http://www.escaladesports.com/customer-service/instruction-videos/basketball
Or Scan with your
smart phone:
CARDBOARD
NOTE: When slamming
poles together make sure to
keep the poles STRAIGHT.
10-12”
WARNING
!
KEEP FEET AWAY WHEN
SLAMMING POLE.
NOTE: When Slamming the pole together make sure you
place the cardboard on a flat surface like concrete or
Asphalt, do not slam pole on grass or soft ground.

SCREWS (#77) MUST BE INSTALLED TO POLE AS DESCRIBED
IN STEP 3. FAILURE TO INSTALL SCREWS COULD RESULT IN
SERIOUS INJURY OR PROPERTY DAMAGE.
NOTE: Cordless drill required for screw installation. Do not over
tighten screws causing screws to strip. Once Screw heads
touch pole, STOP! Overtightening will cause Pole to Warp
and damage system.
NOTE: To install screws, it will be easier if you use a cordless
drill with 5/16” socket (instead of Phillips head).
NOTE: Screws #77, used in step 3, are Self Drilling screws and
can be installed without drilling pilot holes. However, it
will be easier to install screws if you drill 9/64” pilot holes
in bottom pole. WEAR SAFETY GLASSES if drilling holes.
Figure 5
18
25
BACK SIDE
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY P ART OF THIS
UNIT , INCLUDING THE BACKBO ARD, RIM,
SUPPORT BRACES OR NET .
4L-8152-01
WARNING
!
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY P ART OF THIS
UNIT , INCLUDING THE BACKBO ARD, RIM,
SUPPORT BRACES OR NET .
4L-8152-01
WARNING
!
77
77
Figure 4
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-01
WARNING
!
NOTE: Self Drilling screws
(#77) are used. Holes are
only on outside Pole. User
must insert screws through
BOTH POLES.
3. Once the Top pole is to the 6” Mark on the Warning Sticker, lay
Pole Assembly on its side on two padded saw horses. Insert a
(#77) Screw into each 3/16” hole in top Pole, two on each
side of the Post Assembly. You will need someone to hold the
Pole assembly while inserting screws. Screw must go through
both Top and Bottom (Inner) Poles. Make sure to not strip
screws once they are all they way through. See Figure 4.
4. Attach Post Ears (#30) to holes near the bottom of Top Post
(#3) using two Hex Bolts (#25) four Washers (#18) and two
Lock Nuts (#4). Do not tighten nuts (#4) completely until
instructed to do so. See Figure 5.
18
18 25
4
30
3
3
2
7

8
DO NOT DUNK ON THIS UNIT .
DO NOT H ANG FROM AN Y PART OF TH IS
UNIT , INCLUDING THE B ACKBO ARD, RI M,
SUPPORT BRACE S OR NET .
4L-8152-01
WARNING
!
Actuator Tab
6.
5.
NOTE: If necessary, use a rubber mallet
to tap in Pivot Tube (#14)
While still on the two padded saw horses, Slide tab on Actuator (#16) between Post
Ears (#30) and secure using one bolt (#19), two washers (#20) and one lock nut
(#21). Tighten Lock Nut (#21) snug but do not over tighten. See Figure 6.
At this time also tighten nuts (#4) from Step 4.
7. Secure two stop spacers (#10) to pole, as shown in Figure 6, using one hex
bolt (#22) and one lock nut (#4). Tighten Lock Nut (#4) but do not over
tighten.
If not already pre-assembled, slide Plastic Actuator Sleeve (#15) over Steel Actuator (#16)
and place Actuator Cap (#13) on top. Align holes in all 3 parts and slide Pivot Tube (#14)
through holes in Actuator Cap (#13), Plastic Actuator Sleeve (#15) and Steel Actuator Tube
(#16) until equal amounts stick out through both sides of actuator. See Figure 6.
Figure 6
NOTE: Make sure (#14) Pivot Tube is
installed through all three parts:
1. Actuator Cap (#13)
2. Plastic Sleeve (#15)
3. Steel Actuator Tube (#16)
22
3
4
20
21
20
19
30
(#22) Bolt goes
in upper hole

8.
Note: make sure lettering is right side up. (See Side View).
DO NOT tighten bolt (#22) at this time. (See Figure 7.)
9.
IMPORTANT! Nylon washers (#5) adequately space
painted parts at all pivot points. Neglecting the use of
these washers will result in rusted parts.
NOTE: All board arms are made of rectangular tubing.
Tightening hardware too tight may damage tubing
and make adjustment of system difficult.
Figure 8
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBO ARD, RIM,
SUPPORT BRACES OR NET .
4L-8152-01
WARNING
!
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET .
4L-8152-00
WARNING
!
SIDE VIEW
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET .
4L-8152-01
WARNING
!
Note: Small amounts of clear tape can be used to adhere
Plastic Washers (#5) to Pole. This will make assembly easier.
Figure 7
Attach lower arms (#11) to Top Pole (#3), as shown in
Figure 7, using a hex bolt (#22), two flat washers (#18),
two plastic washers (#5) and lock nut (#4).
Secure Actuator (#16) to Lower Arms (#11) using one
bolt (#22), two flat washers (#18), two plastic washers
(#5) and one lock nut (#4). See Figure 8. Tighten
both bolts (#22) snug but, do not over tighten.
Board Arms must pivot freely.
9

DO NOT DUNK ON THIS UNIT .
DO NOT H ANG FROM ANY P ART OF THIS
UNIT , INCLUDING THE B ACKBO ARD, RIM,
SUPPORT BRACE S OR NET .
4L-8152-01
WARNING
!
10.
Note: Tighten bolts snug but, do not over tighten.
Board Arms must pivot freely
Attach long leg of Upper Arms (#6) to Top Pole (#3), as
shown in Figure 9, using a bolt (#7), two flat washers
(#18), two spacers (#8) and one lock nut (#4).
Figure 9
10

11
Figure 10
BE SURE CONCRETE
HAS BEEN ALLOWED
TO CURE FOR AT
LEAST 3 DAYS
11.
NOTE: Do not remove the nuts #35 you installed in step 2 (pg. 5).
Locate hardware needed to mount pole to anchor bolts. You will need, eight flat washers
(#37), four lock washers (#36), four hex nuts (#35) and four thread protectors (#34).
NOTE:
If basketball system needs to be
moved, do not try to salvage
caps. Caps (#34) will be tight,
please remove with plyers and
discard. New caps will come in
new anchor system.
NOTE:
If (#34) caps are missing for any
reason please call customer service.
DETAIL A
PLACING THE POST ON THE ANCHOR SYSTEM
REQUIRES AT LEAST FOUR CAPABLE ADULTS.
POLE WILL WANT TO LEAN WHILE ATTEMPTING TO
STAND IT UP ON ANCHOR BOLTS.
Push on Thread Cap (#34) until it is securely in place. Cap may be tight, push hard but DO NOT hit with a
hammer! See Figure 10 and Detail A.
Put a flat washer (#37) on each anchor bolt. Lift post onto anchor system and secure with one flatwasher (#37), one
lock washer (#36) and one hex nut (#35) for each anchor bolt. Tighten Fasteners finger tight, leave loose enough
to level pole. Place a level on pole and adjust bottom nuts #35 until pole is level (left to right and front to back).
Tighten top four hex nuts #35 tight. Place a thread protector (#34) on each anchor bolt. See Figure 10.
NOTE:
Bottom nuts #35 can be used for
leveling system. See Step 12.
12.
13.

With at least three capable people, raise the backboard assembly
up and have the fourth attach Lower Board Arms to lower mounting
tubes on backboard using two bolts (#24), two plastic washers
(#5), four washers (#18) and two lock nuts (#4). See Figure 12.
NOTE: DO NOT over tighten these bolts. This is a pivot point.
NOTE: DO NOT over tighten these bolts. This is a pivot point.
12
14.
15.
Figure 12
ATTACHING BA CKBOARD T O BO ARD ARMS
REQUIRES AT LEAST FOUR CAPABLE ADULTS.
Figure 11
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET .
4L-8152-01
WARNING
!
24
18
24 18
18 24
5
18
4
18
5
518 4
5
HANDLE BACKBOARD WITH CARE, IT IS A GLASS
PRODUCT. ALWAYS WEAR SAFETY GLASSES AND
GLOVES WHEN HANDLING GLASS.
Slide Actuator Crank (#42) onto shaft on the
bottom of Actuator (#16). Line up hole in shaft with
hole in Actuator Crank and insert Pin (#41) to
secure. See Figure 11.

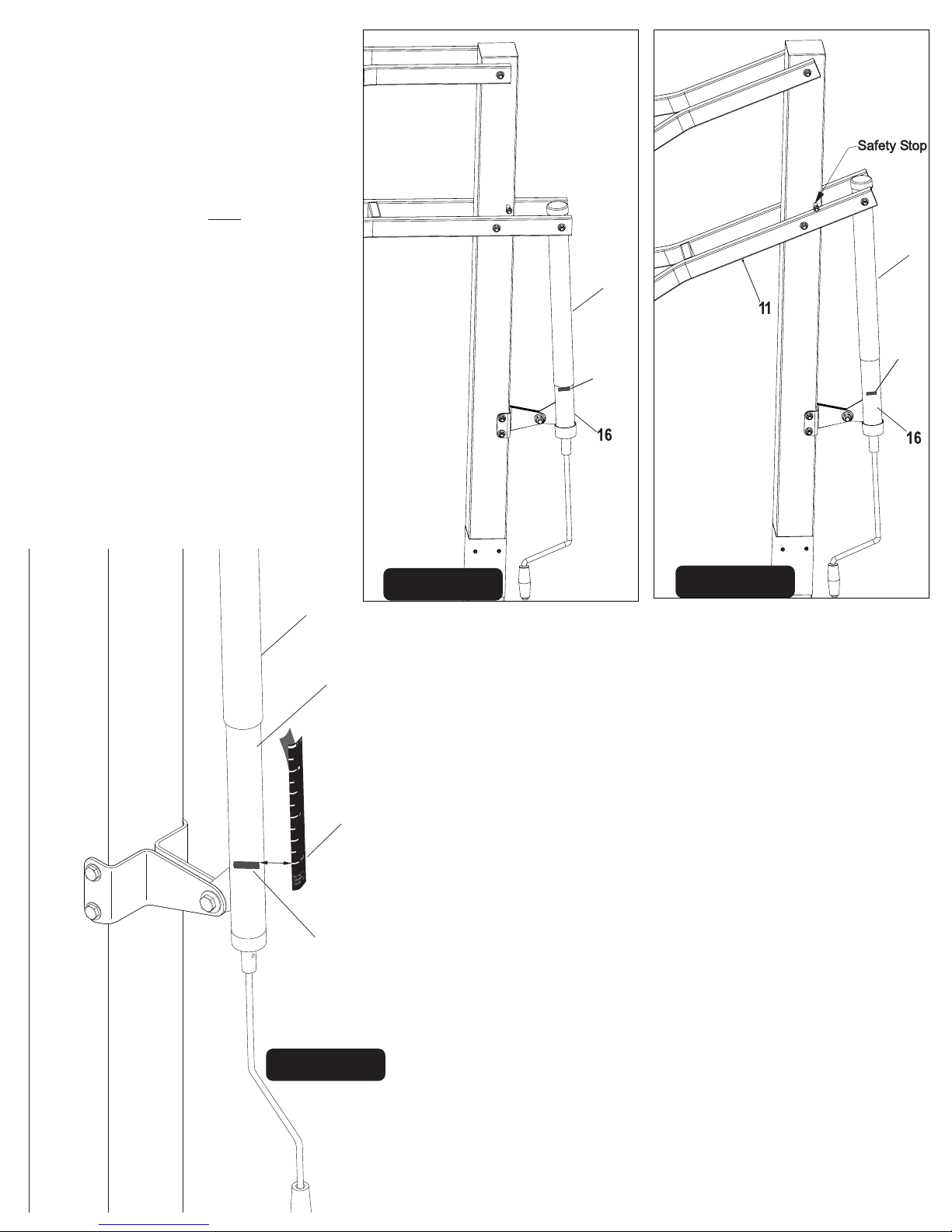

To aid in the assembly of the backboard, lower the
backboard, by turning the Actuator Handle, until the
lower arm makes contact with Stop Spacer (#10).
16.
17. Attach Upper Board Arms to upper mounting tubes on
backboard using two bolts (#24), two plastic washers (#5), four
washers (#18) and two lock nuts (#4). See Figure 12.

13
Figure 13
77
77
23
77
Screw #77
Detail A
18.
Mount Goal Assembly (#28) to Backboard, as shown in
Figure 13, using four bolts (#49), four washers (#26),
and four locknuts (#4). Tighten fasteners, but leave them
loose enough to level rim.
19. Place a level across rim assembly and adjust rim until it is
level. Finish tightening the four nuts.
20. Attach Rim Cover Plate (#32) using four screws (#33). See
Figure 13.
21. Check all nuts and bolts and make sure everything is
tightened properly.DO NOT over tighten pivot points,
snug is tight enough.
22. Use the Backboard Pads (#44) and (#45) as a template and
mark the hole locations on the backboard frame. See Figure
13 and Detail A.
NEVER USE RIM WITH COVER PLATE REMOVED!
24. Secure Backboard Pads (#44) and (#45), as shown, using
screws (#77). Note: Tighten screws tight but, do not over
tighten.
23. Drill 9/64" pilot holes into steel backboard frame. See
Detail A. Do not drill through both sides of
backboard tube frame.
Note: Cordless drill recommended for screw installation.
Do not over tighten screws causing screws to strip.
Note: Screws (#77), used in step 24, are Self Drilling
screws and can be installed without drilling pilot holes.
However, it will be easier to install screws if you drill
9/64” pilot holes. WEAR SAFETY GLASSES if drilling holes.
Note: To install screws, it will be easier if you use a
cordless drill with 5/16” socket (instead of Phillips head).

Figure 16
14
Set at 10 feet
Mark with
tape
15
Figure 14
Lowered all
the way down
Tape at
10 feet
Figure 15
15
Tape
17
16
15
29. Remove the adhesive backing from the Height Decal
(#17). Next, carefully align and stick decal to backside
of steel actuator (#16) starting at the 10 ft mark first.
Be sure to keep the height decal straight and rub out all
air bubbles. See Figure 16.
Do not remove adhesive backing from height decal
(#17) yet. Carefully place height decal on backside of
steel actuator (#16) and line up the 10 ft mark on the
tape with the 10 ft mark on the height decal. Decal
should fit correctly onto the backside of the steel
actuator. ( If not , simply trim to fit the top of the
actuator decal).
28.
Raise Backboard to 10 FT. regulation
playing height. Measure from top of rim
straight down to the playing surface.
Using tape - mark the side of the steel
actuator (#16) just under the plastic
actuator sleeve (#15) at this 10 ft rim
height. See Figure 14.
Lower backboard all the way down. Do not
force actuator once backboard is in it's
lowest position. See Figure 15.
25.
26.
27.

Figure 17
Two adults are recommended for
this step, one to level and one to
adjust the bottom #35 nuts.
If further leveling is required loosen top #35 nuts but do
not loosen past the top of #39 “J” Bolt. DO NOT
REMOVE NUTS #35 Place a level on pole and adjust .
bottom nuts #35 with a 15/16” open end wrench until
pole is level. Tighten top #35 hex nuts. See Detail B.
30.
Detail B
35
39
35
(Bottom)
15

16
LIMITED 5 YEAR WARRANTY
This consumer warranty extends to the original consumer purchase of any Escalade® Sports Product (hereinafter referred to as
the “Product”).
WARRANTY COVERAGE: Escalade® Sports warrants to the original Consumer Purchaser that any Product of its manufacture is
free from defects in material and workmanship. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT,
UNREASONABLE USE, NEGLIGENCE, IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS PROVIDED WITH THE PRODUCT
OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL OR WORKMANSHIP.
purchaser all structural components of the Goaliath® System to be free of defects in material and workmanship for a period of
five (5) years from the original purchase.
Merchandise must be shipped prepaid with a copy of proof of purchase to Escalade® Sports factory for examination to determine
if the basketball system needs to be repaired or replaced. Any labor costs, travel expenses and any other changes involved in the
removal, installation or replacement of the defective/repaired parts from/to your Goaliath® System will be the purchaser’s responsibility.
Shipping charges for replaced or warranted merchandise sent back to the customer from Escalade® Sports factory must be prepaid
by the customer in advance. If not, the replacement shipment will be sent out collect.
Escalade® Sports reserves the right to examine photographs or physical evidence of merchandise claimed to be defective, and to
recover said merchandise, prior to authorization of warranty claims. A “Returned Goods Authorization” number may be required,
please call for details prior to the return of any photographs or merchandise.
This limited 5 year warranty is expressly in lieu of all warranties, expressed or implied, including warranties of merchantability or fitness for
use. Escalade® Sports does not assume or authorize any person or representative to assume for us, any other liability in connection with the
sale of our products.
The remedy of repair or replacement stated above is Escalade® Sports exclusive remedy. Escalade® Sports will not be liable for any
other damages or expenses which may incur, including but not limited to incidental or consequential damages. Escalade® Sports
assumes no other obligations or liability on the part of the purchaser, and Escalade® Sports neither assumes nor authorizes any other
person to assume for it any other liability in connection with the goods sold.
This warranty shall not apply in any manner to parts or accessories not manufactured by Escalade® Sports.
NOT COVERED BY THIS WARRANTY
• Any merchandise subjected to Non-residential abuse, negligence, improper installation, vandalism, acts of God, alteration of product,
or any other events beyond the control of Escalade Sports. ®
• HANGING ON RIM WILL VOID THE WARRANTY: Rims are not warranted for any defects other than workmanship. Torn back plates,
damaged springs, bent rings, damaged eyebolts, and torn or distorted rim supports result from hanging on the rim and are not
warranted.
• Shipping charges both ways. Note: Any merchandise shipped to Escalade® Sports collect will be refused.
• Dealer service charges, labor charges and travel expenses associated with replacement of repair of warranty item.
WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF THIS SALE, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION.
ESCALADE® SPORTS SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER CONSEQUENTIAL OR INCIDENTAL
COSTS. EXPENSES OR DAMAGES INCURRED BY THE CONSUMER OF ANY OTHER USE.
Some states do not allow the exclusion or limitation of implied warranties or consequential or incidental damages, so the above limitations
or exclusions may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.
WARRANTY GUIDELINES IS REQUIRED FOR ALL WARRANTY CLAIMS
1. Proof of Purchase (original retail purchaser) is required for all warranty claims.
2. Call or write Escalade® Sports to receive a Return Authorization # and determine specific needs.
Phone: 1-888-USA-GOAL / Warranty Dept.
Or Write Escalade® Sports at: Escalade® Sports - P.O. Box 889, Evansville, IN 47706 - Attn: Warranty Dept.
Or E-mail us at: [email protected]
®
Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail
facilities.
•Merchandise not intended to be in places of public assembly, such as, but not limited to, schools, parks, public or private recreational
• Paint or rusted parts. If rust should appear, remove loose paint, sand lightly, primer and paint with exterior flat matte finish
enamel paint.

17 2L-7539-01
- BACKBOARD -
Items needed to clean backboard:
- 100% cotton soft cloth, (only)
- Glass Cleaner
Clean backboard using a 100% Cotton soft cloth and glass cleaner. Clean glass as you would household windows. Strong cleansers will damage
backboard and void warranty.
– RIM –
HANGING ON THE RIM WILL VOID YOUR WARRANTY. Rims are not warranted for any defects other than workmanship. Torn back plates,
damaged springs, bent rings, damaged eye bolts, and torn or distorted rim supports result from hanging on the rim and are not warranted.
The goal should not be cranked under 7-1/2' or over 10'. Adjustments of the goal should be done under adult supervision.
When attempting slam dunk activity you should always wear a mouth guard to avoid dental injury.
GOALIATH CARE INFORMATION
To ensure ease of operation, lubricate all pivot points at least every 6 months or as needed with a good lubricant such as WD-40.
Inspect your pole periodically, if rust should appear, remove loose paint, sand lightly, primer and paint with exterior flat matte finish
enamel paint.
– MAINTENANCE –
– RUST –
1 3M-6850-00 4" Square Tube Plug 1
2 1A-7686-01 Bottom Post 1
3 8S-6898-00 Top Post 1
4 901-28 3/8-16 Nylon Lock Nut 14
5 3M-6883-00 1-1/4" OD Plastic Washer 8
6 8S-6630-02 Upper Board Arm 2
7 1B-6483-10 3/8-16 X 7.5" Hex Bolt-Grade 5 1
8 3M-6269-00 1/4" Spacer 2
9 3M-6548-00 1 X 2 Tube Plug 8
10 8S-6657-00 Stop Spacer 2
11 1A-6331-02 Lower Board Arm 1
12 Not Used
13 3M-6467-00 Actuator Cap 1
14 8S-6658-00 Pivot Tube 1
15 3M-6542-00 Actuator Sleeve 1
16 4A-6605-00 Actuator 1
17 4L-7501-00 Height Decal 1
18 701-50 3/8 STD Washer 18
19 1B-6486-10 1/2-13 X 1-1/2" Hex Bolt 1
20 2B-6093-00 1/2 Flat Washer 2
21 2B-6095-00 1/2-13 Nylon Lock Nut 1
22 1B-6484-10 3/8-16 X 7" Hex Bolt-Grade 5 3
23 6A-7548-00 Backboard Assembly-33x54" Glass 1
24 1B-6195-00 3/8-16 X 2.75" Hex Bolt 4
Key# Part # Description Qty. Key# Part # Description Qty.
25 1B-6485-10 3/8-16 X 5" Hex Bolt 2
26 2B-6114-00 3/8 Flat Washer 4
27 Not Used
28 6A-6374-01 Goal Assembly 1
29 3M-6835-00 Goal Spacer Plate (Pre-Installed)
30 2S-6795-02 Post Ear 2
31 NOT USED
32 2S-6427-01 Rim Cover Plate 1
33 1B-6788-00 #8 x 1/2 Thread Forming Scr. 4
34 3M-9040-00 5/8 Thread Protector 4
35 2B-6097-00 5/8-11 Hex Nut 12
36 2B-6099-00 5/8 Split Lockwasher 4
37 2B-6098-01 5/8 SAE FLAT WSHR ZNC 8
38 2S-6453-00 Anchor Template 1
39 2B-6112-00 5/8-11 X 14 "J" Bolt 4
40 1S-6167-00 #3 X 30" Rebar 4
41 7B-6255-00 Pull Pin 1
42 4A-6606-00 Actuator Handle 1
43 2L-7539-01 This Manual 1
44 3M-6580-00 48" Board Pad Right 1
45 3M-6581-00 48" Board Pad Left 1
46 Not Used
47 3F-6010-00 Net 1
48 Not Used
49 1B-6782-00 3/8-16 x 1 3/4" Carriage Bolt 4
50 Not Used
77 1B-7039-00 Self Tapping Screw-#10 x 1" 10
B2251 REPLACEMENT PARTS LIST
1

18
77
77
77
29
2L-7539-01
(Pre-Installed)
77
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBOARD, RIM,
SUPPORT BRACES OR NET .
4L-8152-00
WARNING
!
Note: All #9 Caps
are Pre-Installed.
(Pre-Installed)
(Pre-Installed)
(Pre-Installed)
