gofanco PRO-FiberIP Series User manual

PRO-FiberIP
HDMI over IP (ber) Uncompressed Mulcast System
Receiver
Transmier
®
Made in Taiwan
User‘s Guide

®
PRO-FiberIP
Congratulaons for owning a gofanco product. Our products aim to meet all your
connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit www.gofanco.com.
For technical support, please email us at [e-mail].
For drivers/manuals download, please go to hp://www.gofanco.com/download.

®
PRO-FiberIP
Please read all of these instructions carefully before you use the device. Save this
manual for future reference.
The PRO-FiberIP HDMI over IP (ber) Uncompressed Multicast System has been
tested for conformance to safety regulations and requirements, and has been cer-
tied for international use. However, like all electronic equipments, the PRO-Fi-
berIP should be used with care. Please read and follow the safety instructions to
protect yourself from possible injury and to minimize the risk of damage to the
unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this
manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of
this unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed
for this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the po-
wer to the device before cleaning.
1. Safety and Notice
Table of Contents
1. Safety and Notice ..................................................................3
2. Introduction .......................................................................4
3. Features...........................................................................4
4. Specication ......................................................................5
5. Package Contents ..................................................................6
6. Connection Diagram ...............................................................6
7. Panel Description ..................................................................7
8. IR Pass-Through....................................................................9
9. Notice............................................................................10
10. Operation Approach...............................................................11
11. Warranty .........................................................................15
3

®
PRO-FiberIP
• Supports uncompressed HDMI Deep Color, full 3D & 4K2K@30
• HDCP & EDID Bypass
• CEC support
• Auto equalization
• Pure unaltered uncompressed 7.1ch digital HDMI over ber transmission
• DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
• Supports full frequency IR signal from 20KHz to 60KHz
• Bi-directional IR pass-through
• Full Duplex RS-232 control up to 115,200 bps
• Integrated port for LAN/network device
• Fiber extension and connection to a 10GbE Ethernet Switch (IGMP Snooping
supported)
• Included software to congure & update device and to control the switching
operation of the various signal types
• Supports IP pass-through
• Supports seamless switching
3. Features
The PRO-FiberIP HDMI over IP (ber) Uncompressed* Multicast System boosts up
your video/audio transmission distance up to 300m(1000ft) over a duplex, LC termi-
nated multimode ber cable in Ultra-HD 4K2K@30 format. Users can readily extend
Ultra-HD sources from DVD players, Blu-ray Disc player, PS3, PC, and any other HDMI
sources broadcasting to distant display monitors including HDMI or DVI enabled TV
sets or LCD PC monitors. Besides PRO-FiberIP is HDCP compliant, and supports IR
and RS-232 pass-through path.
With broadcasting management software and 10 Gigabit Ethernet network switch
(IGMP Snooping supported), PRO-FiberIP is a complete Ultra-HD 4K2K@30 video
broadcasting solution for digital signage. It can transmit Ultra-HD 4K2K@30 HDMI
video broadcasting over IP network. The broadcasting format can be Point to Point,
Point to Many, and Multi-Casting. Multi-casting is based on Managed Gigabit Switch
with 802.Q VLAN function to allow support for multiple sources and sinks.
2. Introduction
Up to 4K@60 4:2:0 8bit
*
4

®
PRO-FiberIP
4. Specications
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 219 x 122 x 25mm[8.6“ x 4.8“ x 1”] 219 x 122 x 25mm[8.6“ x 4.8“ x 1”]
Package 325 x 196 x 92mm[12.7” x 7.7” x 3.6”]
Carton 490 x 426 x 352mm[1’6” x 1’4” x 1’2”]
Weight Model 656g [23.1oz] 656g [23.1oz]
Package 2393g [5.3lbs]
Fixedness Wall-mounting case with screws
Power supply 5V4A
Power consumption Max 12W
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
5
Item Description
Technical PRO-FiberIP-TX PRO-FiberIP-RX
Role of usage Transmitter [TX] Receiver [RX]
HDMI compliance HDMI Deep Color, full 3D & 4K2K@30
HDCP compliance Yes
Video bandwidth Single-link 340MHz [10.2Gbps]
Video support 480i / 480p / 720p / 1080i / 1080p60 / 4K2K@30 / 4K2K@60 4:2:0 8bit
HDMI over ber Yes
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Equalization Auto
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
PCB stack-up 6-layer board [impedance control — dierential 100Ω; single 50Ω]
IR pass-thru Bi-directional
RS-232 support Yes
Input 1x HDMI, 2x 3.5mm 1x ber, 1x 3.5mm
Output 1x ber, 1x 3.5mm 1x HDMI, 2x 3.5mm
In / Out 1x RS-232, 1x RJ-45(Ethernet) 1x RS-232, 1xRJ-45(Ethernet)
HDMI source control Controllable via IR pass-through from RX to TX with IR extenders
HDMI connector Type A [19-pin female]
RJ-45 connector WE/SS 8P8C(Reverse Mode)
Rotary control switch None
3.5mm connector IR receiver / IR blaster IR receiver / IR blaster

®
PRO-FiberIP
• 1x PRO-FiberIP [TX & RX]
• 1x IR blaster
• 1x IR receiver
• 2x DC 5V
• 1x Installation software CD
• 1x User Manual
6. Connection Diagram
6
5. Package Contents

®
PRO-FiberIP
1. +5V DC: Connect to a 5V power supply unit
2. HDMI IN: Connect to an HDMI source with an HDMI male-male cable
3. Status LED: Lights up when the device’s rmware is read
4. Signal LED: Lights up when the source is connected/detected
5. SFP OUT: Connect a duplex, LC terminated multimode ber cable
6. Ethernet Port: Ethernet control port
7. Panel Description
7. RS-232: Connect to serial port device with a DSUB-9 male-male or male-female cable
here
8. Transmission Status LED: Lights up when 10Gb/s Ethernet frame rate data is transmitted
9. Receiving Status LED: Lights up when 10Gb/s Ethernet frame rate data is received
7
2 3 4 651
7 8 9 10 11 12
Transmitting unit PRO-FiberIP-TX
10. Audio IN: Connect an audio source device here
11. IR Receiver: Infrared 3.5 socket for IR receiver extension cable
12. IR Blaster: Infrared 3.5 socket for IR blaster extension cable
Front Panel
Rear Panel

®
PRO-FiberIP
Receiving unit PRO-FiberIP-RX
8
1. +5V DC: Connect to a 5V power supply unit
2. HDMI OUT: Connect to a display source with an HDMI male-male cable
3. Status LED: Lights up when the device’s rmware is read
4. Signal LED: Lights up when the source is connected/detected
5. SFP IN: Connect a duplex, LC terminated multimode ber cable
6. Ethernet Port: Ethernet control port
7. RS-232: Connect to serial port device with a DSUB-9 male-male or male-female
cable here
8. EDID Button: To learn EDID from display
9. Transmission Status LED: Lights up when 10Gb/s Ethernet frame rate data is trans-
mitted
7 8 9 10 11 12 13
10. Receiving Status LED: Lights up when 10Gb/s Ethernet frame rate data is received
11. Audio OUT: Connect an audio output device (e.g. speaker or headphone) here
12. IR Receiver: Infrared 3.5 socket for IR receiver extension cable
13. IR Blaster: Infrared 3.5 socket for IR blaster extension cable
Front Panel
Rear Panel
2 3 4 651

®
PRO-FiberIP
8. IR Pass-Through
IR Extenders
IR Sockets
IR Blaster IR Receiver
IR BLASTER:
plug in the IR blaster to emit all IR command signals received from the IR receiver from
the other end to control the devices corresponding to the IR signals.
IR RECEIVER:
plug in the IR receiver to receive all IR command signals from the IR remote controls of
the corresponding devices.
CAUTION
Incorrect placement of IR Blaster and Receiver may result in the failure of the
IR extenders. Please check carefully before plugging in the IR extender to the
respective IR sockets. Warranty will not cover the damage.
Denition of IR Earphone Jack
IR Blaster IR Receiver
You can buy any IR extension cables in the market that are compatible to the
definition of the IR sockets for the matrix if necessary for replacement use.
However, IR cables longer than 2m (6-ft) may not work.
9
i

®
PRO-FiberIP
10
9. Notice
Type A (Receptacle) HDMI
Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield
Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock–
Pin 3 TMDS Data2– Pin 13 NC
Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device)
Pin 5 TMDS Data1 Shield Pin 15 SCL
Pin 6 TMDS Data1– Pin 16 SDA
Pin 7 TMDS Data0+ Pin 17 DDC/CEC Ground
Pin 8 TMDS Data0 Shield Pin 18 +5V Power
Pin 9 TMDS Data0– Pin 19 Hot Plug Detect
Pin 10 TMDS Clock+

®
PRO-FiberIP
11
10.Operation Approach
Software Control through Ethernet port
1. System Requirement
(1) OS information : MS Win XP/7/8/10
(2) Baud Rate: 57600
(3) Software size: 17MB
(4) Minimum RAM requirement: 256MB
Before you execute the software, please open the software control pro-
gram (based on your operating system).
After executing the control software, the following interface will pop up.
2. Control Interface
1
2 43 5 6 7
1Connect Control Software 5Analog Audio Routing
2Video Switching (Mapping) 6RS-232 Routing
3Wall Switching 7Infrared Routing
4HDMI Audio Routing

®
PRO-FiberIP
12
(1) Video Switching (Mapping)
(2) Wall Switching
Dragging the Encoders icon to Decoders icon to do input/output mapping. After set-
ting the mapping, you also can click the right button to set up more video mode (ex.
stop video).
User can dene wall size by entering the wall parameters. Dragging Encoders or De-
coders to Wall and Wall Decoders icon to setup the video wall function. Please note
that the resolution of each Wall Decoders is divided by the wall size. For example, the
resolution of wall is 1920x1080 and the wall size is 4 (2x2), the resolution of each
wall decoders is 960x540. If you want to mute the video or remove the video wall,
please click the right button to select those function.

®
PRO-FiberIP
13
(3) HDMI/Analog Audio Routing
(4) RS-232 Routing
This function provides you to control where the audio transmit.
Bi-directional RS-232 signal are transmitted between the device transmitter and
receiver. Dragging the RS-232 icon of Senders to Receivers to make connection and
sending/receiving data.

®
PRO-FiberIP
14

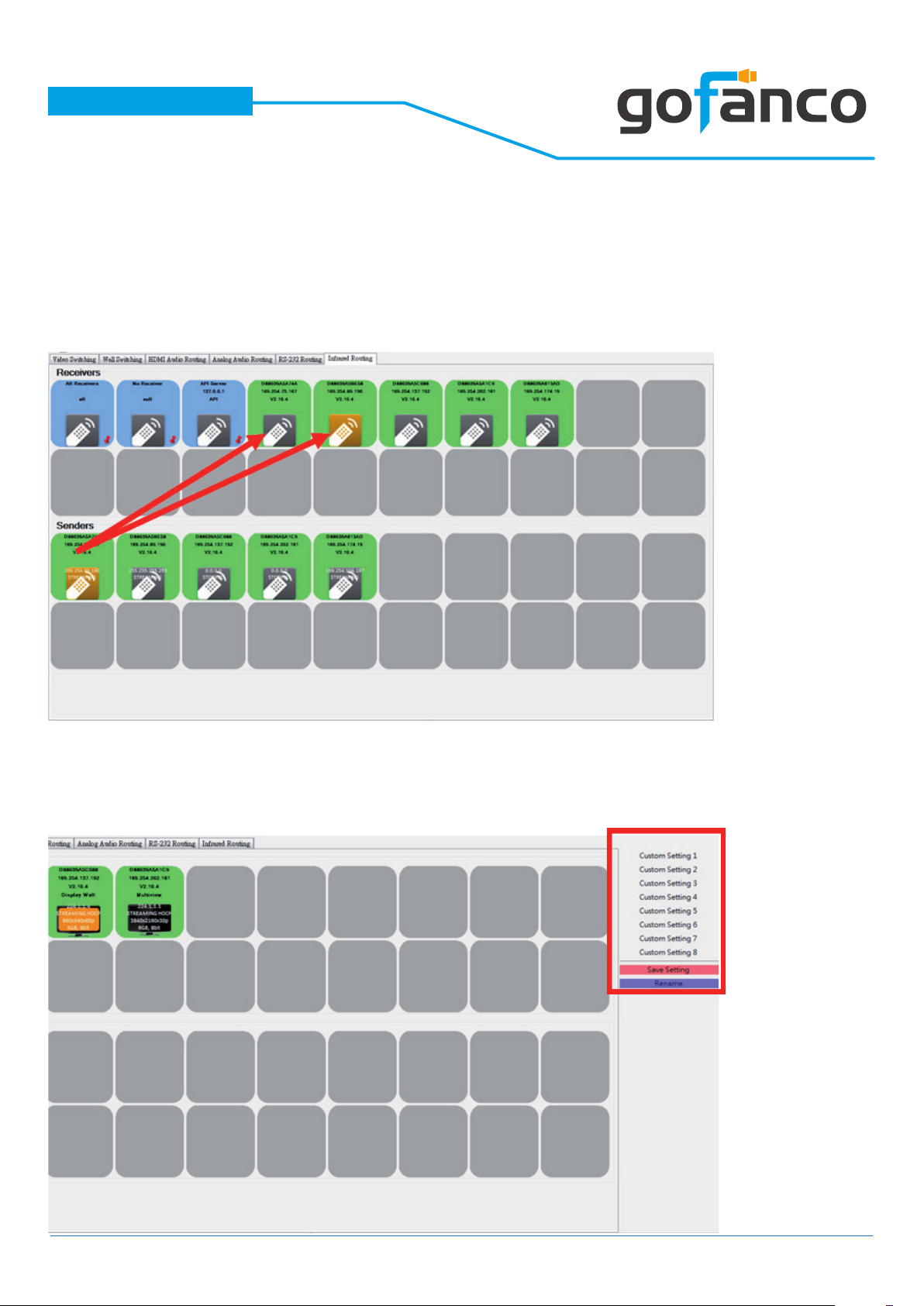

(5) Infrared Routing
(6) Custom Setting
Bi-directional IR signal can be transmitted between the transmitter and receiver. The
IR signal can be generated either from receiver or a control system. You can drag the
Infrared Senders icon to Receivers to do the Infrared Routing.
In the right part of the control interface, we provide the save function for user to save
the video switching (mapping) into the ash memory. User also can rename the cu-
stom setting.

®
PRO-FiberIP
15
11. Limited Warranty
The SELLER warrants the PRO-FiberIP HDMI over IP (ber) Uncompressed Multicast System
free from defects in the material and workmanship for 1 year from the date of purchase from
the SELLER or an authorized dealer. Should this product fail to be in good working order
within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided
that the unit has not been subjected to accident, disaster, abuse or any unauthorized modi-
cations including static discharge and power surge. This warranty is oered by the SELLER for
its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal
housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price
of parts and labor in eect at the time of repair. Such repairs are warranted for 90 days from
the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure
the unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be
accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limita-
tions, any other implied warranty or tness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are res-
ponsible for shipping charges to and from the SELLER. Cables and power adapters are limited
to a 30 day warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. Howe-
ver, The SELLER assumes no responsibility for any inaccuracies that may be contained in this
manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential
damages resulting from any defect or omission in this manual, even if advised of the possibi-
lity of such damages. Also, the technical information contained herein regarding the PRO-Fi-
berIP features and specications is subject to change without further notice.
The product name and brand name may be registered trademarks of related manufacturers. TM and ®
may be omied on the user‘s guide. The pictures on the user‘s guide are just for reference, and there
may be some slight dierences with the actual products.
We reserve the rights to make changes without prior noce to a product or system described herein to
improve reliability, funcon, or design.
Disclaimer

www.gofanco.com
Thank you for choosing gofanco
®
Jul, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
