GOGO KIDZ TRAVELMATE UNIQR User manual

Cosco Alpha Omega Series
The Alpha Omega 3-in-1 car seat has a removable base for certain situations such as
airline use. The gogo Kidz Travelmate only fits with the base removed and the thumb-
screws positioned in the second hole from the top.
Evenflo Triumph
To attach to the Evenflo® Triumph car seat you will use the long strap with two cleats
and o-rings, two thumbscrews, and the tether strap from the car seat. Begin by
reclining the Triumph seat all the way in the reclined position. The car seat should be
adjusted to lean all the way back otherwise; child will be too vertical. Follow remaining
instructions inside guide on Attaching to Non-Britax Car Seats.
Recaro
Please call Go-Go Babyz Customer service for instructions at 888.686.2552 or visit
www.gogobabyz.com.
Special Instructions for Cosco Alpha Omega Series,
Evenflo Triumph & Recaro Car Seats GOGO KIDZ®
TRAVELMATE
MODEL UNIQR
ASSEMBLY &
ATTACHING GUIDE
7013 Realm Drive Suite C San Jose, CA 95119 / p [phone] / f [phone] / www.gogobabyz.com
Go-Go Babyz®Corporation
®

B
A
KJI
H
G
E
DC

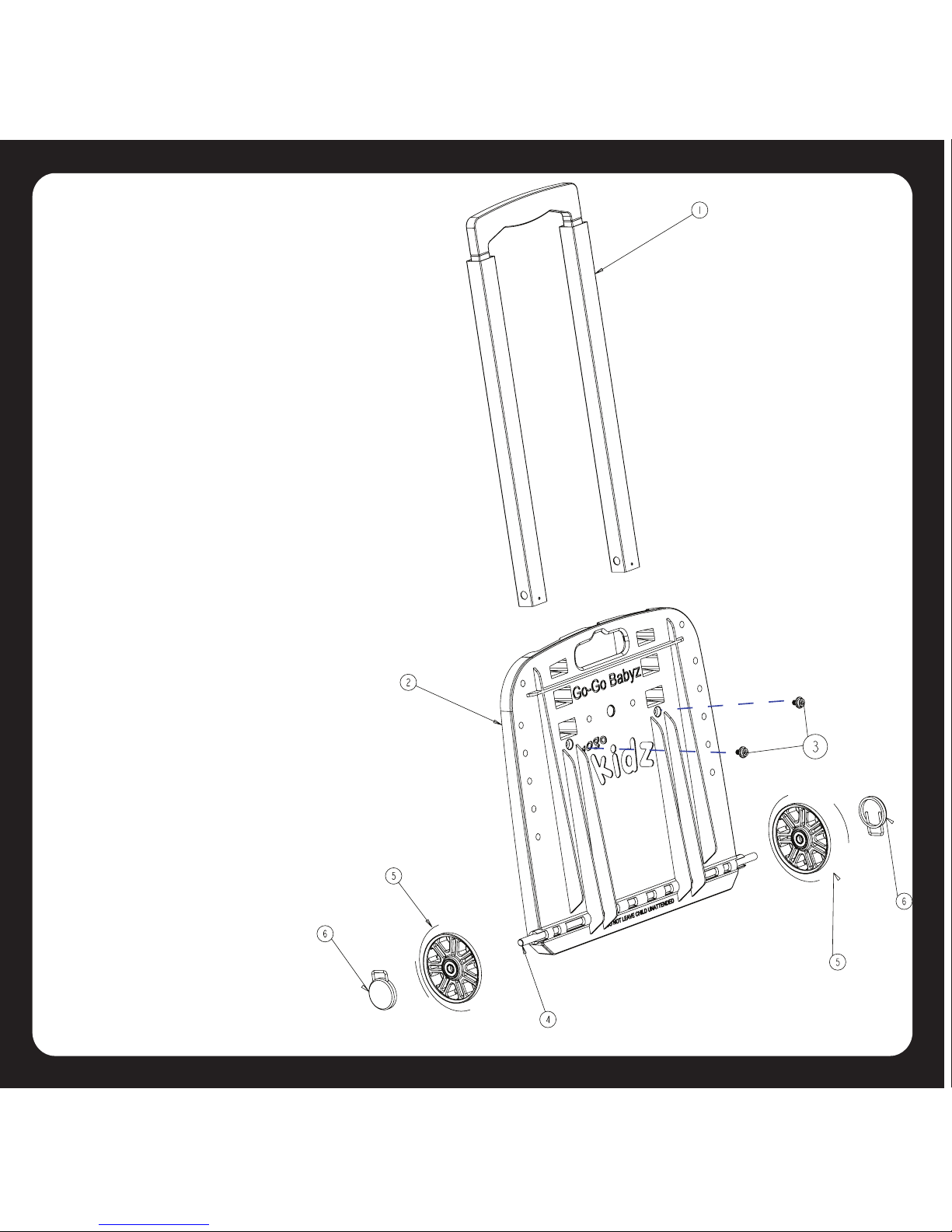

A. Insert the Handle (1) into the plate (2)
B. Align pre-drilled holes at the bottom
of the handle with holes in front of
plate
C. Insert handle screws (3) in front of plate
D. Pull up on handle to ensure it is secured
E. Insert Axle (4) through opening at
bottom of plate
F. Slide wheel with Quick Release Spring
Locks (5 & 6) on to each side of axle,
push on spring lock until wheel
snaps in place
G. Test connection by pulling on wheels
to ensure they are secured
Front of plate
P A R T S
0201
ASSEMBLY
A. Handle (1)
B. Handle Screws (2)
C. Plate (1)
D. Axle (1)
E. Wheels (2)
F. Quick Release Spring Locks (2)
G. Cleats (2)
H. Short Strap (1) and Long Strap (1)
I. O-Rings (2)
J. Thumbscrews (2)
K. Retainer Bar for Britax & Fisher Price (1)
F

B
A
KJI
H
G
E
DC
A. Insert the Handle (1) into the plate (2)
B. Align pre-drilled holes at the bottom
of the handle with holes in front of
plate
C. Insert handle screws (3) in front of plate
D. Pull up on handle to ensure it is secured
E. Insert Axle (4) through opening at
bottom of plate
F. Slide wheel with Quick Release Spring
Locks (5 & 6) on to each side of axle,
push on spring lock until wheel
snaps in place
G. Test connection by pulling on wheels
to ensure they are secured
Front of plate
P A R T S
0201
ASSEMBLY
A. Handle (1)
B. Handle Screws (2)
C. Plate (1)
D. Axle (1)
E. Wheels (2)
F. Quick Release Spring Locks (2)
G. Cleats (2)
H. Short Strap (1) and Long Strap (1)
I. O-Rings (2)
J. Thumbscrews (2)
K. Retainer Bar for Britax (1)
F

0201

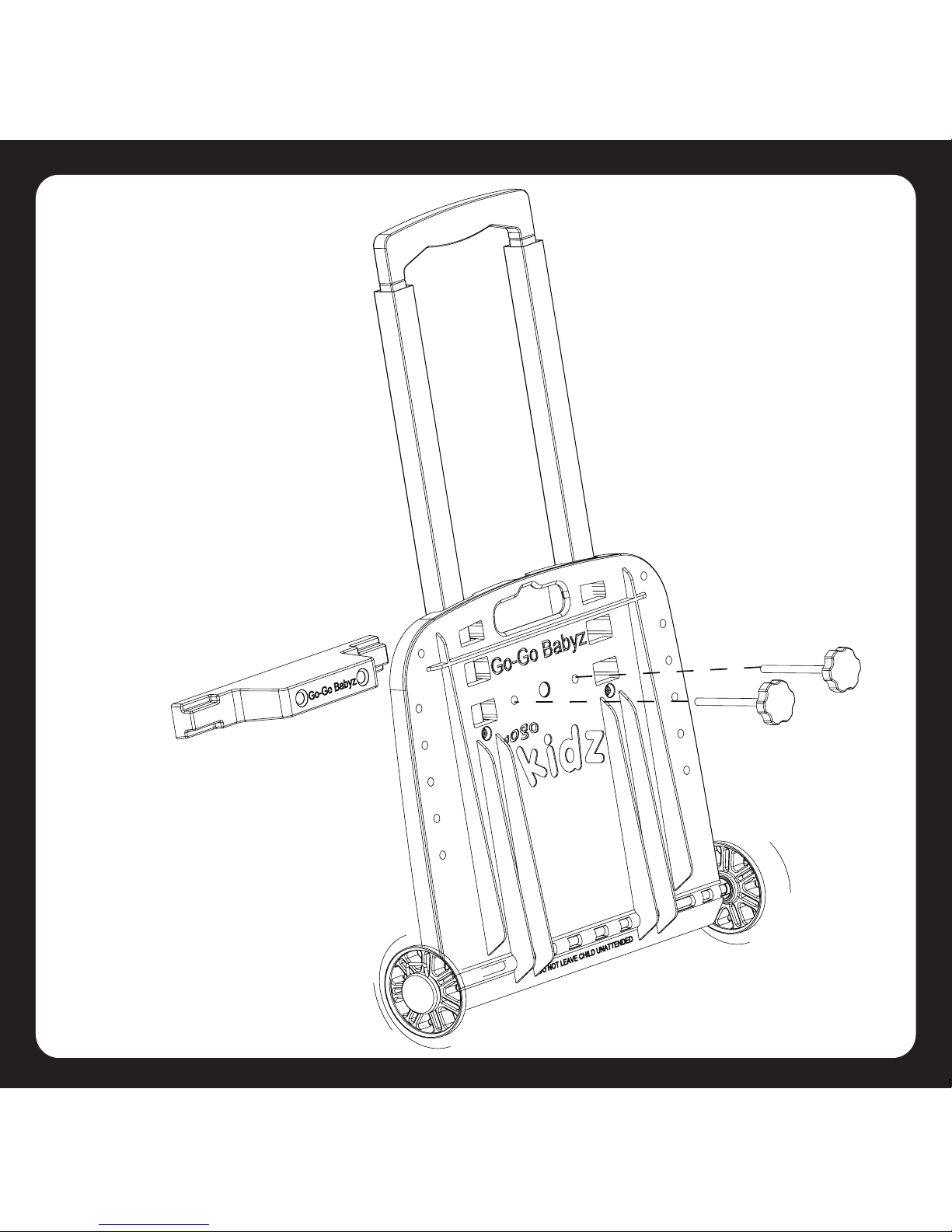

Attaching to Britax or Fisher Price Car Seats - If you do not have a Britax or Fisher
Price car seat, please skip this page and proceed to next page.
BRITAX & FISHER PRICE
INSTRUCTIONS
1. Place car seat face down on floor *
2. Locate the two ribs on each side of your car seat
3. Place the “T” portions of the retainer bar under the ribs in a perpendicular
position, holes in retainer bar should face the ceiling
4. Align the two support tabs at bottom of plate with bottom of ribs (not
the bottom of base)
5. Lay the plate flat on top of ribs on car seat
6. Use one hand to align retainer bar holes and other hand to align holes in
plate for holes to line up. Move retainer bar as necessary to align.
7. Insert Thumbscrews through holes in plate, screwing into the retainer bar
8. Tighten both thumbscrews securely
9. Place car seat in upright position and test connection by pulling/pushing
your seat with the handle
10. If your car seat has a tether strap, pull 10’ of strap out and pull through
telescoping handle and attaching tether latch to the plate handle,
tighten strap
•After the first time you attach and are familiar with product, you may also attach
the gogo Kidz Travelmate with Britax car seats while in an upright position with
child sitting in seat.
0403
BRITAX&
FISHER
PRICE
ASSEMBLY
DIAGRAM

0201
Attaching to Britax or Fisher Price Car Seats - If you do not have a Britax or Fisher
Price car seat, please skip this page and proceed to next page.
BRITAX & FISHER PRICE
INSTRUCTIONS
1. Place car seat face down on floor *
2. Locate the two ribs on each side of your car seat (on the back of your seat)
3. Place the “T” portions of the retainer bar under the ribs in a perpendicular
position, the Go-Go Babyz logo in retainer bar should face the ceiling
4. Align the two support tabs at bottom of plate with bottom of ribs (not
the bottom of base)
5. Lay the plate flat on top of ribs on car seat
6. Use one hand to align retainer bar holes and other hand to align holes in
plate for holes to line up. Move retainer bar as necessary to align.
7. Insert Thumbscrews through holes in plate, screwing into the retainer bar
8. Tighten both thumbscrews securely
9. Place car seat in upright position and test connection by pulling/pushing
your seat with the handle
10. If your car seat has a tether strap, pull 10’ of strap out and pull through
telescoping handle and attaching tether latch to the plate handle,
tighten strap
•After the first time you attach and are familiar with product, you may also attach
the gogo Kidz Travelmate with Britax car seats while in an upright position with
child sitting in seat.
Please review the operating manual, visit our web site or call Go-Go Babyz at 888.686.2552
if you are having difficulty.
0403
BRITAX&
FISHER
PRICE
ASSEMBLY
DIAGRAM

0201 0403
Special Instructions for Cosco Alpha Omega Series, Evenflo Triumph
& Recaro Car Seats on back page.
1. Place car seat face down on floor
2. Thread the strap with Cleats through seat belt opening in back of car seat
3. Align two support tabs on bottom of plate with the bottom of the ribs on the
car seat
4. Lay the plate flat onto the back of the car seat preferably at the bottom of
the ribs. Use the bottom of the base if necessary.
5. Insert thumbscrews in holes on the sides of plate as shown. Use highest holes
possible in order to best match seat belt opening in car seat
6. Secure one end of strap using thumbscrew and cleat
7. Change position of cleat in the grommet to shorten the strap if necessary by
removing and re-attaching the strap
8. Tighten one thumbscrew and secure other end of strap and tighten as much
as possible
9. Retighten first side of strap
10. Place car seat in upright position and test connection by pulling/pushing your
seat with the handle
11. If your car seat has a tether strap, pull 10’ of strap out and pull through
telescoping handle to attach tether latch to plate handle, tighten strap
PLACERAT
P L A C E R A T
0605
N O N  B R I T A X
ASSEMBLY
DIAGRAM
A T T A C H I N G T O A N O N  B R I T A X
C A R S E A T

0201 0403
Special Instructions for Cosco Alpha Omega Series, Evenflo Triumph
& Recaro Car Seats on back page.
1. Place car seat face down on floor
2. Thread the strap with Cleats through seat belt opening in back of car seat
3. Align two support tabs on bottom of plate with the bottom of the ribs on the
car seat
4. Lay the plate flat onto the back of the car seat preferably at the bottom of
the ribs. Use the bottom of the base if necessary.
5. Insert thumbscrews in holes on the sides of plate as shown. Use highest holes
possible in order to best match seat belt opening in car seat
6. Secure one end of strap using thumbscrew and cleat
7. Change position of cleat in the grommet to shorten the strap if necessary by
removing and re-attaching the strap
8. Tighten one thumbscrew and secure other end of strap and tighten as much
as possible
9. Retighten first side of strap
10. Place car seat in upright position and test connection by pulling/pushing your
seat with the handle
11. If your car seat has a tether strap, pull 10’ of strap out and pull through
telescoping handle to attach tether latch to plate handle, tighten strap
Please review the operating manual, visit our web site or call Go-Go Babyz at 888.686.2552
if you are having difficulty.
PLACERATP L A C E R A T
0605
N O N  B R I T A X
ASSEMBLY
DIAGRAM
A T T A C H I N G T O A N O N  B R I T A X
C A R S E A T

Cosco Alpha Omega Series
The Alpha Omega 3-in-1 car seat has a removable base for certain situations such as
airline use. The gogo Kidz Travelmate only fits with the base removed and the thumb-
screws positioned in the second hole from the top.
Evenflo Triumph
To attach to the Evenflo® Triumph car seat you will use the long strap with two cleats
and o-rings, two thumbscrews, and the tether strap from the car seat. Begin by
reclining the Triumph seat all the way in the reclined position. The car seat should be
adjusted to lean all the way back otherwise; child will be too vertical. Follow remaining
instructions inside guide on Attaching to Non-Britax Car Seats.
Recaro
Please call Go-Go Babyz Customer service for instructions at 888.686.2552 or visit
www.gogobabyz.com.
Special Instructions for Cosco Alpha Omega Series,
Evenflo Triumph & Recaro Car Seats
GOGO KIDZ®
TRAVELMATE
MODEL UNIQR
ASSEMBLY &
ATTACHING GUIDE
7013 Realm Drive Suite C San Jose, CA 95119 / p [phone] / f [phone] / www.gogobabyz.com
Go-Go Babyz®Corporation
®
