Golden MAXICOMFORT PR512MLA User manual

Power Lift & Recline Chair
OWNER’S MANUAL
MAXICOMFORT™MODELS
401 Bridge Street
Old Forge, PA 18518
www.goldentech.com
PR512MLA
PR632

2
Dear Valued Customer,
Thank you for purchasing this Golden Technologies Power
Lift and Recline Chair. We are committed to providing our
customers with the highest quality lift chairs Made by
Americans. Our chairs are handcrafted and manufactured in Old
Forge, PA. We are proud to produce the industry’s favorite lift
chairs – for your family, and ours.
We believe that this product is made from the highest quality
components available, is engineered to give you maximum
service with minimum maintenance, and is backed by the
strongest warranty in the industry. We hope that your Golden
chair provides years of comfort and enjoyment, while assisting
you in both sitting down and standing up.
Please take a few moments to review this manual to become
familiar with the operation of this chair and our warranty. If you
need additional information, please call the dealer from whom
you purchased this chair.
Also, please note the following safety information: This power
lift and recline chair is a medical device designed to help you sit
down and stand up. Do not allow children to operate the chair
at any time. When not in use, the chair should be kept in the
sitting position.
Again, thank you for selecting this Golden chair.
Sincerely,
Richard Golden
Chief Executive Officer

3
Safety Guidelines
The symbols below are used in the owner’s manual and/or on the product
to identify warnings and notify you of important safety information. Make sure
you read and understand them completely.
WARNING! Indicate(s) a hazardous situation which, if not
avoided, could result in death or serious injury. This icon is
represented as a black symbol on a yellow triangle with a
black border.
MANDATORY! Failure to perform mandatory actions could
cause personal injury and/or equipment damage. This icon
is represented as a white symbol on a blue dot with a white
border.
PROHIBITED! Indicate(s) an action(s) that should not be
performed under any circumstance. Failure to adhere could
cause personal injury and/or equipment damage. This icon is
represented as a black symbol with a red circle and red slash.
Safety Symbols
The symbols below identify warnings, mandatory actions, and prohibited
actions. They can be found in the owner’s manual and/or on the product. Make
sure you understand all safety labels before operating the product. Do not remove
safety labels from your product.
Read and follow
owner’s manual!
Pinch/Crush Point
Hazard!
Transformer
Crush Hazard!
Fire Hazard!
Child and/or Pet
Crush Hazard!
Adult, Child and/
or Pet Tip Over
Hazard!
continued on next page

4
continued from previous page
Safety Guidelines
Class II Device!
Indoor use only!
Do Not Smoke!
Electrical hazard!
Do not dispose in trash!
Batteries required!

5
MANDATORY
READ THIS MANUAL FIRST BEFORE INSTALLING OR
OPERATING YOUR POWER LIFT AND RECLINE CHAIR.
Your power lift and recline chair has been engineered from the leg
levelers up to provide the ultimate in strength and reliability. Great care has been taken
to provide you with total comfort and safety. Golden Technologies thoroughly inspects
and tests each unit prior to shipment.
WARNING
Your Golden power lift chair is a medical device. Therefore, you are
required to exercise caution when operating it to ensure your personal
safety and that of others around you. The following are rules for the
safe operation of your Golden power lift chair.
Care should be taken in the unpacking of this unit, so as not to cause
injury to persons or damage to the unit. Dispose of all plastic bags and
covers, as they can be a smothering hazard to small children.
Do not allow children or pets near the chair while the
chair is operating.
Do not allow children to play with or operate the
chair at any time.
Hand control should be disabled or unplugged when
the chair is not in use.
Do not flop down into the chair when getting into it, or while it is in
its lift position. Flopping down into the chair will damage it and could
cause personal injury.
Do not allow anyone to sit on your lap, or on the arm of the chair, or on
the footrest while in or operating the chair, as it may cause tipping and
could result in personal injury.
Do not place fingers or hands between the seat cushion and the inside
arm of the chair while sitting in the chair or when the chair is in
operation or plugged into a power source.
Do not retrieve fallen objects from inside or under the chair while the
chair is plugged into a power source.
Do not operate the chair if there are any persons,
pets or other obstructions under or in front of the
footrest, under the chair or behind the chair.
Do not position yourself, child and/or pet too high on
the chair while the chair back is reclined. This can
cause a tip over hazard. Make sure you are properly
fitted for the lift chair prior to operating the chair.

6
Do not smoke while operating, sitting or resting in the chair.
To reduce risk of electrical shock, do not immerse any of the
electrical components into a liquid, or spill any liquids onto electrical
components. Do not open any of the electrical components. There are
no serviceable parts.
Warranty will be void if any of the electrical components are opened by
other than a qualified service person.
Make sure the chair is placed at the specified distance from a wall/
corner (page 8). Failure to do so can damage the chair and will void
the warranty.
Do not use any type of electrical extension cord to plug your
chair into an electrical outlet. Make sure that all electrical
products and their wires are positioned away from your chair
as the metal lift frame mechanism could crush them and
create a fire hazard and/or may cause personal injury.
Do not operate your lift chair while intoxicated or taking medications
that impair your mental or physical abilities to operate the chair safely.
Consult with your doctor about any medications you are taking that
may affect the safe operation of the chair.
Do not operate this product if you have any medical conditions that
result in limited, debilitating mental or physical capacity. You should
consult your doctor before using this product.
Consult with your physician regarding using the Trendelenburg
position.
Placing the lift chair in the center of a room or too far away from a wall
will create a tripping hazard, because the power wires for the lift chair
will be crossing main traffic areas in the residence.
Leakage from the 9 VDC backup batteries can result in property
damage. Periodically inspect and replace the batteries. Read the
“Battery Back Up System” and “Care and Maintenance” sections in
this manual.
If the lift chair user is unconscious or sleeping the hand control may
inadvertently become activated in a way that may force the user out
of the chair.
Should you ever encounter a problem with the operation of your
power lift chair, discontinue all use of the product upon discovery of
the problem. Contact the provider from whom you purchased your
chair to arrange service.
Exceeding the stated weight limit listed in this manual can result in
instability of the lift chair, causing a potential tip over hazard.

7
Consult the owner’s manual of the chair and a physician to determine if
you are capable of moving or lifting the chair, as this will cause serious
injury if not done properly.
Verify that all objects including hands and fingers are not between
the arm of the chair and the open compartment before closing the
compartment as this will result in property damage or serious injury.
This is an electrical device and will be impacted by any power failure.
To operate this chair properly, you must read and understand the
intended use of the product, and overall operation of the chair as
misuse, or lack of proper training may lead to serious injury.
Use extreme care when unpacking, assembling, and disassembling of
this unit, so as not to cause injury to persons or damage to the unit.

8
L.E.D. light
L.E.D. light
From motor
To outlet
115-120V A.C.
DC Power
Bottom view of
Transformer
Transformer
Plug
Install two 9 volt batteries
(if applicable) into the
transformer for battery
backup (See page 10)
(batteries not included)
P
A
T
E
N
T
E
D
NO BATTERY BACKKUP FOR PR632
INSTALLATION MAXICOMFORT MODELS
There are three external power source scenarios depending on the model of your
chair.
1. Transformer without battery back up. (Note: An uninterruptible power supply or UPS,
may be purchased from an outside source as a battery backup).
2. Transformer with battery back up using two 9 volt batteries. Batteries not
included.
3. Transformer with a rechargeable lithium battery pack.
Transformer without battery backup
1. Remove AC/DC adapter (transformer) from packaging located under base of
chair. Place transformer on floor behind the chair. Proceed to step 2.
Transformer with battery backup
1. Remove AC/DC adapter (transformer) from packaging located under base of
chair. Place two 9 volt alkaline batteries (not included) into the slots provided
as shown. Place transformer on floor behind the chair. Proceed to step 2.
WARNING: Once used, batteries must be replaced. Batteries should
also be replaced every year even if they have not been used. Keep the
telephone or some means of communicating with someone within reach.
Transformer with rechargeable lithium battery backup
1. Remove AC/DC adapter (transformer) and lithium battery pack from
packaging located under base of chair. Connect the lithium battery pack to the
transformer, by sliding them together. Place transformer/lithium pack on floor
behind the chair.
2. Locate the power cord from the motor. It is attached to the motor shaft under
the chair with a white zip tie. Remove white zip tie, extend the cable under and
out behind the chair and connect to the transformer as shown below.
3. Make sure all connections are tight. Plug the adapter wire into a standard
(115-120V.A.C.) wall outlet.
Note: Depending on your chair model it may have an additional battery back up
as shown below.
Transformer / Li-ion battery backup
P
A
T
E
N
T
E
D
L.E.D. light
(batteries not included)
batteries not included

9
4. Adjust the leg levelers on the bottom of the chair if necessary to level the
chair. Some high pile carpets can obstruct the footrest operation by rubbing
against it. Raise the levelers to a height above the pile.
5. Slide the hand control from between the back and arm out toward the back of
the chair. Secure the cord into the quick release cable clamp located above the
magazine pocket on the arm of the chair.
Note: For models PR535, PR632, PR735 and PR766 hand control routing
see "Care and Maintenance" on page 22.
CHAIR LOCATION
1. Place your chair in the room where it will be most convenient for you, such
as near the television, radio, reading light, end table, or other furniture. Leave
enough space between back of chair and wall or other obstruction to allow the
chair to recline unobstructed.
Note: The distance required is approximately 25 inches for all MaxiComfort
models. Recline space needed may vary based on chair model.
PR756MC
PR756L
PR535-PSA
PR535-MED
WARNING: Do not allow any objects to restrict movement of the back
of chair or the footrest, which can result in damage to the chair and/or
property damage.
Some carpets have a high plush pile that can rub on the bottom of the footrest.
This situation can damage the mechanism. You can correct this situation by
turning the levelers (located under the front of the chair) to raise the footrest
enough to clear the carpet.
2. While standing next to your chair, fully recline the chair to make sure the back
of the chair and footrest do not come in contact with an obstruction. Once you
have completed this test run, you are ready to use your lift chair.
Model Numbers
PR535-LAR
PR535-TAL
PR535-M26
PR535-M28
PR735-MLA
PR766-SMA
PR766-MED
PR766-LAR
PR510-SME
PR510-MLA
PR512-MLA
PR713
PR632
Installation - continued

10
Model: PR535-M28 with Knock Down Back Style

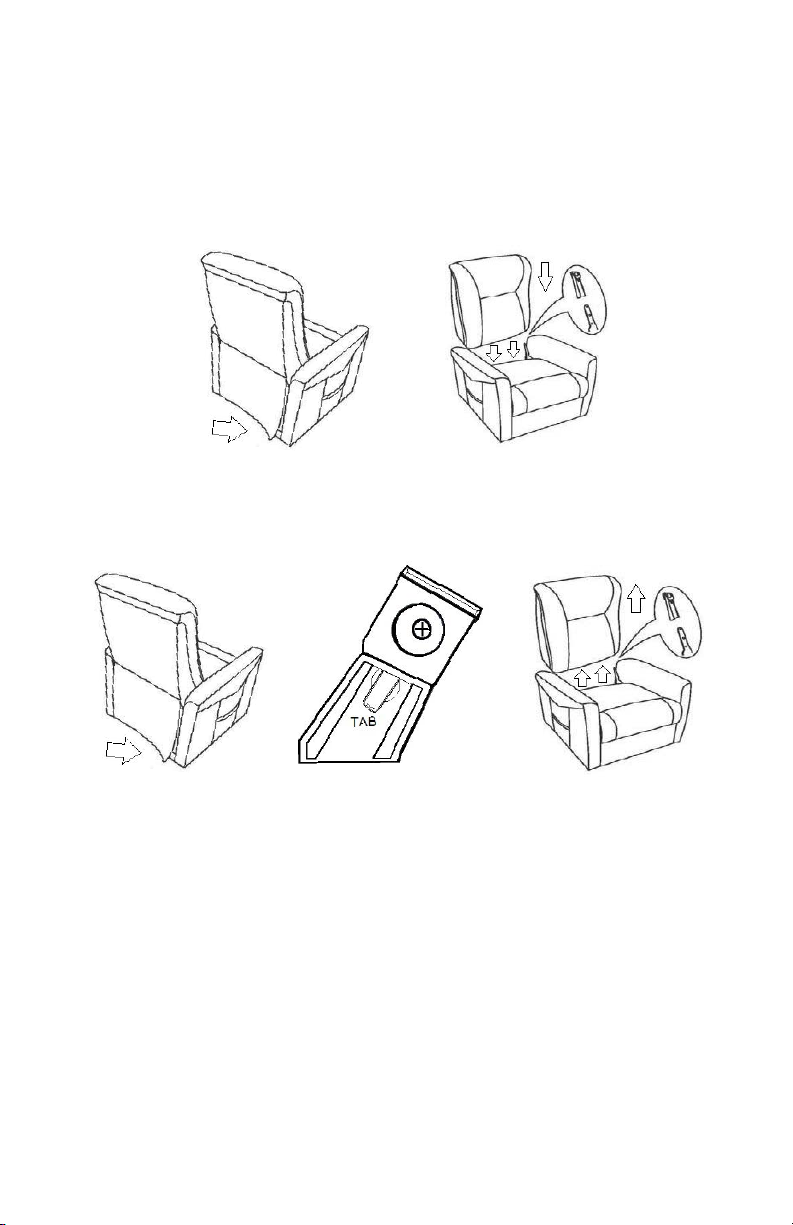

To install seat back:
1. Lift the fabric away from the Velcro on the cross rail.
2. Align both brackets, located on opposite sides of the seat back under the fabric
and the seat.
3. Push the seat back down to lock it into place. Note: An audible click will be
heard indicating the brackets are locked.
To remove seat back:
1. Lift the fabric away from the Velcro on the cross rail.
2. Lift the tab on both brackets, located on opposite sides of the seat back under
the fabric.
3. Lift the seat back up and off the seat of the chair.
Battery Backup Systems
Your Golden power lift chair may come with a battery back up system depending
on the model, so the chair can return to the seated position in the event of a
household power failure.
Models with 9 volt batteries have enough energy to bring the chair to a seated
position from the recline position. The batteries do not have enough energy nor
are they intended to operate the chair for a prolonged period of time in the absence
of standard household voltage (120 volt, 60 Hz). Batteries should be replaced after
one use. Batteries should be changed yearly. (See installation page 8.)
Models with the lithium battery pack have enough energy to bring the chair
to a seated position from the recline position. The lithium battery pack is not
intended to operate the chair for a prolonged period of time in the absence of
standard household voltage (120 volt, 60 Hz). However, the lithium battery pack
will self charge as long as the chair is plugged in and household voltage is present.
Batteries should be fully charged and disconnected from the lift chair if the chair
will not be used for extended periods of time.
Installation - continued

11

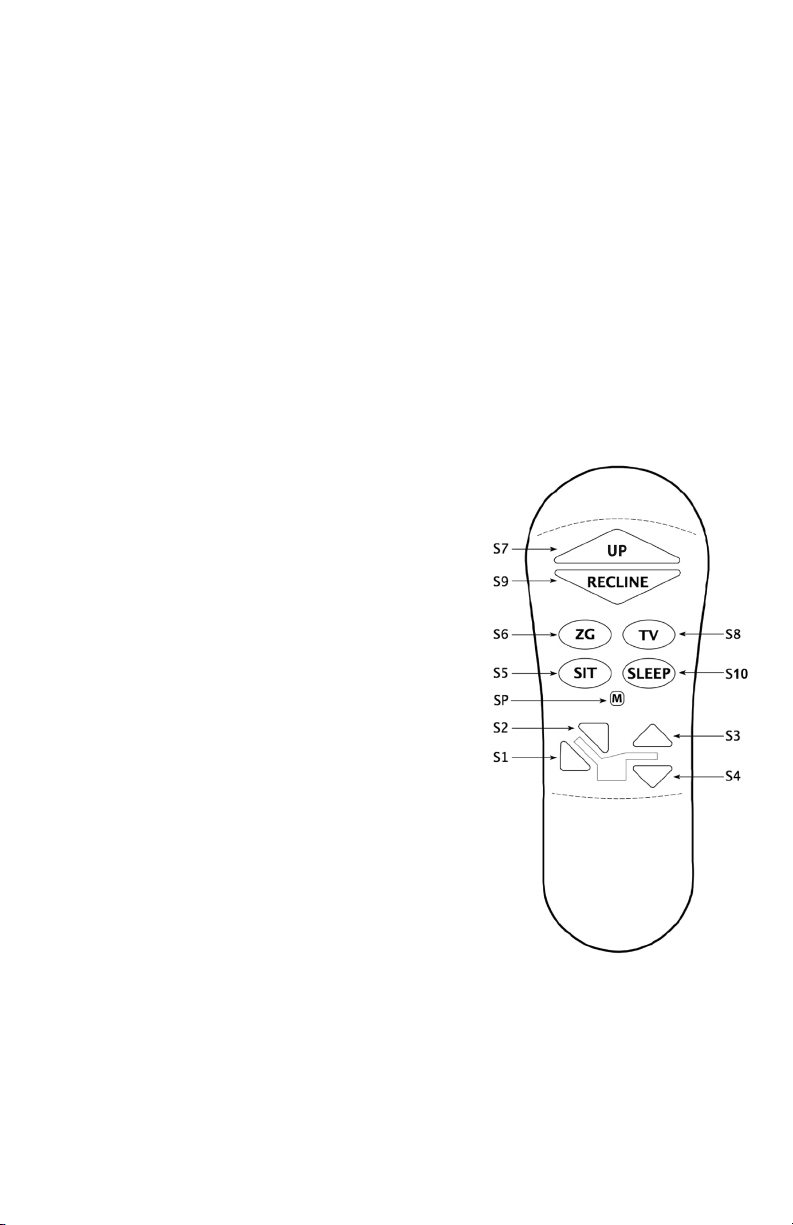

AutoDrive HAnD Control operAtion
1. Getting into your lift chair. While standing next to your chair, press button
(S7) and raise the chair to a height you can sit against. This height will vary
from person to person depending on the individual’s needs. Raise the chair
high enough so you do not have to flop down into the chair. Flopping down
into the chair will damage it and could cause personal injury. Press
button (S5). As the chair continues downward, adjust yourself into a position
that is comfortable to you. Continue holding button until chair is in the seated
position (chair firmly on the floor), then release the button. You can also press
buttons (S6, S8, S9, S10) and the chair will move to those positions.
2. Getting out of your chair. Press button (S7) and raise the chair to a height
that enables you to easily stand. Release the button. Return the chair to the
seated position (S5) (chair firmly on the floor) after getting out of the chair, so
children, pets or obstructions do not get under the chair. Repeat no. 1 when
you want to sit down.
Micro Adjustments
1. To recline the back of the chair, press
button (S1) and hold until the back reaches
the desired position. Then release the button.
2. To bring the back of the chair to an upright
position, press button (S2) and hold until
the back reaches the desired position. Then
release the button.
3. To raise the foot rest and seat, press button
(S3) and hold until the foot rest reaches the
desired position. Then release the button.
4. To lower the foot rest and seat, press
button (S4) and hold until the footrest closes.
Then release the button.
Note: The motors are set to shut off when
they reach their fully extended or fully
retracted position if the selected button
is not released. If you should go past your
desired position, select the button to bring you back to your desired
position. You can repeat the process as often as you like.
Programming the Memory Buttons S5, S6, S8 and S10
Press one of the preprogrammed buttons (S5, S6, S8, S10) and hold until the
chair stops. Press buttons (S1 thru S4) to micro adjust those positions to suit
your needs. Use the following procedure to reprogram (S5, S6, S8, S10) buttons
after you have the chair in your desired position.

12
1. Press and hold program button (SP). The back light goes off while pressed.
2. In about 3 seconds the backlight will start flashing (one flash)
3. Within 5 seconds, press one of the memory buttons (S5, S6, S8, S10) to save
the position to the button pressed. The back light will return to non-flashing
position indicating that the new position is stored.
If a programmable memory button is not pressed within 5 seconds, or a non-
programmable button is pressed, then the programming sequence is aborted and
you will need to repeat steps 1 to 3 above. You may reprogram the memory
buttons as often as you like.
Factory Reset
Resets all the programmed buttons (S5, S6, S8 and S10) back to the factory
settings.
1. Press and hold program button (SP). The backlight goes off while button is
pressed.
2. In about 4 seconds the backlight will start flashing.
3. Within 5 seconds, press button (S1). The backlight will change to non-flashing.
4. Within another 5 seconds, press button (S4). Factory reset is done.
If button (S1) is not pressed within 5 seconds, or a different button is pressed,
then the programming sequence is aborted and you’ll need to repeat steps 1 to
4 above.
Hand control disable
Hand control disable, disables all functions on the hand control
1. To disable, press and hold the program button (SP) for 4 seconds until the
backlight starts flashing. Then press button (S7).
2. To enable, press and hold the program button (SP) for 4 seconds until the
backlight starts flashing. Then press button (S7).
Function Lock
Should you ever want to limit the button function of your hand control, you can
use the function lock feature to disable all button function except for buttons (S7
and S9).
1. To lock function, press and hold the program button (SP) for 4 seconds until
the backlight starts flashing.
2. Press button (S1), press button (S2), press button (S3), press button (S6).
3. To unlock function, press and hold the program button (SP) for 4 seconds until
the backlight starts flashing.
4. Press button (S1), press button (S2), press button (S3), press button (S6).

13
Chair Operation Model PR535-M26
1. To recline the back of the chair, press button (S1) and hold until the back
reaches the desired position. Then release the button.
2. To bring the back of the chair to an upright position, press button (S2)
and hold until the back reaches the desired position. Then release the button.
3. To raise the foot rest, press button (S3) and hold until the foot rest reaches
the desired position. Then release the button.
4. To lower the foot rest and lift the chair, press button (S4) and hold until the
footrest closes, then release the button. If you want to lift the chair, continue
holding button until chair reaches the desired height. Then release the button.
5. To lower the chair from a raised position, press button (S5) and hold until
the chair reaches the floor. Then release the button. If you want to raise the
footrest, continue holding the button until the footrest reaches the desired
position. Then release the button. Button (S4) will also lower the chair from a
raised position.
6. To lift the chair from a seated position (footrest closed), press button (S6).
Continue holding button until chair reaches the desired height. Then release
the button.
7. To lift the chair with the back open (back down, footrest closed), press
button (S4). Continue holding the button until the chair reaches the desired
height. Then release the button.
8. To close and lift the chair from a
reclined position (footrest up, back down),
press button (S6). If you want to bring the
chair to a seated position, hold the button
until the footrest closes, then release it. Press
button (S2) to bring the back the rest of the
way up to seated position. If you want to close
and lift the chair, hold down the button until
the chair stops. All 3 motors will automatically
shut off when the back closes all the way and
the chair reaches its highest position.
9. Getting into your lift chair. While standing next
to your chair, press button (S4 or S6) and raise the
chair to a height you can sit against. This height
will vary from person to person depending on the
individual’s needs. Raise the chair high enough
so you do not have to flop down into the chair.
Flopping down into the chair will damage it
S1
L.E.D.
light
S2
S3 S4
S5 S6
P
A
T
E
N
T
E
D

14
and could cause personal injury. Press button (S3 or S5). As the chair
continues downward, adjust yourself into a position that is comfortable to you.
Continue holding button until chair is in the seated position (chair firmly on
the floor), then release the button. Continue operating the chair with buttons
S1 thru S6 until you reach your desired position.
10.Getting out of your chair. Press button (S4 or S6) and raise the chair to a
height that enables you to easily stand. Release the button. Return the chair
to the seated position (chair firmly on the floor) after getting out of the chair
so children, pets or obstructions do not get under the chair. Repeat no. 9 when
you want to sit down.
Note: The motors are set to shut off when they reach their fully extended
or fully retracted position if the selected button is not released. If you
should go past your desired position, select the button to bring you
back to your desired position. You can repeat the process as often as
you like.

15

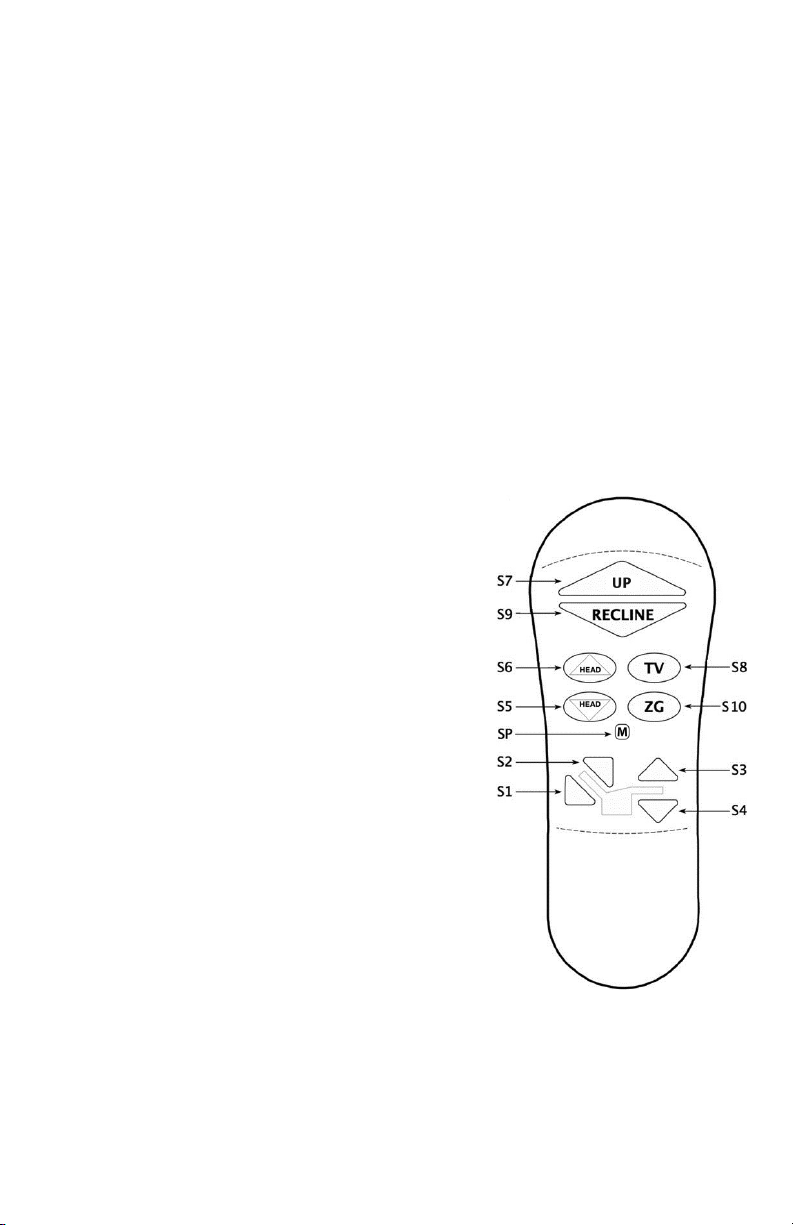

AutoDrive HeAD rest HAnD Control operAtion
Model PR512
1. Getting into your lift chair. While standing next to your chair, press button
(S7) and raise the chair to a height you can sit against. This height will vary
from person to person depending on the individual’s needs. Raise the chair
high enough so you do not have to flop down into the chair. Flopping down
into the chair will damage it and could cause personal injury. Press
button (S9). As the chair continues downward, adjust yourself into a position
that is comfortable to you. Continue holding (S9) until chair is in the seated
position (chair firmly on the floor), then release the button. You can also press
buttons (S8, S10) and the chair will move to those positions.
2. Getting out of your chair. Press button (S7) and raise the chair to a height
that enables you to easily stand. Release the button. Return the chair to the
seated position (S9) (chair firmly on the floor) after getting out of the chair, so
children, pets or obstructions do not get under the chair. Repeat no. 1 when
you want to sit down. Micro adjustment buttons (S3, S4) can be used to raise
and lower the chair also.
3. To move the head rest up and out. Press
button (S6) and hold it until the head rest
reaches a position suitable for you, then
release the button.
4. To move the head rest down and in.
Press button (S5) and hold it until the head
rest reaches a position suitable for you, then
release the button.
Micro Adjustments
1. To recline the back of the chair, press
button (S1) and hold until the back reaches the
desired position. Then release the button.
2. To bring the back of the chair to an upright
position, press button (S2) and hold until
the back reaches the desired position. Then
release the button.
3. To raise the foot rest and seat, press button
(S3) and hold until the foot rest reaches the
desired position. Then release the button.
4. To lower the foot rest and seat, press button (S4) and hold until the footrest
closes. Then release the button.
Note: The motors are set to shut off when they reach their fully extended
or fully retracted position if the selected button is not released. If you
should go past your desired position, select the button to bring you back
to your desired position. You can repeat the process as often as you like.

16
Programming the Memory Buttons S8 and S10
Press one of the preprogrammed buttons (S8, S10) and hold until the chair stops.
Press buttons (S1 thru S4) to micro adjust those positions to suit your needs. Use
the following procedure to reprogram (S8, S10) buttons after you have the chair
in your desired position.
1. Press and hold program button (SP). The back light goes off while pressed.
2. In about 3 seconds the backlight will start flashing (one flash)
3. Within 5 seconds, press one of the memory buttons (S8, S10) to save the
position to the button pressed. The back light will return to non-flashing
position indicating that the new position is stored.
If a programmable memory button is not pressed within 5 seconds, or a non-
programmable button is pressed, then the programming sequence is aborted and
you will need to repeat steps 1 to 3 above. You may reprogram the memory
buttons as often as you like. Factory Reset
Resets all the programmed buttons (S8 and S10) back to the factory settings.
1. Press and hold program button (SP). The backlight goes off while button is
pressed.
2. In about 4 seconds the backlight will start flashing.
3. Within 5 seconds, press button (S1). The backlight will change to non-flashing.
4. Within another 5 seconds, press button (S4). Factory reset is done.
If button (S1) is not pressed within 5 seconds, or a different button is pressed,
then the programming sequence is aborted and you’ll need to repeat steps 1 to
4 above. Hand control disable
Hand control disable, disables all functions on the hand control
1. To disable, press and hold the program button (SP) for 4 seconds until the
backlight starts flashing. Then press button (S7).
2. To enable, press and hold the program button (SP) for 4 seconds until the
backlight starts flashing. Then press button (S7).
Function Lock
Should you ever want to limit the button function of your hand control, you can
use the function lock feature to disable all button function except for buttons (S7
and S9).
1. To lock function, press and hold the program button (SP) for 4 seconds until
the backlight starts flashing.
2. Press button (S1), press button (S2), press button (S3), press button (S6).
3. To unlock function, press and hold the program button (SP) for 4 seconds until
the backlight starts flashing.
4. Press button (S1), press button (S2), press button (S3), press button (S6).

17
AutoDrive HeAD rest & lumbAr HAnD Control operAtion
1. Getting into your lift chair. While standing next to your chair, press button
(S7) and raise the chair to a height you can sit against. This height will vary
from person to person depending on the individual’s needs. Raise the chair
high enough so you do not have to flop down into the chair. Flopping down
into the chair will damage it and could cause personal injury. Press
button (S5). As the chair continues downward, adjust yourself into a position
that is comfortable to you. Continue holding (S5) until chair is in the seated
position (chair firmly on the floor), then release the button. You can also press
buttons (S6, S8, S9, S10) and the chair will move to those positions.
2. Getting out of your chair. Press button (S7) and raise the chair to a height
that enables you to easily stand. Release the button. Return the chair to the
seated position (S5) (chair firmly on the floor) after getting out of the chair, so
children, pets or obstructions do not get under the chair. Repeat no. 1 when
you want to sit down. Micro adjustment buttons (S3, S4) can be used to raise
and lower the chair also.
Micro Adjustments
1. To recline the back of the chair, press button (S1) and hold until the back
reaches the desired position. Then release the button.
2. To bring the back of the chair to an upright position, press button (S2)
and hold until the back reaches the desired position. Then release the button.
3. To raise the foot rest and seat, press button (S3) and hold until the foot rest
reaches the desired position. Then release the button.
4. To lower the foot rest and seat, press button (S4) and hold until the footrest
closes. Then release the button.
Note: The motors are set to shut off when they
reach their fully extended or fully retracted
position if the selected button is not released. If
you should go past your desired position, select the
button to bring you back to your desired position.
You can repeat the process as often as you like.
Headrest Adjustments
1. To move the head rest up and out. Press button
(S12) and hold it until the head rest reaches a
position suitable for you, then release the button.
2. To move the head rest down and in. Press
button (S11) and hold it until the head rest reaches
a position suitable for you, then release the button.
Lumbar Adjustments
1. To move the lumbar out. Press button (S14) and
hold it until the lumbar reaches a position suitable
for you, then release the button.
2. To move the lumber in. Press button (S13) and
hold it until the lumbar reaches a position suitable for you, then release the
button.
S7
S8
S9
S10
S6
S14
S5
SP
S4
S2 S3
S1
S12
S11
S13

18
Initial Hand Control Setup
This setup is required to ensure proper operation of your lift chair’s
control system.
ZK3200-HC Setup/Reset Procedure:
Press and hold both buttons (S1) Backrest down and (S3)
Footrest up simultaneously (see photo) until the chair stops
moving. Continue to hold both buttons simultaneously for
an additional three seconds.
Final Setup/Reset Position
• The control system relies on sensors and memory to function properly.
• From time to time, the control system may need to be reset.
• This may be due to normal circumstances such as disconnecting power
abruptly, power surges, or electrical outages.
• If the movement of the chair does not feel correct, resetting the system may
resolve the issue.
Troubleshooting
The setup of the chair requires the steps to be conducted as stated. If the chair
does not operate correctly one of the following may have occurred:
• The incorrect buttons were used during setup.
• The buttons were released prior to the chair reaching the final setup position.
• Power disconnected or lost during setup.
The position of the chair when using the setup procedure will not affect operations.
If any of these issues occurred and the chair does not seem to operate correctly,
please repeat the Setup Procedure.
S3
S1

19
Programming the Memory Buttons S5, S6, S8 and S10
Press one of the preprogrammed buttons (S5, S6, S8, S10) and hold until the
chair stops.
Press buttons (S1 thru S4) to micro adjust those positions to suit your needs. Use
the following procedure to reprogram (S5, S6, S8, S10) buttons after you have the
chair in your desired position.
1. Press and hold program button (SP). The back light goes off while pressed.
2. In about 3 seconds the backlight will start flashing (one flash).
3. Within 5 seconds, press one of the memory buttons (S5, S6, S8, S10) to save
the position to the button pressed. The back light will return to non-flashing
position indicating that the new position is stored.
If a programmable memory button is not pressed within 5 seconds, or a
nonprogrammable button is pressed, then the programming sequence is aborted
and you will need to repeat steps 1 to 3 above. You may reprogram the memory
buttons as often as you like.
Factory Reset
Resets all the programmed buttons (S5, S6, S8, S10) back to the factory settings.
1. Press and hold program button (SP). The backlight goes off while button is
pressed.
2. In about 4 seconds the backlight will start flashing.
3. Within 5 seconds, press button (S1). The backlight will change to non-flashing.
4. Within another 5 seconds, press button (S4). Factory reset is done.
If button (S1) is not pressed within 5 seconds, or a different button is pressed,
then the programming sequence is aborted and you’ll need to repeat steps 1 to
4 above. Hand control disable
Hand control disable, disables all functions on the hand control.
1. To disable, press and hold the program button (SP) for 4 seconds until the
backlight starts flashing. Then press button (S7).
2. To enable, press and hold the program button (SP) for 4 seconds until the
backlight starts flashing. Then press button (S7).
Function Lock
Should you ever want to limit the button function of your hand control, you can
use the function lock feature to disable all button function except for buttons
(S7 and S9).
1. To lock function, press and hold the program button (SP) for 4 seconds until
the backlight starts flashing.
2. Press button (S1), press button (S2), press button (S3), press button (S6).
3. To unlock function, press and hold the program button (SP) for 4 seconds until
the backlight starts flashing.
4. Press button (S1), press button (S2), press button (S3), press button (S6).

20
Lights Out Feature:
This feature will automatically shut off the backlight on the hand control after a
specified period of inactivity (approximately 15 seconds).
To activate the “Lights Out Feature”, follow the procedure below.
1. Press and hold the (SP) button “M”, until the backlight starts flashing.
2. Press the key sequence: (S1) Backrest down, (S2) Backrest up, and (S5) SIT.
To turn off the “Lights Out Feature”, repeat steps 1 – 2.
Smart Tek™ (Power Indication)
Your power lift chair is equipped with an indicator light on the hand control. This
light illuminates green when any button on the hand control is pressed indicating
power to the hand control.
Your power lift chair also comes with a power indicator light on the transformer
and on the power cord connecting the motor to the transformer. The lights
illuminate green constantly, indicating power from the outlet to the transformer
and the motor. The lights have been provided to help you identify electrical
disconnects, should they occur, and to help your provider to diagnose electrical
problems, should they occur.
Should the chair not operate and the lights are out, check all electrical
connections to the chair. Make sure everything is plugged in properly and there
is power to the outlet into which the chair is plugged (see installation on page
8 and 9 for electrical connections). Should you ever encounter a problem
with the operation of your power lift chair and the lights are on, such
as mechanical problems or one light is out, discontinue all use of the
product upon discovery of the problem. Contact the provider from whom
you purchased your chair. They will be able to resolve problems and take care of
proper factory service if needed. You will need to be prepared to answer some
basic questions about your power lift chair, such as model and serial number.
The model and serial number are located on the back of the hand control and
the rear of the lift frame. Your provider will ask you questions about your power
indicator lights, such as which one is out. Prior to calling your provider, check
all the electrical connections to the chair. Make sure everything is plugged in
properly and there is power to the outlet into which the chair is plugged (see
installation on page 8 and 9 for electrical connections).
P
A
T
E
N
T
E
D
